1998 NISSAN PICK-UP Repair Manual

HEL333A
PARKING, LICENSE AND TAIL LAMPS

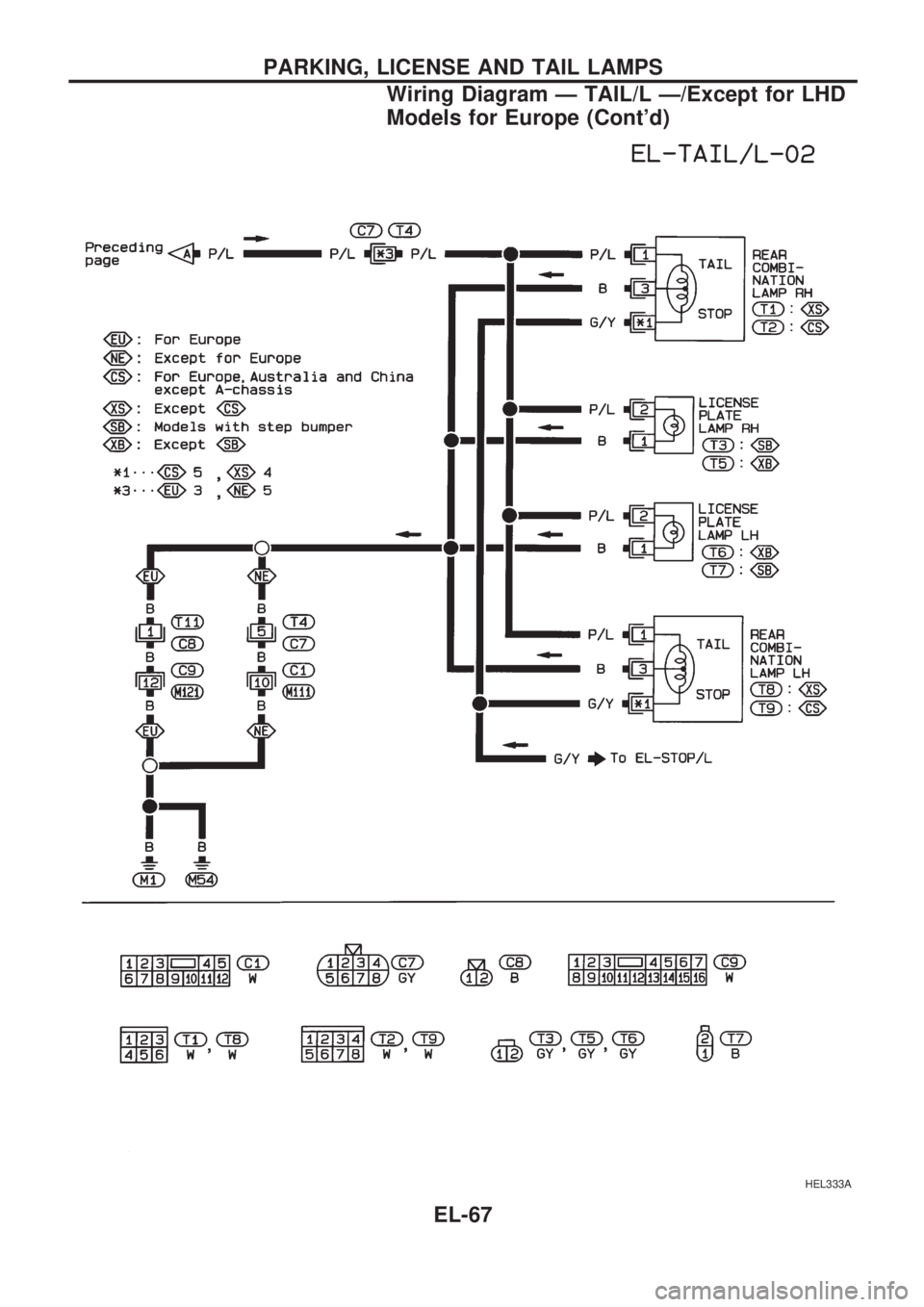

Wiring Diagram Ð TAIL/L Ð/Except for LHD
Models for Europe (Cont'd)
EL-67

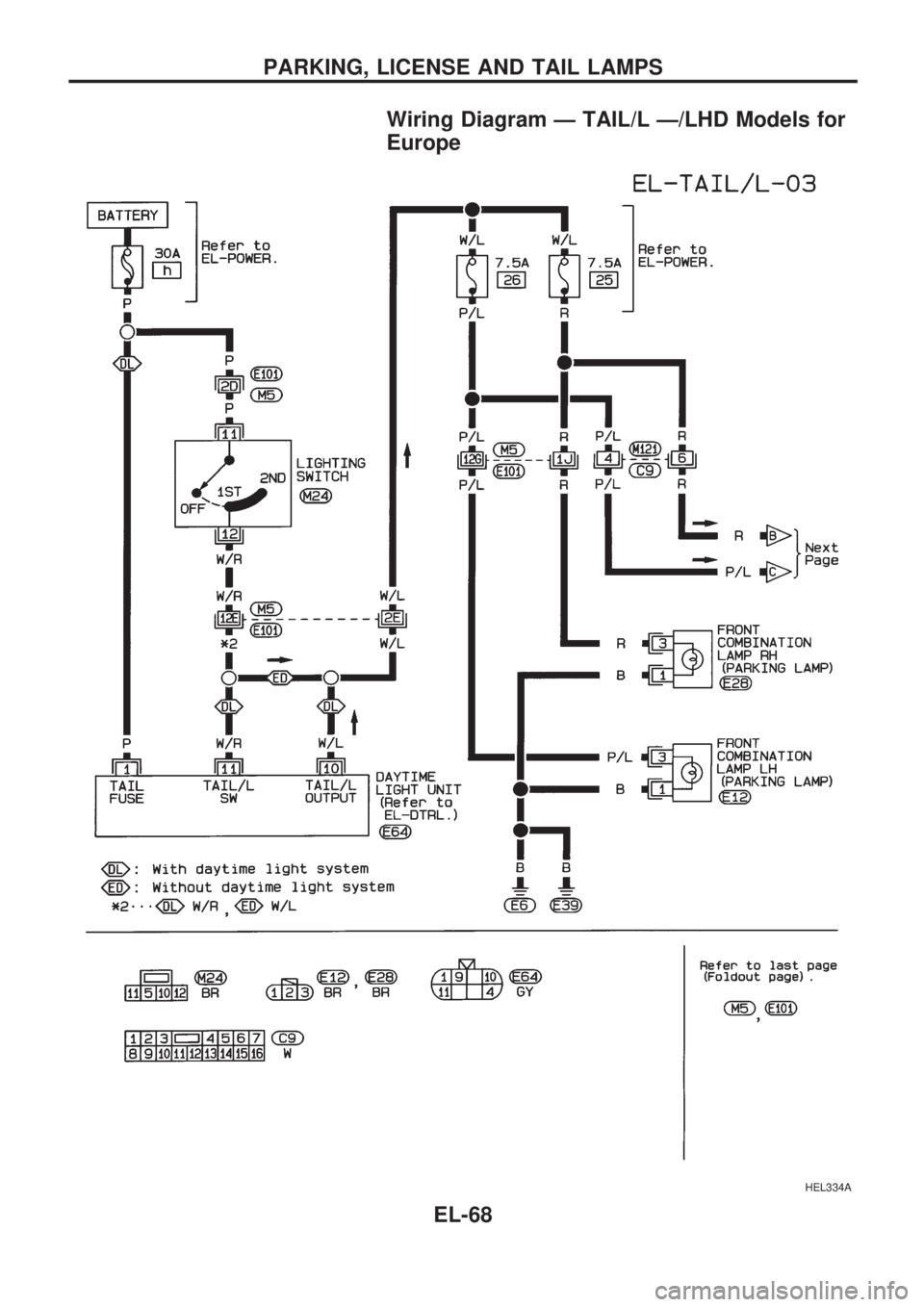

Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe
HEL334A
PARKING, LICENSE AND TAIL LAMPS
EL-68

HEL335A
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe (Cont'd)
EL-69

Wiring Diagram Ð STOP/L Ð
HEL336A
STOP LAMP
EL-70

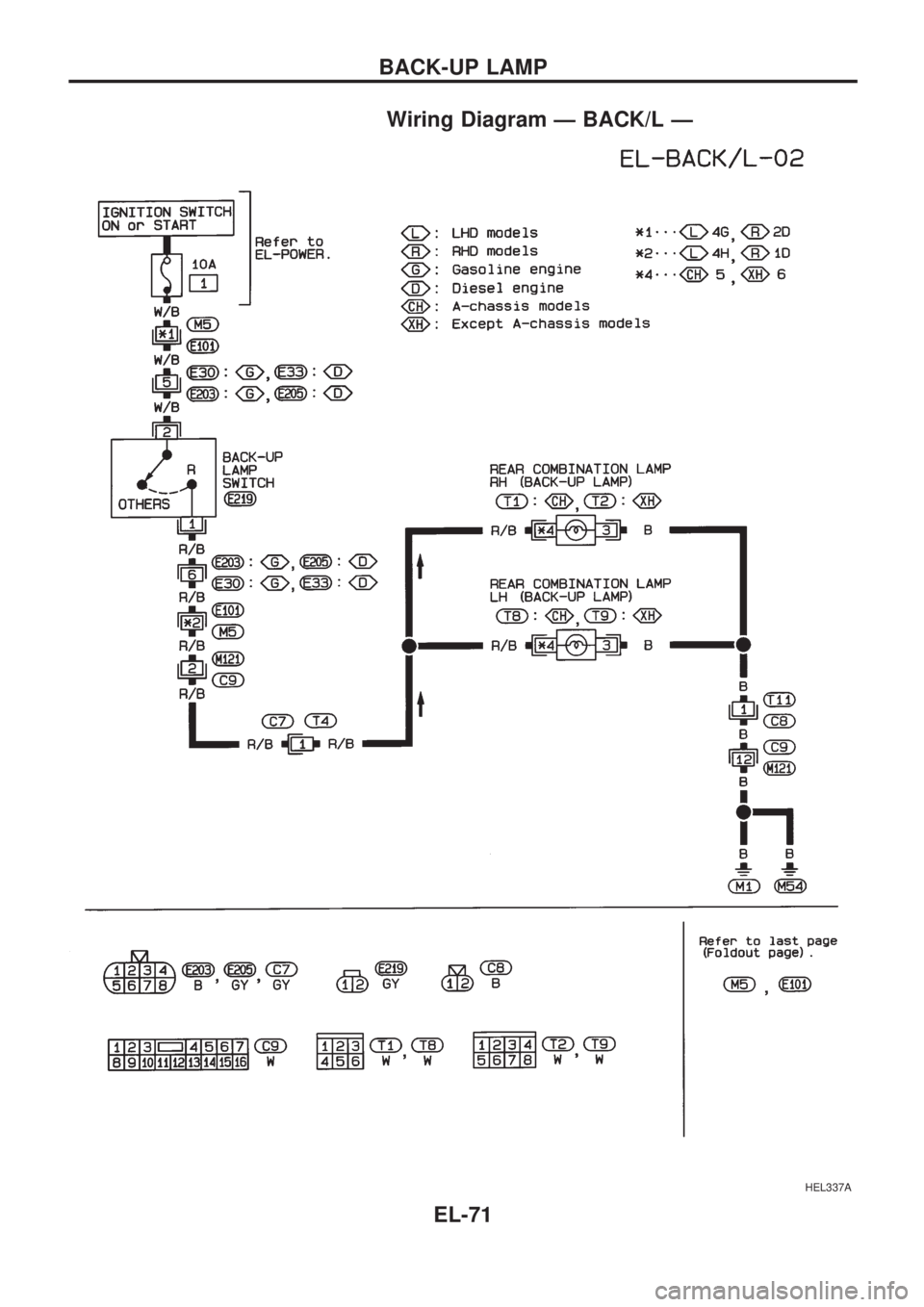

Wiring Diagram Ð BACK/L Ð
HEL337A
BACK-UP LAMP
EL-71

Wiring Diagram Ð R/FOG Ð/LHD Models
HEL338A
REAR FOG LAMP
EL-72

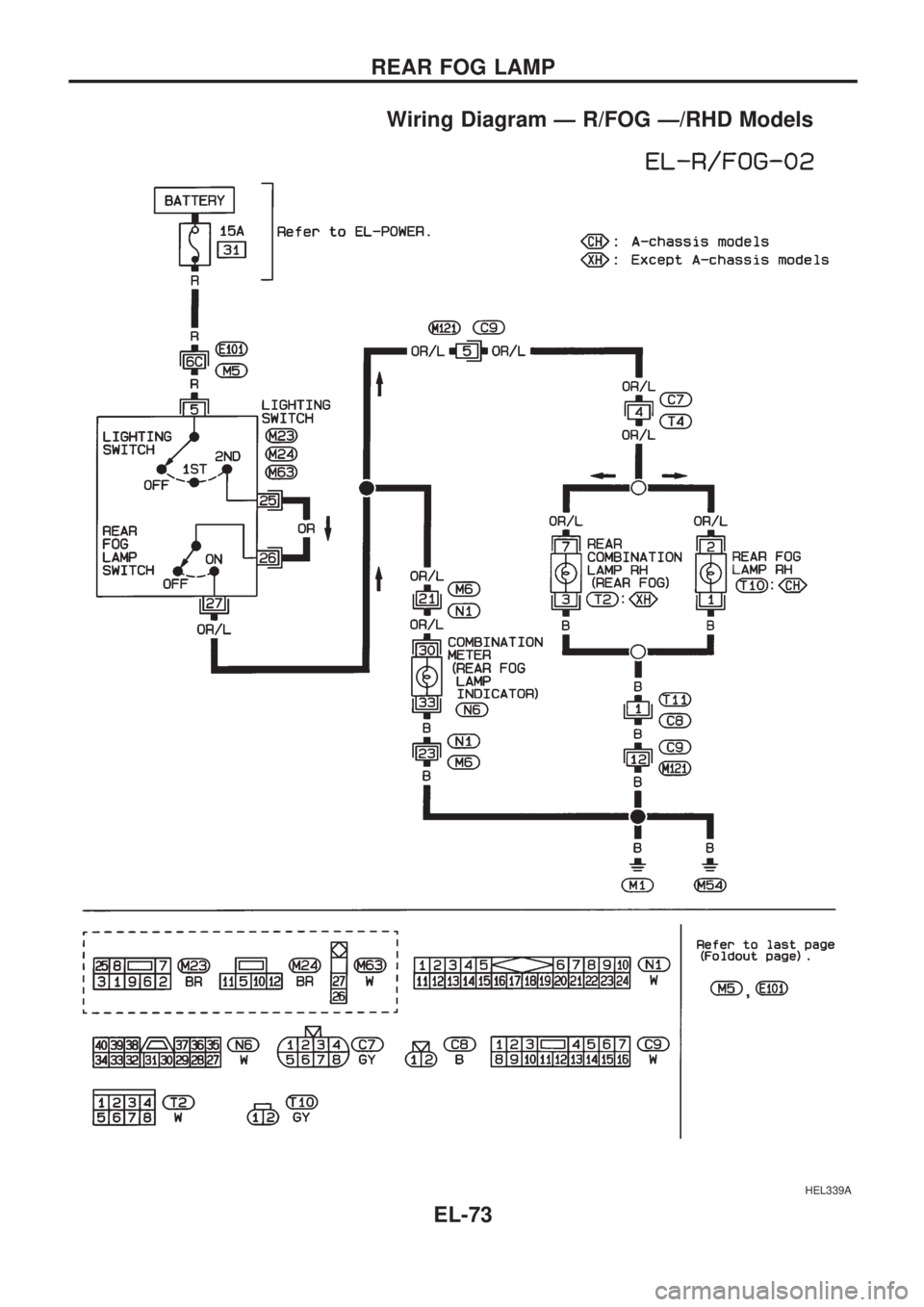

Wiring Diagram Ð R/FOG Ð/RHD Models
HEL339A
REAR FOG LAMP
EL-73

Schematic
HEL340A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-74
