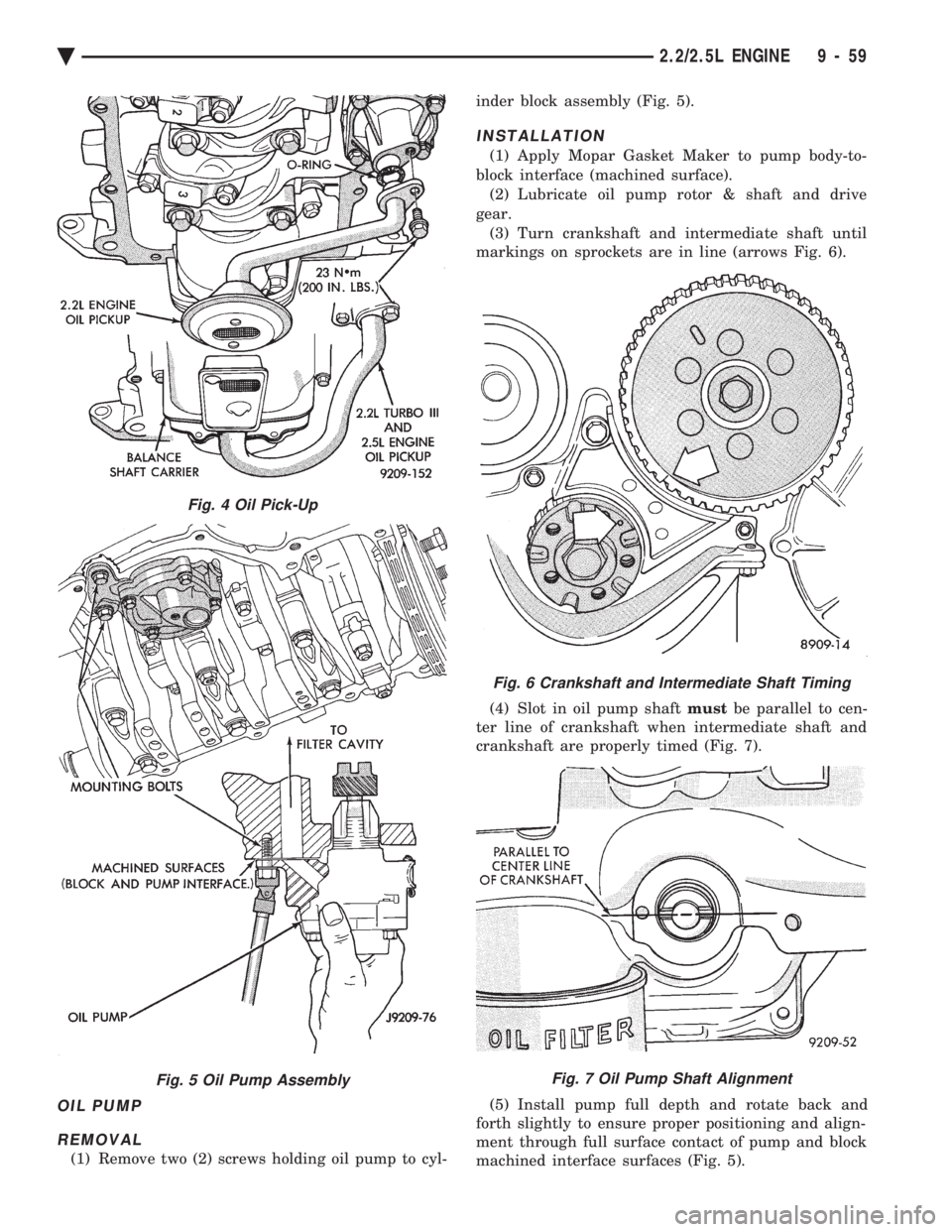

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual OIL PUMP REMOVAL
(1) Remove two (2) screws holding oil pump to cyl- inder block assembly (Fig. 5).
INSTALLATION
(1) Apply Mopar Gasket Maker to pump body-to-
block interface (machined surface). (2)

Page 1626 of 2438

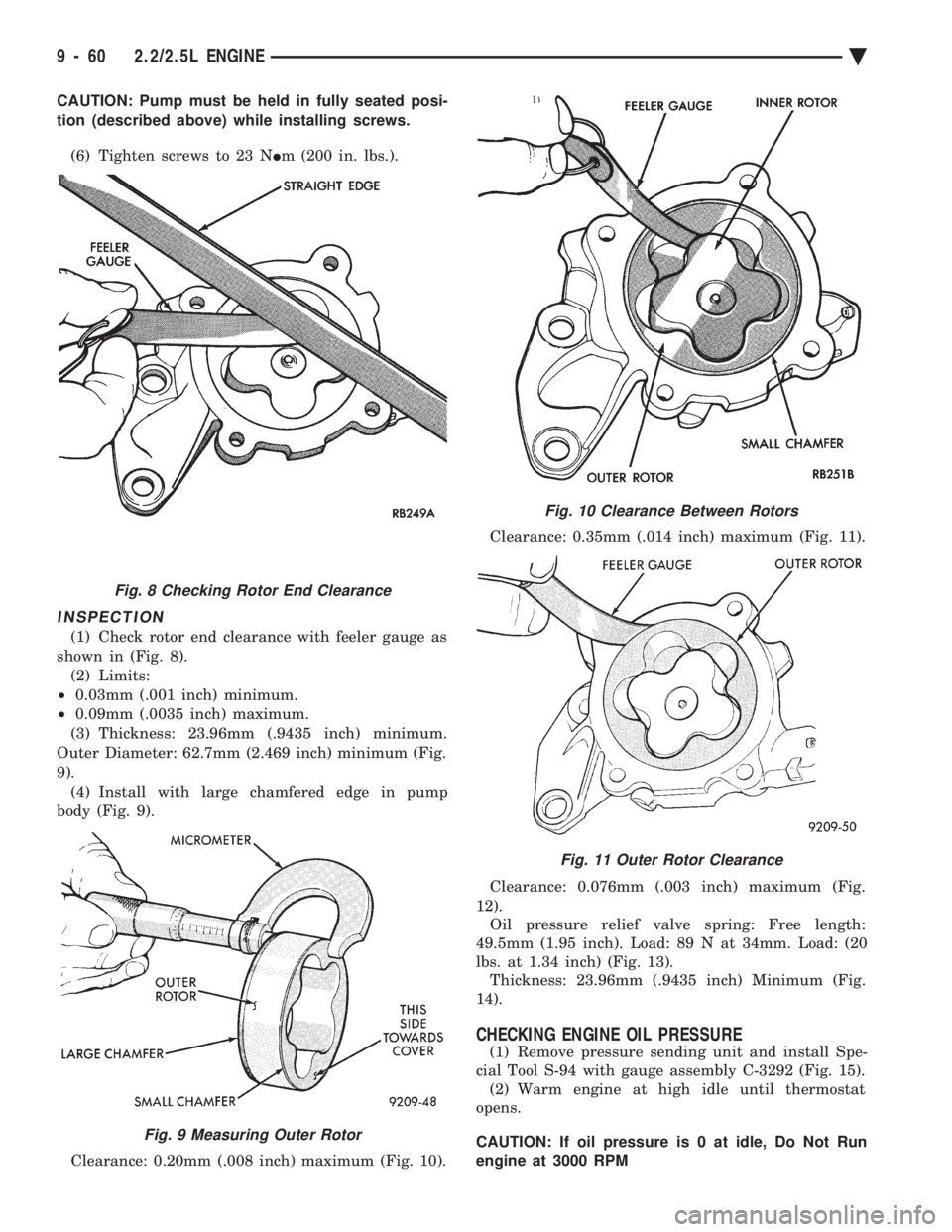

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual CAUTION: Pump must be held in fully seated posi-
tion (described above) while installing screws. (6) Tighten screws to 23 N Im (200 in. lbs.).
INSPECTION
(1) Check rotor end clearance with feeler ga

Page 1627 of 2438

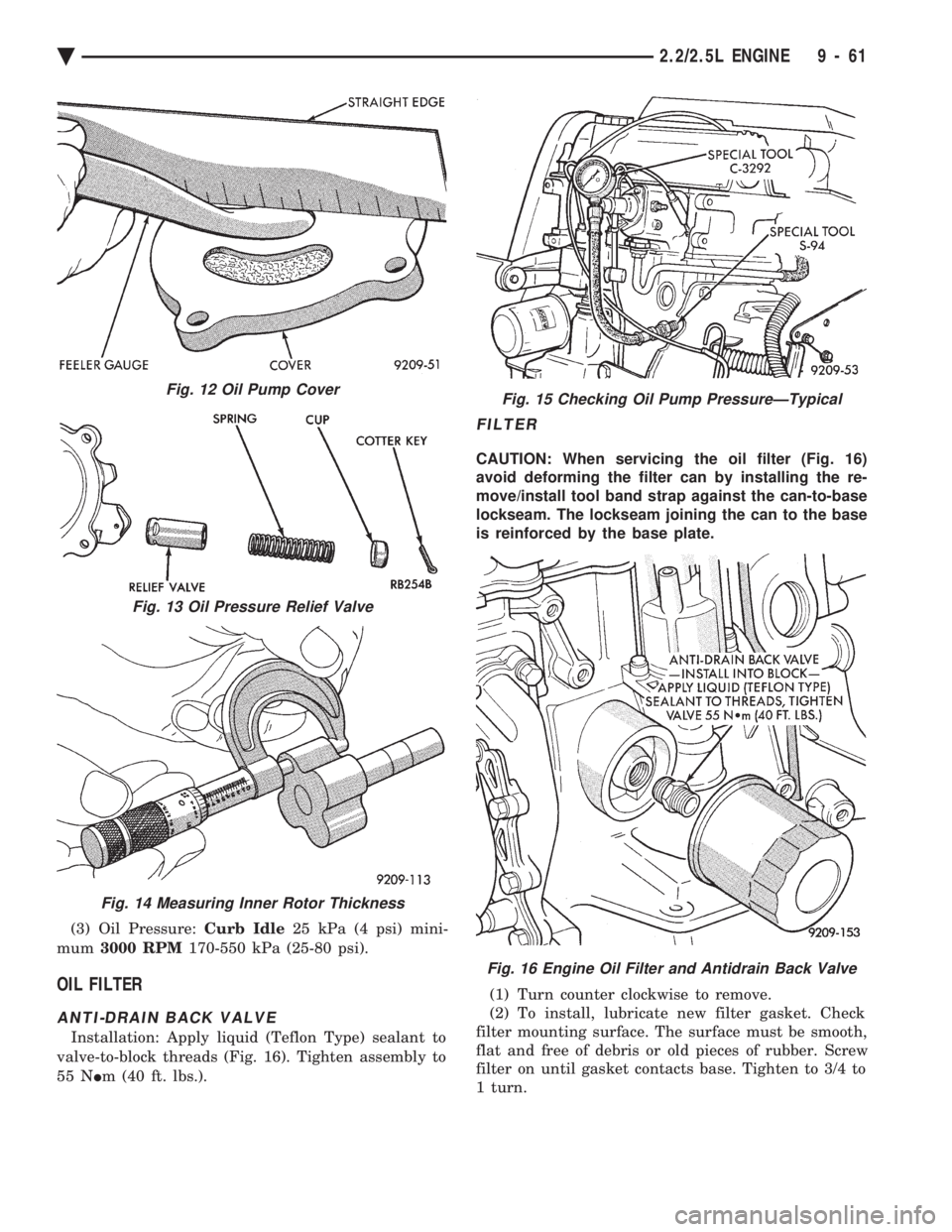

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual (3) Oil Pressure: Curb Idle25 kPa (4 psi) mini-
mum 3000 RPM 170-550 kPa (25-80 psi).
OIL FILTER
ANTI-DRAIN BACK VALVE
Installation: Apply liquid (Teflon Type) sealant to
valve-to-block threads (Fi

Page 1628 of 2438

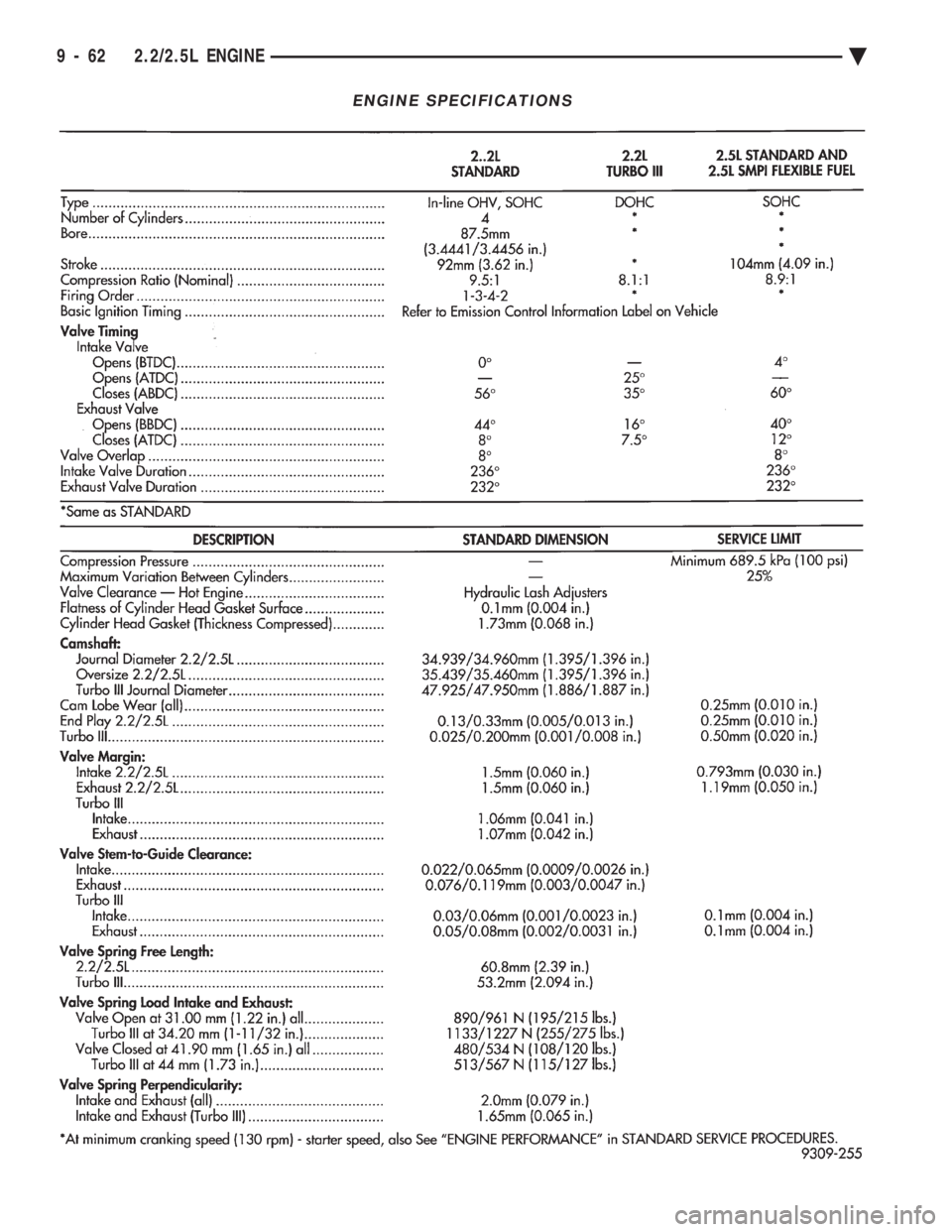

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual ENGINE SPECIFICATIONS
9 - 62 2.2/2.5L ENGINE Ä

Page 1629 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual ENGINE SPECIFICATIONS (CONT.)
Ä 2.2/2.5L ENGINE 9 - 63

Page 1630 of 2438

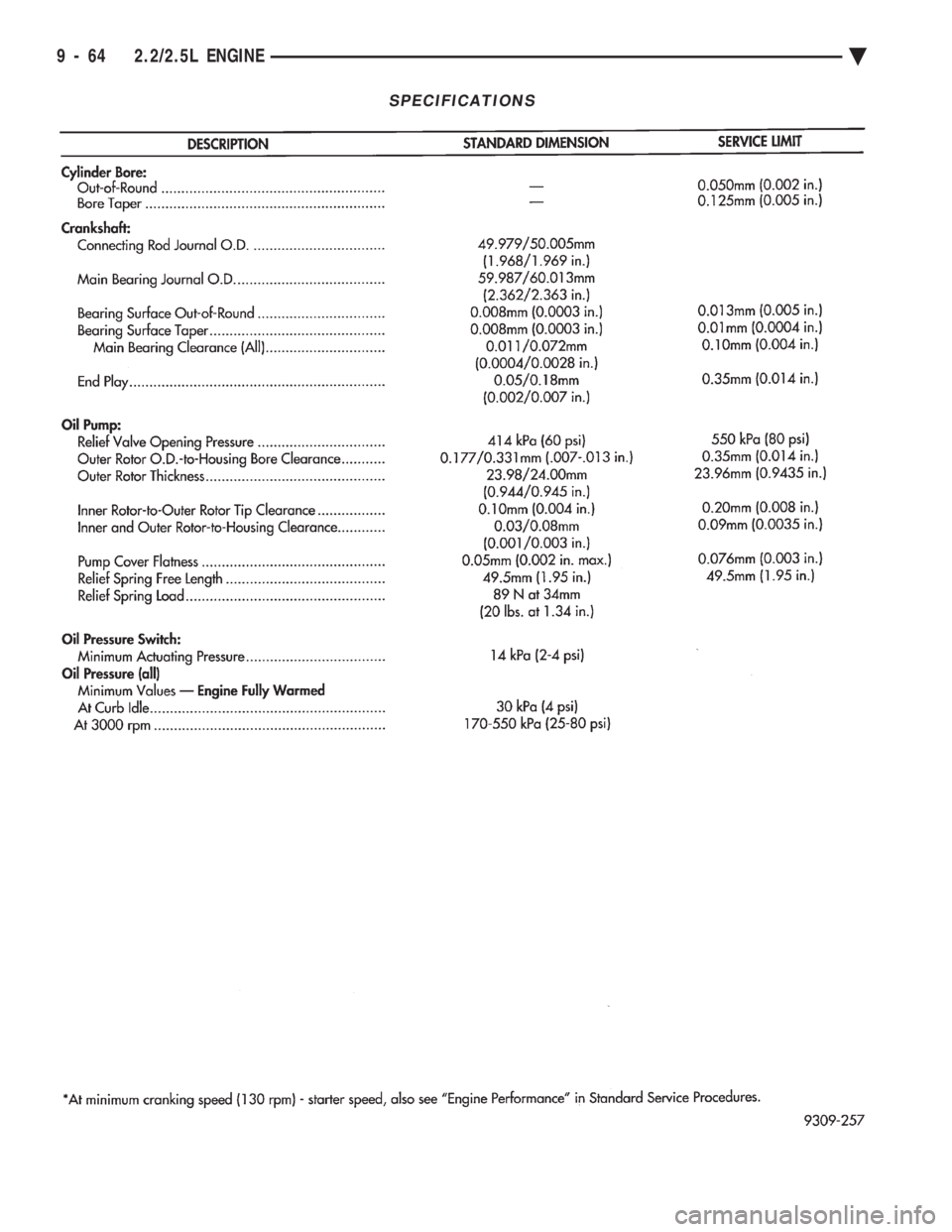

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual SPECIFICATIONS
9 - 64 2.2/2.5L ENGINE Ä

Page 1631 of 2438

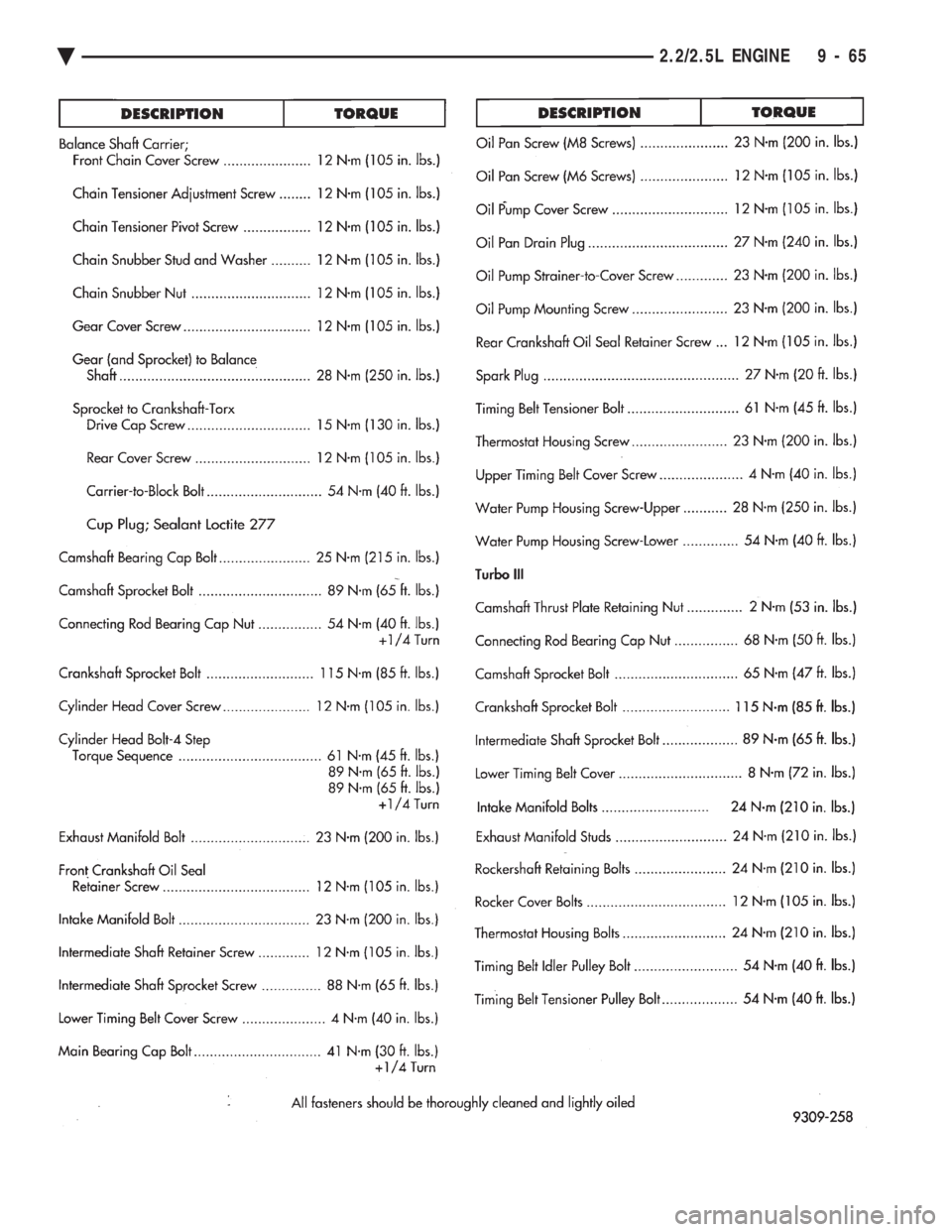

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Ä 2.2/2.5L ENGINE 9 - 65

Page 1632 of 2438

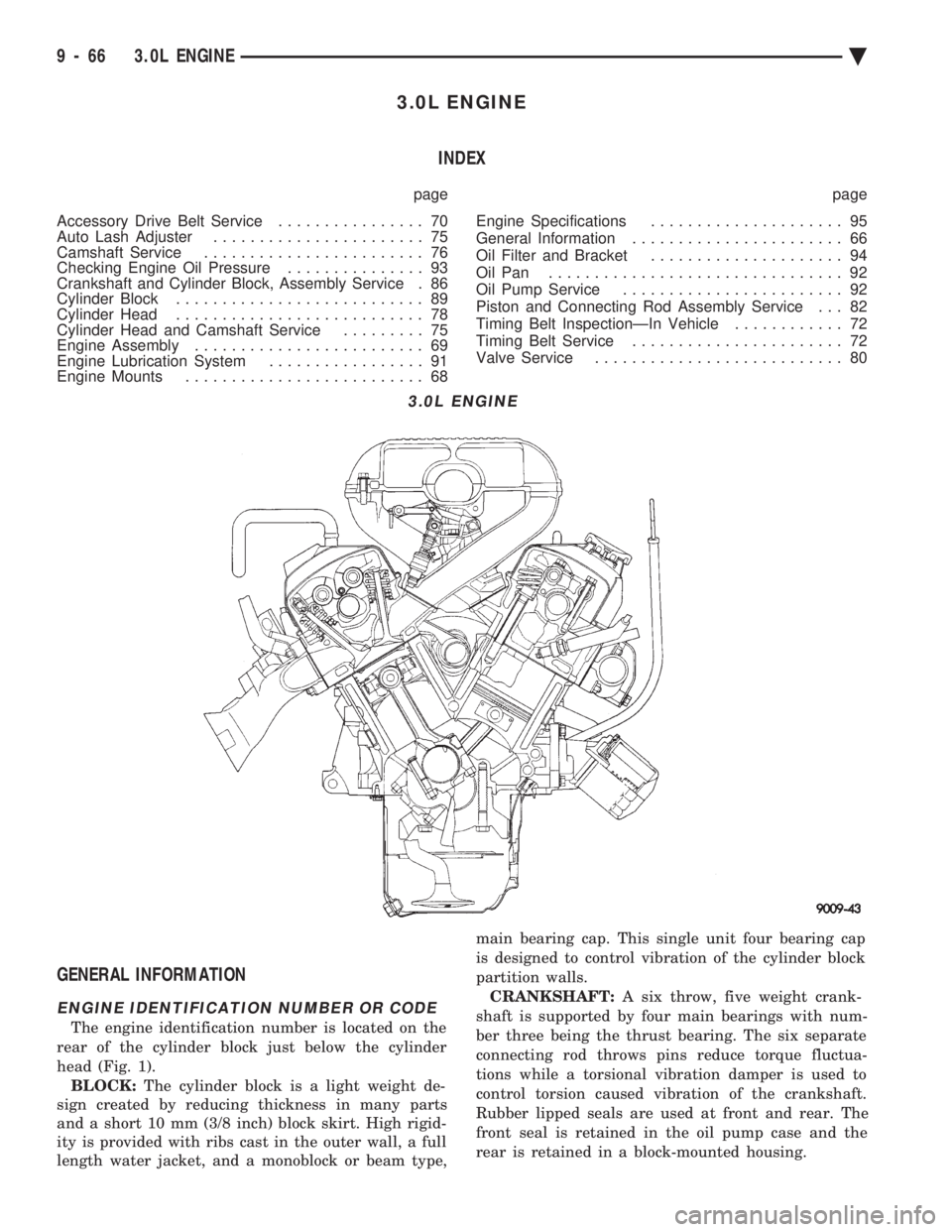

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual 3.0L ENGINE INDEX
page page
Accessory Drive Belt Service ................ 70
Auto Lash Adjuster ....................... 75
Camshaft Service ........................ 76
Checking Engine Oil Press

3.0L ENGINE INDEX
page page
Accessory Drive Belt Service ................ 70
Auto Lash Adjuster ....................... 75
Camshaft Service ........................ 76
Checking Engine Oil Pressure ............... 93
Crankshaft and Cylinder Block, Assembly Service . 86
Cylinder Block ........................... 89
Cylinder Head ........................... 78
Cylinder Head and Camshaft Service ......... 75
Engine Assembly ......................... 69
Engine Lubrication System ................. 91
Engine Mounts .......................... 68 Engine Specifications
..................... 95
General Information ....................... 66
Oil Filter and Bracket ..................... 94
Oil Pan ................................ 92
Oil Pump Service ........................ 92
Piston and Connecting Rod Assembly Service . . . 82
Timing Belt InspectionÐIn Vehicle ............ 72
Timing Belt Service ....................... 72
Valve Service ........................... 80
GENERAL INFORMATION
ENGINE IDENTIFICATION NUMBER OR CODE
The engine identification number is located on the
rear of the cylinder block just below the cylinder
head (Fig. 1). BLOCK: The cylinder block is a light weight de-
sign created by reducing thickness in many parts
and a short 10 mm (3/8 inch) block skirt. High rigid-
ity is provided with ribs cast in the outer wall, a full
length water jacket, and a monoblock or beam type, main bearing cap. This single unit four bearing cap
is designed to control vibration of the cylinder block
partition walls.
CRANKSHAFT: A six throw, five weight crank-
shaft is supported by four main bearings with num-
ber three being the thrust bearing. The six separate
connecting rod throws pins reduce torque fluctua-
tions while a torsional vibration damper is used to
control torsion caused vibration of the crankshaft.
Rubber lipped seals are used at front and rear. The
front seal is retained in the oil pump case and the
rear is retained in a block-mounted housing.
3.0L ENGINE
9 - 66 3.0L ENGINE Ä
