CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 10 Instrument Panel Wiring (Routing) AG Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 67

Page 818 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 11 Instrument Panel Wiring (Connections) AG Body 8W - 68 WIRING AND COMPONENT IDENTIFICATION Ä

Page 819 of 2438

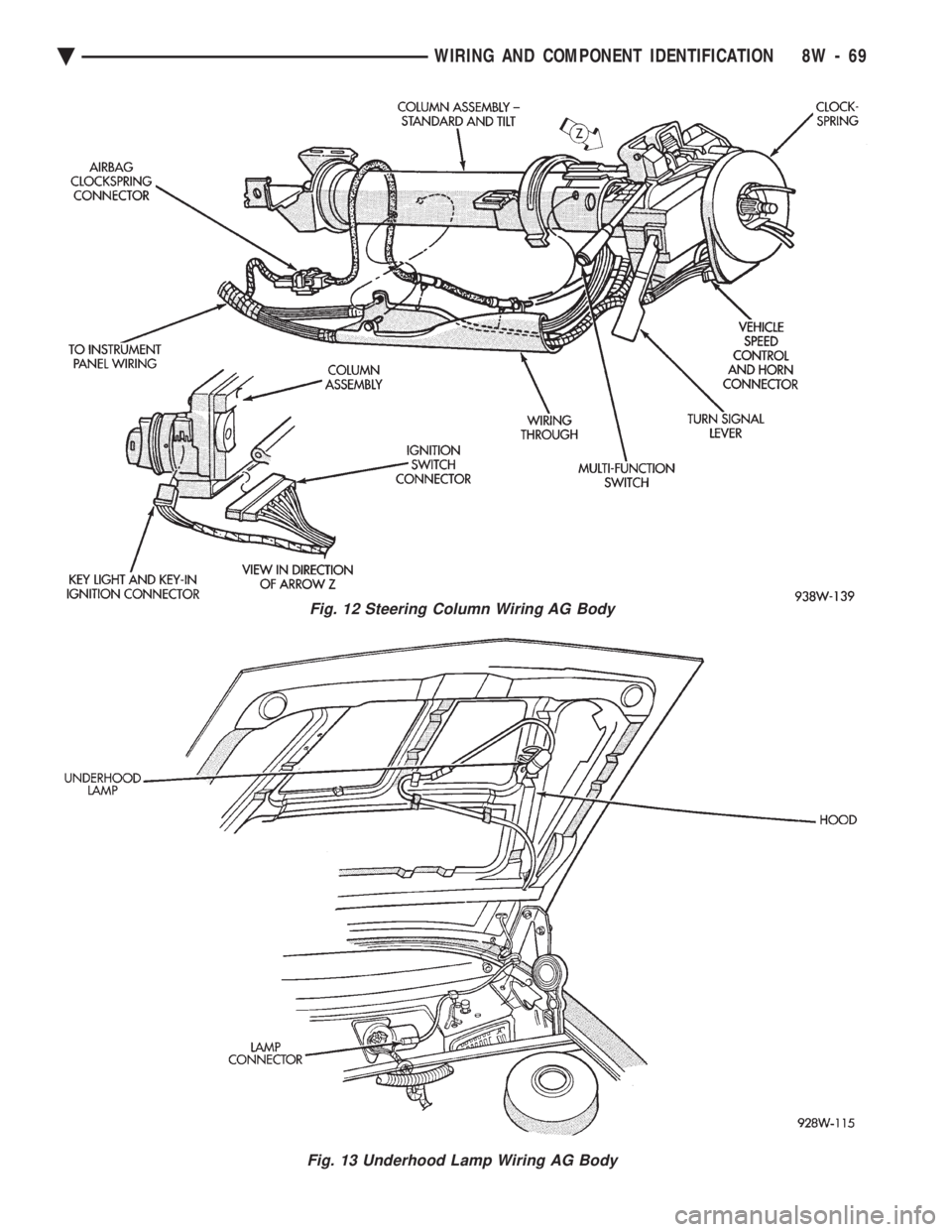

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 12 Steering Column Wiring AG Body Fig. 13 Underhood Lamp Wiring AG Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 69

Page 820 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 14 Engine Compartment Wiring AG Body 8W - 70 WIRING AND COMPONENT IDENTIFICATION Ä

Page 821 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 15 Transmission Wiring AG Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 71

Page 822 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 16 Transmission Wiring 41TE AG Body 8W - 72 WIRING AND COMPONENT IDENTIFICATION Ä

Page 823 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 17 Engine Wiring 2.5L EFI AG Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 73

Page 824 of 2438

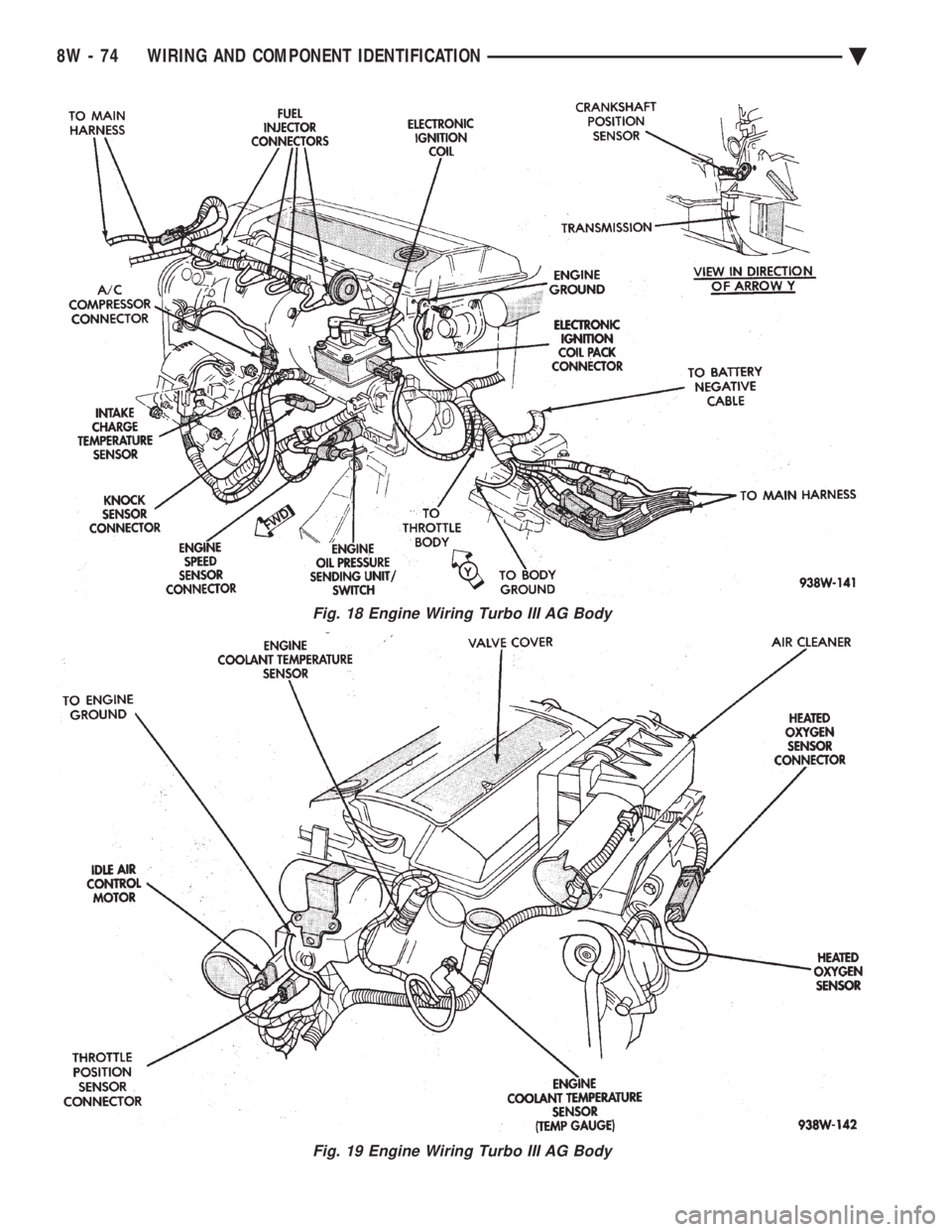

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 18 Engine Wiring Turbo III AG Body Fig. 19 Engine Wiring Turbo III AG Body 8W - 74 WIRING AND COMPONENT IDENTIFICATION Ä
