Page 905 of 2438

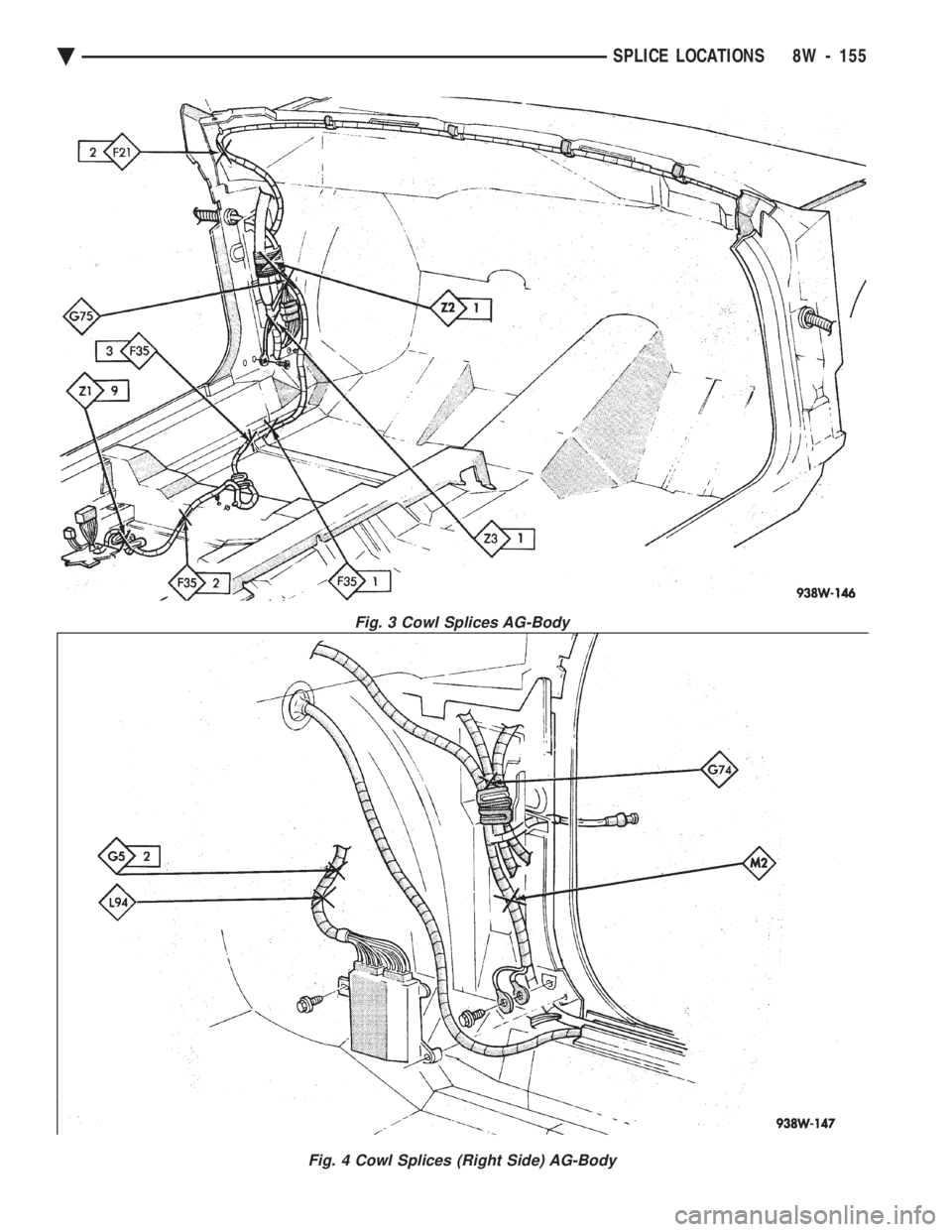

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 3 Cowl Splices AG-Body
Fig. 4 Cowl Splices (Right Side) AG-Body
Ä SPLICE LOCATIONS 8W - 155

Page 906 of 2438

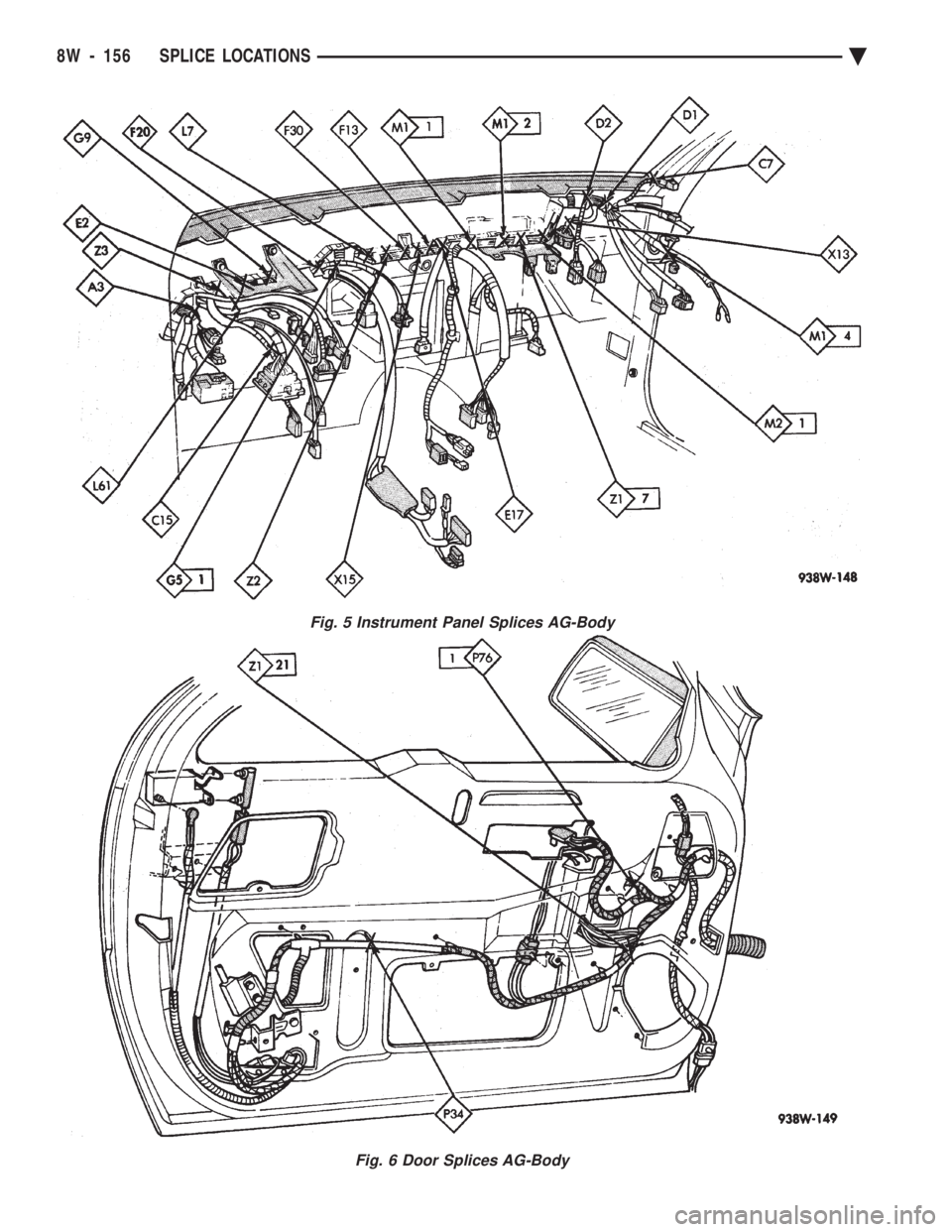

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 5 Instrument Panel Splices AG-Body
Fig. 6 Door Splices AG-Body
8W - 156 SPLICE LOCATIONS Ä

Page 907 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 7 Engine Compartment Splices AG-Body
Fig. 8 Engine Compartment Splices AG-Body
Ä SPLICE LOCATIONS 8W - 157

Page 908 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 9 Engine Compartment Splices AG-Body
8W - 158 SPLICE LOCATIONS Ä

Page 909 of 2438

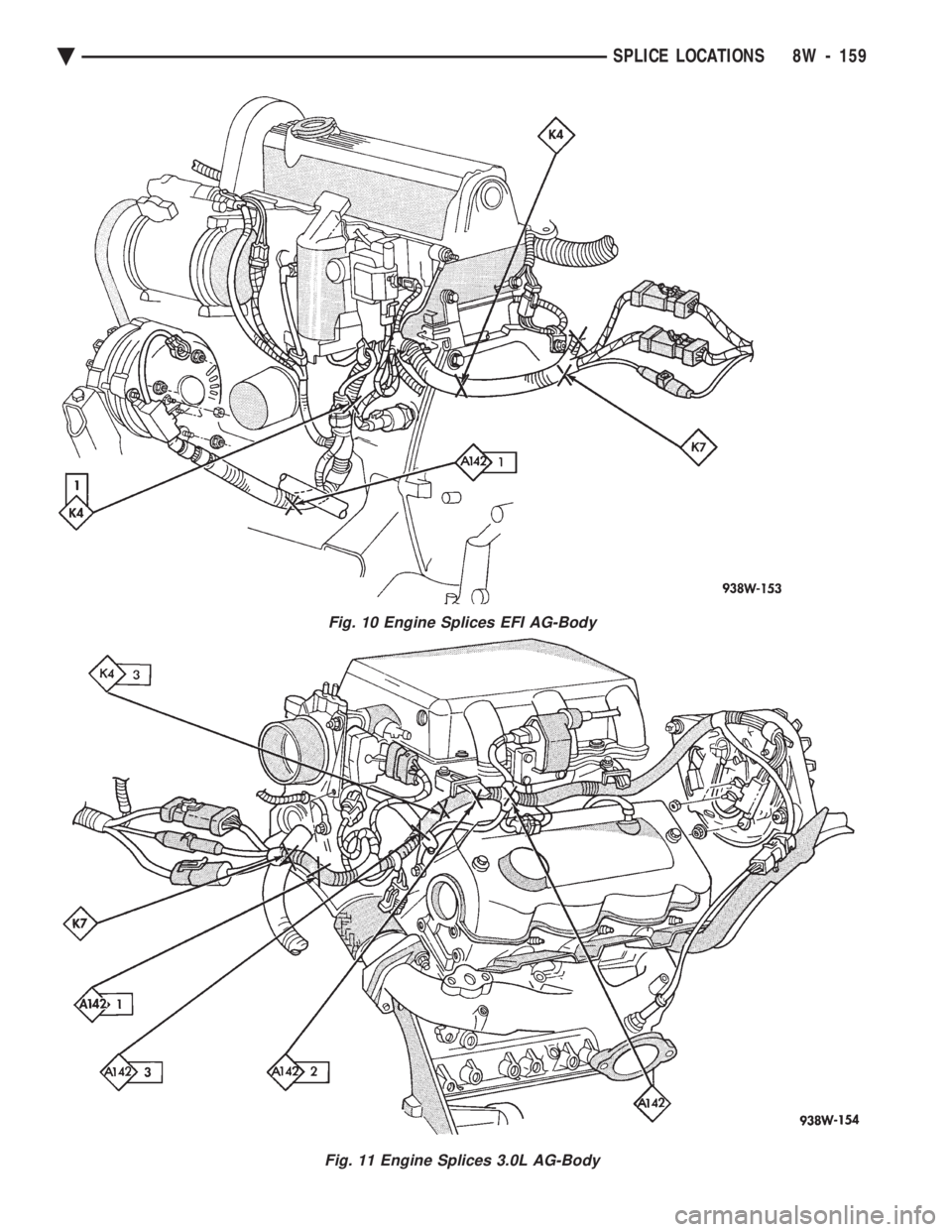

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 10 Engine Splices EFI AG-Body
Fig. 11 Engine Splices 3.0L AG-Body
Ä SPLICE LOCATIONS 8W - 159

Page 910 of 2438

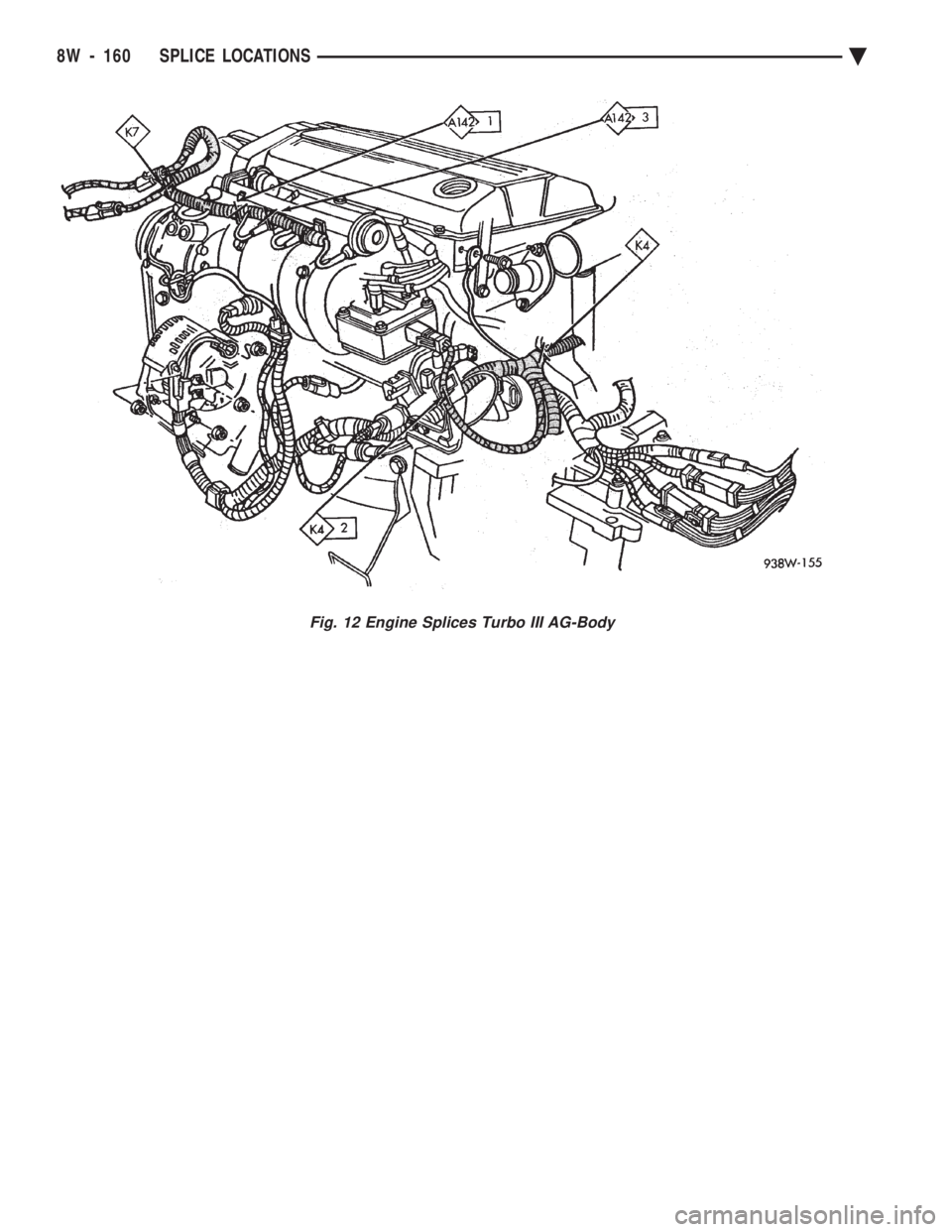

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 12 Engine Splices Turbo III AG-Body
8W - 160 SPLICE LOCATIONS Ä

Page 911 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual AJ-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 ......................................11
A2 ......................................11
A3 .......................................8
A4 ...................

AJ-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 ......................................11
A2 ......................................11
A3 .......................................8
A4 ......................................11
A11 .....................................11
A15 .....................................11
A16 .....................................11
A21-1 ....................................11
A21-2 ....................................10
A142 2.5L EFI ...............................11
A142 3.0L .................................13
A142-1 2.5L EFI .............................12
A142-1 3.0L ................................13
A142-2 ...................................13
A142-3 ...................................13
B47 .....................................10
C7 .......................................8
C15 ......................................8
D1 .......................................8
D1-1 .....................................11
D2 .......................................8
D2-1 .....................................11
E2 .......................................8
E17 ......................................8
F12-1 ....................................11
F12-2 .....................................9
F13 ......................................8
F20 ......................................8
F30 ......................................8
F35-1 .....................................5
F35-3 .....................................5
G5-1 .....................................8
G5-2 .....................................7
G7 ......................................11
G9 .......................................8
G74 ......................................7
G75 ......................................5
K4 ......................................12
K4-1 2.5L EFI ...............................11
K4-1 3.0L .................................12
K4-3 .....................................13
K6 ......................................11
K7 ......................................13
K7-1 .....................................12
K22 .....................................11
K24 .....................................11
L1 .......................................1
L7 .......................................8Splice Number Fig.
L7-1 .....................................10
L7-2 ......................................8
L7-6 ......................................1
L7-7 ......................................2
L33 ......................................9
L43 .....................................10
L50 ......................................1
L61 ......................................8
L94 ......................................7
M1-1 .....................................8
M1-2 .....................................8
M1-4 .....................................8
M1-5 .....................................7
M1-6 .....................................6
M2.......................................8
P76-1 .....................................4
T13 .....................................10
T16 .....................................10
T24 ......................................9
T41 ......................................9
X13 ......................................8
X13-2 .....................................3
X15 ......................................8
X15-2 .....................................3
X60 ......................................3
Z0 ......................................11
Z1 ......................................11
Z1-2 ......................................9
Z1-4 ......................................9
Z1-5 .....................................10
Z1-6 .....................................10
Z1-7 ......................................6
Z1-8 ......................................9
Z1-9 ......................................5
Z1-11 .....................................5
Z1-12 .....................................1
Z1-17 .....................................2
Z1-18 .....................................1
Z1-19 .....................................7
Z1-20 ....................................10
Z2 ......................................11
Z2-1 ......................................8
Z3 .......................................8
Z3-1 ......................................8
Z12 ......................................9
Z13 .....................................10
Z14 .....................................10
Ä SPLICE LOCATIONS 8W - 161

Page 912 of 2438

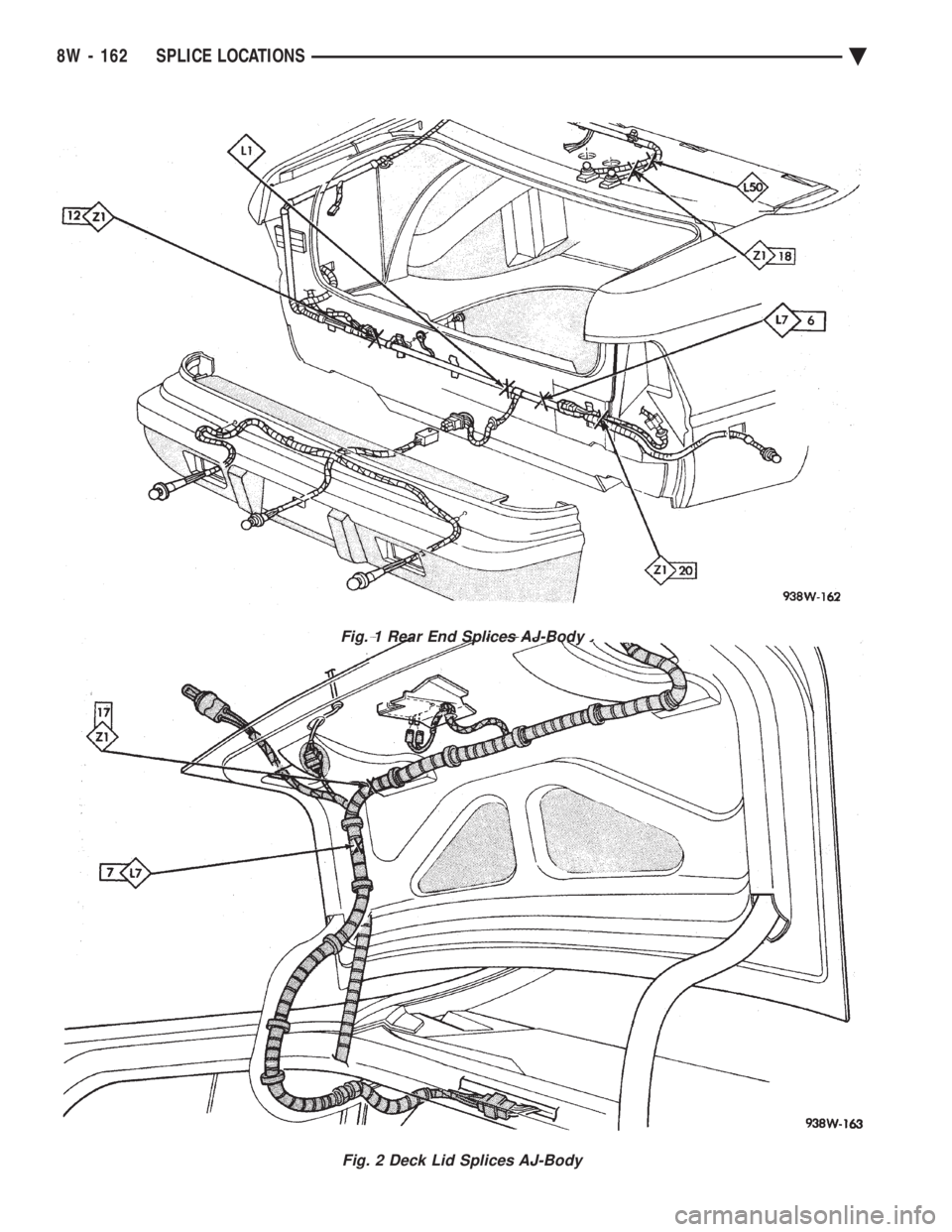

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 1 Rear End Splices AJ-Body
Fig. 2 Deck Lid Splices AJ-Body
8W - 162 SPLICE LOCATIONS Ä
