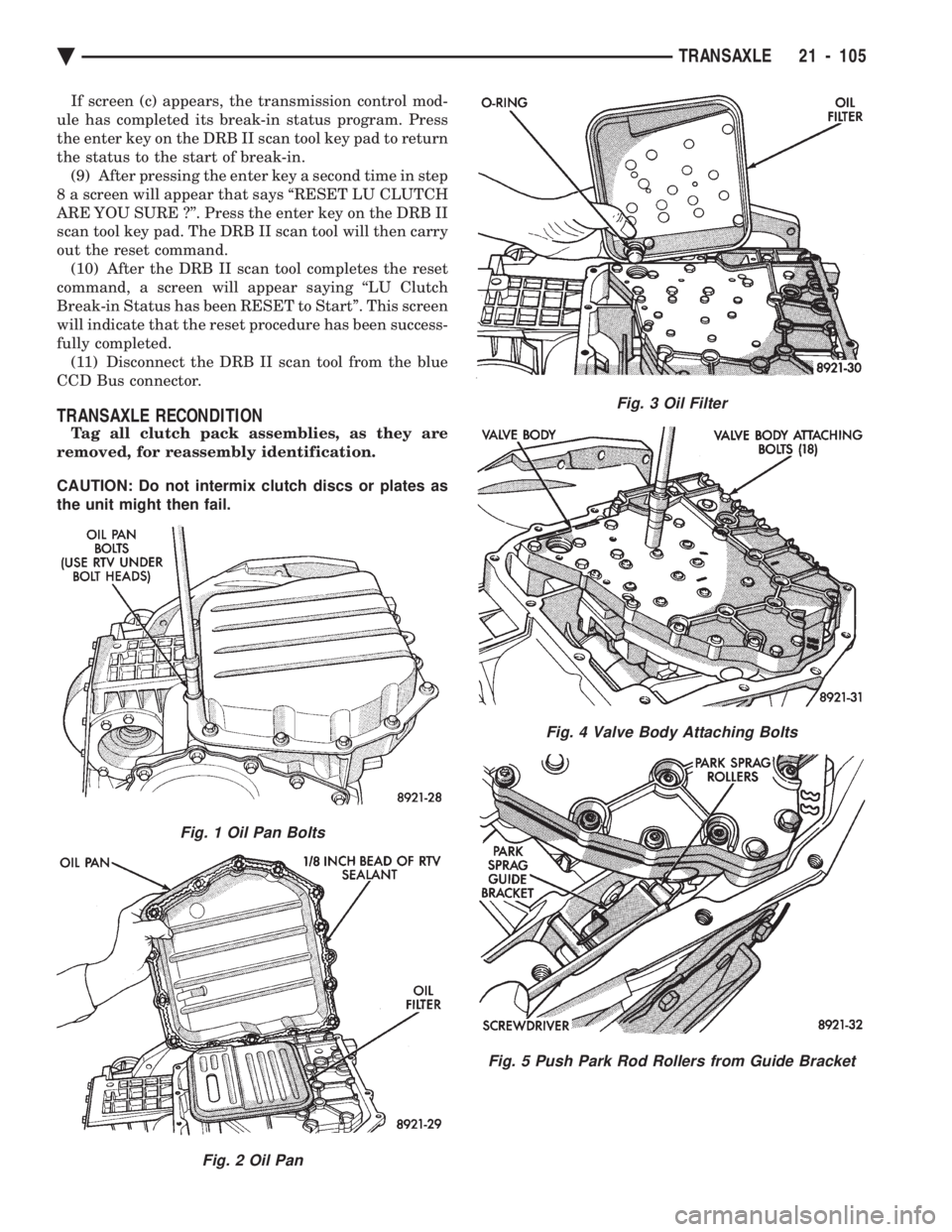

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual If screen (c) appears, the transmission control mod-
ule has completed its break-in status program. Press
the enter key on the DRB II scan tool key pad to return
the status to the start of break-in.

Page 2066 of 2438

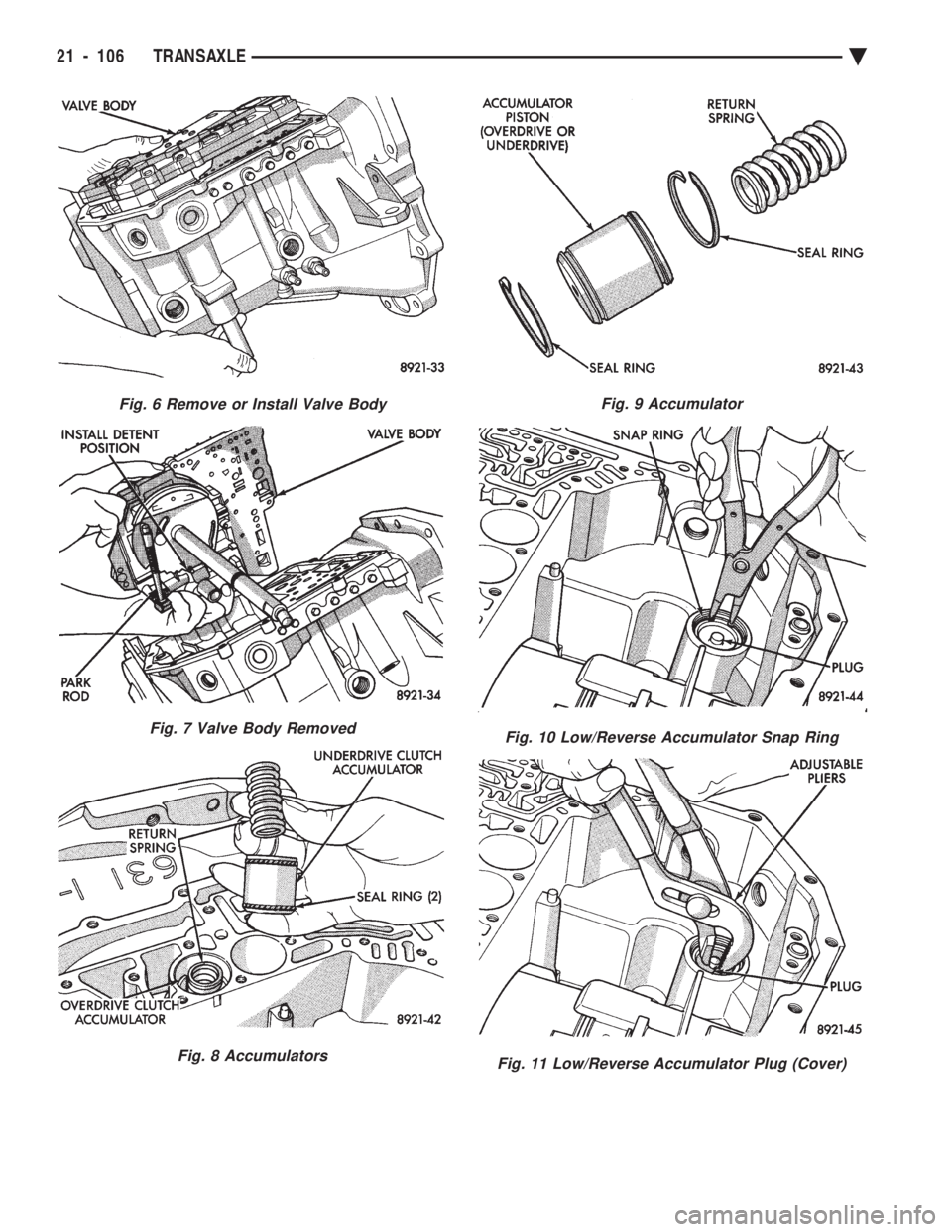

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 6 Remove or Install Valve Body
Fig. 7 Valve Body Removed
Fig. 8 Accumulators
Fig. 9 Accumulator
Fig. 10 Low/Reverse Accumulator Snap Ring
Fig. 11 Low/Reverse Accumulator Plug (Cover)
21 - 106 TRA

Page 2067 of 2438

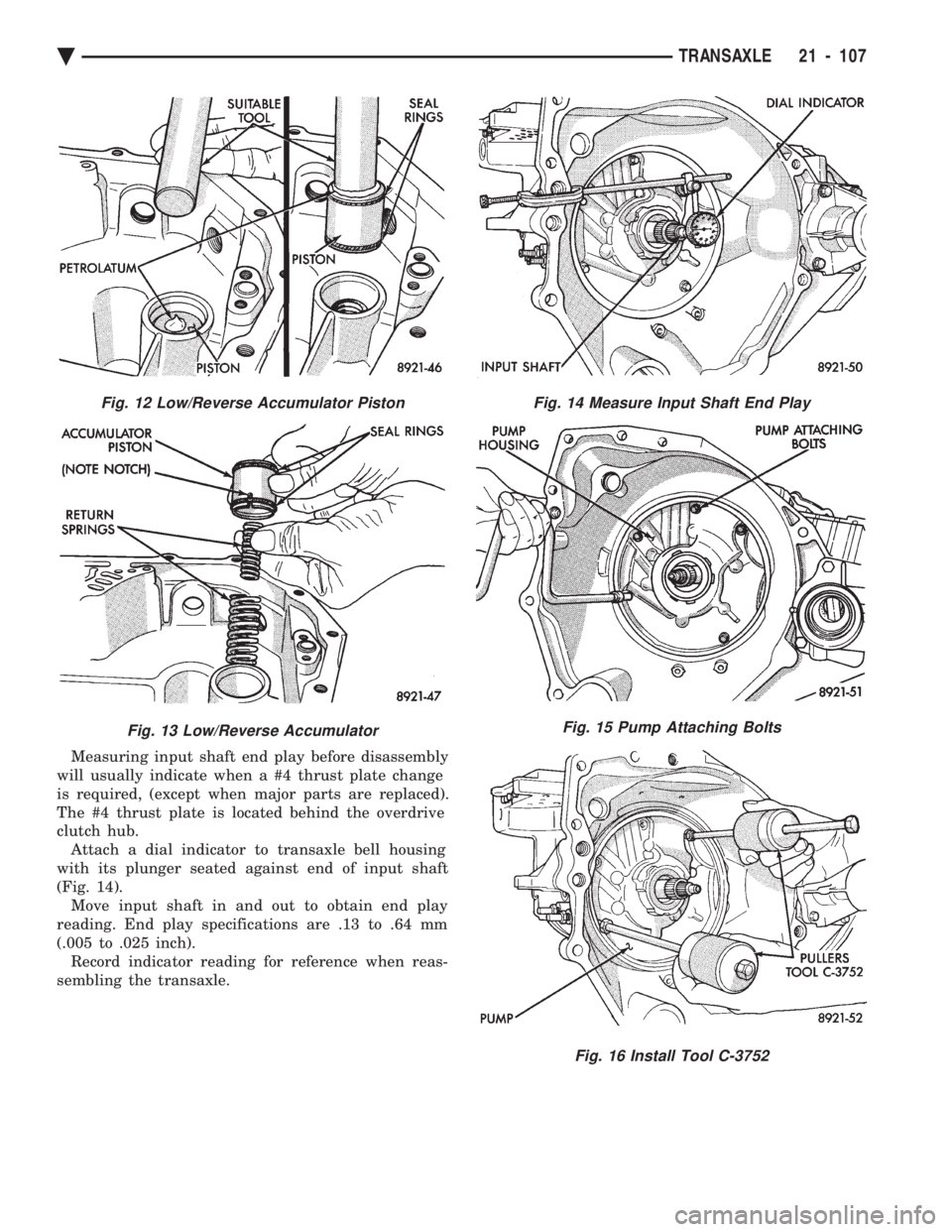

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Measuring input shaft end play before disassembly
will usually indicate when a #4 thrust plate change
is required, (except when major parts are replaced).
The #4 thrust plate is located behind the ov

Page 2068 of 2438

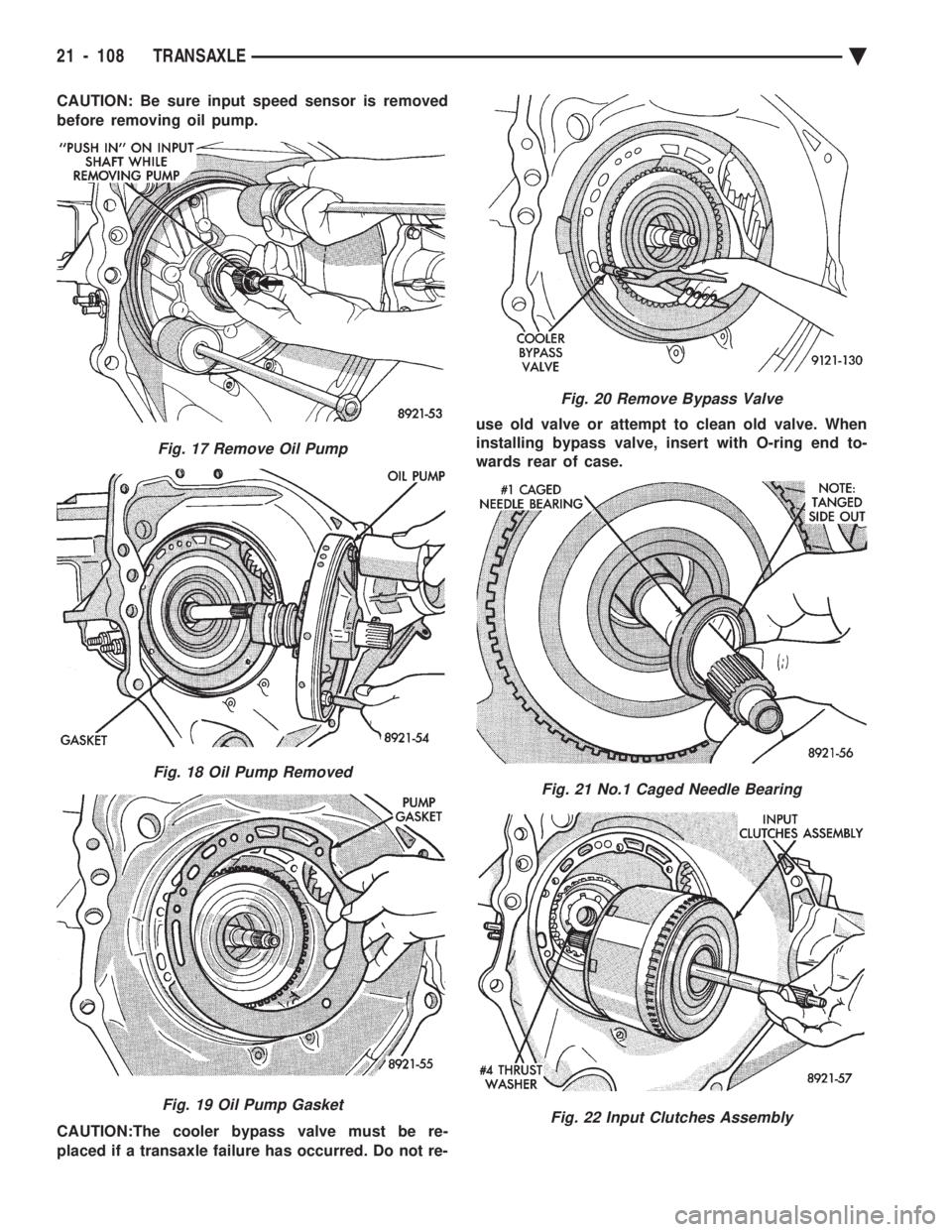

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CAUTION: Be sure input speed sensor is removed
before removing oil pump.
CAUTION:The cooler bypass valve must be re-
placed if a transaxle failure has occurred. Do not re- use old valve or attempt

Page 2069 of 2438

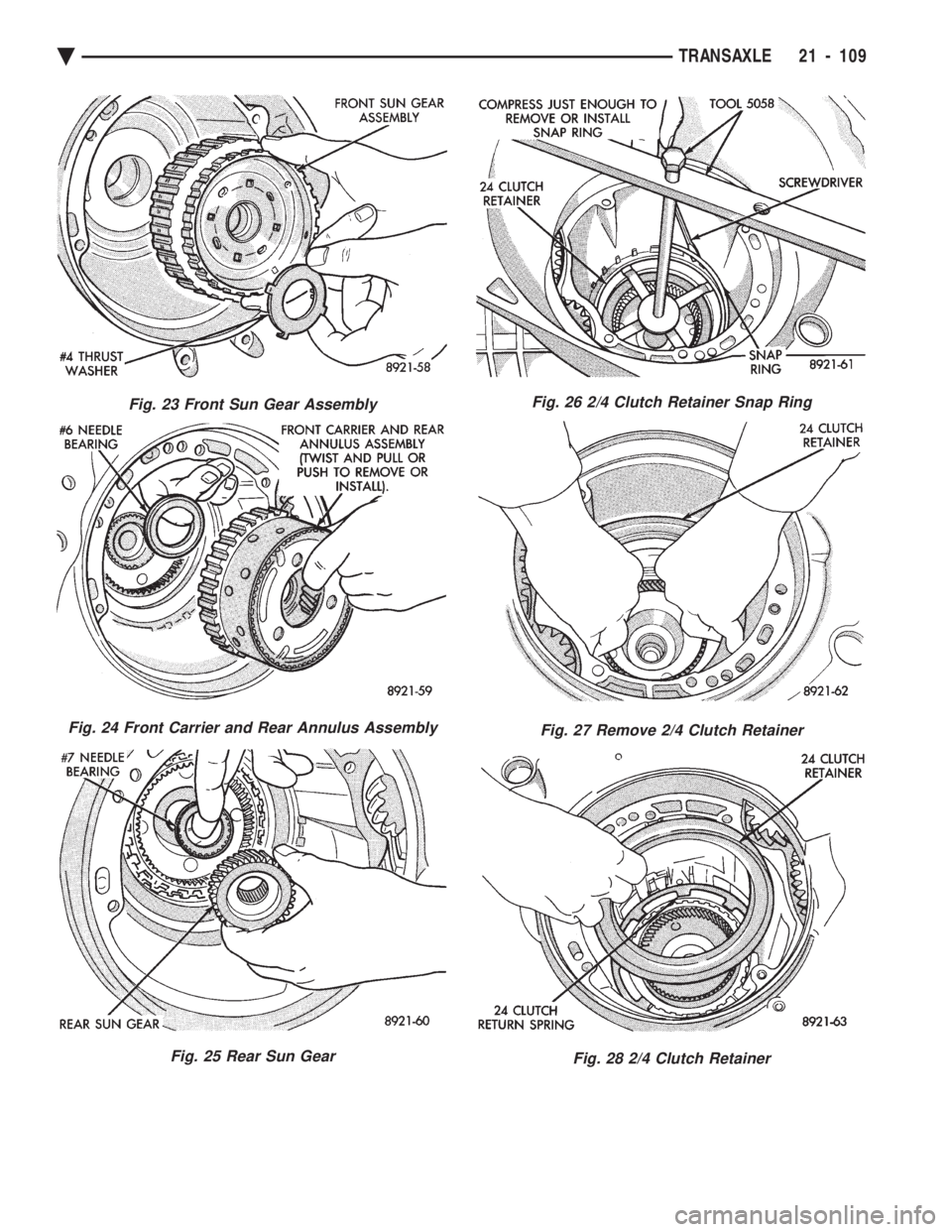

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 23 Front Sun Gear Assembly
Fig. 24 Front Carrier and Rear Annulus Assembly
Fig. 25 Rear Sun Gear
Fig. 26 2/4 Clutch Retainer Snap Ring
Fig. 27 Remove 2/4 Clutch Retainer
Fig. 28 2/4 Clutch Retain

Page 2070 of 2438

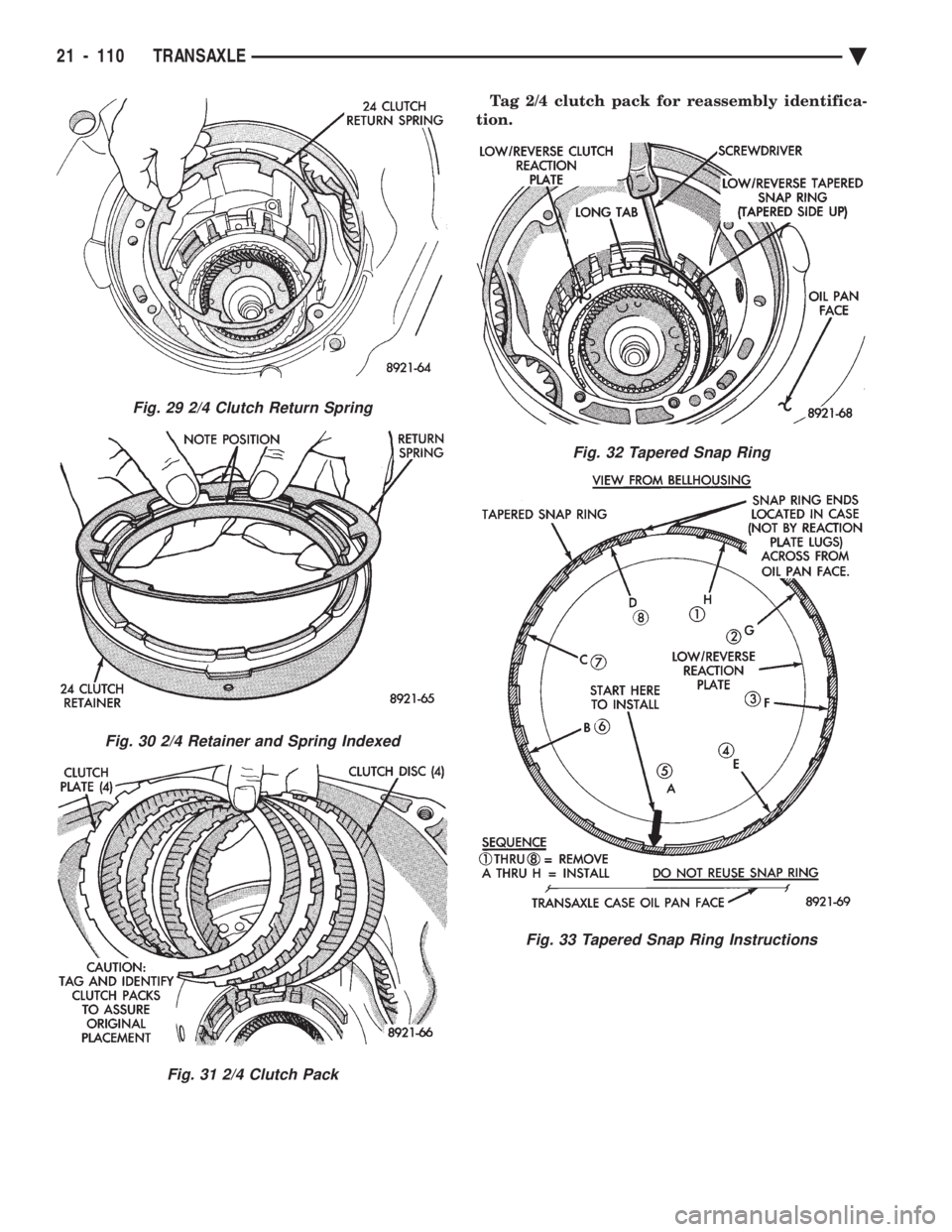

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag 2/4 clutch pack for reassembly identifica-
tion.
Fig. 29 2/4 Clutch Return Spring
Fig. 30 2/4 Retainer and Spring Indexed
Fig. 31 2/4 Clutch Pack
Fig. 32 Tapered Snap Ring
Fig. 33 Tapered Snap Ri

Page 2071 of 2438

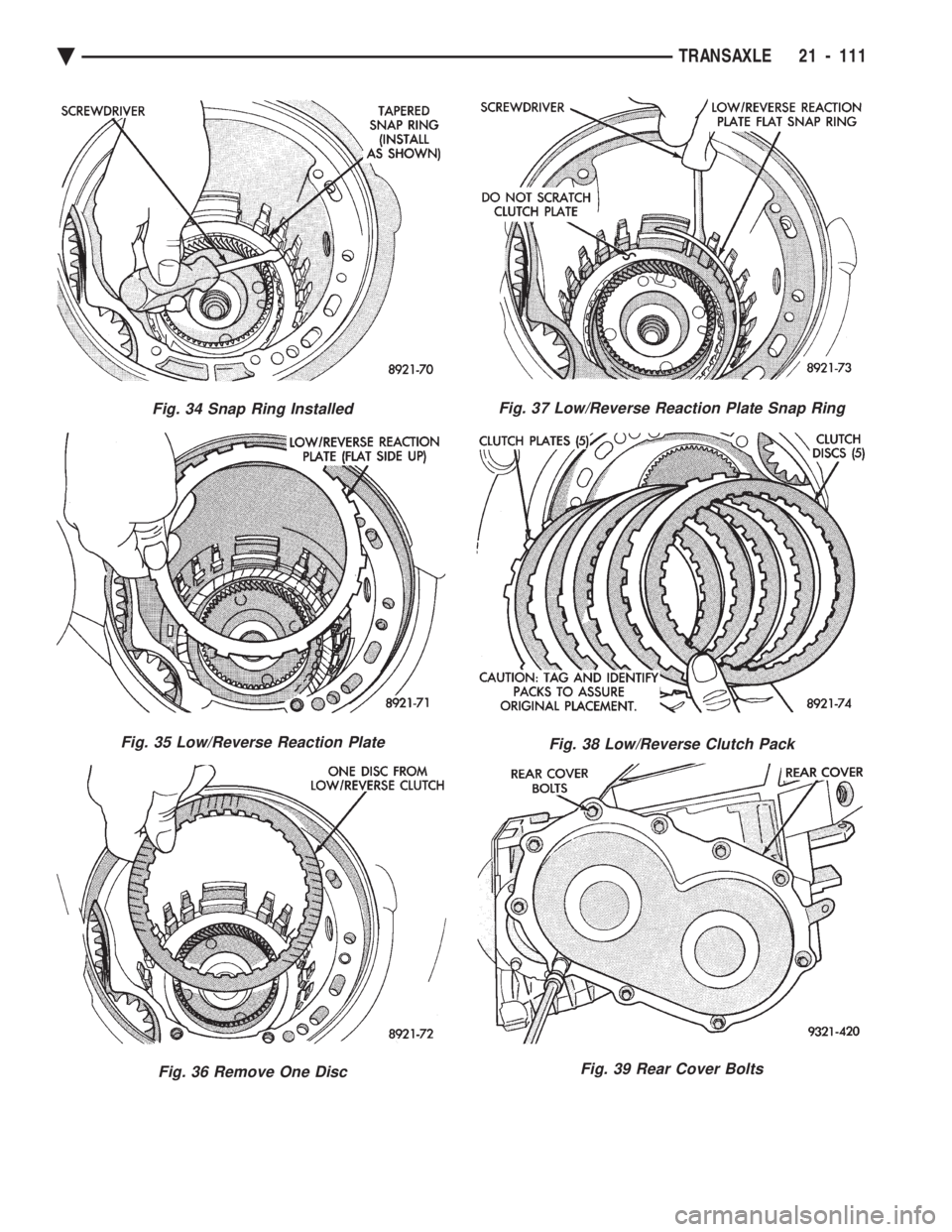

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 34 Snap Ring Installed
Fig. 35 Low/Reverse Reaction Plate
Fig. 36 Remove One Disc
Fig. 37 Low/Reverse Reaction Plate Snap Ring
Fig. 38 Low/Reverse Clutch Pack
Fig. 39 Rear Cover Bolts
Ä TRANSAXL

Page 2072 of 2438

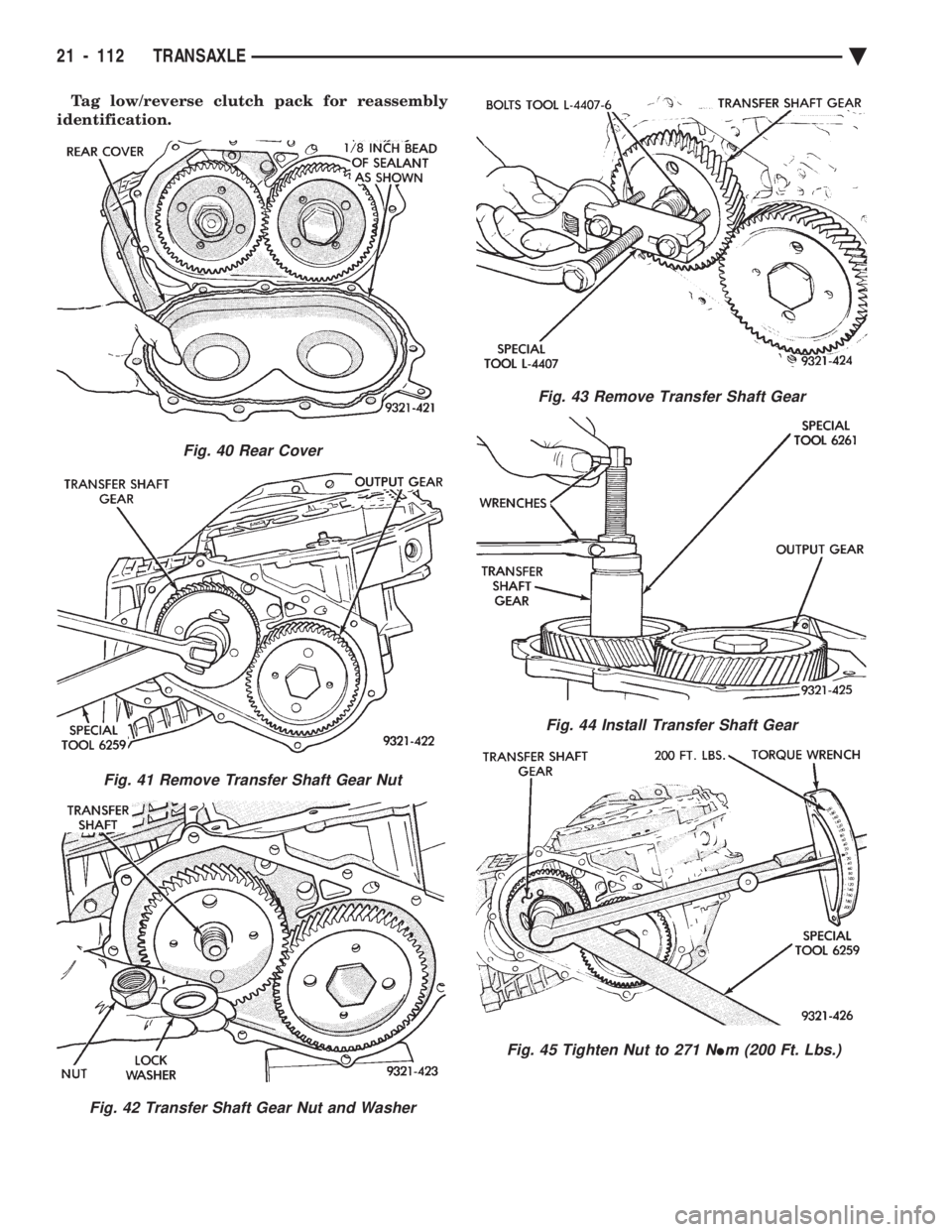

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag low/reverse clutch pack for reassembly
identification.
Fig. 43 Remove Transfer Shaft Gear
Fig. 44 Install Transfer Shaft Gear
Fig. 45 Tighten Nut to 271 NIm (200 Ft. Lbs.)
Fig. 40 Rear Cover
Fig.
