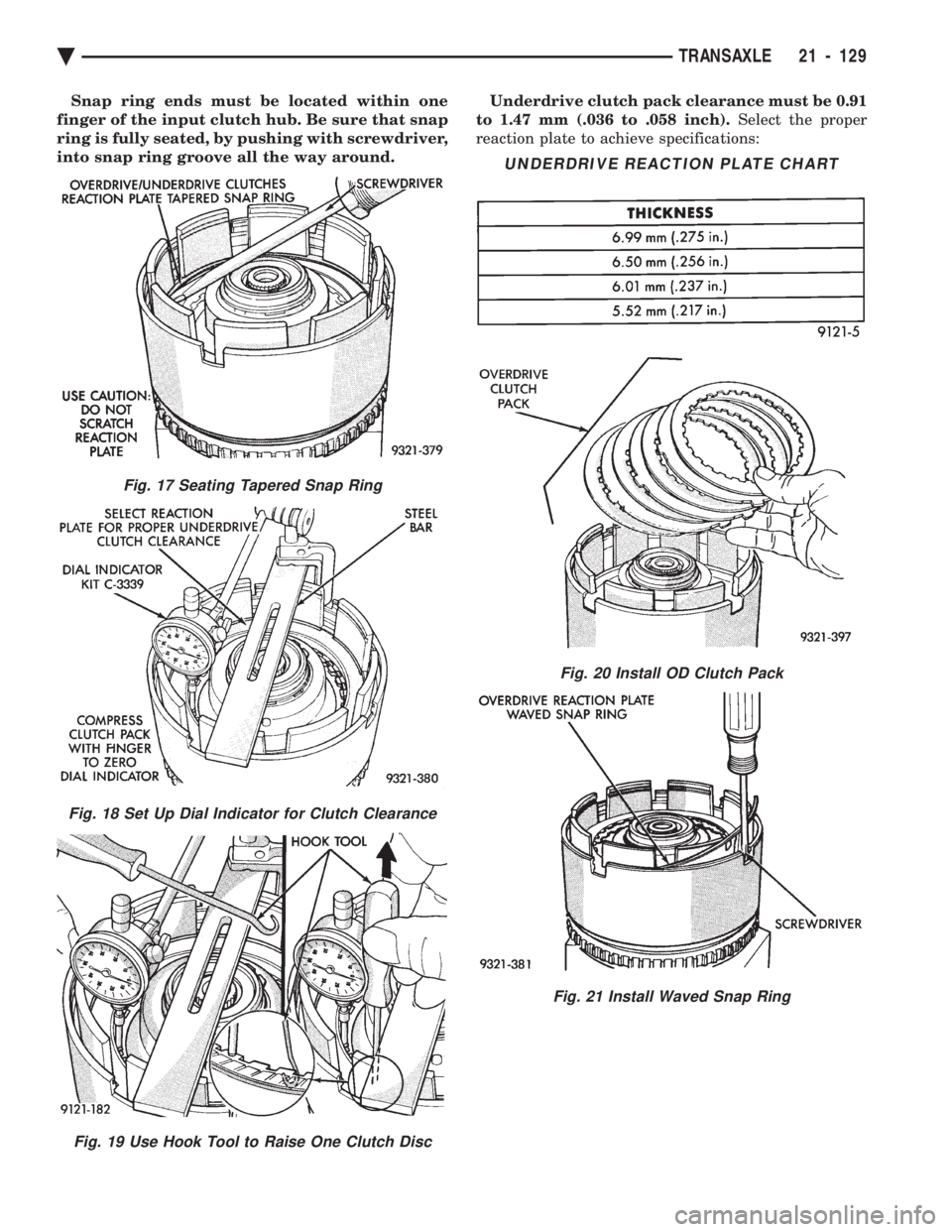

Page 2089 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Snap ring ends must be located within one finger of the input clutch hub. Be sure that snap ring is fully seated, by pushing with screwdriver, into snap ring groove all the way around. Underdrive cl

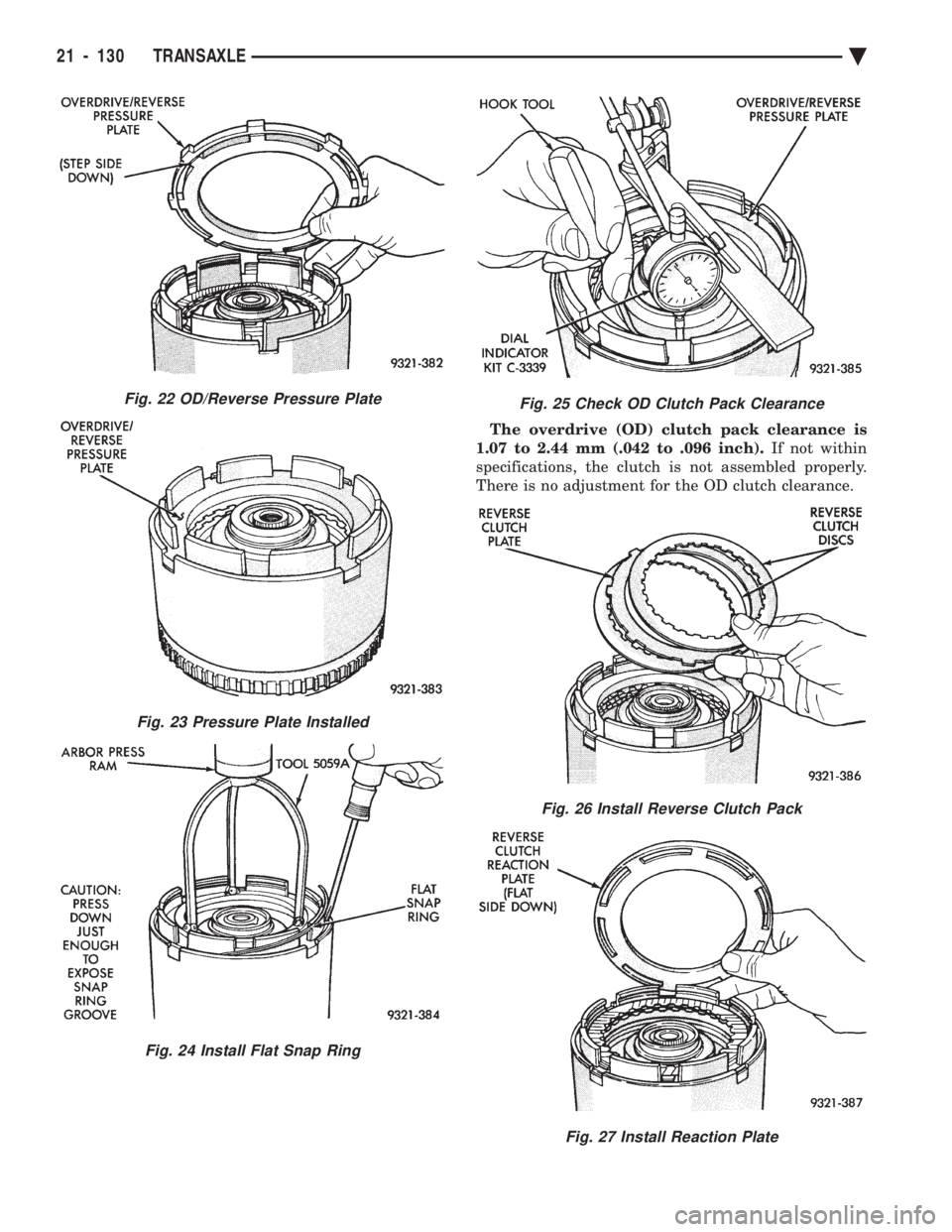

Page 2090 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual The overdrive (OD) clutch pack clearance is 1.07 to 2.44 mm (.042 to .096 inch). If not within specifications, the clutch is not assembled properly. There is no adjustment for the OD clutch clearan

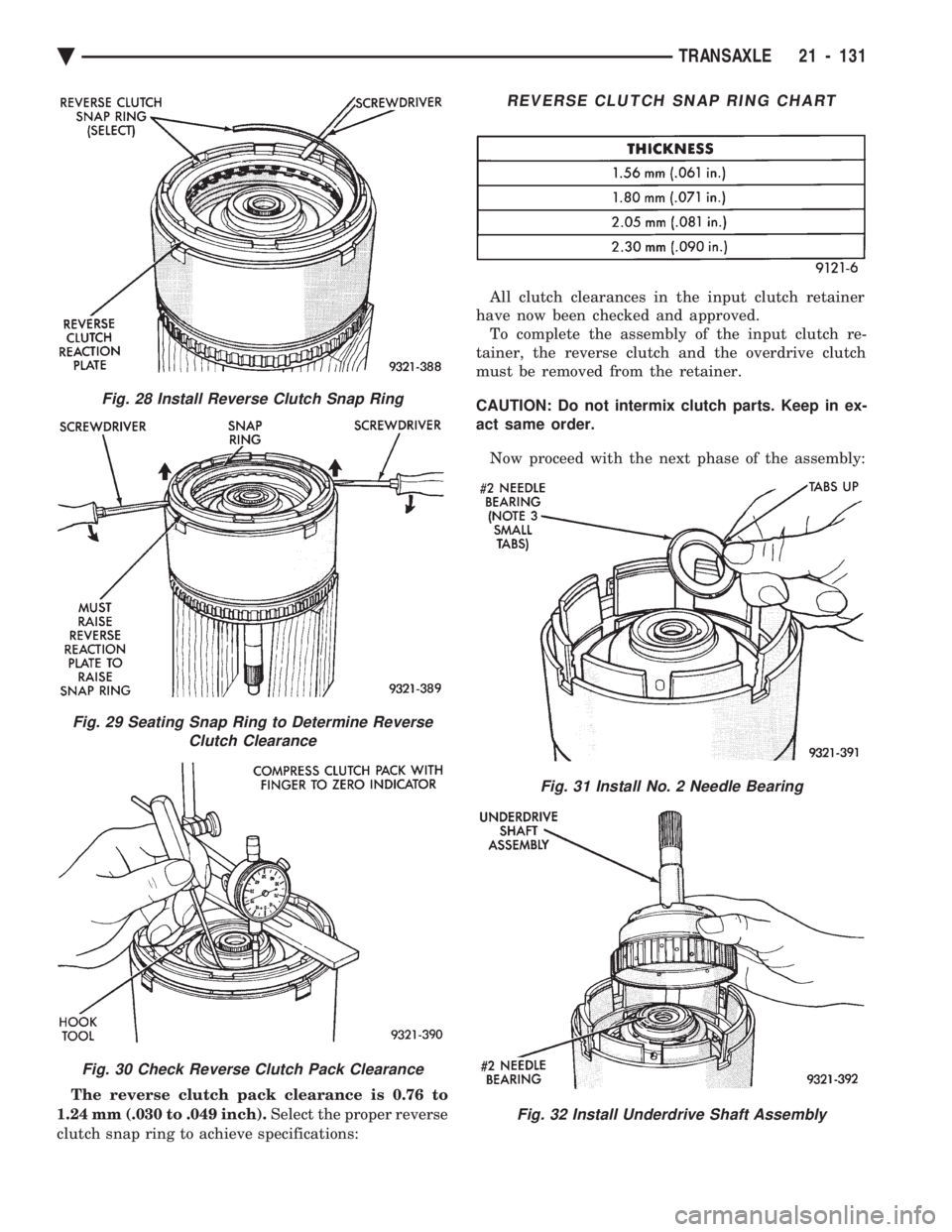

Page 2091 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual The reverse clutch pack clearance is 0.76 to 1.24 mm (.030 to .049 inch). Select the proper reverse clutch snap ring to achieve specifications: All clutch clearances in the input clutch retainer

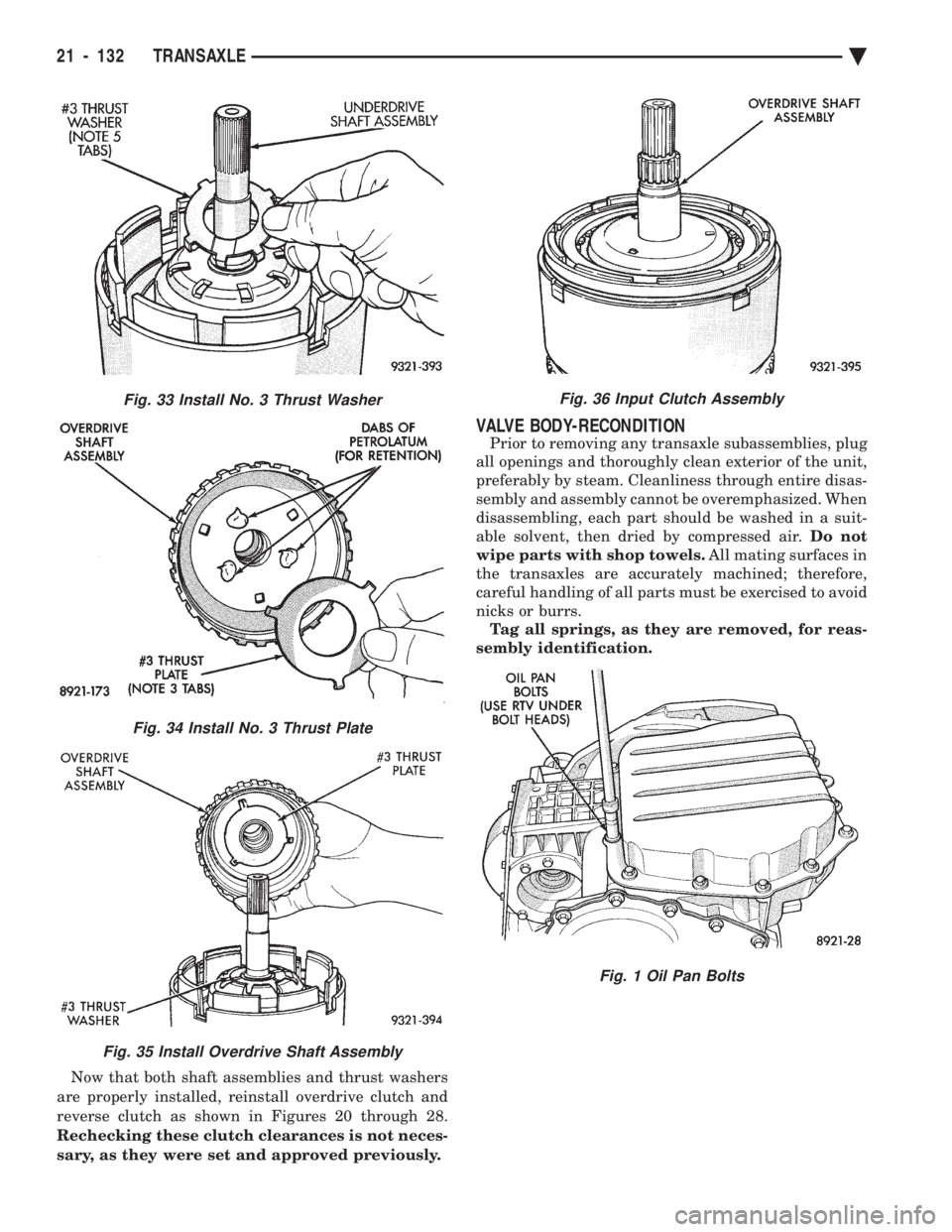

Page 2092 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Now that both shaft assemblies and thrust washers are properly installed, reinstall overdrive clutch and reverse clutch as shown in Figures 20 through 28. Rechecking these clutch clearances is not ne

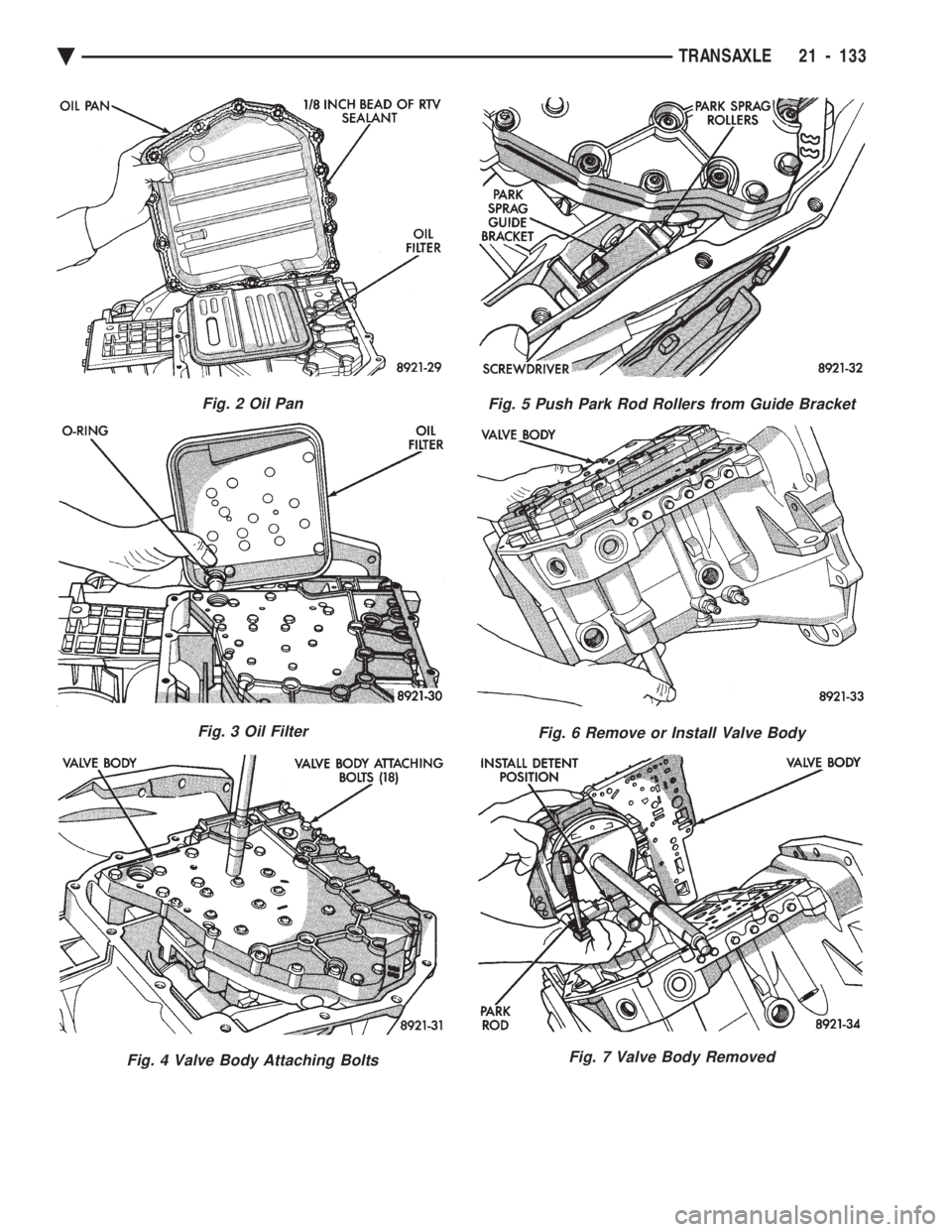

Page 2093 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 2 Oil Pan Fig. 3 Oil Filter Fig. 4 Valve Body Attaching Bolts Fig. 5 Push Park Rod Rollers from Guide Bracket Fig. 6 Remove or Install Valve Body Fig. 7 Valve Body Removed Ä TRANSAXLE 21 - 133

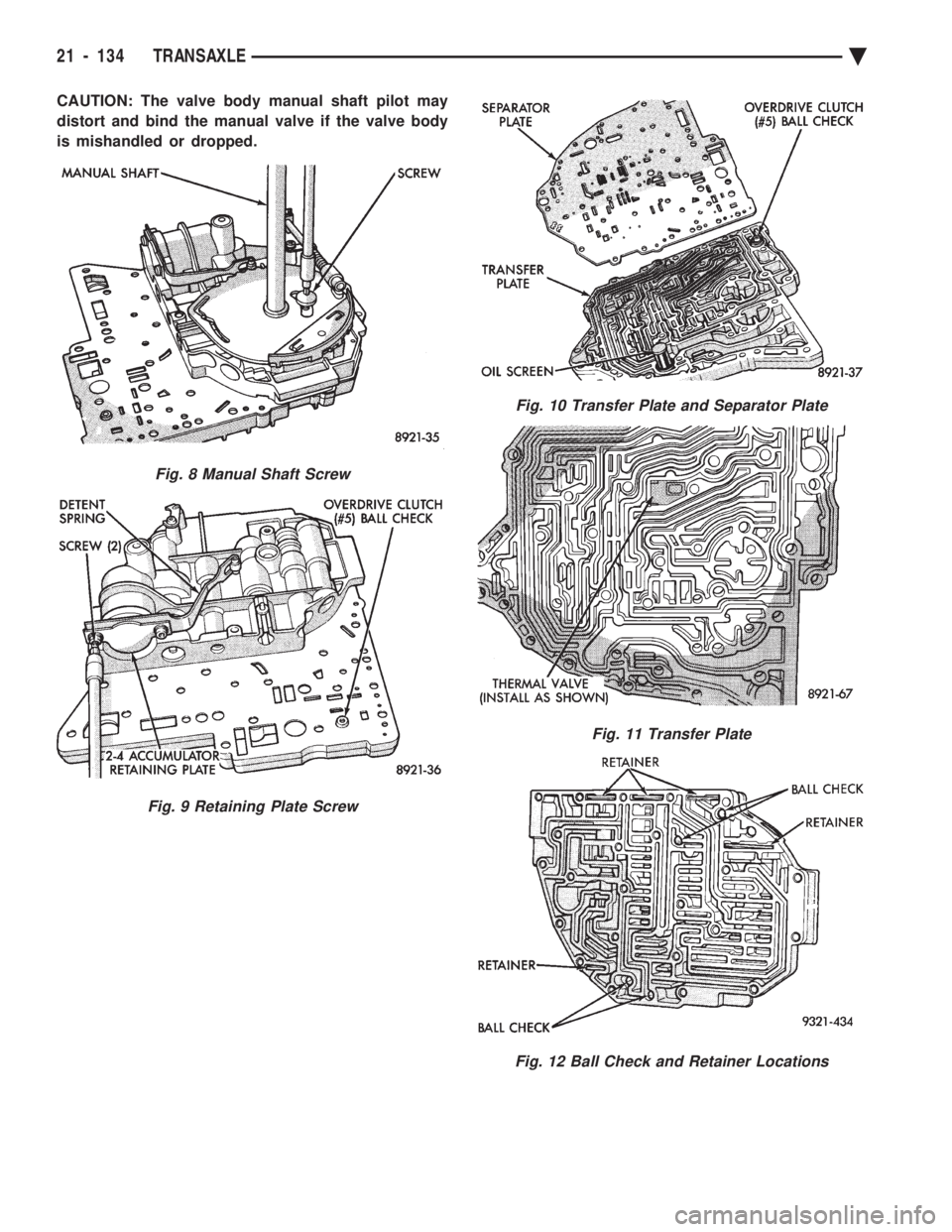

Page 2094 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped. Fig. 8 Manual Shaft Screw Fig. 9 Retaining Plate Screw Fig. 10 Transfer Pl

Page 2095 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 13 Springs and Valves Identification Ä TRANSAXLE 21 - 135

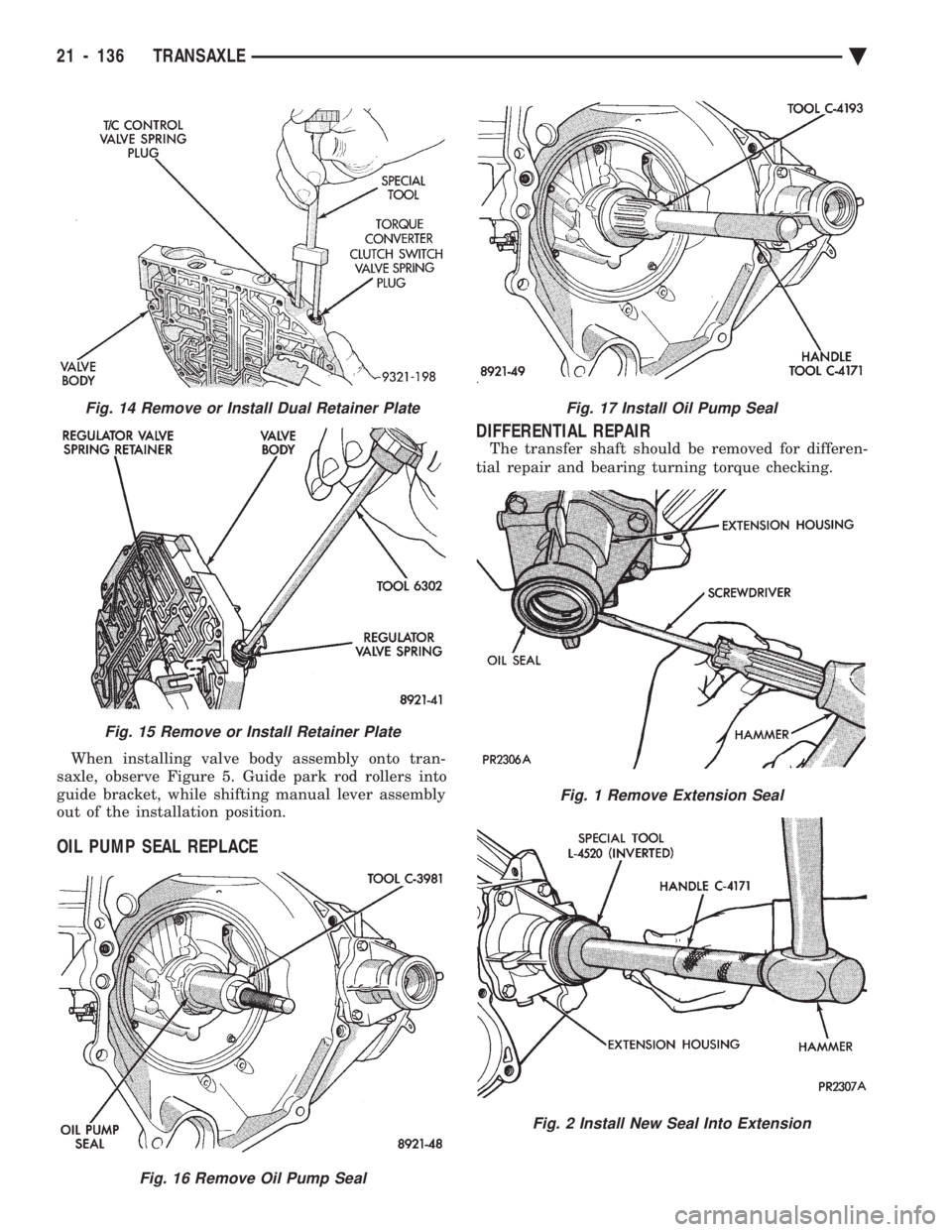

Page 2096 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual When installing valve body assembly onto tran- saxle, observe Figure 5. Guide park rod rollers into guide bracket, while shifting manual lever assembly out of the installation position. OIL PUMP SEAL
