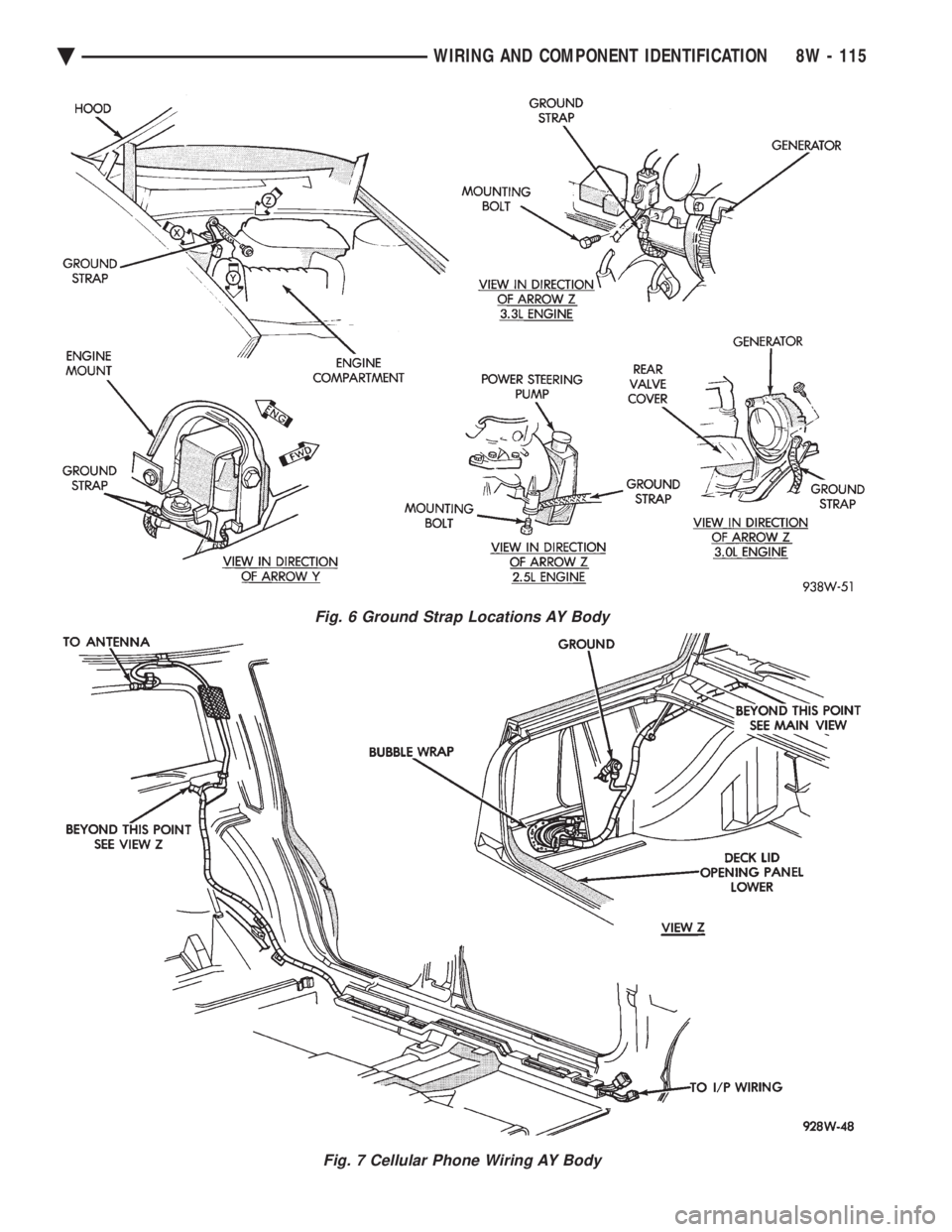

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 6 Ground Strap Locations AY Body Fig. 7 Cellular Phone Wiring AY Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 115

Page 866 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 8 Body Left Side Wiring AY Body 8W - 116 WIRING AND COMPONENT IDENTIFICATION Ä

Page 867 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 9 Body Right Side Wiring AY Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 117

Page 868 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 10 Door Wiring (Body) AY Body 8W - 118 WIRING AND COMPONENT IDENTIFICATION Ä

Page 869 of 2438

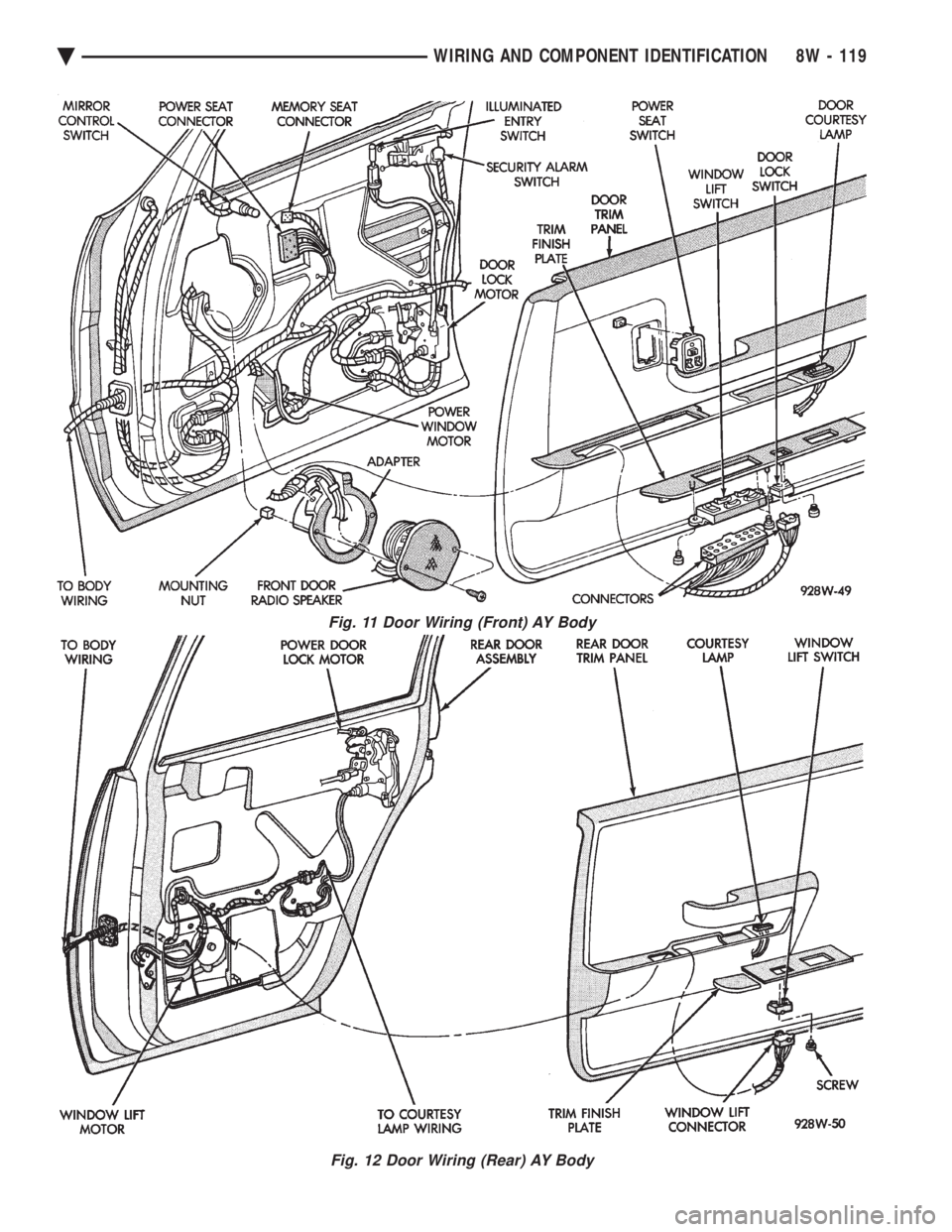

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 11 Door Wiring (Front) AY Body Fig. 12 Door Wiring (Rear) AY Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 119

Page 870 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 13 Instrument Panel Wiring (Routing) AY Body 8W - 120 WIRING AND COMPONENT IDENTIFICATION Ä

Page 871 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 14 Instrument Panel Wiring (Connections) AY Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 121

Page 872 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 15 Instrument Panel Wiring (I.P. to Body Connections) AY Body 8W - 122 WIRING AND COMPONENT IDENTIFICATION Ä
