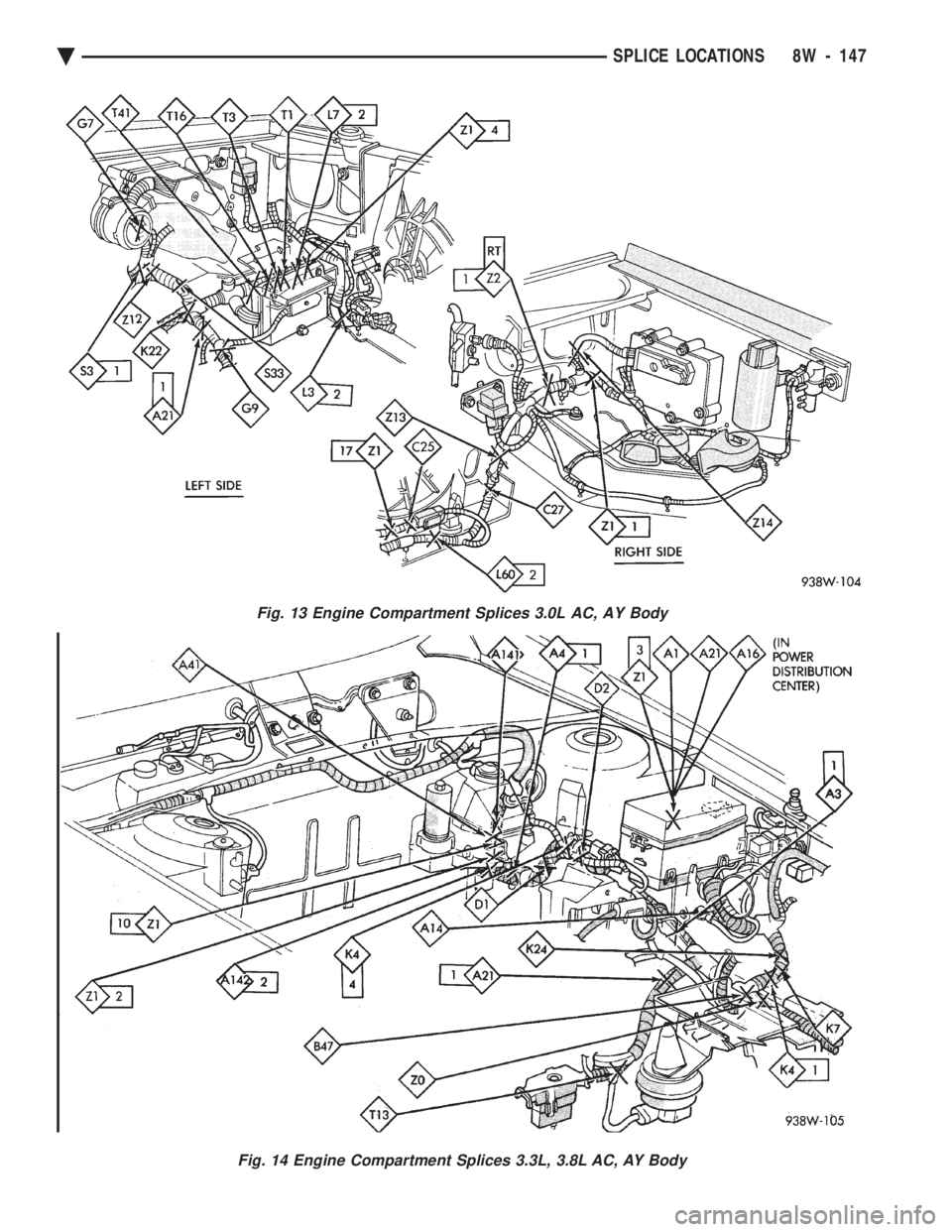

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 13 Engine Compartment Splices 3.0L AC, AY Body
Fig. 14 Engine Compartment Splices 3.3L, 3.8L AC, AY Body
Ä SPLICE LOCATIONS 8W - 147

Page 898 of 2438

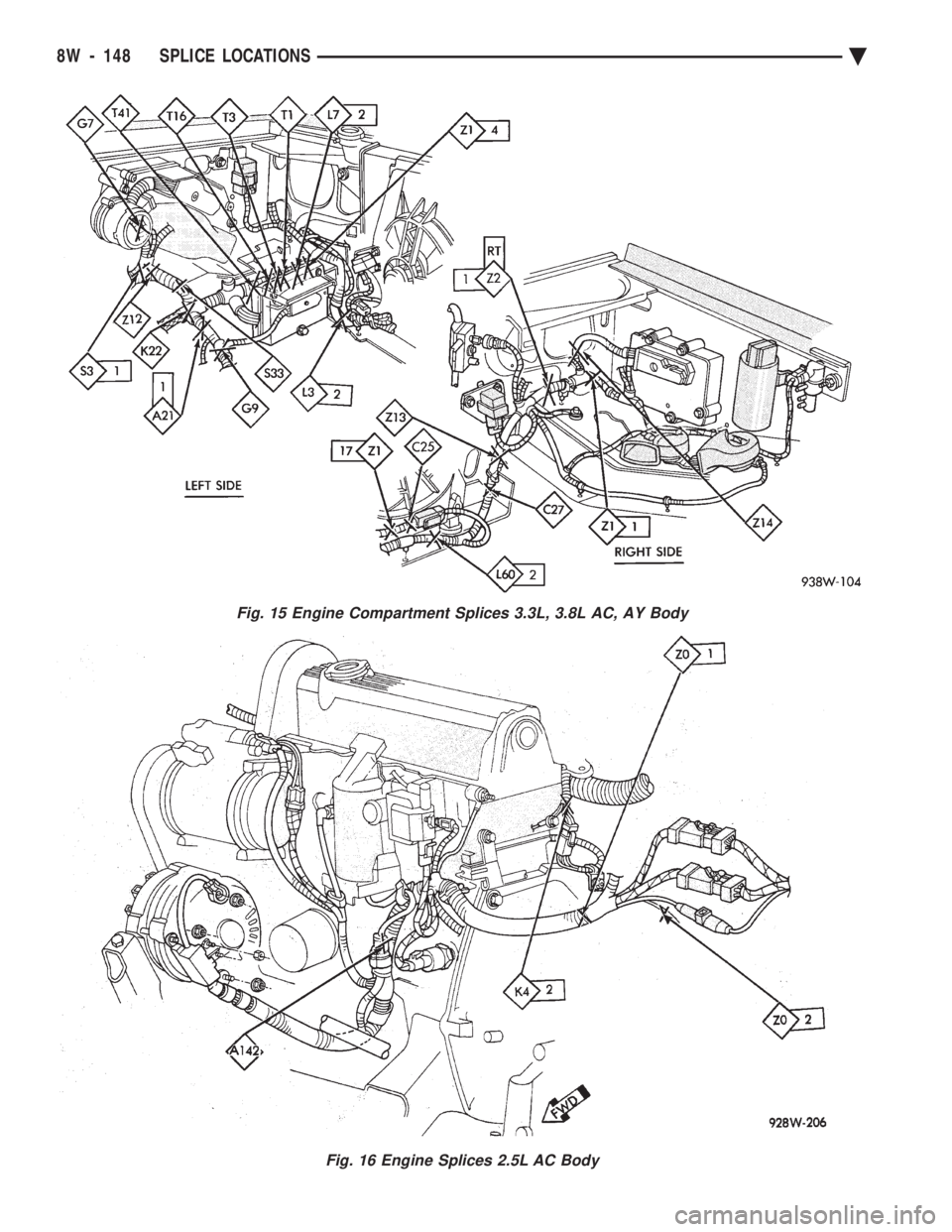

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 15 Engine Compartment Splices 3.3L, 3.8L AC, AY Body
Fig. 16 Engine Splices 2.5L AC Body
8W - 148 SPLICE LOCATIONS Ä

Page 899 of 2438

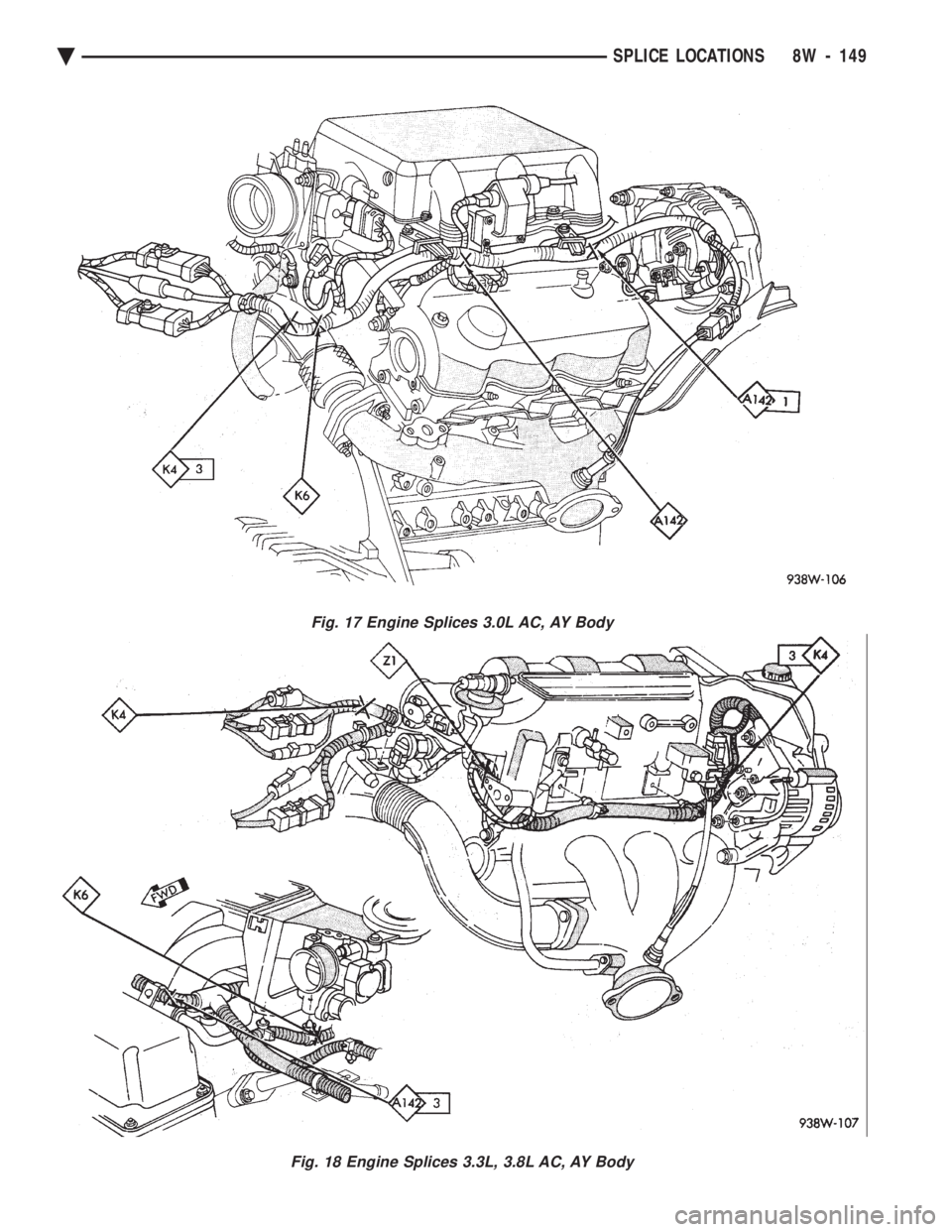

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 17 Engine Splices 3.0L AC, AY Body
Fig. 18 Engine Splices 3.3L, 3.8L AC, AY Body
Ä SPLICE LOCATIONS 8W - 149

Page 900 of 2438

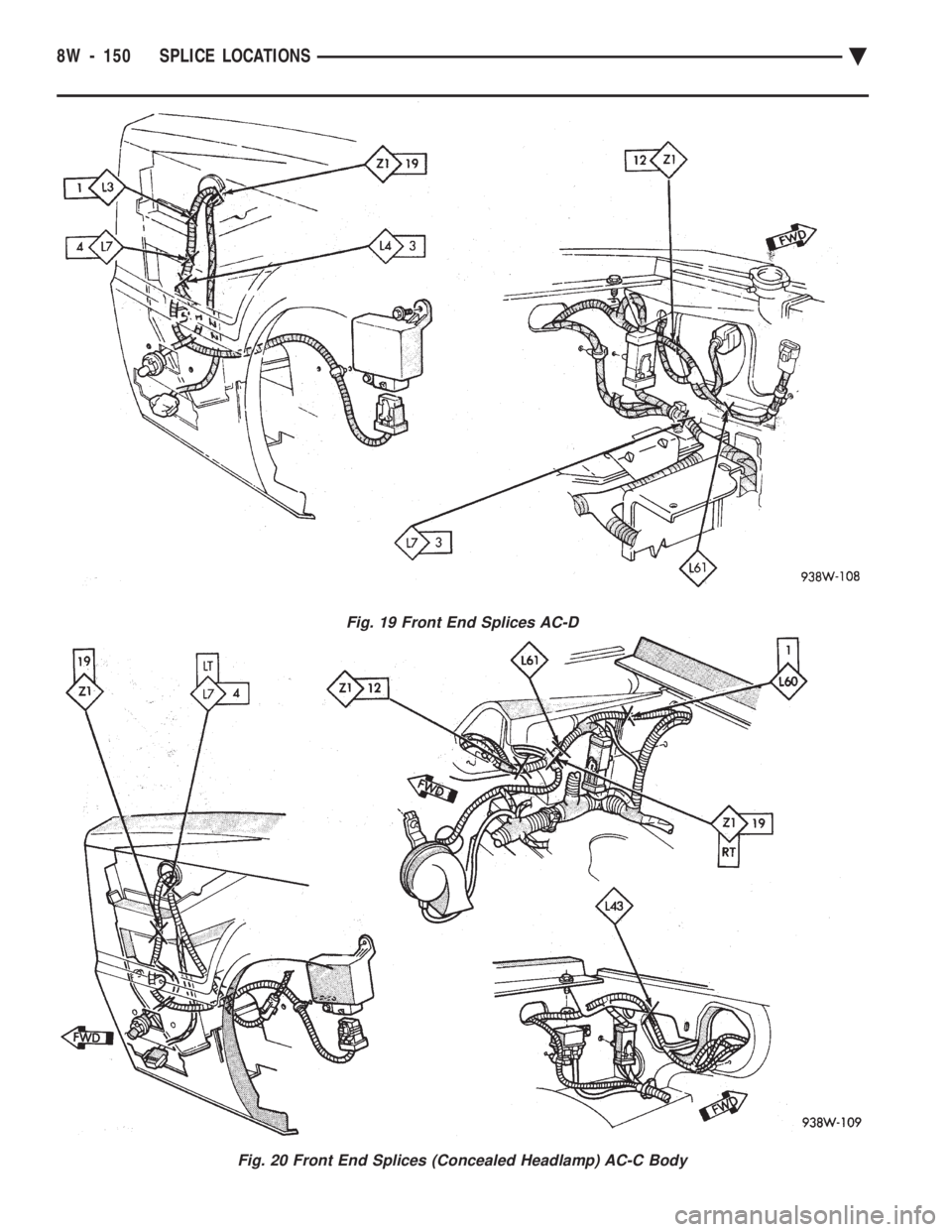

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 19 Front End Splices AC-D
Fig. 20 Front End Splices (Concealed Headlamp) AC-C Body
8W - 150 SPLICE LOCATIONS Ä

Page 901 of 2438

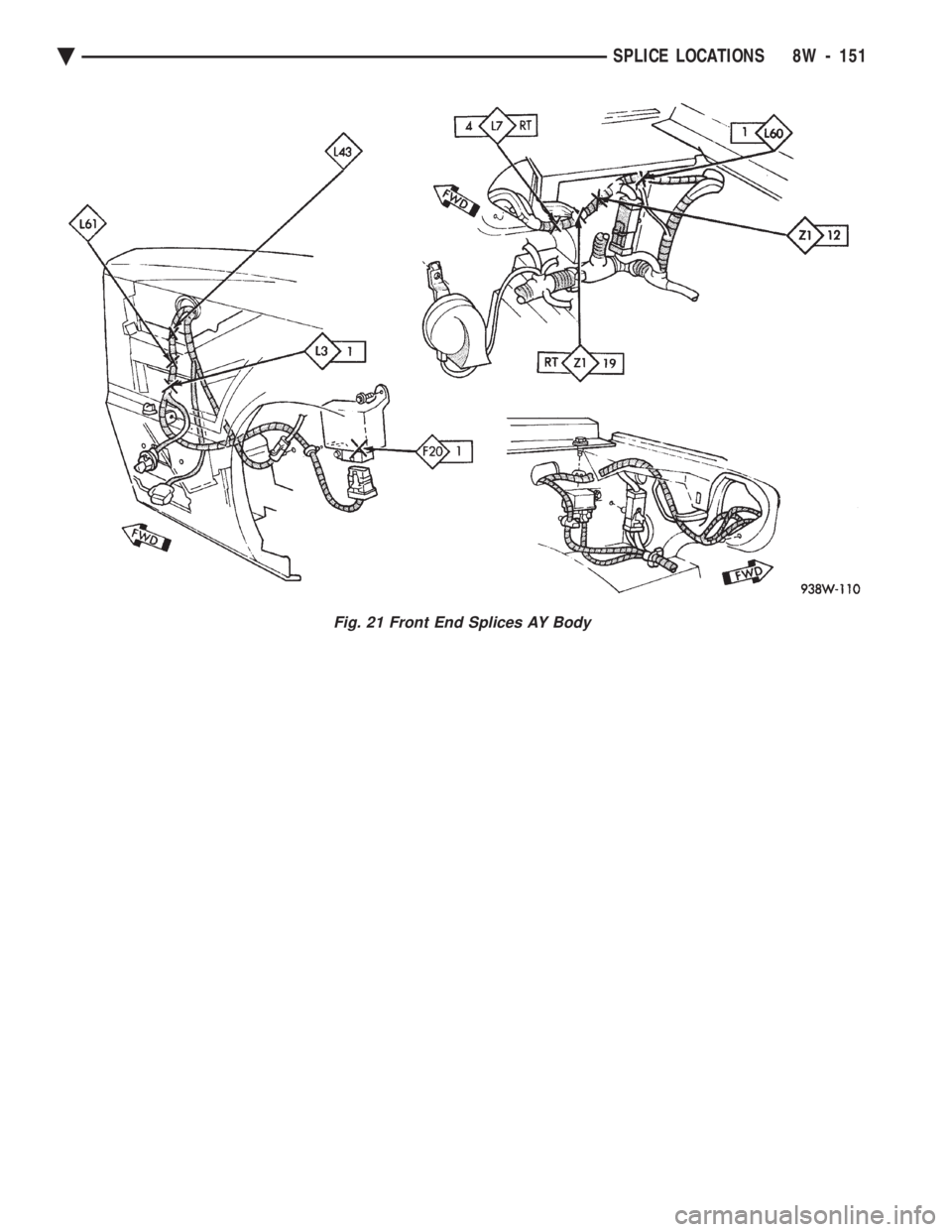

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 21 Front End Splices AY Body
Ä SPLICE LOCATIONS 8W - 151

Page 902 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual 8W - 152 SPLICE LOCATIONS Ä

Page 903 of 2438

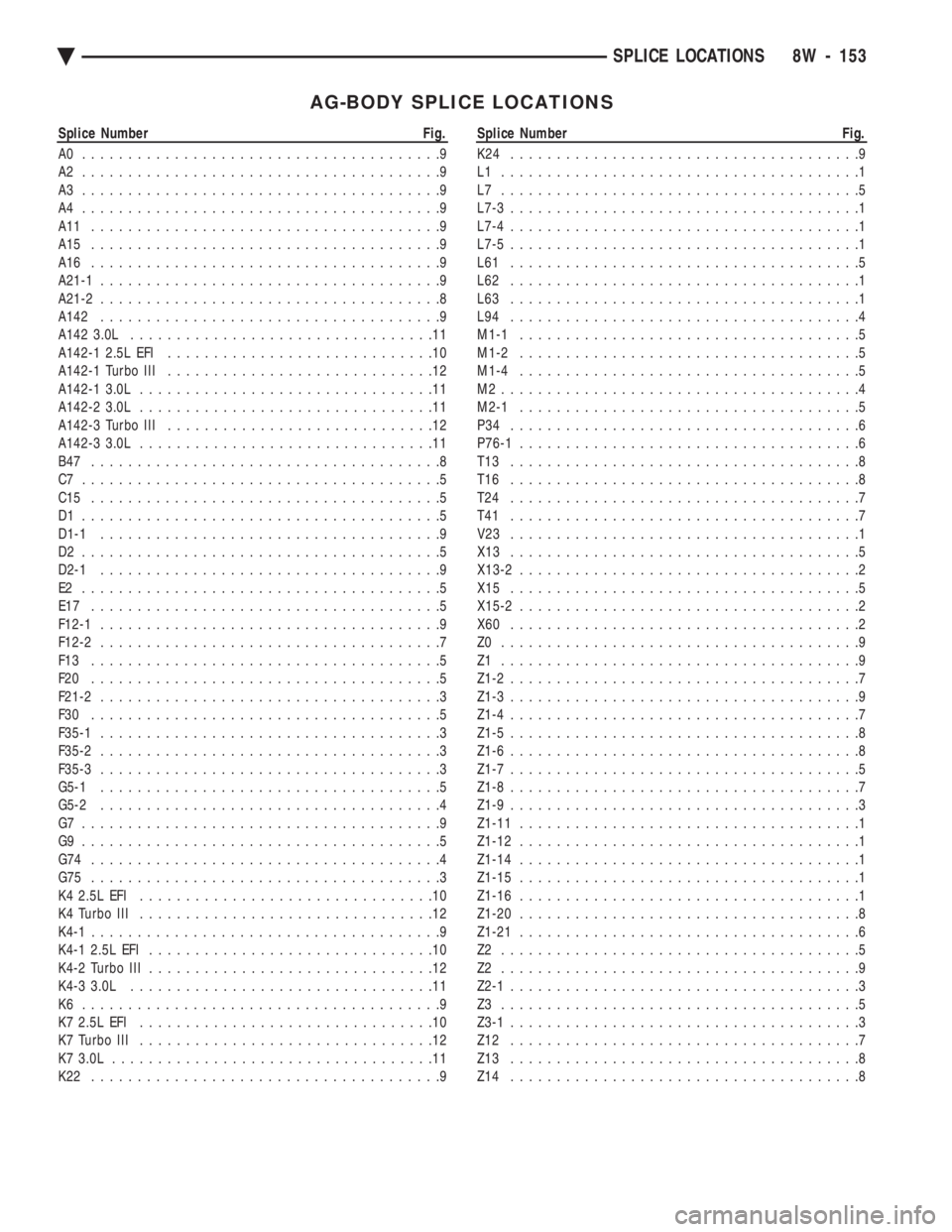

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual AG-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 .......................................9
A2 .......................................9
A3 .......................................9
A4 ...................

AG-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 .......................................9
A2 .......................................9
A3 .......................................9
A4 .......................................9
A11 ......................................9
A15 ......................................9
A16 ......................................9
A21-1 .....................................9
A21-2 .....................................8
A142 .....................................9
A142 3.0L .................................11
A142-1 2.5L EFI .............................10
A142-1 Turbo III .............................12
A142-1 3.0L ................................11
A142-2 3.0L ................................11
A142-3 Turbo III .............................12
A142-3 3.0L ................................11
B47 ......................................8
C7 .......................................5
C15 ......................................5
D1 .......................................5
D1-1 .....................................9
D2 .......................................5
D2-1 .....................................9
E2 .......................................5
E17 ......................................5
F12-1 .....................................9
F12-2 .....................................7
F13 ......................................5
F20 ......................................5
F21-2 .....................................3
F30 ......................................5
F35-1 .....................................3
F35-2 .....................................3
F35-3 .....................................3
G5-1 .....................................5
G5-2 .....................................4
G7 .......................................9
G9 .......................................5
G74 ......................................4
G75 ......................................3
K4 2.5L EFI ................................10
K4 Turbo III ................................12
K4-1 ......................................9
K4-1 2.5L EFI ...............................10
K4-2 Turbo III ...............................12
K4-3 3.0L .................................11
K6 .......................................9
K7 2.5L EFI ................................10
K7 Turbo III ................................12
K7 3.0L ...................................11
K22 ......................................9Splice Number Fig.
K24 ......................................9
L1 .......................................1
L7 .......................................5
L7-3 ......................................1
L7-4 ......................................1
L7-5 ......................................1
L61 ......................................5
L62 ......................................1
L63 ......................................1
L94 ......................................4
M1-1 .....................................5
M1-2 .....................................5
M1-4 .....................................5
M2.......................................4
M2-1 .....................................5
P34 ......................................6
P76-1 .....................................6
T13 ......................................8
T16 ......................................8
T24 ......................................7
T41 ......................................7
V23 ......................................1
X13 ......................................5
X13-2 .....................................2
X15 ......................................5
X15-2 .....................................2
X60 ......................................2
Z0 .......................................9
Z1 .......................................9
Z1-2 ......................................7
Z1-3 ......................................9
Z1-4 ......................................7
Z1-5 ......................................8
Z1-6 ......................................8
Z1-7 ......................................5
Z1-8 ......................................7
Z1-9 ......................................3
Z1-11 .....................................1
Z1-12 .....................................1
Z1-14 .....................................1
Z1-15 .....................................1
Z1-16 .....................................1
Z1-20 .....................................8
Z1-21 .....................................6
Z2 .......................................5
Z2 .......................................9
Z2-1 ......................................3
Z3 .......................................5
Z3-1 ......................................3
Z12 ......................................7
Z13 ......................................8
Z14 ......................................8
Ä SPLICE LOCATIONS 8W - 153

Page 904 of 2438

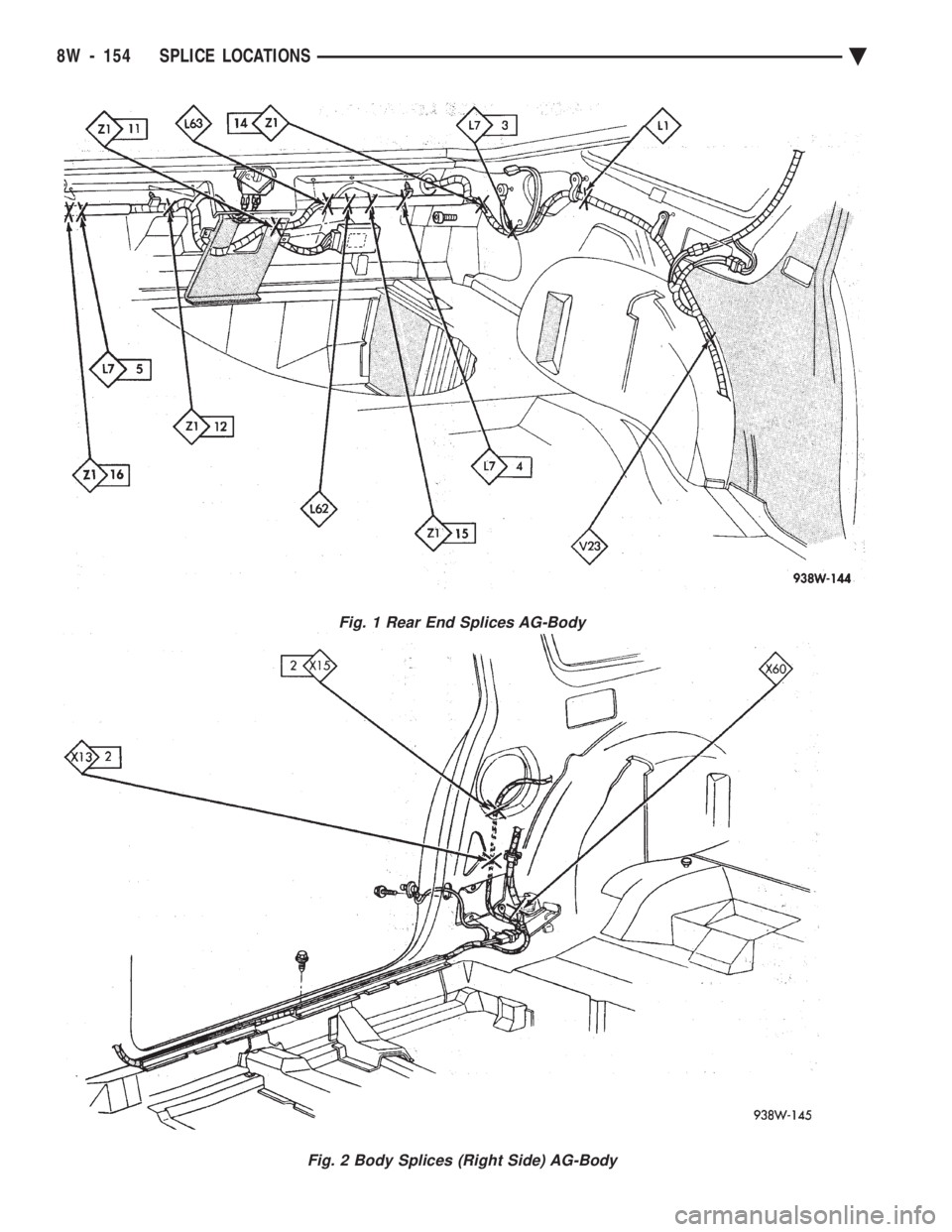

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 1 Rear End Splices AG-Body
Fig. 2 Body Splices (Right Side) AG-Body
8W - 154 SPLICE LOCATIONS Ä
