Page 1969 of 2438

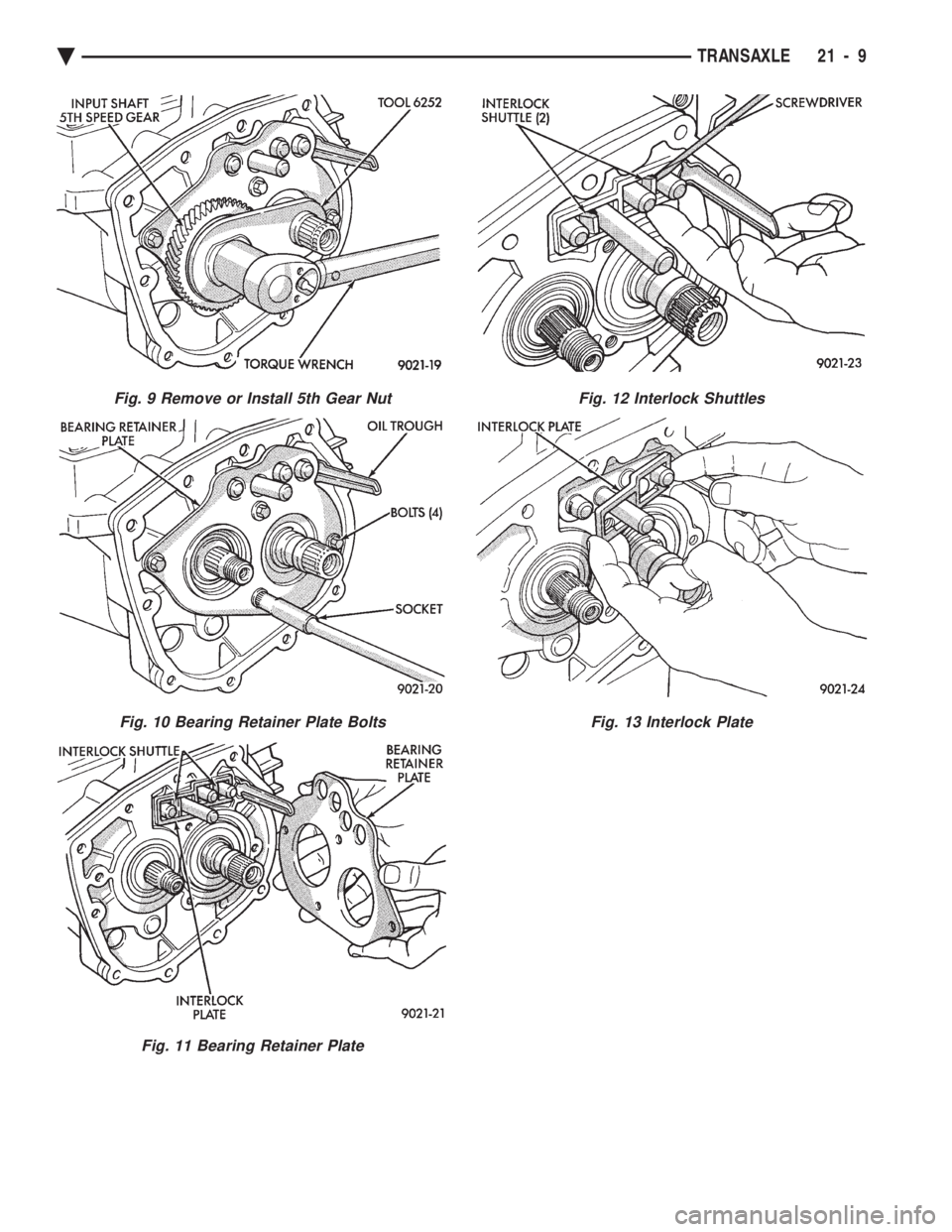

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 9 Remove or Install 5th Gear Nut Fig. 10 Bearing Retainer Plate Bolts Fig. 11 Bearing Retainer Plate Fig. 12 Interlock Shuttles Fig. 13 Interlock Plate Ä TRANSAXLE 21 - 9

Page 1970 of 2438

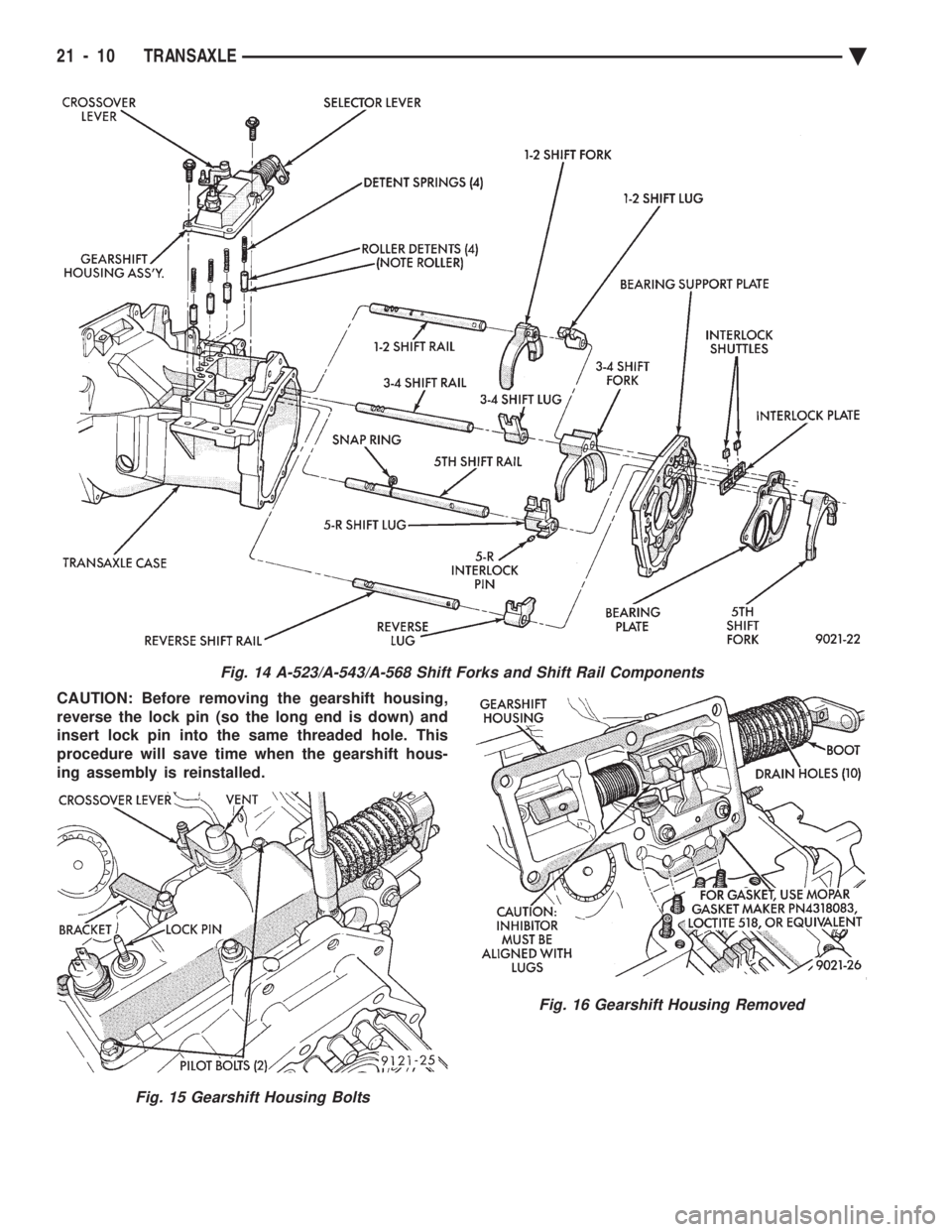

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual CAUTION: Before removing the gearshift housing, reverse the lock pin (so the long end is down) and insert lock pin into the same threaded hole. This procedure will save time when the gearshift hous-

Page 1971 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual To install gearshift housing, be sure to reverse the lock pin in the housing to lock the selector shaft in the 3-4 neutral position. CAUTION: Install roller detents so roller and slots are parallel

Page 1972 of 2438

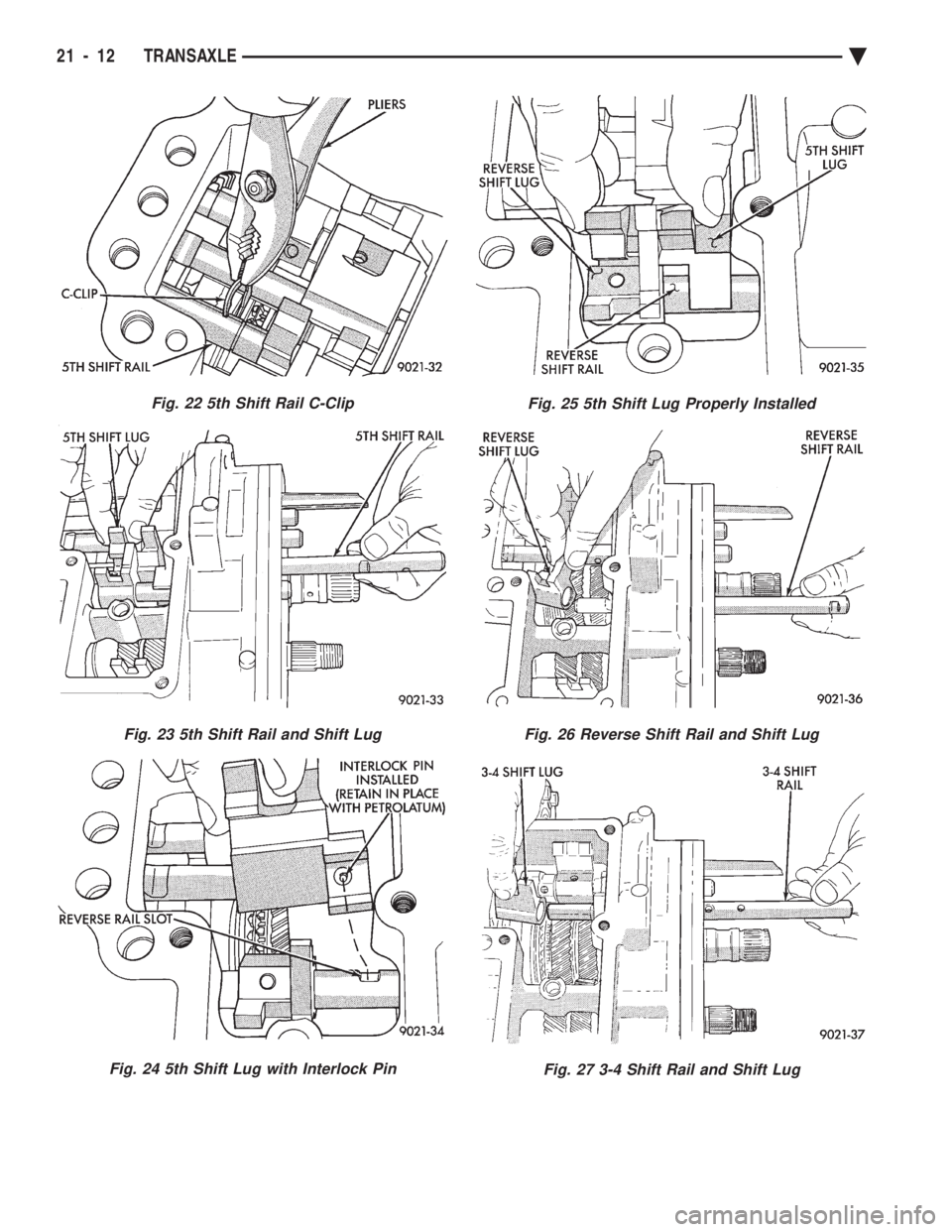

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 22 5th Shift Rail C-Clip Fig. 23 5th Shift Rail and Shift Lug Fig. 24 5th Shift Lug with Interlock Pin Fig. 25 5th Shift Lug Properly Installed Fig. 26 Reverse Shift Rail and Shift Lug Fig. 27 3-

Page 1973 of 2438

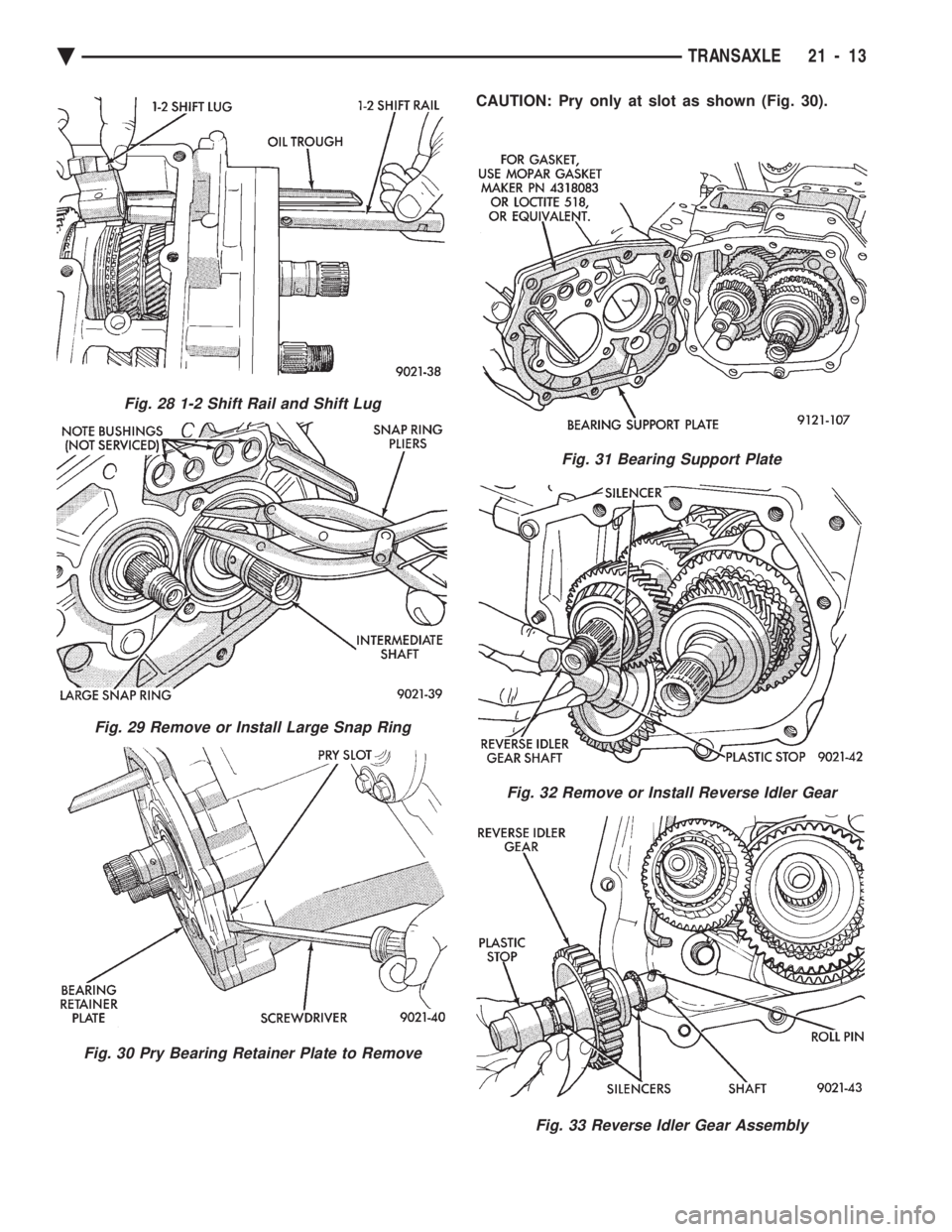

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual CAUTION: Pry only at slot as shown (Fig. 30). Fig. 28 1-2 Shift Rail and Shift Lug Fig. 29 Remove or Install Large Snap Ring Fig. 30 Pry Bearing Retainer Plate to Remove Fig. 31 Bearing Support Plate

Page 1974 of 2438

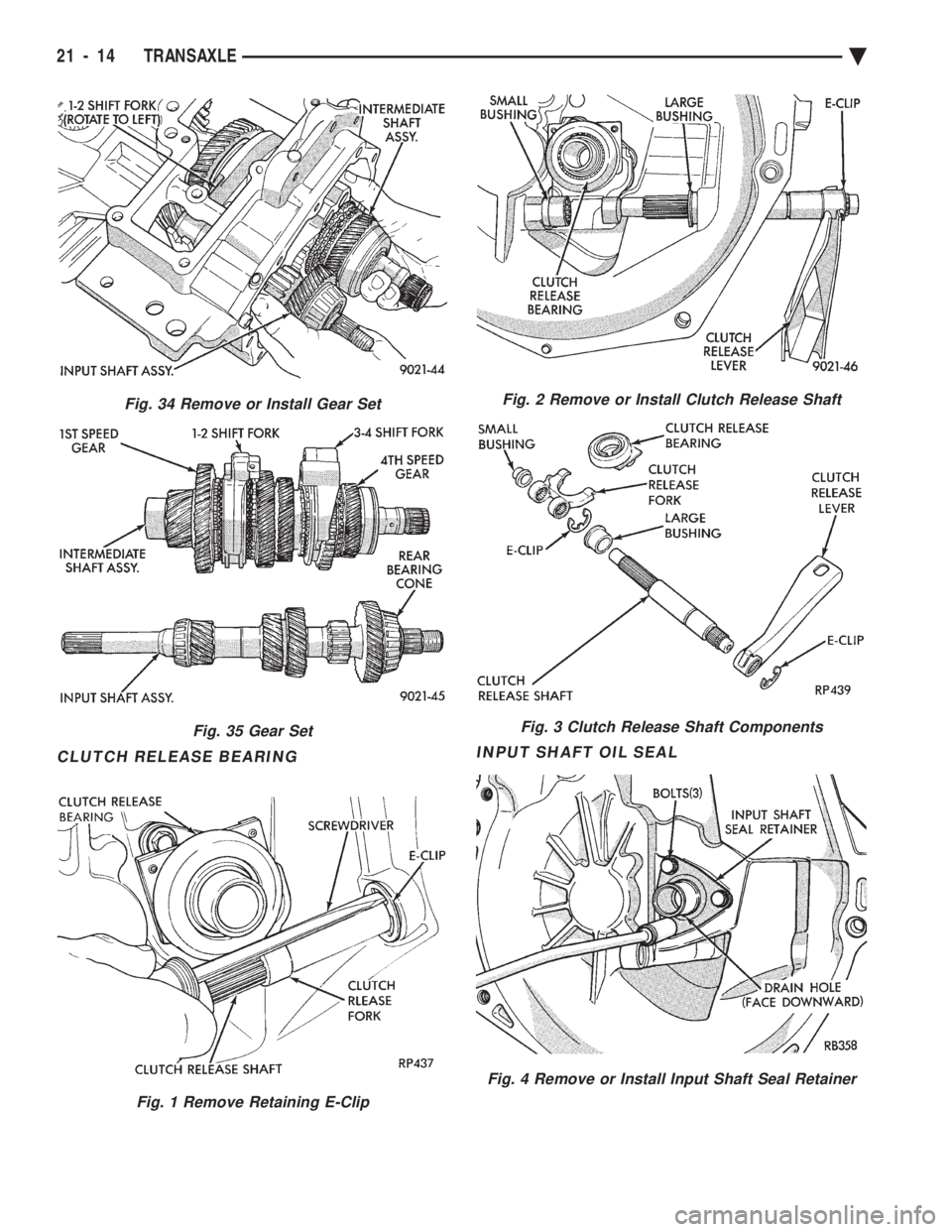

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual CLUTCH RELEASE BEARING INPUT SHAFT OIL SEAL Fig. 34 Remove or Install Gear Set Fig. 35 Gear Set Fig. 1 Remove Retaining E-Clip Fig. 2 Remove or Install Clutch Release Shaft Fig. 3 Clutch Release Shaft

Page 1975 of 2438

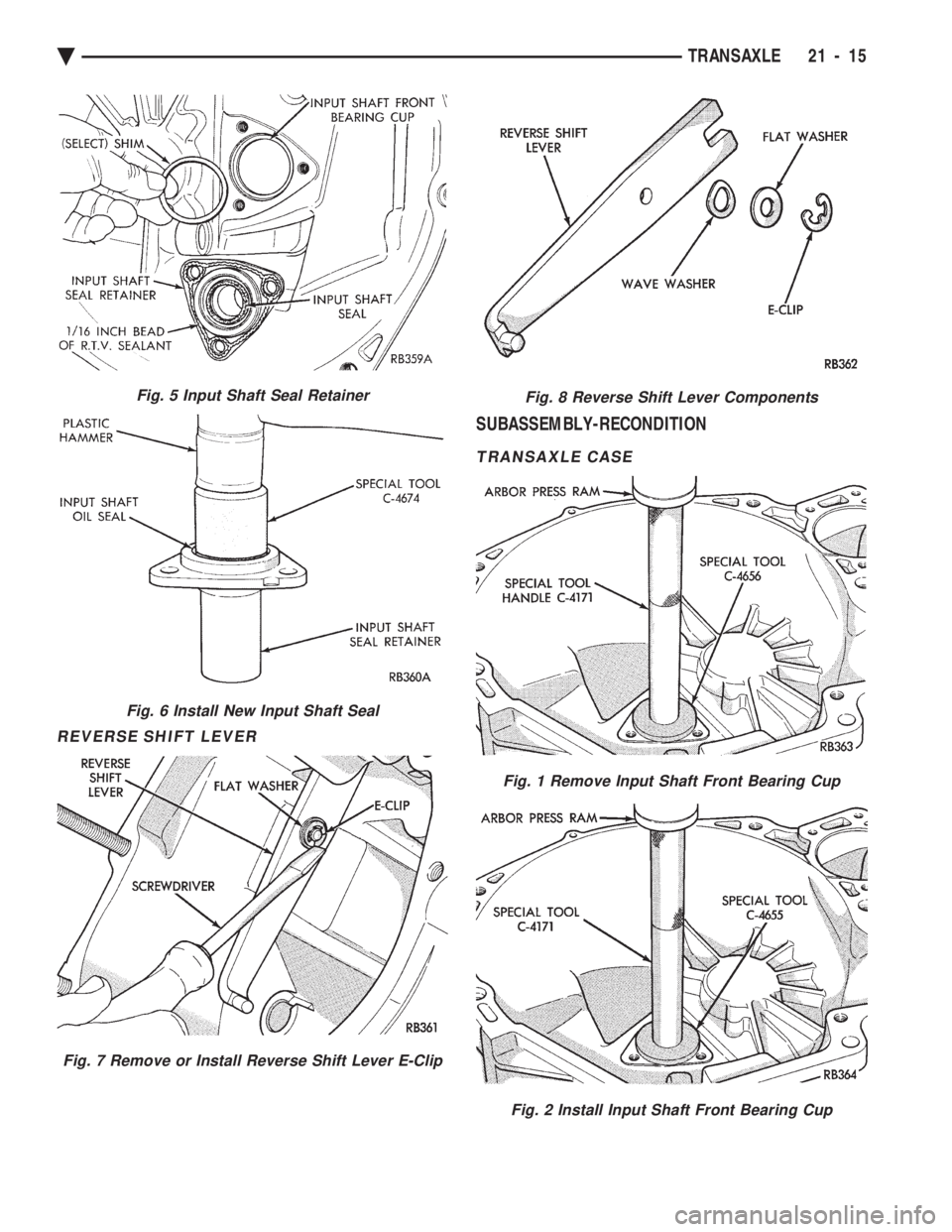

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual REVERSE SHIFT LEVER SUBASSEMBLY-RECONDITION TRANSAXLE CASE Fig. 6 Install New Input Shaft Seal Fig. 7 Remove or Install Reverse Shift Lever E-Clip Fig. 8 Reverse Shift Lever Components Fig. 1 Remove I

Page 1976 of 2438

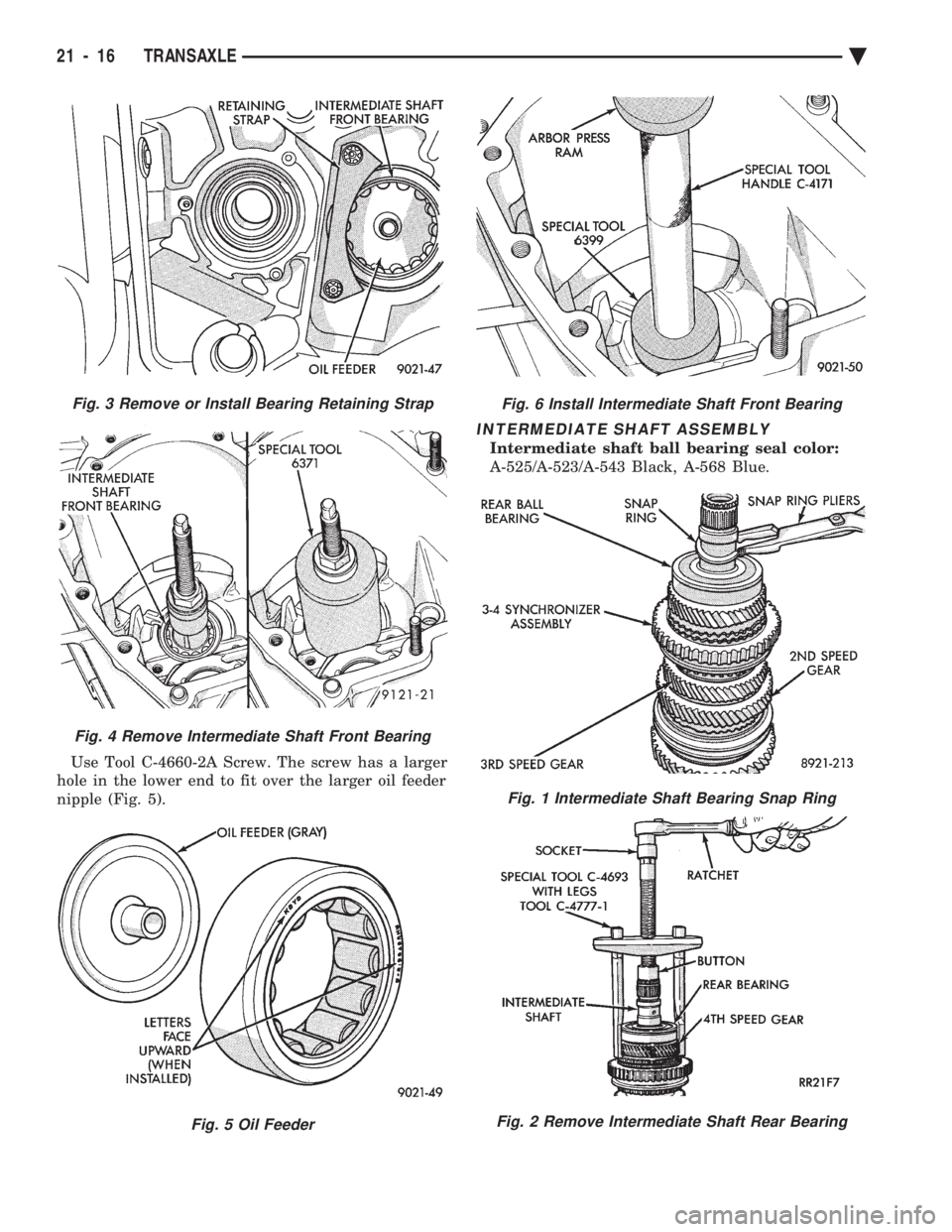

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Use Tool C-4660-2A Screw. The screw has a larger hole in the lower end to fit over the larger oil feeder nipple (Fig. 5). INTERMEDIATE SHAFT ASSEMBLY Intermediate shaft ball bearing seal color: A-525
