CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 21 Engine Wiring 3.0L AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 35

Page 786 of 2438

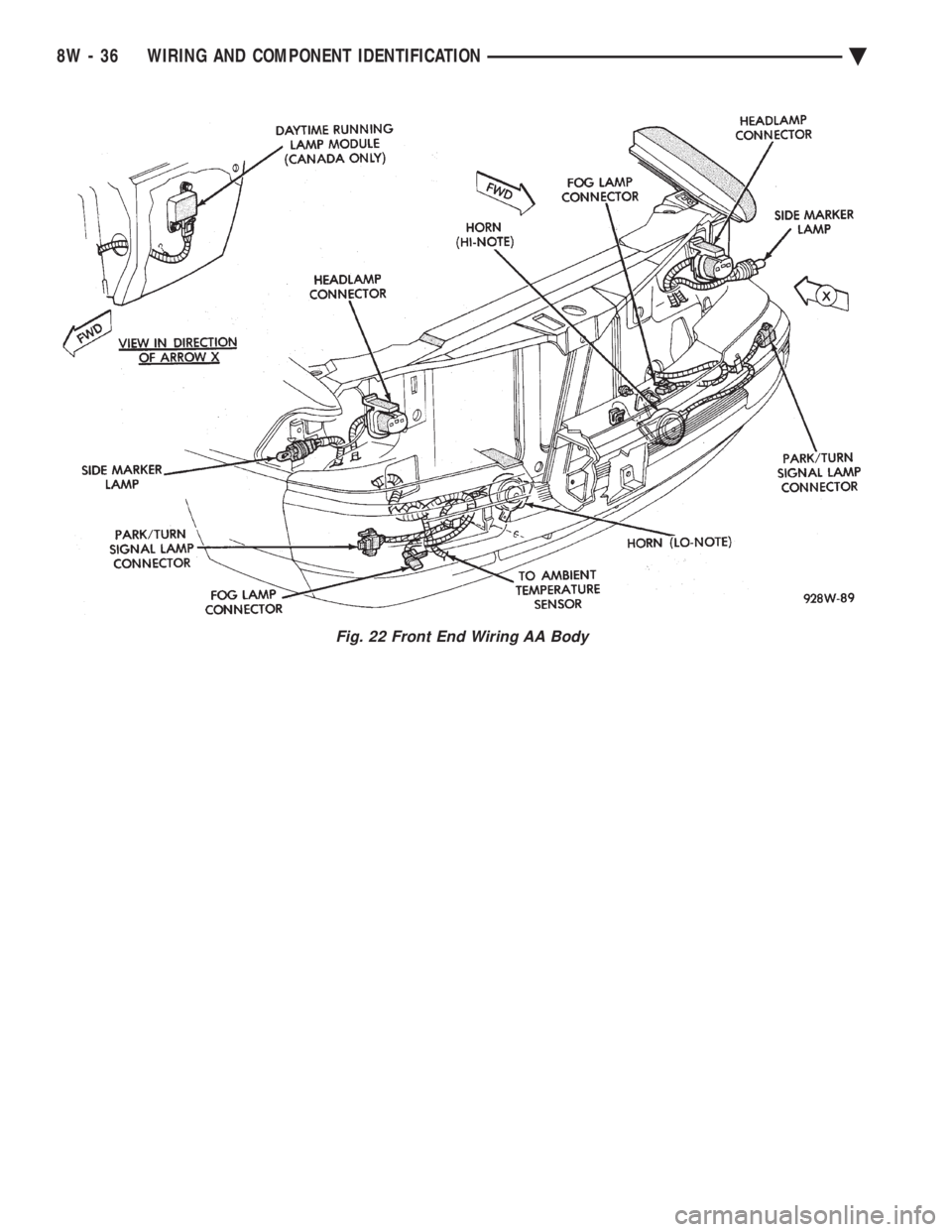

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 22 Front End Wiring AA Body 8W - 36 WIRING AND COMPONENT IDENTIFICATION Ä

Page 787 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual AC BODY C,D Caption Fig. Air Suspension Wiring ..........................4 Body Left Side Wiring ...........................8 Body Right Side Wiring ..........................9 Cellular Phone W

Page 788 of 2438

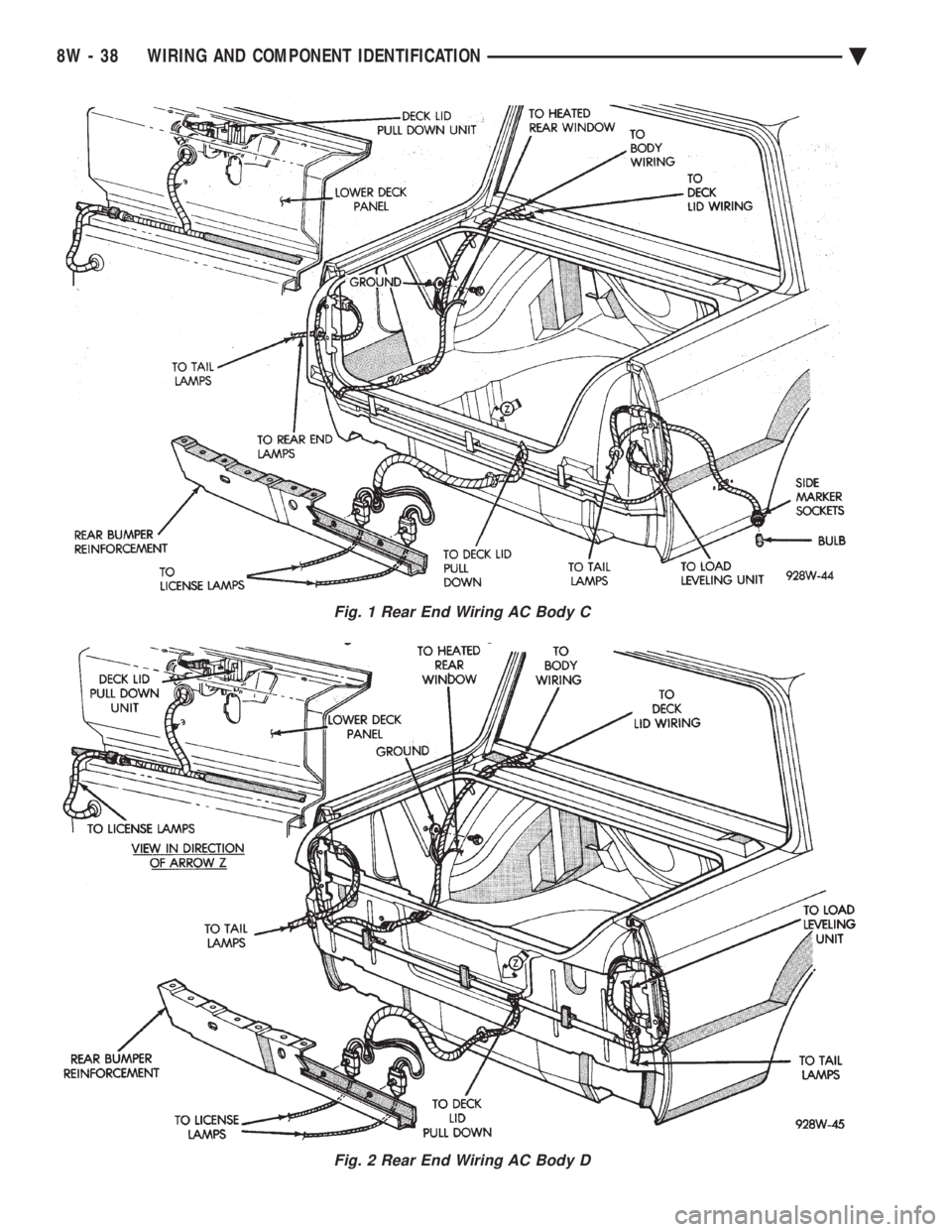

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 1 Rear End Wiring AC Body C Fig. 2 Rear End Wiring AC Body D 8W - 38 WIRING AND COMPONENT IDENTIFICATION Ä

Page 789 of 2438

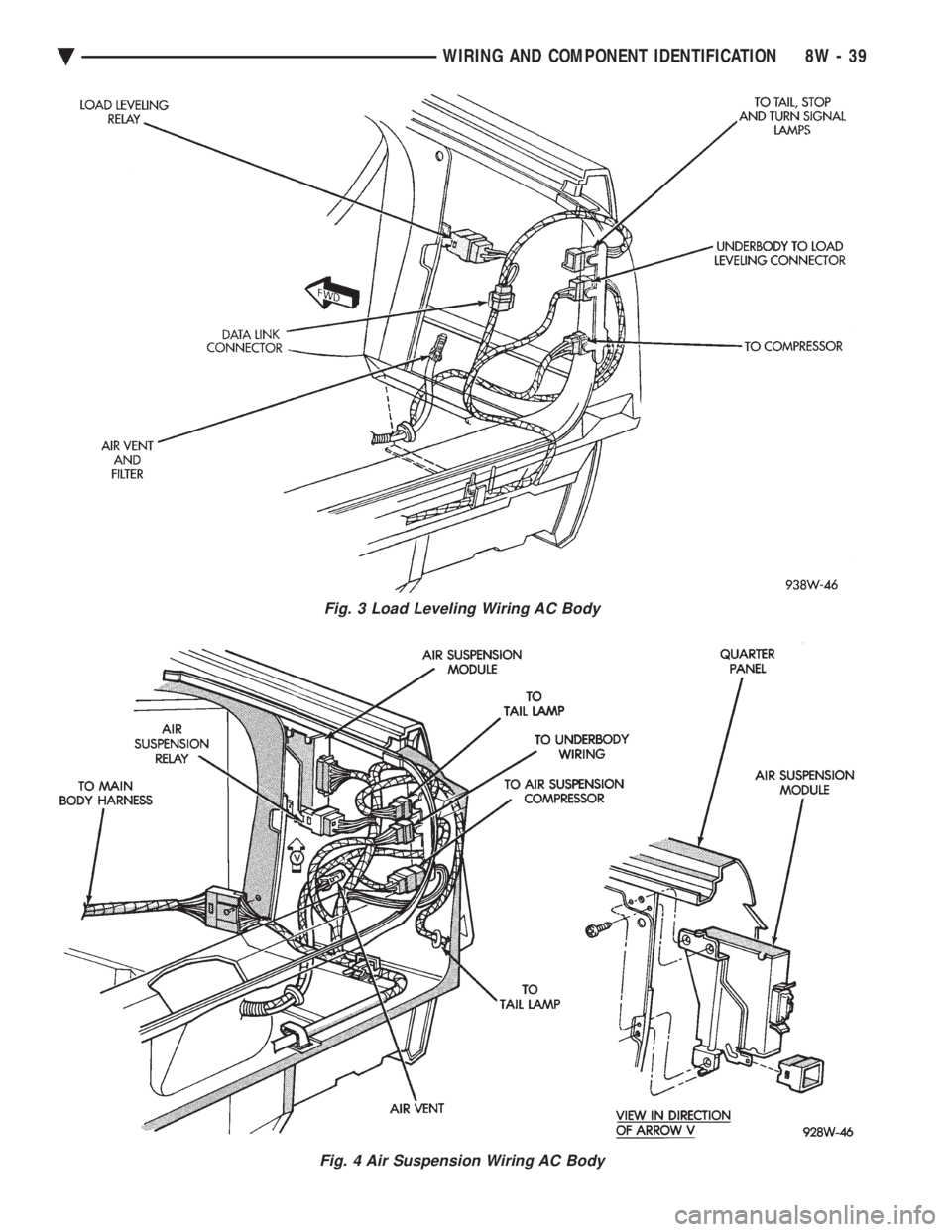

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 3 Load Leveling Wiring AC Body Fig. 4 Air Suspension Wiring AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 39

Page 790 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 5 Deck Lid Wiring AC Body 8W - 40 WIRING AND COMPONENT IDENTIFICATION Ä

Page 791 of 2438

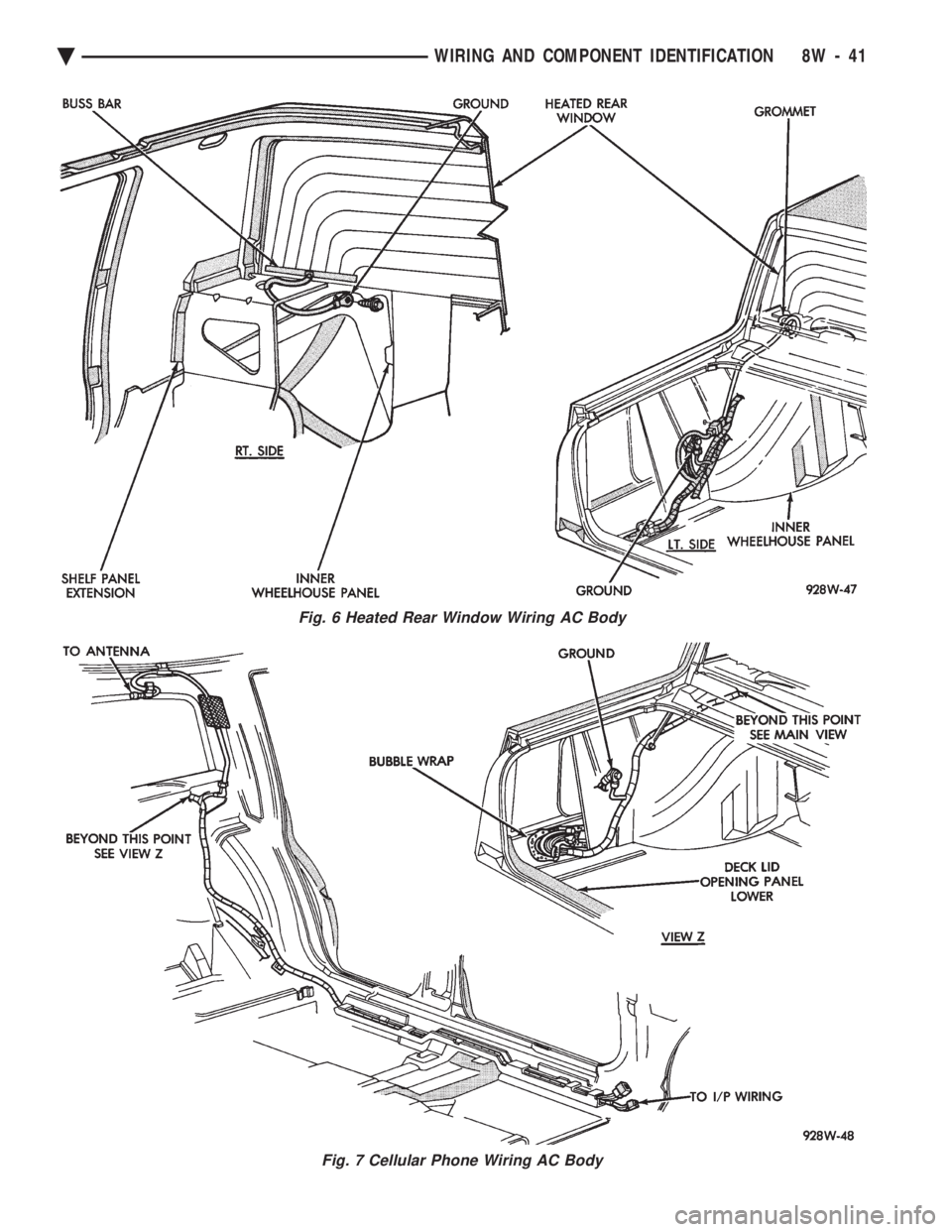

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 6 Heated Rear Window Wiring AC Body Fig. 7 Cellular Phone Wiring AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 41

Page 792 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 8 Body Left Side Wiring AC Body 8W - 42 WIRING AND COMPONENT IDENTIFICATION Ä
