1993 CHEVROLET PLYMOUTH ACCLAIM Service Manual

Page 577 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES
Ä AUDIO SYSTEM 8F - 11

Page 578 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 12 AUDIO SYSTEM Ä

Page 579 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES CONTINUED

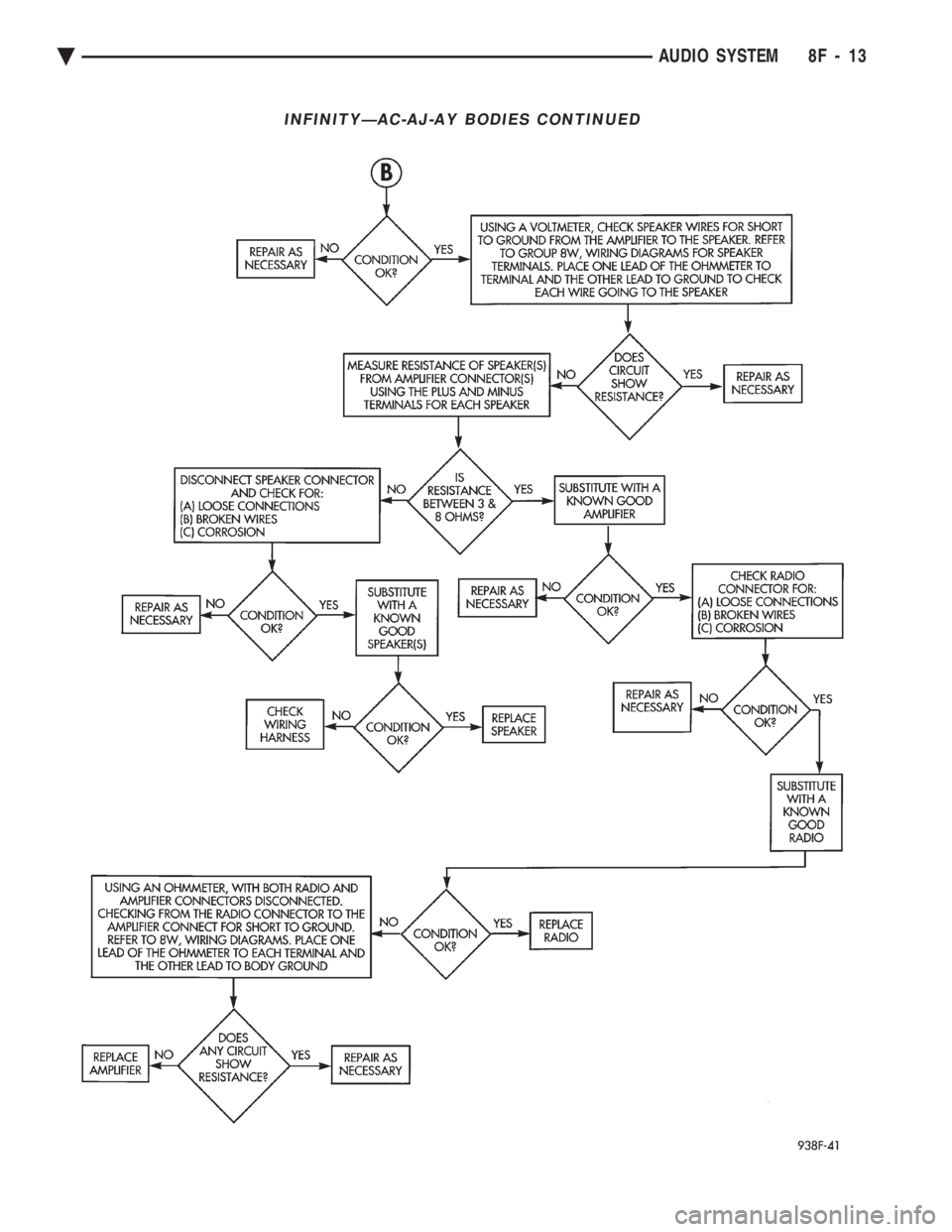

Ä AUDIO SYSTEM 8F - 13

Page 580 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 14 AUDIO SYSTEM Ä

Page 581 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES CONTINUED
Ä AUDIO SYSTEM 8F - 15

Page 582 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 16 AUDIO SYSTEM Ä

Page 583 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 2 Radio Connector Circuits
Ä AUDIO SYSTEM 8F - 17

Page 584 of 2438

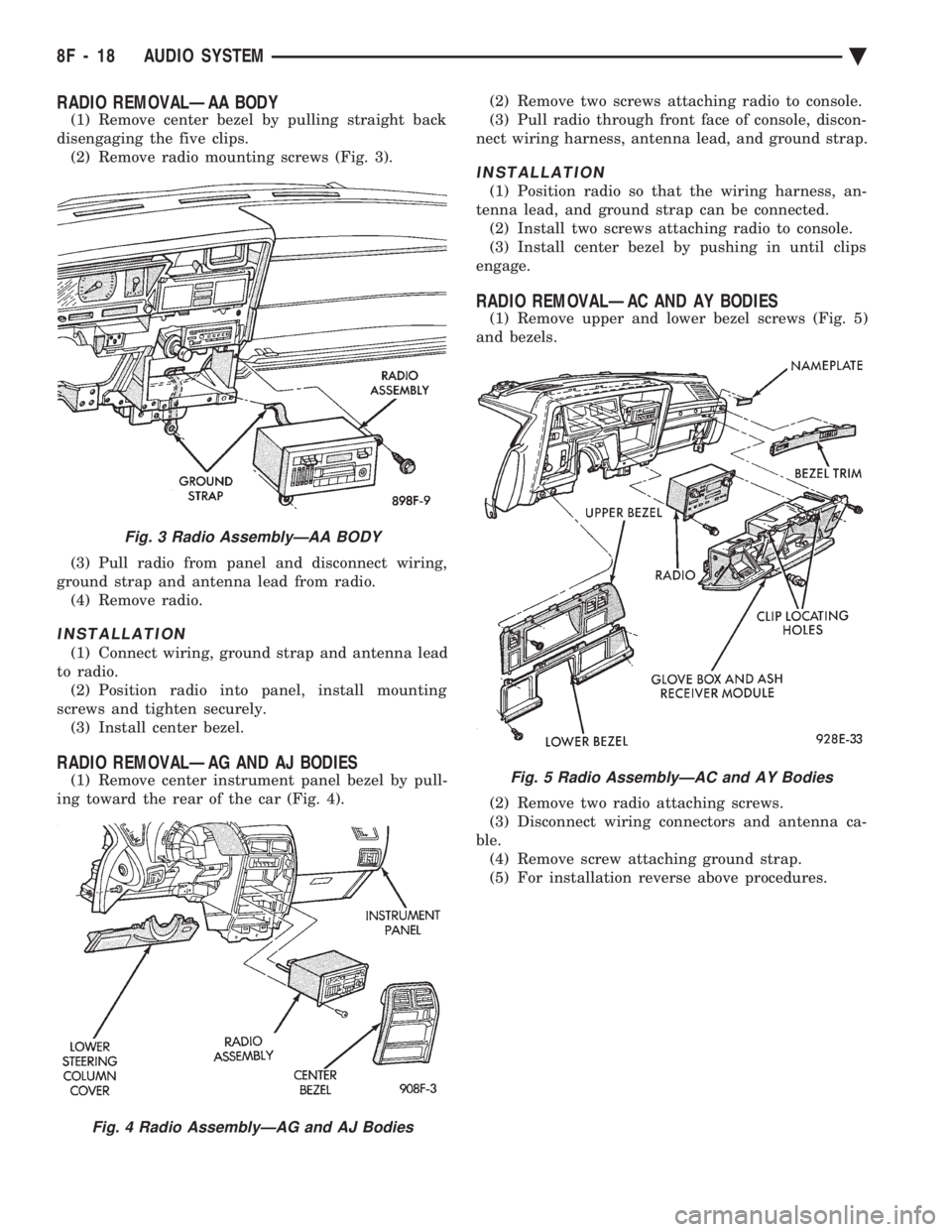

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual RADIO REMOVALÐAA BODY
(1) Remove center bezel by pulling straight back
disengaging the five clips. (2) Remove radio mounting screws (Fig. 3).
(3) Pull radio from panel and disconnect wiring,
groun
