Page 1729 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual (2) Remove nuts holding bumper fascia to quarter
panels. (3) Remove fasteners holding bumper fascia to
wheel opening flange. (4) Disconnect license plate lamp wire connectors.
(5) Remove bolts holdin

(2) Remove nuts holding bumper fascia to quarter
panels. (3) Remove fasteners holding bumper fascia to
wheel opening flange. (4) Disconnect license plate lamp wire connectors.
(5) Remove bolts holding bumper to rear closure
panel. (6) Remove nuts holding bumper to energy ab-
sorber units. (7) Separate bumper from vehicle.
INSTALLATION
Reverse the preceding operation.
AG-VEHICLE REAR BUMPER
REMOVAL (FIG. 18)
(1) Raise vehicle and support on safety stands.
(2) Remove nuts holding rear fascia to luggage
compartment tail panel. (3) Remove nuts holding fascia ends to quarter
panel end flanges. (4) Remove pop-rivets holding bumper fascia to
wheel lip flanges. (5) Remove nuts holding bumper fascia to quarter
panel along belt line. (6) Support rear bumper assembly on lifting de-
vice. (7) Remove nuts holding rear bumper reinforce-
ment to energy absorbers. (8) Separate bumper from vehicle.
INSTALLATION
Reverse the preceding operation.
AJ-VEHICLE REAR BUMPER
REMOVAL (FIG. 19)
(1) Remove nuts holding rear fascia to quarter
panel ends. (2) Remove push-in fasteners holding fascia to bot-
tom of bumper reinforcement. (3) Remove nuts holding fascia to trunk tail panel.
(4) Remove bolts holding fascia to ends of bumper
reinforcement. (5) Separate fascia from reinforcement and sepa-
rate fascia from vehicle. (6) Support bumper reinforcement on a lifting de-
vice. Remove bolts holding reinforcement to energy
absorbers. Separate reinforcement from energy ab-
sorbers.
INSTALLATION
Reverse the preceding operation.
AP-VEHICLE REAR BUMPER
REMOVAL (FIG. 20)
(1) Raise vehicle and support on safety stands.
(2) Support rear bumper on lifting device.
(3) Remove bolts holding rear bumper reinforce-
ment to energy absorber units. (4) Pull rear bumper assembly rearward to disen-
gage retainers from quarter panel. (5) Separate front bumper from vehicle.
INSTALLATION
Reverse the preceding operation.

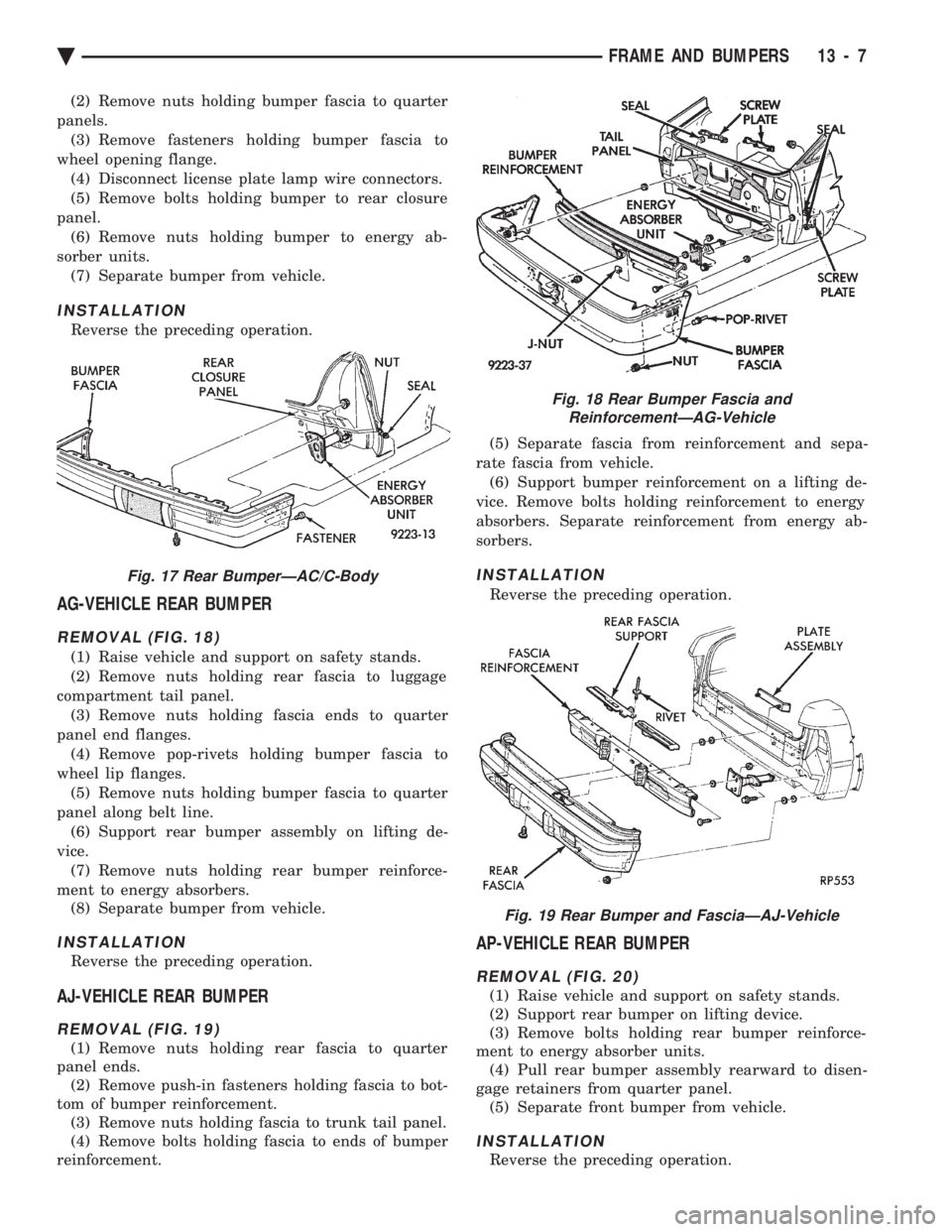

Fig. 17 Rear BumperÐAC/C-Body
Fig. 18 Rear Bumper Fascia and ReinforcementÐAG-Vehicle
Fig. 19 Rear Bumper and FasciaÐAJ-Vehicle
Ä FRAME AND BUMPERS 13 - 7

Page 1730 of 2438

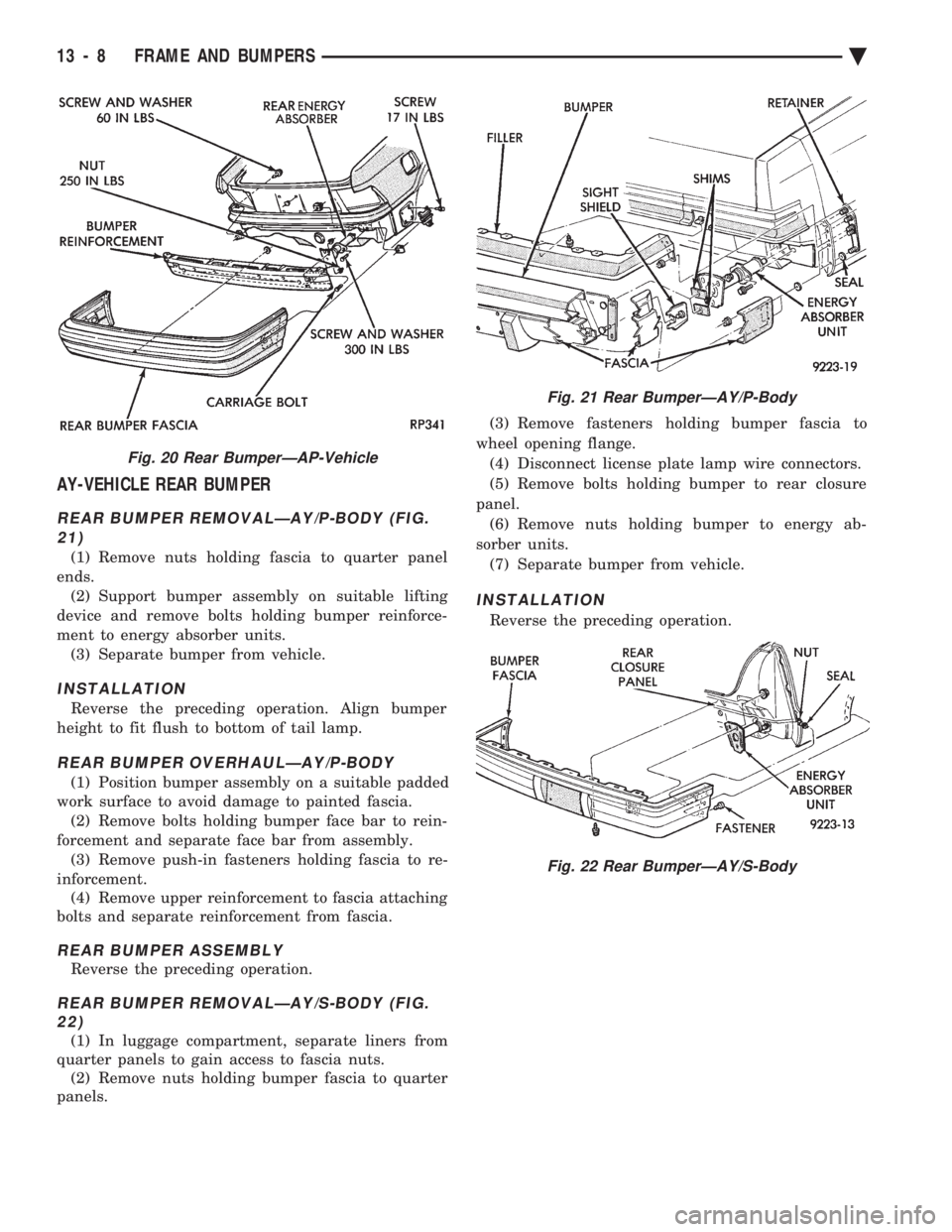

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual AY-VEHICLE REAR BUMPER
REAR BUMPER REMOVALÐAY/P-BODY (FIG. 21)
(1) Remove nuts holding fascia to quarter panel
ends. (2) Support bumper assembly on suitable lifting
device and remove bolts holding bu

Page 1731 of 2438

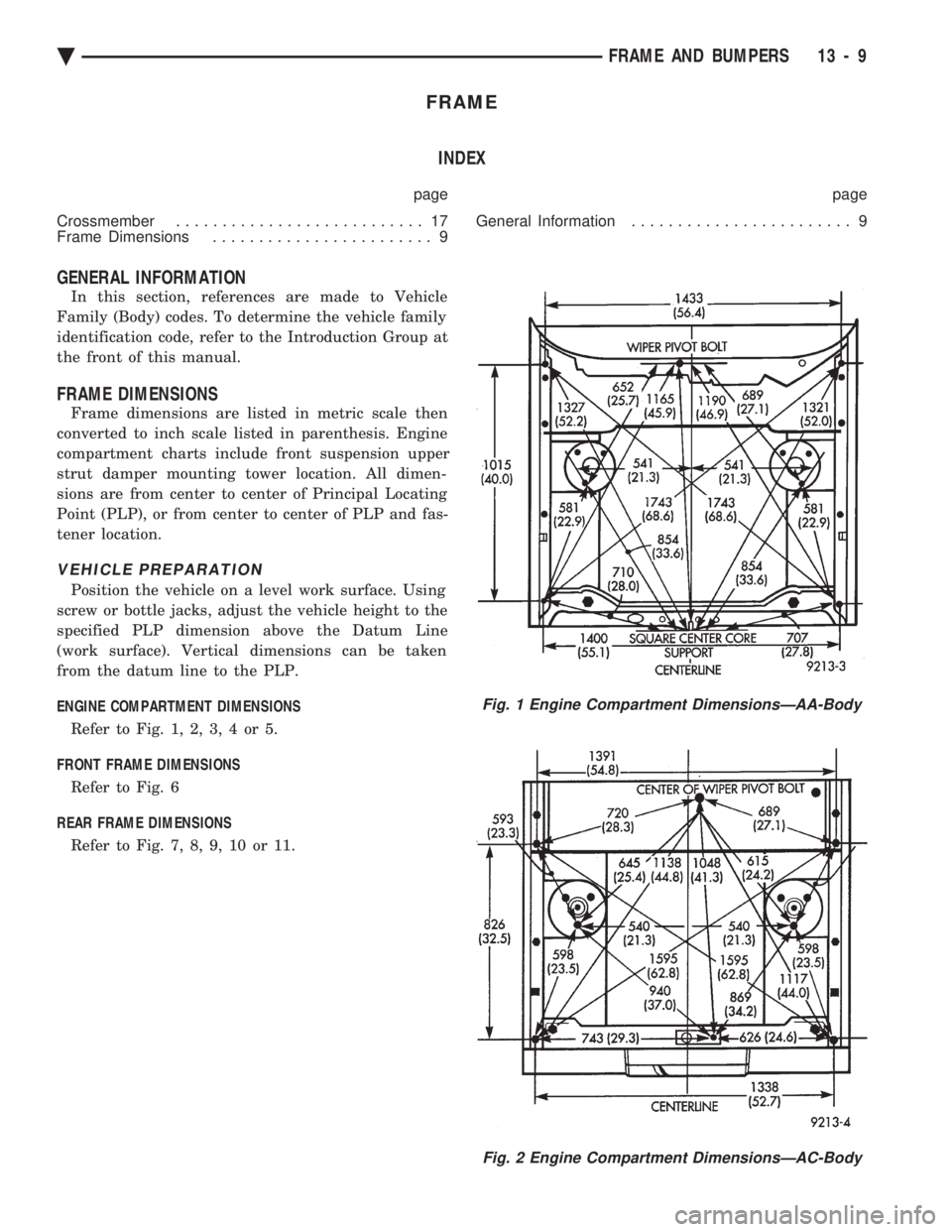

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual FRAME INDEX
page page
Crossmember ........................... 17
Frame Dimensions ........................ 9 General Information
........................ 9
GENERAL INFORMATION
In this section, r

Page 1732 of 2438

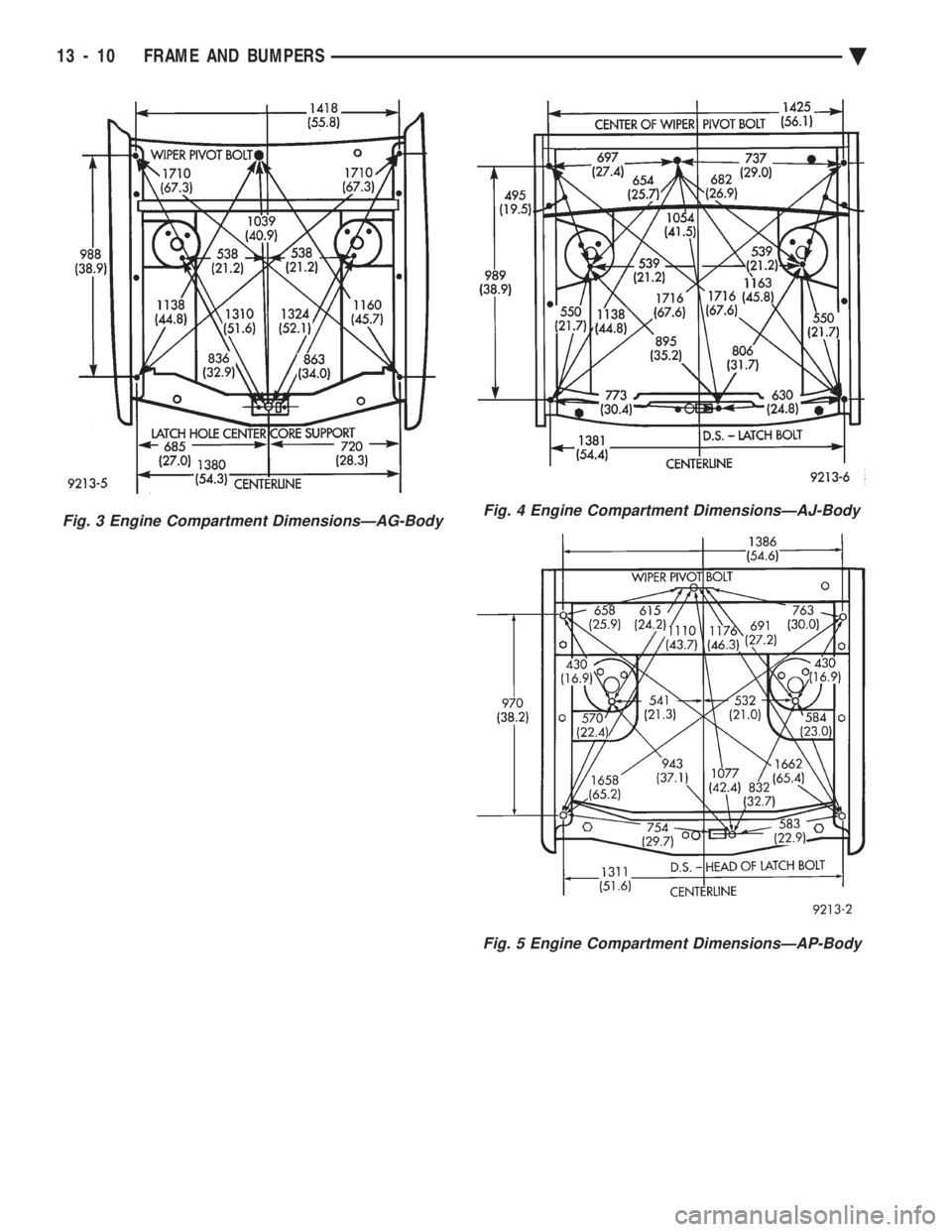

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 5 Engine Compartment DimensionsÐAP-Body
Fig. 3 Engine Compartment DimensionsÐAG-BodyFig. 4 Engine Compartment DimensionsÐAJ-Body
13 - 10 FRAME AND BUMPERS Ä

Page 1733 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 6 Front Frame DimensionsÐAll
Ä FRAME AND BUMPERS 13 - 11

Page 1734 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 7 Rear Frame DimensionsÐAA-Body
13 - 12 FRAME AND BUMPERS Ä

Page 1735 of 2438

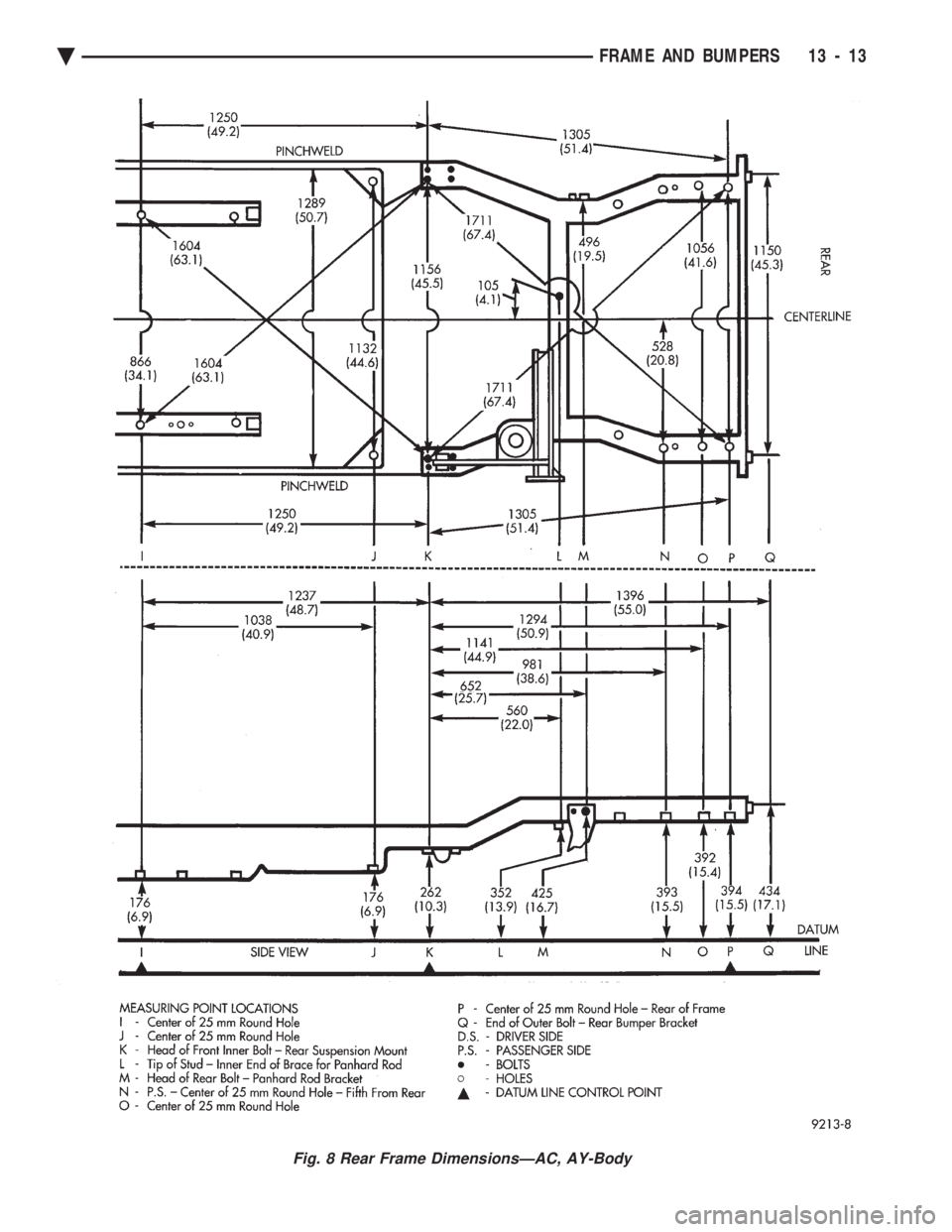

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 8 Rear Frame DimensionsÐAC, AY-Body
Ä FRAME AND BUMPERS 13 - 13

Page 1736 of 2438

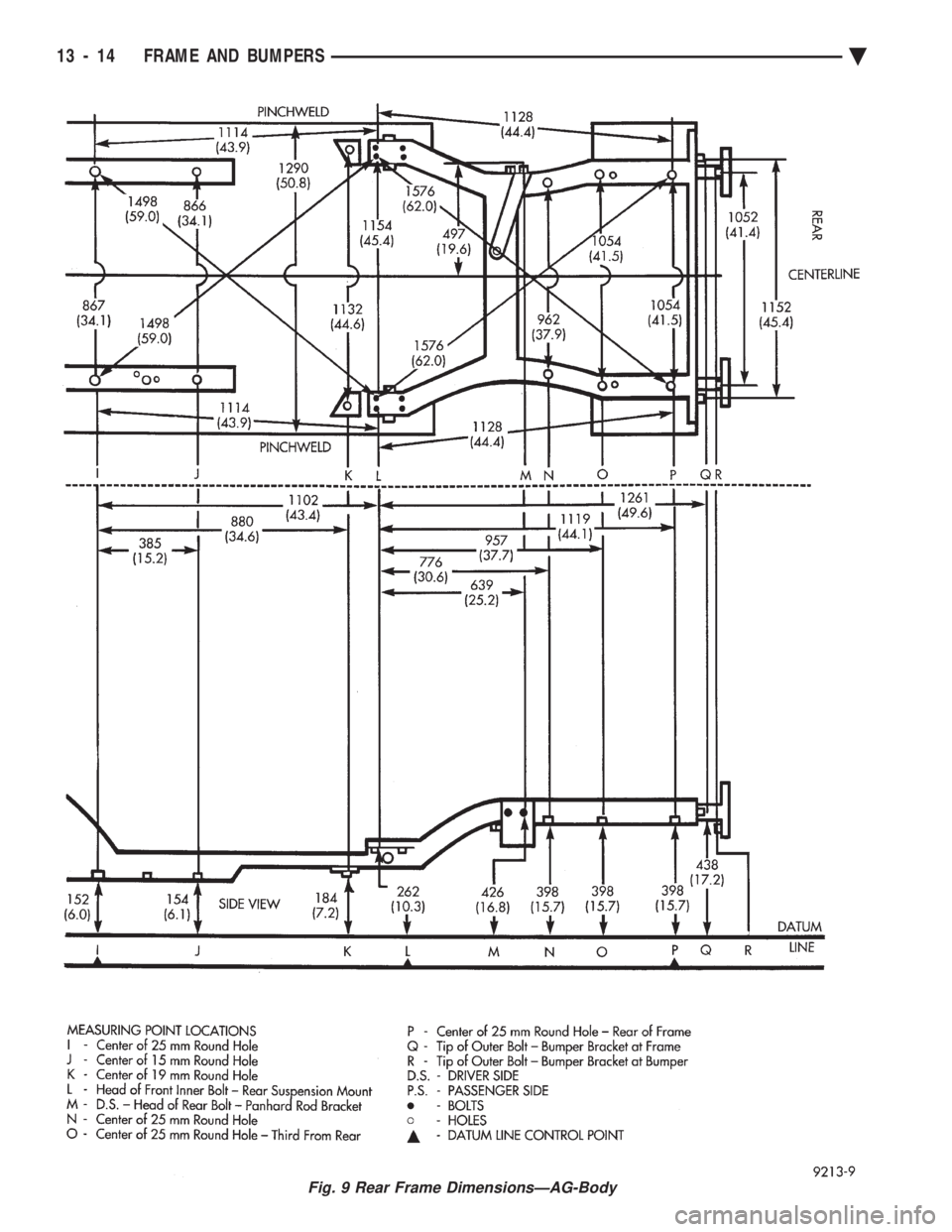

CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual Fig. 9 Rear Frame DimensionsÐAG-Body
13 - 14 FRAME AND BUMPERS Ä
