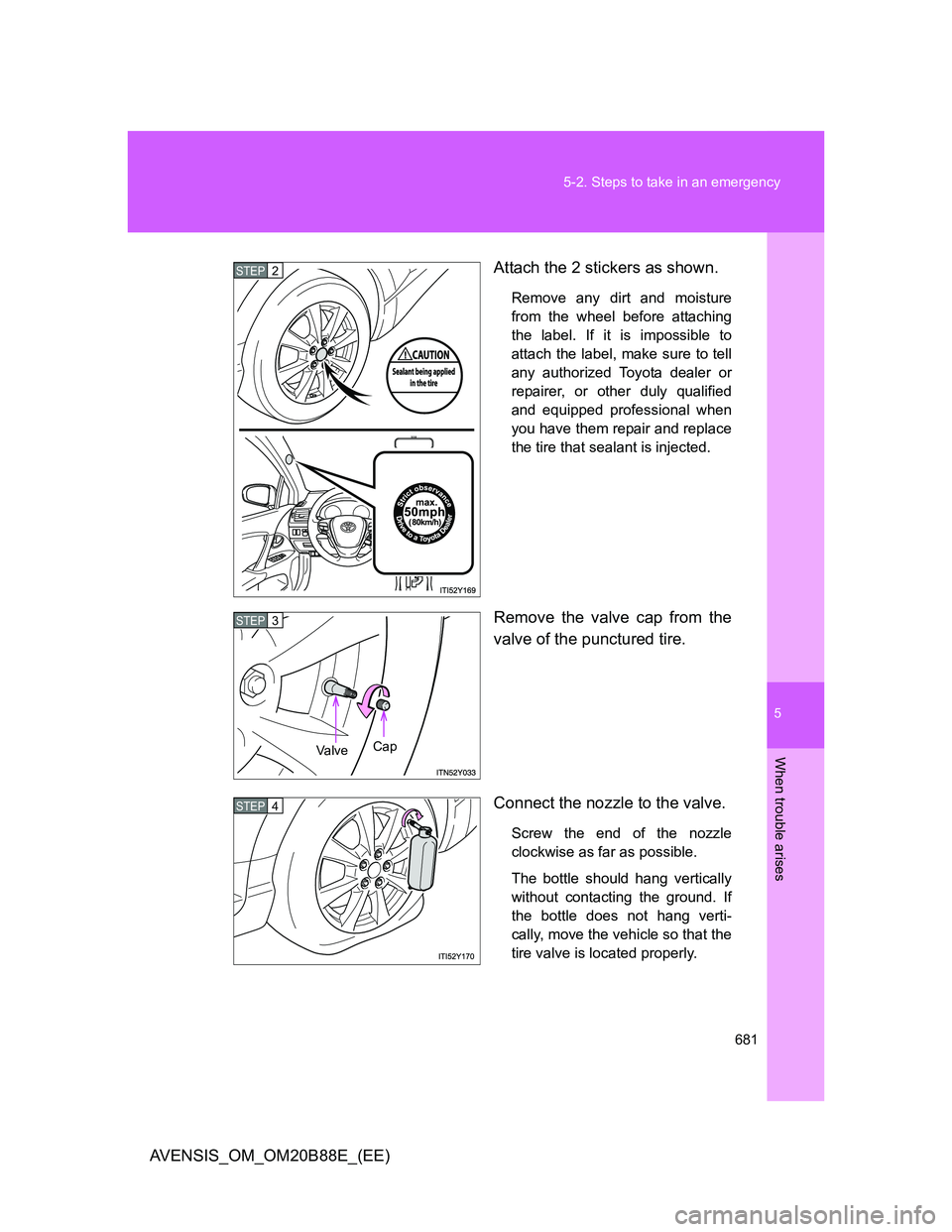

AVENSIS_OM_OM20B88E_(EE)Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or other duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Connect the nozzle to the valve.
Screw the end of the nozzle
clockwise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang verti-
cally, move the vehicle so that the
tire valve is located properly.

STEP2
STEP3
Va l v eCap
STEP4

682 5-2. Steps to take in an emergency

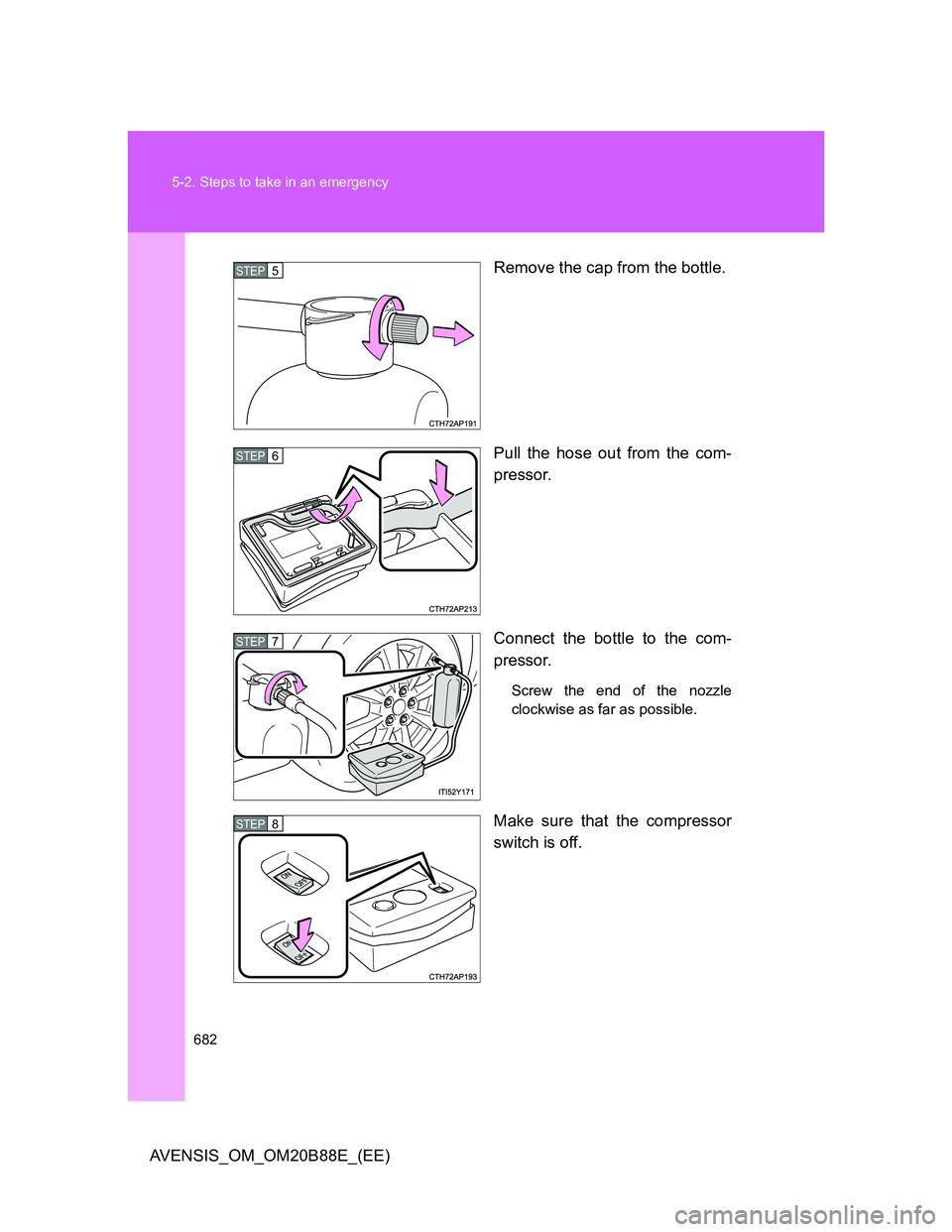

AVENSIS_OM_OM20B88E_(EE)Remove the cap from the bottle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle
clockwise as far as possible.
Make sure that the compressor
switch is off.
STEP5
STEP6
STEP7
STEP8

5
683 5-2. Steps to take in an emergency
When trouble arises

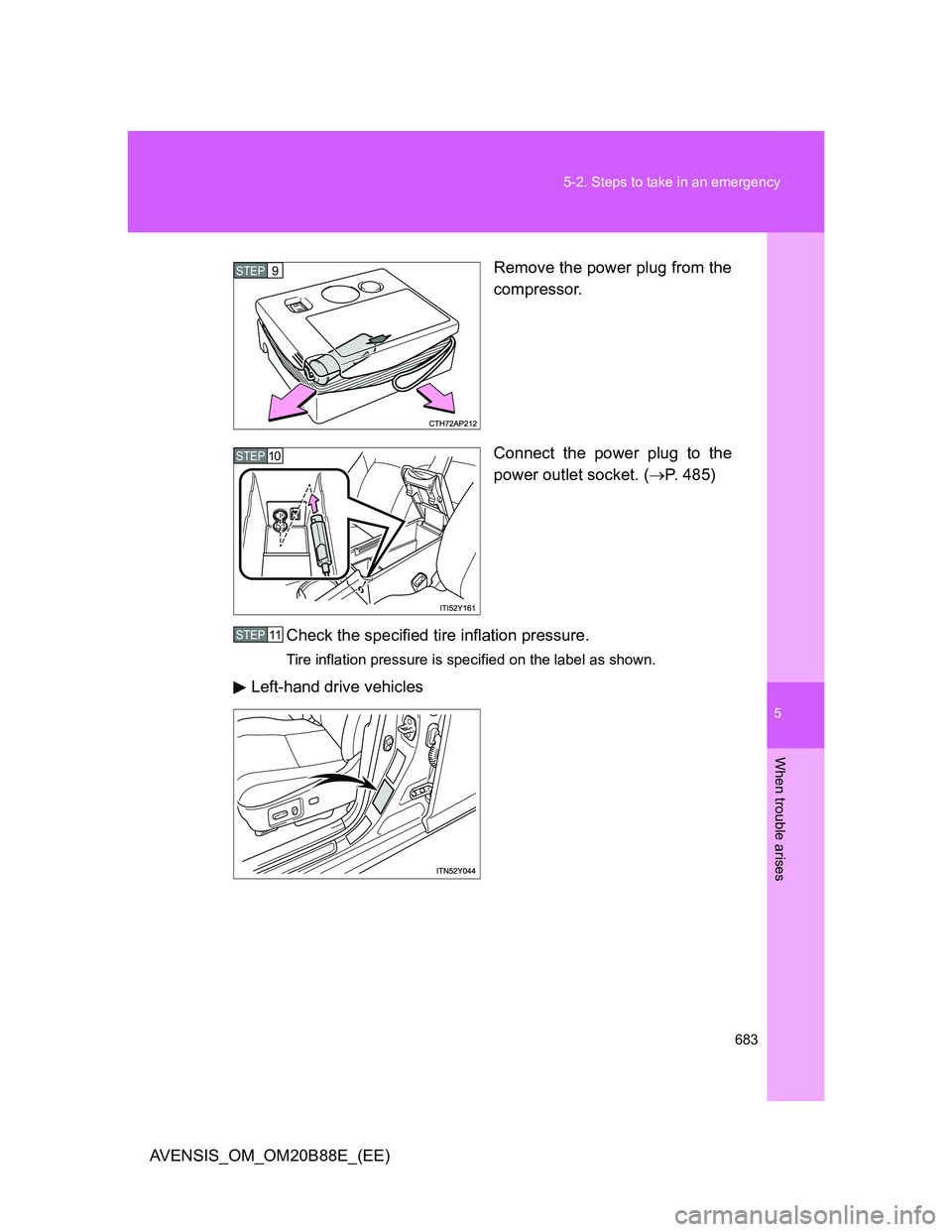

AVENSIS_OM_OM20B88E_(EE)Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket. (P. 485)
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown.
Left-hand drive vehicles
STEP9
STEP10
STEP11

684 5-2. Steps to take in an emergency

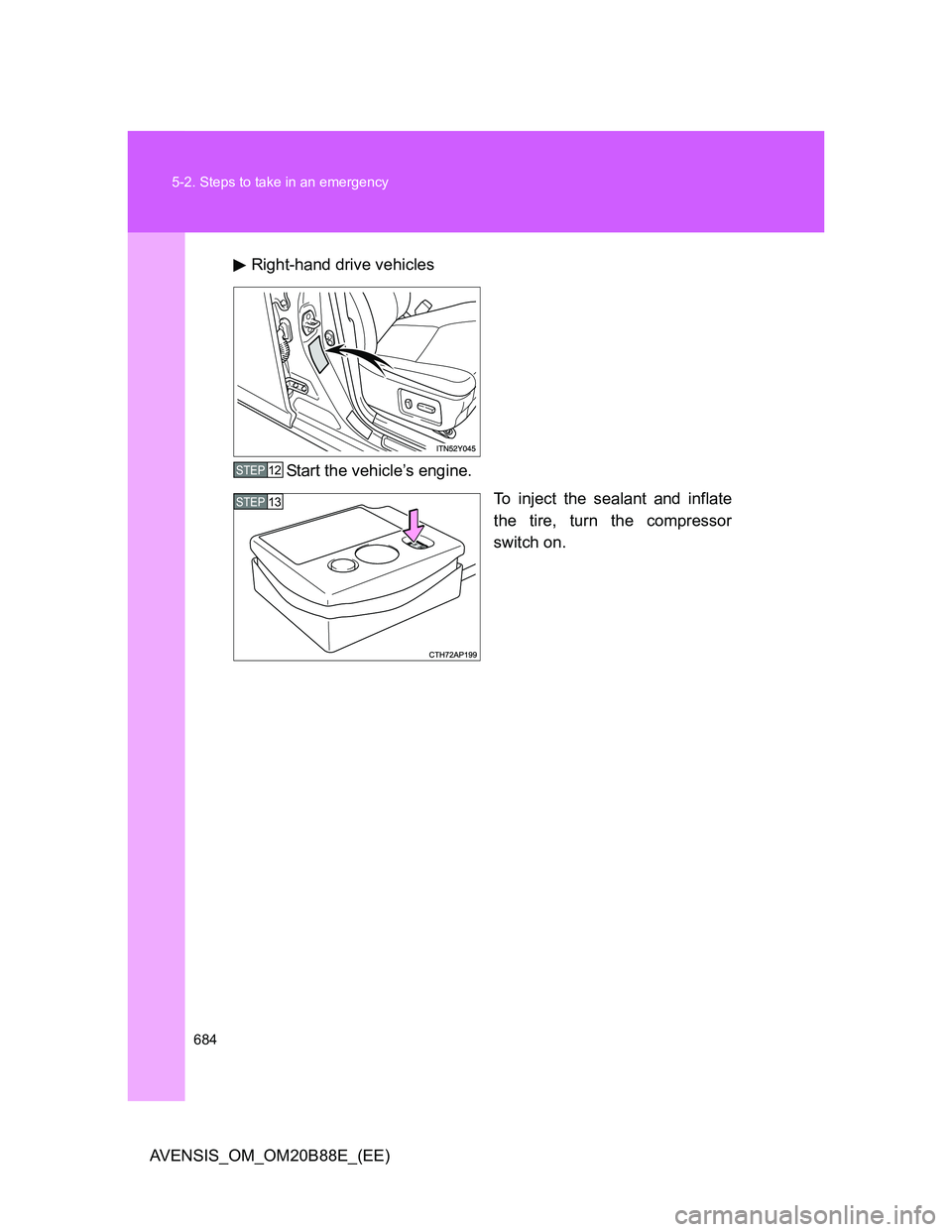

AVENSIS_OM_OM20B88E_(EE)Right-hand drive vehicles
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
STEP12
STEP13

5
685 5-2. Steps to take in an emergency
When trouble arises

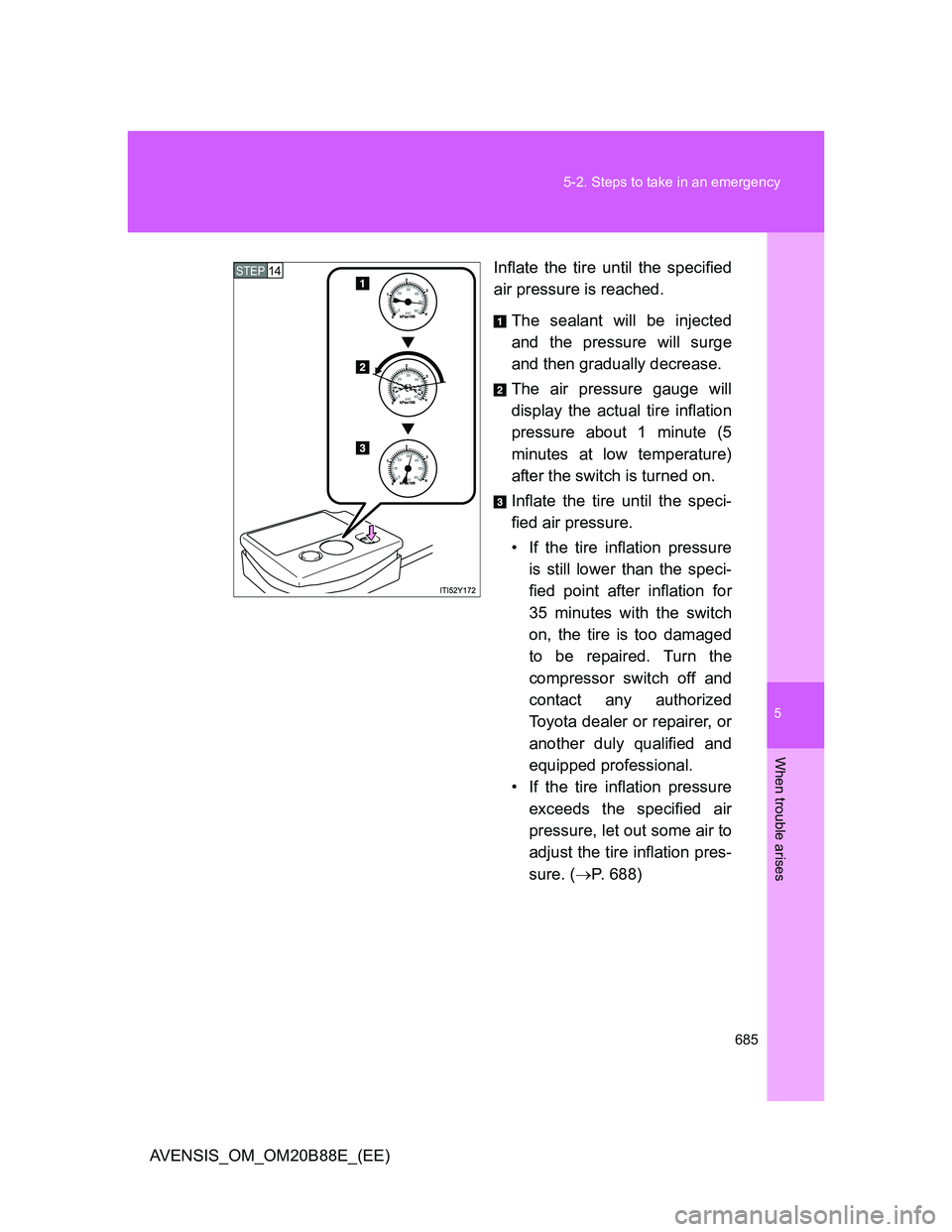

AVENSIS_OM_OM20B88E_(EE)Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 minute (5
minutes at low temperature)
after the switch is turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure
is still lower than the speci-
fied point after inflation for
35 minutes with the switch
on, the tire is too damaged
to be repaired. Turn the
compressor switch off and
contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure
exceeds the specified air
pressure, let out some air to
adjust the tire inflation pres-
sure. (P. 688)
STEP14

686 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)Turn the compressor off, then
press the button to release pres-
sure from the bottle.
Disconnect the nozzle from the valve on the tire and then pull
out the power plug from the power outlet socket.
Some sealant may leak when the nozzle is removed.
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
Temporarily store the bottle and compressor in the luggage
compartment.
To spread the liquid sealant evenly within the tire, immediately
drive safely for about 5 km (3 miles) below 80 km/h (50 mph).
STEP15
STEP16
STEP17
STEP18
STEP19
STEP20

5
687 5-2. Steps to take in an emergency
When trouble arises

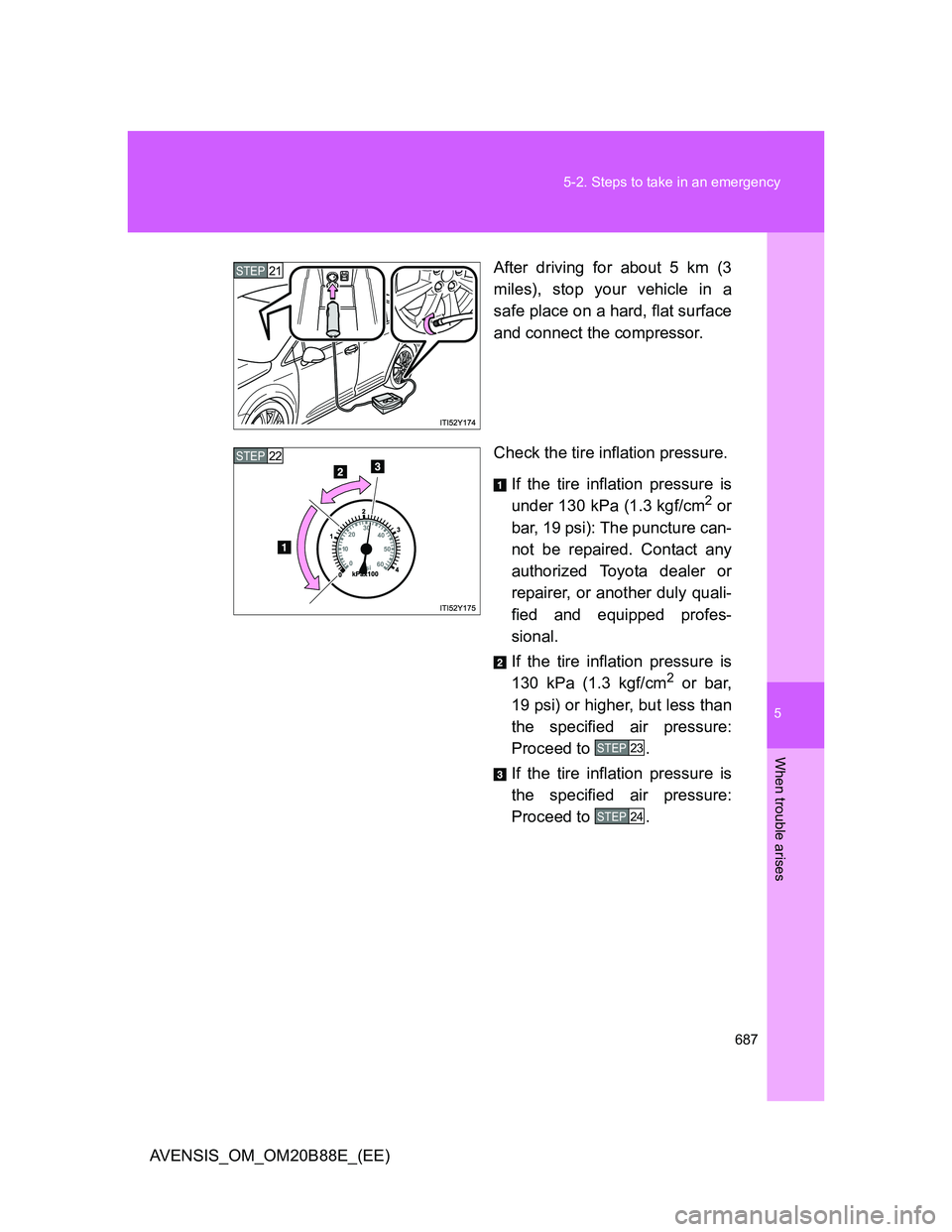

AVENSIS_OM_OM20B88E_(EE)After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat surface
and connect the compressor.
Check the tire inflation pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm
2 or
bar, 19 psi): The puncture can-
not be repaired. Contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped profes-
sional.
If the tire inflation pressure is
130 kPa (1.3 kgf/cm
2 or bar,
19 psi) or higher, but less than
the specified air pressure:
Proceed to .
If the tire inflation pressure is
the specified air pressure:
Proceed to .
STEP21
STEP22
STEP23
STEP24

688 5-2. Steps to take in an emergency

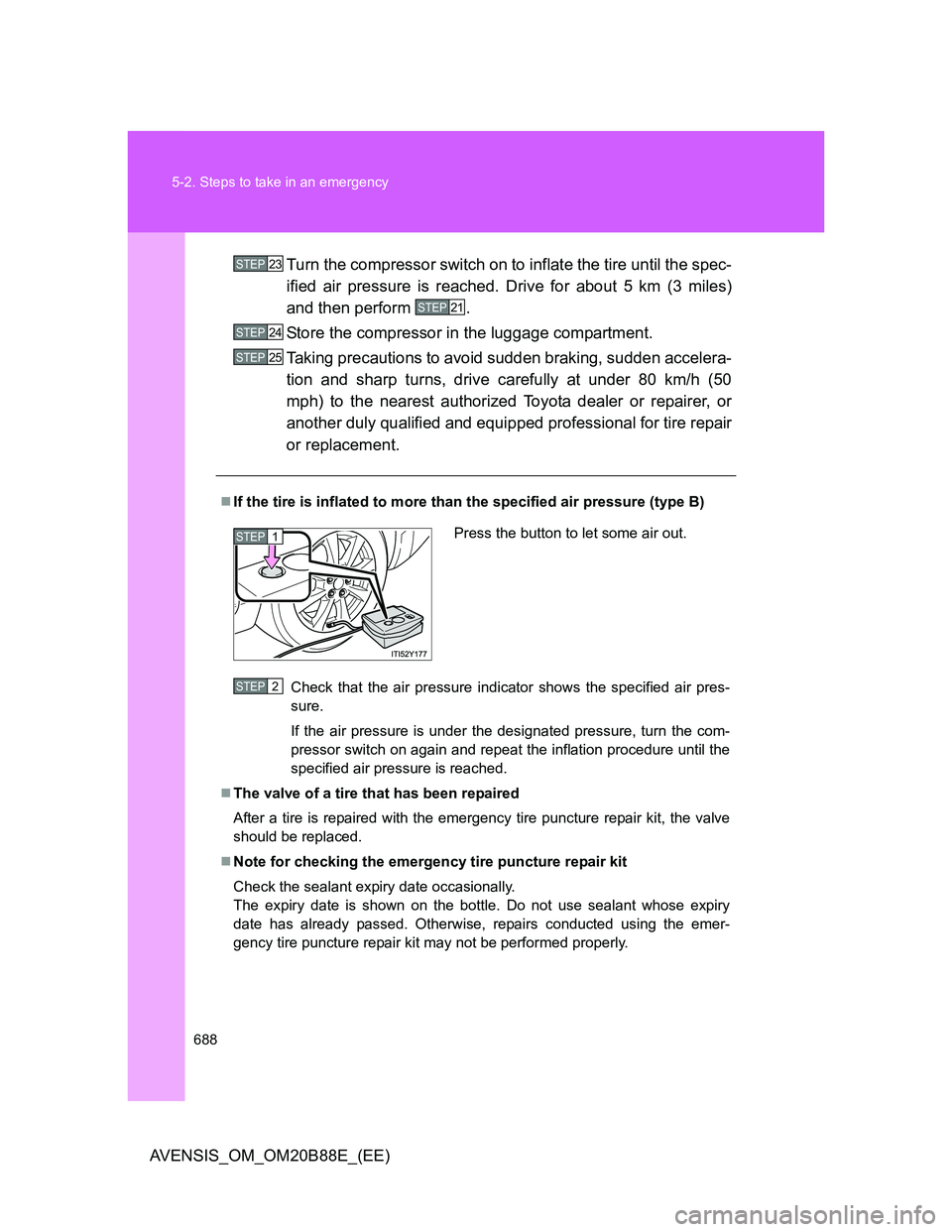

AVENSIS_OM_OM20B88E_(EE)Turn the compressor switch on to inflate the tire until the spec-
ified air pressure is reached. Drive for about 5 km (3 miles)
and then perform .
Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden accelera-
tion and sharp turns, drive carefully at under 80 km/h (50
mph) to the nearest authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for tire repair
or replacement.
If the tire is inflated to more than the specified air pressure (type B)
Check that the air pressure indicator shows the specified air pres-
sure.
If the air pressure is under the designated pressure, turn the com-
pressor switch on again and repeat the inflation procedure until the
specified air pressure is reached.
The valve of a tire that has been repaired
After a tire is repaired with the emergency tire puncture repair kit, the valve
should be replaced.
Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry
date has already passed. Otherwise, repairs conducted using the emer-
gency tire puncture repair kit may not be performed properly.
STEP23
STEP21
STEP24
STEP25
Press the button to let some air out.STEP1
STEP2
