2014 TOYOTA AVENSIS Owners Manual (in English)

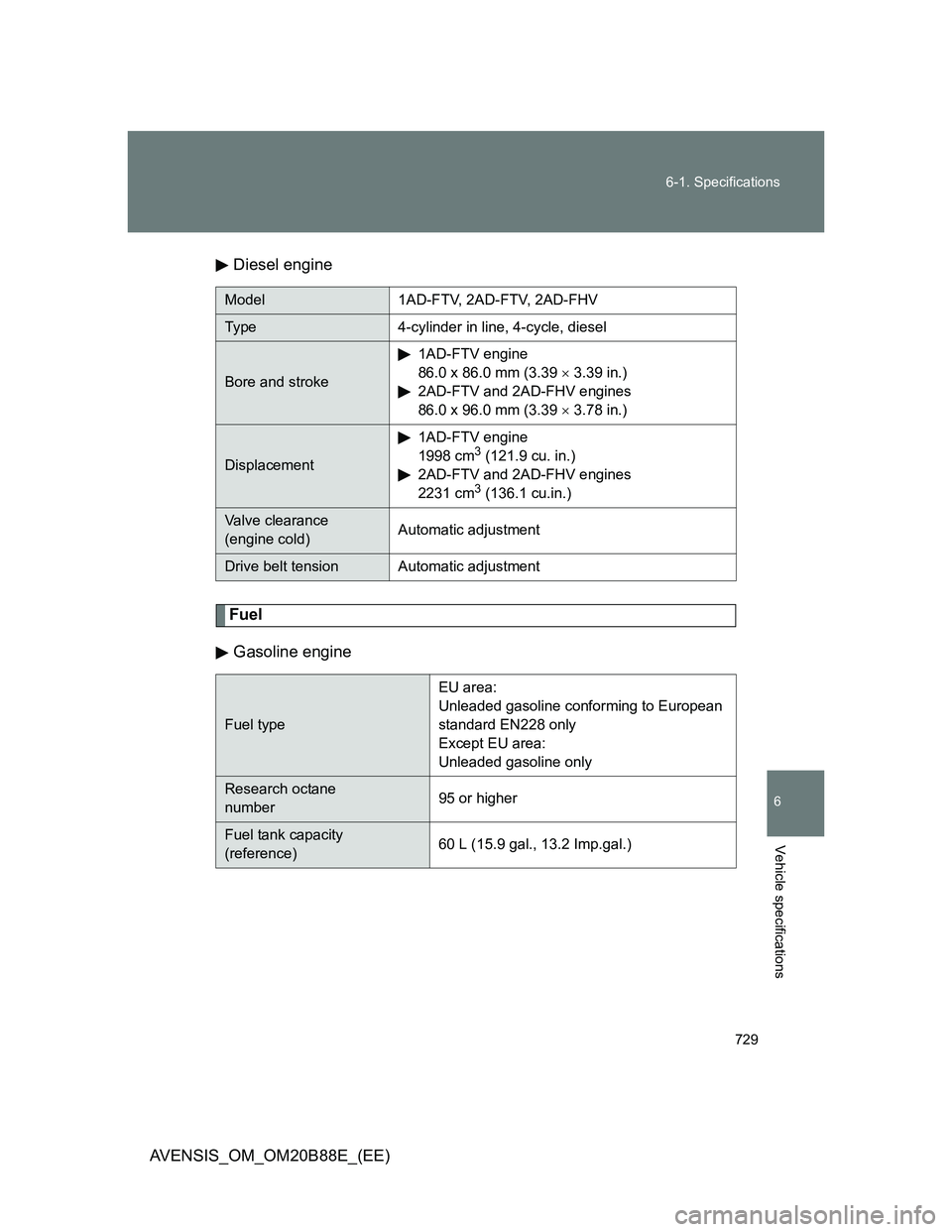

729 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)Diesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FTV, 2AD-FHV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke1AD-FTV engine
86.0 x 86.0 mm (3.39  3.39 in.)
2AD-FTV and 2AD-FHV engines
86.0 x 96.0 mm (3.39  3.78 in.)
Displacement1AD-FTV engine
1998 cm3 (121.9 cu. in.)
2AD-FTV and 2AD-FHV engines
2231 cm
3 (136.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)

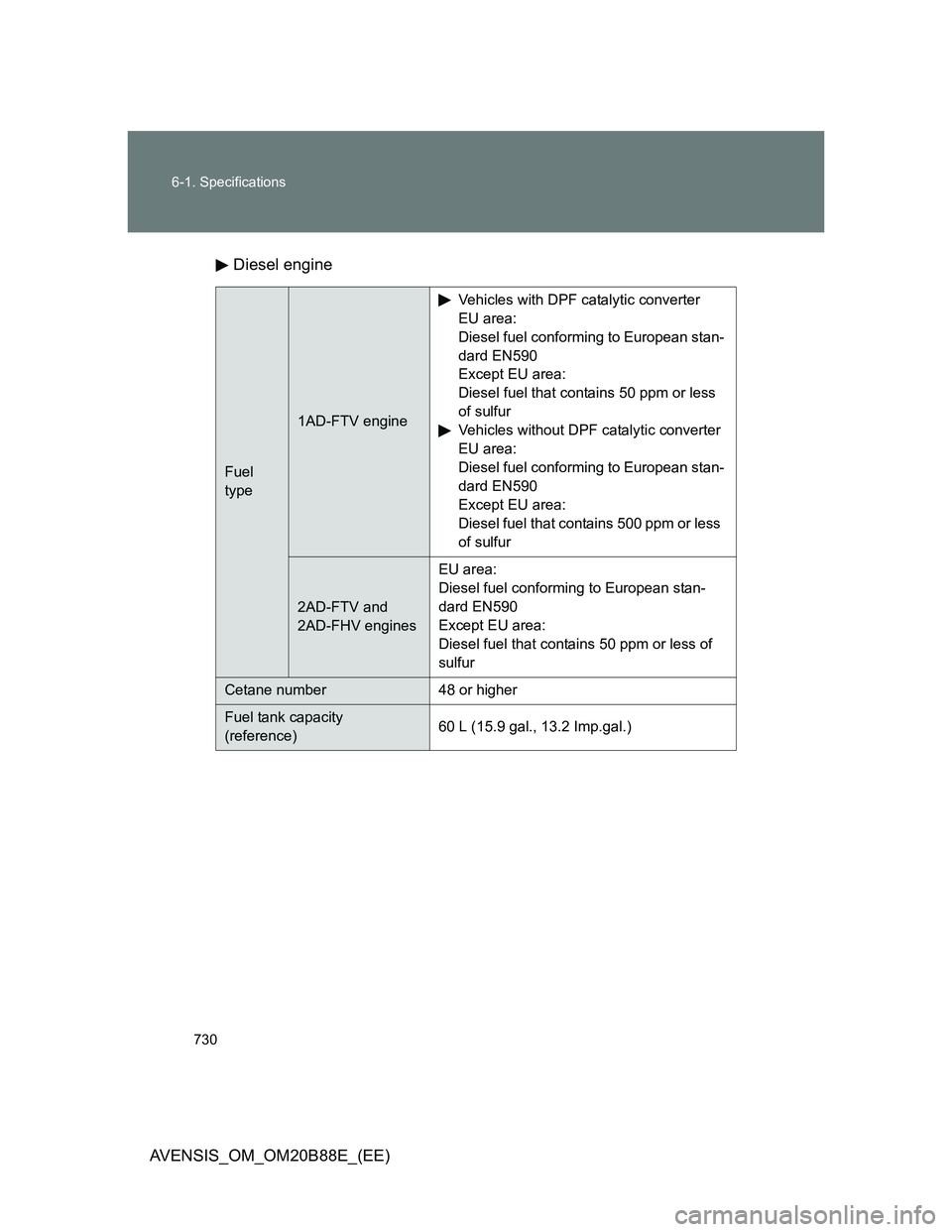

730 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)Diesel engine
Fuel
type
1AD-FTV engineVehicles with DPF catalytic converter
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less
of sulfur
Vehicles without DPF catalytic converter
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 500 ppm or less
of sulfur
2AD-FTV and
2AD-FHV enginesEU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number 48 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)

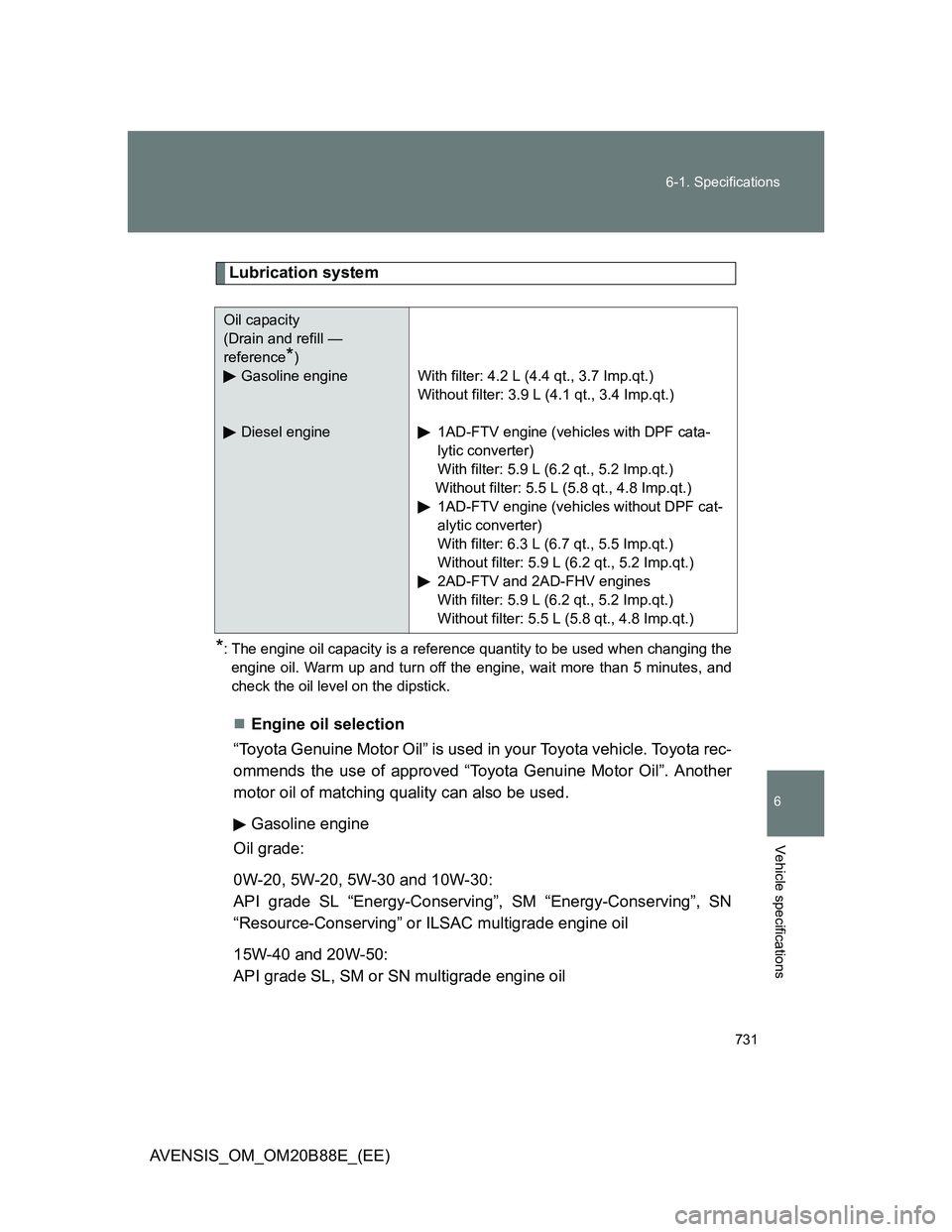

731 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Gasoline engine
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Oil capacity
(Drain and refill —
reference
*)
Gasoline engine
Diesel engineWith filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV engine (vehicles with DPF cata-
lytic converter)
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)
1AD-FTV engine (vehicles without DPF cat-
alytic converter)
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
2AD-FTV and 2AD-FHV engines
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)

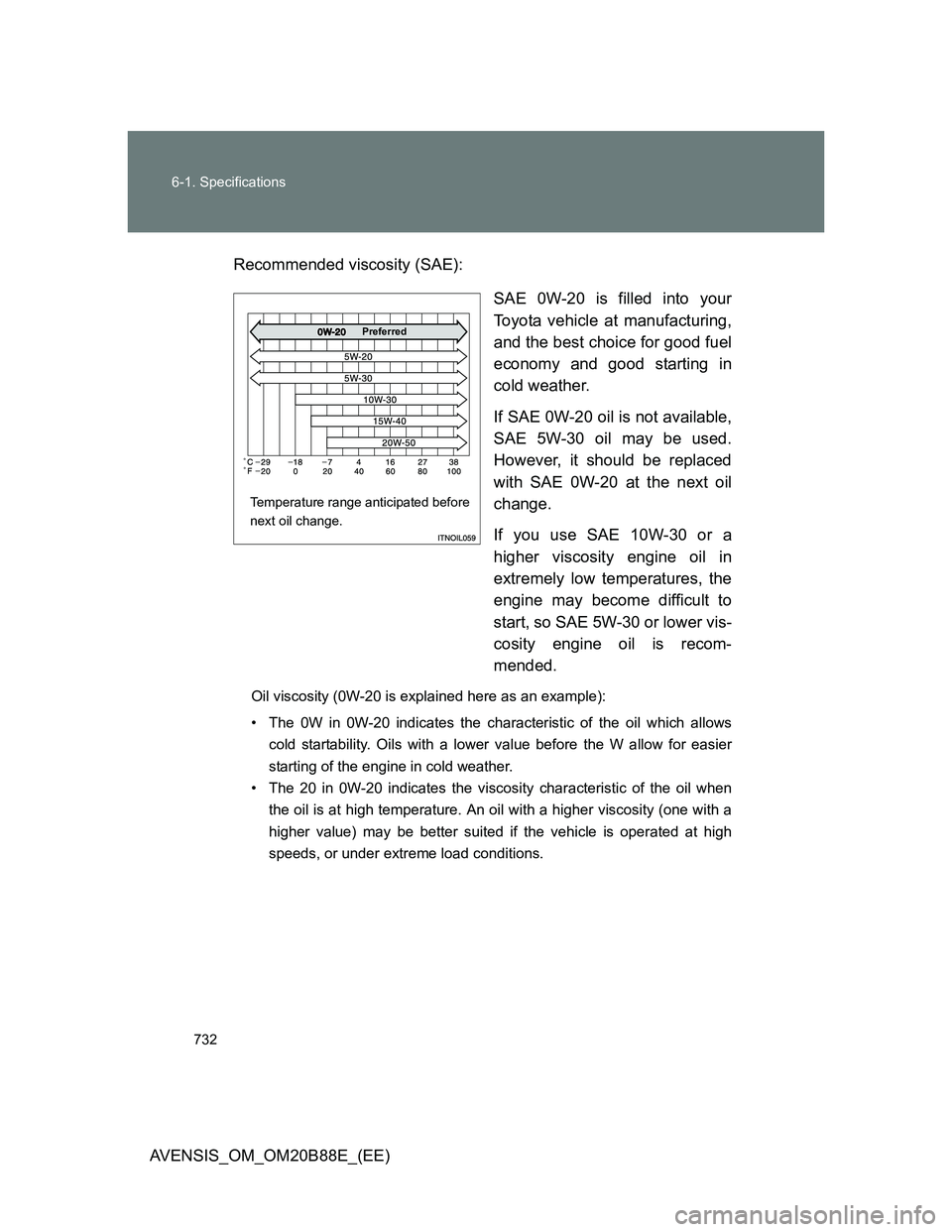

732 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

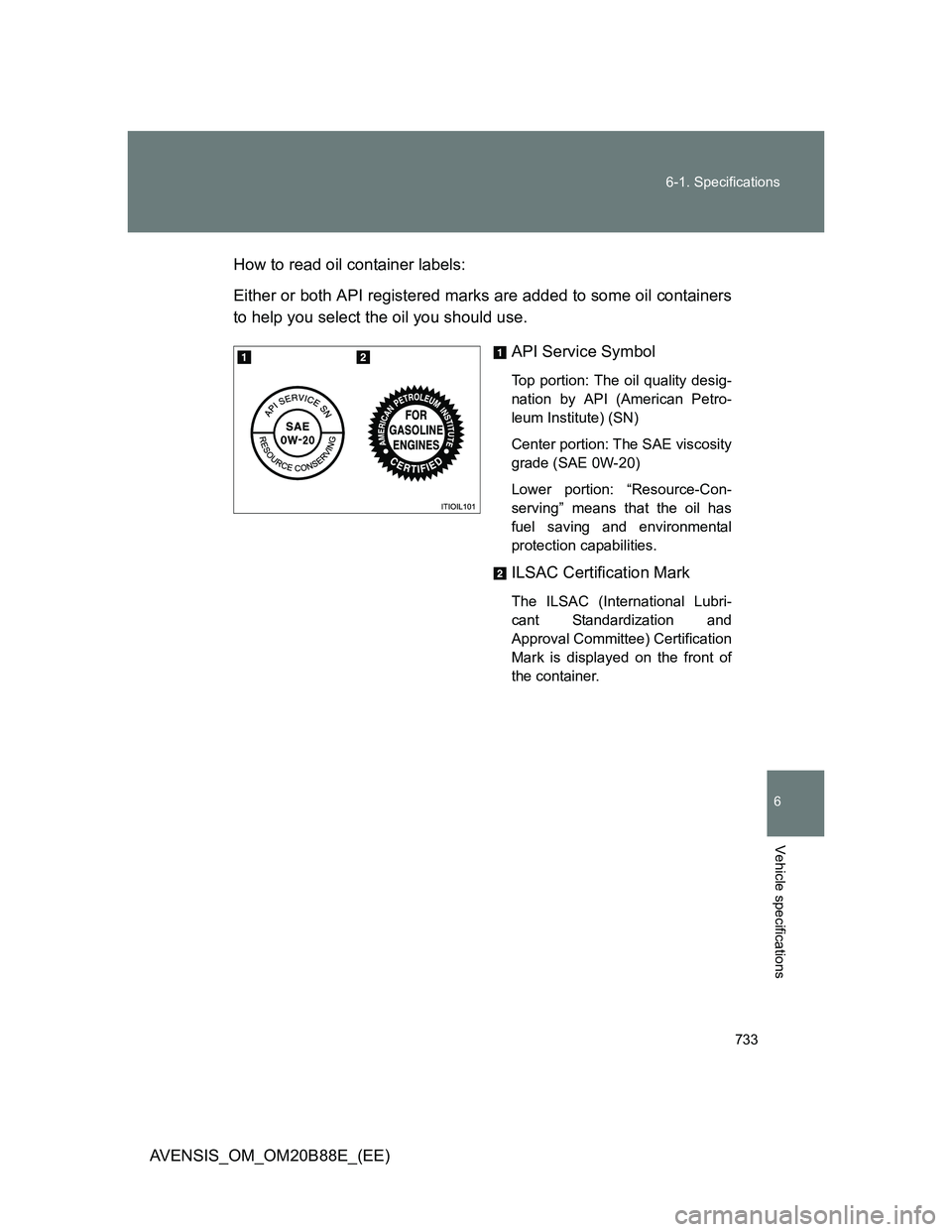

733 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel saving and environmental
protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

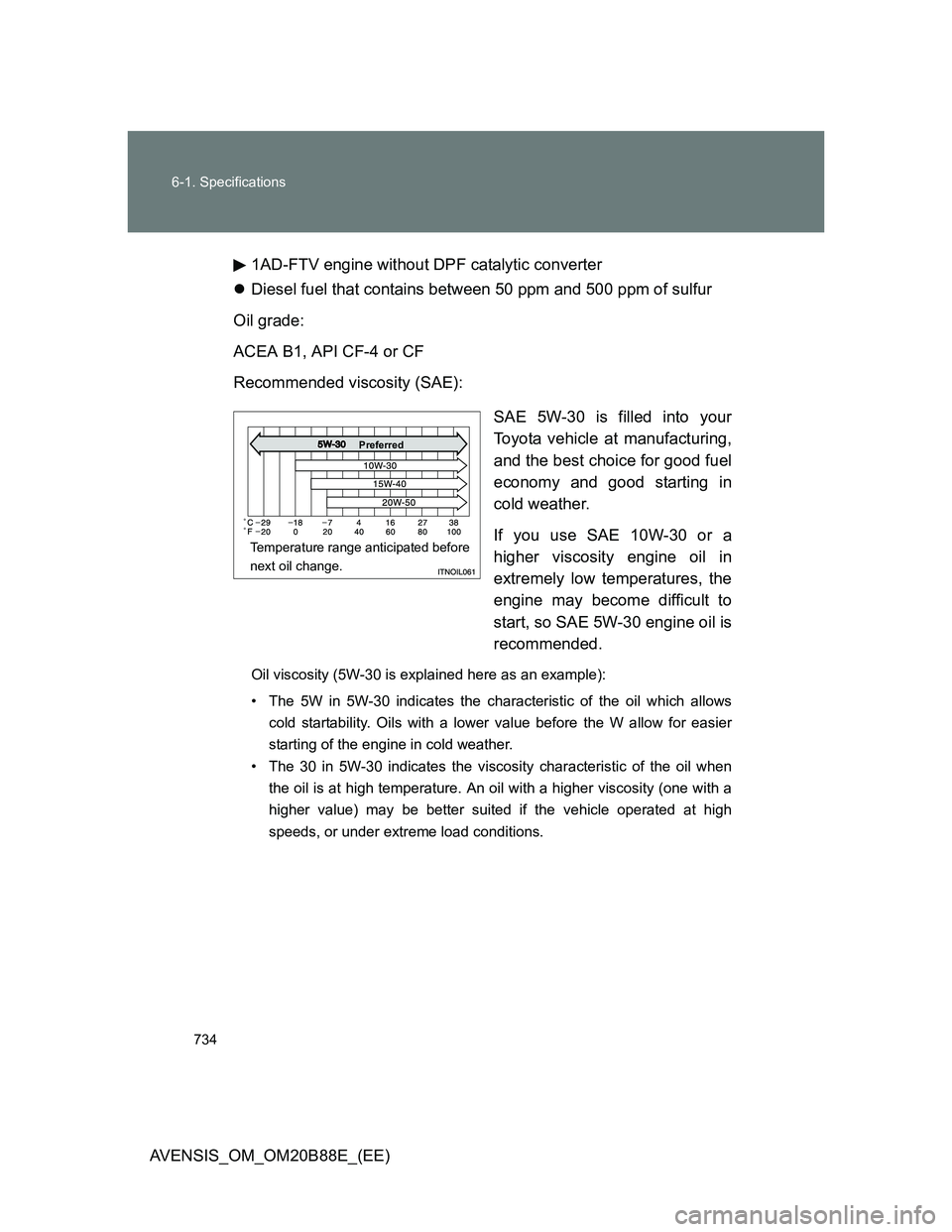

734 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)1AD-FTV engine without DPF catalytic converter
Diesel fuel that contains between 50 ppm and 500 ppm of sulfur
Oil grade:
ACEA B1, API CF-4 or CF
Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

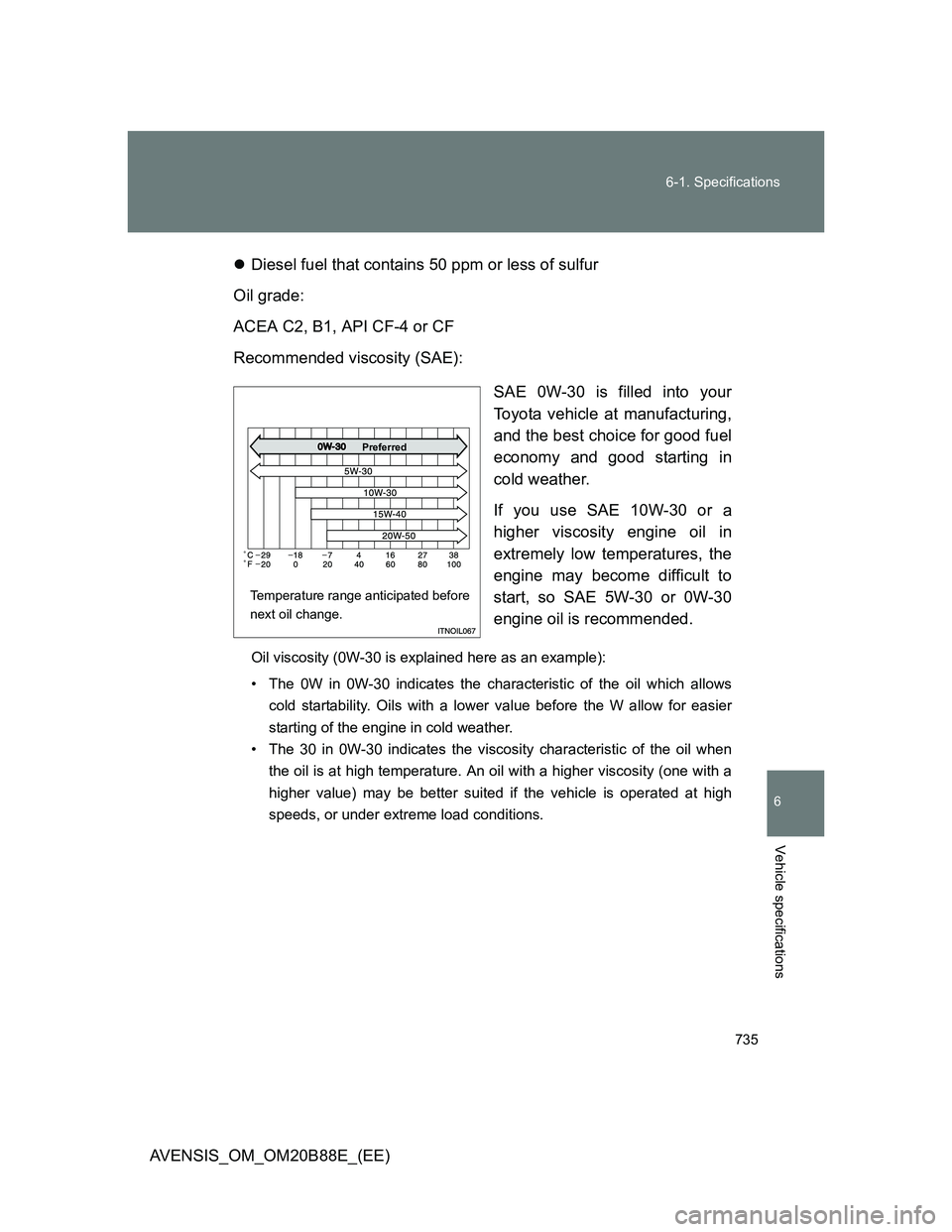

735 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)Diesel fuel that contains 50 ppm or less of sulfur
Oil grade:
ACEA C2, B1, API CF-4 or CF
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or 0W-30
engine oil is recommended.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

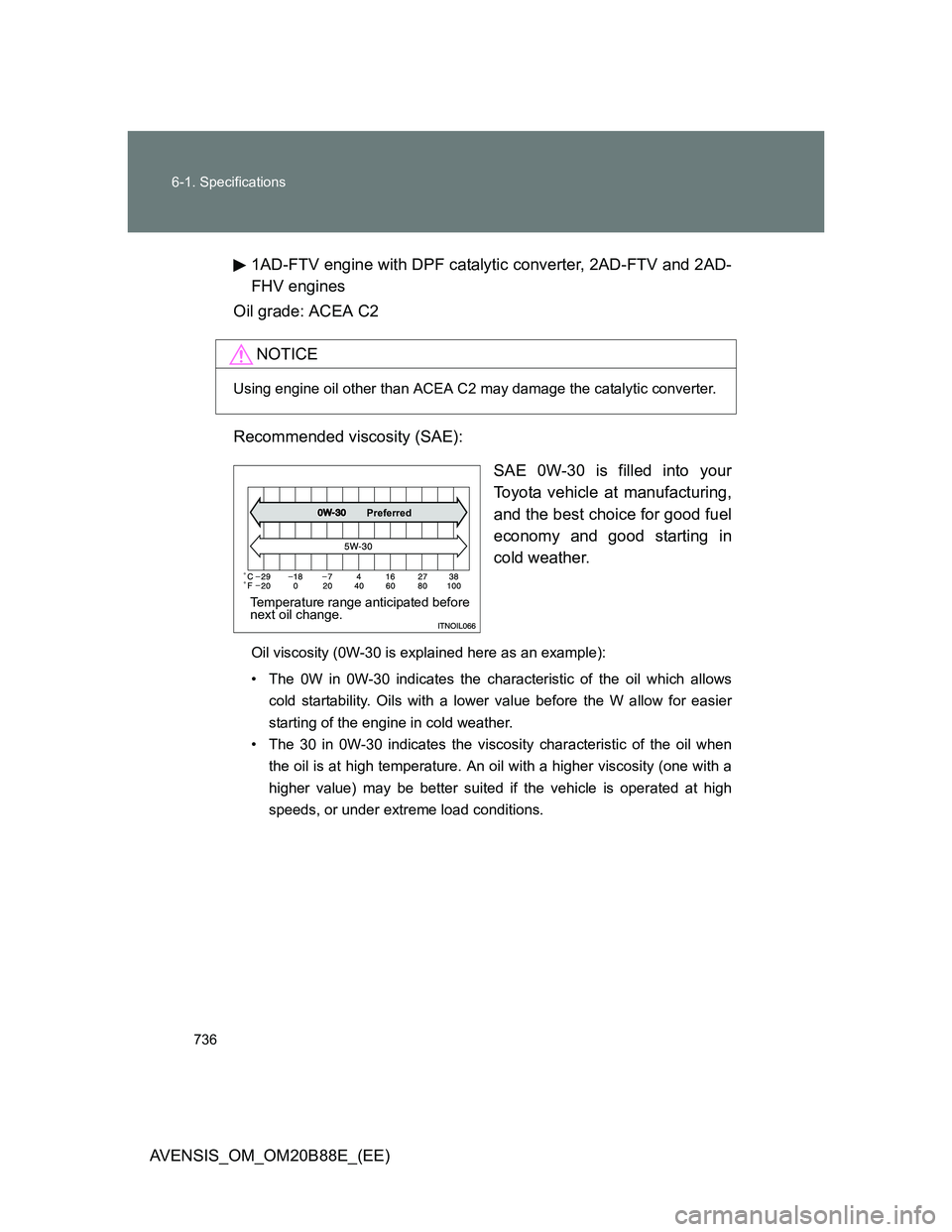

736 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)1AD-FTV engine with DPF catalytic converter, 2AD-FTV and 2AD-
FHV engines
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred
