169
1
1-7. Safety information
Before driving
AVENSIS_OM_OM20B88E_(EE)

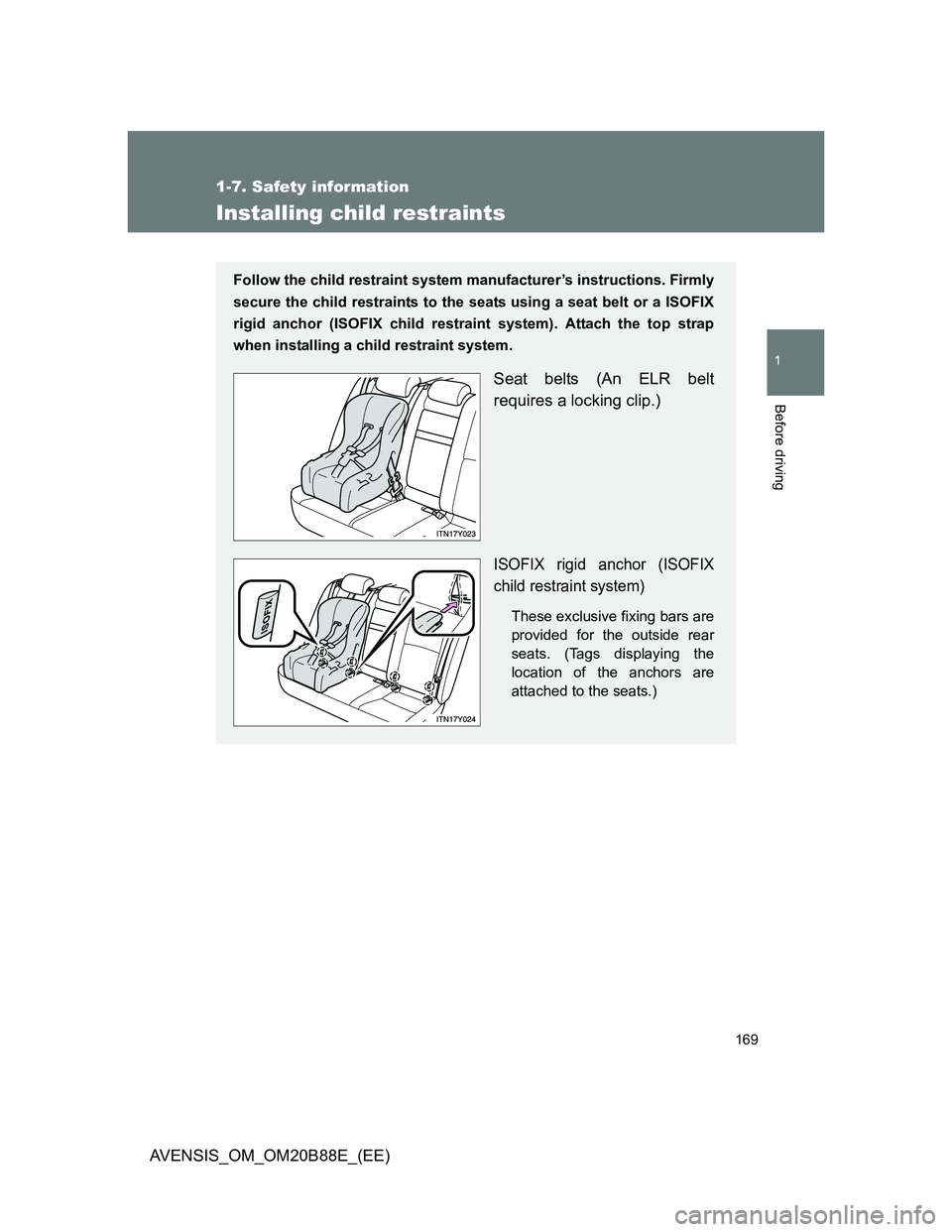

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints to the seats using a seat belt or a ISOFIX
rigid anchor (ISOFIX child restraint system). Attach the top strap
when installing a child restraint system.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchor (ISOFIX
child restraint system)
These exclusive fixing bars are
provided for the outside rear
seats. (Tags displaying the
location of the anchors are
attached to the seats.)

170 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

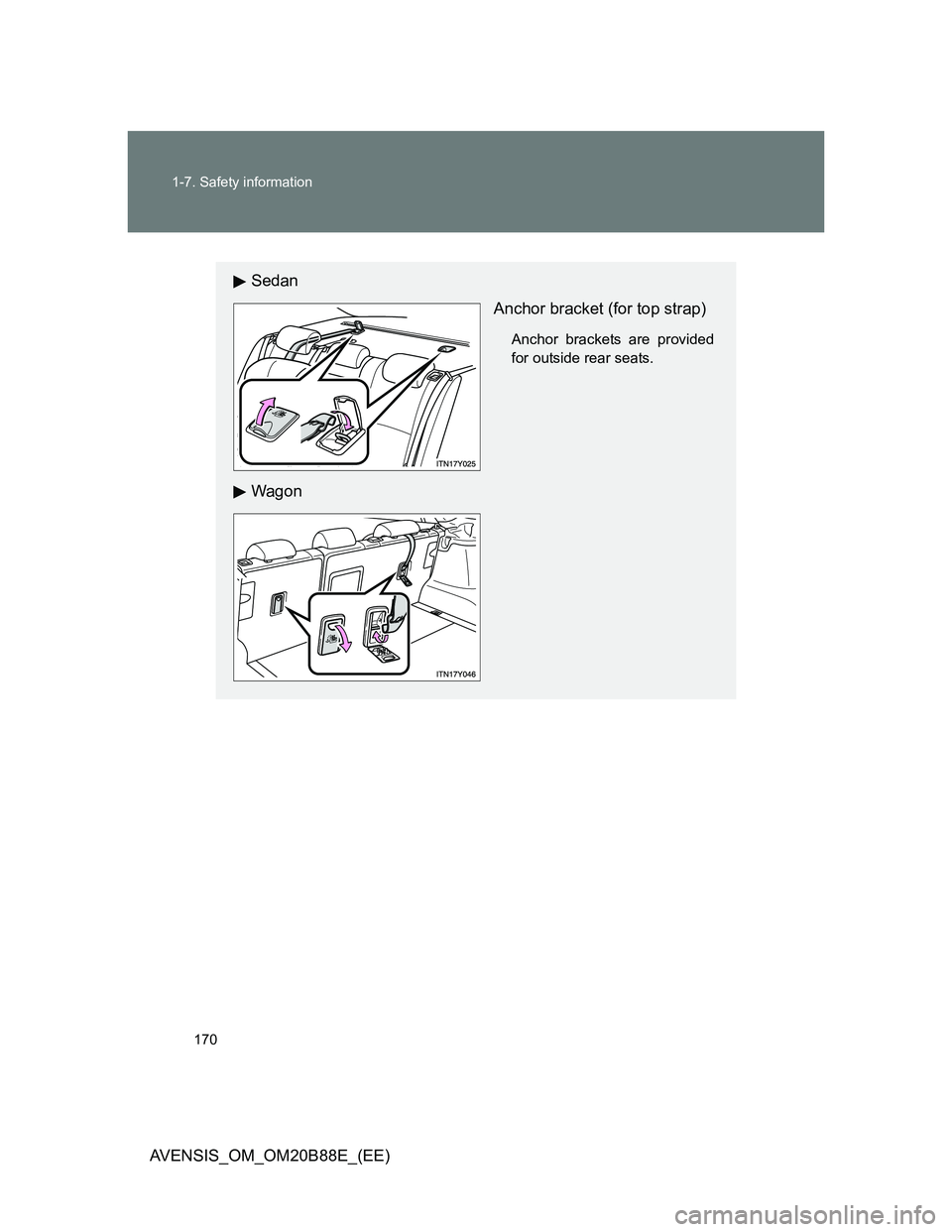

Sedan
Anchor bracket (for top strap)
Anchor brackets are provided
for outside rear seats.
Wagon

171 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

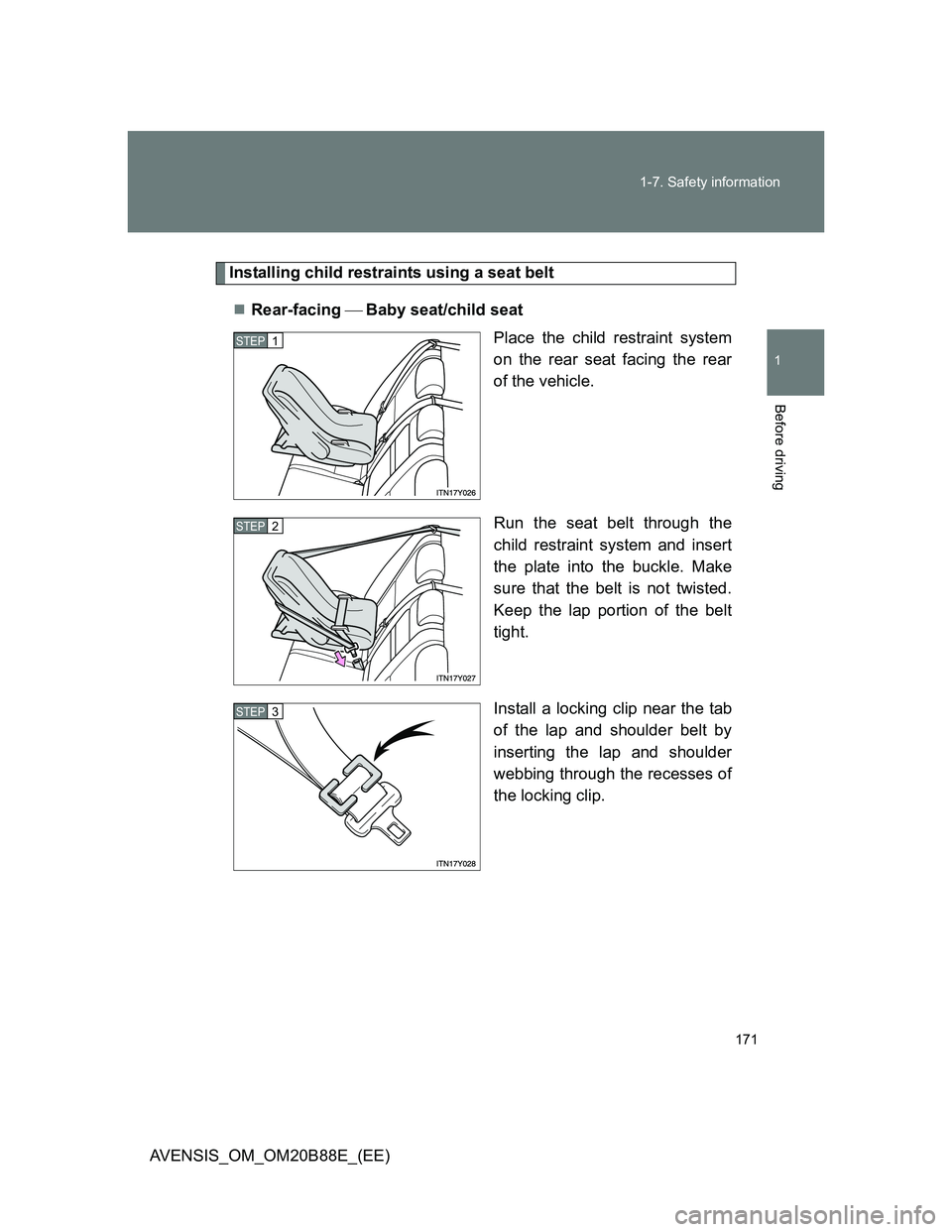

Installing child restraints using a seat belt
Rear-facing Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

172 1-7. Safety information

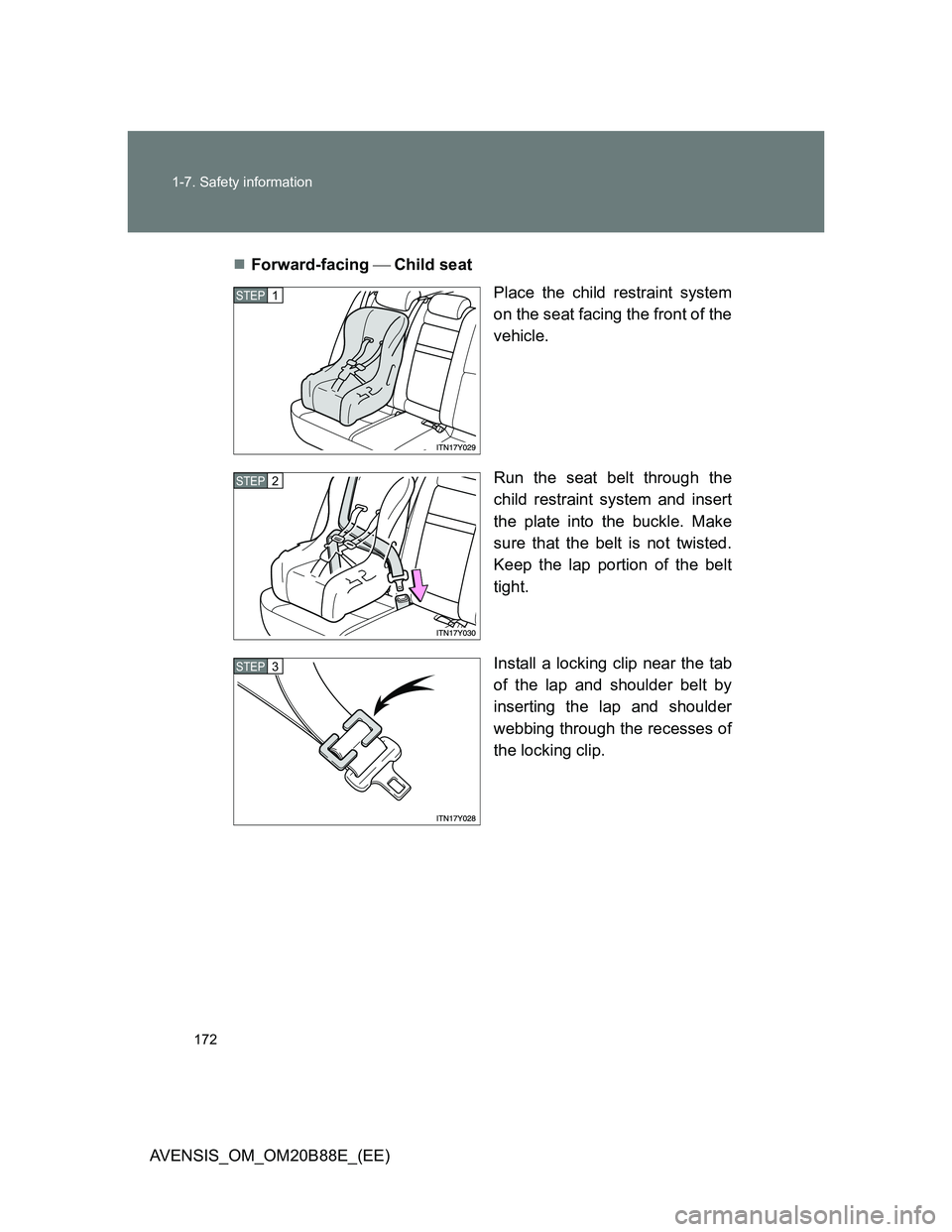

AVENSIS_OM_OM20B88E_(EE)Forward-facing Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

173 1-7. Safety information
1
Before driving

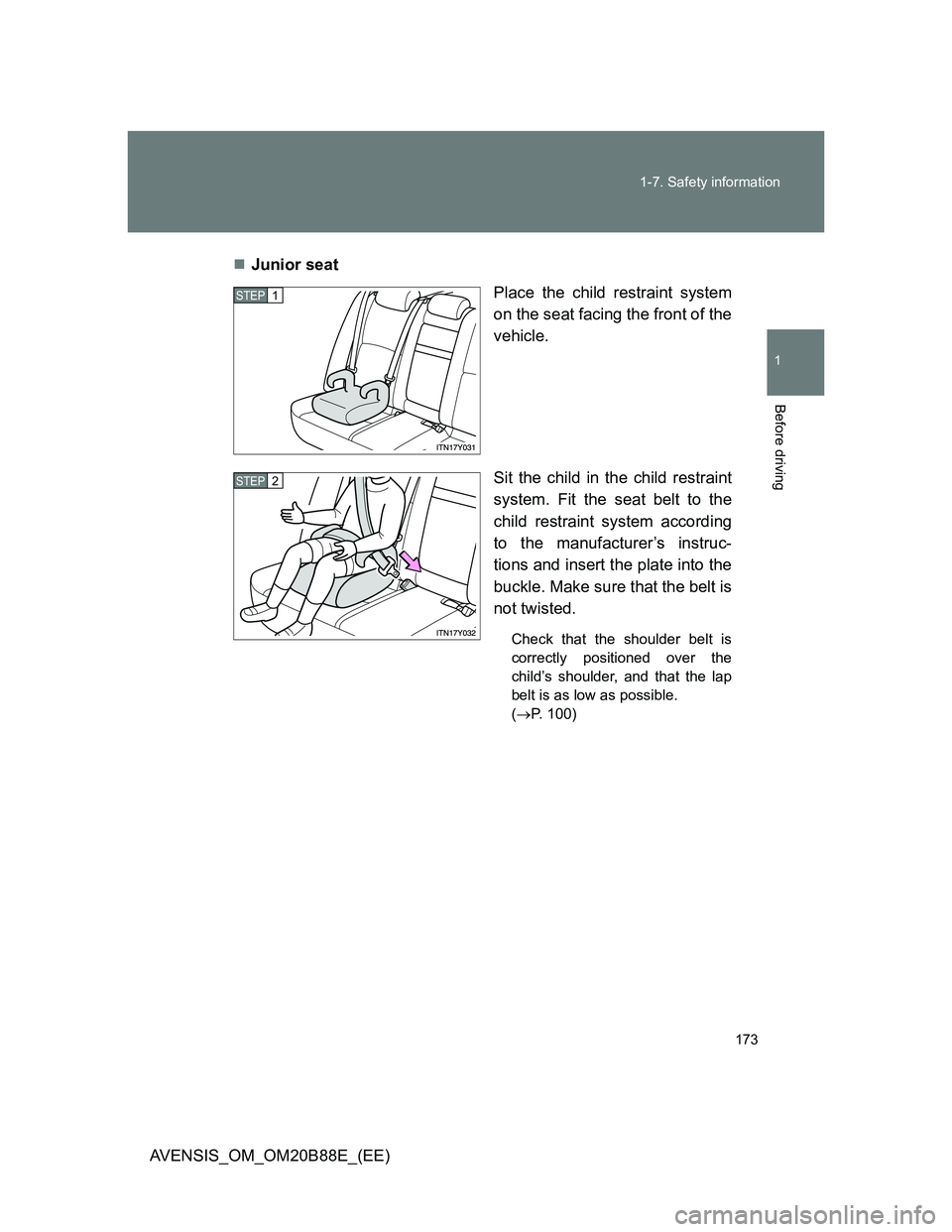

AVENSIS_OM_OM20B88E_(EE)Junior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
(P. 100)
STEP1
STEP2

174 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

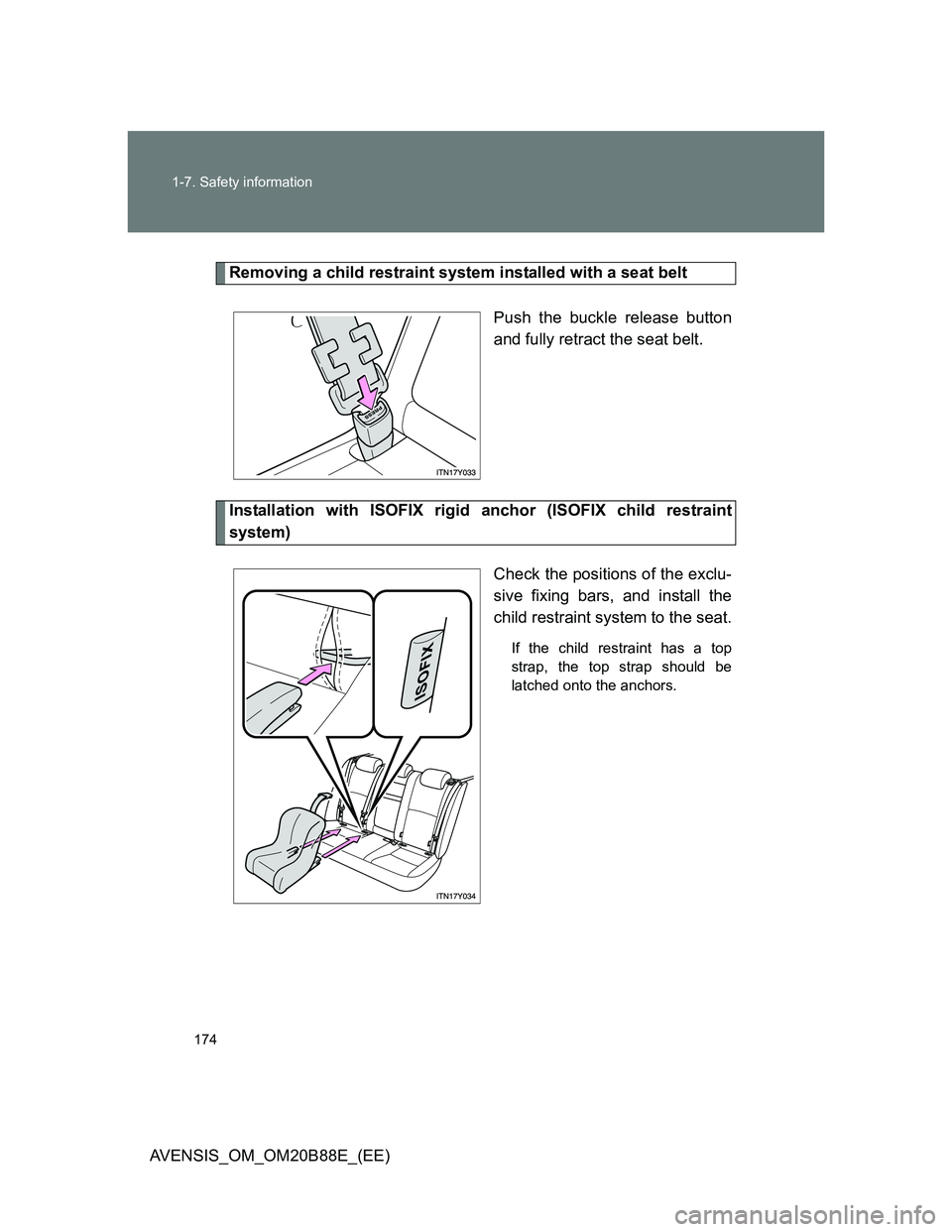

Removing a child restraint system installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.

175 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

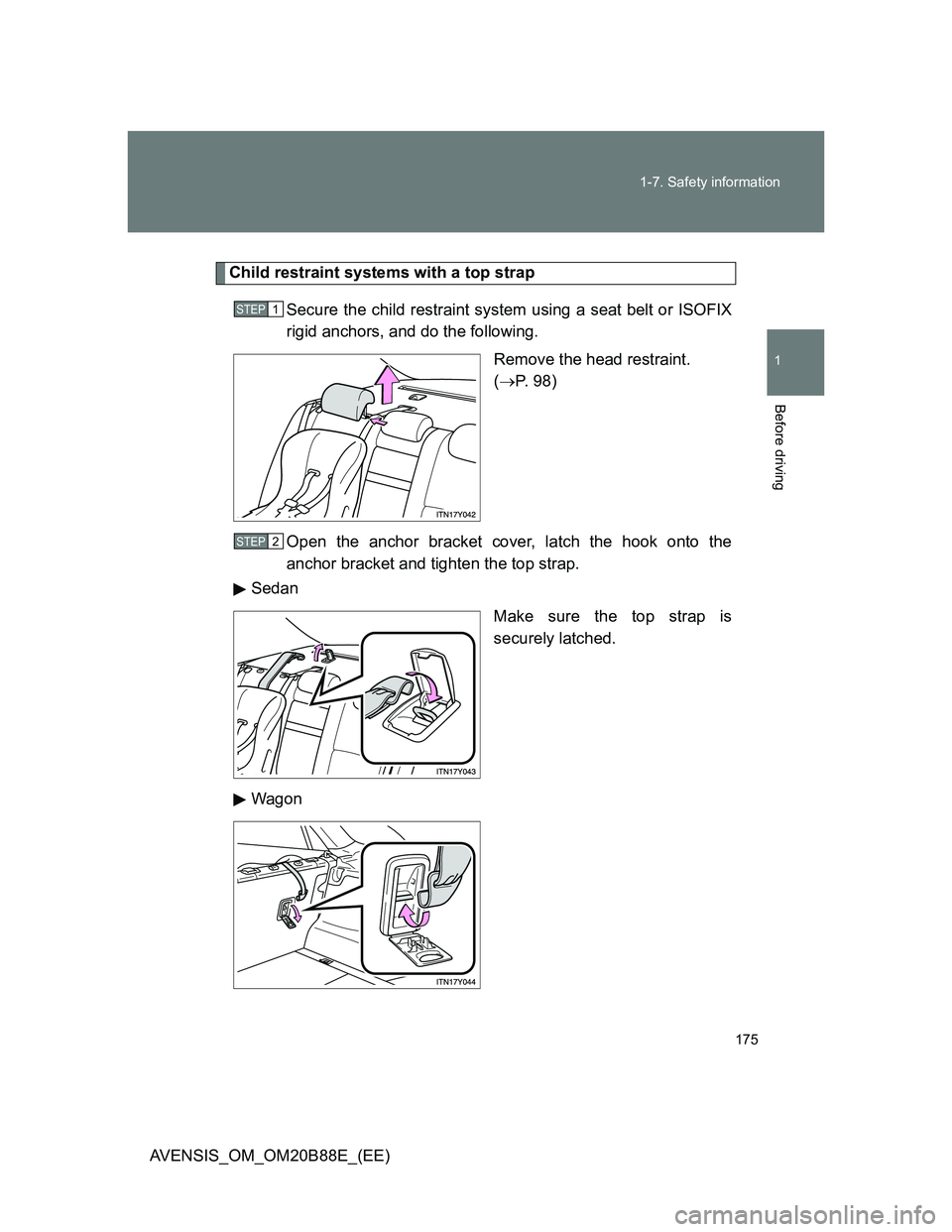

Child restraint systems with a top strap
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors, and do the following.
Remove the head restraint.
(P. 9 8 )
Open the anchor bracket cover, latch the hook onto the
anchor bracket and tighten the top strap.
Sedan
Make sure the top strap is
securely latched.
Wagon
STEP1
STEP2

176 1-7. Safety information

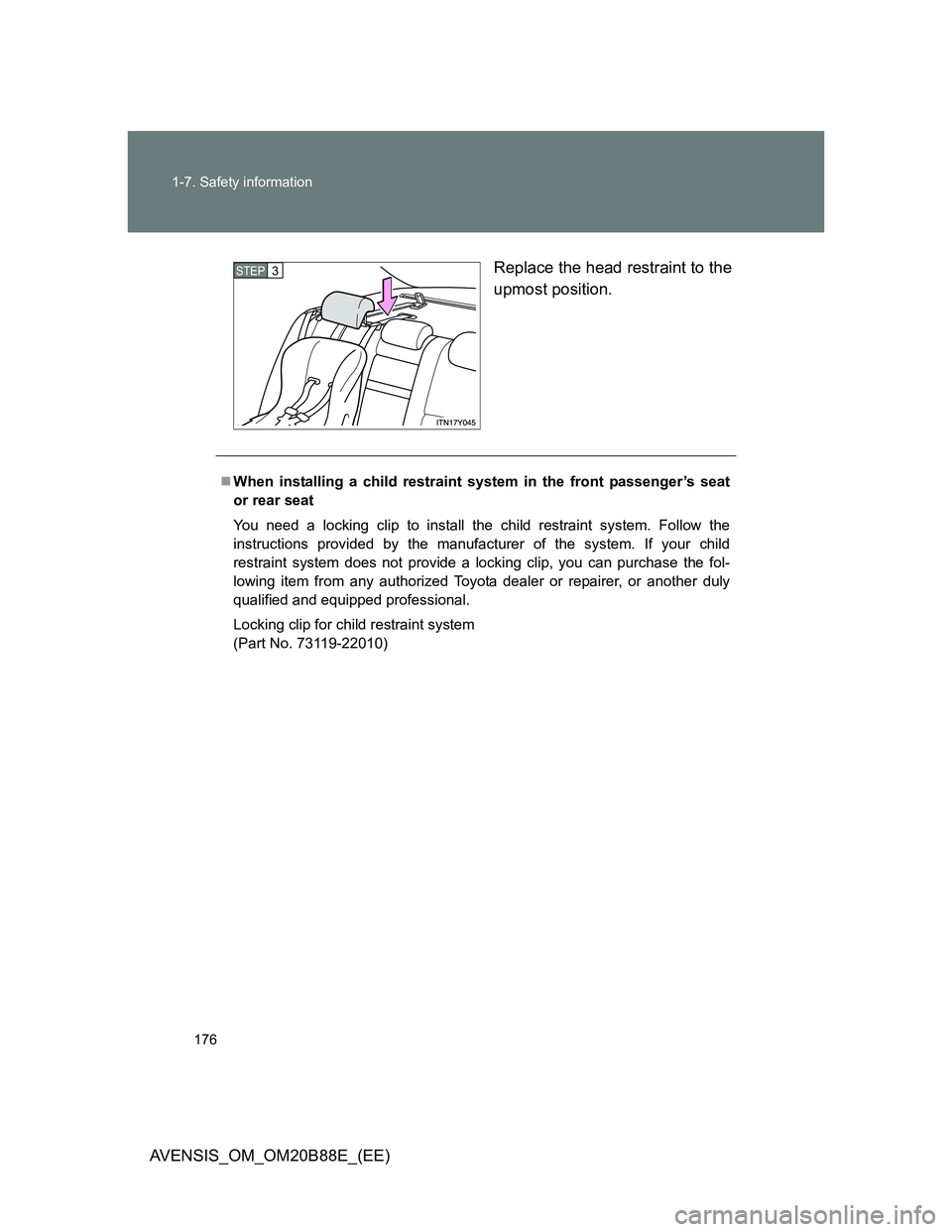

AVENSIS_OM_OM20B88E_(EE)Replace the head restraint to the
upmost position.
STEP3
When installing a child restraint system in the front passenger’s seat
or rear seat
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
