2014 TOYOTA AVENSIS Owners Manual (in English)

497 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in “P” (Multidrive or automatic
transmission) or “N” (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

498
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

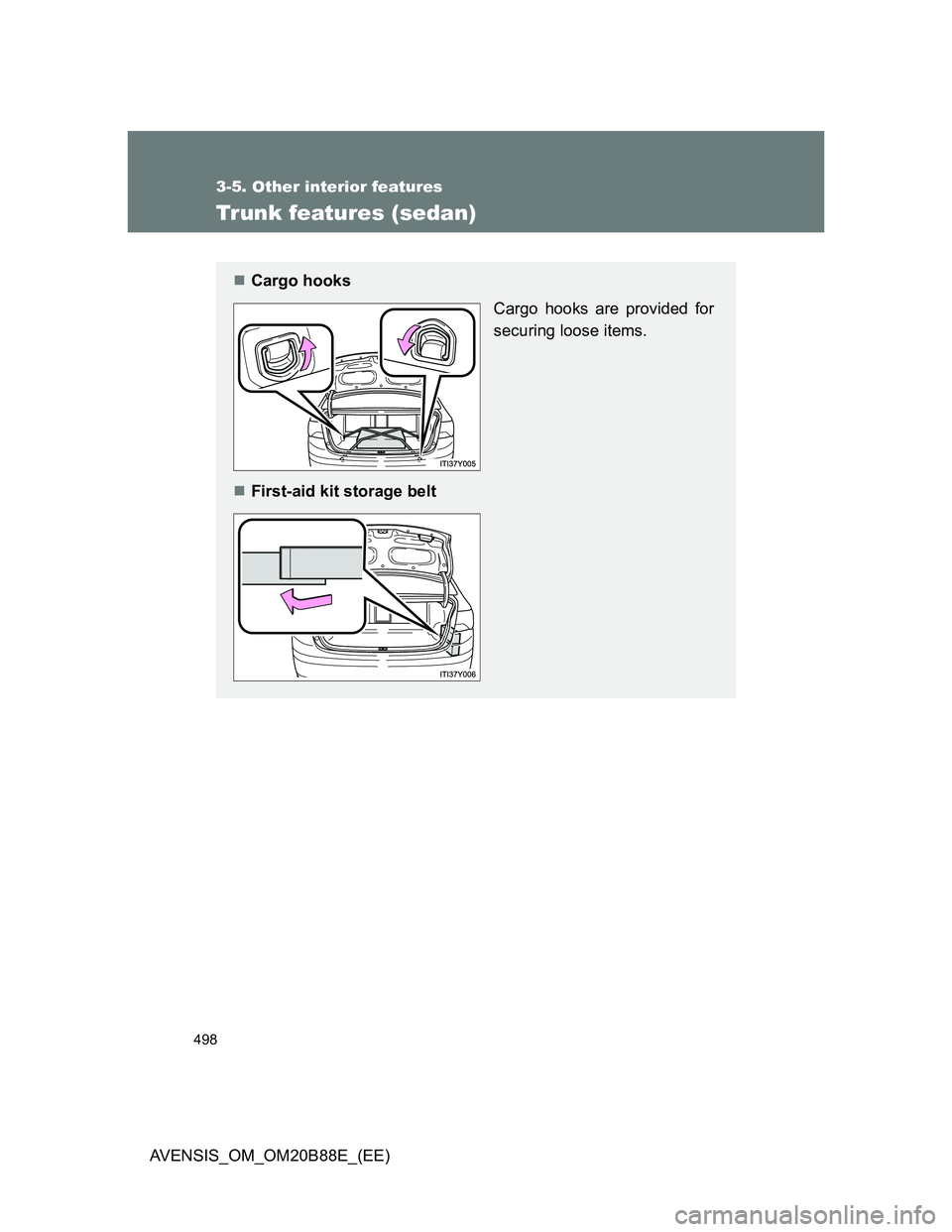

Trunk features (sedan)
Cargo hooks
Cargo hooks are provided for
securing loose items.
First-aid kit storage belt

499 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.

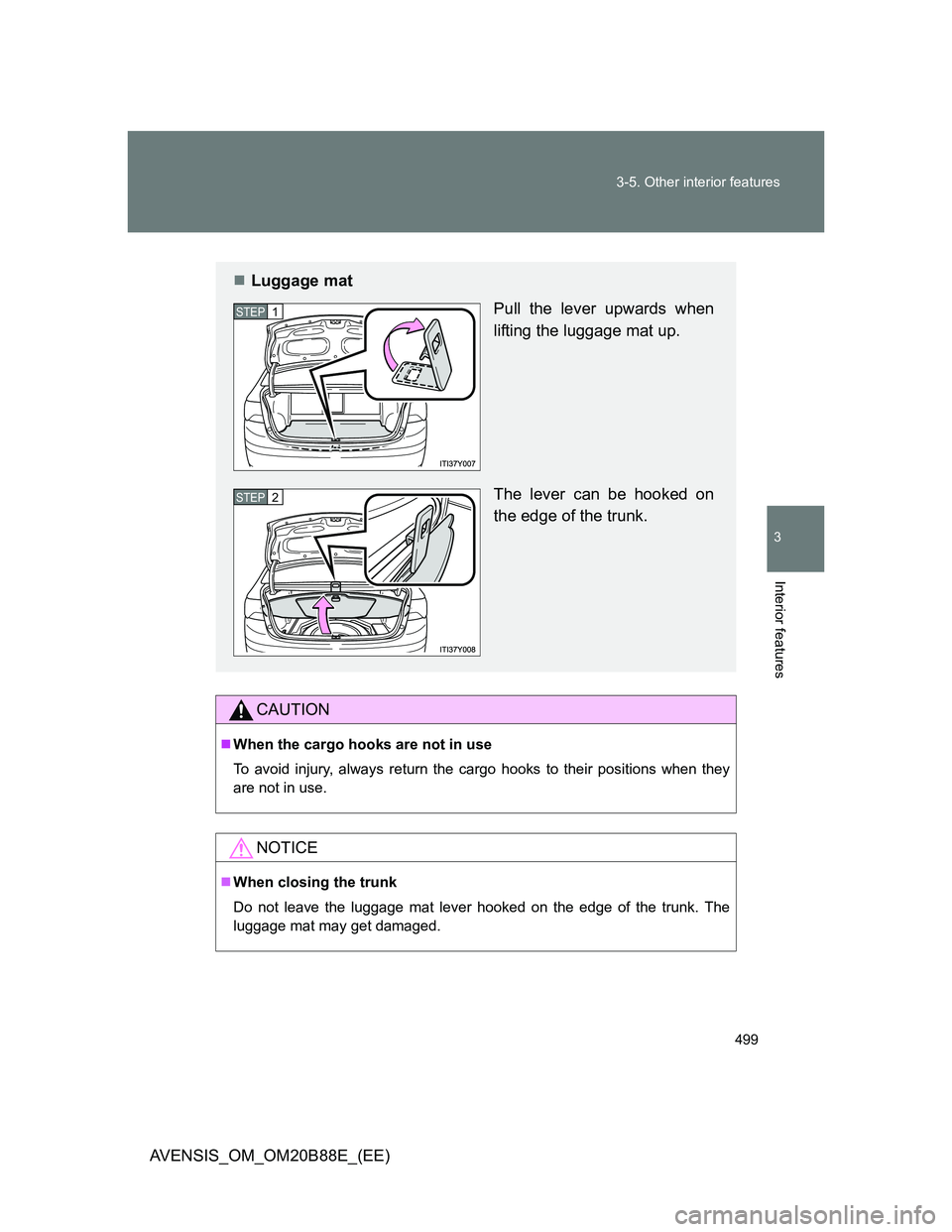

Luggage mat
Pull the lever upwards when
lifting the luggage mat up.
The lever can be hooked on
the edge of the trunk.
STEP1
STEP2

500
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

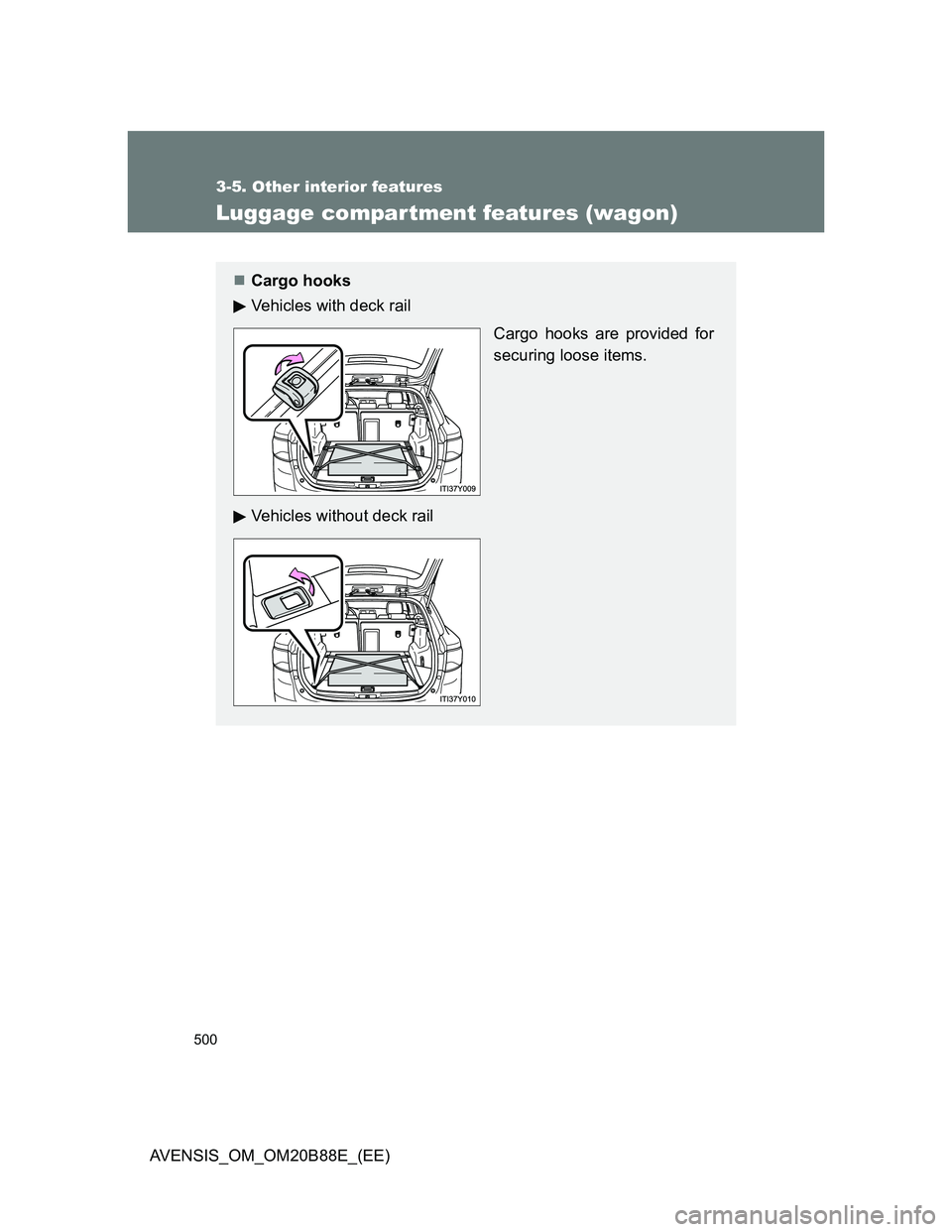

Luggage compar tment features (wagon)
Cargo hooks
Vehicles with deck rail
Cargo hooks are provided for
securing loose items.
Vehicles without deck rail

501 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

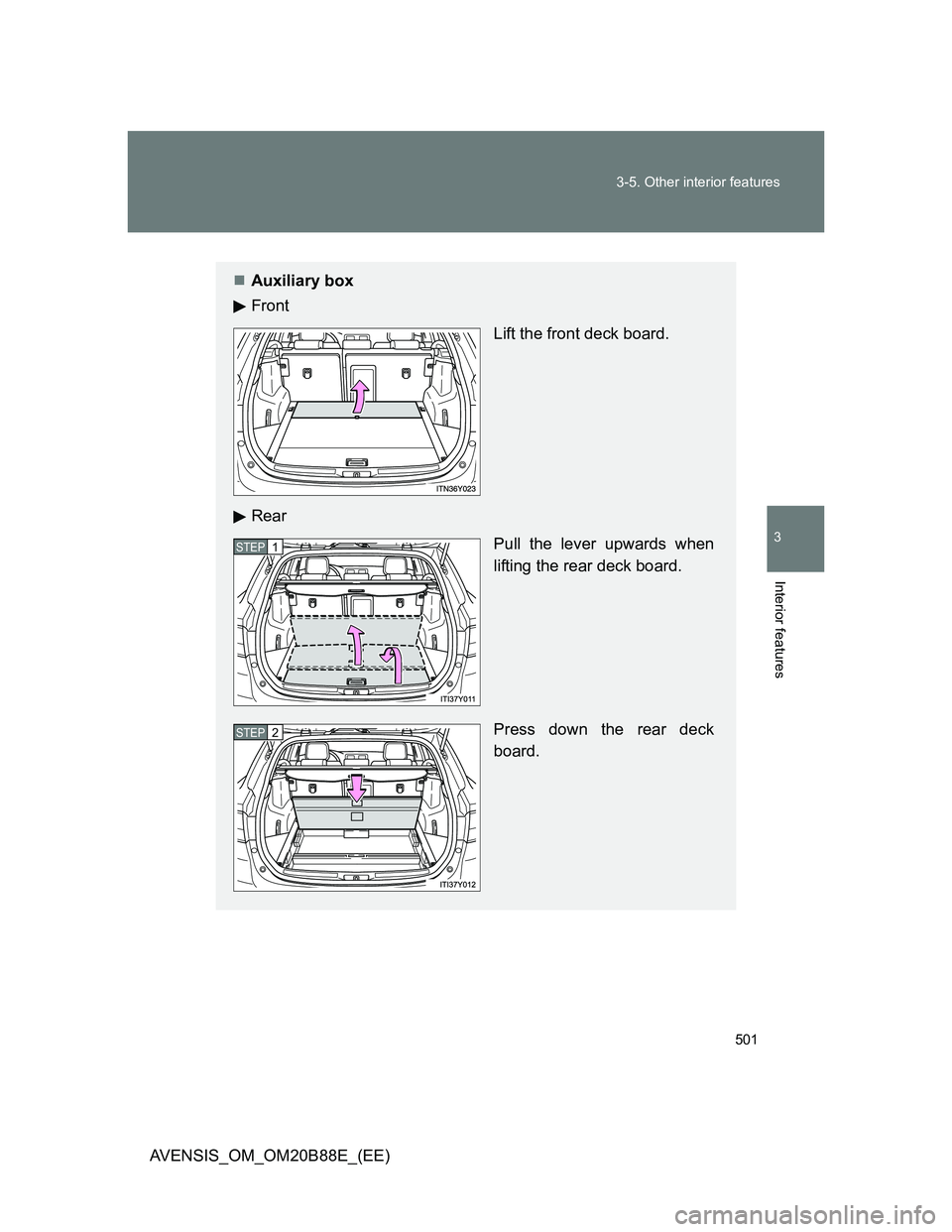

Auxiliary box
Front
Lift the front deck board.
Rear
Pull the lever upwards when
lifting the rear deck board.
Press down the rear deck
board.
STEP1
STEP2

502 3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

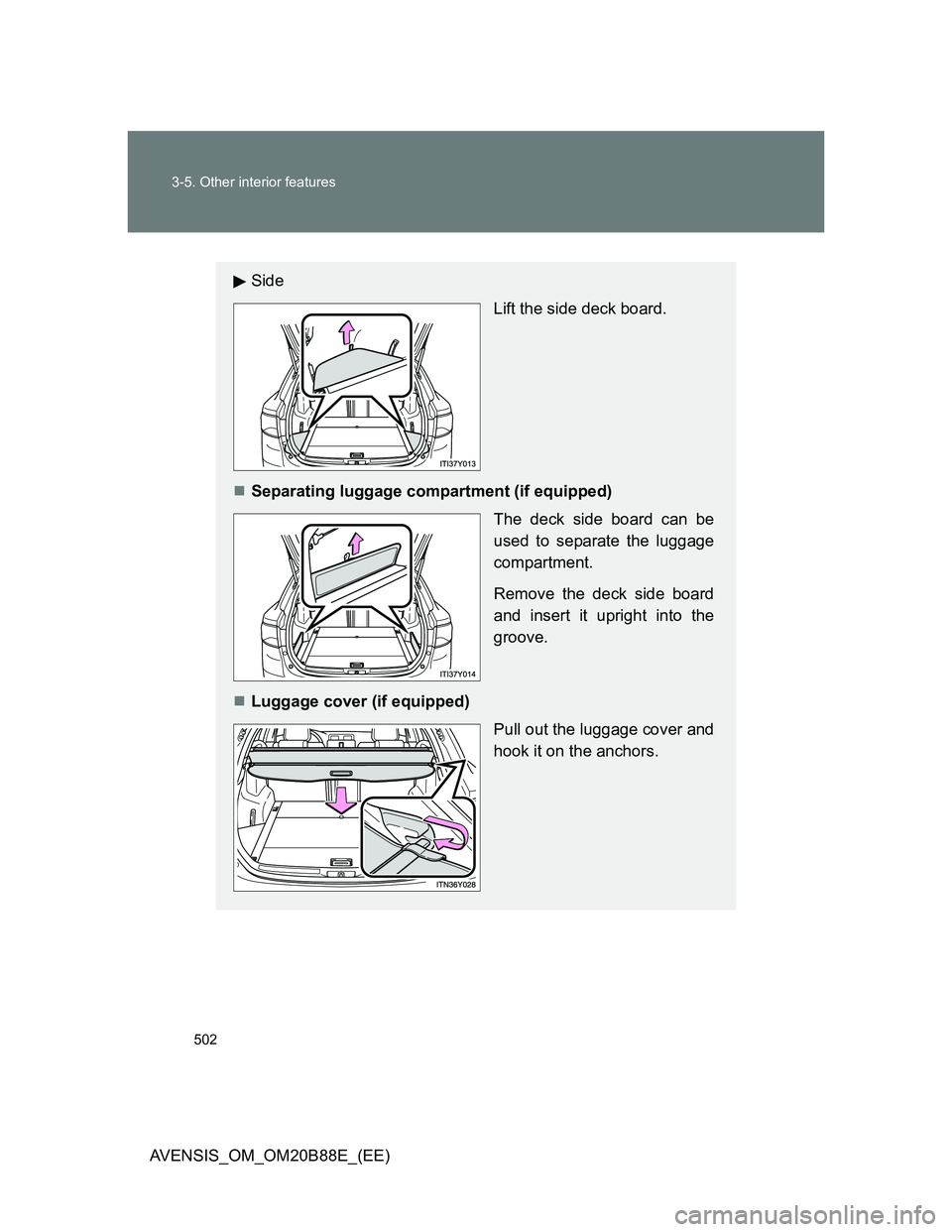

Side
Lift the side deck board.
Separating luggage compartment (if equipped)
The deck side board can be
used to separate the luggage
compartment.
Remove the deck side board
and insert it upright into the
groove.
Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.

503 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

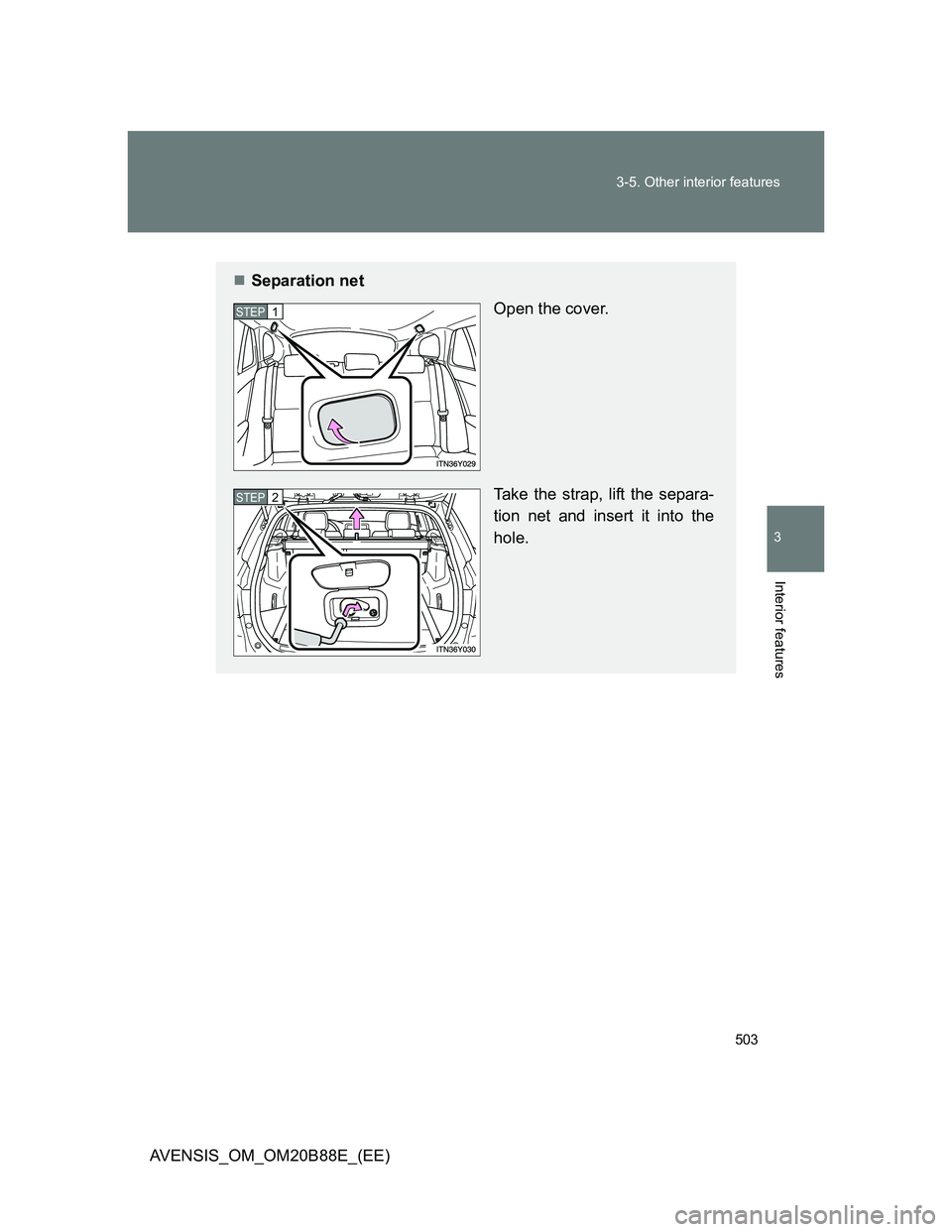

Separation net
Open the cover.
Take the strap, lift the separa-
tion net and insert it into the
hole.
STEP1
STEP2

504 3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

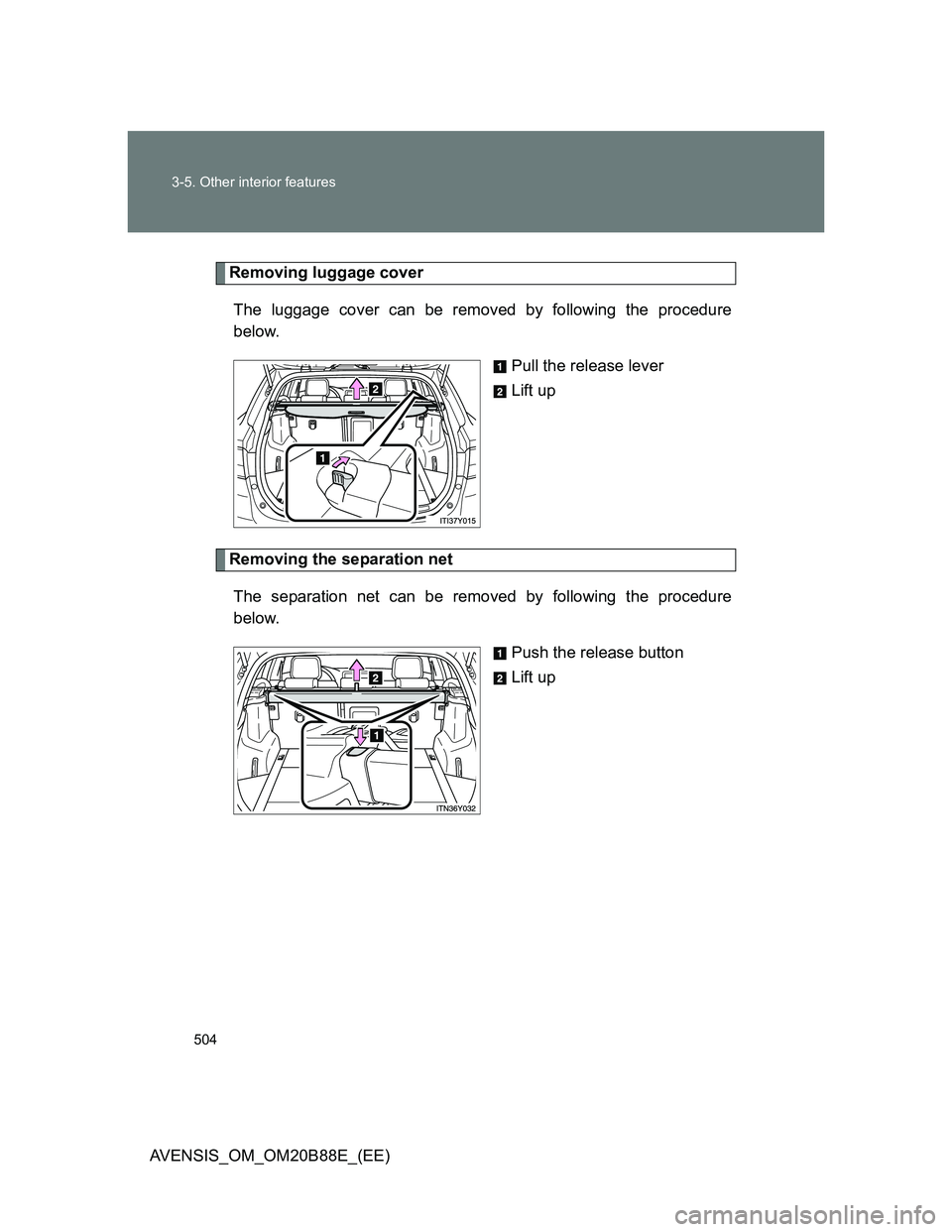

Removing luggage cover
The luggage cover can be removed by following the procedure
below.
Pull the release lever
Lift up
Removing the separation net
The separation net can be removed by following the procedure
below.
Push the release button
Lift up
