577 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)

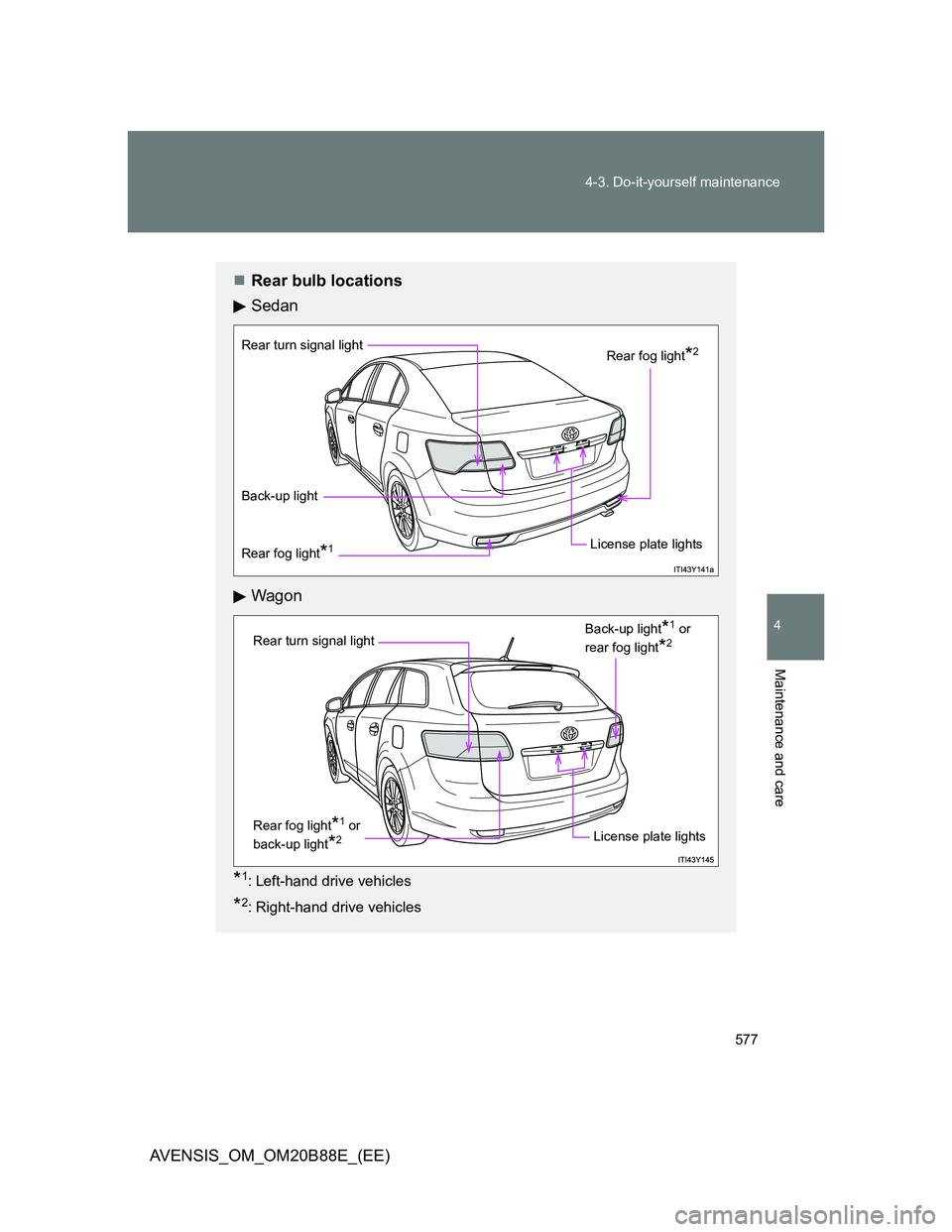

Rear bulb locations
Sedan
Wagon
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Rear turn signal light
Rear fog light*1
Back-up light
License plate lightsRear fog light
*2
Rear turn signal light
Rear fog light*1 or
back-up light
*2
Back-up light*1 or
rear fog light
*2
License plate lights

578 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
Replacing light bulbs
Headlight low beam (vehicles with halogen bulbs)
For the right side only: Remove
the securing clip and turn and
pull off the washer fluid filler
opener.
Install the washer fluid filler
opener in the reverse order of
removal.
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3

579 4-3. Do-it-yourself maintenance
4
Maintenance and care

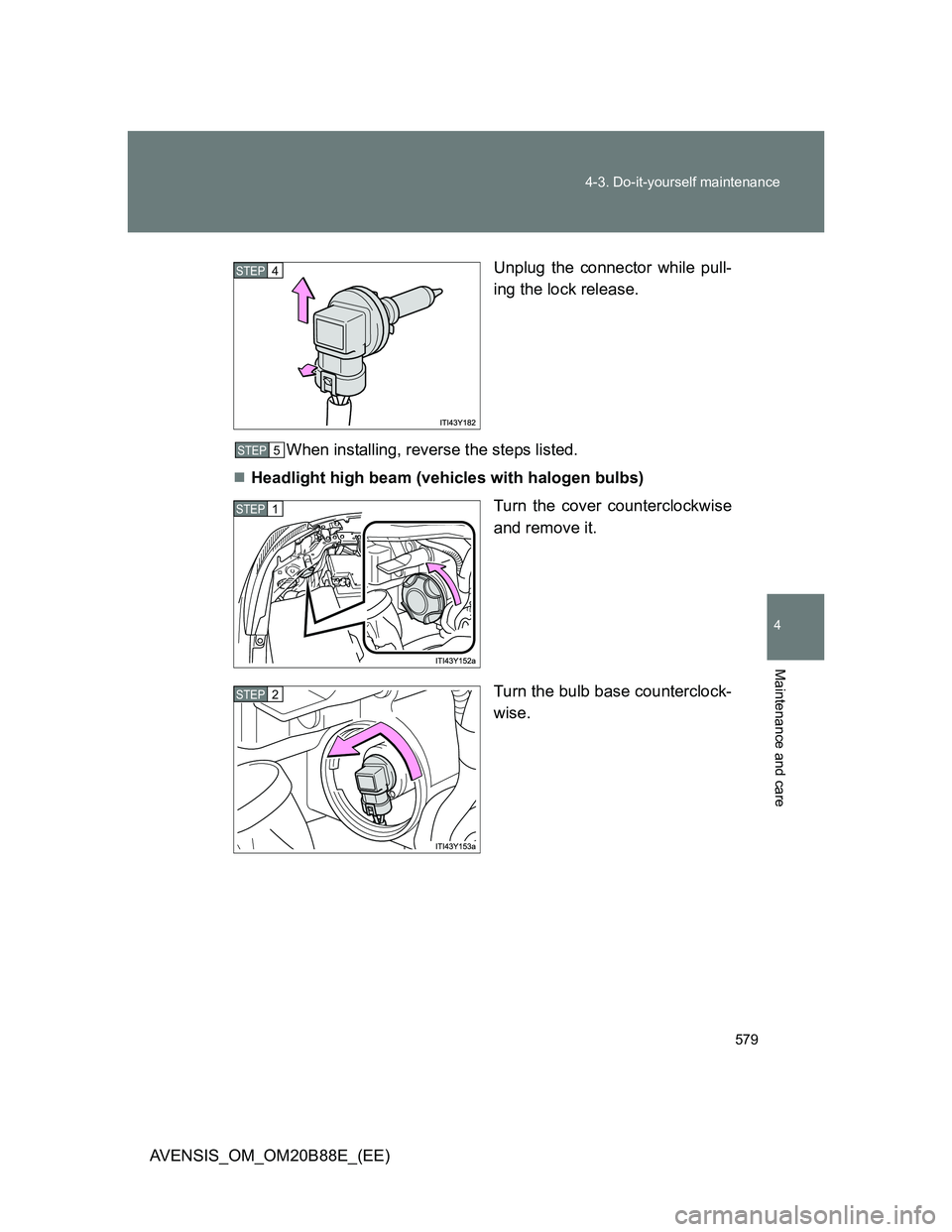

AVENSIS_OM_OM20B88E_(EE)Unplug the connector while pull-
ing the lock release.
When installing, reverse the steps listed.
Headlight high beam (vehicles with halogen bulbs)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
STEP4
STEP5
STEP1
STEP2

580 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)Unplug the connector while pull-
ing the lock release.
When installing, reverse the steps listed.

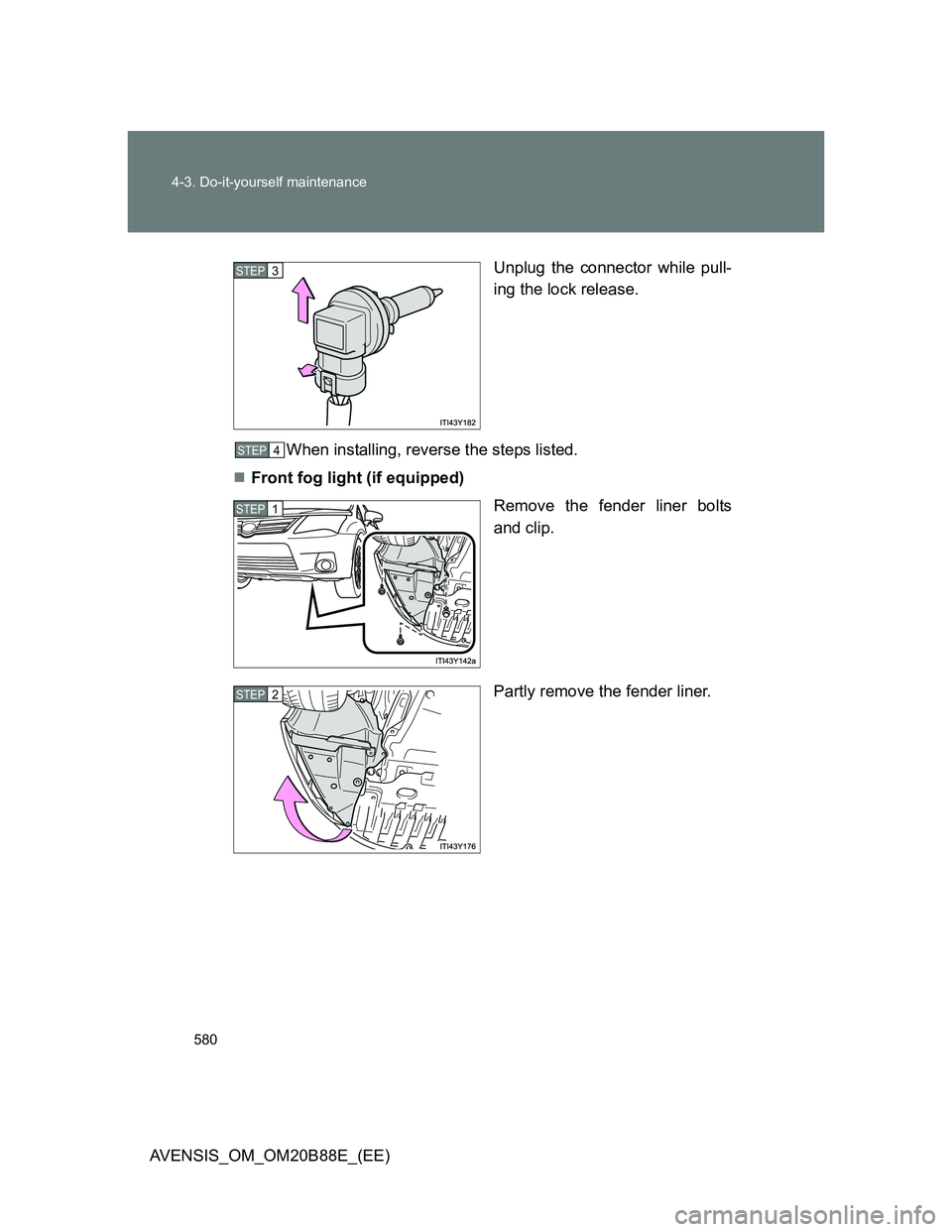

Front fog light (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.
STEP3
STEP4
STEP1
STEP2

581 4-3. Do-it-yourself maintenance
4
Maintenance and care

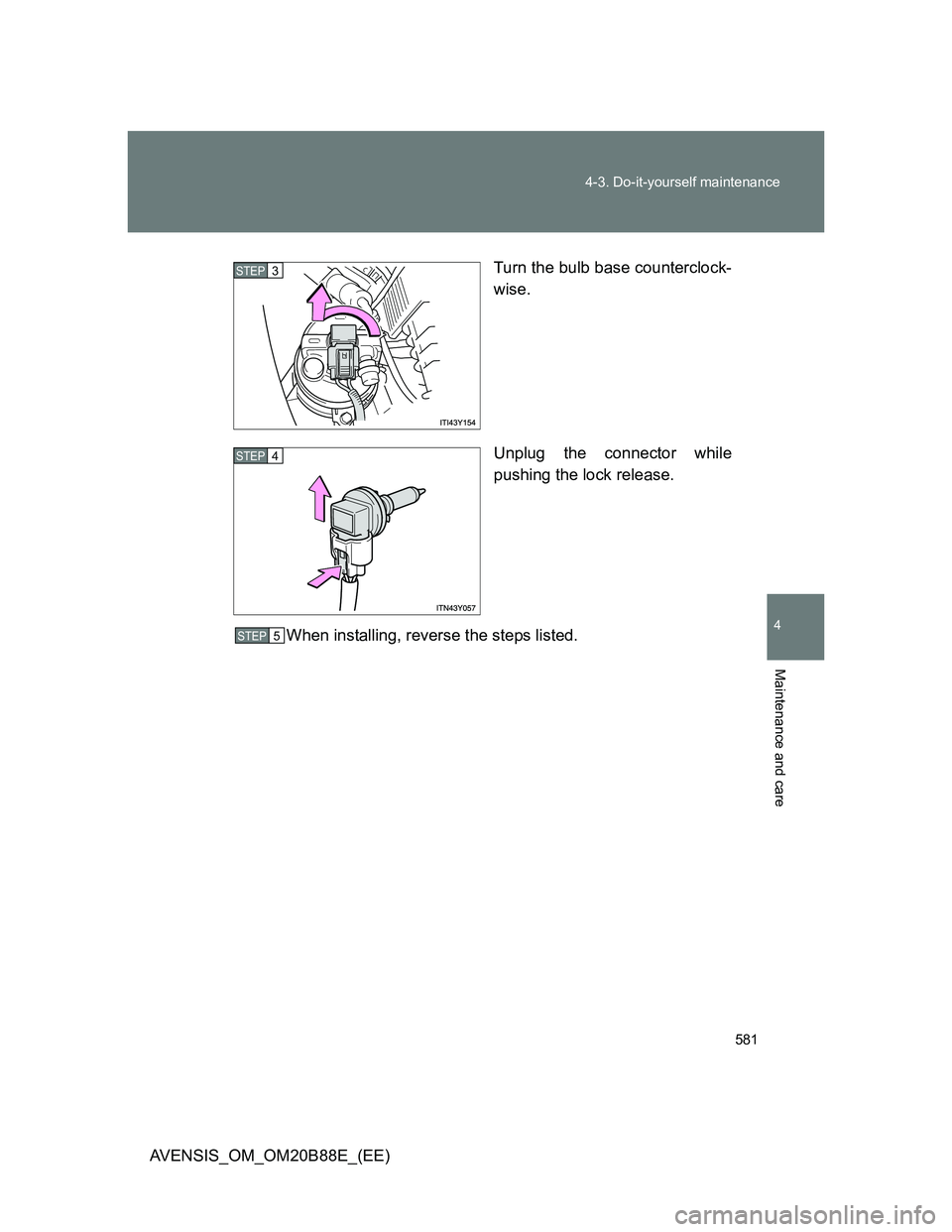

AVENSIS_OM_OM20B88E_(EE)Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
When installing, reverse the steps listed.
STEP3
STEP4
STEP5

582 4-3. Do-it-yourself maintenance

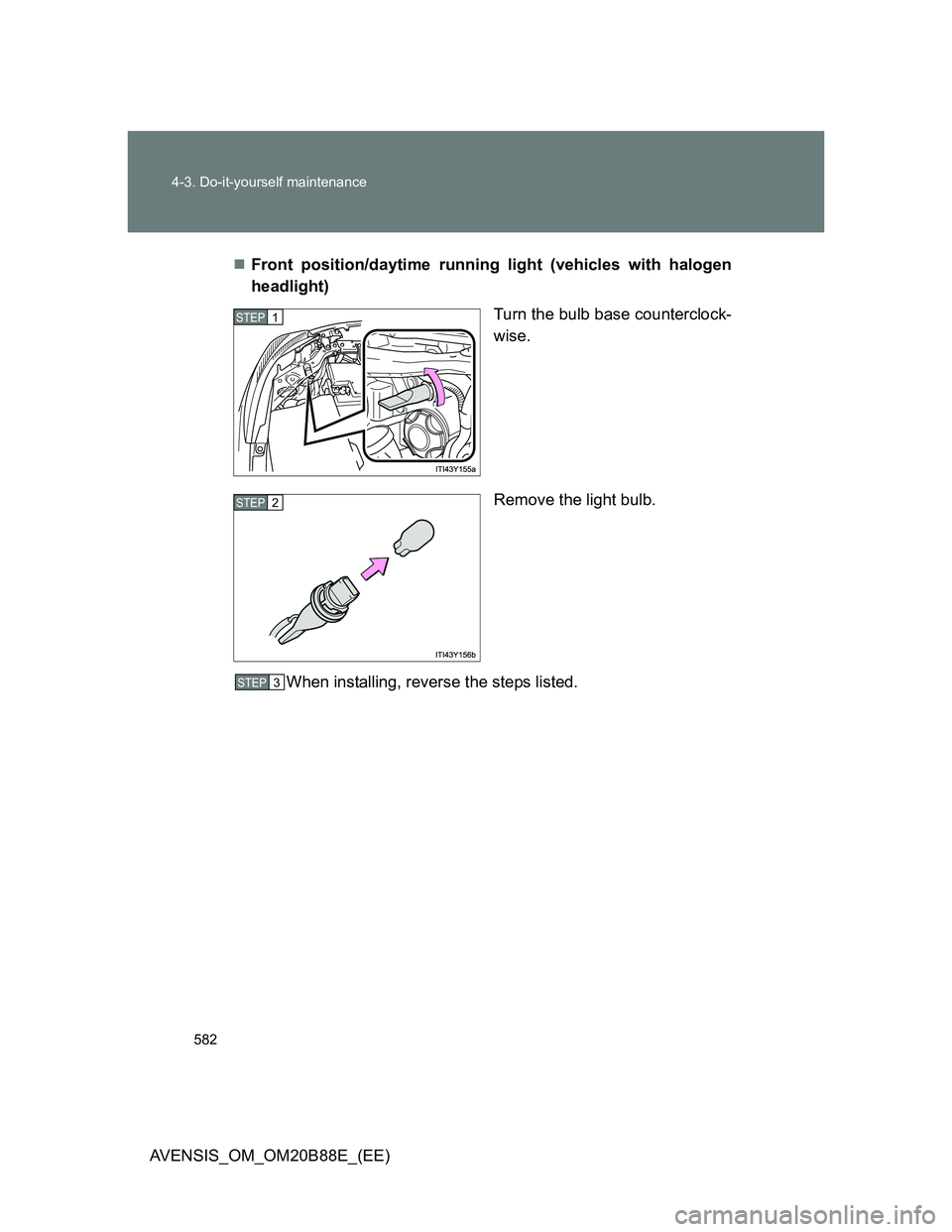

AVENSIS_OM_OM20B88E_(EE)Front position/daytime running light (vehicles with halogen
headlight)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

583 4-3. Do-it-yourself maintenance
4
Maintenance and care

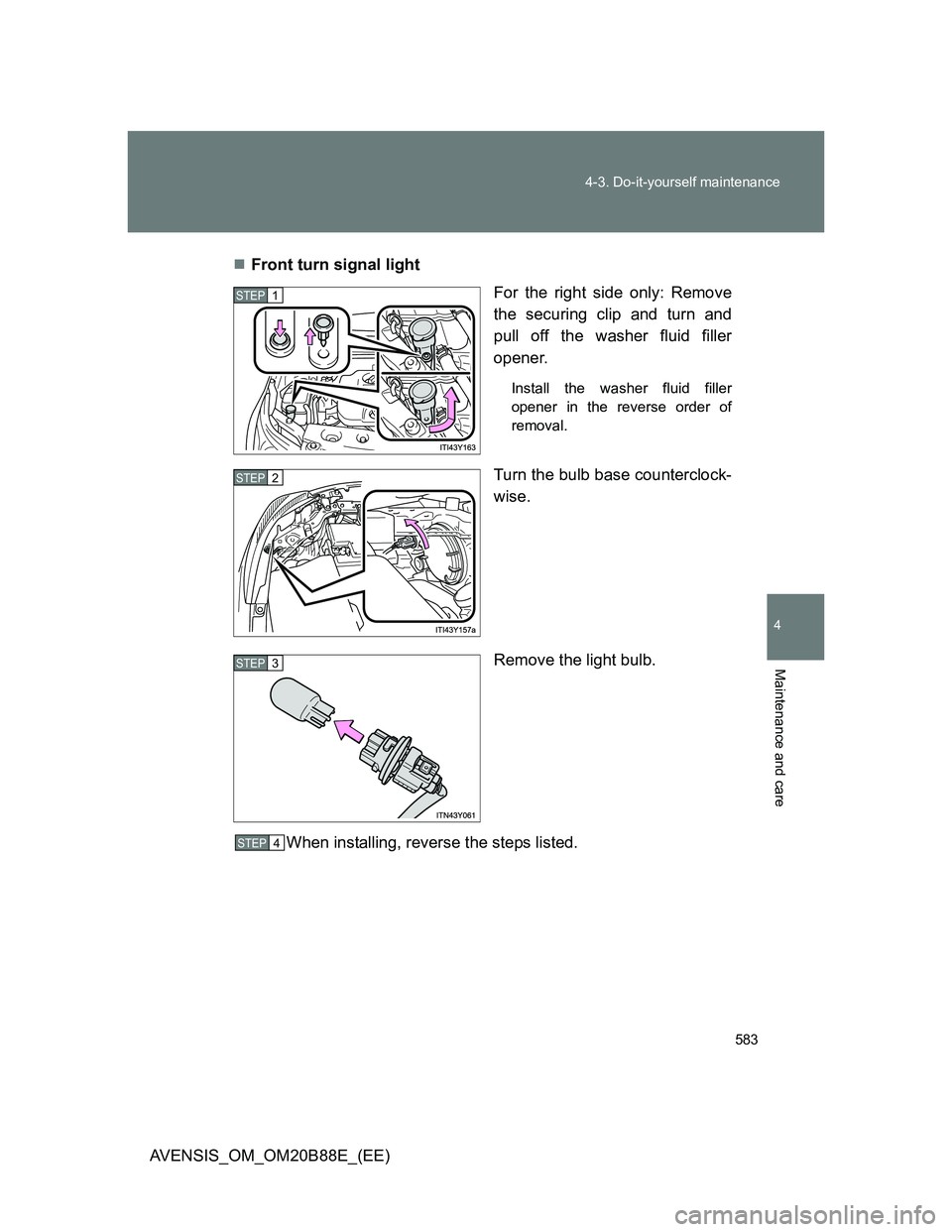

AVENSIS_OM_OM20B88E_(EE)Front turn signal light
For the right side only: Remove
the securing clip and turn and
pull off the washer fluid filler
opener.
Install the washer fluid filler
opener in the reverse order of
removal.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

584 4-3. Do-it-yourself maintenance

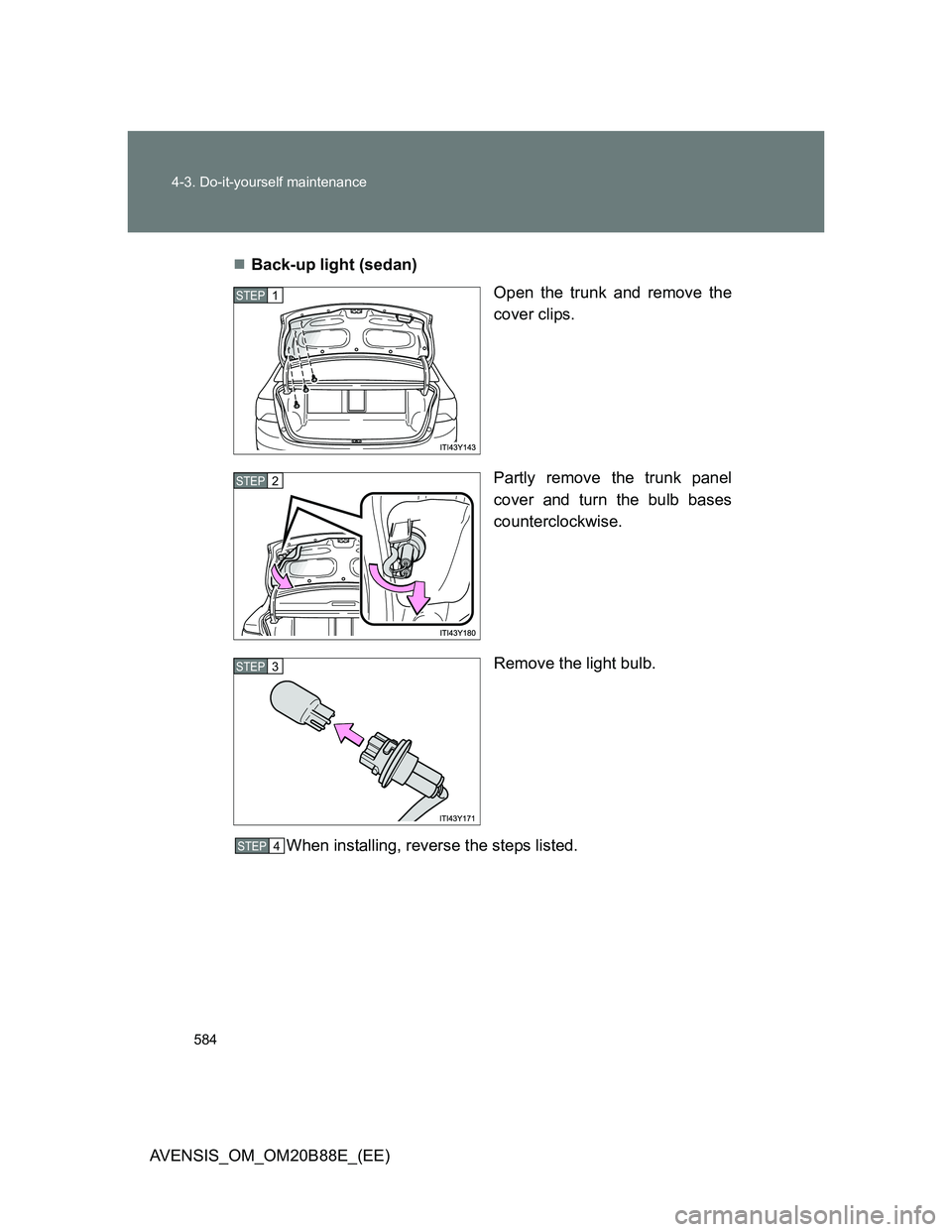

AVENSIS_OM_OM20B88E_(EE)Back-up light (sedan)
Open the trunk and remove the
cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4
