2014 TOYOTA AVENSIS Owners Manual (in English)

73 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

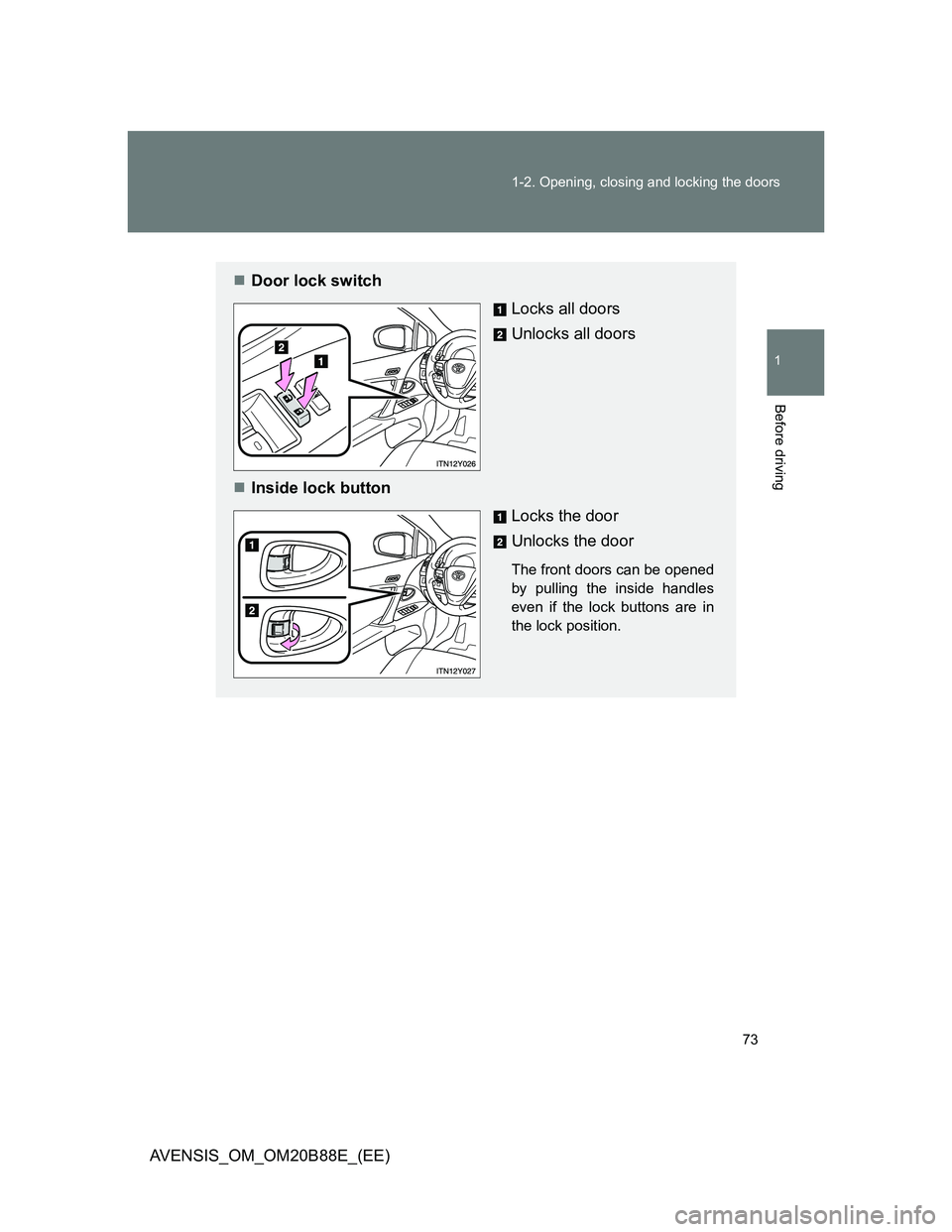

Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

74 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles with smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is
in ACCESSORY or IGNITION ON mode, or the electronic key is
left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Vehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
STEP1
STEP2

75 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

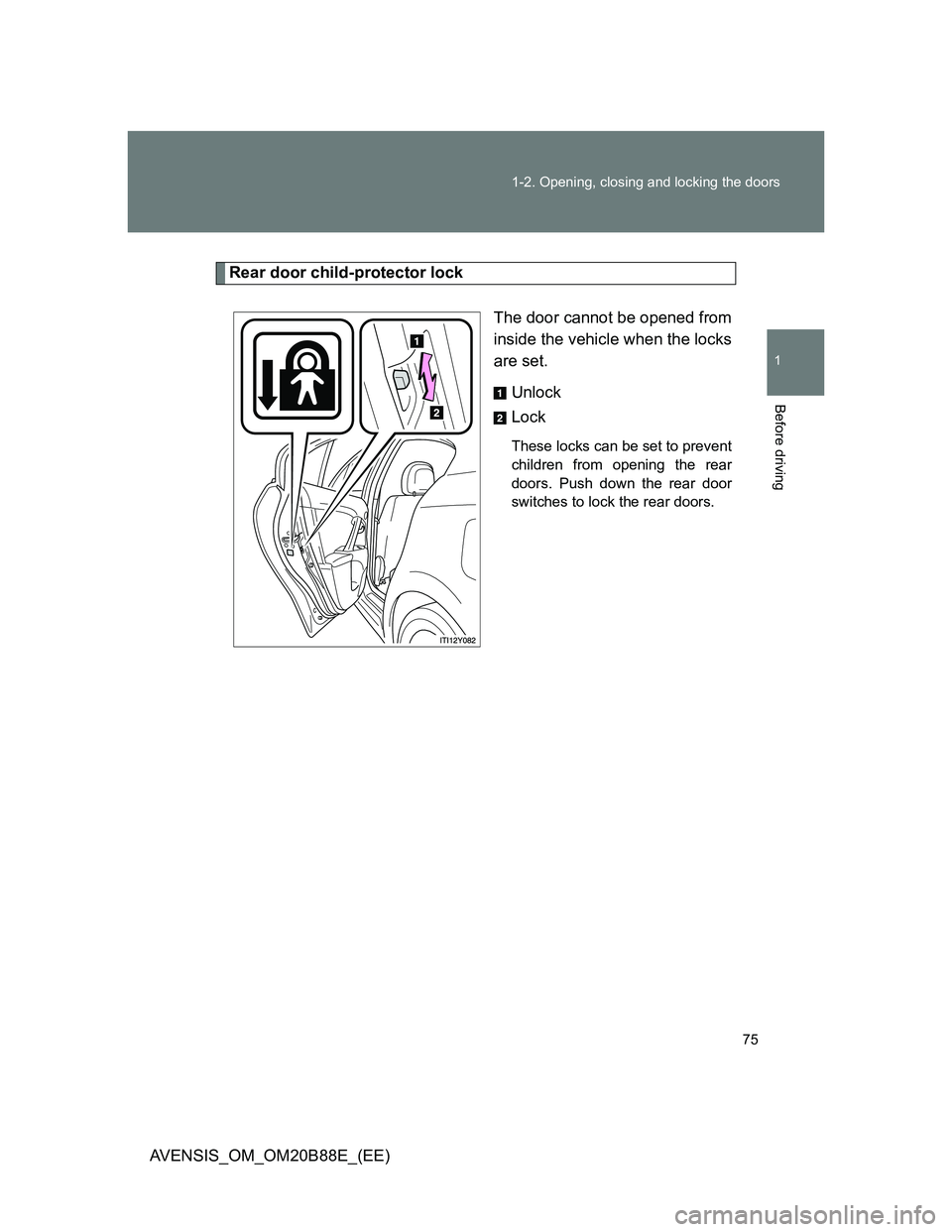

Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the rear door
switches to lock the rear doors.

76 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)

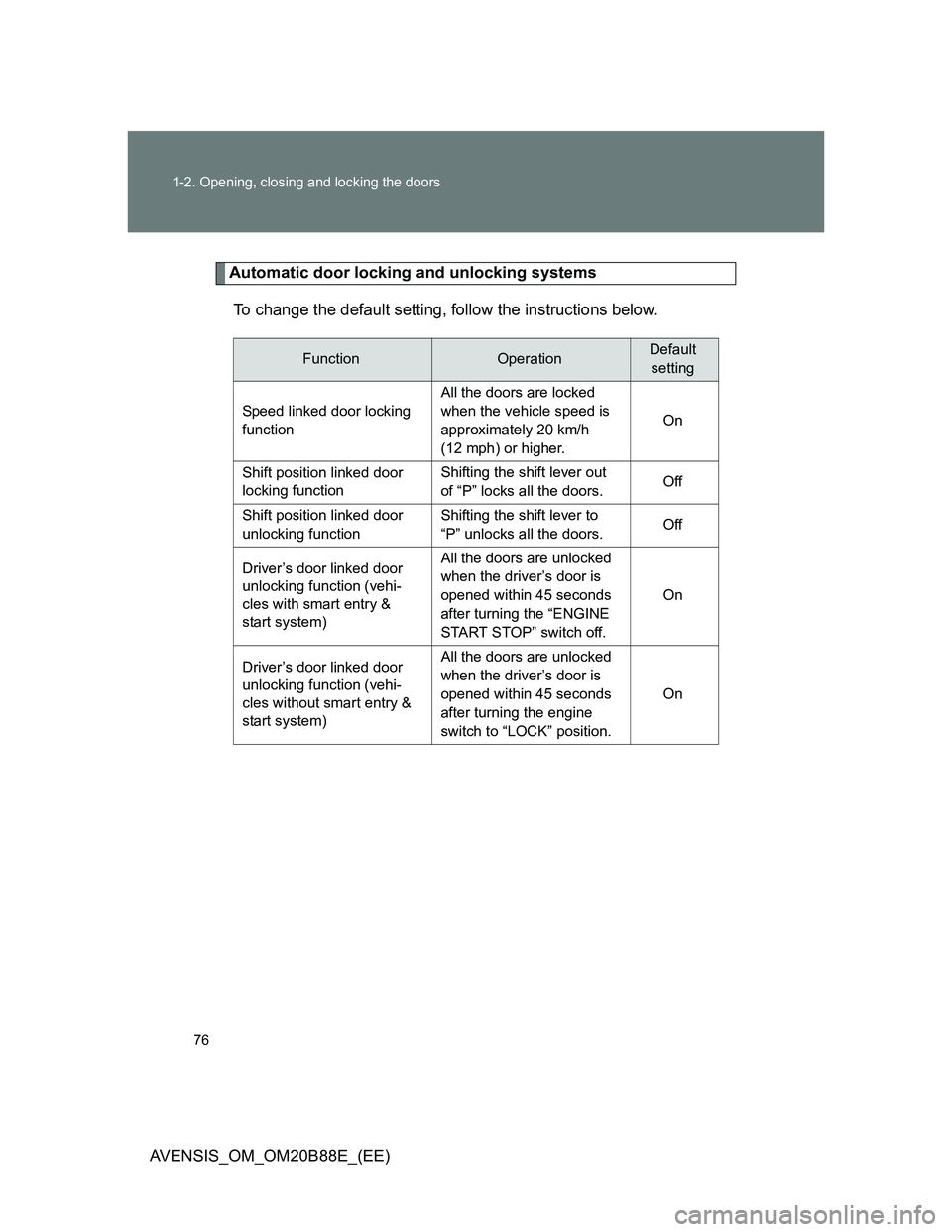

Automatic door locking and unlocking systems
To change the default setting, follow the instructions below.
FunctionOperationDefault
setting
Speed linked door locking
functionAll the doors are locked
when the vehicle speed is
approximately 20 km/h
(12 mph) or higher.On
Shift position linked door
locking functionShifting the shift lever out
of “P” locks all the doors.Off
Shift position linked door
unlocking functionShifting the shift lever to
“P” unlocks all the doors.Off
Driver’s door linked door
unlocking function (vehi-
cles with smart entry &
start system)All the doors are unlocked
when the driver’s door is
opened within 45 seconds
after turning the “ENGINE
START STOP” switch off.On
Driver’s door linked door
unlocking function (vehi-
cles without smart entry &
start system)All the doors are unlocked
when the driver’s door is
opened within 45 seconds
after turning the engine
switch to “LOCK” position.On

77 1-2. Opening, closing and locking the doors
1
Before driving

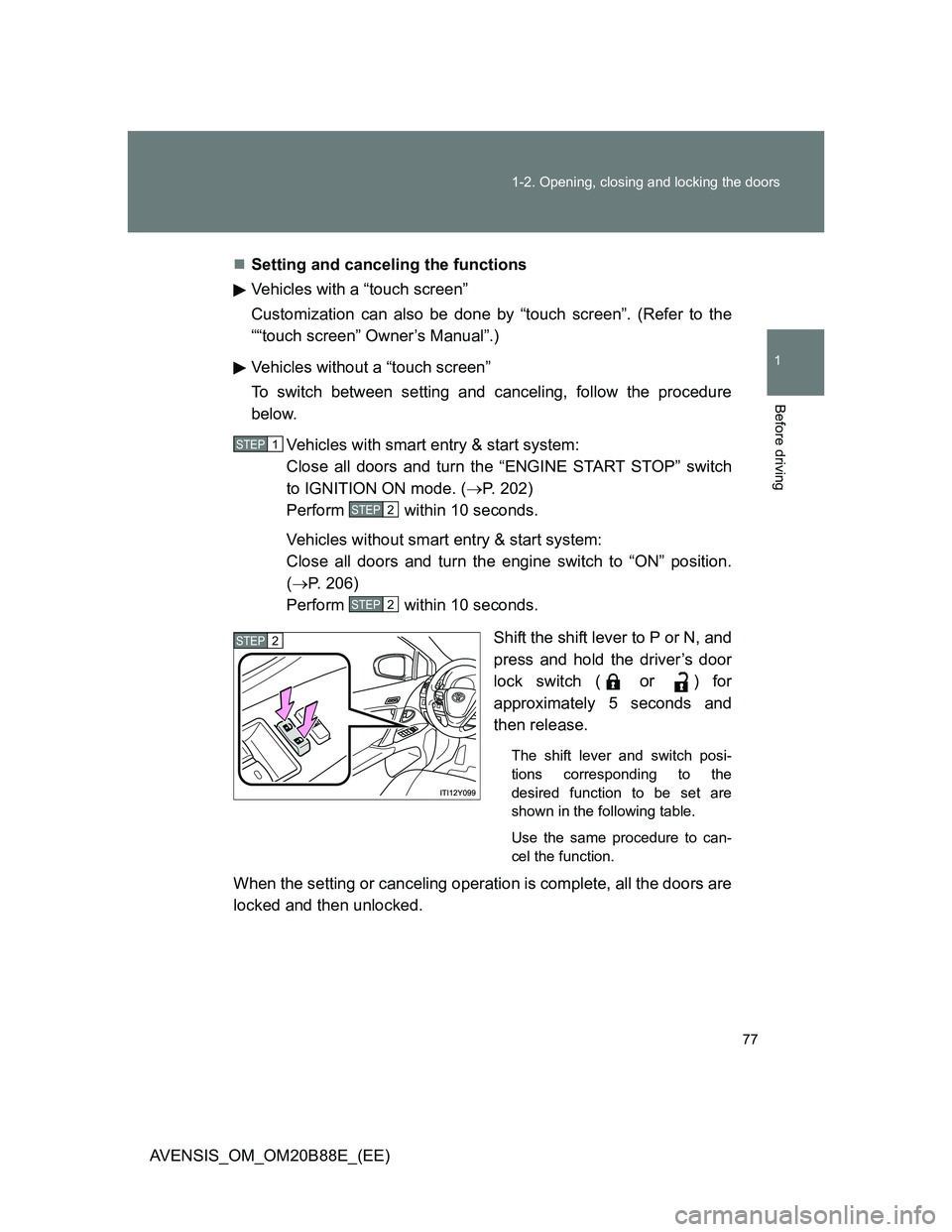

AVENSIS_OM_OM20B88E_(EE)Setting and canceling the functions
Vehicles with a “touch screen”
Customization can also be done by “touch screen”. (Refer to the
““touch screen” Owner’s Manual”.)
Vehicles without a “touch screen”
To switch between setting and canceling, follow the procedure
below.
Vehicles with smart entry & start system:
Close all doors and turn the “ENGINE START STOP” switch
to IGNITION ON mode. (P. 202)
Perform within 10 seconds.
Vehicles without smart entry & start system:
Close all doors and turn the engine switch to “ON” position.
(P. 206)
Perform within 10 seconds.
Shift the shift lever to P or N, and
press and hold the driver’s door
lock switch (
or ) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all the doors are
locked and then unlocked.
STEP1
STEP2
STEP2
STEP2

78 1-2. Opening, closing and locking the doors

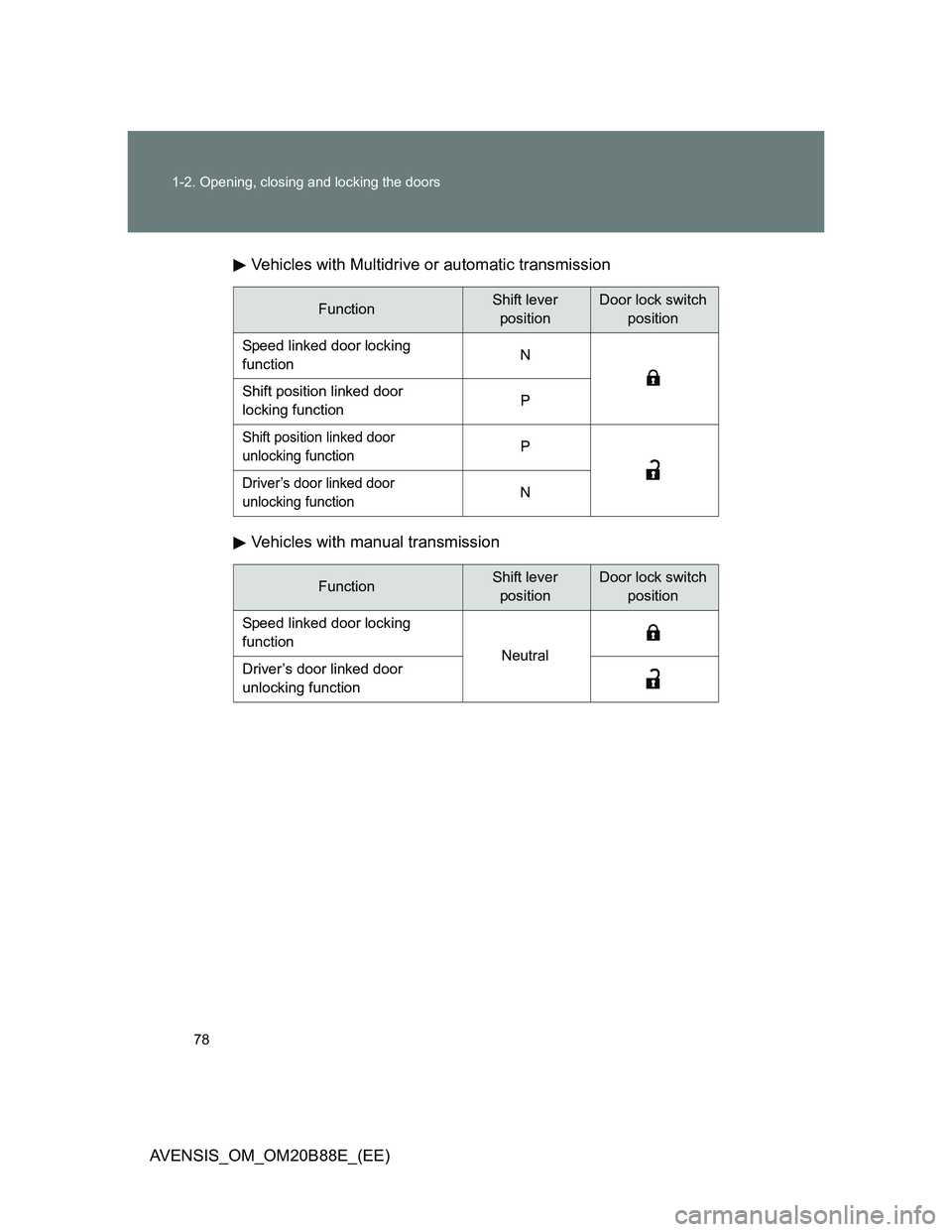

AVENSIS_OM_OM20B88E_(EE)Vehicles with Multidrive or automatic transmission
Vehicles with manual transmission
FunctionShift lever
positionDoor lock switch
position
Speed linked door locking
functionN
Shift position linked door
locking functionP
Shift position linked door
unlocking functionP
Driver’s door linked door
unlocking function N
FunctionShift lever
positionDoor lock switch
position
Speed linked door locking
function
NeutralDriver’s door linked door
unlocking function

79 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

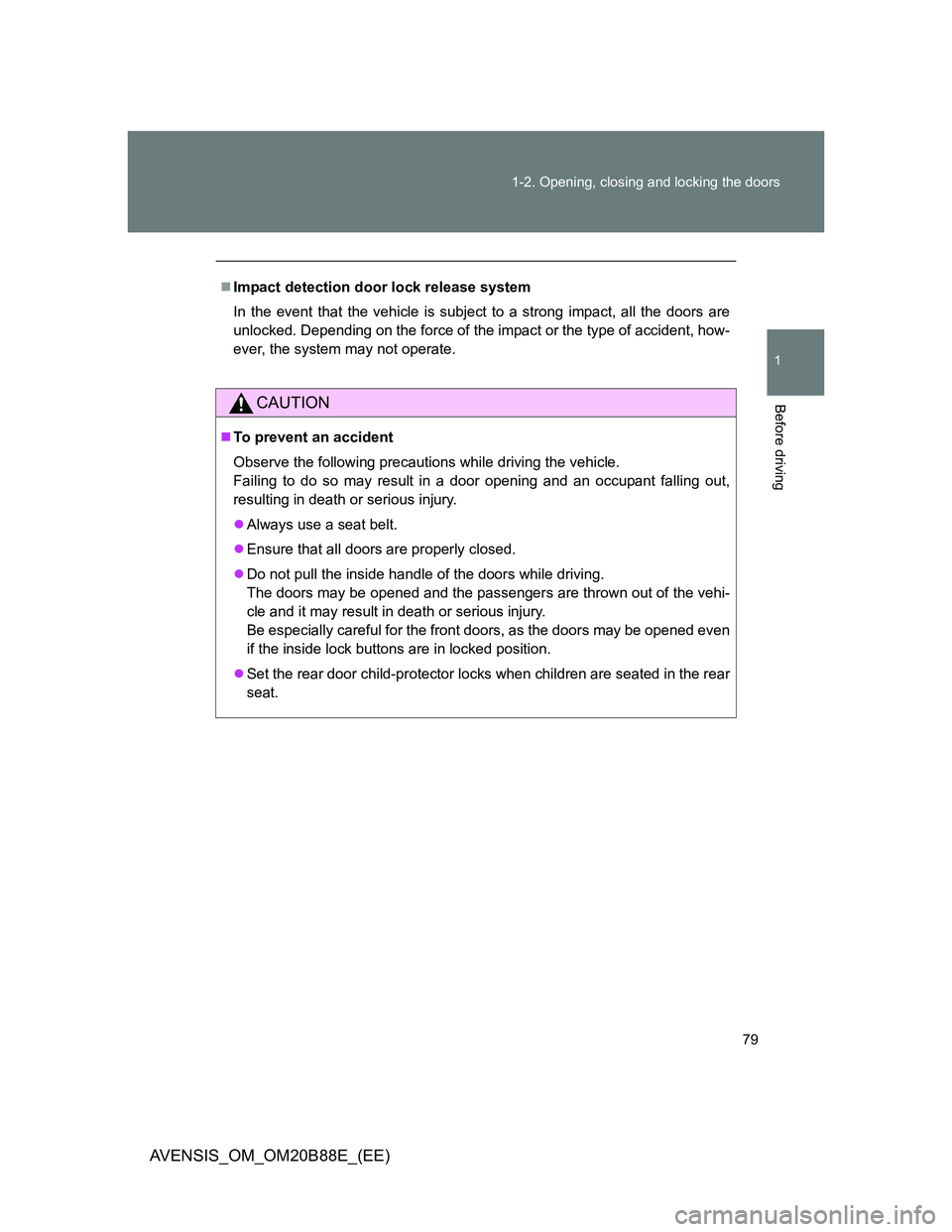

Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
Set the rear door child-protector locks when children are seated in the rear
seat.

80
1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)

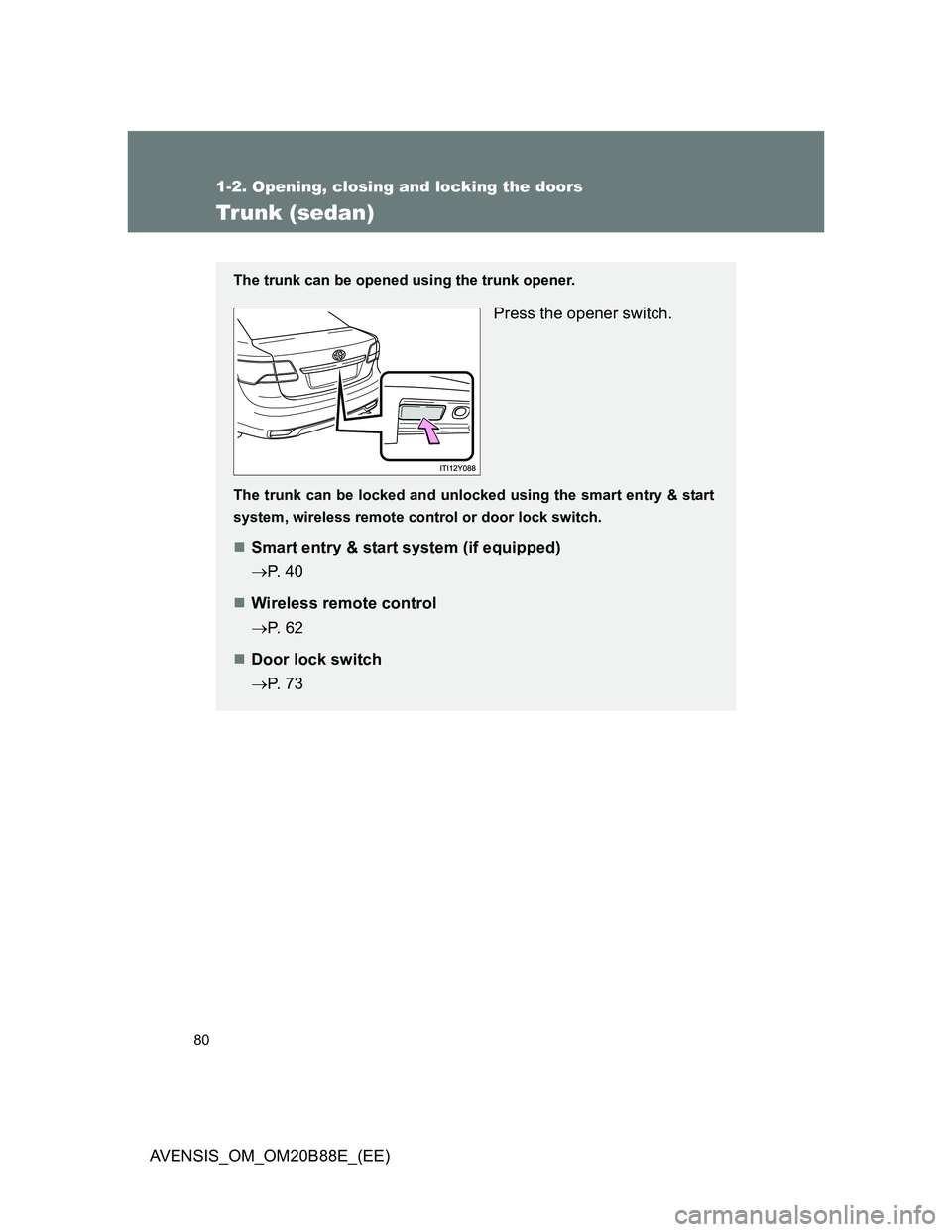

Trunk (sedan)
The trunk can be opened using the trunk opener.
Press the opener switch.
The trunk can be locked and unlocked using the smart entry & start
system, wireless remote control or door lock switch.
Smart entry & start system (if equipped)
P. 4 0
Wireless remote control
P. 6 2
Door lock switch
P. 7 3
