2014 TOYOTA AVENSIS Owners Manual (in English)

457
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Using the “SET UP” menu (“Bluetooth” menu)
: If equipped
Registering a Bluetooth® device in the system allows the system to
function. The following functions can be used for registered devices:
Functions and operation procedures
Press and select “Bluetooth” using .
Press and select one of the following functions
using .
Registering a Bluetooth
® device
“Pairing”
Listing the registered cellular phones
“List Phone”
Listing the registered portable players
“List Audio”
Changing the passkey
“Passkey”
Setting automatic connection of the device on or off
“BT Power”
Displaying the device status
“Bluetooth info”
Setting the automatic connection confirmation display to on or
off
“Display Setting”
Initialization
“Initialize”
STEP1
STEP2

458 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Registering a portable player
Select “Pairing” using , and perform the procedure for regis-
tering a portable player. (P. 444)
Listing the registered cellular phones
Select “List Phone” using . The list of registered cellular
phones will be displayed.
Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected
using .
Select “Select” using .
Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using
.
Select “Delete” using .
Press [YES].
STEP1
STEP2
STEP1
STEP2
STEP3

459 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Listing the registered portable players
Select “List Audio” using . The list of registered portable play-
ers will be displayed.
Connecting the registered portable player to the audio system
Select the name of the portable player to be connected
using .
Select “Select” using .
Deleting the registered portable player
Select the name of the portable player to be deleted using
.
Select “Delete” using .
Press [YES].
STEP1
STEP2
STEP1
STEP2
STEP3

460 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Changing the passkey
Select “Passkey” using .
Select a 4 to 8-digit passkey using .
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the passkey to be registered has 8 digits, pressing again
is not necessary.
Setting automatic connection of the device on or off
If “BT Power” is set to on, the registered device will be connected
automatically when the “ENGINE START STOP” switch is tuned to
ACCESSORY mode (vehicles with smart entry & start system) or
engine switch is turned to the “ACC” position (vehicles without smart
entry & start system).
Select “BT Power” using .
Select “ON” or “OFF” using .
STEP1
STEP2
STEP3
STEP1
STEP2

461 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Displaying the device status
Select “Bluetooth info” using .
Displaying the device name
Select “Device Name” using .
Displaying the device address
Select “Device Address” using .
Setting the automatic connection confirmation display to on or off
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the “ENGINE START STOP” switch is
tuned to ACCESSORY mode or IGNITION ON mode (vehicles with
smart entry & start system), or engine switch is turned to the “ACC” or
“ON” position (vehicles without smart entry & start system).
Select “Display setting” using .
Select “ON” or “OFF” using .
STEP1
STEP2

462 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Initialization
Select “Initialize” using .
Initializing the sound settings
Select “Sound Setting” using and press [YES].
For details about sound settings: P. 4 6 3
Initializing the device information
Select “Car Device Info” using and press [YES].
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
Initializing the all settings
Select “All Initialize” using and press [YES].
The number of Bluetooth® device that can be registered
Up to 5 Bluetooth
® device can be registered in the system.

463
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

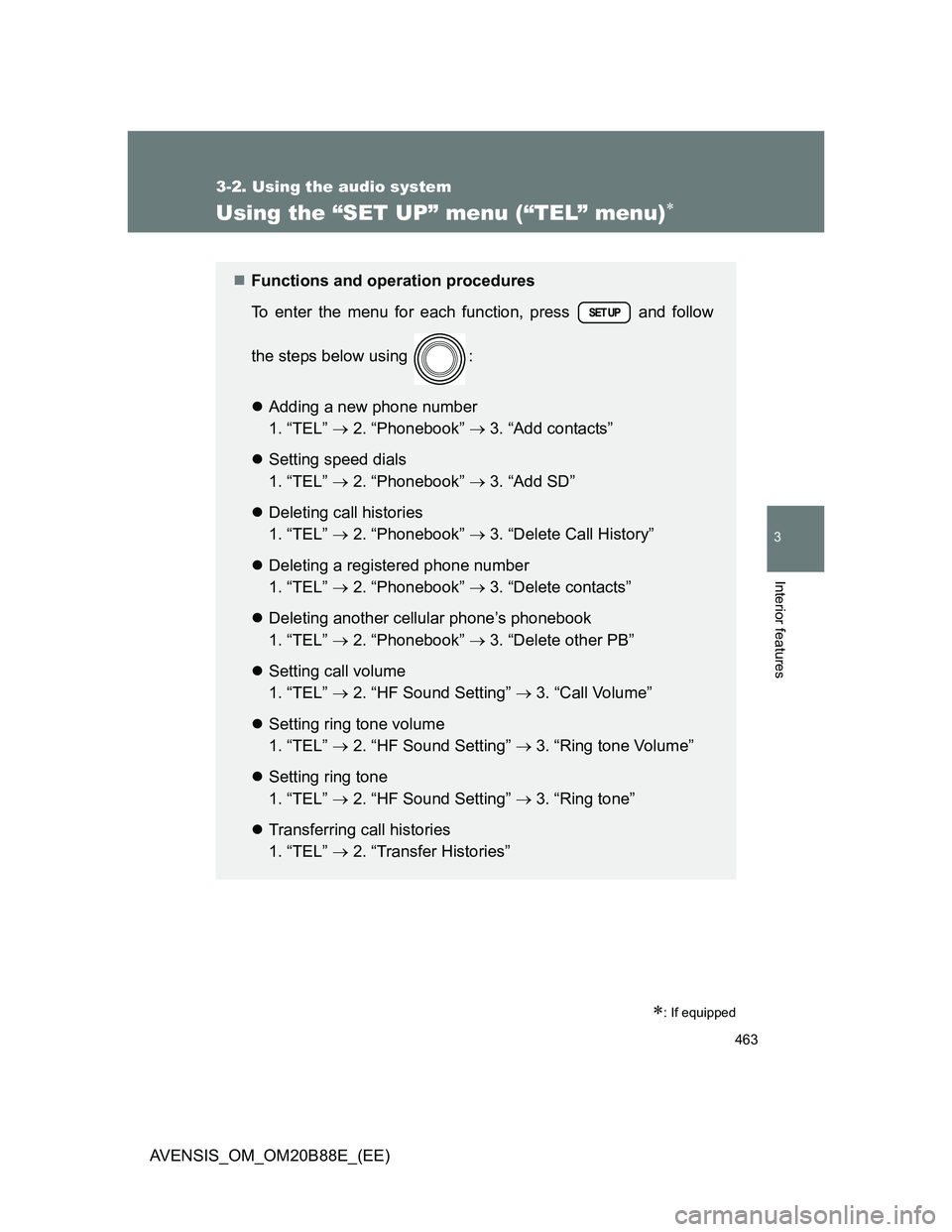

Using the “SET UP” menu (“TEL” menu)
: If equipped
Functions and operation procedures
To enter the menu for each function, press and follow
the steps below using :
Adding a new phone number
1. “TEL”  2. “Phonebook”  3. “Add contacts”
Setting speed dials
1. “TEL”  2. “Phonebook”  3. “Add SD”
Deleting call histories
1. “TEL”  2. “Phonebook”  3. “Delete Call History”
Deleting a registered phone number
1. “TEL”  2. “Phonebook”  3. “Delete contacts”
Deleting another cellular phone’s phonebook
1. “TEL”  2. “Phonebook”  3. “Delete other PB”
Setting call volume
1. “TEL”  2. “HF Sound Setting”  3. “Call Volume”
Setting ring tone volume
1. “TEL”  2. “HF Sound Setting”  3. “Ring tone Volume”
Setting ring tone
1. “TEL”  2. “HF Sound Setting”  3. “Ring tone”
Transferring call histories
1. “TEL”  2. “Transfer Histories”

464 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Adding a new phone number
Select “Add contacts” using .
Transferring all contacts from the cellular phone
Select “Overwrite all” using and press [YES].
Transferring one contact from the cellular phone
Select “Add one contact” using and press [YES].
Setting speed dials
Select “Add SD” using .
Select the desired data using .
Press the desired preset button (from [1] to
[5]).
For details about setting speed dials from the call history: P. 453
For details about deleting speed dials: P. 452
STEP1
STEP2
STEP3
