2014 TOYOTA AVENSIS Owners Manual (in English)

409 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

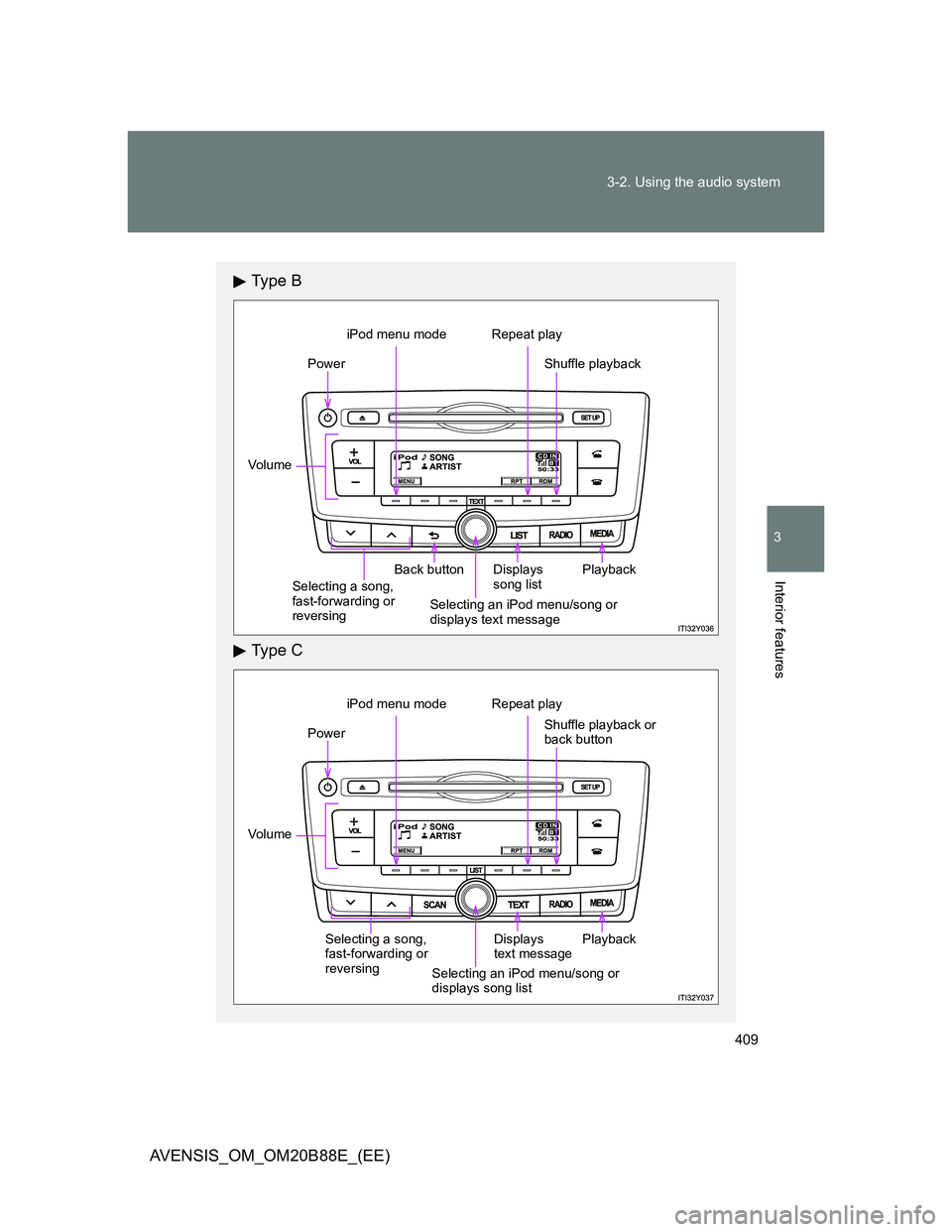

Ty p e B
Ty p e C
Power
Vo lu m e
Back button Displays
song list
iPod menu mode Repeat play
Shuffle playback
Playback
Selecting a song,
fast-forwarding or
reversingSelecting an iPod menu/song or
displays text message
Power
Vo lu m e
Displays
text message
iPod menu mode Repeat play
Shuffle playback or
back button
PlaybackSelecting a song,
fast-forwarding or
reversing
Selecting an iPod menu/song or
displays song list

410 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)

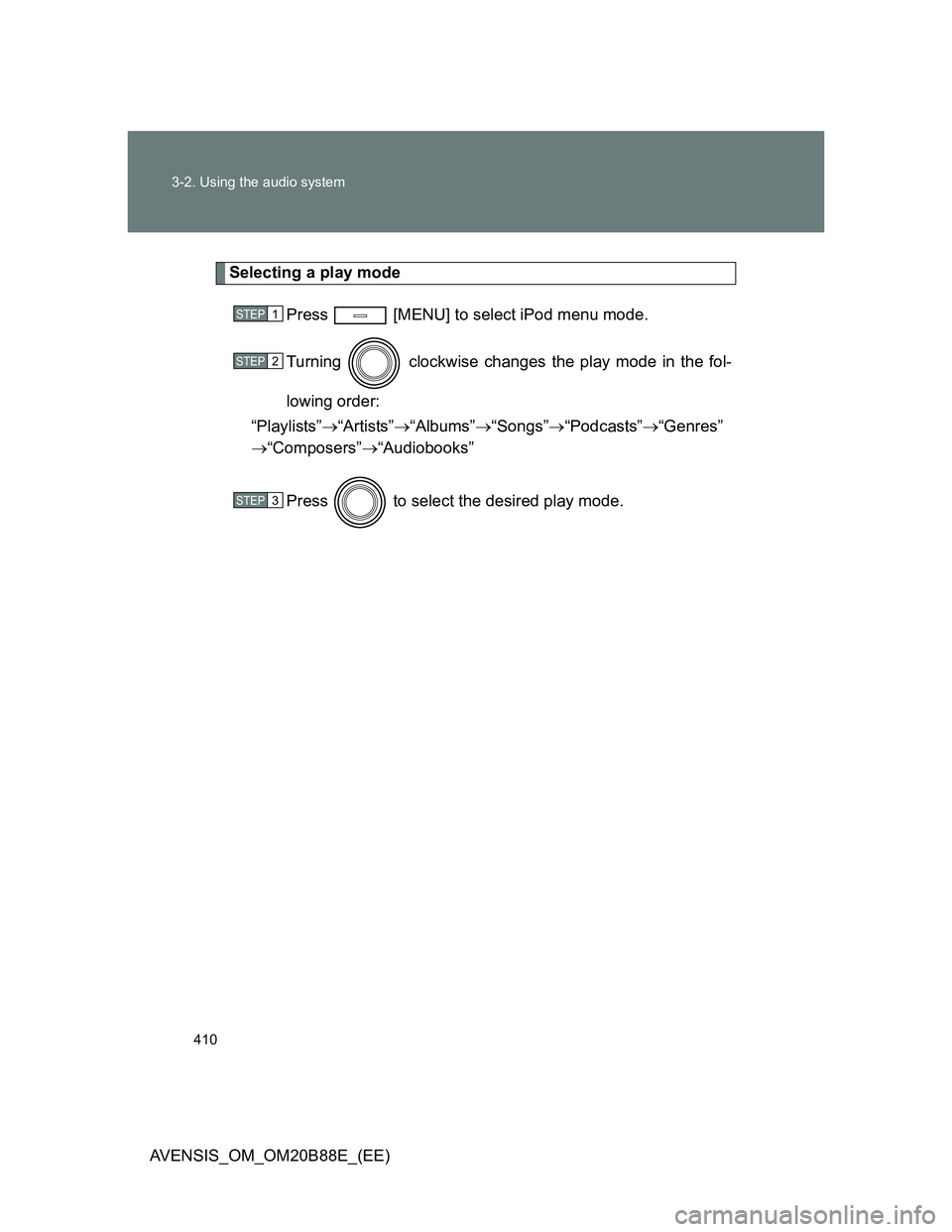

Selecting a play mode
Press [MENU] to select iPod menu mode.
Turning clockwise changes the play mode in the fol-
lowing order:
“Playlists”“Artists”“Albums”“Songs”“Podcasts”“Genres”
“Composers”“Audiobooks”
Press to select the desired play mode.
STEP1
STEP2
STEP3

411 3-2. Using the audio system
3
Interior features

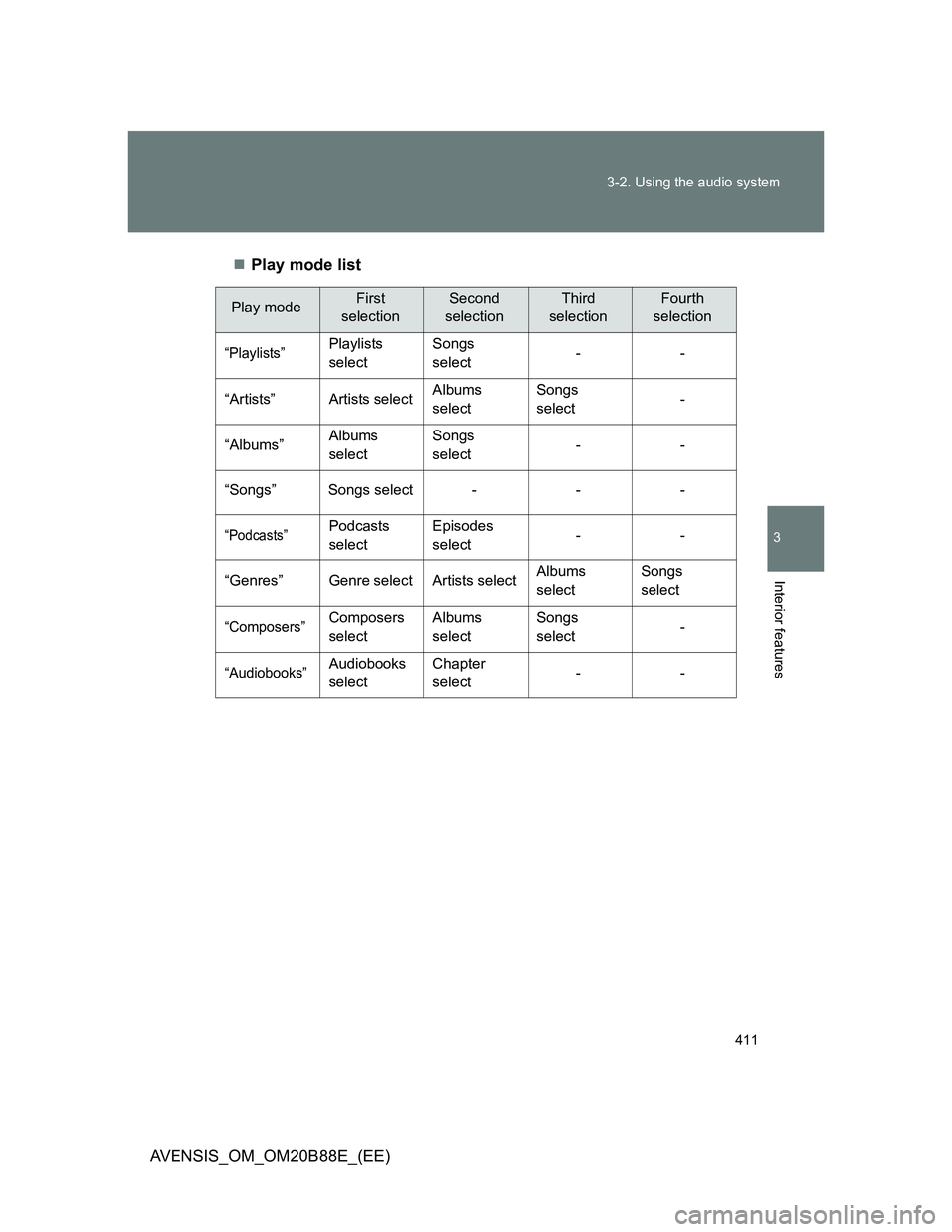

AVENSIS_OM_OM20B88E_(EE)Play mode list
Play modeFirst
selectionSecond
selectionThird
selectionFourth
selection
“Playlists”Playlists
selectSongs
select--
“Artists” Artists selectAlbums
selectSongs
select-
“Albums”Albums
selectSongs
select--
“Songs” Songs select - - -
“Podcasts”Podcasts
selectEpisodes
select--
“Genres” Genre select Artists selectAlbums
selectSongs
select
“Composers”Composers
selectAlbums
selectSongs
select-
“Audiobooks”Audiobooks
selectChapter
select--

412 3-2. Using the audio system

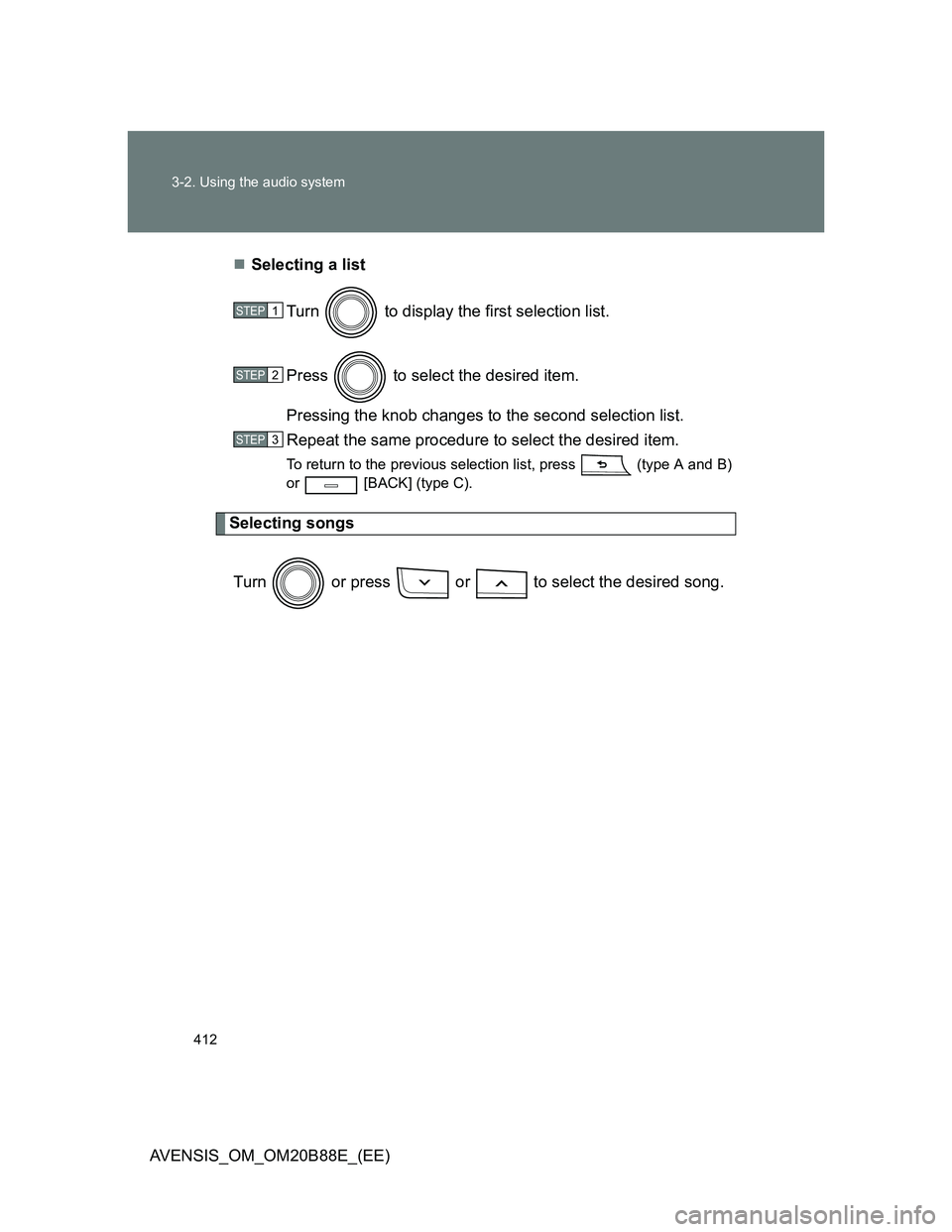

AVENSIS_OM_OM20B88E_(EE)Selecting a list
Turn to display the first selection list.
Press to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press (type A and B)
or [BACK] (type C).
Selecting songs
Turn or press or to select the desired song.
STEP1
STEP2
STEP3

413 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Selecting a song from the song list
Press (type A and B) or (type C).
The song list will be displayed.
Turn to select a song.
Press to play the song.
To return to the previous display, press (type A and B) or
[BACK] (type C).
Fast-forwarding and reversing songs
Press and hold or .
Repeat play
Press
[RPT].
To cancel, press [RPT] again.
STEP1
STEP2
STEP3

414 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Shuffle playback
Pressing [RDM] changes modes in the following order:
Track shuffleAlbum shuffleOff.
Switching the display
Press (type A and B) or (type C).
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press or (type A and B),
or or [BACK] (type C).
About iPod
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S. and other coun-
tries.

415 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
iPod functions
When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.
Depending on the iPod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it once again may resolve the problem.
While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
Display
P. 394
Error messages
“ERROR”: This indicates a problem in the iPod or its connection.
“NO SONGS”: This indicates that there is no music data in the iPod.
“NO PLAYLIST”: This indicates that some available songs are not found in
a selected playlist.
“UPDATE YOUR iPOD”: This indicates that the version of the iPod is not
compatible. Upgrade your iPod software to the lat-
est version.

416 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Compatible models
ModelGenerationSoftware version
iPod 5th generation Ver. 1.3.0
iPod nano1st generation Ver. 1.3.1
2nd generation Ver. 1.1.3
3rd generation Ver. 1.1.3
4th generation Ver. 1.0.4
5th generation Ver. 1.0.2
6th generation Ver. 1.0.0
iPod touch1st generation Ver. 3.1.3
2nd generationVer. 3.1.3
Ver. 4.2.1
Late 2009 (8 GB)Ver. 3.1.3
Ver. 4.2.1
3rd generation
(32 GB/64 GB)Ver. 3.1.3
Ver. 4.2.1
4th generation Ver. 4.2.1
iPod classic1st generation Ver. 1.1.2
2nd generation (120 GB) Ver. 2.0.1
Late 2009 (160 GB) Ver. 2.0.4
iPhone1st generation (iPhone) Ver. 3.1.3
2nd generation (iPhone 3G)Ver. 3.1.3
Ver. 4.2.1
3rd generation
(iPhone 3GS)Ver. 3.1.3
Ver. 4.2.1
4th generation (iPhone 4) Ver. 4.2.1
