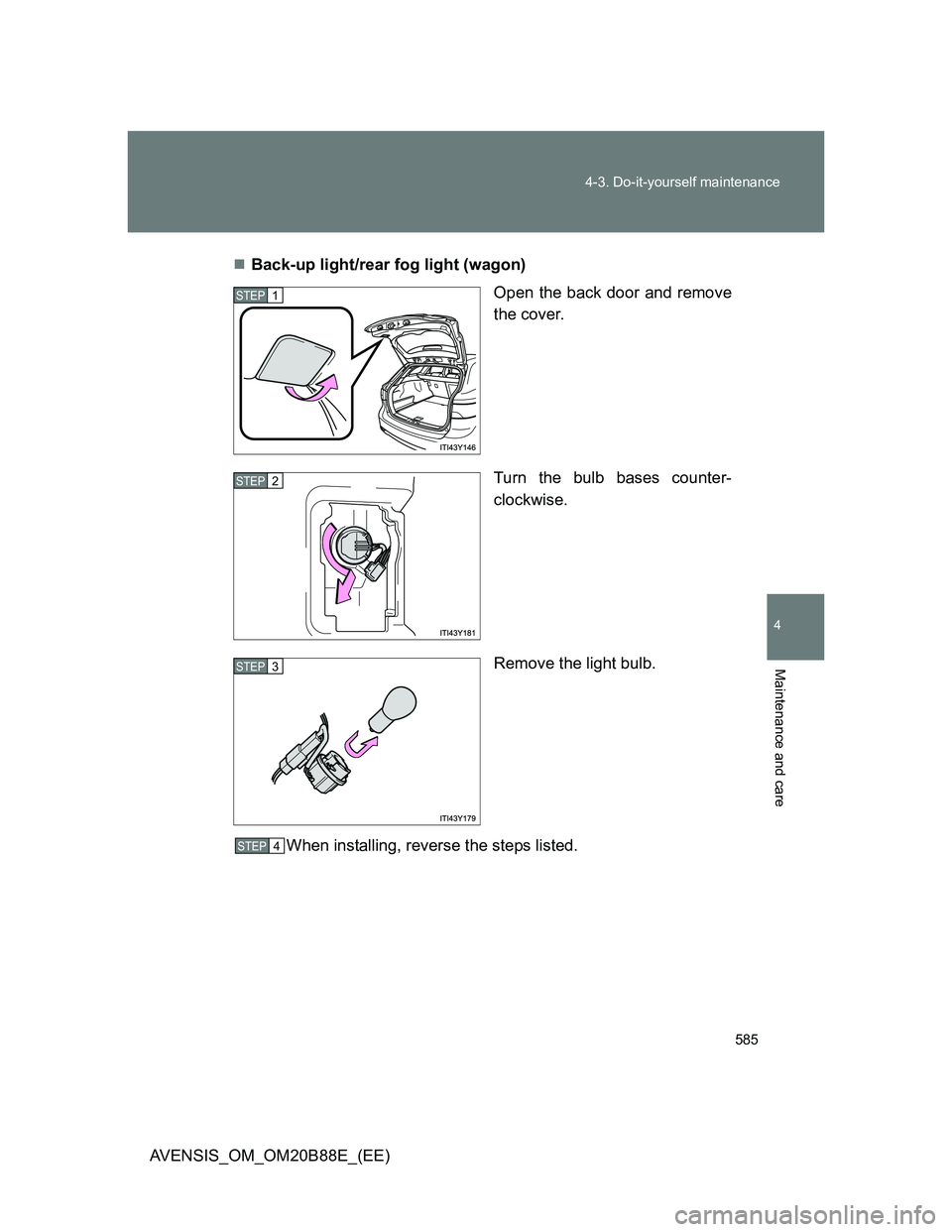

AVENSIS_OM_OM20B88E_(EE)Back-up light/rear fog light (wagon)
Open the back door and remove
the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

586 4-3. Do-it-yourself maintenance

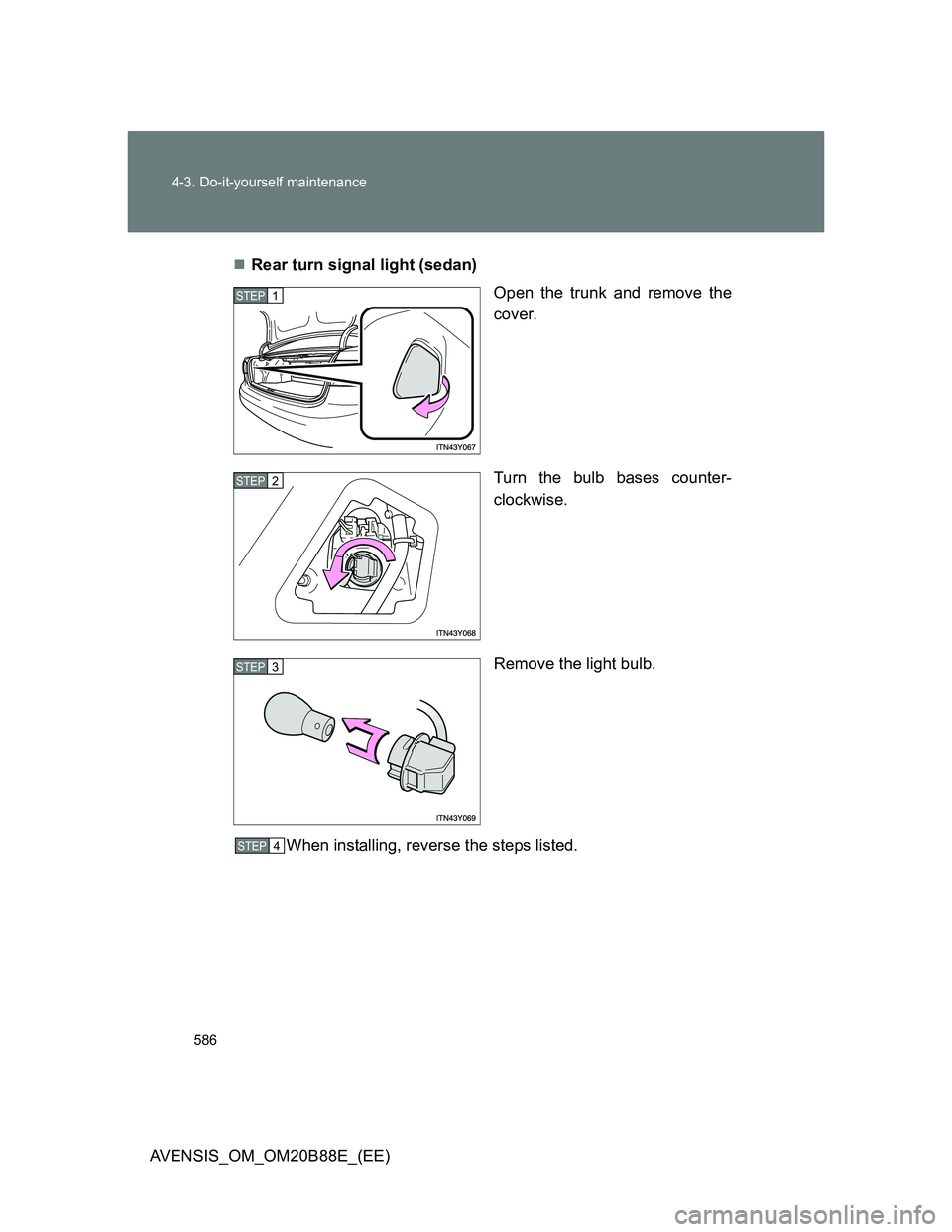

AVENSIS_OM_OM20B88E_(EE)Rear turn signal light (sedan)
Open the trunk and remove the
cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

587 4-3. Do-it-yourself maintenance
4
Maintenance and care

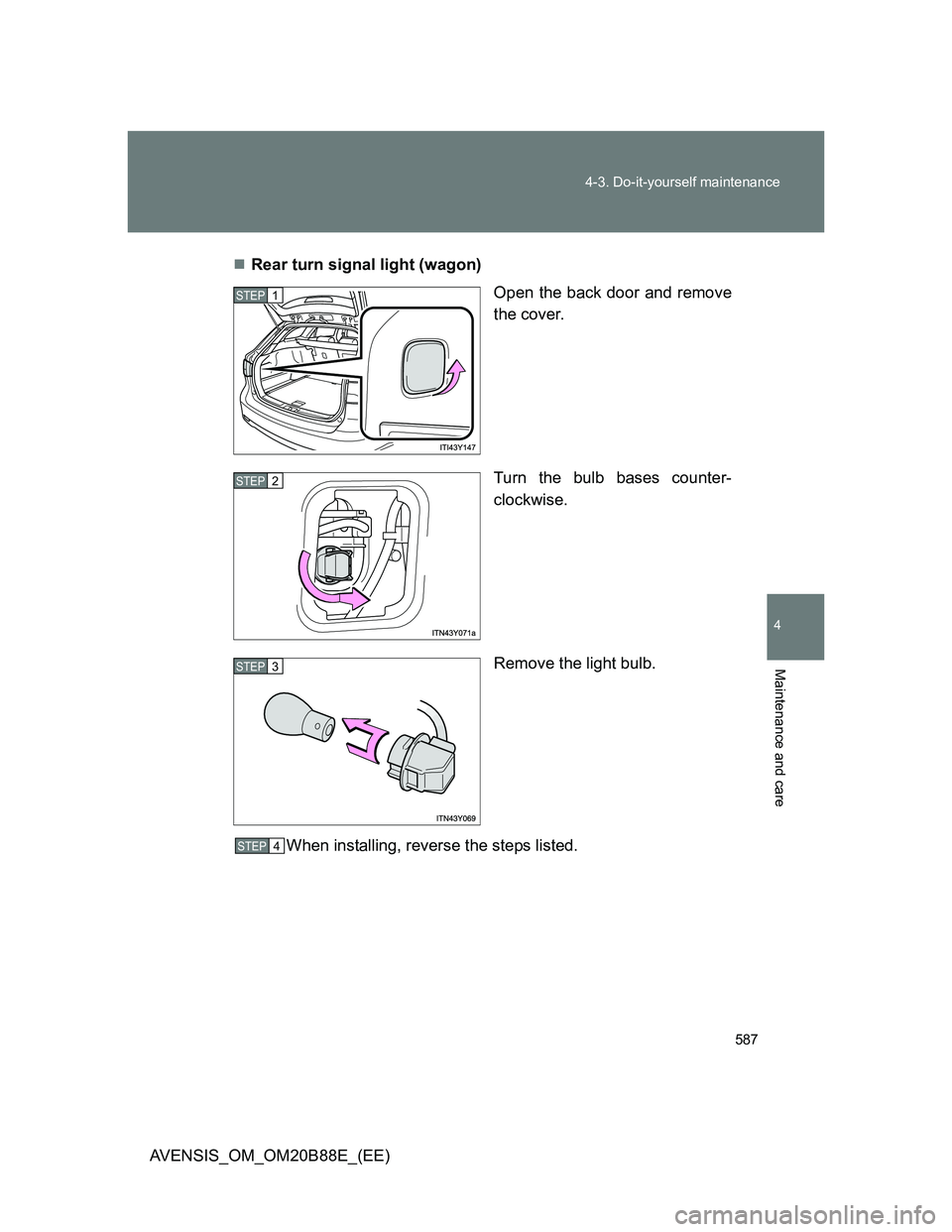

AVENSIS_OM_OM20B88E_(EE)Rear turn signal light (wagon)
Open the back door and remove
the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

588 4-3. Do-it-yourself maintenance

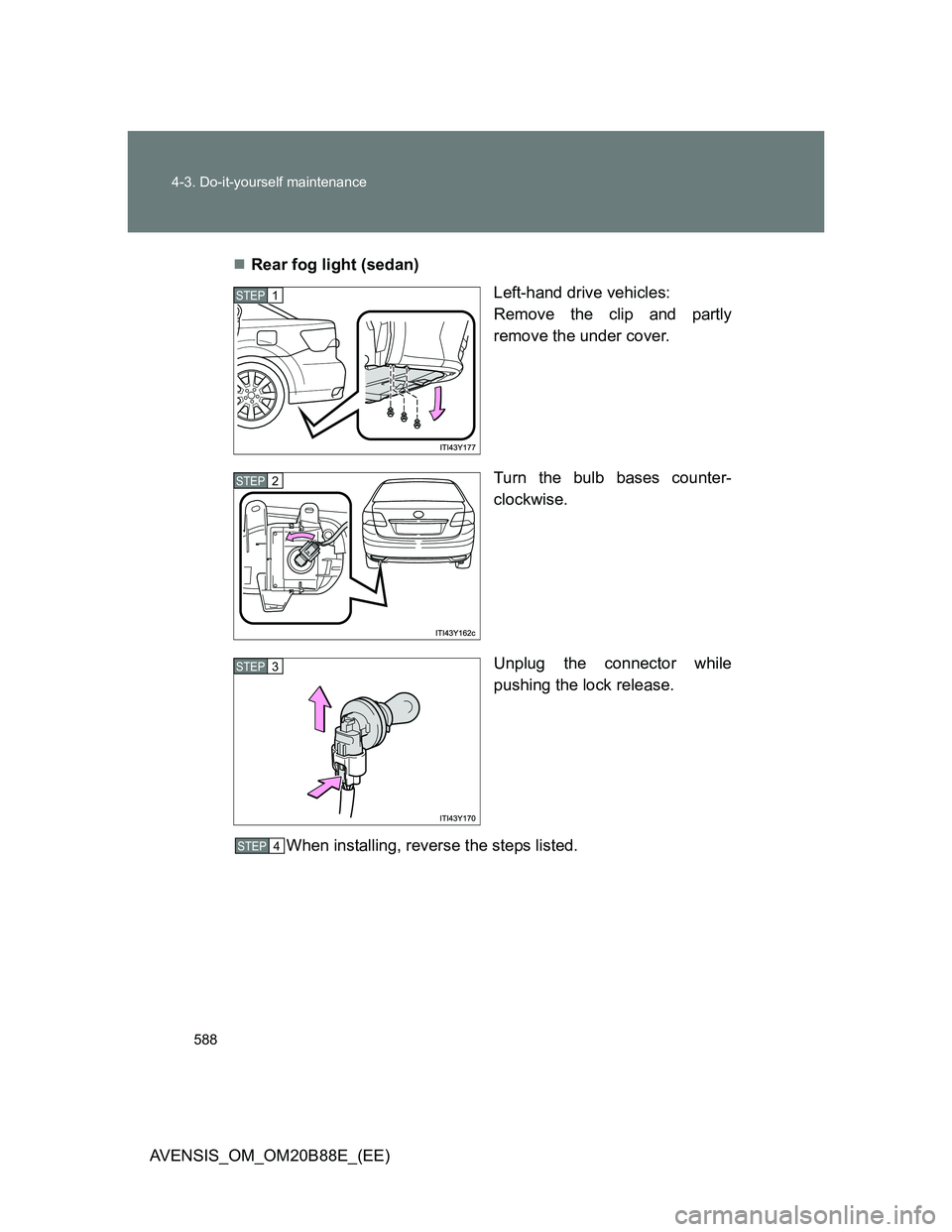

AVENSIS_OM_OM20B88E_(EE)Rear fog light (sedan)
Left-hand drive vehicles:
Remove the clip and partly
remove the under cover.
Turn the bulb bases counter-
clockwise.
Unplug the connector while
pushing the lock release.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

589 4-3. Do-it-yourself maintenance
4
Maintenance and care

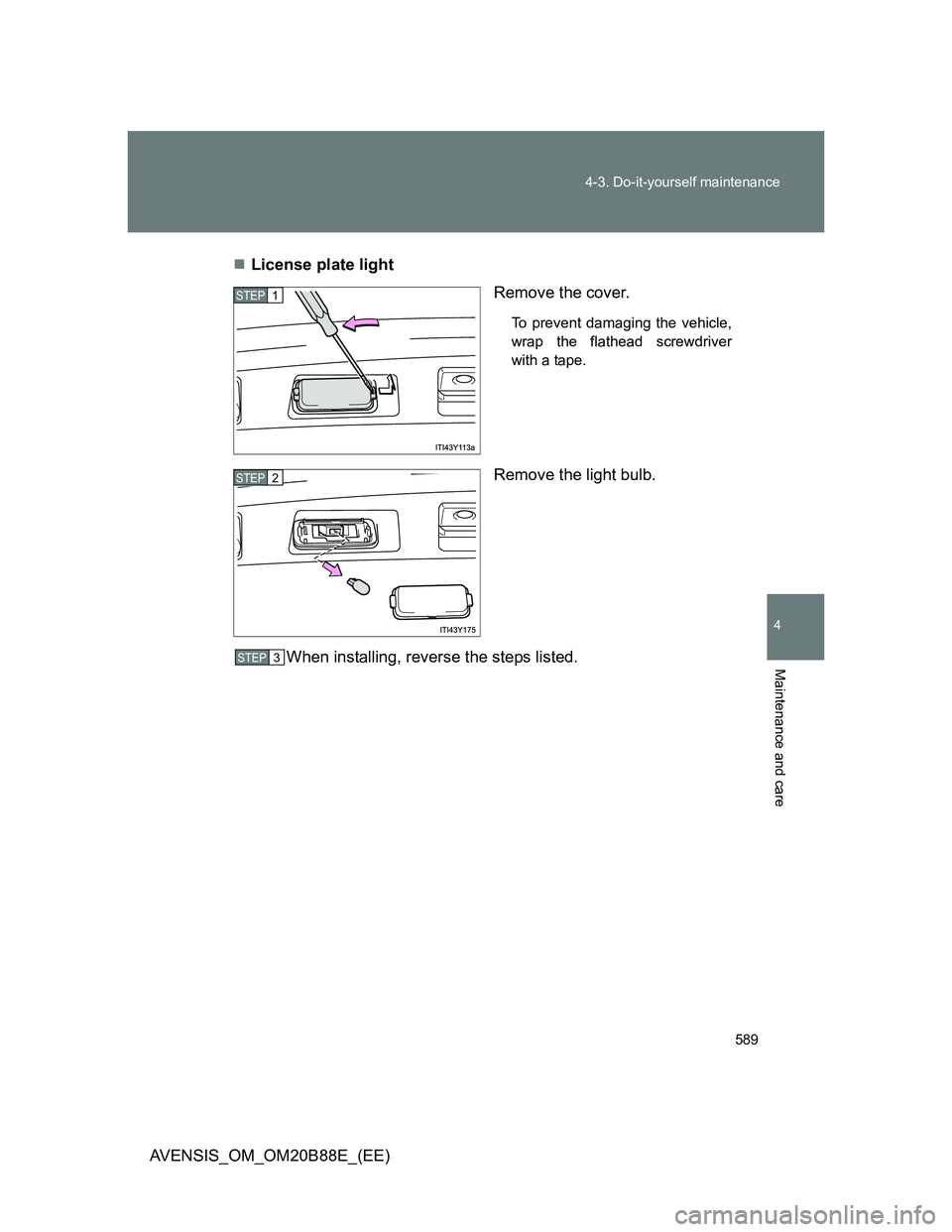

AVENSIS_OM_OM20B88E_(EE)License plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

590 4-3. Do-it-yourself maintenance

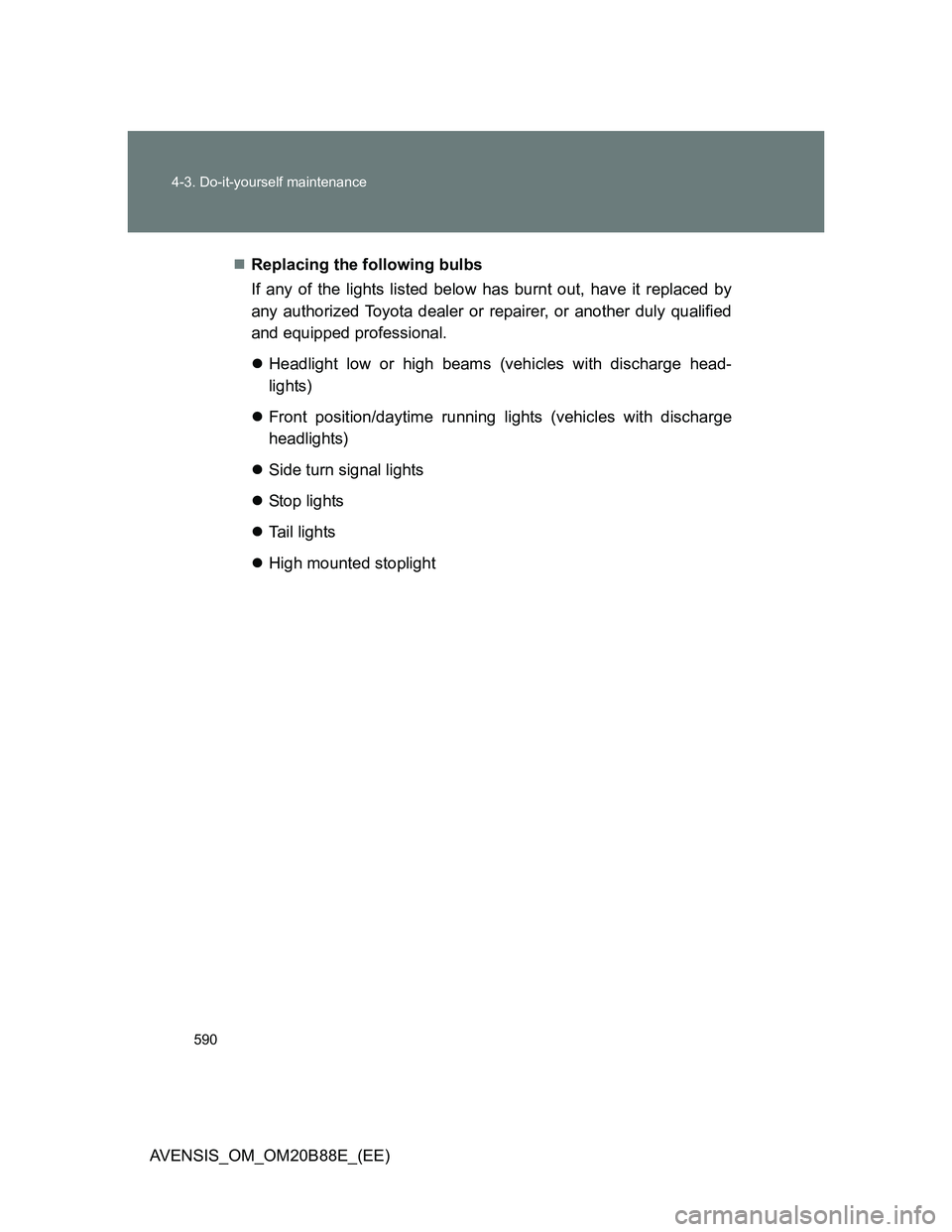

AVENSIS_OM_OM20B88E_(EE)Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low or high beams (vehicles with discharge head-
lights)
Front position/daytime running lights (vehicles with discharge
headlights)
Side turn signal lights
Stop lights
Tail lights
High mounted stoplight

591 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)

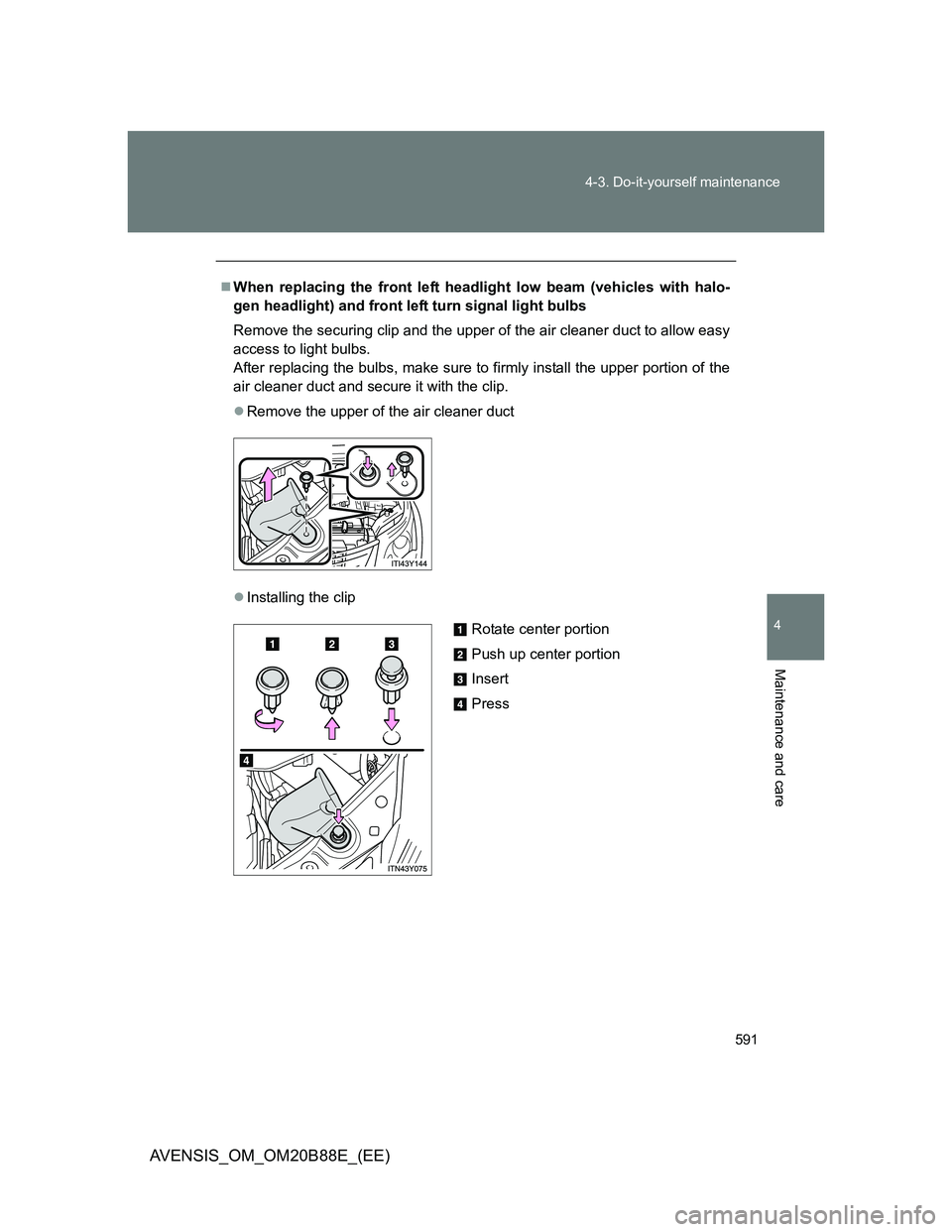

When replacing the front left headlight low beam (vehicles with halo-
gen headlight) and front left turn signal light bulbs
Remove the securing clip and the upper of the air cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make sure to firmly install the upper portion of the
air cleaner duct and secure it with the clip.
Remove the upper of the air cleaner duct
Installing the clip
Rotate center portion
Push up center portion
Insert
Press

592 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)

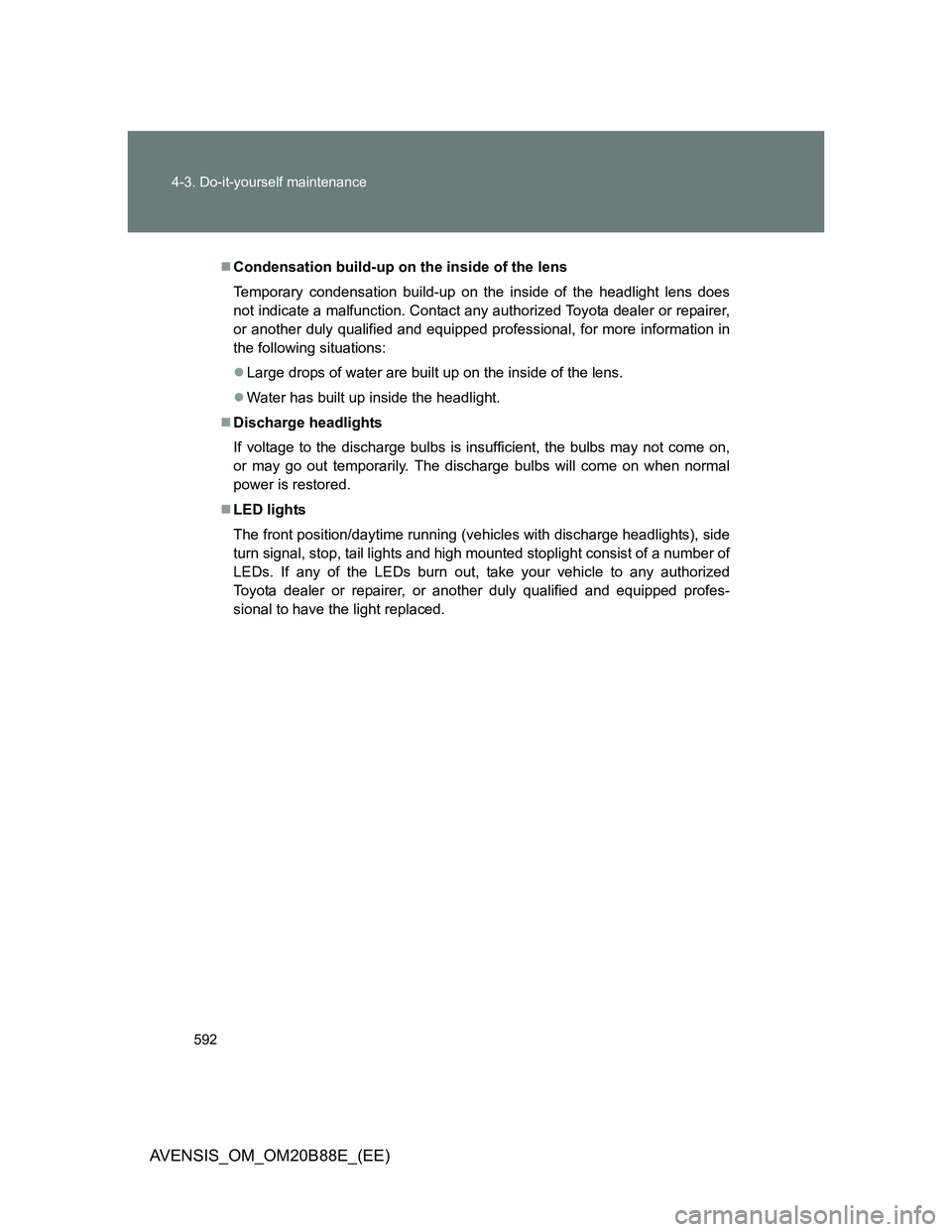

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, for more information in
the following situations:
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED lights
The front position/daytime running (vehicles with discharge headlights), side
turn signal, stop, tail lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional to have the light replaced.
