2014 TOYOTA AVENSIS Owners Manual (in English)

433 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Selecting a track/file or song
Press to select CD, iPod or USB memory, Bluetooth
®
audio mode.
Press “” or “” on to select the desired track/file or
song.
Selecting an album
Press to select the Bluetooth
® audio mode.
Press and hold “” or “” on until you hear a beep.
Selecting a folder (MP3 and WMA or USB memory)
Press to select CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

434
3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Bluetooth® audio/phone
: If equipped
Bluetooth® audio
The Bluetooth
® audio system enables you to enjoy music played
on a portable digital audio player (portable player) from the vehi-
cle speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your
portable player does not support Bluetooth
®, the Bluetooth®
audio system will not function.
Bluetooth
® phone (hands-free phone system)
This system supports Bluetooth
®, which allows you to make or
receive calls without using cables to connect a cellular phone
and the system, and without operating the cellular phone.

435 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Conditions affecting operation
The Bluetooth
® audio/phone may not operate normally in the following situa-
tions:
The portable player does not support Bluetooth
®
The cellular phone is located outside the service area
The Bluetooth
® device is switched off
The Bluetooth
® device has a low battery
The Bluetooth
® device is not connected to the system
The Bluetooth
® device is behind the seat or in the glove box or console
box, or metal material covers or touches the device
When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 462)
About Bluetooth
®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

436 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Compatible models
Bluetooth
® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (rec-
ommended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0

437 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

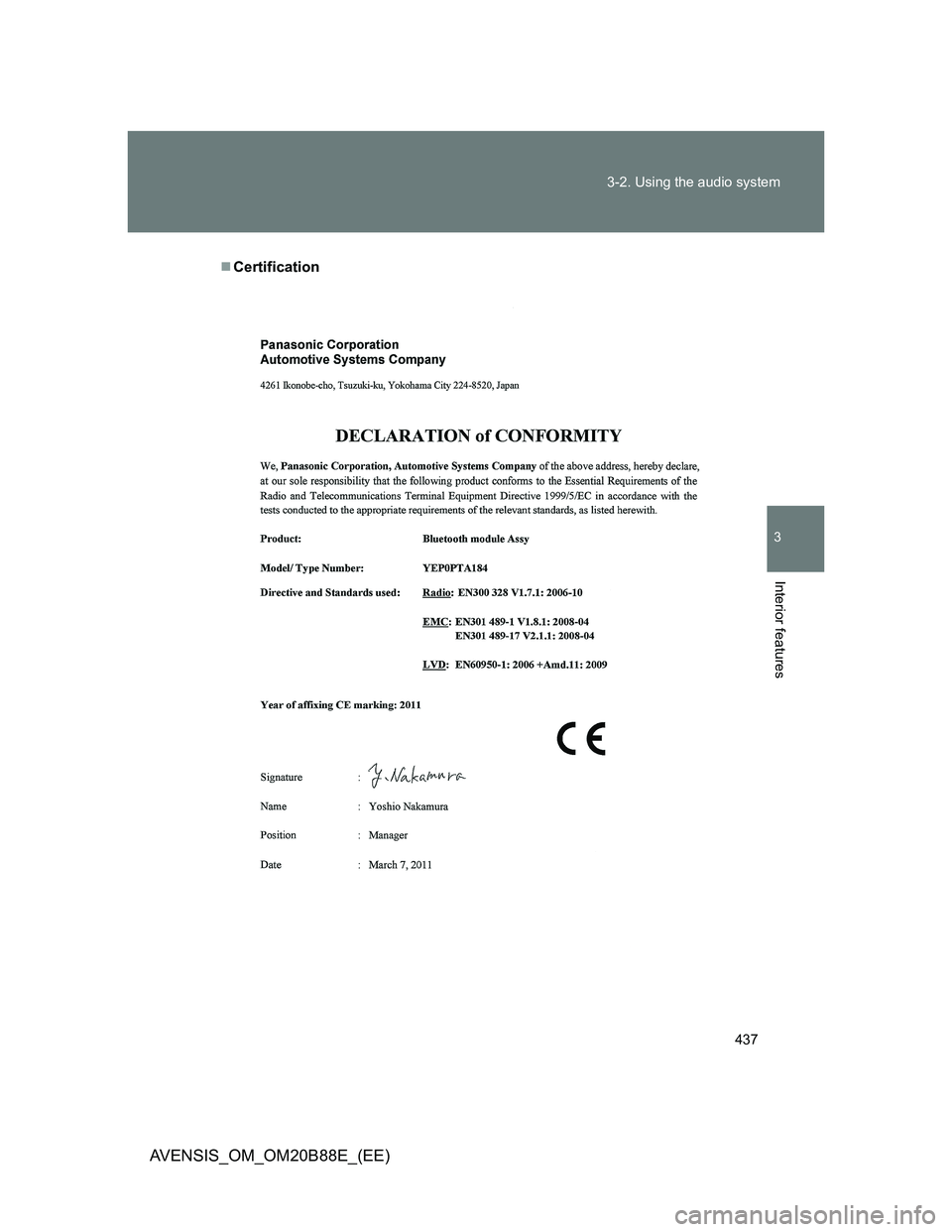

Certification

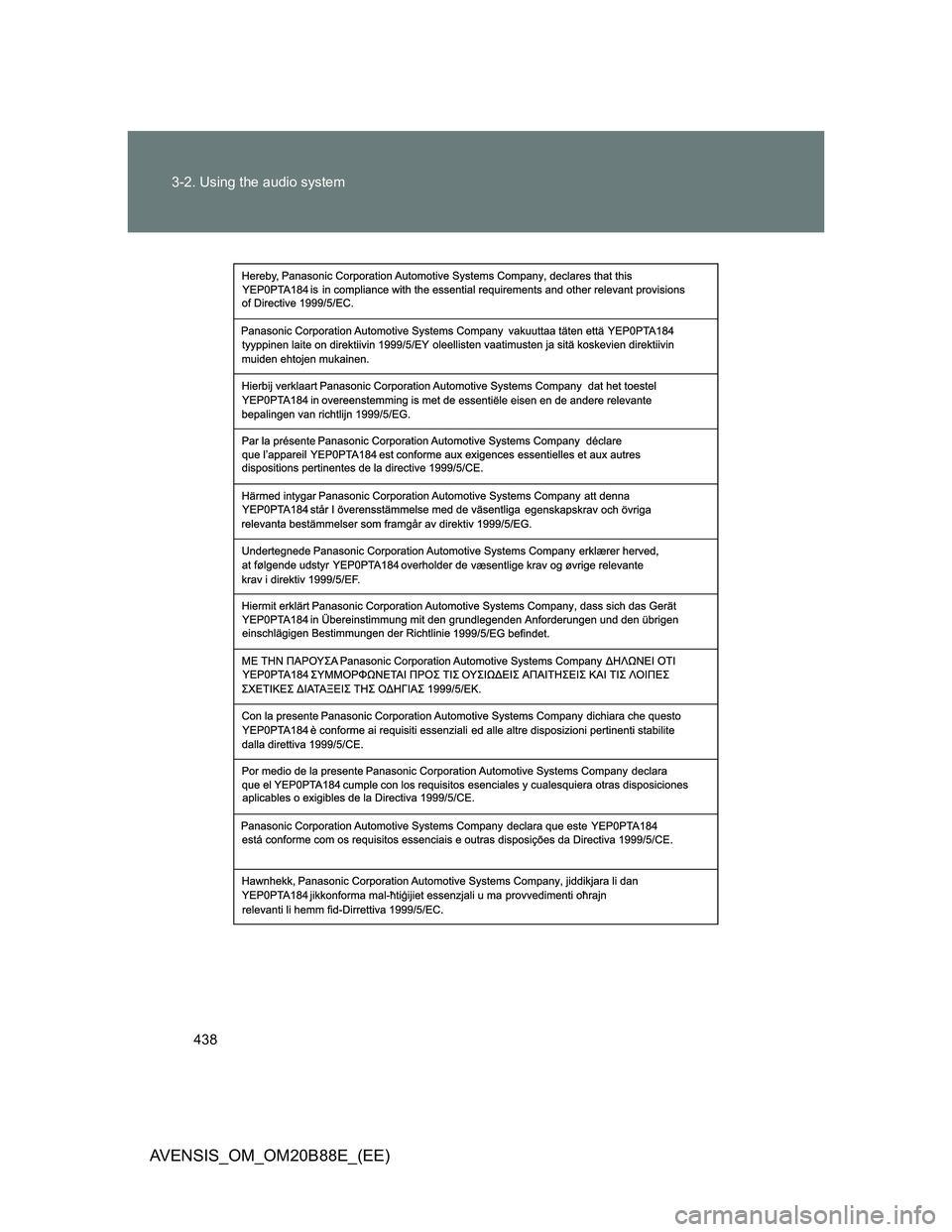

438 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)

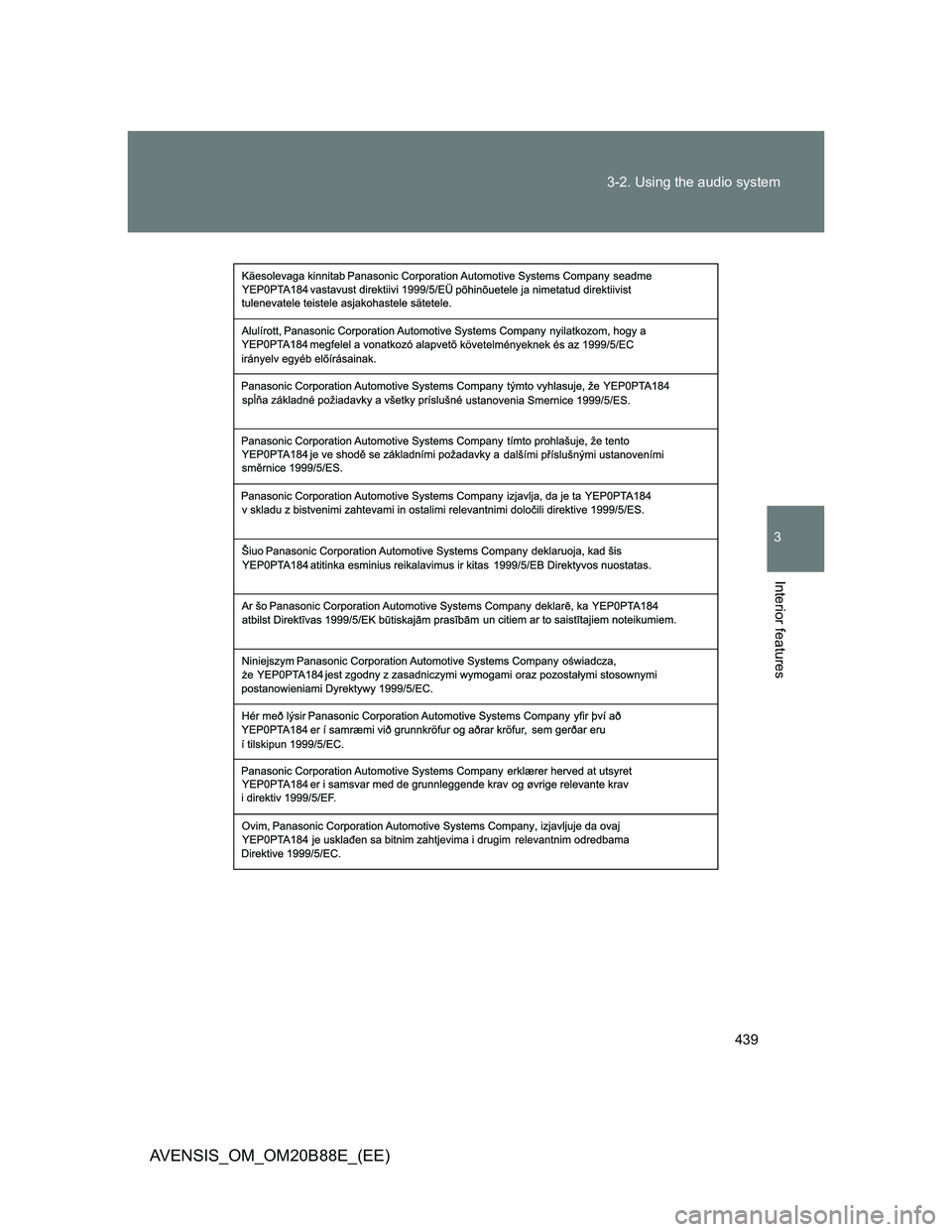

439 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

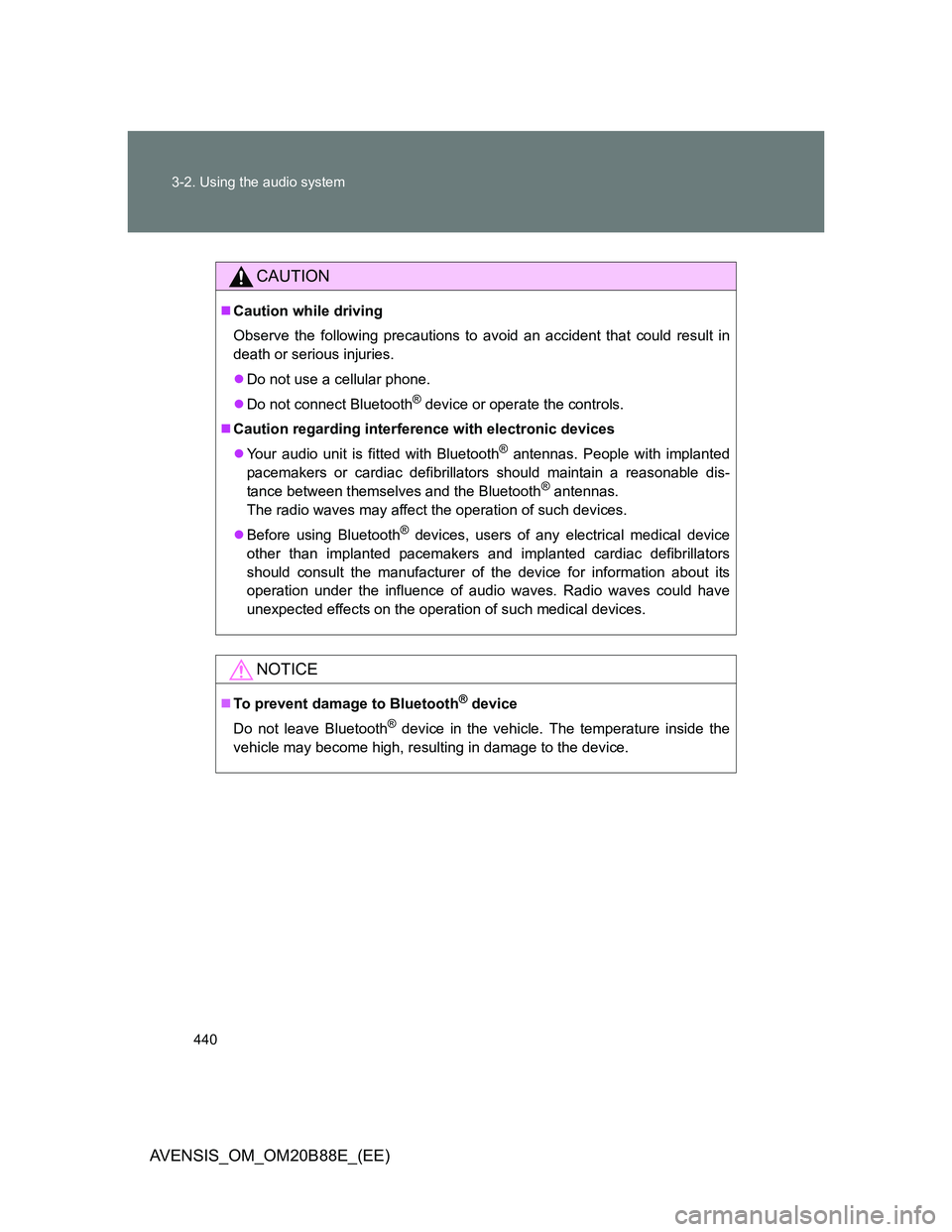

440 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Caution while driving
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
Do not use a cellular phone.
Do not connect Bluetooth
® device or operate the controls.
Caution regarding interference with electronic devices
Your audio unit is fitted with Bluetooth
® antennas. People with implanted
pacemakers or cardiac defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas.
The radio waves may affect the operation of such devices.
Before using Bluetooth
® devices, users of any electrical medical device
other than implanted pacemakers and implanted cardiac defibrillators
should consult the manufacturer of the device for information about its
operation under the influence of audio waves. Radio waves could have
unexpected effects on the operation of such medical devices.
NOTICE
To prevent damage to Bluetooth® device
Do not leave Bluetooth
® device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the device.
