513
4-1. Maintenance and care
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)

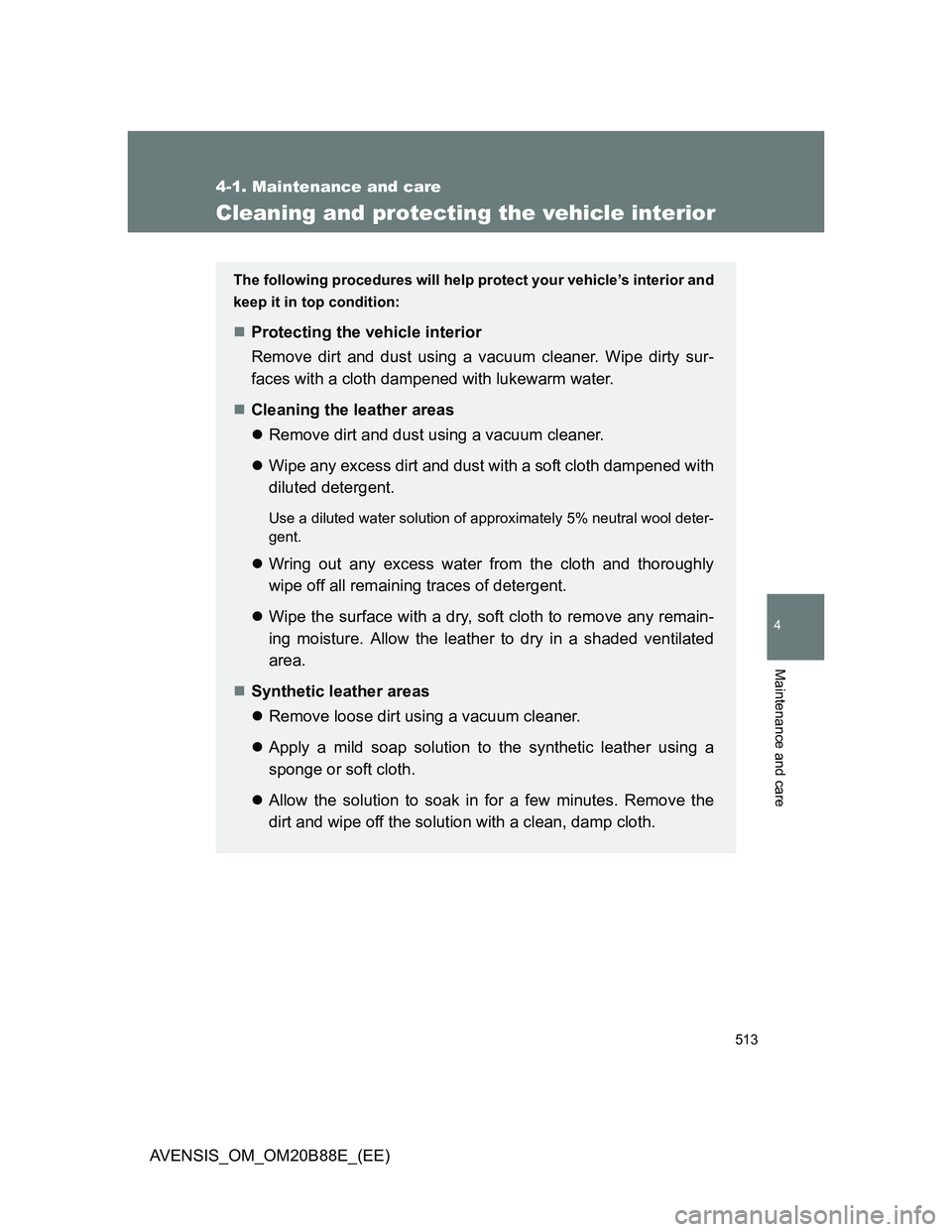

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded ventilated
area.
Synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.

514 4-1. Maintenance and care
AVENSIS_OM_OM20B88E_(EE)

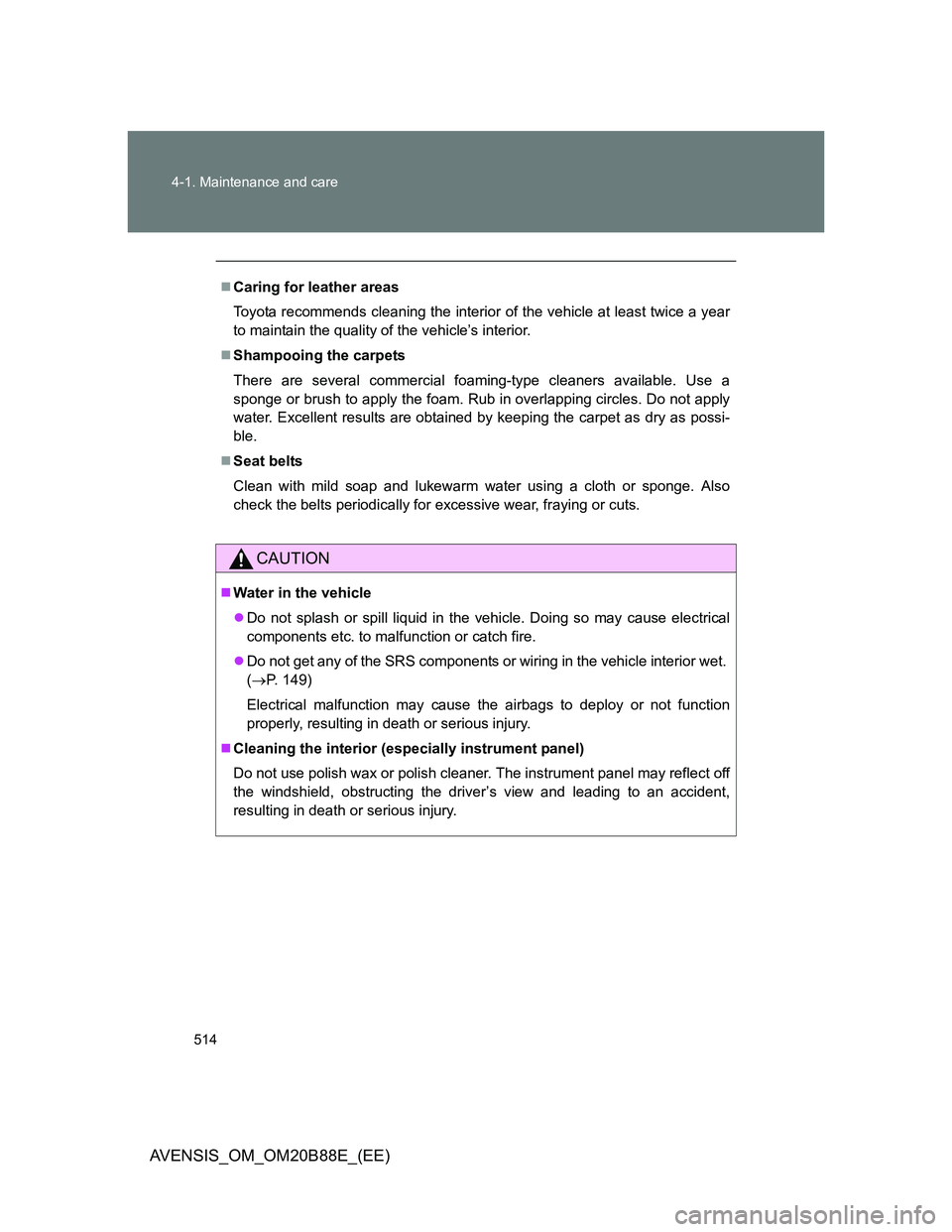

Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year
to maintain the quality of the vehicle’s interior.
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not apply
water. Excellent results are obtained by keeping the carpet as dry as possi-
ble.
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
Water in the vehicle
Do not splash or spill liquid in the vehicle. Doing so may cause electrical
components etc. to malfunction or catch fire.
Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 149)
Electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

515 4-1. Maintenance and care
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
NOTICE
Cleaning detergents
Do not use organic substances such as benzene or gasoline, acidic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
Remove any dust or dirt on leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
Cleaning the inside of the rear window or right-side rear quarter win-
dow
Do not use glass cleaner to clean the rear window or right-side rear quar-
ter window (wagon), as this may cause damage to the rear window defog-
ger heater wires or antenna. Use a cloth dampened with lukewarm water
to gently wipe the window clean. Wipe the window in strokes running par-
allel to the heater wires or antenna.
Be careful not to scratch or damage the heater wires or antenna.

516
AVENSIS_OM_OM20B88E_(EE)

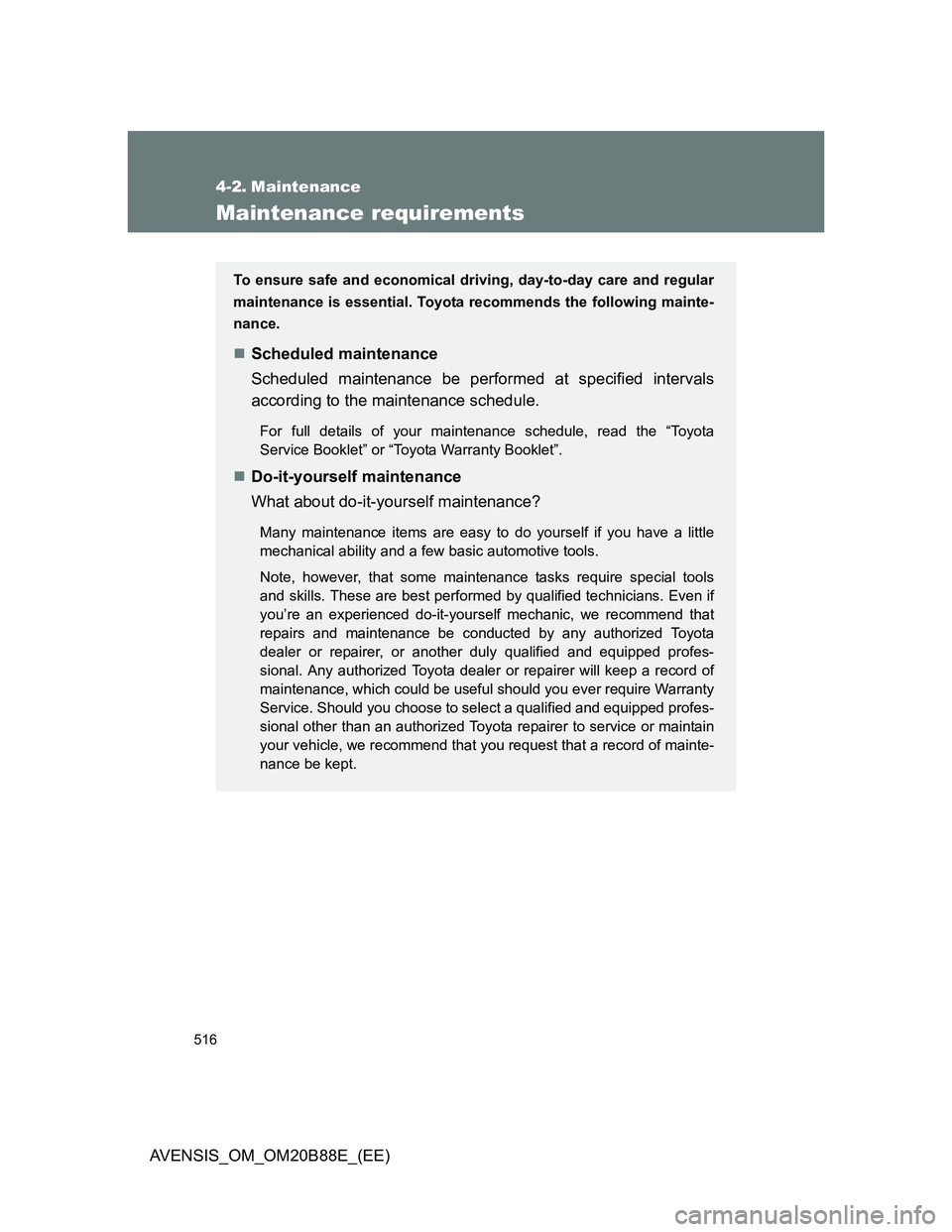

4-2. Maintenance
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular
maintenance is essential. Toyota recommends the following mainte-
nance.
Scheduled maintenance
Scheduled maintenance be performed at specified intervals
according to the maintenance schedule.
For full details of your maintenance schedule, read the “Toyota
Service Booklet” or “Toyota Warranty Booklet”.
Do-it-yourself maintenance
What about do-it-yourself maintenance?
Many maintenance items are easy to do yourself if you have a little
mechanical ability and a few basic automotive tools.
Note, however, that some maintenance tasks require special tools
and skills. These are best performed by qualified technicians. Even if
you’re an experienced do-it-yourself mechanic, we recommend that
repairs and maintenance be conducted by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. Any authorized Toyota dealer or repairer will keep a record of
maintenance, which could be useful should you ever require Warranty
Service. Should you choose to select a qualified and equipped profes-
sional other than an authorized Toyota repairer to service or maintain
your vehicle, we recommend that you request that a record of mainte-
nance be kept.

517 4-2. Maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)

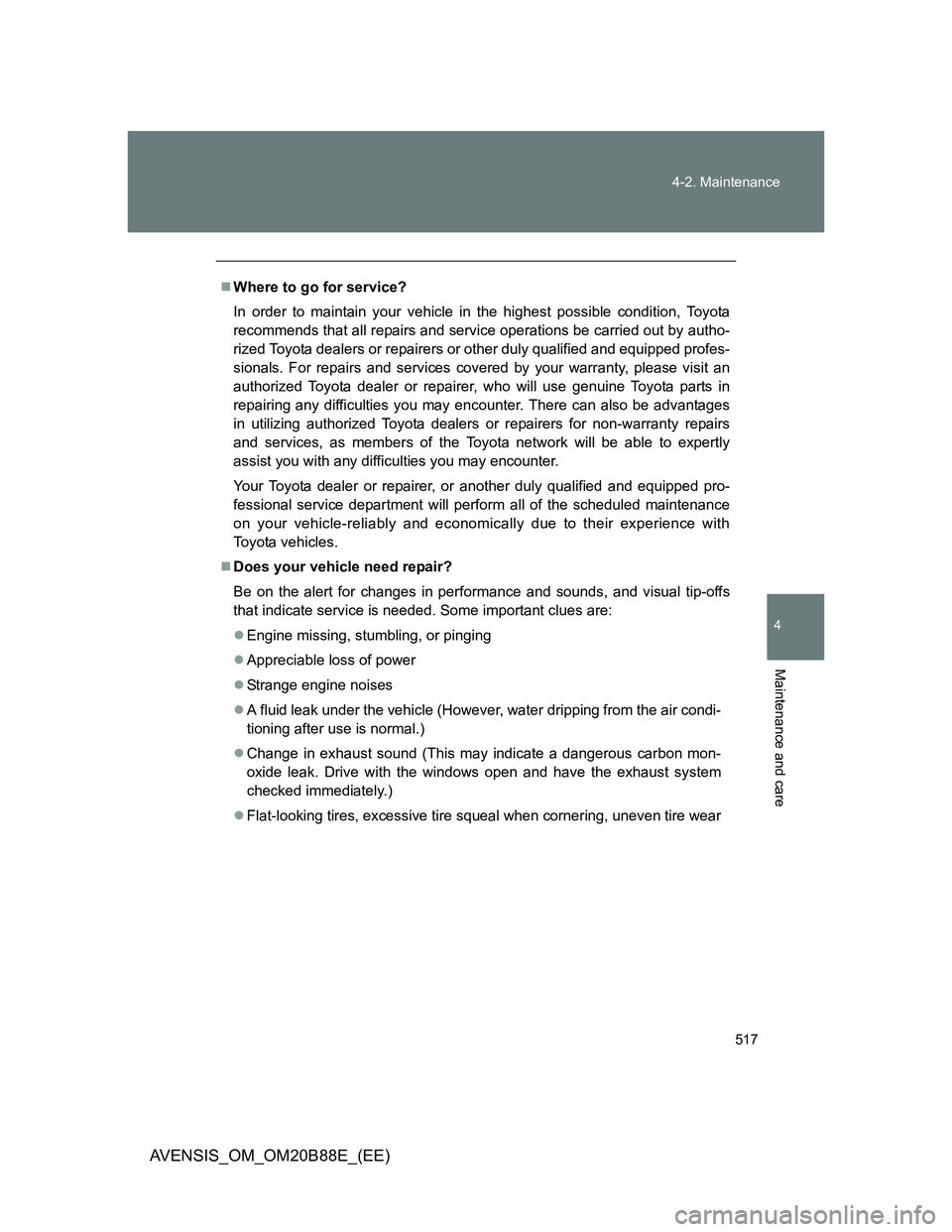

Where to go for service?
In order to maintain your vehicle in the highest possible condition, Toyota
recommends that all repairs and service operations be carried out by autho-
rized Toyota dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an
authorized Toyota dealer or repairer, who will use genuine Toyota parts in
repairing any difficulties you may encounter. There can also be advantages
in utilizing authorized Toyota dealers or repairers for non-warranty repairs
and services, as members of the Toyota network will be able to expertly
assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional service department will perform all of the scheduled maintenance
on your vehicle-reliably and economically due to their experience with
Toyota vehicles.
Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon mon-
oxide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear

518 4-2. Maintenance
AVENSIS_OM_OM20B88E_(EE)
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.
CAUTION
If your vehicle is not properly maintained
It could result in serious damage to the vehicle and possible personal injury
or death.
Warning in handling of the battery
Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after
handling. (P. 538)
Used engine oil
Used engine oil contains chemicals that have been shown to cause cancer
in laboratory animals. Avoid prolonged and repeated contact. Always protect
your skin by washing thoroughly with soap and water.

519
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition (P. 538)
• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (P. 536)
• Toyota Super Long Life Coolant
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. Toyota
Super Long Life Coolant is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil levelP. 530)
• Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel, funnel
(used only for adding oil)

520 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)

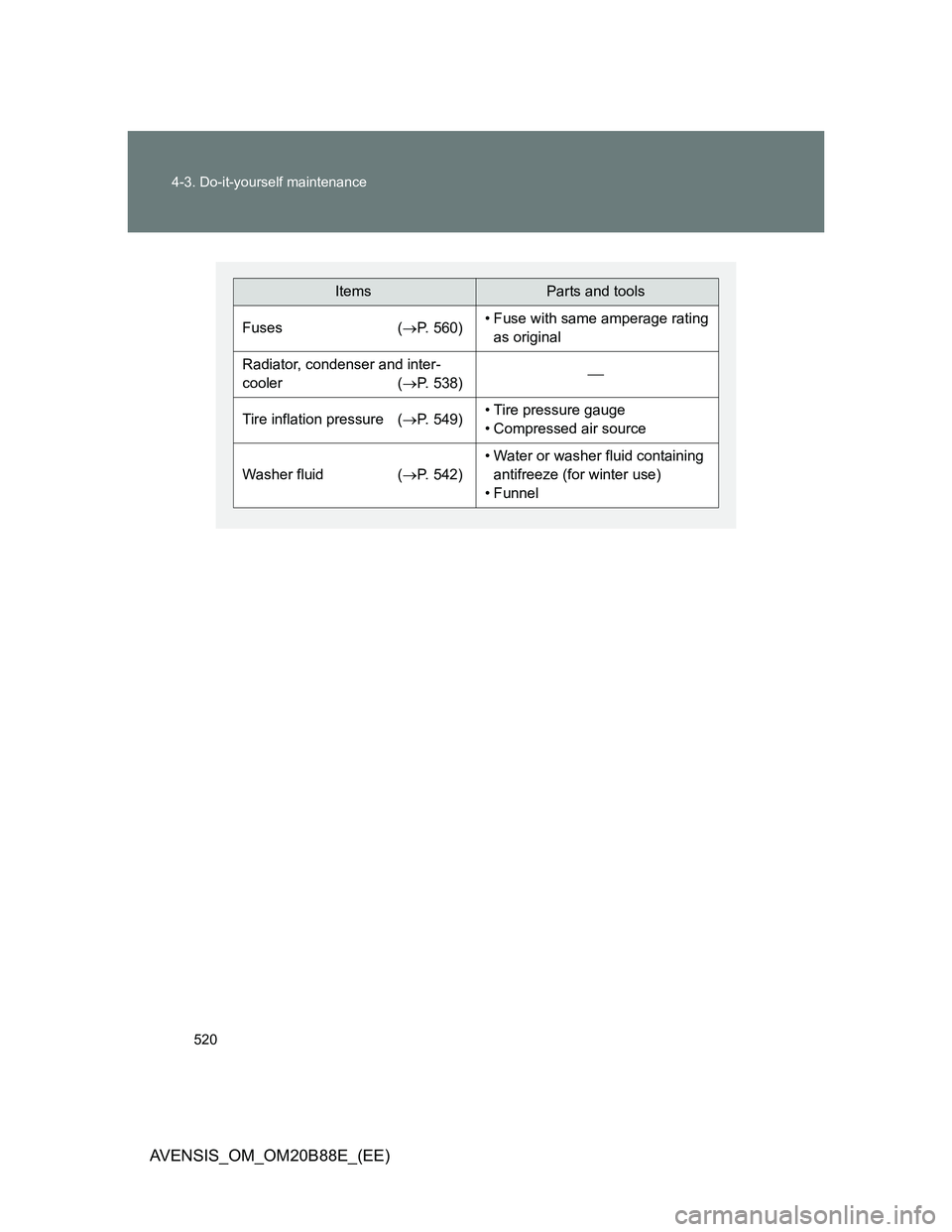

ItemsParts and tools
Fuses (P. 560)• Fuse with same amperage rating
as original
Radiator, condenser and inter-
cooler (P. 538)
Tire inflation pressure (P. 549)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 542)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel
