2014 TOYOTA AVENSIS Owners Manual (in English)

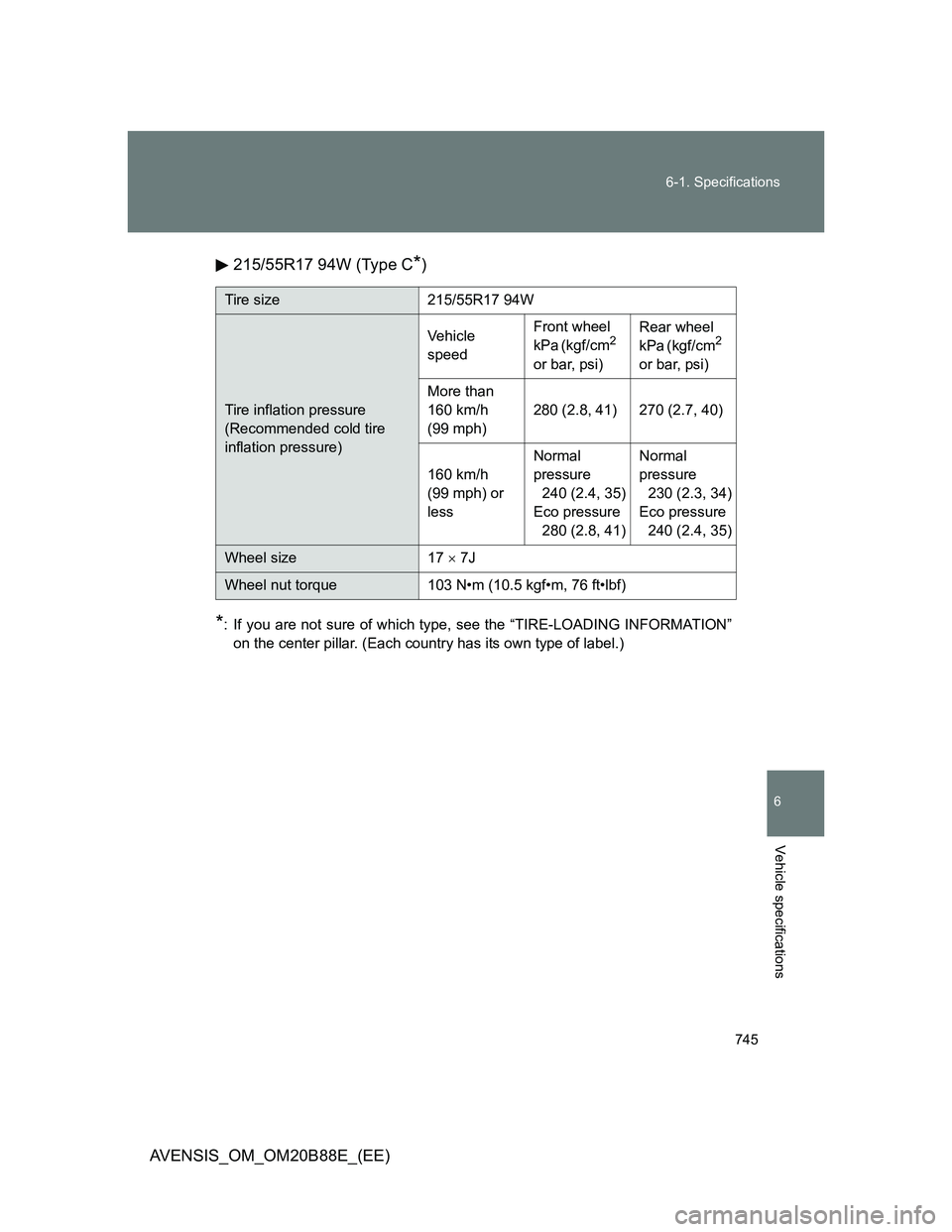

745 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)215/55R17 94W (Type C
*)
*: If you are not sure of which type, see the “TIRE-LOADING INFORMATION”
on the center pillar. (Each country has its own type of label.)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 270 (2.7, 40)
160 km/h
(99 mph) or
lessNormal
pressure
240 (2.4, 35)
Eco pressure
280 (2.8, 41)Normal
pressure
230 (2.3, 34)
Eco pressure
240 (2.4, 35)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

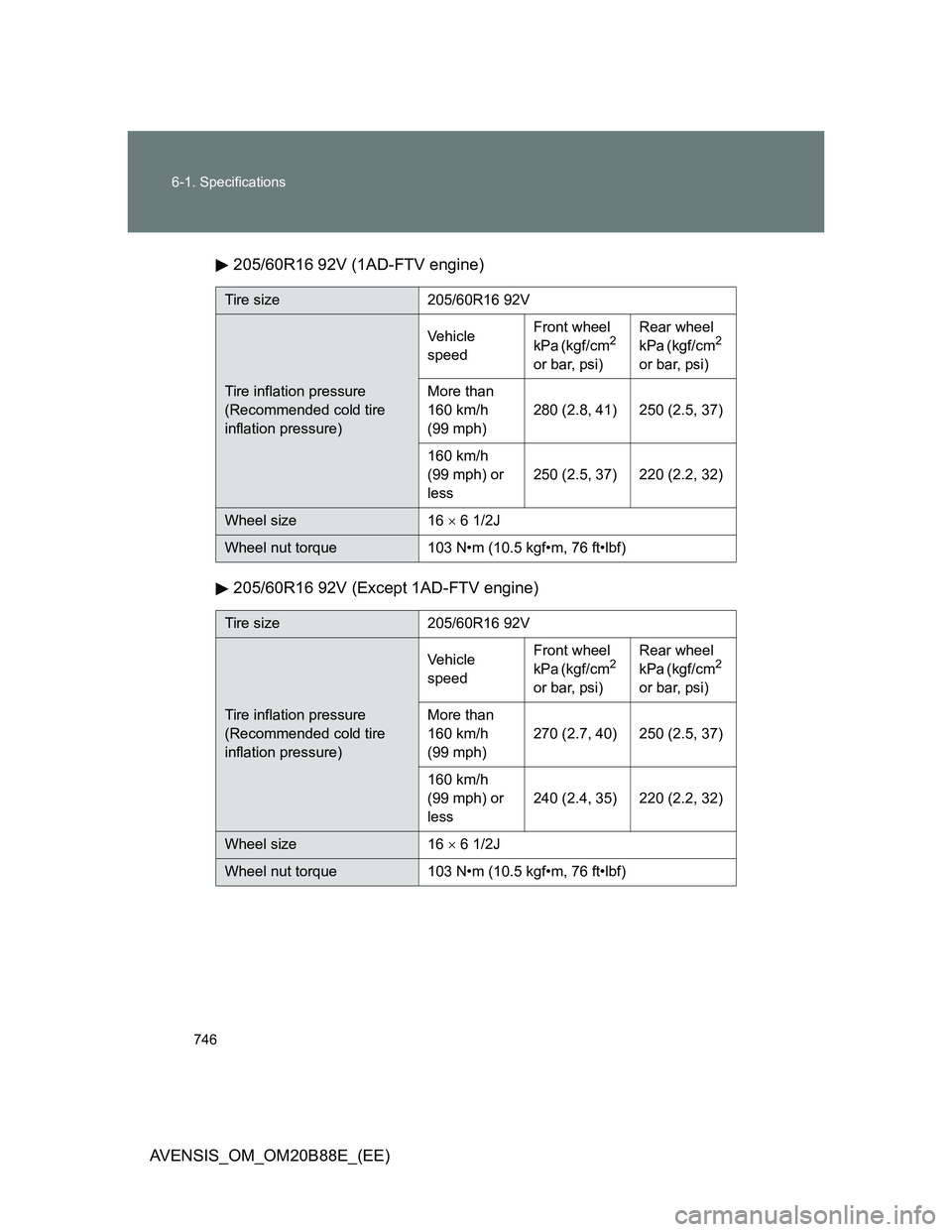

746 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)205/60R16 92V (1AD-FTV engine)
205/60R16 92V (Except 1AD-FTV engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 250 (2.5, 37)
160 km/h
(99 mph) or
less250 (2.5, 37) 220 (2.2, 32)
Wheel size 16  6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 40) 250 (2.5, 37)
160 km/h
(99 mph) or
less240 (2.4, 35) 220 (2.2, 32)
Wheel size 16  6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

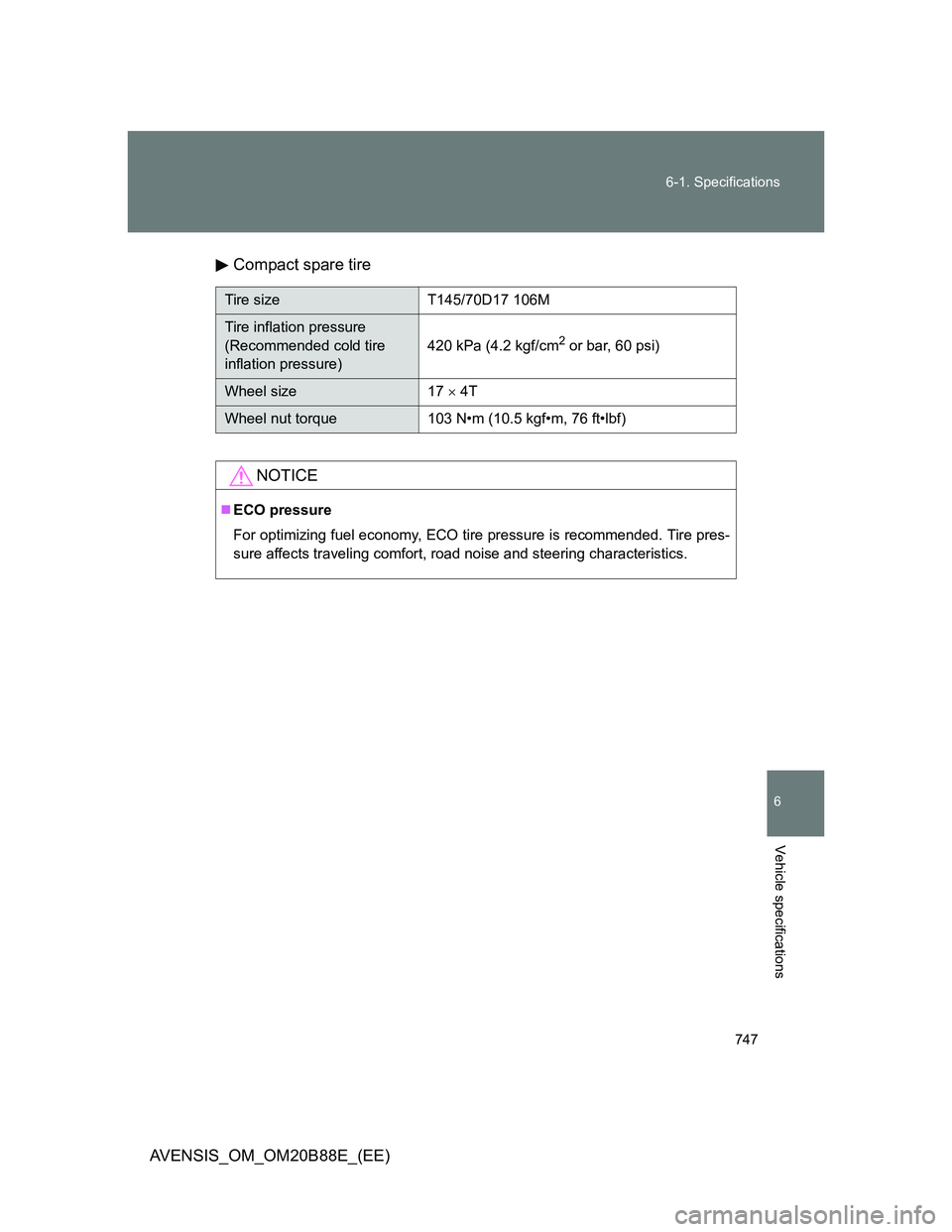

747 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)Compact spare tire
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
NOTICE
ECO pressure
For optimizing fuel economy, ECO tire pressure is recommended. Tire pres-
sure affects traveling comfort, road noise and steering characteristics.

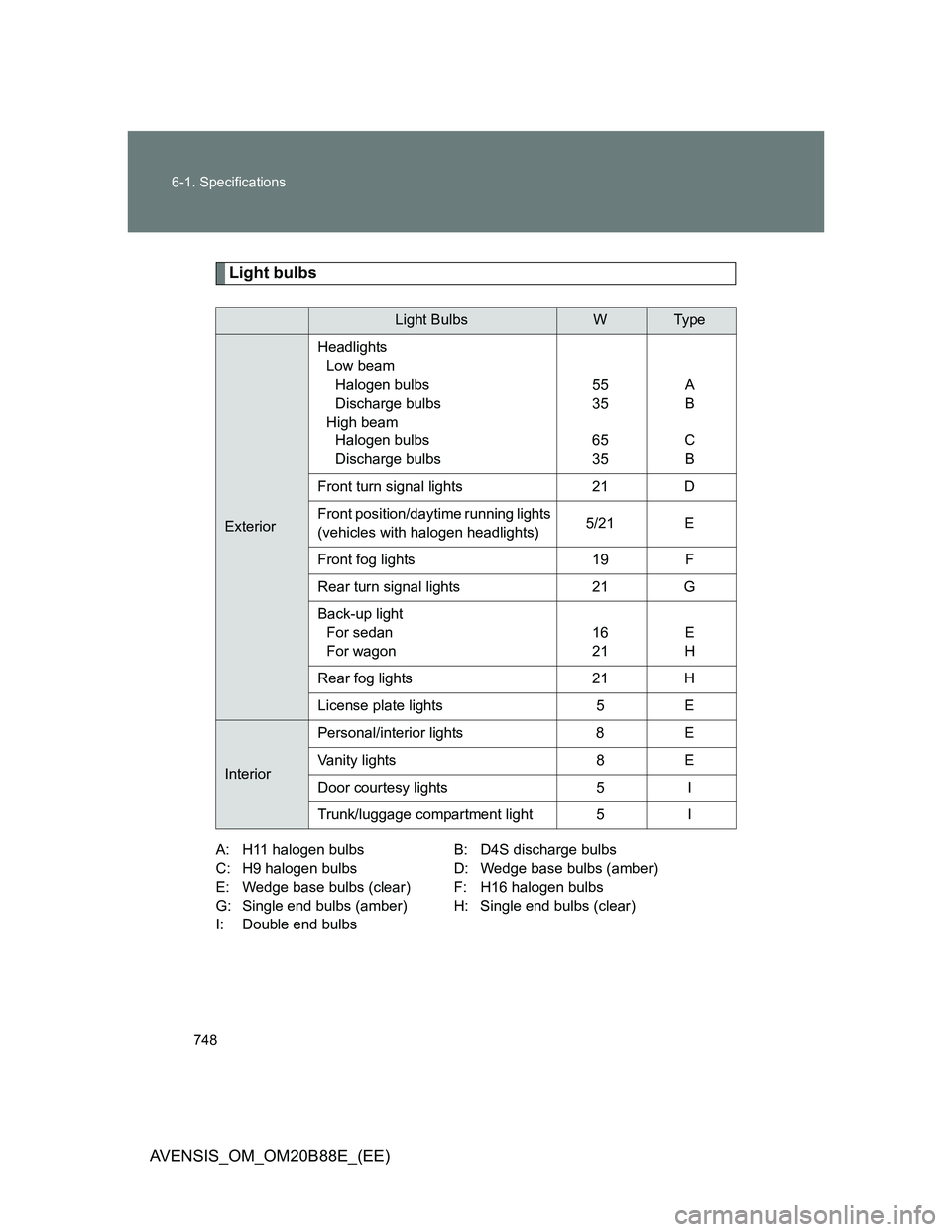

748 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)
Light bulbs
A: H11 halogen bulbs B: D4S discharge bulbs
C: H9 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear) F: H16 halogen bulbs
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam
Halogen bulbs
Discharge bulbs
High beam
Halogen bulbs
Discharge bulbs55
35
65
35A
B
C
B
Front turn signal lights 21 D
Front position/daytime running lights
(vehicles with halogen headlights)5/21 E
Front fog lights 19 F
Rear turn signal lights 21 G
Back-up light
For sedan
For wagon16
21E
H
Rear fog lights 21 H
License plate lights 5 E
InteriorPersonal/interior lights 8 E
Vanity lights 8 E
Door courtesy lights 5 I
Trunk/luggage compartment light 5 I

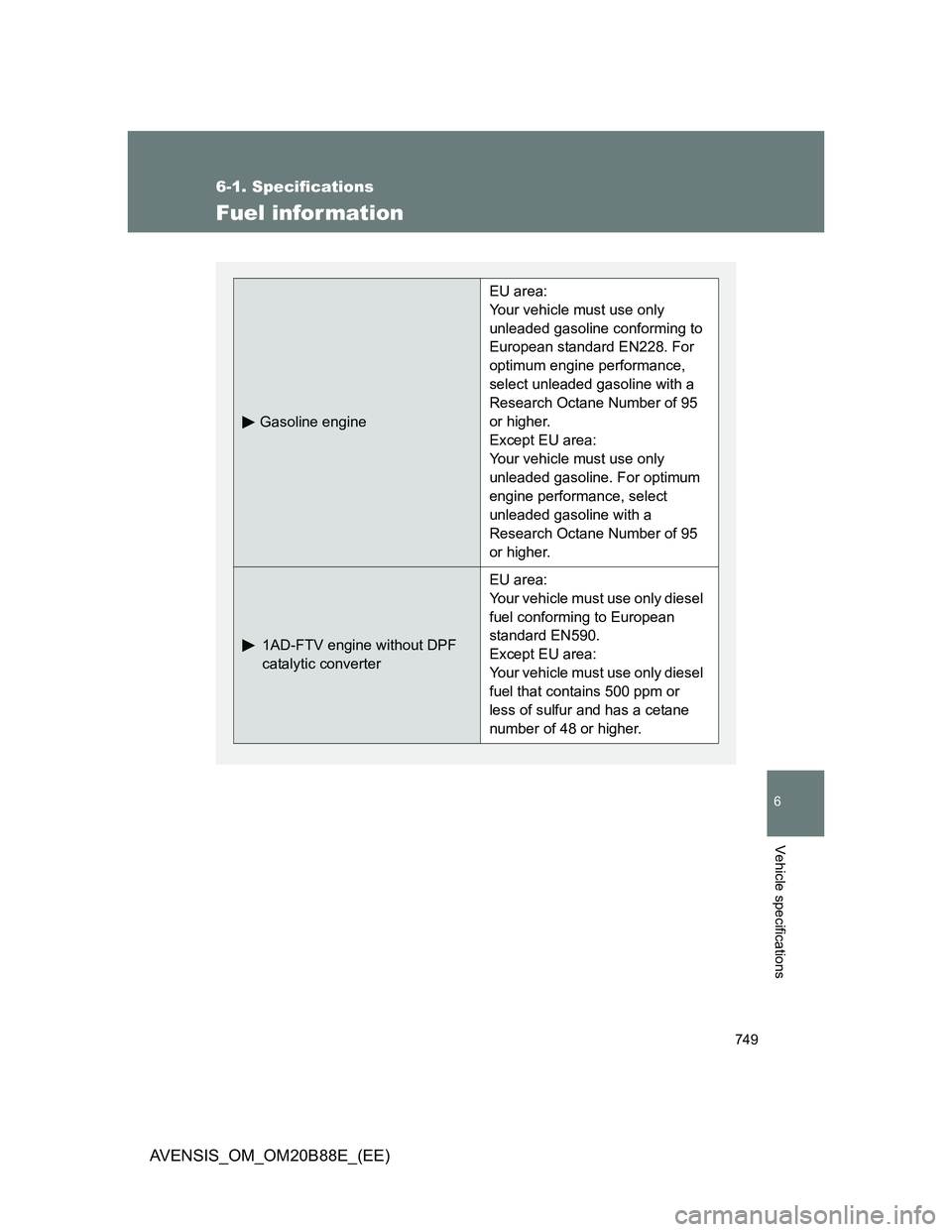

749
6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline. For optimum
engine performance, select
unleaded gasoline with a
Research Octane Number of 95
or higher.
1AD-FTV engine without DPF
catalytic converter
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel
fuel that contains 500 ppm or
less of sulfur and has a cetane
number of 48 or higher.

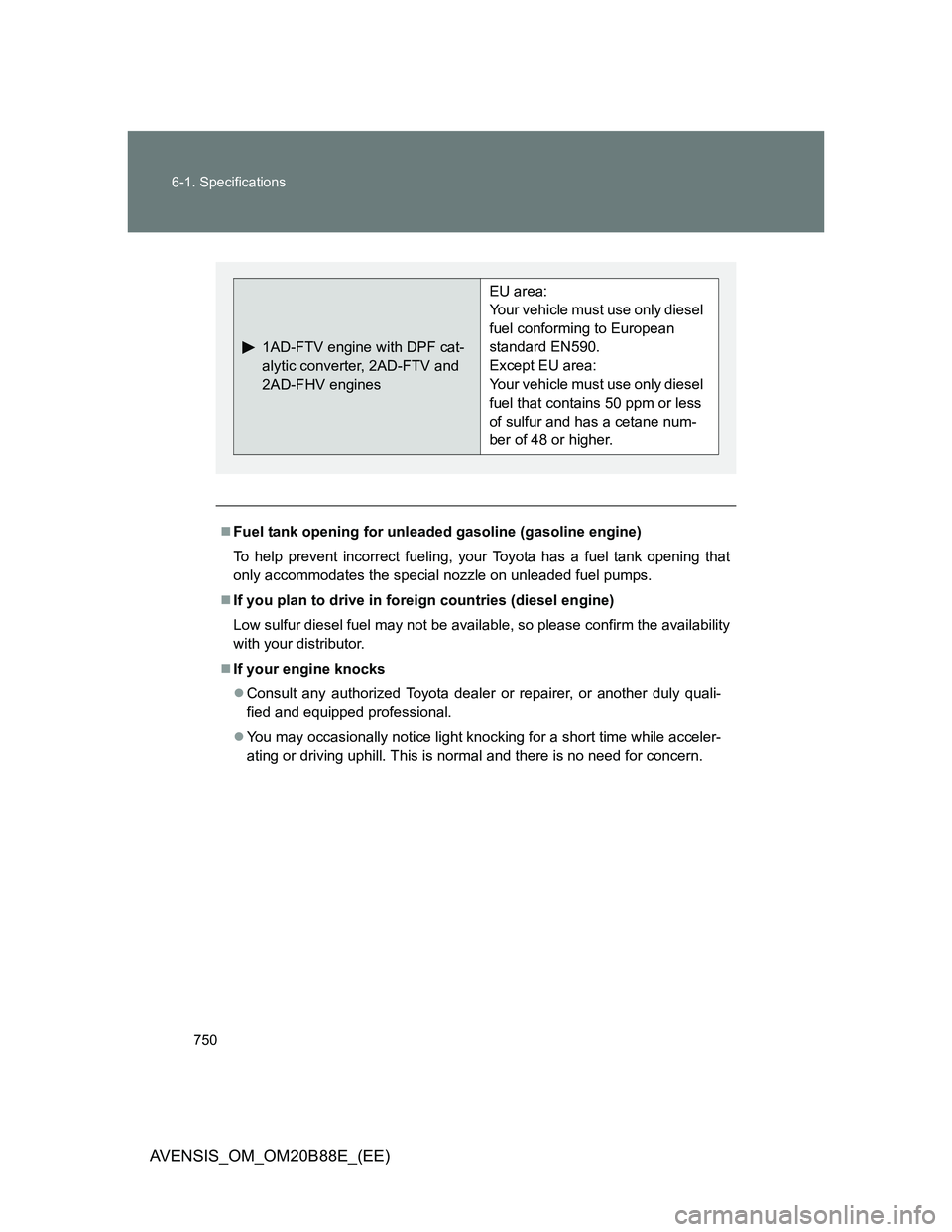

750 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
1AD-FTV engine with DPF cat-
alytic converter, 2AD-FTV and
2AD-FHV engines
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur and has a cetane num-
ber of 48 or higher.

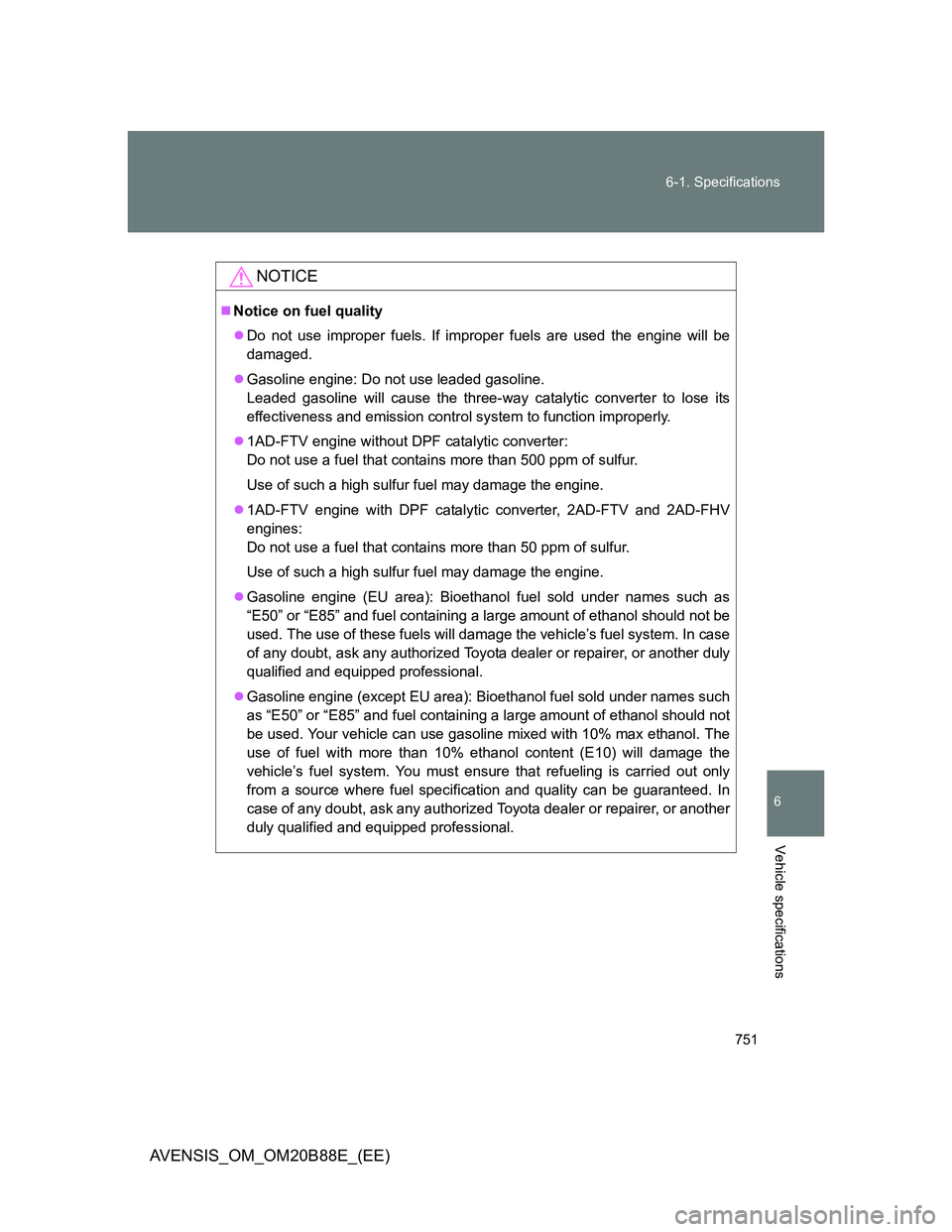

751 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
1AD-FTV engine without DPF catalytic converter:
Do not use a fuel that contains more than 500 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
1AD-FTV engine with DPF catalytic converter, 2AD-FTV and 2AD-FHV
engines:
Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

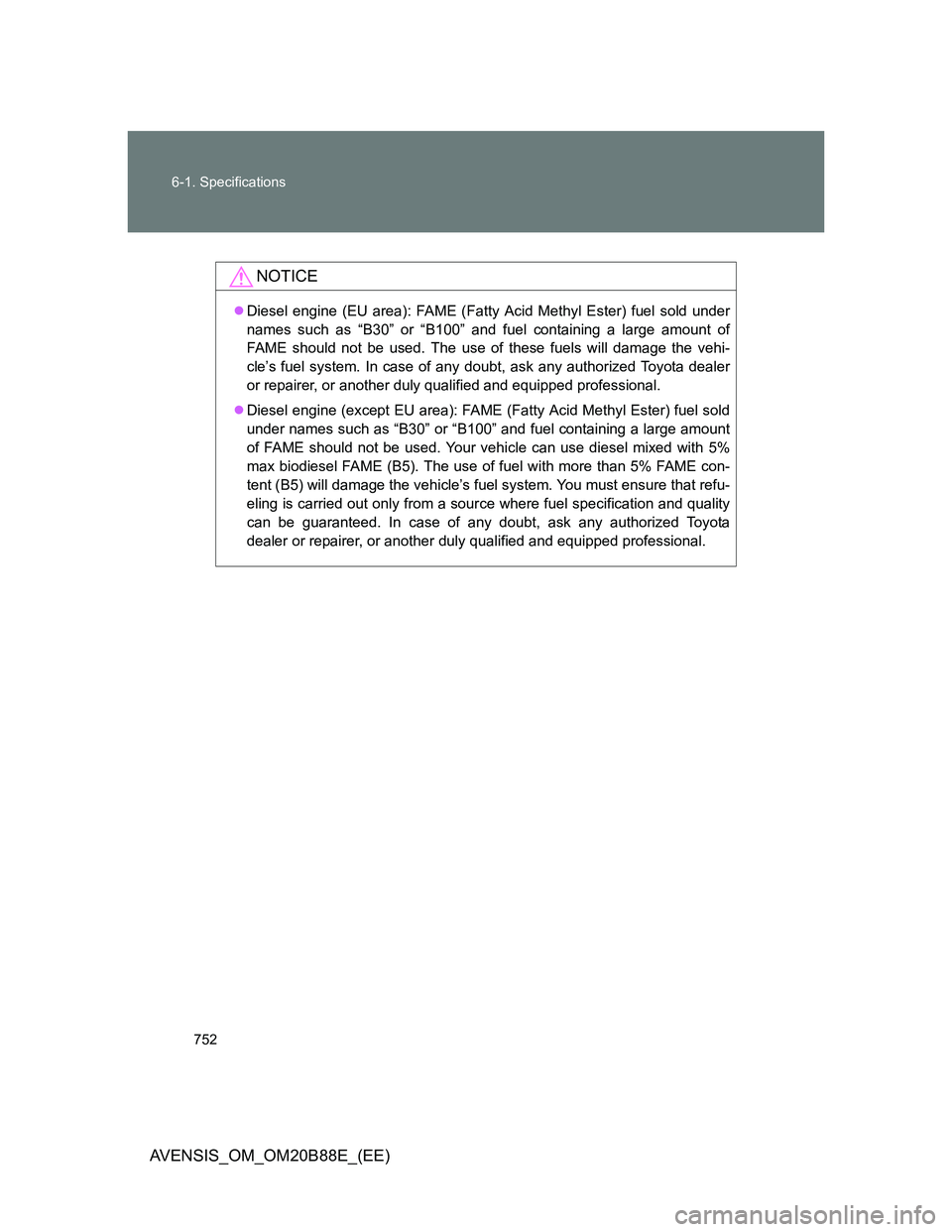

752 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)
NOTICE
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
