2014 TOYOTA AVENSIS Owners Manual (in English)

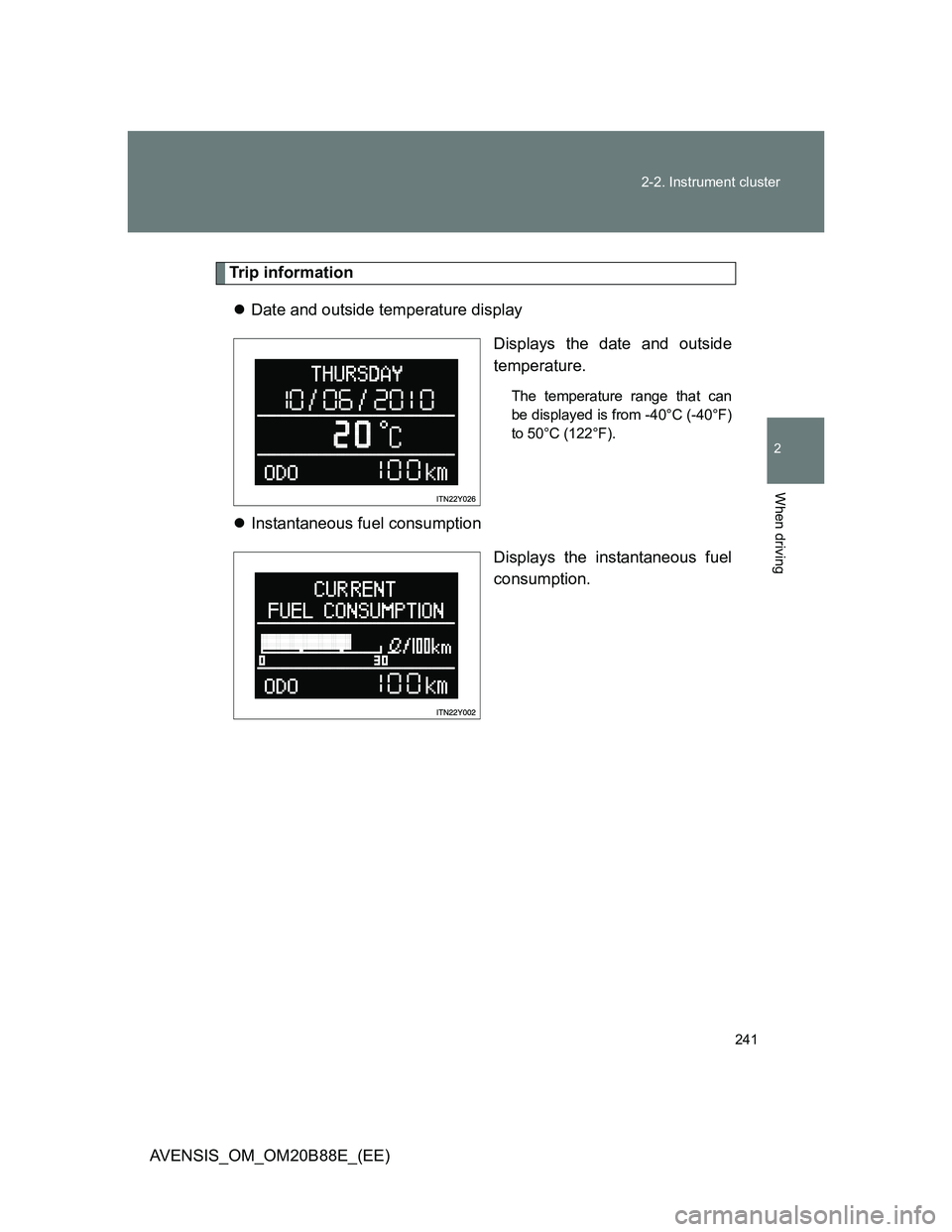

241 2-2. Instrument cluster
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Trip information
Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C (-40°F)
to 50°C (122°F).
Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.

242 2-2. Instrument cluster
AVENSIS_OM_OM20B88E_(EE)Average fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the average fuel
consumption is displayed.
• Use the displayed average fuel
consumption as a reference.
Eco Driving Indicator Zone Display (if equipped)
The ratio of the current accelera-
tion to the Zone of Eco driving is
displayed.

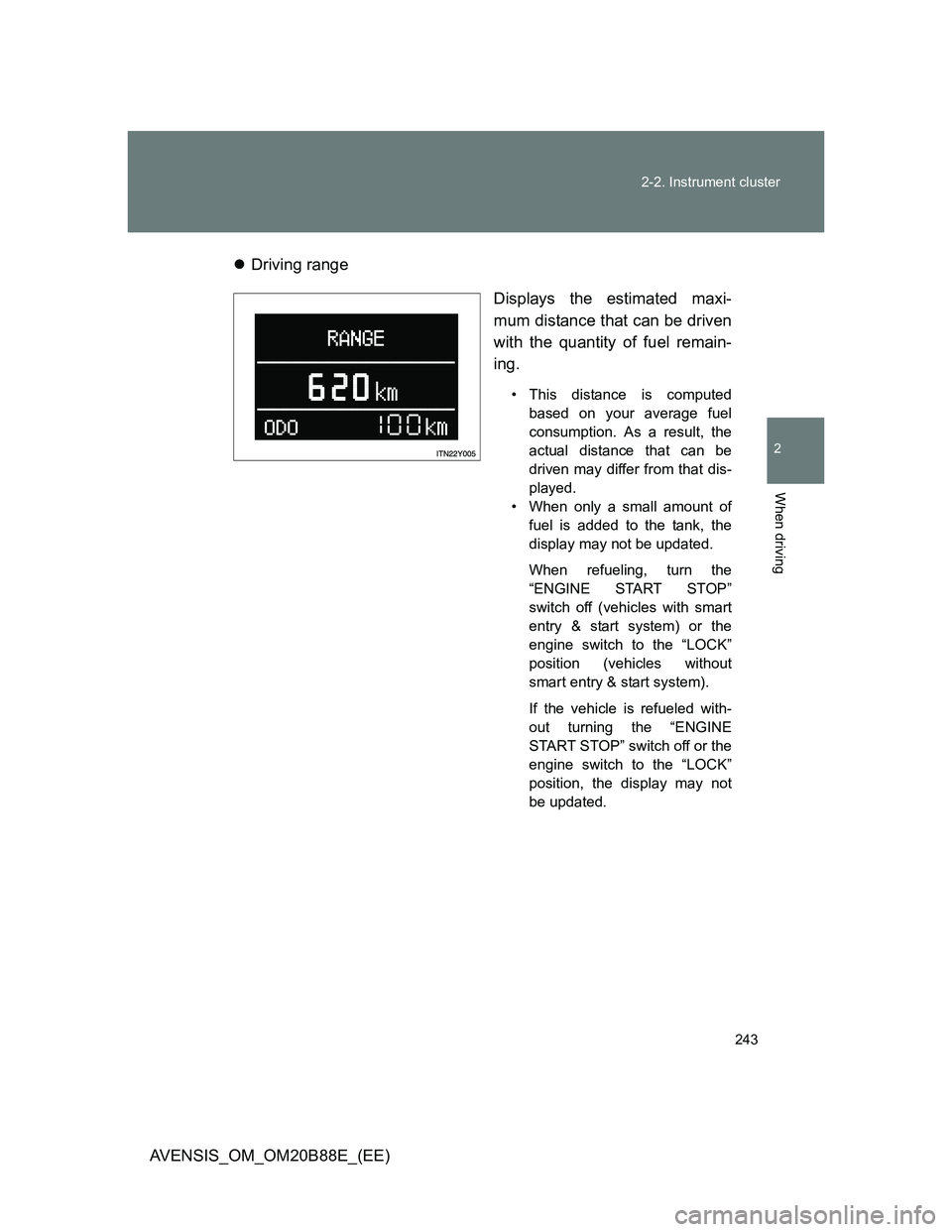

243 2-2. Instrument cluster
2
When driving
AVENSIS_OM_OM20B88E_(EE)Driving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
• This distance is computed
based on your average fuel
consumption. As a result, the
actual distance that can be
driven may differ from that dis-
played.
• When only a small amount of
fuel is added to the tank, the
display may not be updated.
When refueling, turn the
“ENGINE START STOP”
switch off (vehicles with smart
entry & start system) or the
engine switch to the “LOCK”
position (vehicles without
smart entry & start system).
If the vehicle is refueled with-
out turning the “ENGINE
START STOP” switch off or the
engine switch to the “LOCK”
position, the display may not
be updated.

244 2-2. Instrument cluster
AVENSIS_OM_OM20B88E_(EE)Average vehicle speed
Displays the average vehicle
speed since the function was last
reset.
The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the average vehicle
speed is displayed.
Elapsed time
Displays the elapsed time since
the function was last reset.
The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the elapsed time is
displayed.
Rear passengers seat belt reminder display
The seat belt status of the rear
seat passenger is displayed.
White circles are displayed if seat
belts are not being worn; they will
disappear once the seat belt is
applied.

245 2-2. Instrument cluster
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Set up display
Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.
Press and hold the “DISP.” but-
ton or “DISP” switch to enter the
adjustment mode.
Select the desired item on the menu screen.
Press and hold the “DISP.” button or “DISP” switch to enter the
adjustment mode.
STEP1
STEP2
STEP3

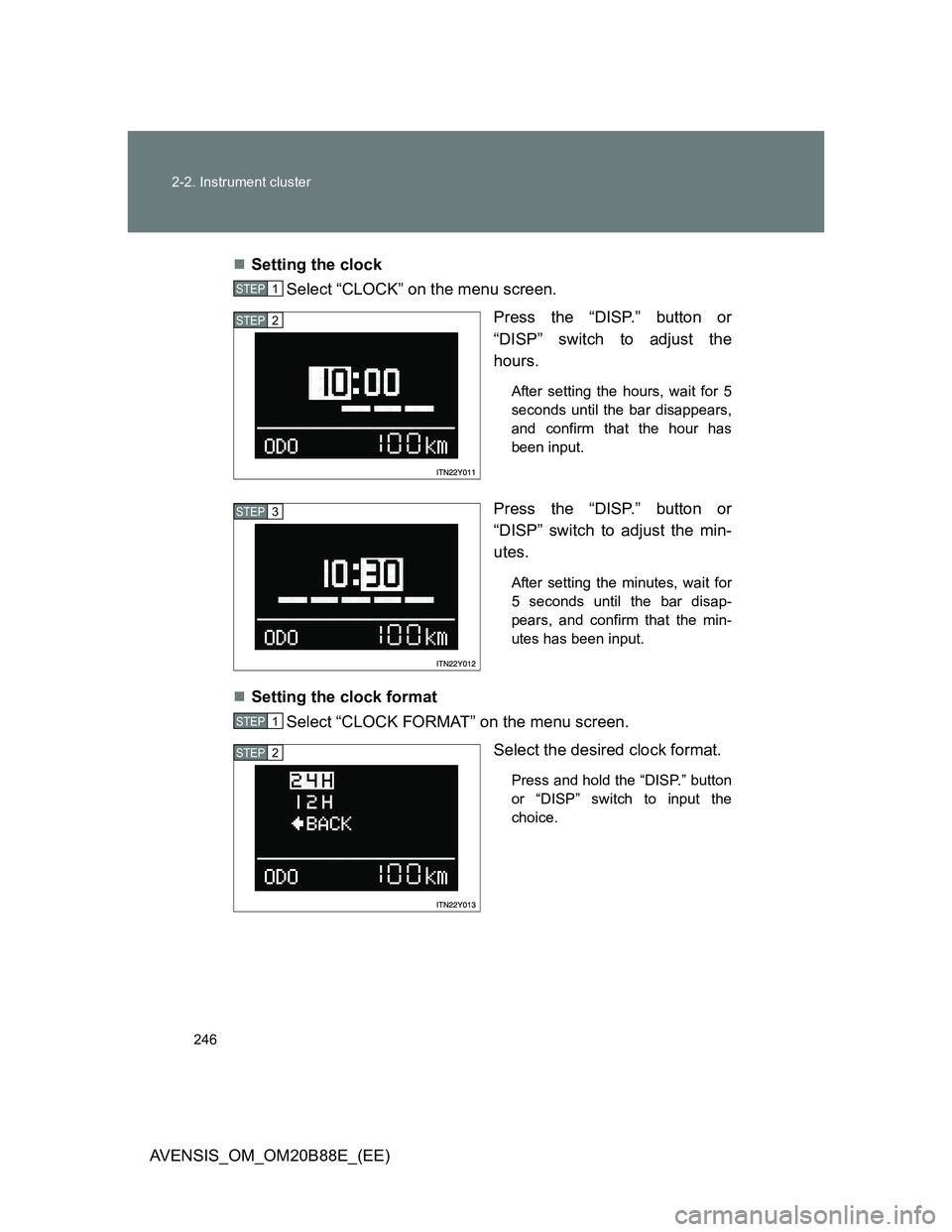

246 2-2. Instrument cluster
AVENSIS_OM_OM20B88E_(EE)Setting the clock
Select “CLOCK” on the menu screen.
Press the “DISP.” button or
“DISP” switch to adjust the
hours.
After setting the hours, wait for 5
seconds until the bar disappears,
and confirm that the hour has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the min-
utes.
After setting the minutes, wait for
5 seconds until the bar disap-
pears, and confirm that the min-
utes has been input.
Setting the clock format
Select “CLOCK FORMAT” on the menu screen.
Select the desired clock format.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
STEP1
STEP2
STEP3
STEP1
STEP2

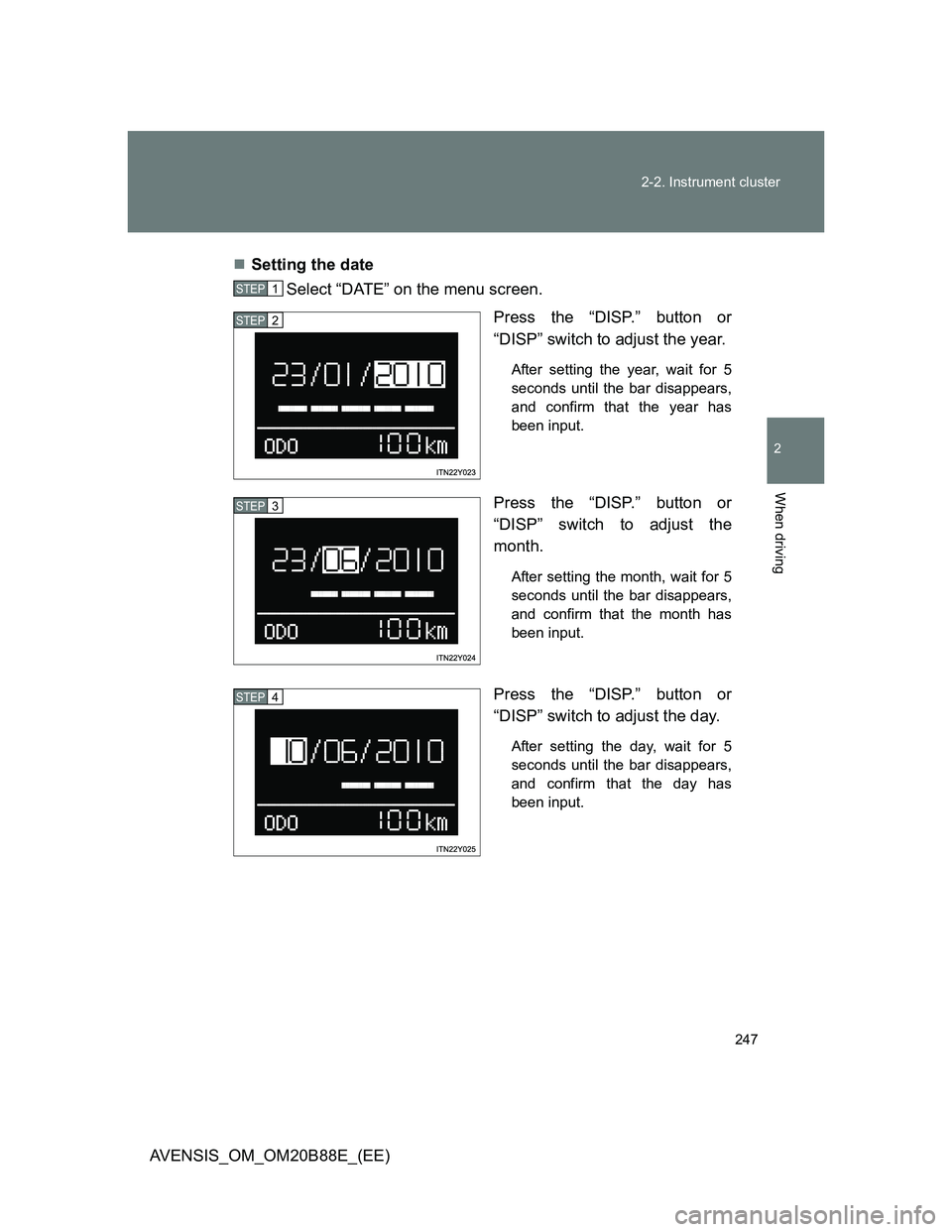

247 2-2. Instrument cluster
2
When driving
AVENSIS_OM_OM20B88E_(EE)Setting the date
Select “DATE” on the menu screen.
Press the “DISP.” button or
“DISP” switch to adjust the year.
After setting the year, wait for 5
seconds until the bar disappears,
and confirm that the year has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the
month.
After setting the month, wait for 5
seconds until the bar disappears,
and confirm that the month has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the day.
After setting the day, wait for 5
seconds until the bar disappears,
and confirm that the day has
been input.
STEP1
STEP2
STEP3
STEP4

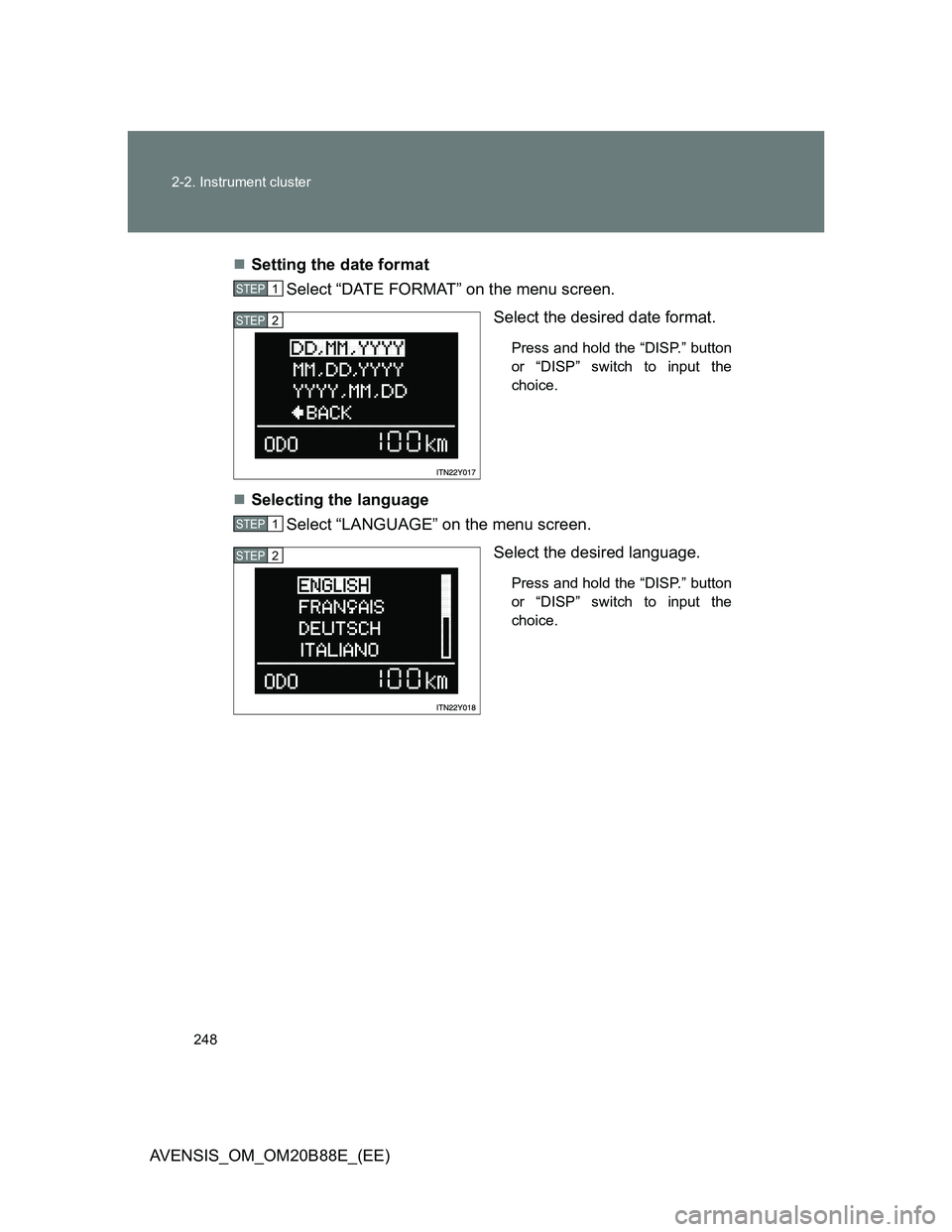

248 2-2. Instrument cluster
AVENSIS_OM_OM20B88E_(EE)Setting the date format
Select “DATE FORMAT” on the menu screen.
Select the desired date format.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
Selecting the language
Select “LANGUAGE” on the menu screen.
Select the desired language.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
STEP1
STEP2
STEP1
STEP2
