2014 TOYOTA AVENSIS Owners Manual (in English)

449 3-2. Using the audio system
3
Interior features

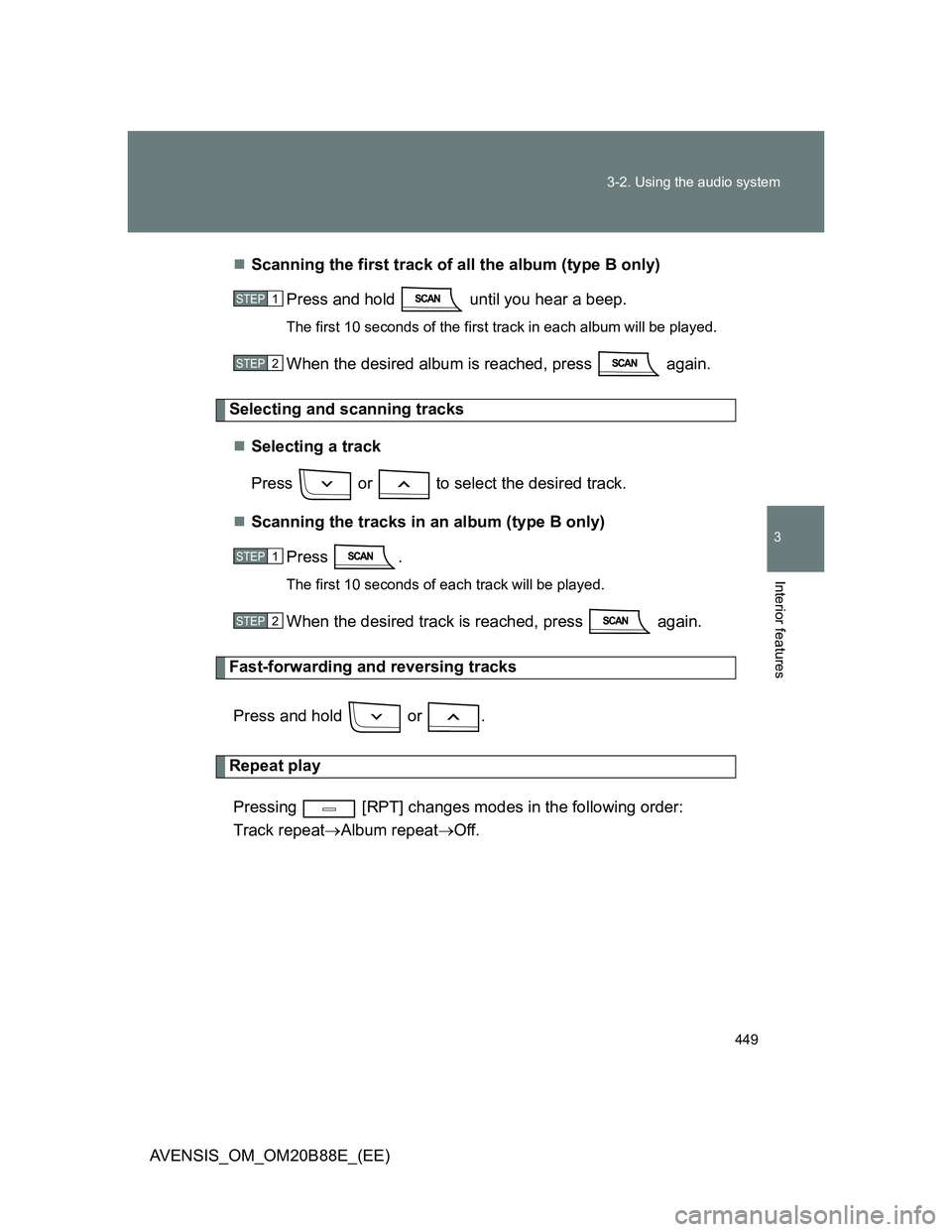

AVENSIS_OM_OM20B88E_(EE)Scanning the first track of all the album (type B only)
Press and hold until you hear a beep.
The first 10 seconds of the first track in each album will be played.
When the desired album is reached, press again.
Selecting and scanning tracks
Selecting a track
Press or to select the desired track.
Scanning the tracks in an album (type B only)
Press .
The first 10 seconds of each track will be played.
When the desired track is reached, press again.
Fast-forwarding and reversing tracks
Press and hold or .
Repeat play
Pressing [RPT] changes modes in the following order:
Track repeatAlbum repeatOff.
STEP1
STEP2
STEP1
STEP2

450 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Random playback
Pressing [RDM] changes modes in the following order:
Album randomAll track randomOff.
Playing and pausing tracks
Press ( ).
Switching the display
Press (type A) or (type B).
Track title and Artist name are displayed on the display.
To return to the previous display, press
or (type A) or
or [BACK] (type B).
Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.

451
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

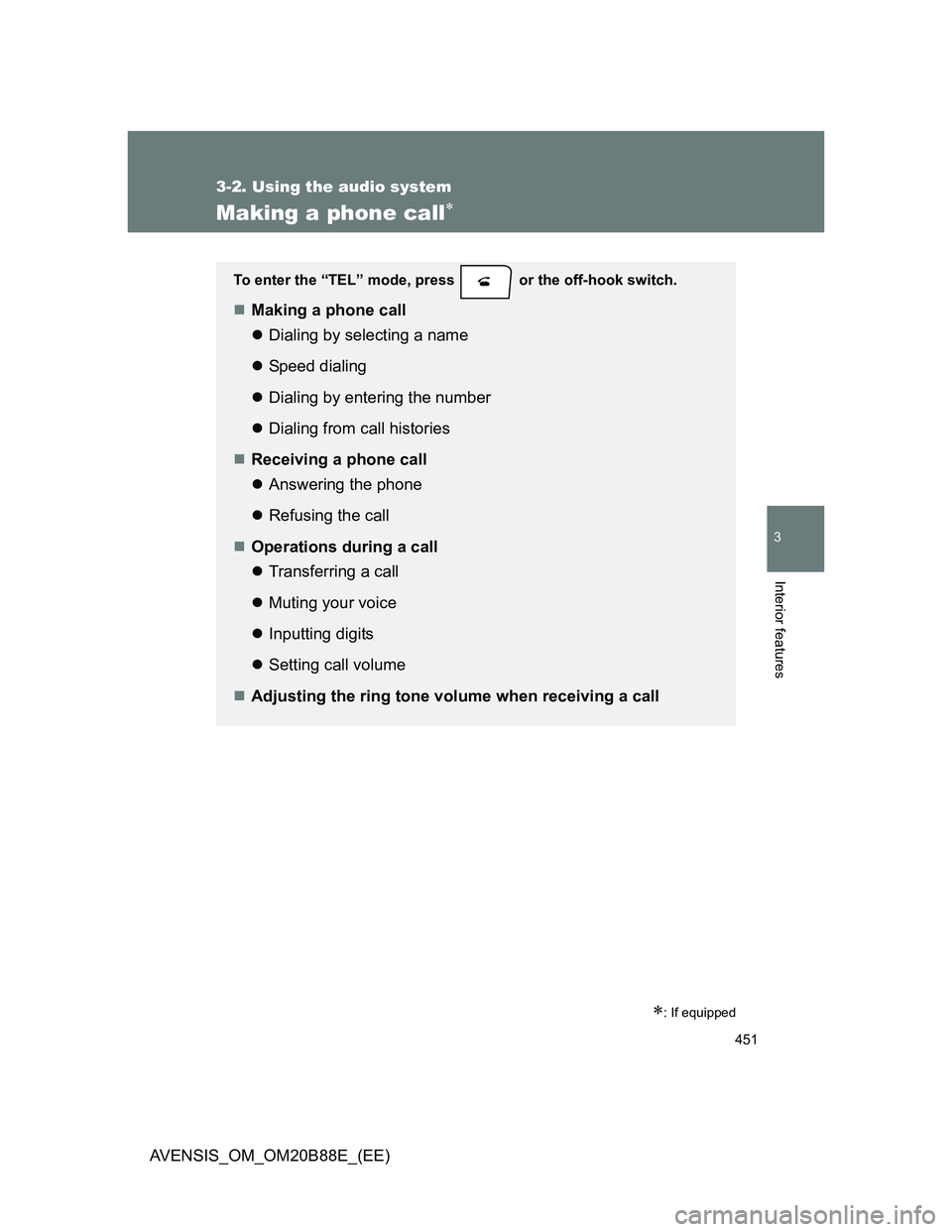

Making a phone call
: If equipped
To enter the “TEL” mode, press or the off-hook switch.
Making a phone call
Dialing by selecting a name
Speed dialing
Dialing by entering the number
Dialing from call histories
Receiving a phone call
Answering the phone
Refusing the call
Operations during a call
Transferring a call
Muting your voice
Inputting digits
Setting call volume
Adjusting the ring tone volume when receiving a call

452 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Dialing by selecting a name
Select “Phonebook” using .
Select the desired name using and press or
the off-hook switch.
By pressing [Add S. Dial] and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it
can be registered as a speed dial.
Speed dialing
Select “Speed Dials” using .
Press the desired preset button (from [1] to
[5]) and press or the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press [DELETE] and
then press [YES].
STEP1
STEP2
STEP1
STEP2

453 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Dialing by entering the number
Select “Speed Dials” using .
Enter the phone number and press or the off-hook
switch.
Dialing from call histories
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing
calls” using .
Select a desired number using and press or
the off-hook switch.
The following operations can be performed:
Registering a number as a speed dial
Press [Add S. Dial] and then press the desired preset but-
ton (from [1] to [5]).
Deleting the selected number
Press [DELETE] and press [YES].
STEP1
STEP2
STEP1
STEP2

454 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)

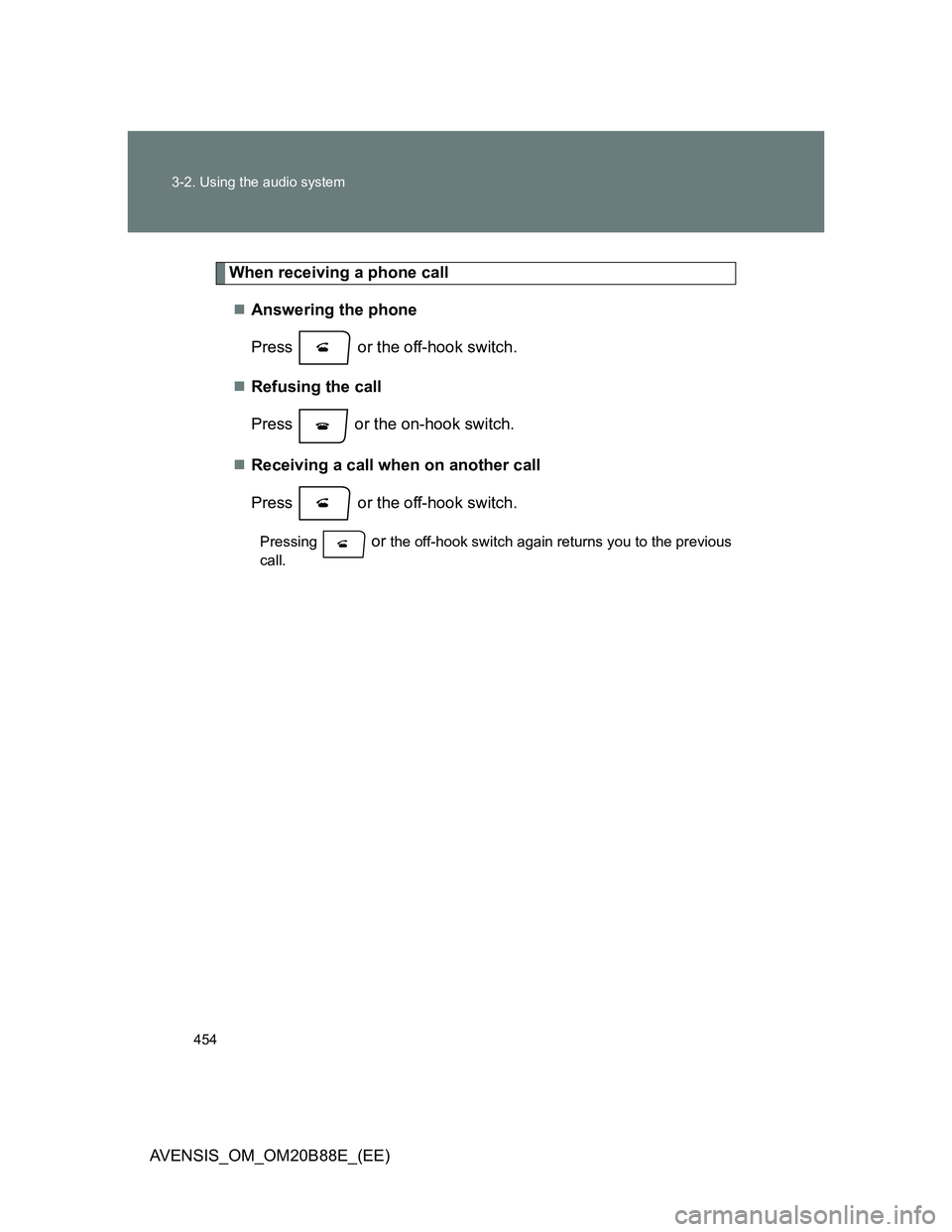

When receiving a phone call
Answering the phone
Press or the off-hook switch.
Refusing the call
Press or the on-hook switch.
Receiving a call when on another call
Press or the off-hook switch.
Pressing or the off-hook switch again returns you to the previous
call.

455 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

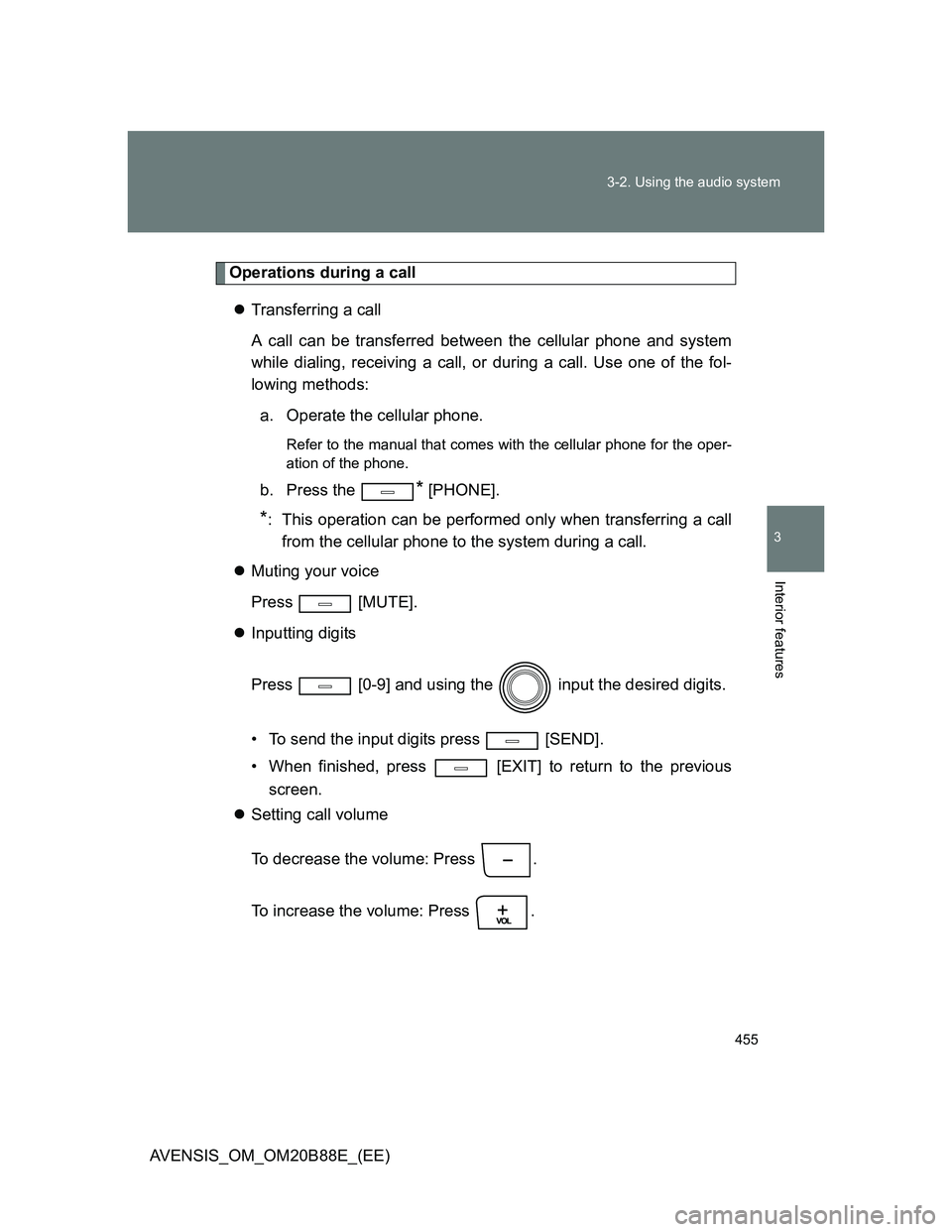

Operations during a call
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the fol-
lowing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press the * [PHONE].
*: This operation can be performed only when transferring a call
from the cellular phone to the system during a call.
Muting your voice
Press [MUTE].
Inputting digits
Press [0-9] and using the input the desired digits.
• To send the input digits press [SEND].
• When finished, press [EXIT] to return to the previous
screen.
Setting call volume
To decrease the volume: Press .
To increase the volume: Press .

456 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)

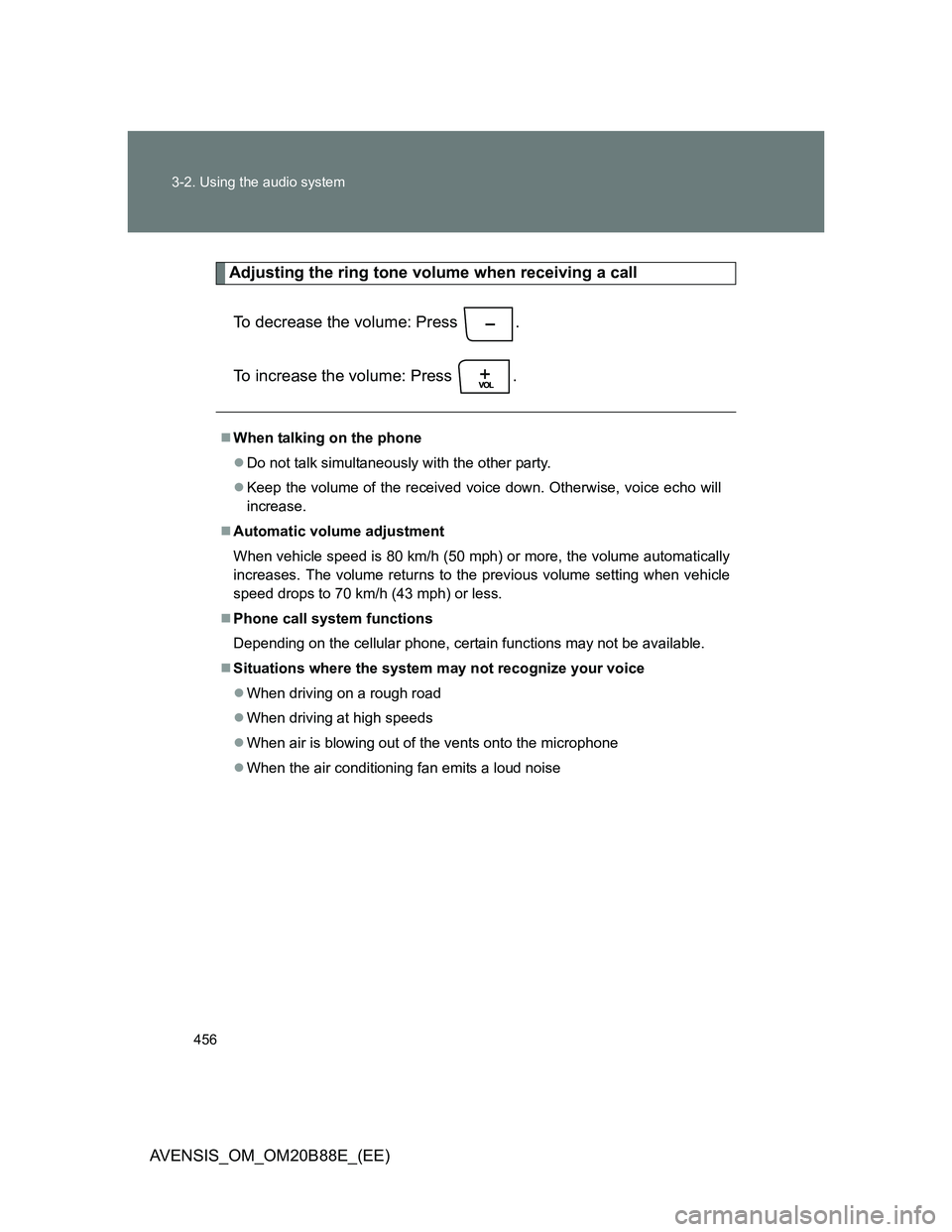

Adjusting the ring tone volume when receiving a call
To decrease the volume: Press .
To increase the volume: Press .
When talking on the phone
Do not talk simultaneously with the other party.
Keep the volume of the received voice down. Otherwise, voice echo will
increase.
Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
Phone call system functions
Depending on the cellular phone, certain functions may not be available.
Situations where the system may not recognize your voice
When driving on a rough road
When driving at high speeds
When air is blowing out of the vents onto the microphone
When the air conditioning fan emits a loud noise
