2014 TOYOTA AVENSIS Owners Manual (in English)

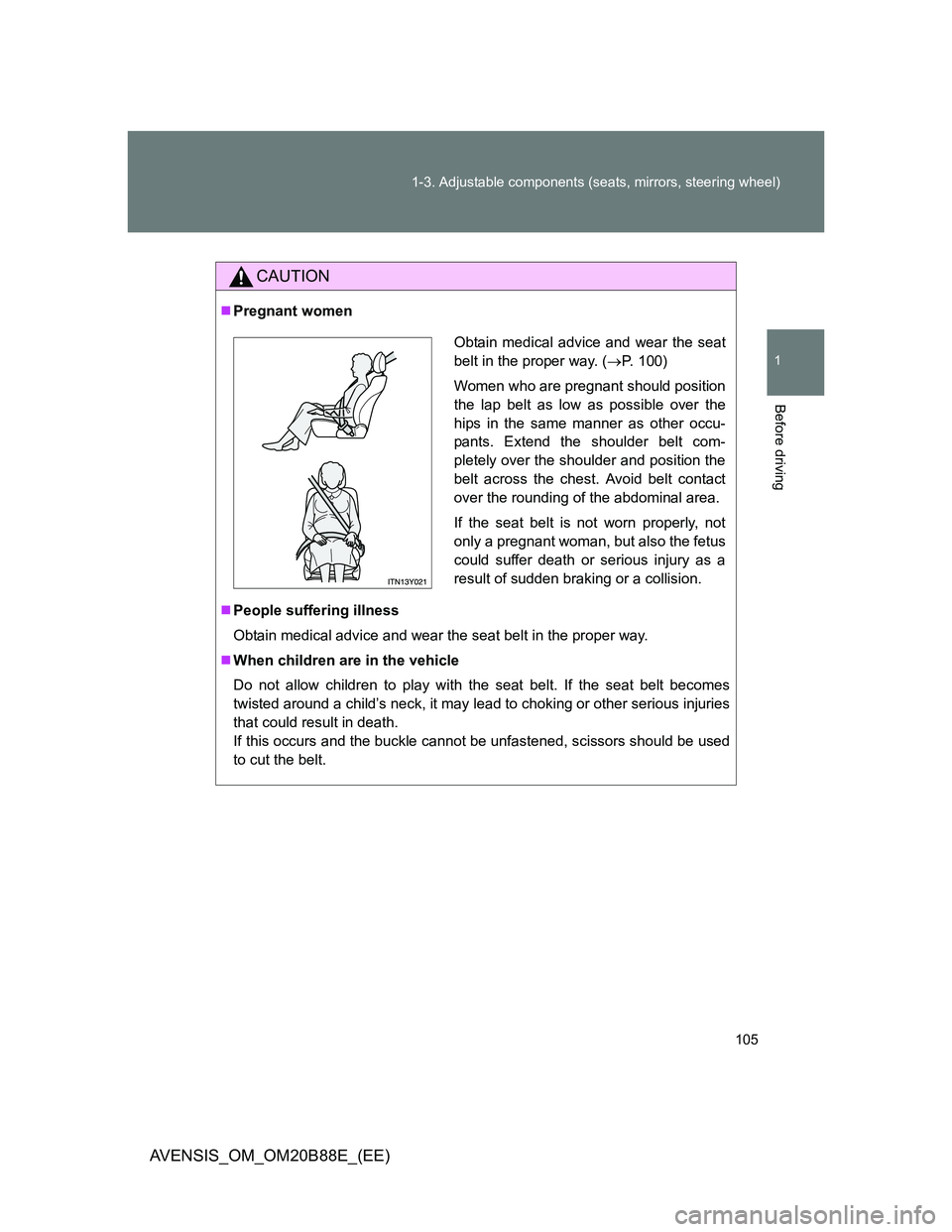

105 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Obtain medical advice and wear the seat
belt in the proper way. (P. 100)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.

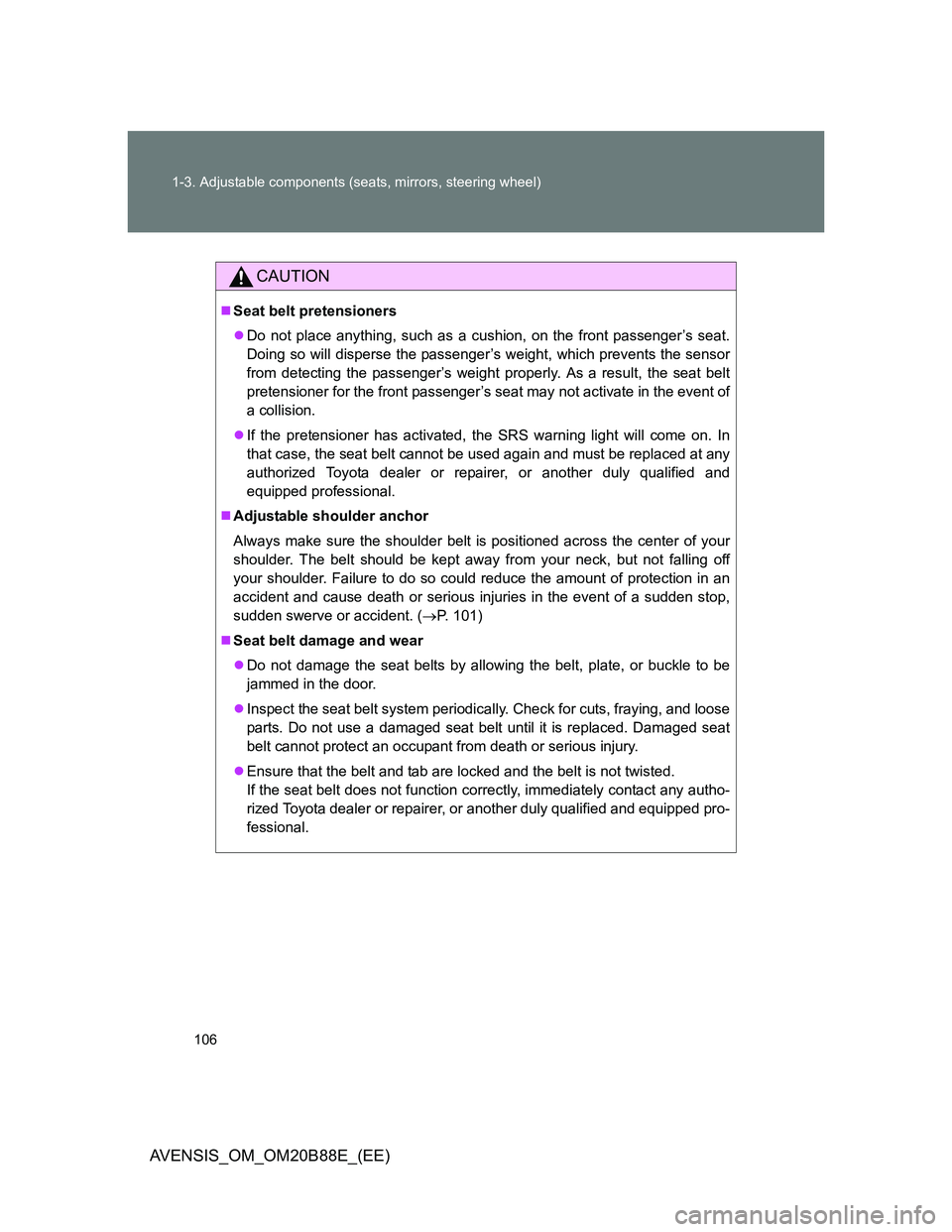

106 1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Seat belt pretensioners
Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (P. 101)
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

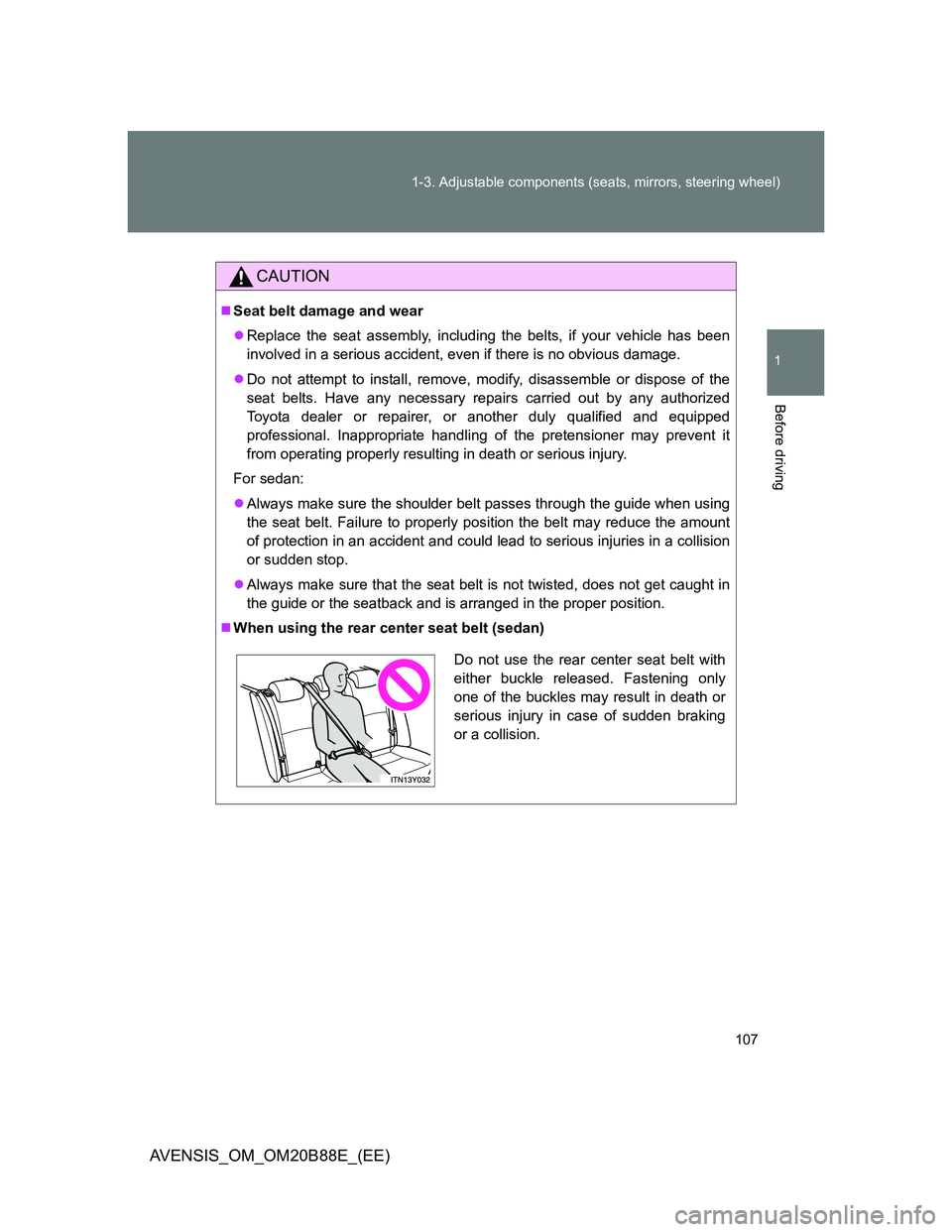

107 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Seat belt damage and wear
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. Inappropriate handling of the pretensioner may prevent it
from operating properly resulting in death or serious injury.
For sedan:
Always make sure the shoulder belt passes through the guide when using
the seat belt. Failure to properly position the belt may reduce the amount
of protection in an accident and could lead to serious injuries in a collision
or sudden stop.
Always make sure that the seat belt is not twisted, does not get caught in
the guide or the seatback and is arranged in the proper position.
When using the rear center seat belt (sedan)
Do not use the rear center seat belt with
either buckle released. Fastening only
one of the buckles may result in death or
serious injury in case of sudden braking
or a collision.

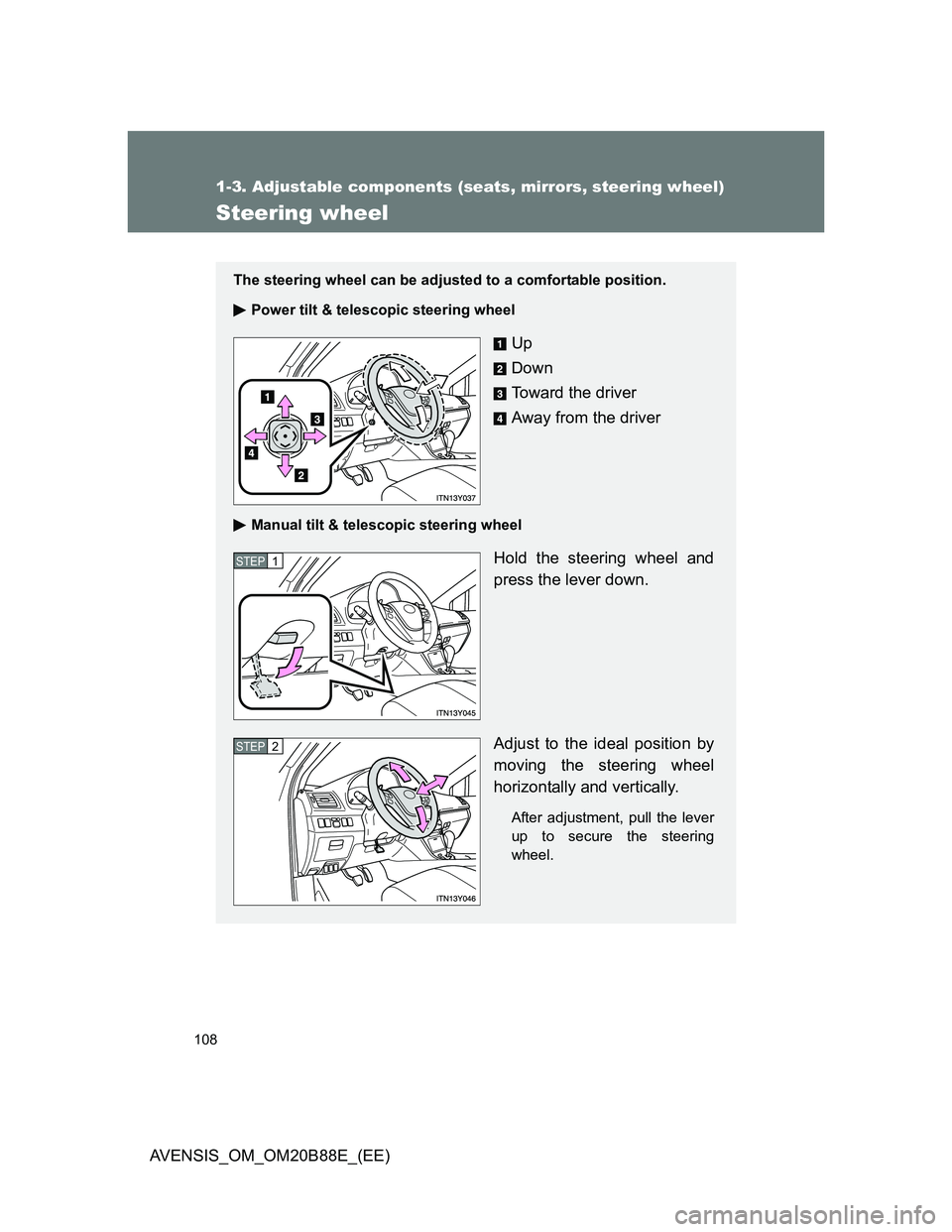

108
1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_OM_OM20B88E_(EE)
Steering wheel
The steering wheel can be adjusted to a comfortable position.
Power tilt & telescopic steering wheel
Up
Down
Toward the driver
Away from the driver
Manual tilt & telescopic steering wheel
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP1
STEP2

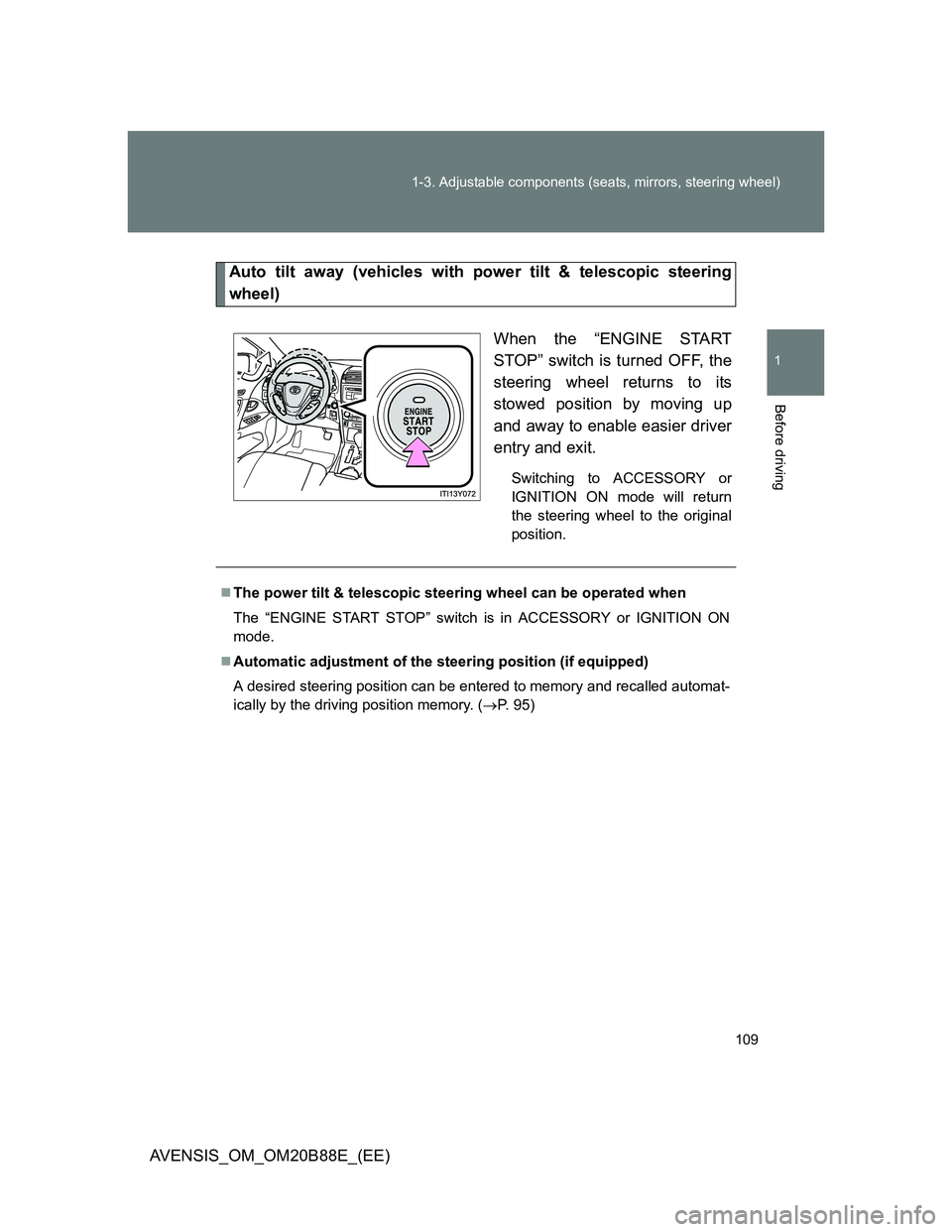

109 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Auto tilt away (vehicles with power tilt & telescopic steering
wheel)
When the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up
and away to enable easier driver
entry and exit.
Switching to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The power tilt & telescopic steering wheel can be operated when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Automatic adjustment of the steering position (if equipped)
A desired steering position can be entered to memory and recalled automat-
ically by the driving position memory. (P. 95)

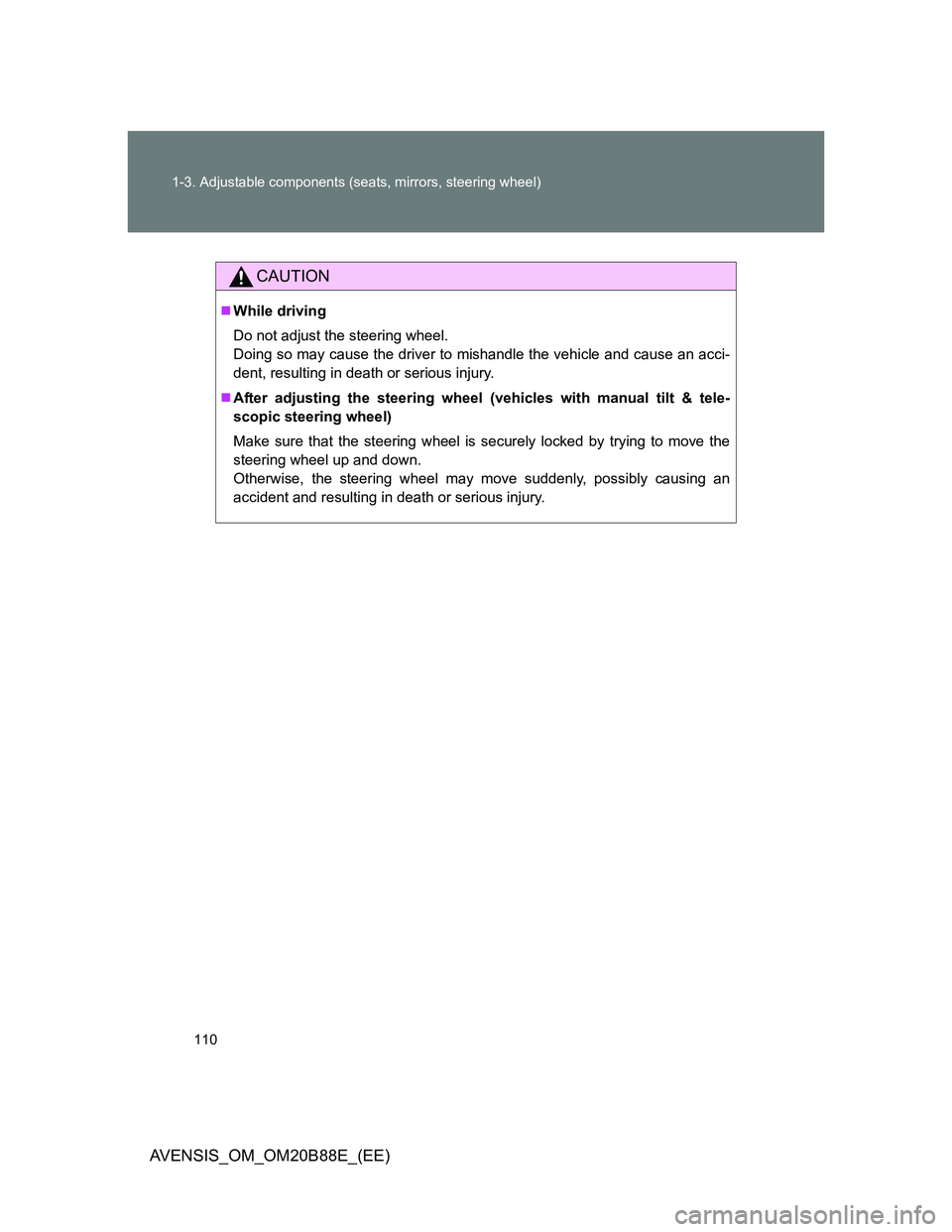

110 1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_OM_OM20B88E_(EE)
CAUTION
While driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
After adjusting the steering wheel (vehicles with manual tilt & tele-
scopic steering wheel)
Make sure that the steering wheel is securely locked by trying to move the
steering wheel up and down.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

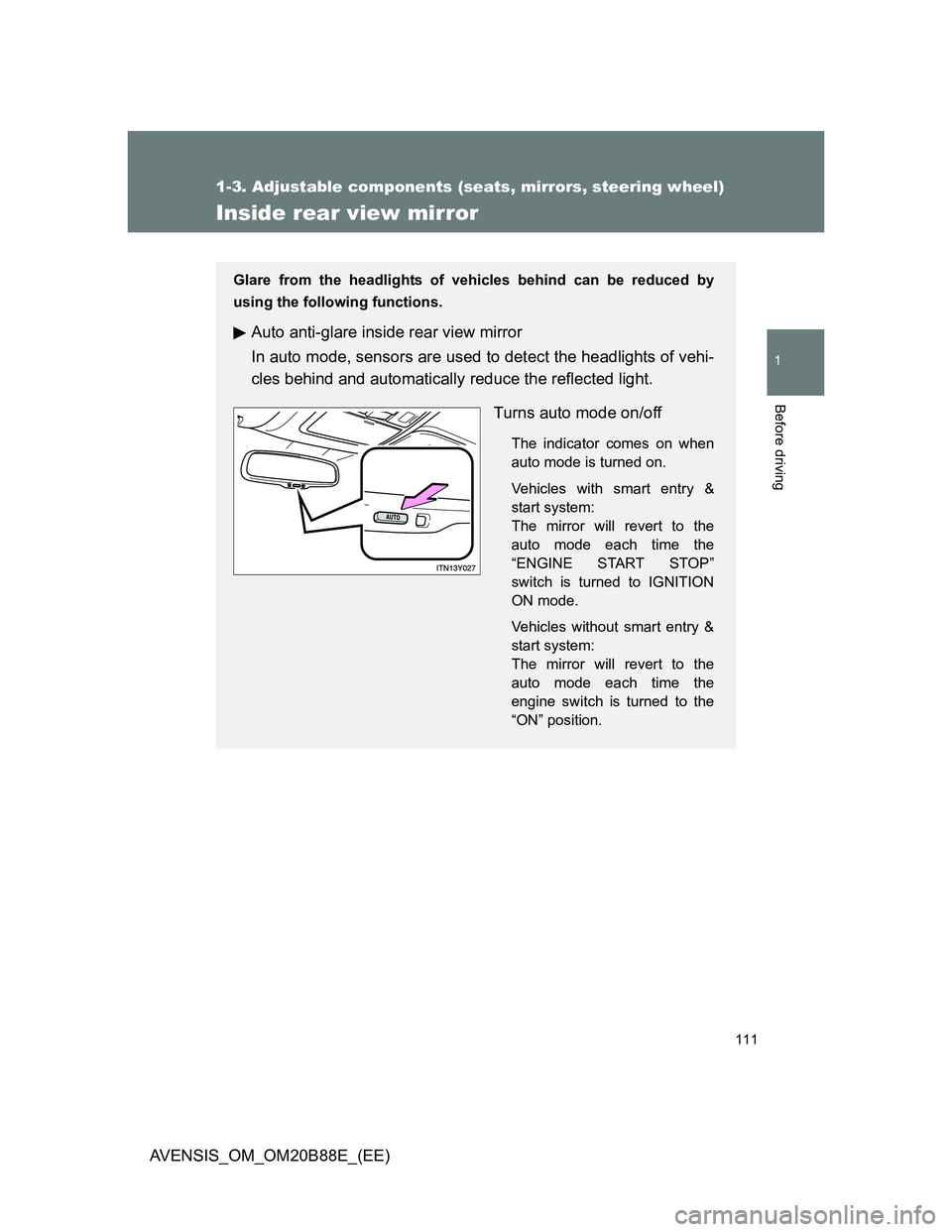

111
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
AVENSIS_OM_OM20B88E_(EE)
Inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Auto anti-glare inside rear view mirror
In auto mode, sensors are used to detect the headlights of vehi-
cles behind and automatically reduce the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
Vehicles with smart entry &
start system:
The mirror will revert to the
auto mode each time the
“ENGINE START STOP”
switch is turned to IGNITION
ON mode.
Vehicles without smart entry &
start system:
The mirror will revert to the
auto mode each time the
engine switch is turned to the
“ON” position.

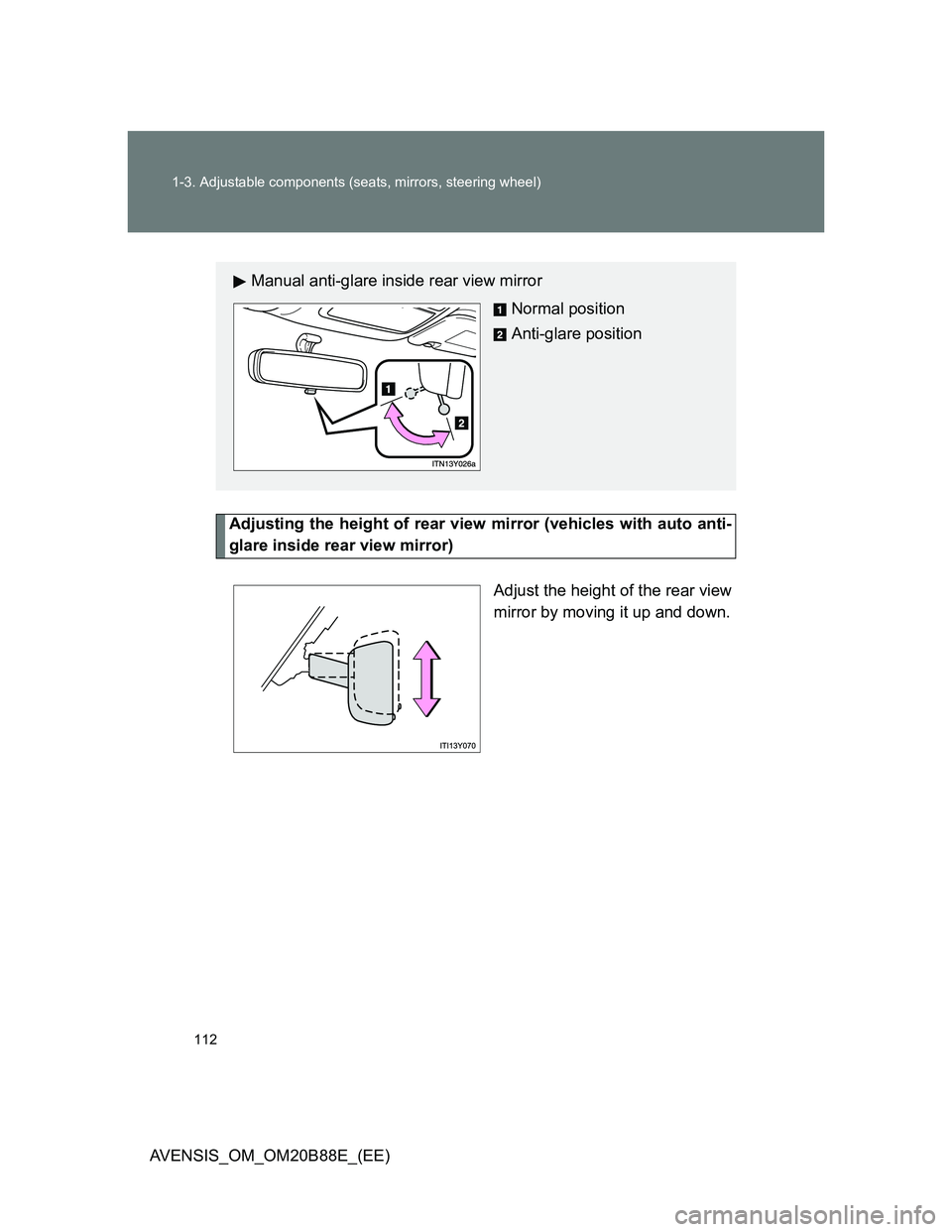

112 1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_OM_OM20B88E_(EE)
Adjusting the height of rear view mirror (vehicles with auto anti-
glare inside rear view mirror)
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Normal position
Anti-glare position
