2014 TOYOTA AVENSIS Owners Manual (in English)

489
3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

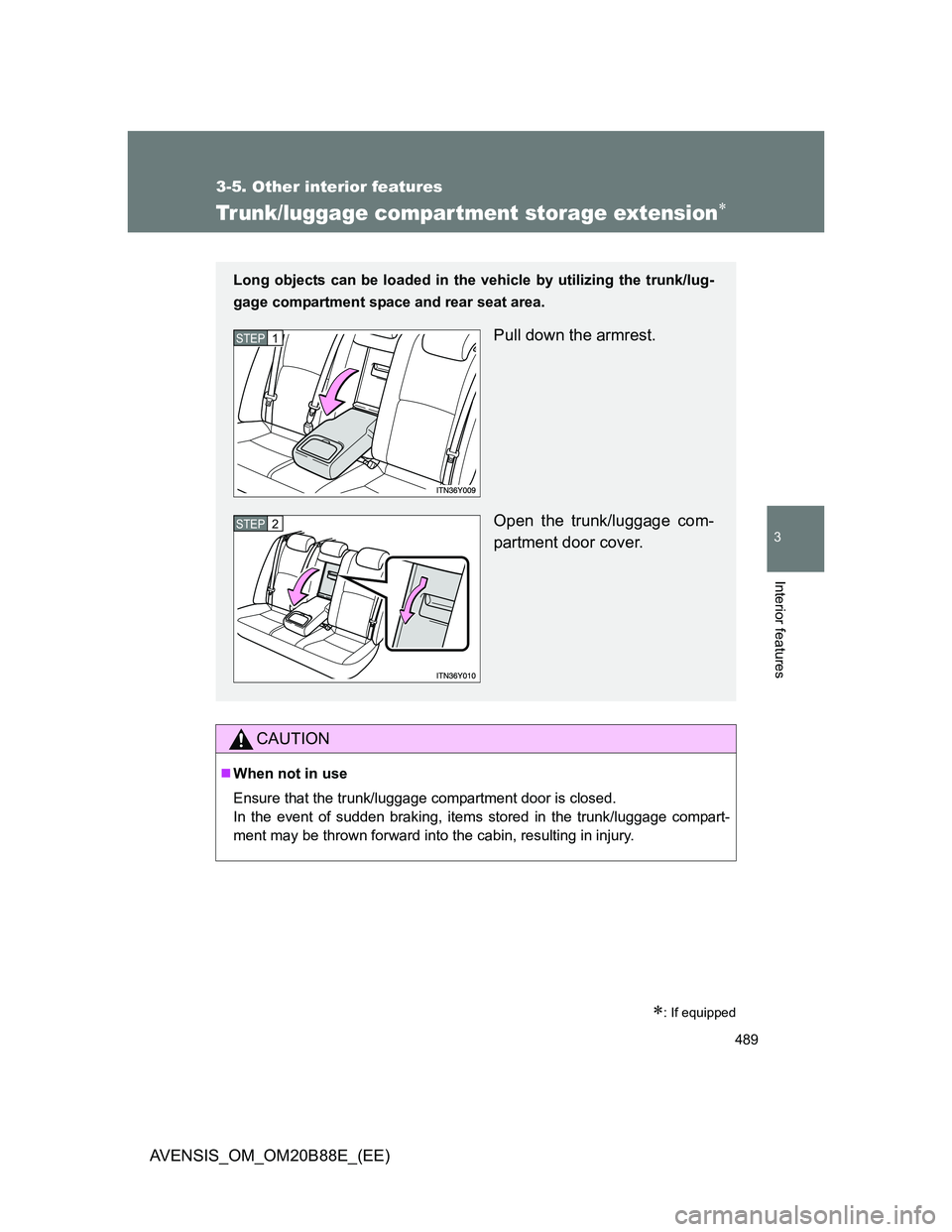

Trunk/luggage compartment storage extension
: If equipped
CAUTION
When not in use
Ensure that the trunk/luggage compartment door is closed.
In the event of sudden braking, items stored in the trunk/luggage compart-
ment may be thrown forward into the cabin, resulting in injury.
Long objects can be loaded in the vehicle by utilizing the trunk/lug-
gage compartment space and rear seat area.
Pull down the armrest.
Open the trunk/luggage com-
partment door cover.STEP1
STEP2

490
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

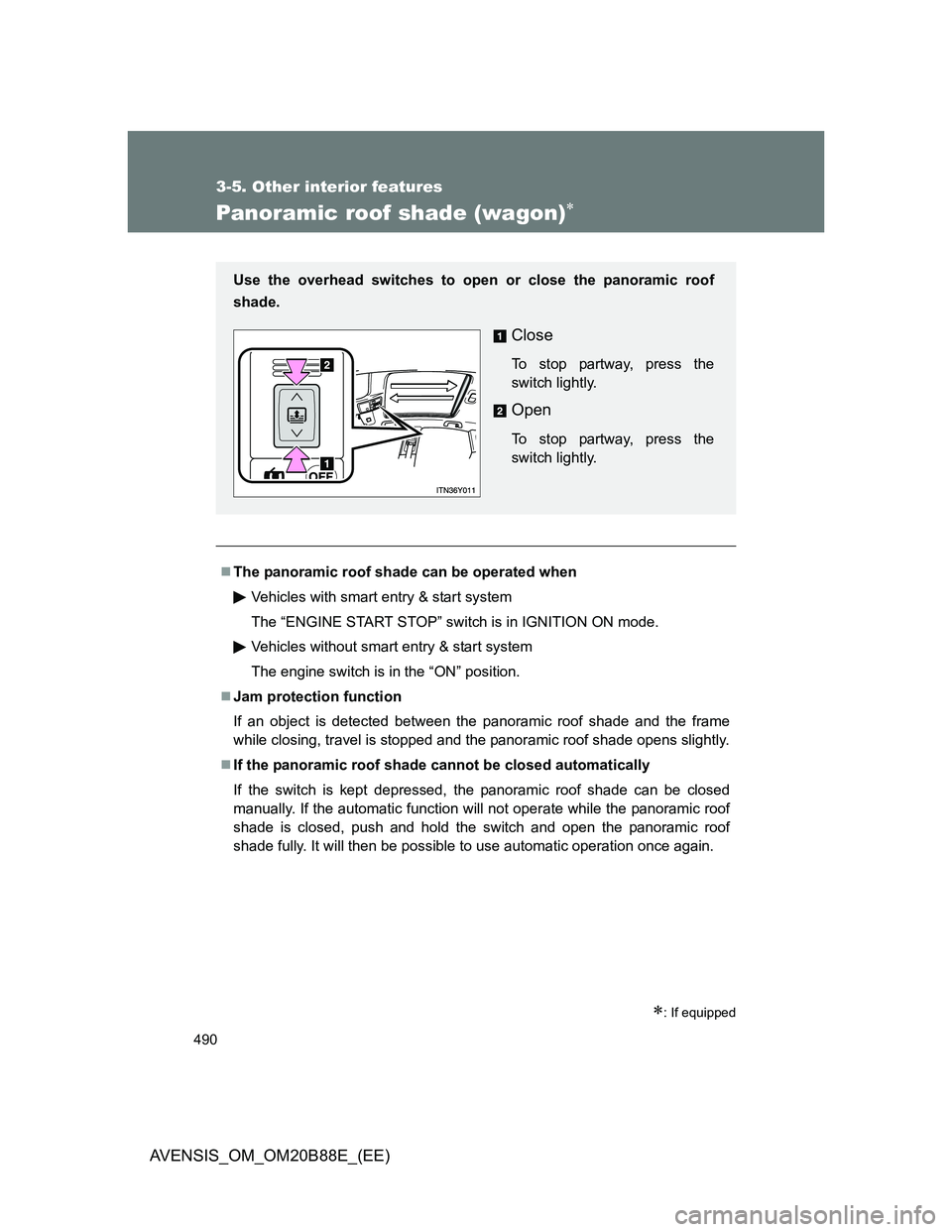

Panoramic roof shade (wagon)
: If equipped
The panoramic roof shade can be operated when
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
If the panoramic roof shade cannot be closed automatically
If the switch is kept depressed, the panoramic roof shade can be closed
manually. If the automatic function will not operate while the panoramic roof
shade is closed, push and hold the switch and open the panoramic roof
shade fully. It will then be possible to use automatic operation once again.
Use the overhead switches to open or close the panoramic roof
shade.
Close
To stop partway, press the
switch lightly.
Open
To stop partway, press the
switch lightly.

491 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

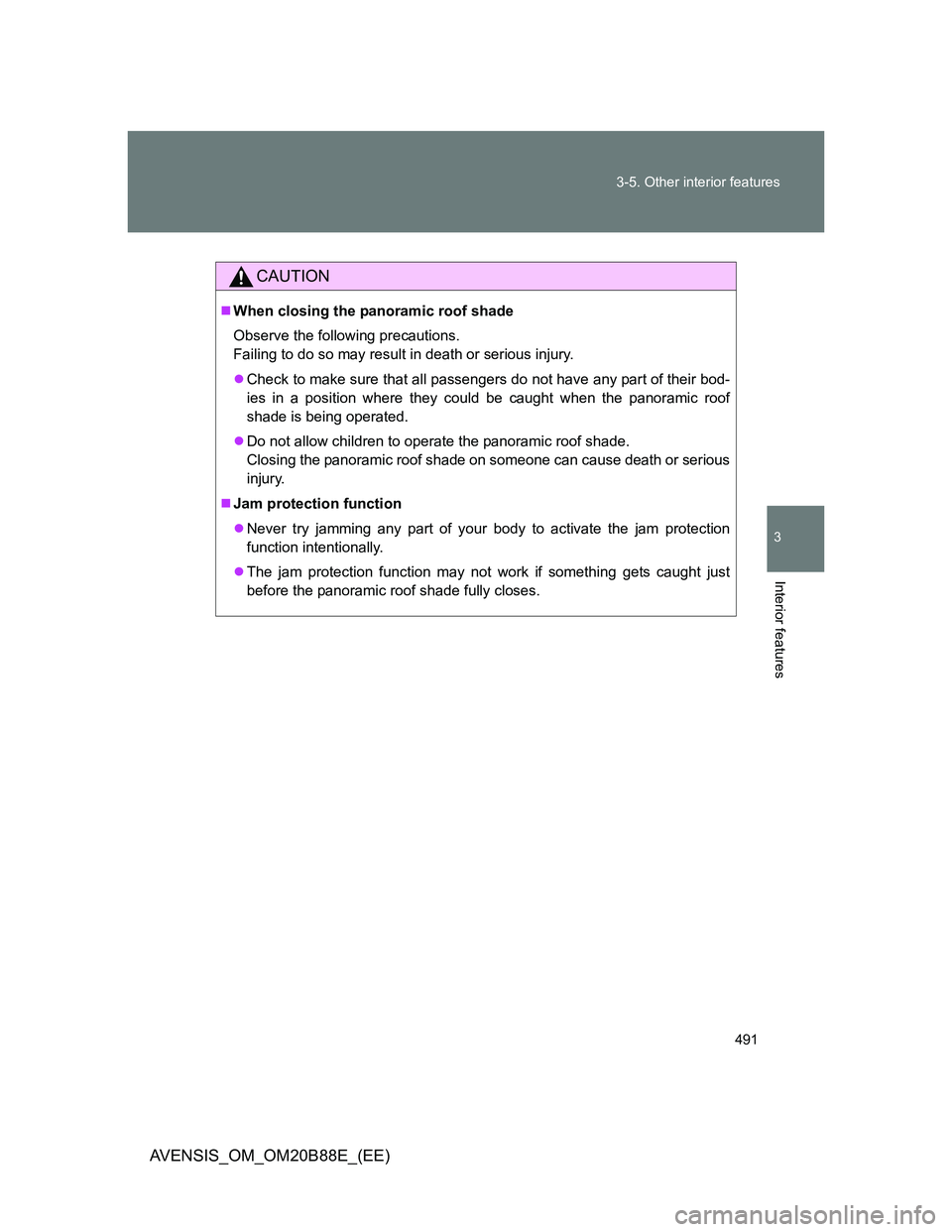

CAUTION
When closing the panoramic roof shade
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the panoramic roof
shade is being operated.
Do not allow children to operate the panoramic roof shade.
Closing the panoramic roof shade on someone can cause death or serious
injury.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.

492 3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

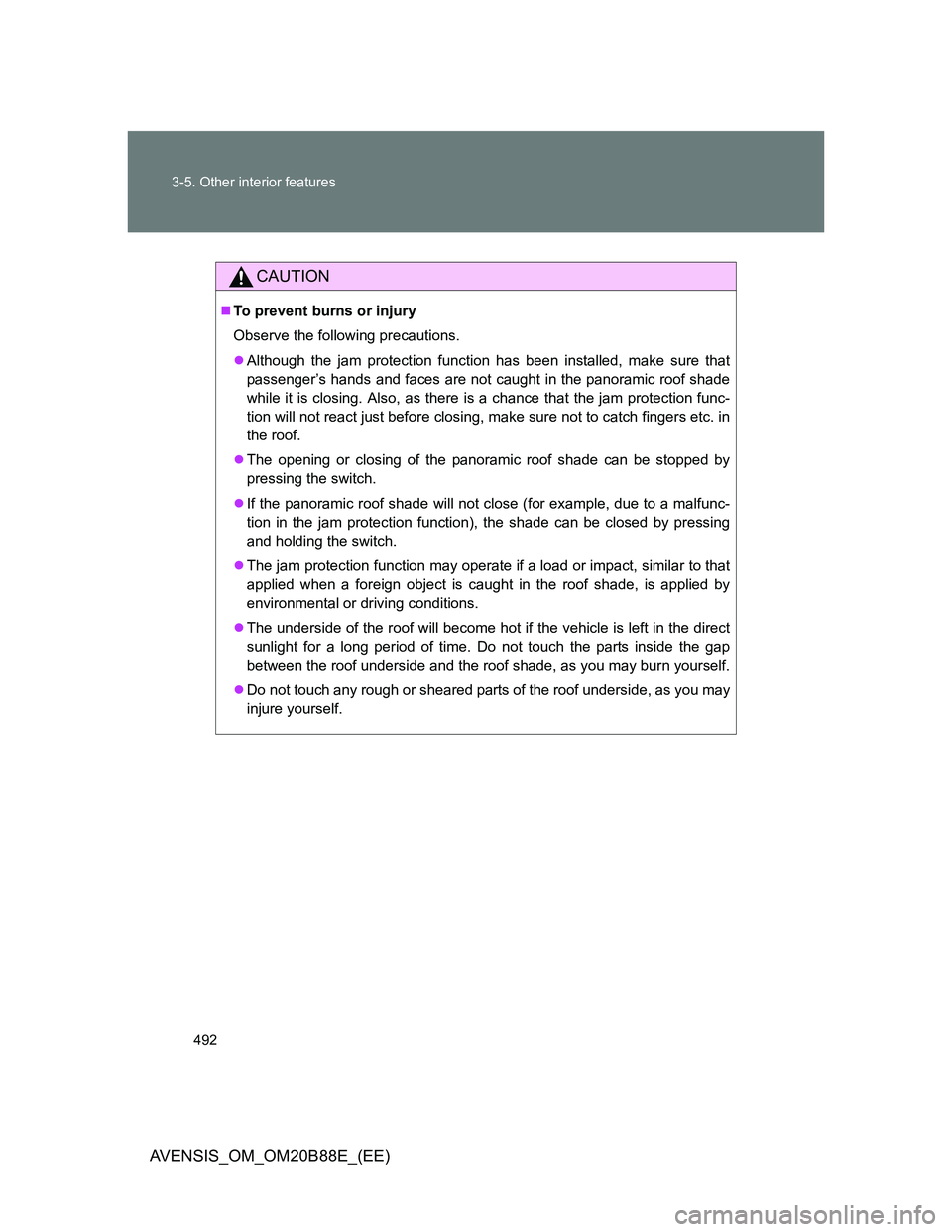

CAUTION
To prevent burns or injury
Observe the following precautions.
Although the jam protection function has been installed, make sure that
passenger’s hands and faces are not caught in the panoramic roof shade
while it is closing. Also, as there is a chance that the jam protection func-
tion will not react just before closing, make sure not to catch fingers etc. in
the roof.
The opening or closing of the panoramic roof shade can be stopped by
pressing the switch.
If the panoramic roof shade will not close (for example, due to a malfunc-
tion in the jam protection function), the shade can be closed by pressing
and holding the switch.
The jam protection function may operate if a load or impact, similar to that
applied when a foreign object is caught in the roof shade, is applied by
environmental or driving conditions.
The underside of the roof will become hot if the vehicle is left in the direct
sunlight for a long period of time. Do not touch the parts inside the gap
between the roof underside and the roof shade, as you may burn yourself.
Do not touch any rough or sheared parts of the roof underside, as you may
injure yourself.

493
3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

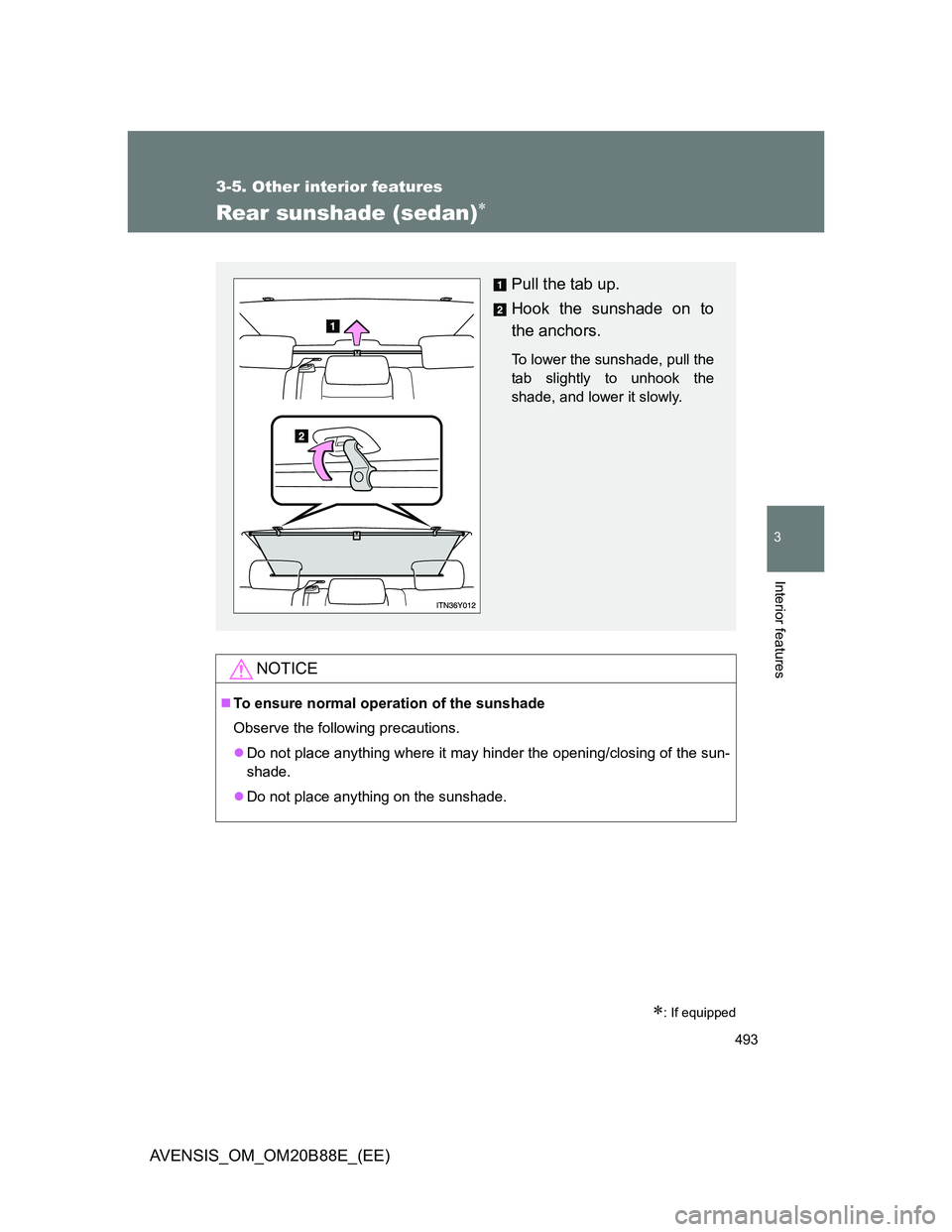

Rear sunshade (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

494
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

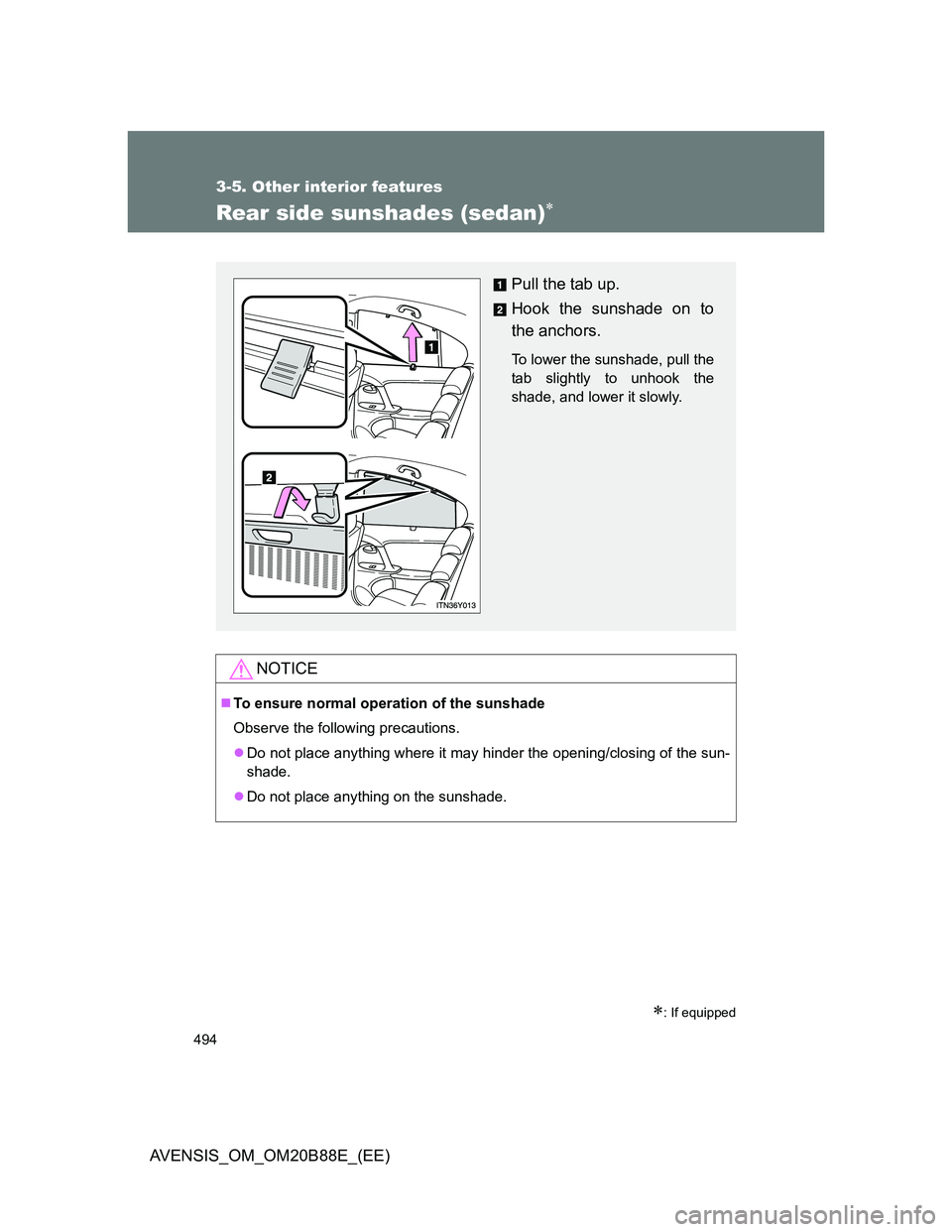

Rear side sunshades (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

495
3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

496
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

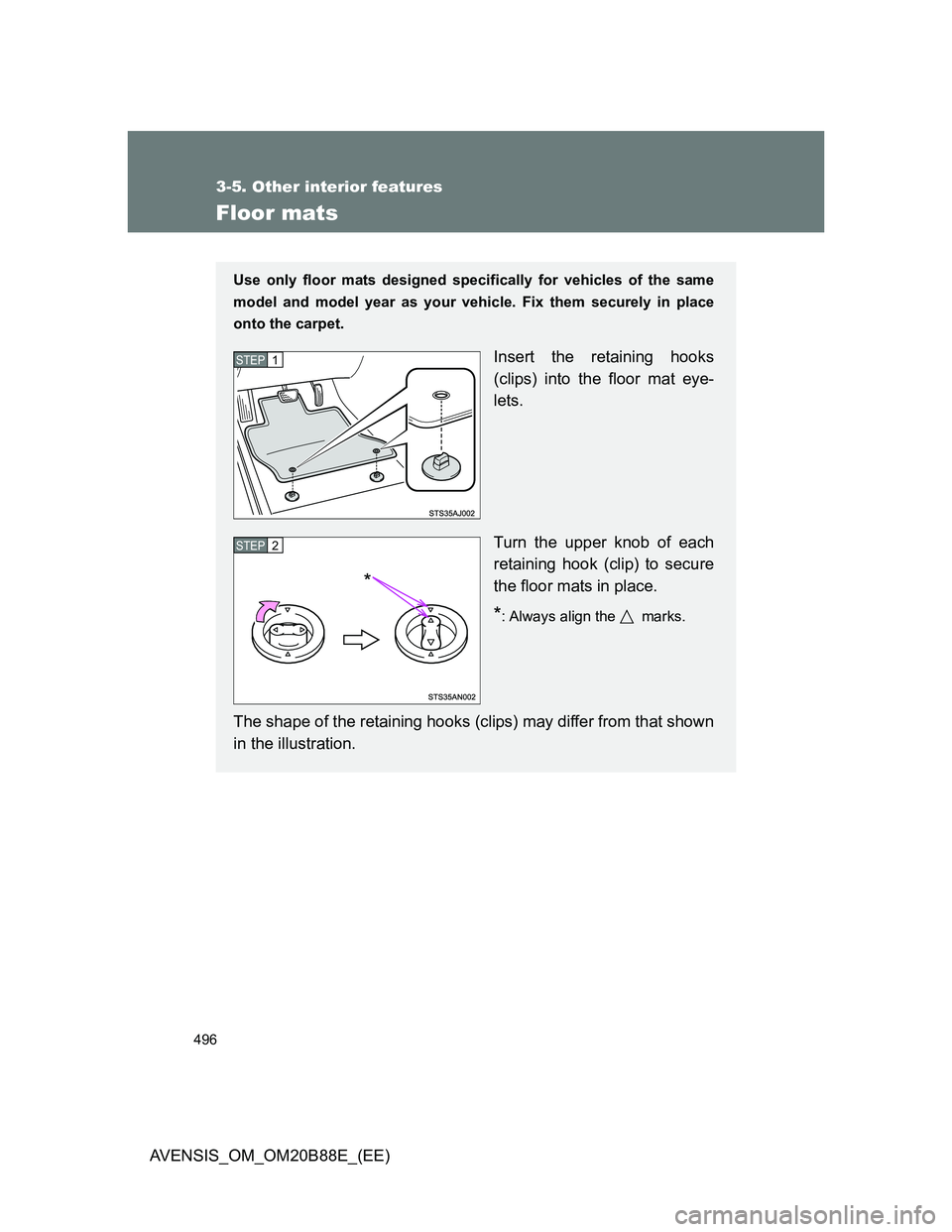

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
STEP1
STEP2
*
