2014 TOYOTA AVENSIS Owners Manual (in English)

737 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engine
1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.5 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sil-
icate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

738 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)
Ignition system (gasoline engine)
Electrical system
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at 20C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.

739 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)

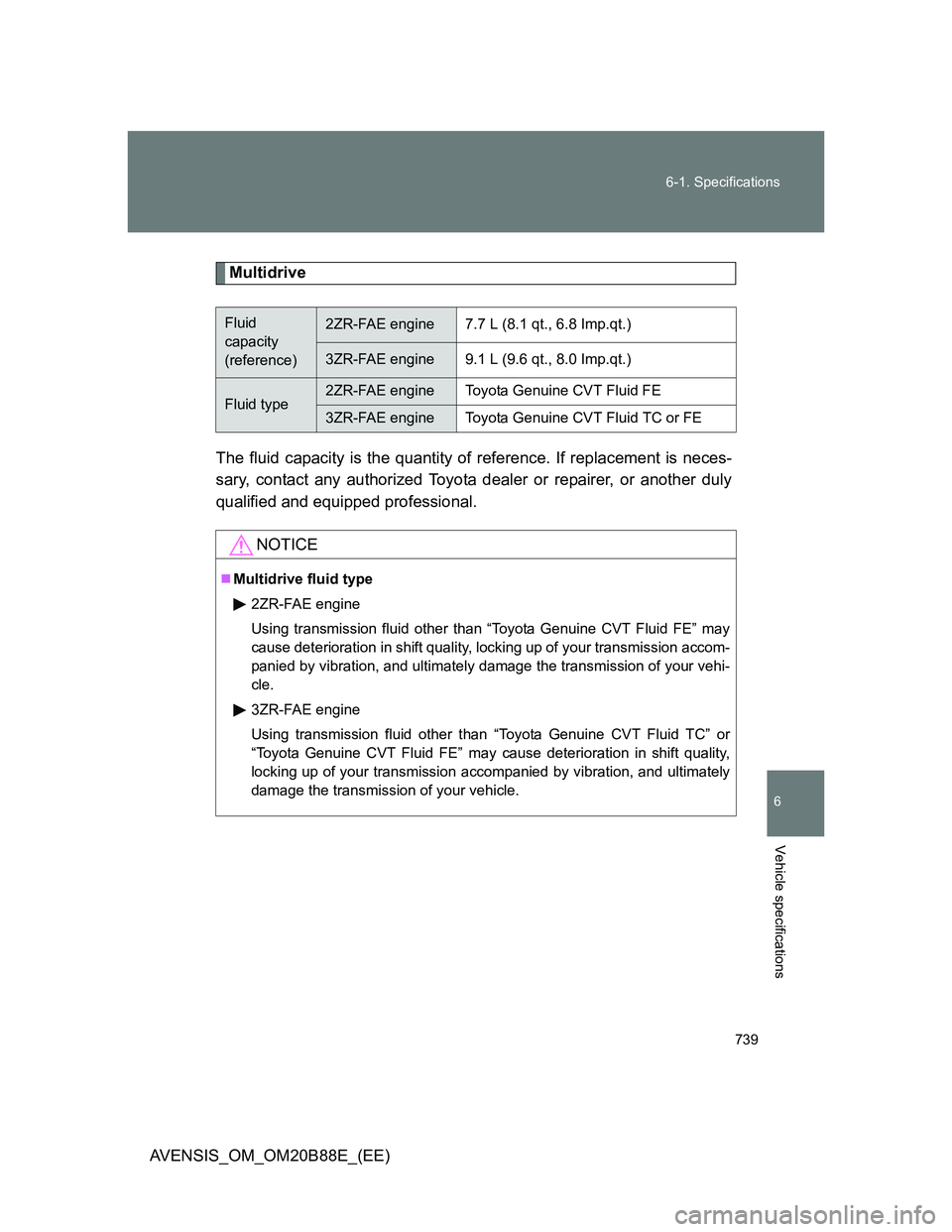

Multidrive
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Fluid
capacity
(reference)2ZR-FAE engine7.7 L (8.1 qt., 6.8 Imp.qt.)
3ZR-FAE engine9.1 L (9.6 qt., 8.0 Imp.qt.)
Fluid type2ZR-FAE engineToyota Genuine CVT Fluid FE
3ZR-FAE engineToyota Genuine CVT Fluid TC or FE
NOTICE
Multidrive fluid type
2ZR-FAE engine
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the transmission of your vehi-
cle.
3ZR-FAE engine
Using transmission fluid other than “Toyota Genuine CVT Fluid TC” or
“Toyota Genuine CVT Fluid FE” may cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately
damage the transmission of your vehicle.

740 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)

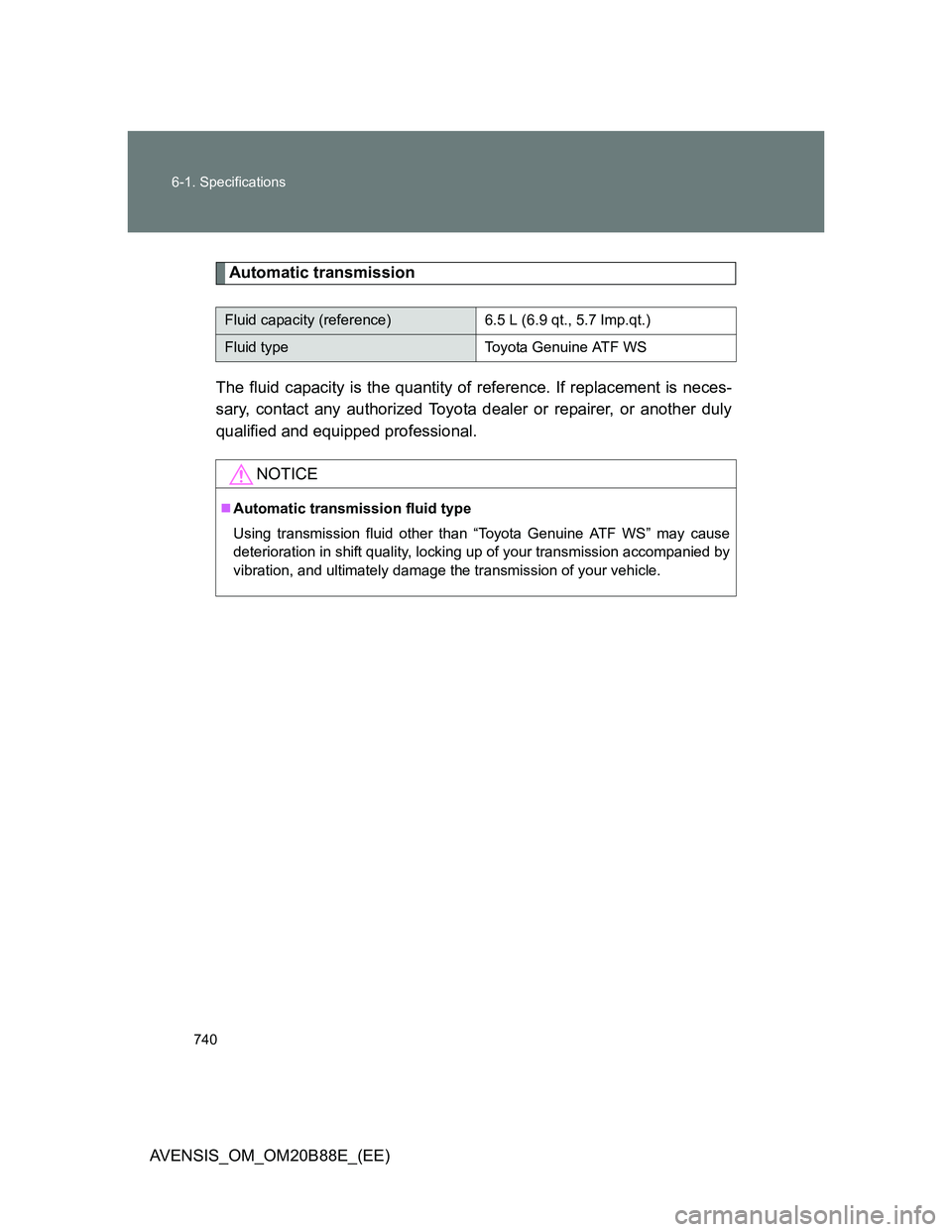

Automatic transmission
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Fluid capacity (reference) 6.5 L (6.9 qt., 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

741 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)

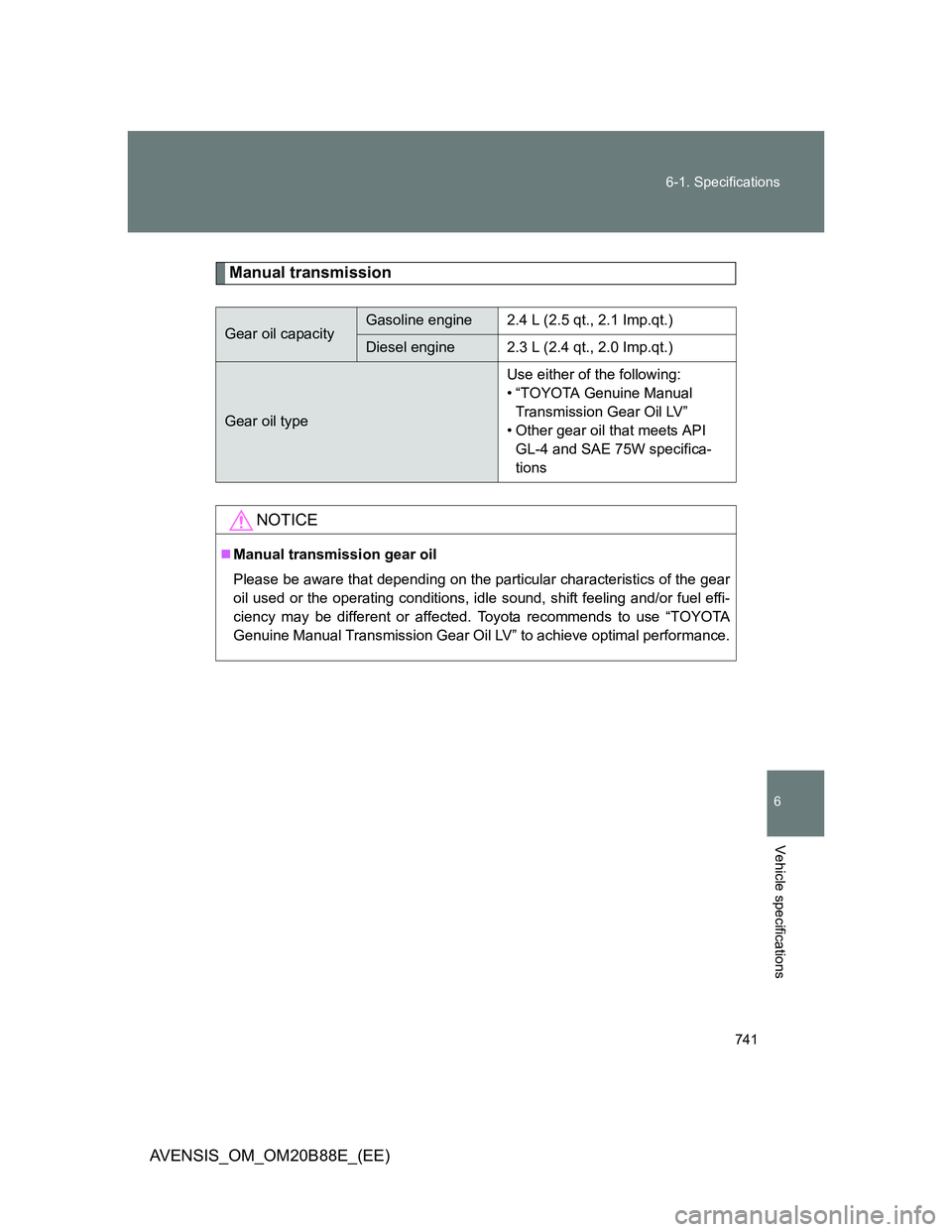

Manual transmission
Gear oil capacityGasoline engine2.4 L (2.5 qt., 2.1 Imp.qt.)
Diesel engine2.3 L (2.4 qt., 2.0 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API
GL-4 and SAE 75W specifica-
tions
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

742 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)
Clutch
Brakes
*: Minimum pedal clearance when depressed with a force of 490 N (50 kgf, 110
lbf) while the engine is running
Steering
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Pedal clearance*
Left-hand drive vehicles
Right-hand drive vehicles59 mm (2.32 in.) Min.
58 mm (2.28 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.18 in.)

743 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)

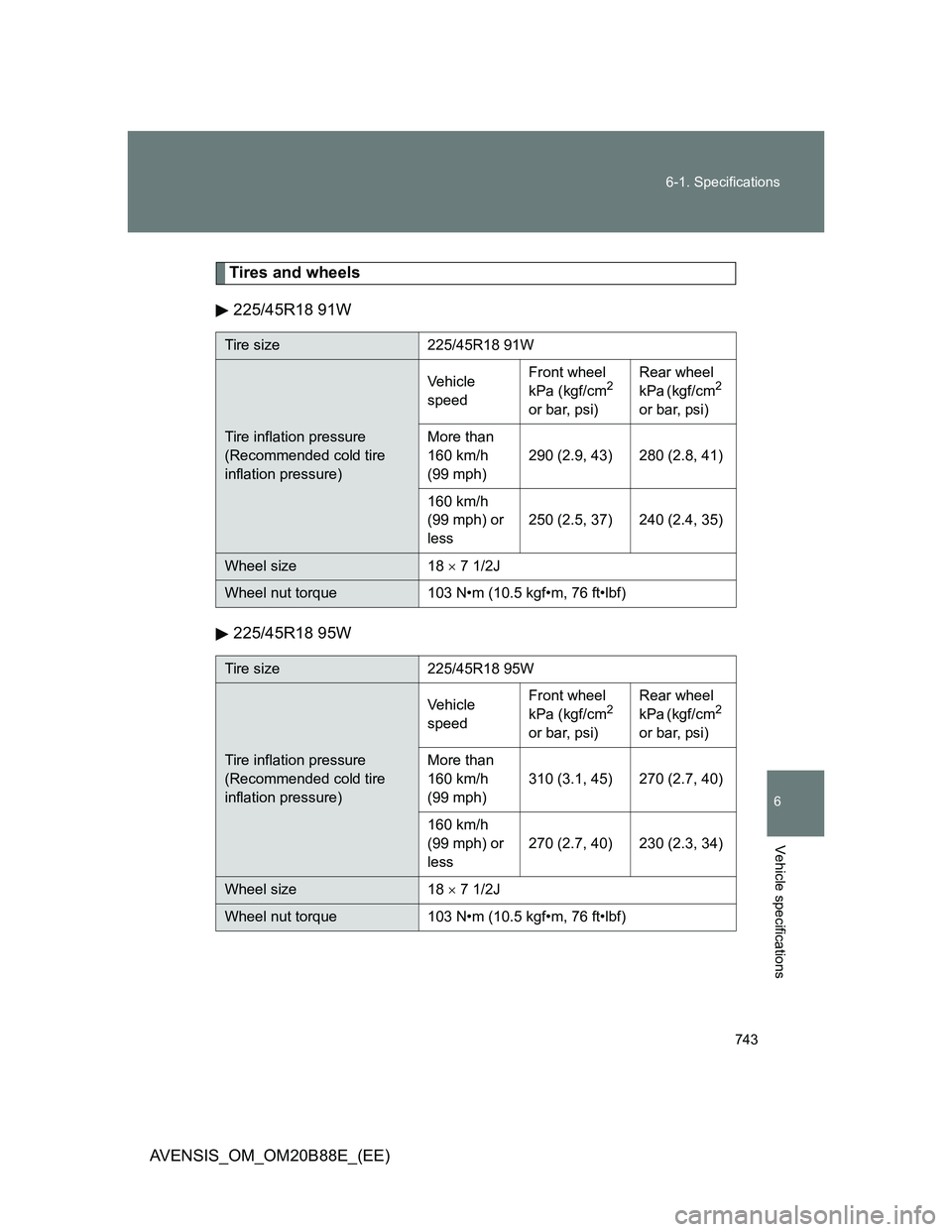

Tires and wheels
225/45R18 91W
225/45R18 95W
Tire size 225/45R18 91W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)290 (2.9, 43) 280 (2.8, 41)
160 km/h
(99 mph) or
less250 (2.5, 37) 240 (2.4, 35)
Wheel size 18  7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)310 (3.1, 45) 270 (2.7, 40)
160 km/h
(99 mph) or
less270 (2.7, 40) 230 (2.3, 34)
Wheel size 18  7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

744 6-1. Specifications

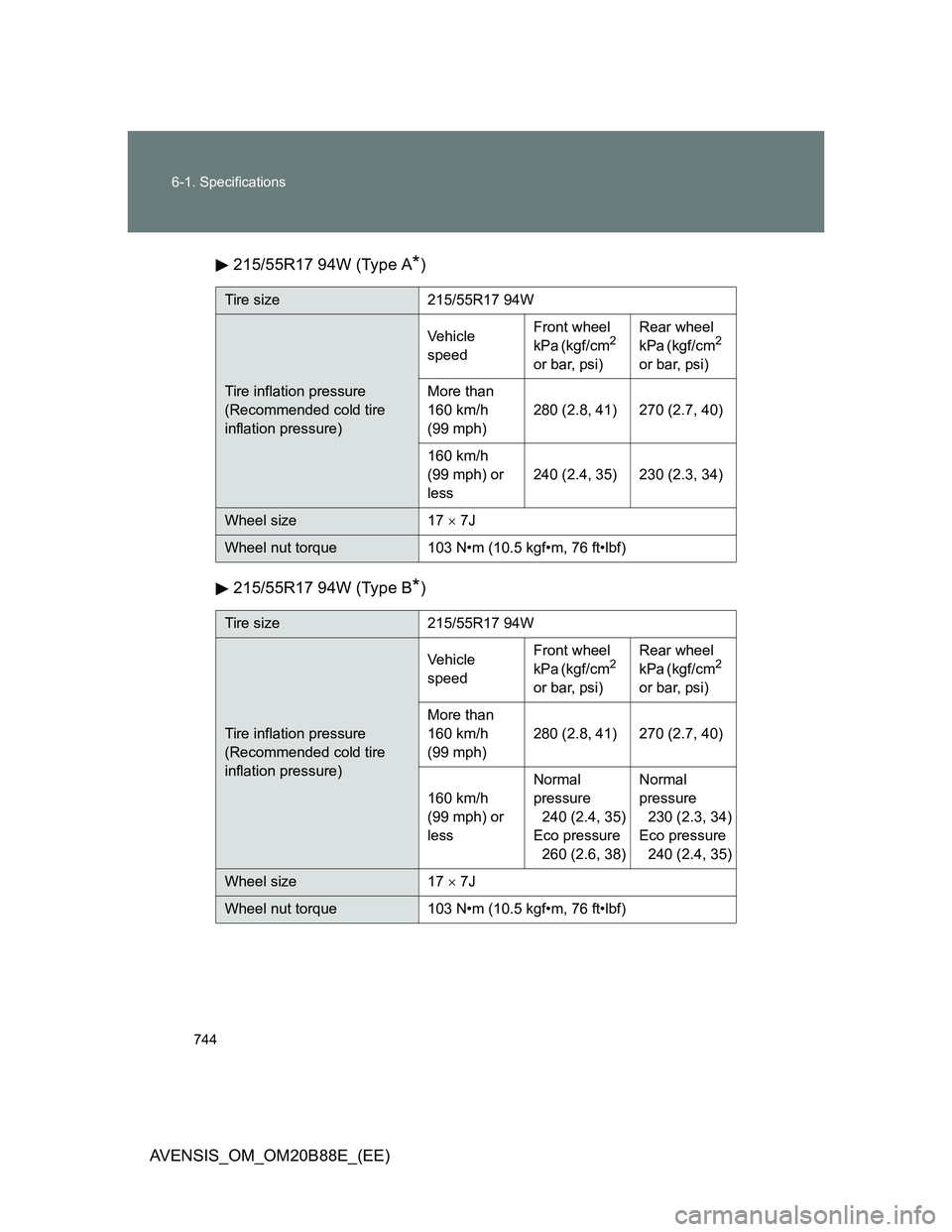

AVENSIS_OM_OM20B88E_(EE)215/55R17 94W (Type A
*)
215/55R17 94W (Type B
*)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 270 (2.7, 40)
160 km/h
(99 mph) or
less240 (2.4, 35) 230 (2.3, 34)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 270 (2.7, 40)
160 km/h
(99 mph) or
lessNormal
pressure
240 (2.4, 35)
Eco pressure
260 (2.6, 38)Normal
pressure
230 (2.3, 34)
Eco pressure
240 (2.4, 35)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
