2014 TOYOTA AVENSIS Owners Manual (in English)

753
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)

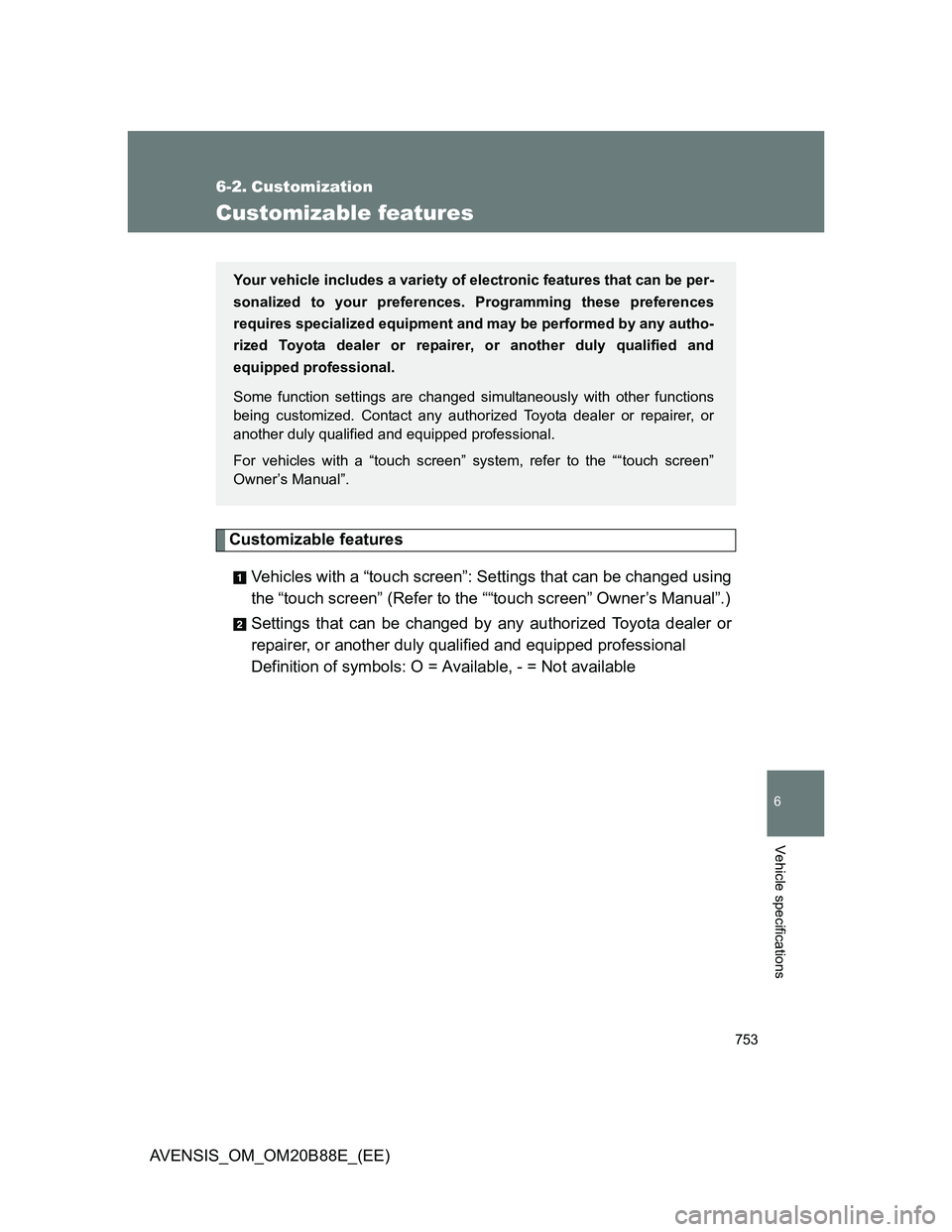

6-2. Customization
Customizable features
Customizable features
Vehicles with a “touch screen”: Settings that can be changed using
the “touch screen” (Refer to the ““touch screen” Owner’s Manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, - = Not available
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
For vehicles with a “touch screen” system, refer to the ““touch screen”
Owner’s Manual”.

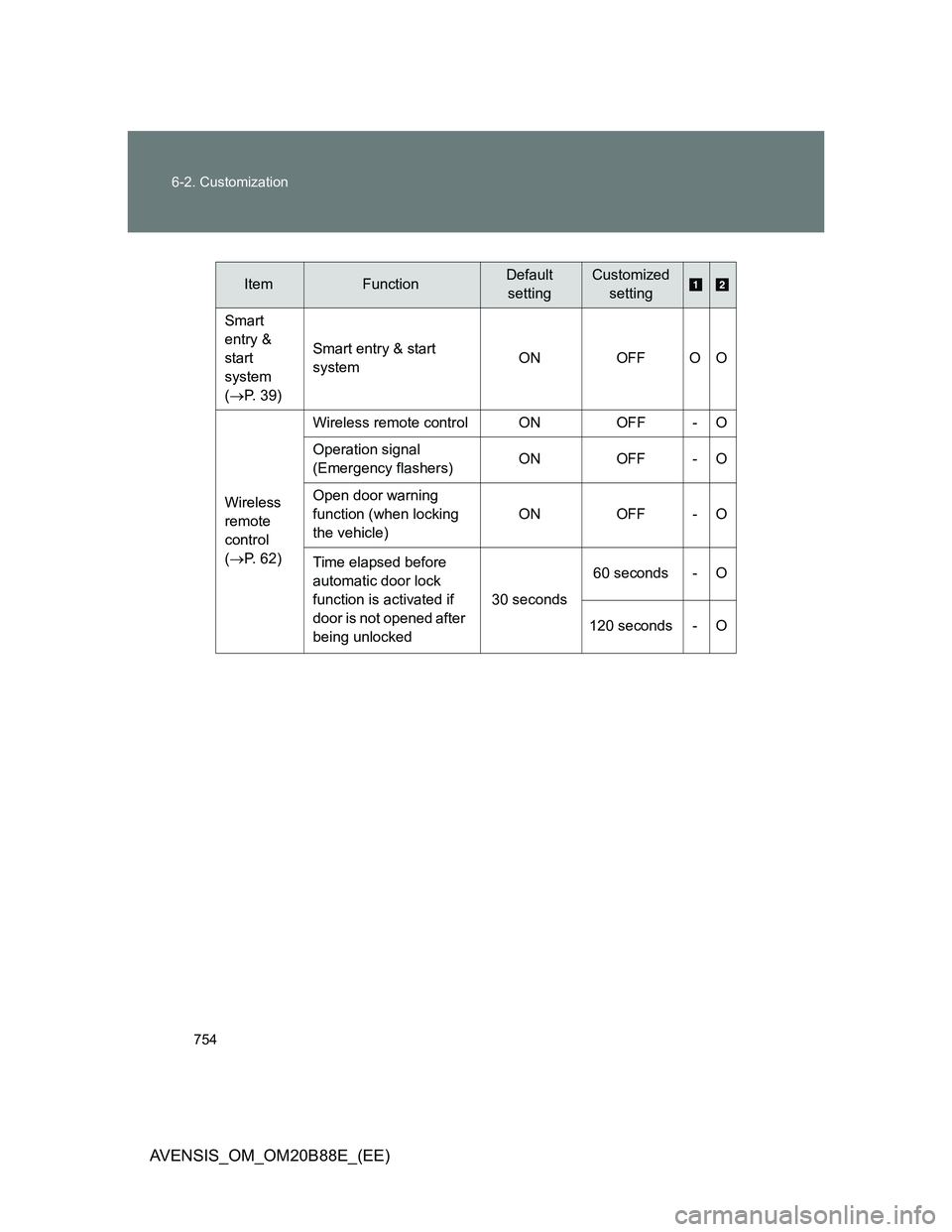

754 6-2. Customization
AVENSIS_OM_OM20B88E_(EE)
ItemFunctionDefault
settingCustomized
setting
Smart
entry &
start
system
(P. 39)Smart entry & start
systemON OFF O O
Wireless
remote
control
(P. 62)Wireless remote control ON OFF - O
Operation signal
(Emergency flashers)ON OFF - O
Open door warning
function (when locking
the vehicle)ON OFF - O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds - O
120 seconds - O

755 6-2. Customization
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
*1: Vehicles with a Multidrive or automatic transmission
*2: If equipped Door lock
(P. 76)Speed-detecting auto-
matic door lock functionON OFF O O
Opening driver’s door
unlocks all doorsON OFF - O
Shifting the shift lever to
“P” unlocks all doors
*1OFF ON O O
Shifting the shift lever to
position other than “P”
locks all doors
*1OFF ON O O
Auto-
matic light
control
system
(P. 252)Light sensor sensitivity Level 3 Level 1 to 5 O O
Time elapsed before
headlights automati-
cally turn off
*230 seconds60 seconds
-O 90 seconds
120 seconds
Illumina-
tion
(P. 470)Time period before
lights turn off15 seconds7.5 seconds
-O
30 seconds
Operation after the
“ENGINE START
STOP” switch (vehicles
with smart entry & start
system) or engine
switch (vehicles with-
out smart entry & start
system) turned OFFON OFF - O
ItemFunctionDefault
settingCustomized
setting

756 6-2. Customization
AVENSIS_OM_OM20B88E_(EE)
ItemFunctionDefault
settingCustomized
setting
Illumina-
tion
(P. 470)Operation when the
doors are unlockedON OFF - O
Operation when you
approach the vehicle
with the electronic key
on your person (When
the interior light switch
is in the door position)ON OFF - O
Foot lights ON OFF - O
Foot lights operation
when the vehicle is
runningON OFF - O
Multi-
information
display
(P. 239)Eco Driving Indicator
Zone Display on/off ON OFF - O

757 6-2. Customization
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)

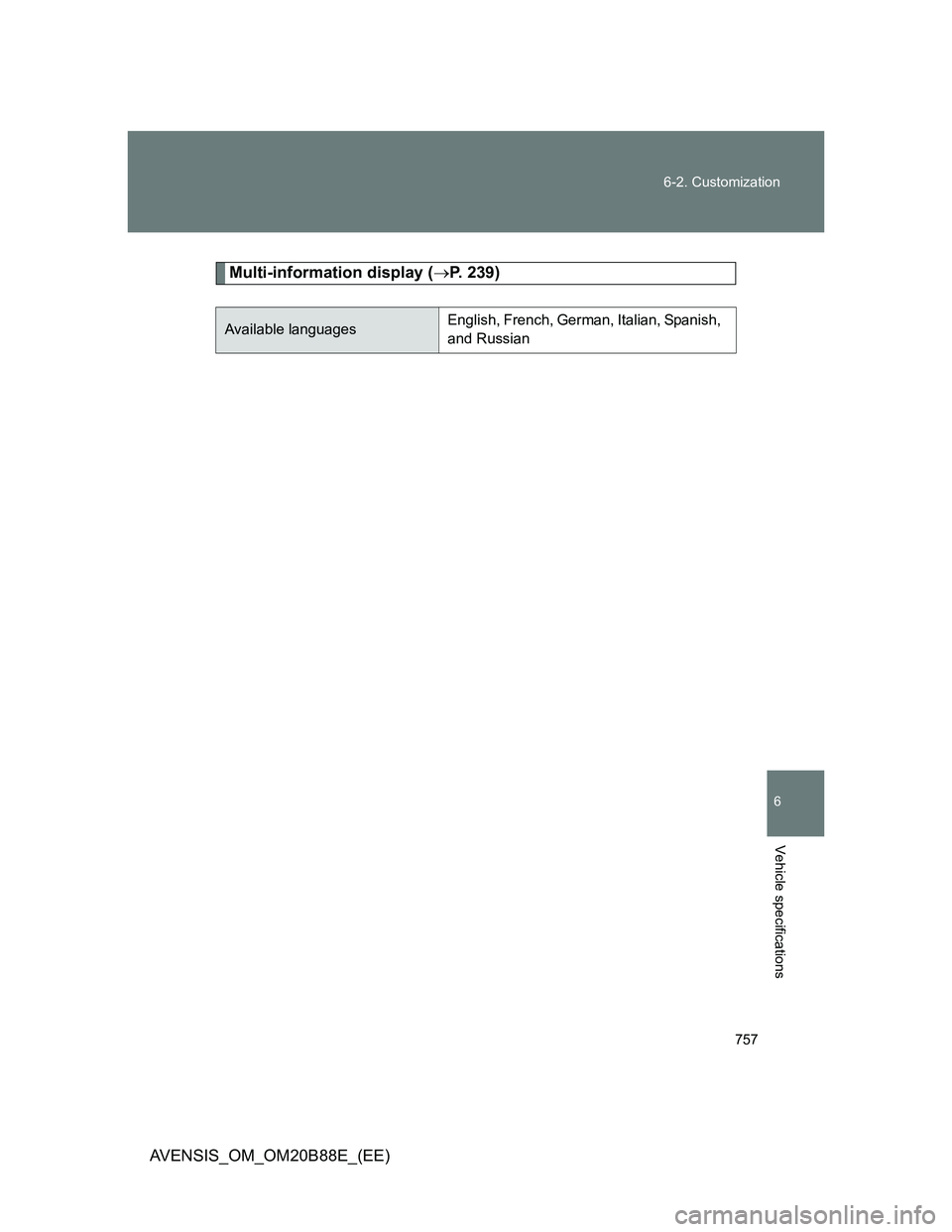

Multi-information display (P. 239)
Available languagesEnglish, French, German, Italian, Spanish,
and Russian

758
AVENSIS_OM_OM20B88E_(EE)

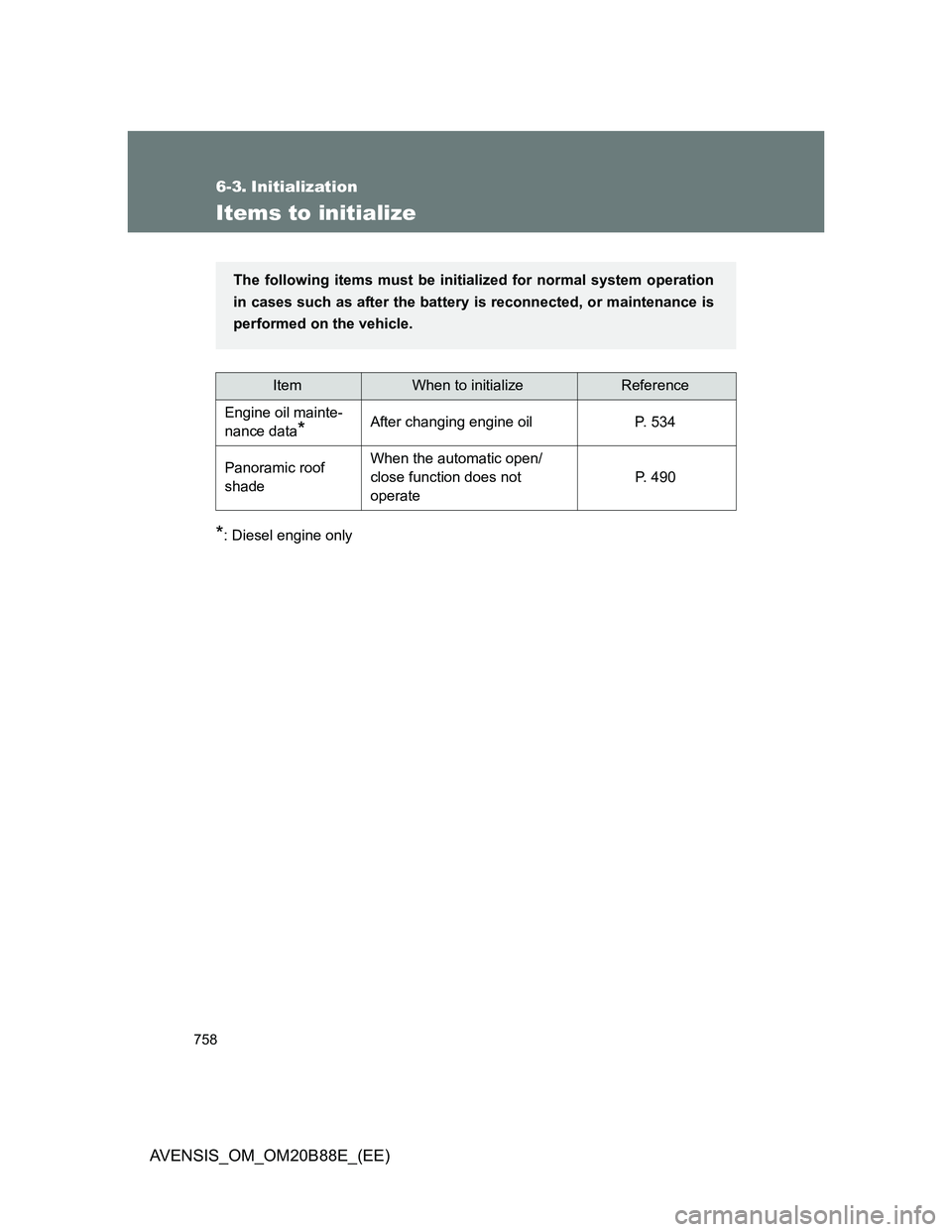

6-3. Initialization
Items to initialize
*: Diesel engine only
ItemWhen to initializeReference
Engine oil mainte-
nance data
*After changing engine oil P. 534
Panoramic roof
shadeWhen the automatic open/
close function does not
operateP. 490
The following items must be initialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

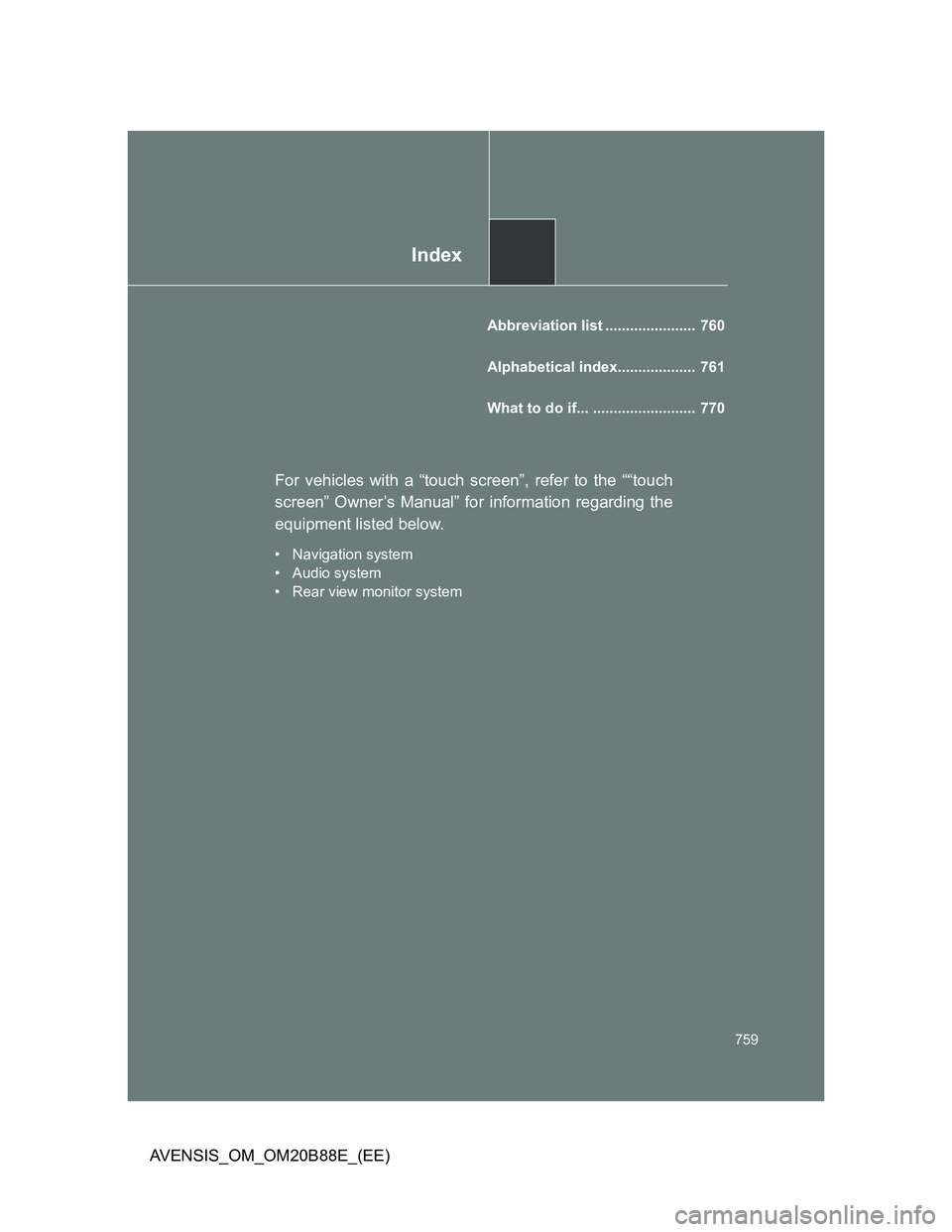

Index
759
AVENSIS_OM_OM20B88E_(EE)
Abbreviation list ...................... 760
Alphabetical index................... 761
What to do if... ......................... 770
For vehicles with a “touch screen”, refer to the ““touch
screen” Owner’s Manual” for information regarding the
equipment listed below.
• Navigation system
• Audio system
• Rear view monitor system

760
AVENSIS_OM_OM20B88E_(EE)

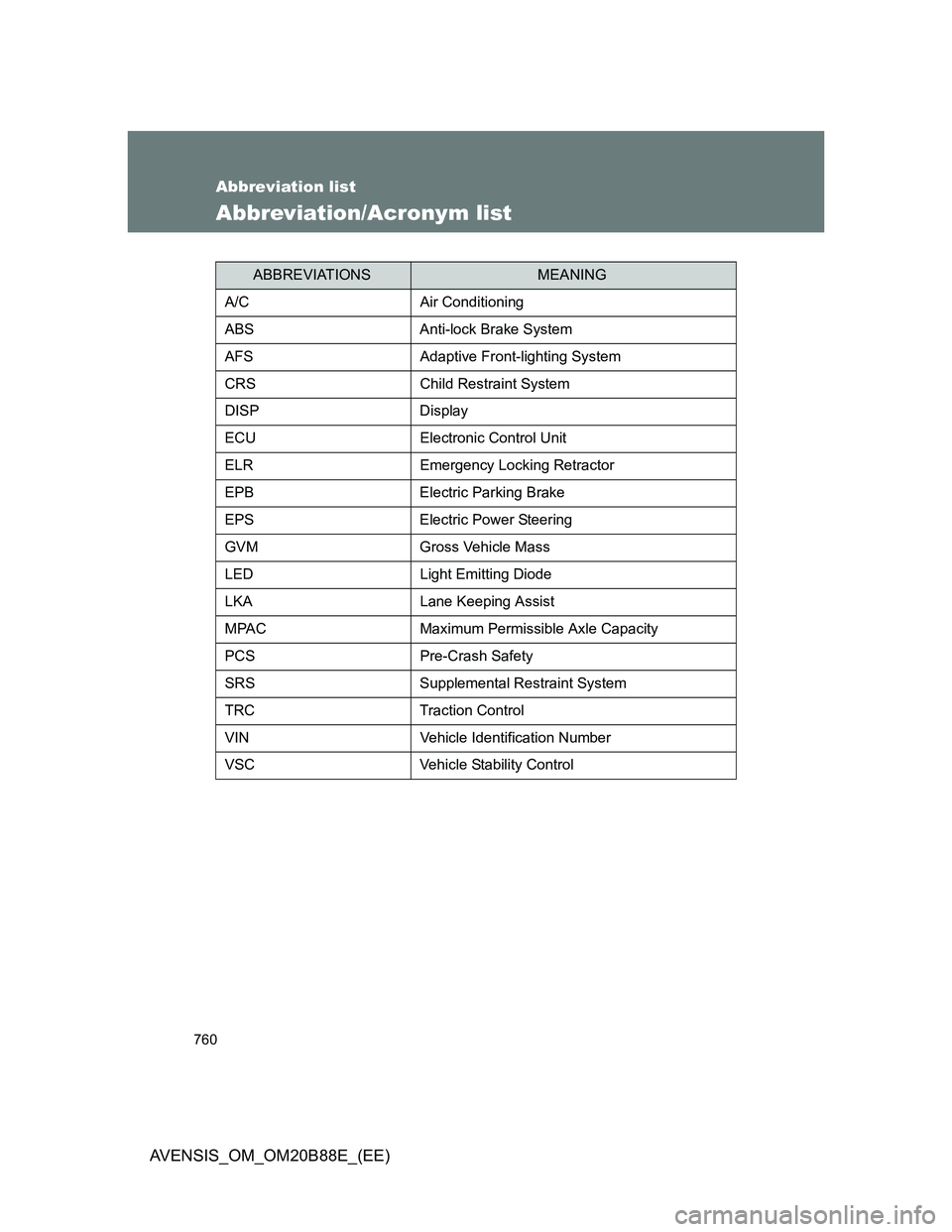

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/C Air Conditioning
ABS Anti-lock Brake System
AFS Adaptive Front-lighting System
CRS Child Restraint System
DISP Display
ECU Electronic Control Unit
ELR Emergency Locking Retractor
EPB Electric Parking Brake
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
LKA Lane Keeping Assist
MPAC Maximum Permissible Axle Capacity
PCS Pre-Crash Safety
SRS Supplemental Restraint System
TRC Traction Control
VIN Vehicle Identification Number
VSC Vehicle Stability Control
