2014 TOYOTA AVENSIS Owners Manual (in English)

441
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

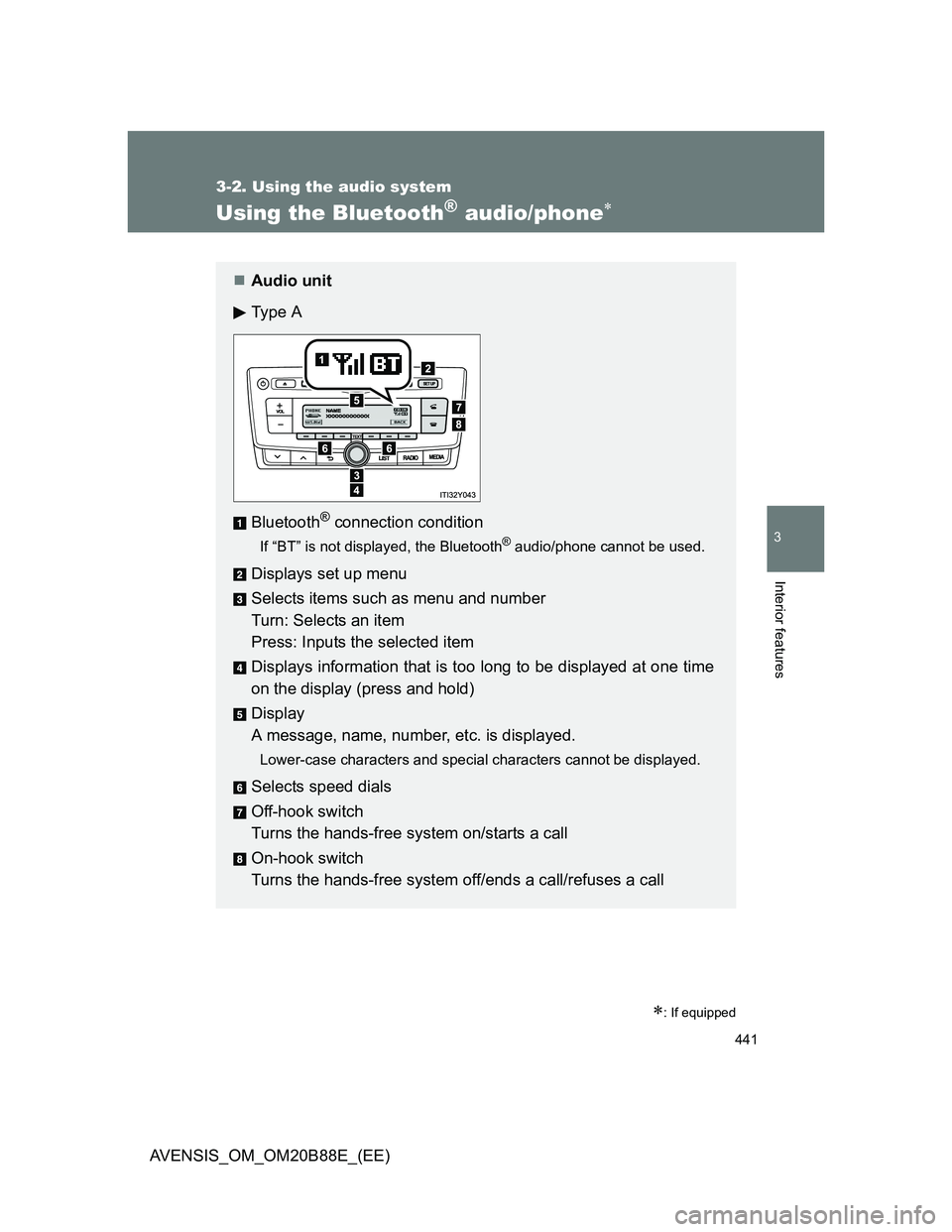

Using the Bluetooth® audio/phone
: If equipped
Audio unit
Ty p e A
Bluetooth
® connection condition
If “BT” is not displayed, the Bluetooth® audio/phone cannot be used.
Displays set up menu
Selects items such as menu and number
Turn: Selects an item
Press: Inputs the selected item
Displays information that is too long to be displayed at one time
on the display (press and hold)
Display
A message, name, number, etc. is displayed.
Lower-case characters and special characters cannot be displayed.
Selects speed dials
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call

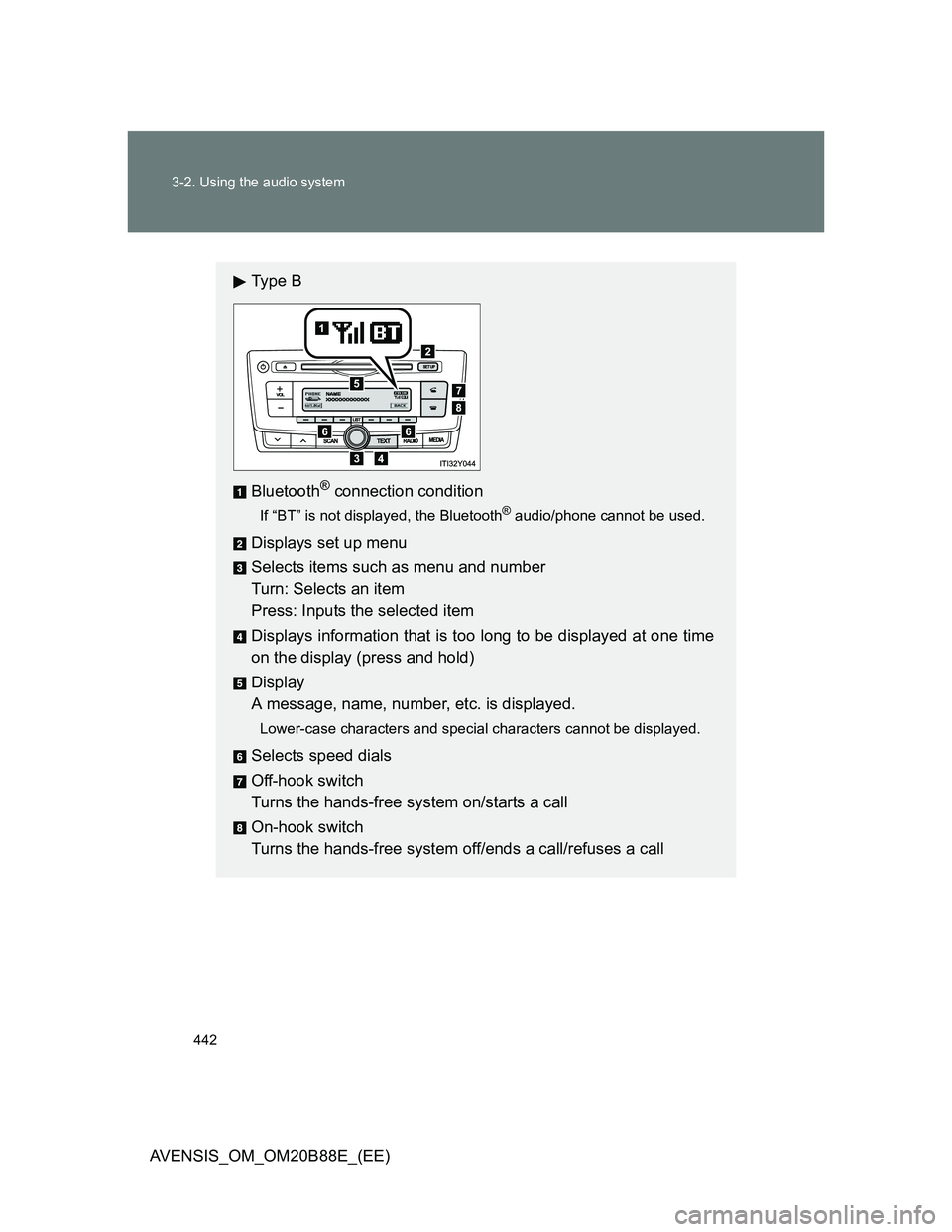

442 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Ty p e B
Bluetooth
® connection condition
If “BT” is not displayed, the Bluetooth® audio/phone cannot be used.
Displays set up menu
Selects items such as menu and number
Turn: Selects an item
Press: Inputs the selected item
Displays information that is too long to be displayed at one time
on the display (press and hold)
Display
A message, name, number, etc. is displayed.
Lower-case characters and special characters cannot be displayed.
Selects speed dials
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call

443 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

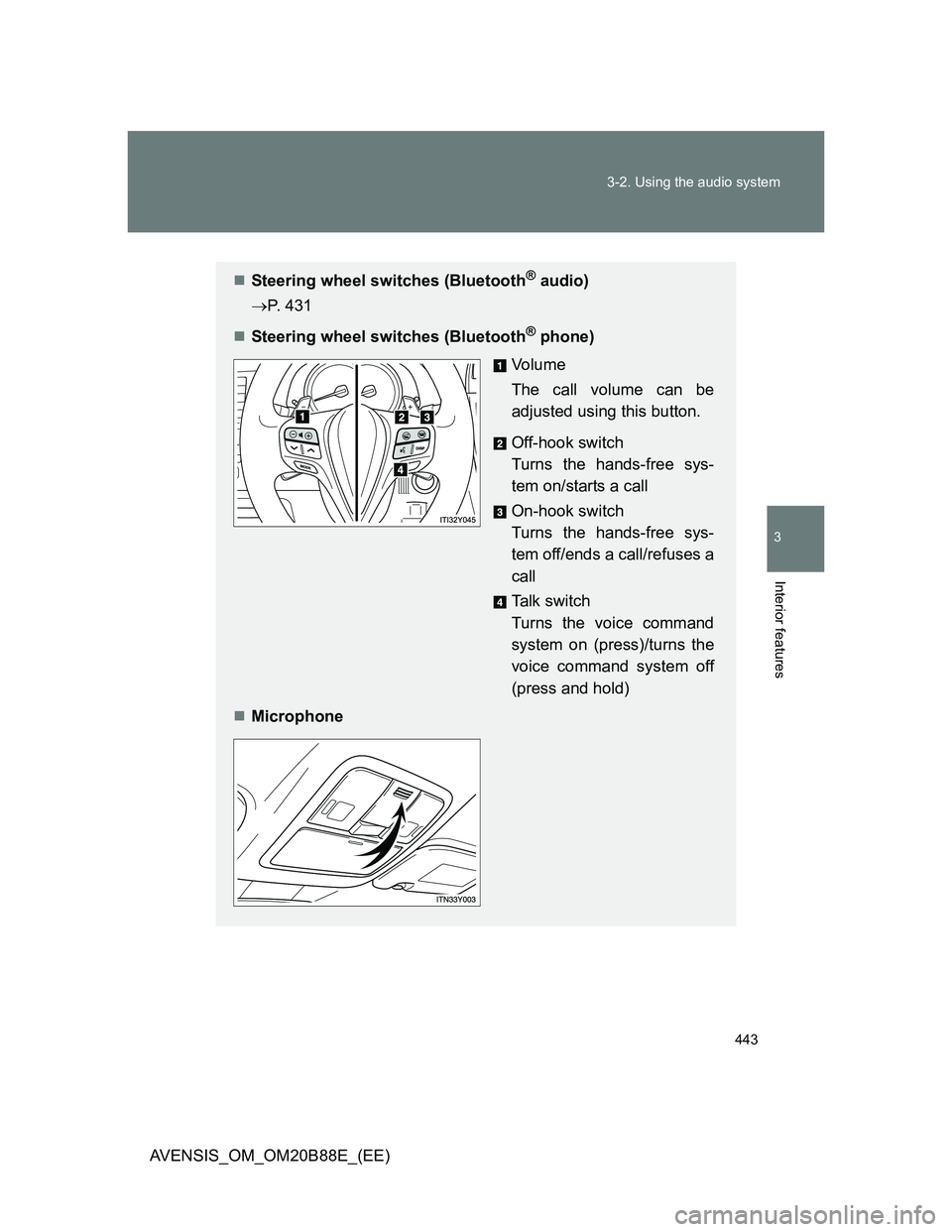

Steering wheel switches (Bluetooth® audio)
P. 431
Steering wheel switches (Bluetooth
® phone)
Vo l u m e
The call volume can be
adjusted using this button.
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
Microphone

444 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Using the Bluetooth® audio/phone for the first time
Before using the Bluetooth
® audio/phone, it is necessary to register a
Bluetooth® device in the system. Follow the procedure below to reg-
ister (pair) a device:
Press and select “Bluetooth” using .
Press and select “Pairing” using .
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
®
devices: Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch, talk switch or is pressed and the “TEL”
mode is entered when no phones have been registered, the registra-
tion screen will be automatically displayed.
STEP1
STEP2
STEP3

445 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”“Pairing” -Registering a
Bluetooth
® device
“List Phone” -Listing the registered
cellular phones
“List Audio” -Listing the registered
portable players
“Passkey” -Changing the pass-
key
“BT Power” -Setting automatic
connection of the
device on or off
“Bluetooth info”“Device Name”
“Device Address”Displaying the device
status
“Display setting” -Setting the automatic
connection confirma-
tion display to on or
off
“Initialize” -Initializing the set-
tings

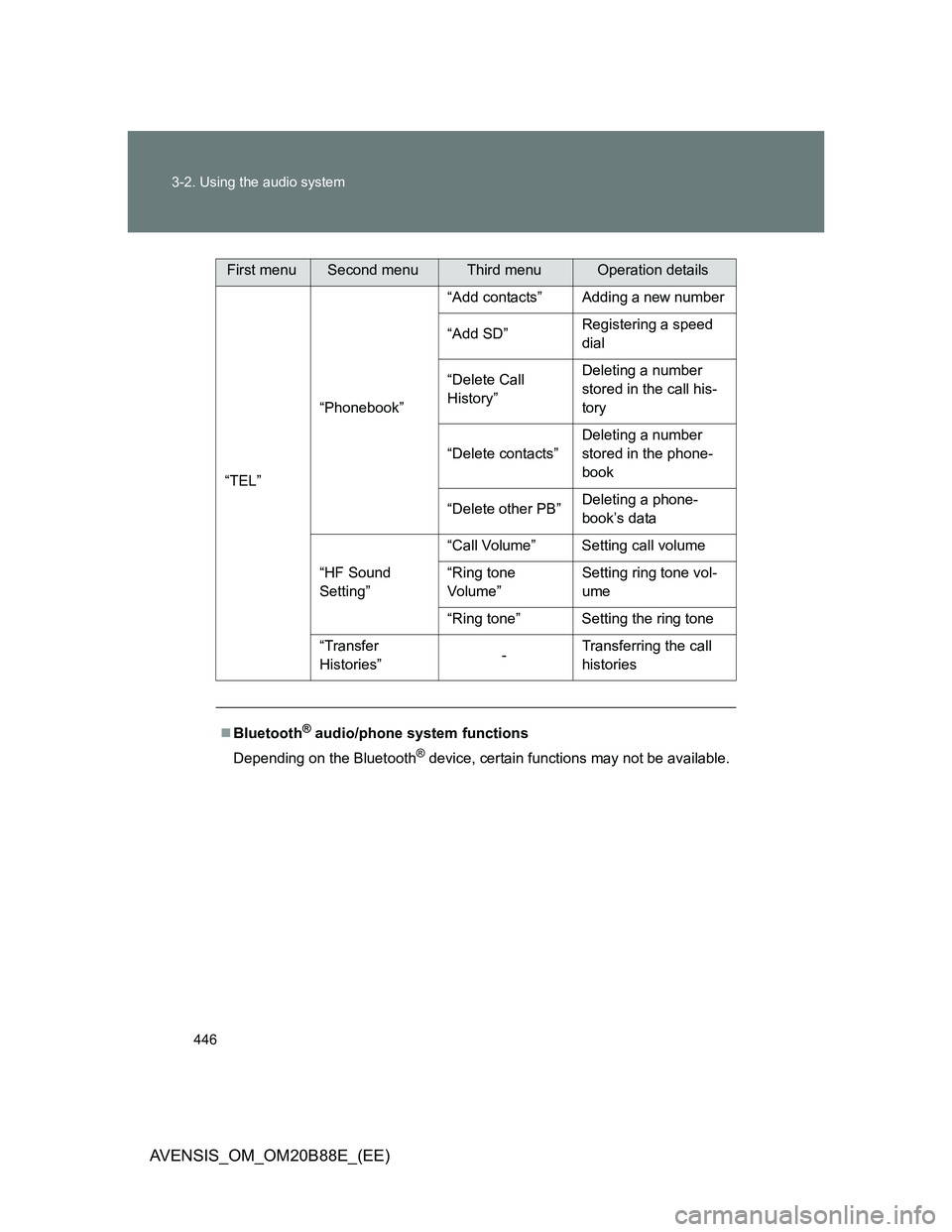

446 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
“TEL”“Phonebook”“Add contacts” Adding a new number
“Add SD”Registering a speed
dial
“Delete Call
History”Deleting a number
stored in the call his-
tory
“Delete contacts”Deleting a number
stored in the phone-
book
“Delete other PB”Deleting a phone-
book’s data
“HF Sound
Setting”“Call Volume” Setting call volume
“Ring tone
Vo l u me ”Setting ring tone vol-
ume
“Ring tone” Setting the ring tone
“Transfer
Histories”-Transferring the call
histories
Bluetooth
® audio/phone system functions
Depending on the Bluetooth
® device, certain functions may not be available.
First menuSecond menuThird menuOperation details

447
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Operating a Bluetooth® enabled portable player
: If equipped
Ty p e A
Power
Vo lu m e
Back buttonPlayback/pauseRepeat play
Random playback
Playback
Selecting a track,
fast-forwarding or
reversingSelecting a track or
displays text message

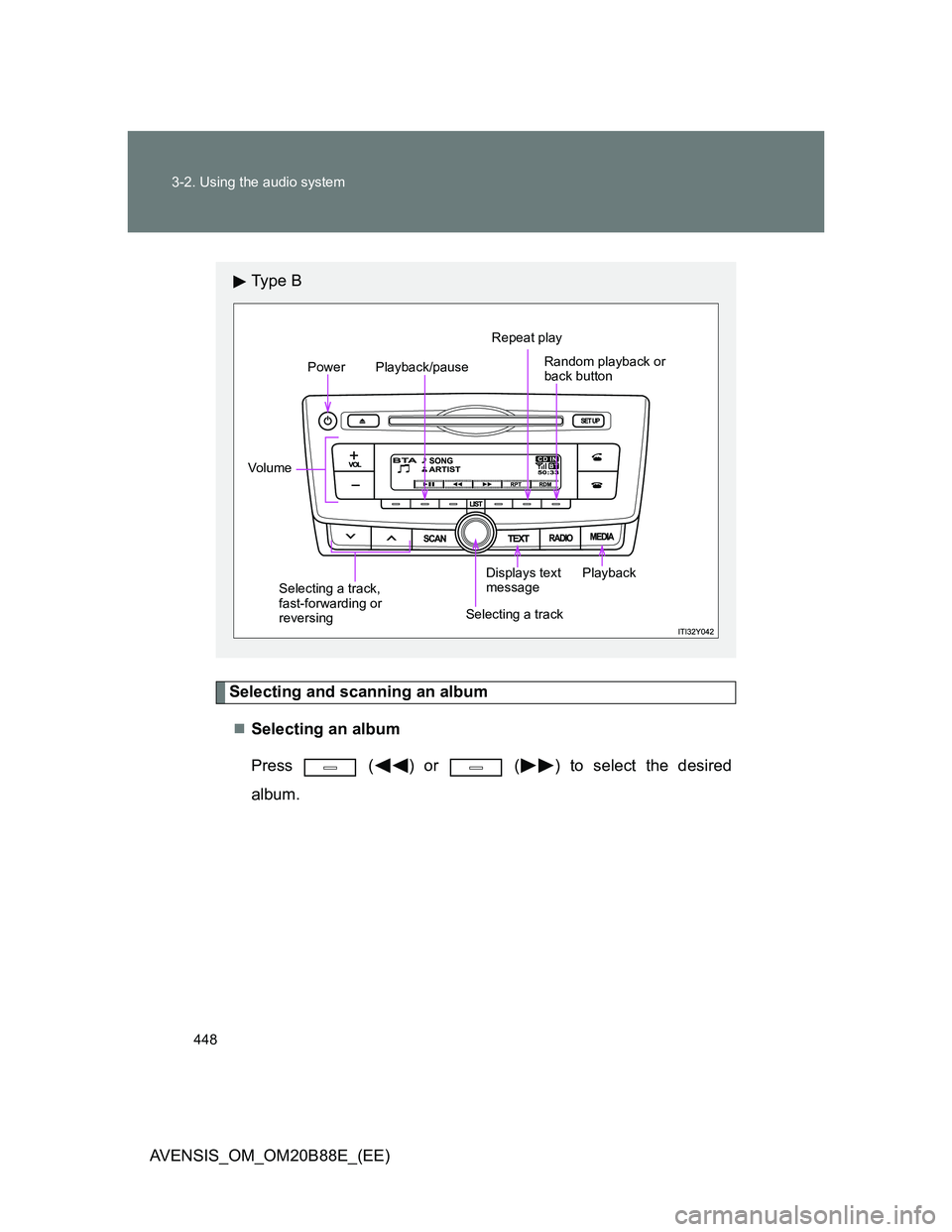

448 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Selecting and scanning an album
Selecting an album
Press ( ) or ( ) to select the desired
album.
Ty p e B
Power
Vo lu m ePlayback/pauseRepeat play
Random playback or
back button
Playback
Selecting a track,
fast-forwarding or
reversingSelecting a trackDisplays text
message
