2001 NISSAN PICK-UP Repair Manual

Function and System Application
Diagnostic test
modeFunction ENGINE A/T ABS AIR BAG
Work supportThis mode enables a technician to
adjust some devices faster and more
accurate by following the indications
on CONSULT-II.xxÐÐ
Self-diagnostic
resultsSelf-diagnostic results can be read
and erased quickly.xxxx
Trouble diagnos-
tic recordCurrent self-diagnostic results and all
trouble diagnostic records previously
stored can be read.ÐÐÐ x
ECU discrimi-
nated No.Classification number of a replace-
ment ECU can be read to prevent an
incorrect ECU from being installed.ÐÐÐ x
Data monitorInput/Output data in the ECU (ECM)
can be read.xxxÐ
DTC work sup-
portThis mode enables a technician to
set operating conditions to confirm
self-diagnosis status/results.ÐxÐÐ
Active testDiagnostic Test Mode in which CON-
SULT-II drives some actuators apart
from the ECMs and also shifts some
parameters in a specified range.xÐxÐ
ECU (ECM) part
numberECU (ECM) part number can be
read.xxxÐ
x: Applicable
Nickel Metal Hydride Battery Replacement
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard
if mistreated. Do not recharge, disassemble of dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regula-
tions.

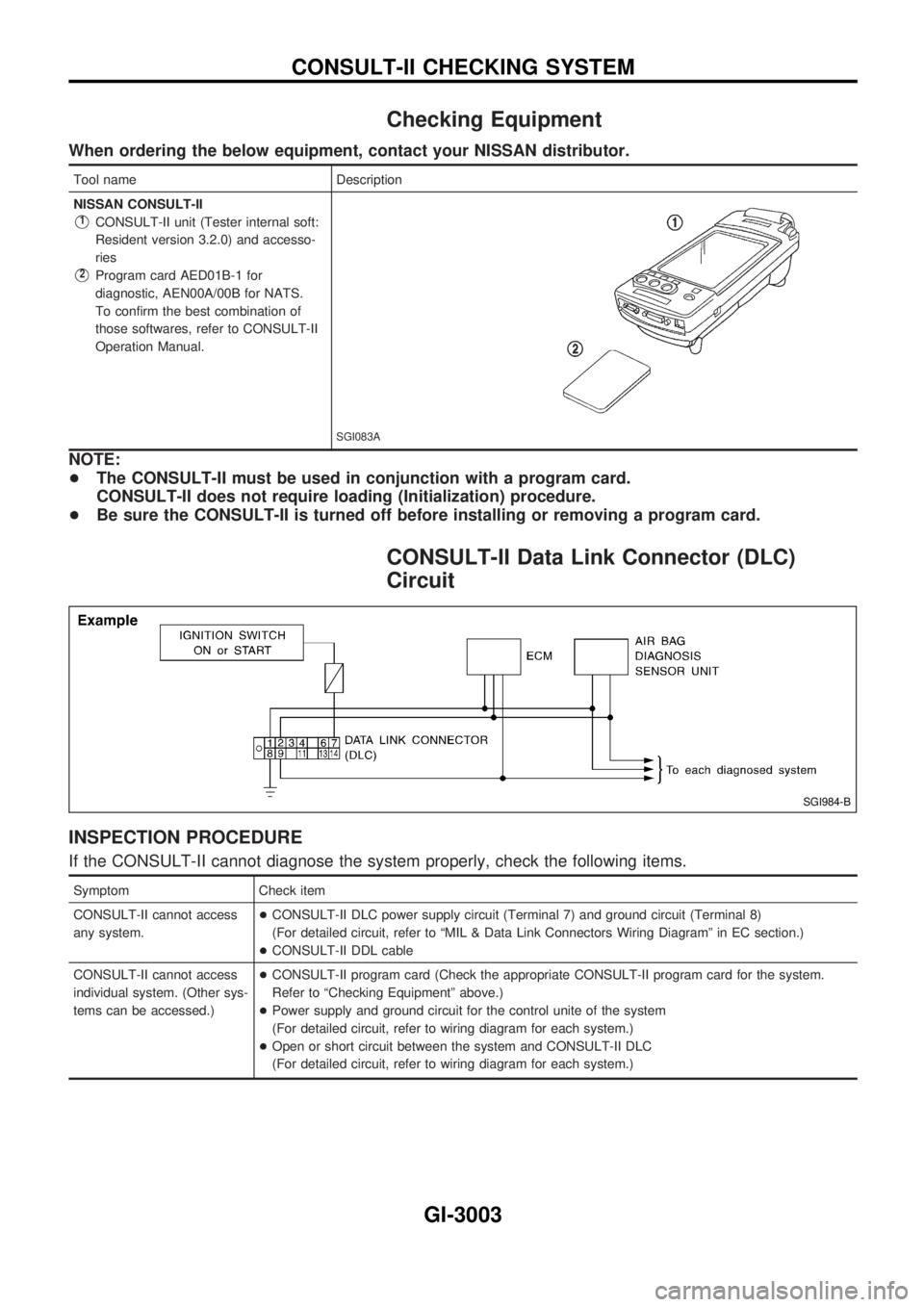

CONSULT-II CHECKING SYSTEM
GI-3002

Checking Equipment
When ordering the below equipment, contact your NISSAN distributor.
Tool name Description
NISSAN CONSULT-II
V1CONSULT-II unit (Tester internal soft:
Resident version 3.2.0) and accesso-
ries
V2Program card AED01B-1 for
diagnostic, AEN00A/00B for NATS.
To confirm the best combination of
those softwares, refer to CONSULT-II
Operation Manual.
SGI083A
NOTE:
+The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
+Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Data Link Connector (DLC)
Circuit
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
Symptom Check item
CONSULT-II cannot access
any system.+CONSULT-II DLC power supply circuit (Terminal 7) and ground circuit (Terminal 8)
(For detailed circuit, refer to ªMIL & Data Link Connectors Wiring Diagramº in EC section.)
+CONSULT-II DDL cable
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)+CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to ªChecking Equipmentº above.)
+Power supply and ground circuit for the control unite of the system
(For detailed circuit, refer to wiring diagram for each system.)
+Open or short circuit between the system and CONSULT-II DLC
(For detailed circuit, refer to wiring diagram for each system.)
SGI984-B
CONSULT-II CHECKING SYSTEM
GI-3003

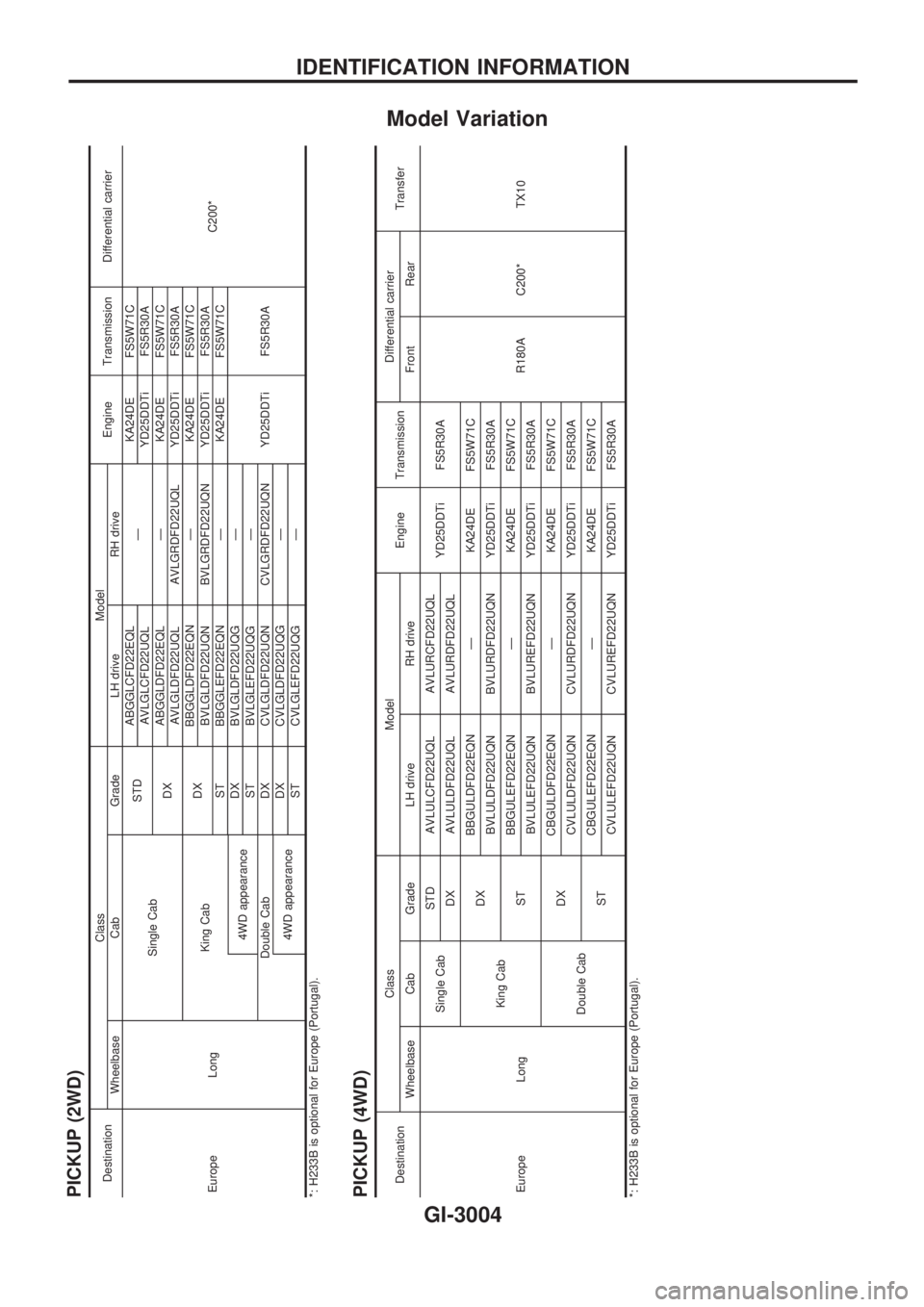

Model Variation
PICKUP (2WD)DestinationClass Model
Engine Transmission Differential carrier
Wheelbase Cab Grade LH drive RH drive
Europe Long Single Cab
STD
ABGGLCFD22EQL
ÐKA24DE FS5W71C
C200*
AVLGLCFD22UQL YD25DDTi FS5R30A
DX ABGGLDFD22EQL Ð KA24DE FS5W71C
AVLGLDFD22UQL AVLGRDFD22UQL YD25DDTi FS5R30A
King Cab DXBBGGLDFD22EQN Ð KA24DE FS5W71C
BVLGLDFD22UQN BVLGRDFD22UQN YD25DDTi FS5R30A
ST BBGGLEFD22EQN Ð KA24DE FS5W71C
4WD appearance DX BVLGLDFD22UQG Ð
YD25DDTi FS5R30A
ST BVLGLEFD22UQG Ð
Double Cab DX CVLGLDFD22UQN CVLGRDFD22UQN
4WD appearance DX CVLGLDFD22UQG Ð
ST CVLGLEFD22UQG Ð*: H233B is optional for Europe (Portugal).PICKUP (4WD)Destination Class Model
Engine TransmissionDifferential carrier
Transfer
Wheelbase Cab Grade LH drive RH drive Front Rear
Europe Long Single Cab
STD AVLULCFD22UQL AVLURCFD22UQL
YD25DDTi FS5R30A
R180A C200*TX10
DX AVLULDFD22UQL AVLURDFD22UQL
King Cab DX
BBGULDFD22EQN Ð KA24DE FS5W71C
BVLULDFD22UQN BVLURDFD22UQN YD25DDTi FS5R30A
ST BBGULEFD22EQN Ð KA24DE FS5W71C
BVLULEFD22UQN BVLUREFD22UQN YD25DDTi FS5R30A
Double Cab DX
CBGULDFD22EQN Ð KA24DE FS5W71C
CVLULDFD22UQN CVLURDFD22UQN YD25DDTi FS5R30A
ST CBGULEFD22EQN Ð KA24DE FS5W71C
CVLULEFD22UQN CVLUREFD22UQN YD25DDTi FS5R30A*: H233B is optional for Europe (Portugal).
IDENTIFICATION INFORMATION
GI-3004

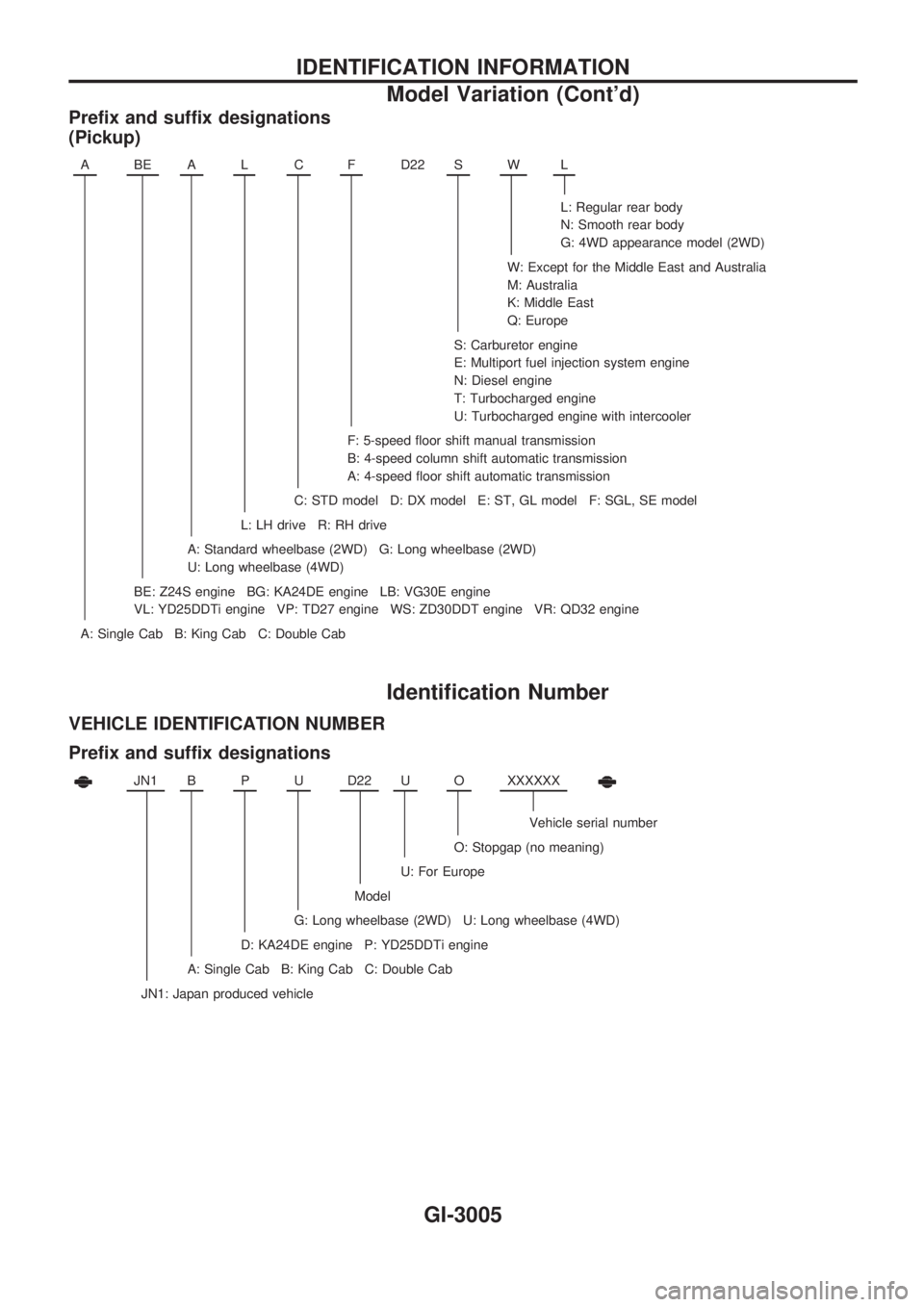

Prefix and suffix designations
(Pickup)
ABEALCFD22 SWL
L: Regular rear body
N: Smooth rear body
G: 4WD appearance model (2WD)
W: Except for the Middle East and Australia
M: Australia
K: Middle East
Q: Europe
S: Carburetor engine
E: Multiport fuel injection system engine
N: Diesel engine
T: Turbocharged engine
U: Turbocharged engine with intercooler
F: 5-speed floor shift manual transmission
B: 4-speed column shift automatic transmission
A: 4-speed floor shift automatic transmission
C: STD model D: DX model E: ST, GL model F: SGL, SE model
L: LH drive R: RH drive
A: Standard wheelbase (2WD) G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
BE: Z24S engine BG: KA24DE engine LB: VG30E engine
VL: YD25DDTi engine VP: TD27 engine WS: ZD30DDT engine VR: QD32 engine
A: Single Cab B: King Cab C: Double Cab
Identification Number
VEHICLE IDENTIFICATION NUMBER
Prefix and suffix designations
JN1BPUD22UOXXXXXX
Vehicle serial number
O: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
D: KA24DE engine P: YD25DDTi engine
A: Single Cab B: King Cab C: Double Cab
JN1: Japan produced vehicle
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-3005

ENGINE SERIAL NUMBER
SGI182A
IDENTIFICATION INFORMATION
Identification Number (Cont'd)
GI-3006

Wheels and Tires
PICKUP (2WD)
Tire Wheel2-wheel drive model
Europe
Single cab King cab Double cab
195R14C-8PR 5J-14 X X X
195R15C-8PR 5-1/2K-15 X X X
255/70R16 7JJ-16 Ð X*3 X*3
265/70R16LT 7JJ-16 Ð X*3 X*3
X: Applicable
Ð: Not applicable
PICKUP (4WD)
Tire Wheel4-wheel drive model
Europe
205R16C-8PR 6J-16 X
255/70R16 7JJ-16 X
265/70R16LT 7JJ-16 X
X: Applicable
Ð: Not applicable
Dimensions
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single cab King cab Double cab Single cab King cab Double cab
Overall length*1 mm (in)5,010 (197.2)
5,170 (203.5)*15,035 (198.2)
5,170 (203.5)*14,945 (194.7)
5,080 (200.0)*15,010 (197.2)
5,170 (203.5)*15,035 (198.2)
5,170 (203.5)*14,945 (194.7)
5,080 (200.0)*1
Overall width mm (in) 1,690 (66.5)1,690 (66.5)
1,825 (71.9)*21,690 (66.5)
1,825 (71.9)*21,825 (71.9) 1,825 (71.9) 1,825 (71.9)
Overall height mm (in) 1,610 (63.4)1,610 (63.4)
1,695 (66.7)*21,620 (63.8)
1,705 (67.1)*21,700 (66.9) 1,700 (66.9)*31,715 (67.5)
1,720 (67.7)*3
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9)1,395 (54.9)
1,525 (60.0)*21,395 (54.9)
1,525 (60.0)*21,525 (60.0) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7)1,390 (54.7)
1,505 (59.3)*21,390 (54.7)
1,505 (59.3)*21,505 (59.3) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 180 (7.1)180 (7.1)
220 (8.7)*2180 (7.1)
220 (8.7)*2215 (8.5) 220 (8.7) 220 (8.7)
*1: On step bumper equipped models
*2: 4WD appearance models
*3: With optional 255/70R16 tires
