2001 NISSAN PICK-UP Repair Manual

Alphabetical & Numerical Index for DTC

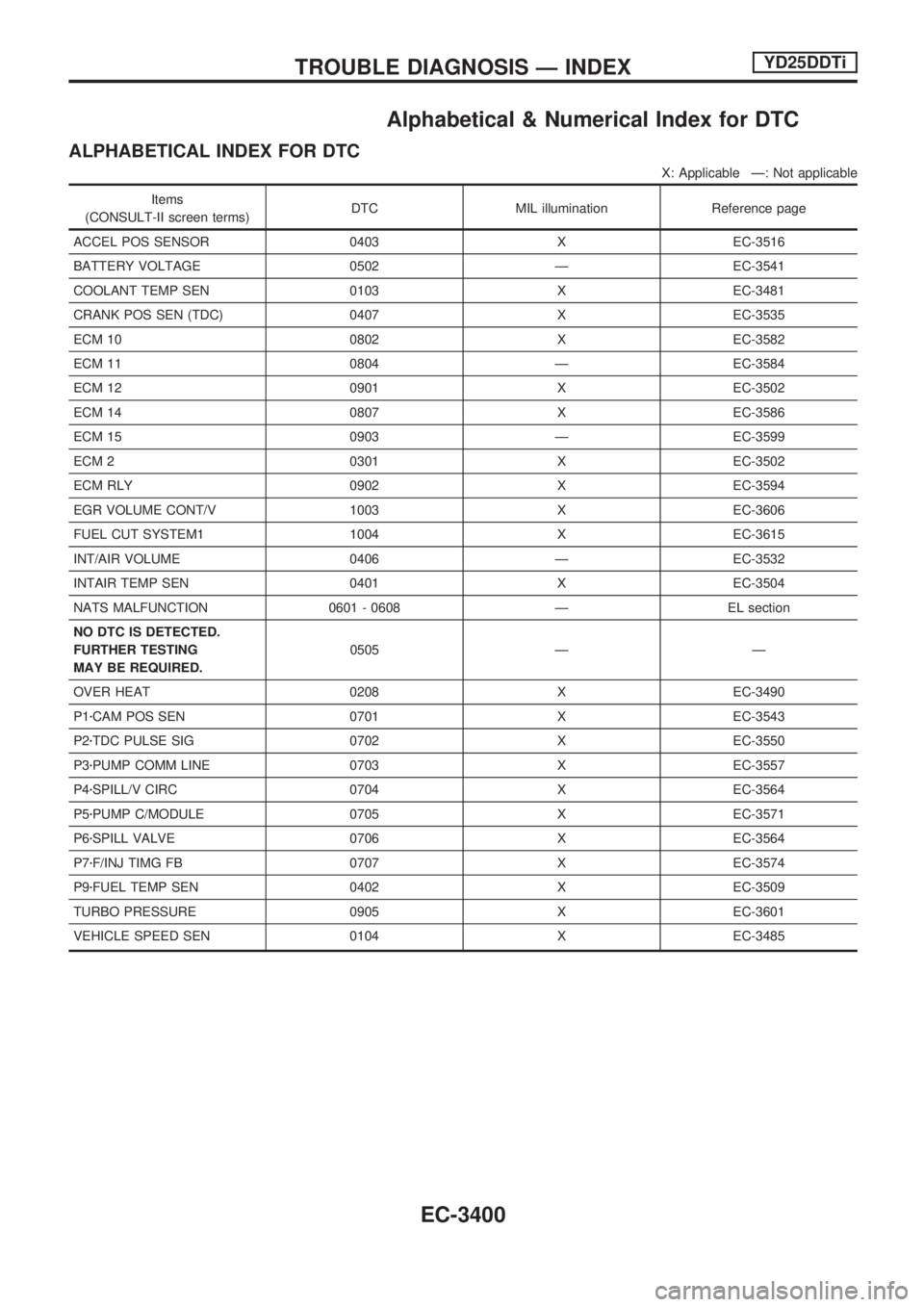

ALPHABETICAL INDEX FOR DTC
X: Applicable Ð: Not applicable
Items
(CONSULT-II screen terms)DTC MIL illumination Reference page
ACCEL POS SENSOR 0403 X EC-3516
BATTERY VOLTAGE 0502 Ð EC-3541
COOLANT TEMP SEN 0103 X EC-3481
CRANK POS SEN (TDC) 0407 X EC-3535
ECM 10 0802 X EC-3582
ECM 11 0804 Ð EC-3584
ECM 12 0901 X EC-3502
ECM 14 0807 X EC-3586
ECM 15 0903 Ð EC-3599
ECM 2 0301 X EC-3502
ECM RLY 0902 X EC-3594
EGR VOLUME CONT/V 1003 X EC-3606
FUEL CUT SYSTEM1 1004 X EC-3615
INT/AIR VOLUME 0406 Ð EC-3532
INTAIR TEMP SEN 0401 X EC-3504
NATS MALFUNCTION 0601 - 0608 Ð EL section
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.0505 Ð Ð
OVER HEAT 0208 X EC-3490
P1zCAM POS SEN 0701 X EC-3543
P2zTDC PULSE SIG 0702 X EC-3550
P3zPUMP COMM LINE 0703 X EC-3557
P4zSPILL/V CIRC 0704 X EC-3564
P5zPUMP C/MODULE 0705 X EC-3571
P6zSPILL VALVE 0706 X EC-3564
P7zF/INJ TIMG FB 0707 X EC-3574
P9zFUEL TEMP SEN 0402 X EC-3509
TURBO PRESSURE 0905 X EC-3601
VEHICLE SPEED SEN 0104 X EC-3485
TROUBLE DIAGNOSIS Ð INDEXYD25DDTi
EC-3400

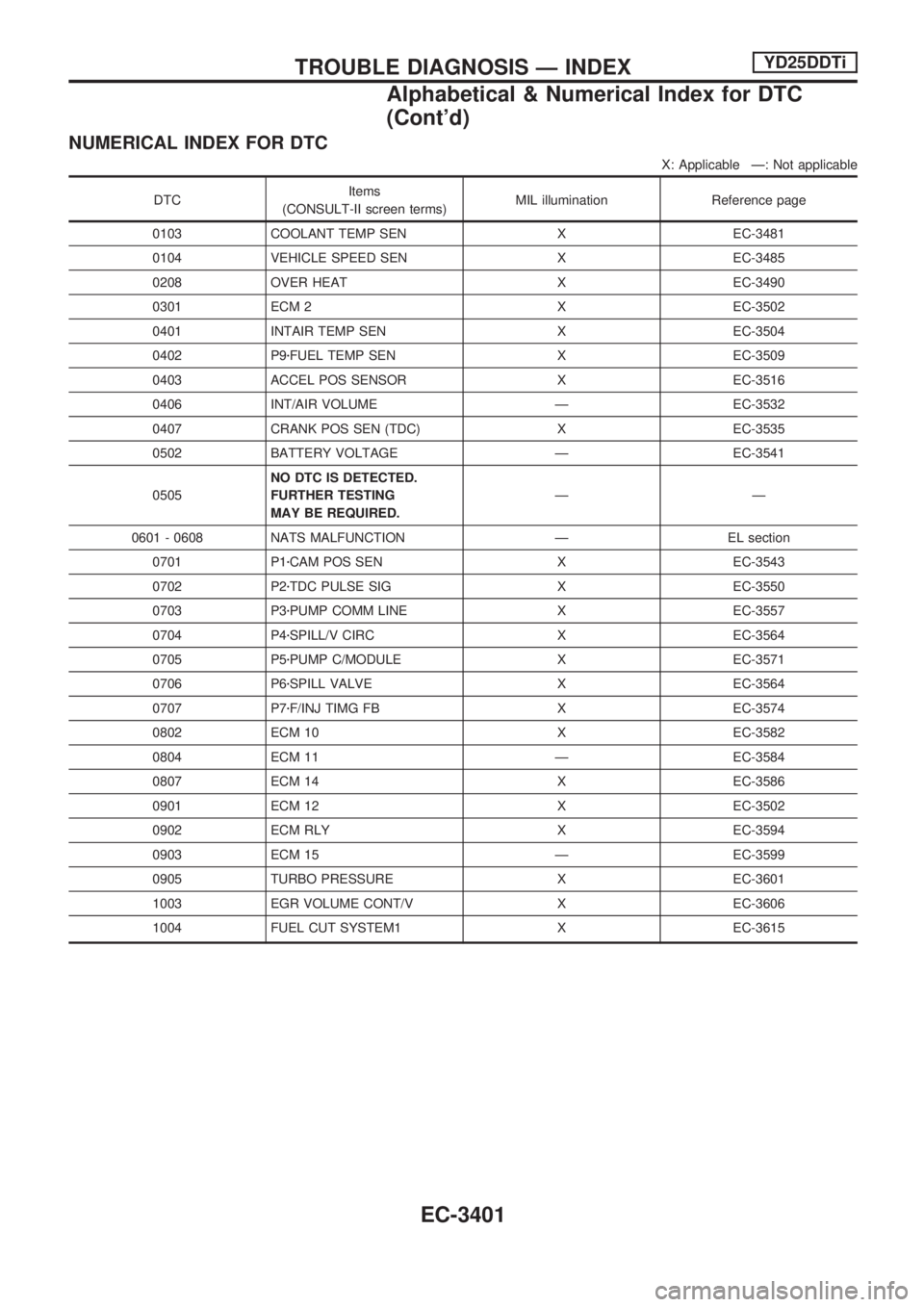

NUMERICAL INDEX FOR DTC
X: Applicable Ð: Not applicable
DTCItems
(CONSULT-II screen terms)MIL illumination Reference page
0103 COOLANT TEMP SEN X EC-3481
0104 VEHICLE SPEED SEN X EC-3485
0208 OVER HEAT X EC-3490
0301 ECM 2 X EC-3502
0401 INTAIR TEMP SEN X EC-3504
0402 P9zFUEL TEMP SEN X EC-3509
0403 ACCEL POS SENSOR X EC-3516
0406 INT/AIR VOLUME Ð EC-3532
0407 CRANK POS SEN (TDC) X EC-3535
0502 BATTERY VOLTAGE Ð EC-3541
0505NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.ÐÐ
0601 - 0608 NATS MALFUNCTION Ð EL section
0701 P1zCAM POS SEN X EC-3543
0702 P2zTDC PULSE SIG X EC-3550
0703 P3zPUMP COMM LINE X EC-3557
0704 P4zSPILL/V CIRC X EC-3564
0705 P5zPUMP C/MODULE X EC-3571
0706 P6zSPILL VALVE X EC-3564
0707 P7zF/INJ TIMG FB X EC-3574
0802 ECM 10 X EC-3582
0804 ECM 11 Ð EC-3584
0807 ECM 14 X EC-3586
0901 ECM 12 X EC-3502
0902 ECM RLY X EC-3594
0903 ECM 15 Ð EC-3599
0905 TURBO PRESSURE X EC-3601
1003 EGR VOLUME CONT/V X EC-3606
1004 FUEL CUT SYSTEM1 X EC-3615
TROUBLE DIAGNOSIS Ð INDEXYD25DDTi
Alphabetical & Numerical Index for DTC
(Cont'd)
EC-3401

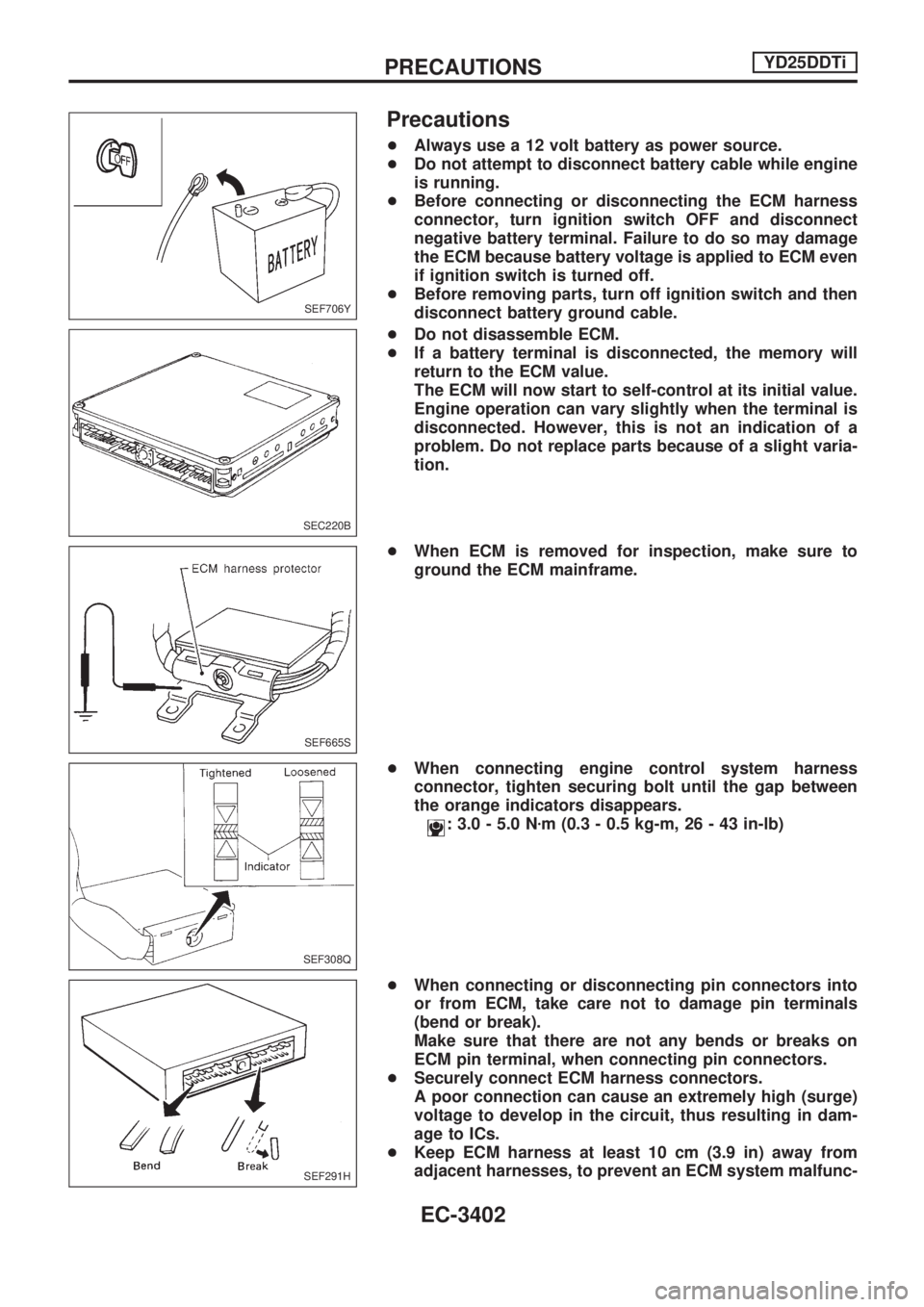

Precautions
+Always use a 12 volt battery as power source.
+Do not attempt to disconnect battery cable while engine
is running.
+Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect
negative battery terminal. Failure to do so may damage
the ECM because battery voltage is applied to ECM even
if ignition switch is turned off.
+Before removing parts, turn off ignition switch and then
disconnect battery ground cable.
+Do not disassemble ECM.
+If a battery terminal is disconnected, the memory will
return to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is
disconnected. However, this is not an indication of a
problem. Do not replace parts because of a slight varia-
tion.
+When ECM is removed for inspection, make sure to
ground the ECM mainframe.
+When connecting engine control system harness
connector, tighten securing bolt until the gap between
the orange indicators disappears.
: 3.0 - 5.0 Nzm (0.3 - 0.5 kg-m, 26 - 43 in-lb)
+When connecting or disconnecting pin connectors into
or from ECM, take care not to damage pin terminals
(bend or break).
Make sure that there are not any bends or breaks on
ECM pin terminal, when connecting pin connectors.
+Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in the circuit, thus resulting in dam-
age to ICs.
+Keep ECM harness at least 10 cm (3.9 in) away from
adjacent harnesses, to prevent an ECM system malfunc-
SEF706Y
SEC220B
SEF665S
SEF308Q
SEF291H
PRECAUTIONSYD25DDTi
EC-3402

tion due to receiving external noise, degraded operation
of ICs, etc.
+Keep engine control system parts and harnesses dry.
+Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-3464.
+Fuel filter switch is equipped except for Europe.
If MIL illuminates or blinks irregularly when engine is
running, water may have accumulated in fuel filter. Drain
water from fuel filter. Refer to EC-3427. If this does not
correct the problem, perform specified trouble diagnos-
tic procedures.
+After performing each TROUBLE DIAGNOSIS, perform
ªDTC Confirmation Procedureº or ªOverall Function
Checkº.
The DTC should not be displayed in the ª DTC Confirma-
tion Procedureº if the repair is completed. The ªOverall
Function Checkº should be a good result if the repair is
completed.
MEF040D
SAT652J
PRECAUTIONSYD25DDTi
Precautions (Cont'd)
EC-3403

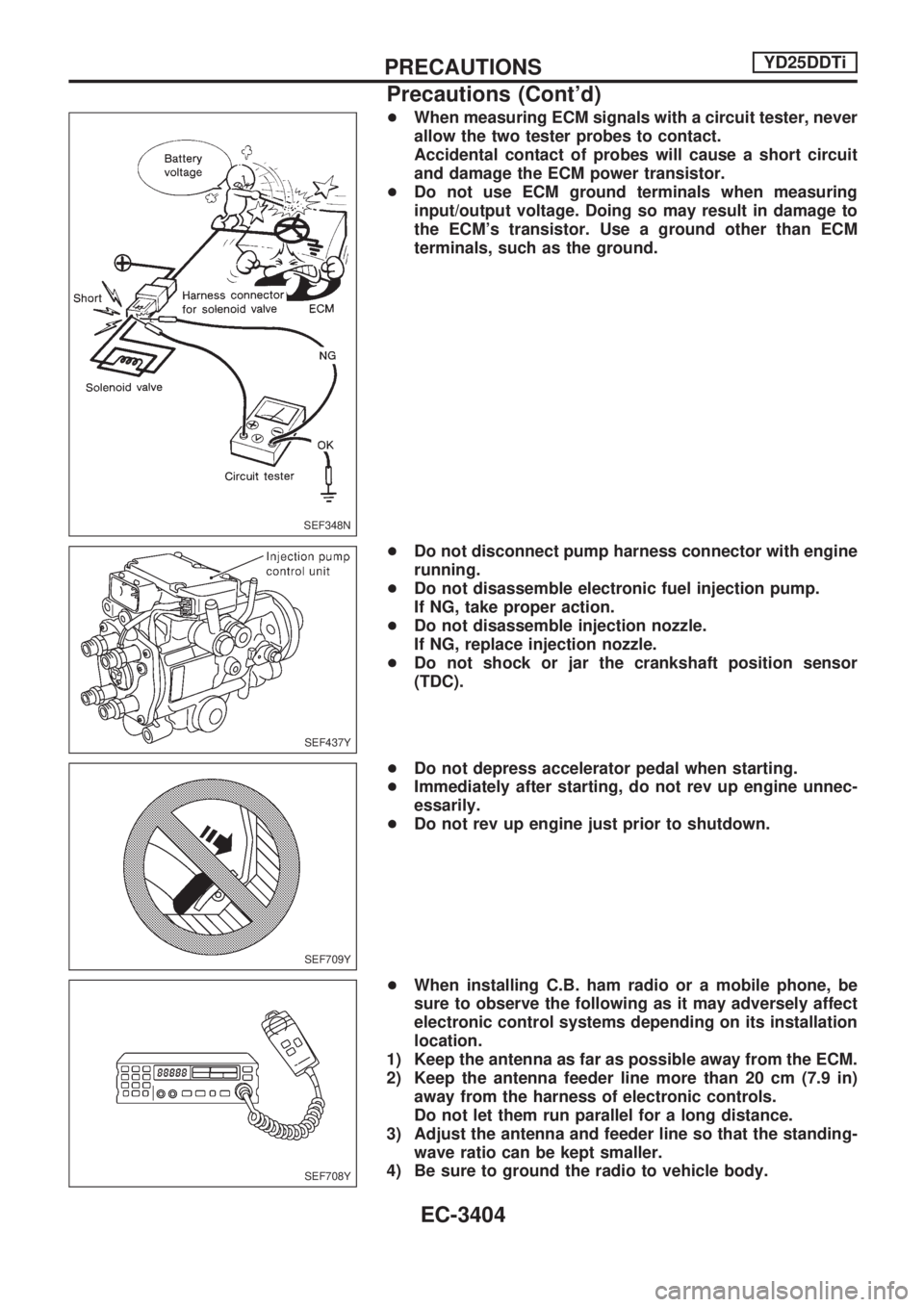

+When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit
and damage the ECM power transistor.
+Do not use ECM ground terminals when measuring
input/output voltage. Doing so may result in damage to
the ECM's transistor. Use a ground other than ECM
terminals, such as the ground.
+Do not disconnect pump harness connector with engine
running.
+Do not disassemble electronic fuel injection pump.
If NG, take proper action.
+Do not disassemble injection nozzle.
If NG, replace injection nozzle.
+Do not shock or jar the crankshaft position sensor
(TDC).
+Do not depress accelerator pedal when starting.
+Immediately after starting, do not rev up engine unnec-
essarily.
+Do not rev up engine just prior to shutdown.
+When installing C.B. ham radio or a mobile phone, be
sure to observe the following as it may adversely affect
electronic control systems depending on its installation
location.
1) Keep the antenna as far as possible away from the ECM.
2) Keep the antenna feeder line more than 20 cm (7.9 in)
away from the harness of electronic controls.
Do not let them run parallel for a long distance.
3) Adjust the antenna and feeder line so that the standing-
wave ratio can be kept smaller.
4) Be sure to ground the radio to vehicle body.
SEF348N
SEF437Y
SEF709Y
SEF708Y
PRECAUTIONSYD25DDTi
Precautions (Cont'd)
EC-3404

Engine Control Component Parts Location
SEC225D
ENGINE AND EMISSION CONTROL OVERALL SYSTEMYD25DDTi
EC-3405

SEC226D
ENGINE AND EMISSION CONTROL OVERALL SYSTEMYD25DDTi
Engine Control Component Parts Location
(Cont'd)
EC-3406

SEC227D
ENGINE AND EMISSION CONTROL OVERALL SYSTEMYD25DDTi
Engine Control Component Parts Location
(Cont'd)
EC-3407
