2001 NISSAN PICK-UP mileage

MAINTENANCE
SECTION
MA
MODIFICATION NOTICE:
+KA24DE engine information has been added. Refer to the Service Manual of D22 Supplement-II (SM9E-
D22BE0E) for the maintenance procedure not included here.
+YD25DDTi engine has been added.
CONTENTS
PERIODIC MAINTENANCE................................ 3002
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year) ................ 3002
Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year) ................ 3003
Maintenance Under Severe Driving Conditions
(Annual Driving Distance < 30,000 km/year)... 3004
Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year) ................ 3005
Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year) ................ 3006
Maintenance Under Severe Driving Conditions
(Annual Driving Distance > 30,000 km/year)... 3007
RECOMMENDED FLUIDS AND
LUBRICANTS...................................................... 3008
Fluids and Lubricants....................................... 3008
SAE Viscosity Number..................................... 3009
KA24DE
ENGINE MAINTENANCE.................................... 3010Changing Air Cleaner Filter ............................. 3010
Changing Positive Crankcase Ventilation
(PCV) Filter ...................................................... 3010
YD25DDTi
ENGINE MAINTENANCE.................................... 3011
Checking Tightening Torque............................ 3011
Checking Drive Belts ....................................... 3011
Changing Engine Oil ........................................ 3012
Changing Oil Filter ........................................... 3013
Changing Engine Coolant ................................ 3014
Checking Cooling System................................ 3016
Checking and Replacing Fuel Filter and
Draining Water ................................................. 3018
Checking Fuel Lines ........................................ 3019
Cleaning and Replacing Air Cleaner Filter ...... 3019
Checking Cyclone Pre-air Cleaner .................. 3019
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 3020
Engine Maintenance ........................................ 3020

MA

The following tables show the normal maintenance schedule. Depending upon weather and atmospheric
conditions, varying road surfaces, individual driving habits and vehicle usage, additional or more frequent
maintenance may be required.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year)
KA24DE ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
pages Perform on a kilometer basis, but on an
annual basis when driving less than
15,000 km (9,000 miles) per yearkm x 1,000
(miles x 1,000)
Months15
(9)
1230
(18)
2445
(27)
3660
(36)
4875
(45)
6090
(54)
72105
(63)
84120
(72)
96
Engine compartment and under vehicle
Engine oil (Use API SG, SH or SJ oil)HR RRRRRRR Ð
Engine oil filter (Use NISSAN genuine
part or equivalent)HR RRRRRRR Ð
Drive belts IIIIIIII Ð
Cooling system IIIIIIII Ð
Engine anti-freeze coolant (Use genuine
NISSAN Anti-Freeze Coolant (L250) or
equivalent)See NOTE (1) I R I Ð
Air cleaner filter (Viscous paper type)HR R 3010
Positive crankcase ventilation (PCV) fil-
terHRRRR3010
Intake and exhaust valve clearance See NOTE (2) Ð
Fuel and EVAP vapour linesIIIIÐ
Spark plugsRRRRÐ
Ignition wires I I Ð
Fuel filterHRÐ
NOTE: (1) First replace at 90,000 km (54,000 miles)/60 months, then every 60,000 km (36,000 miles)/48 months. Perform ªIº
(Checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
PERIODIC MAINTENANCE
MA-3002

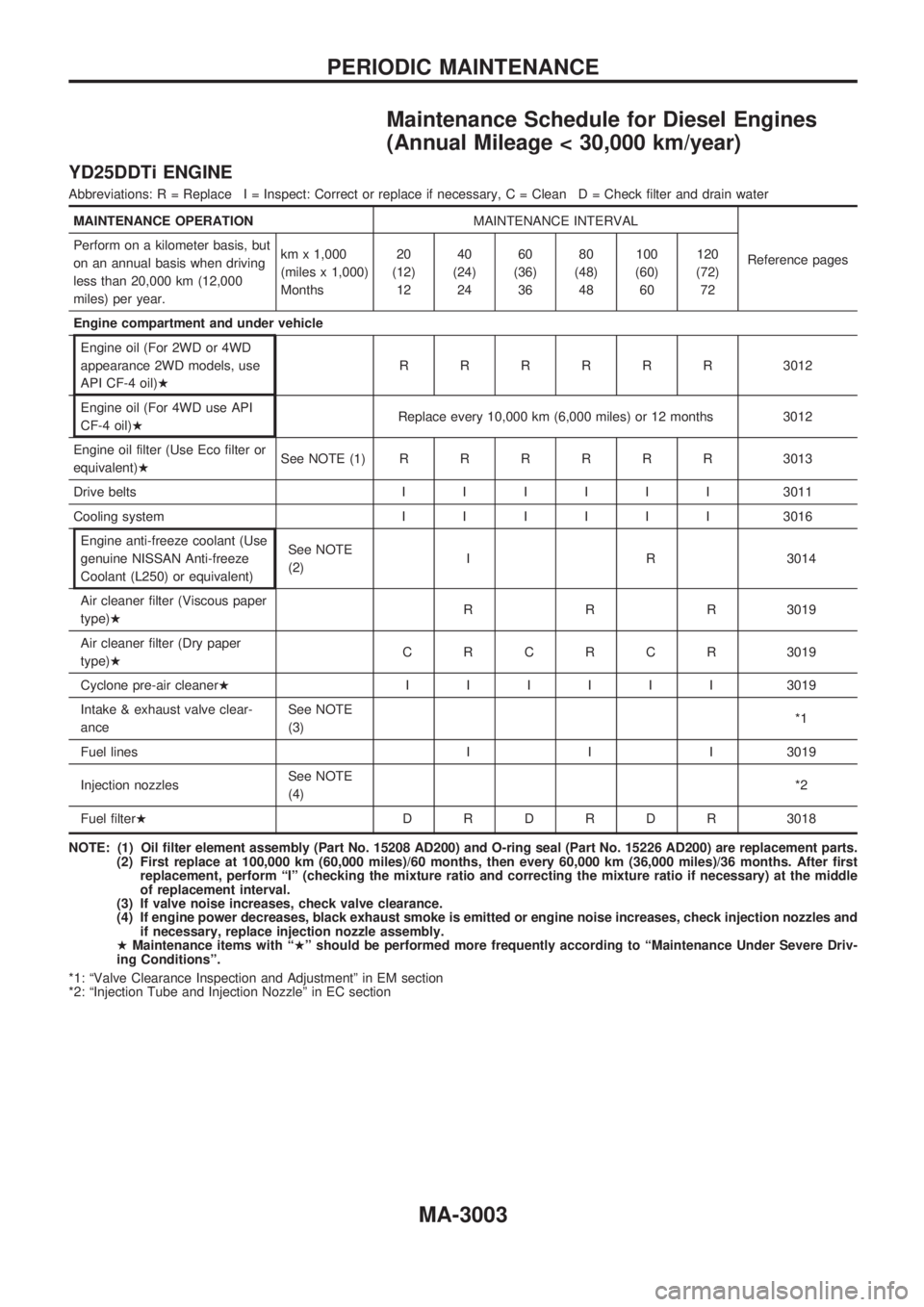

Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year)
YD25DDTi ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary, C = Clean D = Check filter and drain water
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference pages Perform on a kilometer basis, but
on an annual basis when driving
less than 20,000 km (12,000
miles) per year.km x 1,000
(miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Engine compartment and under vehicle
Engine oil (For 2WD or 4WD
appearance 2WD models, use
API CF-4 oil)HRRRRRR3012
Engine oil (For 4WD use API
CF-4 oil)HReplace every 10,000 km (6,000 miles) or 12 months 3012
Engine oil filter (Use Eco filter or
equivalent)HSee NOTE (1)RRRRRR3013
Drive beltsIIIIII3011
Cooling systemIIIIII3016
Engine anti-freeze coolant (Use
genuine NISSAN Anti-freeze
Coolant (L250) or equivalent)See NOTE
(2)I R 3014
Air cleaner filter (Viscous paper
type)HR R R 3019
Air cleaner filter (Dry paper
type)HCRCRCR3019
Cyclone pre-air cleanerHIIIIII3019
Intake & exhaust valve clear-
anceSee NOTE
(3)*1
Fuel lines I I I 3019
Injection nozzlesSee NOTE
(4)*2
Fuel filterHDRDRDR3018
NOTE: (1) Oil filter element assembly (Part No. 15208 AD200) and O-ring seal (Part No. 15226 AD200) are replacement parts.
(2) First replace at 100,000 km (60,000 miles)/60 months, then every 60,000 km (36,000 miles)/36 months. After first
replacement, perform ªIº (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle
of replacement interval.
(3) If valve noise increases, check valve clearance.
(4) If engine power decreases, black exhaust smoke is emitted or engine noise increases, check injection nozzles and
if necessary, replace injection nozzle assembly.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
*1: ªValve Clearance Inspection and Adjustmentº in EM section
*2: ªInjection Tube and Injection Nozzleº in EC section
PERIODIC MAINTENANCE
MA-3003

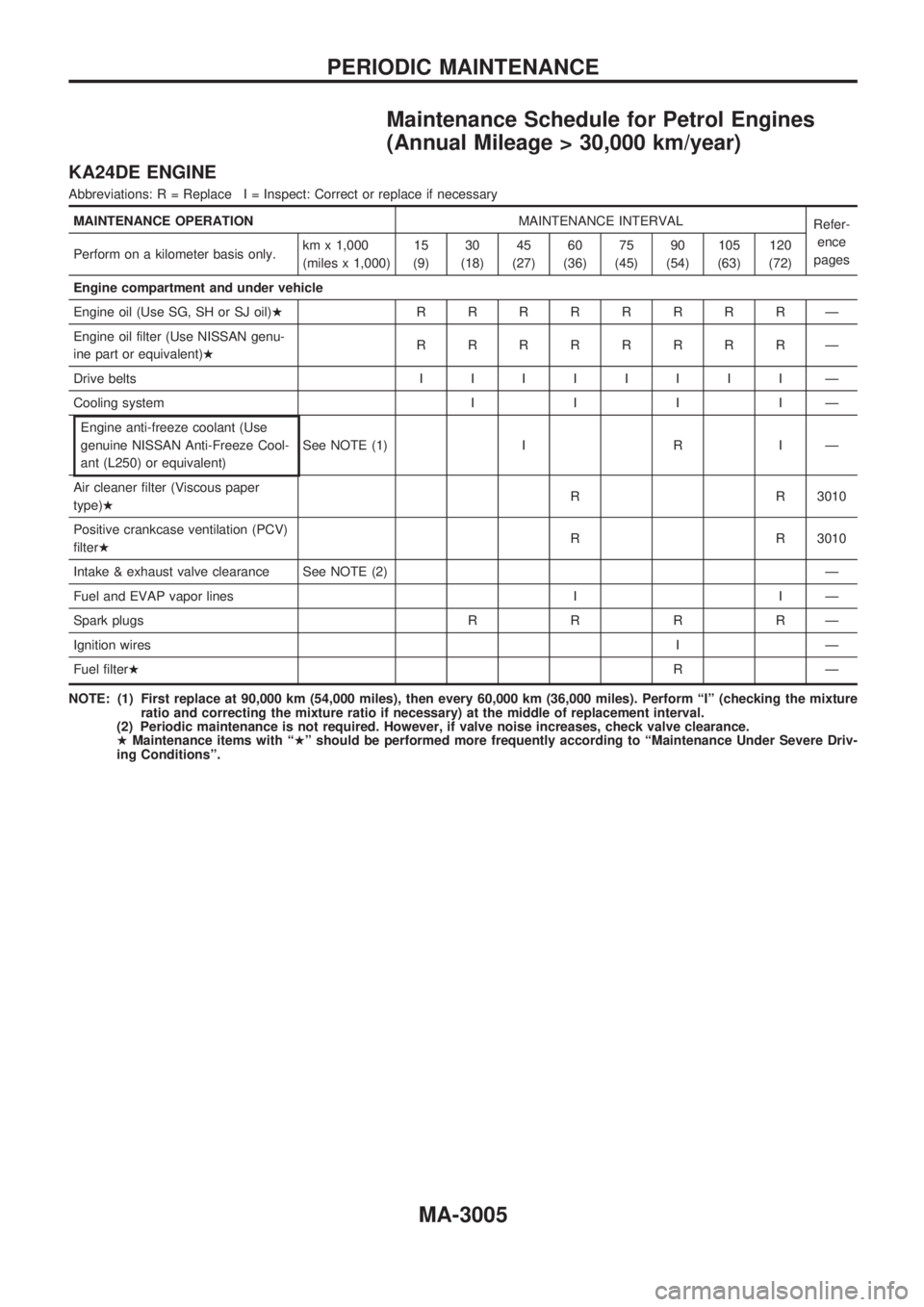

Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year)
KA24DE ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis only.km x 1,000
(miles x 1,000)15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
Engine compartment and under vehicle
Engine oil (Use SG, SH or SJ oil)HRRRRRRRRÐ
Engine oil filter (Use NISSAN genu-
ine part or equivalent)HRRRRRRRRÐ
Drive beltsIIIIIIIIÐ
Cooling systemIIIIÐ
Engine anti-freeze coolant (Use
genuine NISSAN Anti-Freeze Cool-
ant (L250) or equivalent)See NOTE (1) I R I Ð
Air cleaner filter (Viscous paper
type)HR R 3010
Positive crankcase ventilation (PCV)
filterHR R 3010
Intake & exhaust valve clearance See NOTE (2)Ð
Fuel and EVAP vapor lines I I Ð
Spark plugsRRRRÐ
Ignition wiresIÐ
Fuel filterHRÐ
NOTE: (1) First replace at 90,000 km (54,000 miles), then every 60,000 km (36,000 miles). Perform ªIº (checking the mixture
ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
PERIODIC MAINTENANCE
MA-3005

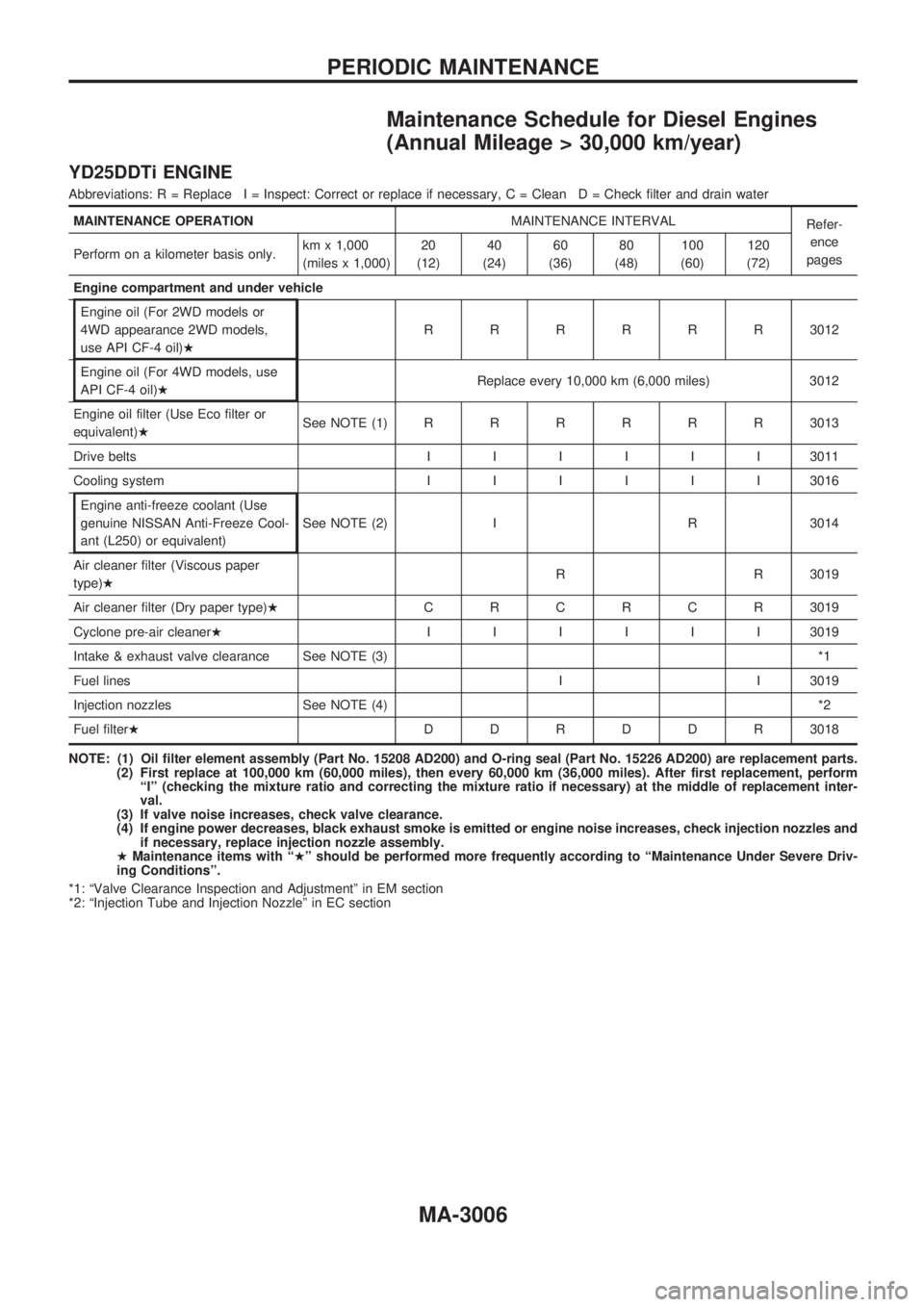

Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year)
YD25DDTi ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary, C = Clean D = Check filter and drain water
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis only.km x 1,000
(miles x 1,000)20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Engine compartment and under vehicle
Engine oil (For 2WD models or
4WD appearance 2WD models,
use API CF-4 oil)HRRRRRR3012
Engine oil (For 4WD models, use
API CF-4 oil)HReplace every 10,000 km (6,000 miles) 3012
Engine oil filter (Use Eco filter or
equivalent)HSee NOTE (1)RRRRRR3013
Drive beltsIIIIII3011
Cooling systemIIIIII3016
Engine anti-freeze coolant (Use
genuine NISSAN Anti-Freeze Cool-
ant (L250) or equivalent)See NOTE (2) I R 3014
Air cleaner filter (Viscous paper
type)HR R 3019
Air cleaner filter (Dry paper type)HCRCRCR3019
Cyclone pre-air cleanerHIIIIII3019
Intake & exhaust valve clearance See NOTE (3)*1
Fuel linesI I 3019
Injection nozzles See NOTE (4)*2
Fuel filterHDDRDDR3018
NOTE: (1) Oil filter element assembly (Part No. 15208 AD200) and O-ring seal (Part No. 15226 AD200) are replacement parts.
(2) First replace at 100,000 km (60,000 miles), then every 60,000 km (36,000 miles). After first replacement, perform
ªIº (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement inter-
val.
(3) If valve noise increases, check valve clearance.
(4) If engine power decreases, black exhaust smoke is emitted or engine noise increases, check injection nozzles and
if necessary, replace injection nozzle assembly.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
*1: ªValve Clearance Inspection and Adjustmentº in EM section
*2: ªInjection Tube and Injection Nozzleº in EC section
PERIODIC MAINTENANCE
MA-3006
