2001 NISSAN PICK-UP engine oil capacity

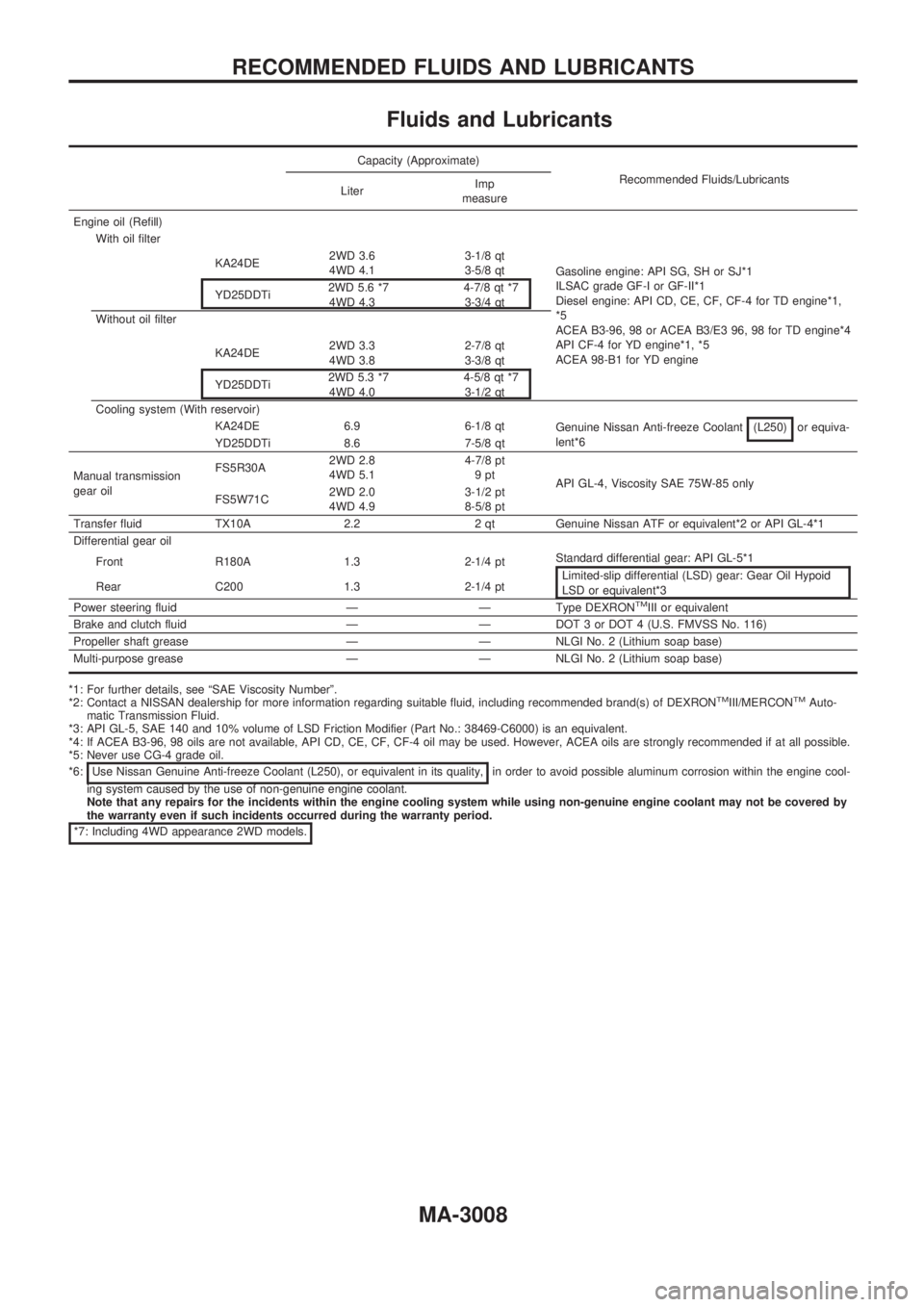

Fluids and Lubricants
Capacity (Approximate)
Recommended Fluids/Lubricants
LiterImp
measure
Engine oil (Refill)
With oil filter
Gasoline engine: API SG, SH or SJ*1
ILSAC grade GF-I or GF-II*1
Diesel engine: API CD, CE, CF, CF-4 for TD engine*1,
*5
ACEA B3-96, 98 or ACEA B3/E3 96, 98 for TD engine*4
API CF-4 for YD engine*1, *5
ACEA 98-B1 for YD engine KA24DE2WD 3.6
4WD 4.13-1/8 qt
3-5/8 qt
YD25DDTi2WD 5.6 *7
4WD 4.34-7/8 qt *7
3-3/4 qt
Without oil filter
KA24DE2WD 3.3
4WD 3.82-7/8 qt
3-3/8 qt
YD25DDTi2WD 5.3 *7
4WD 4.04-5/8 qt *7
3-1/2 qt
Cooling system (With reservoir)
KA24DE 6.9 6-1/8 qt
Genuine Nissan Anti-freeze Coolant (L250)
or equiva-
lent*6
YD25DDTi 8.6 7-5/8 qt
Manual transmission
gear oilFS5R30A2WD 2.8
4WD 5.14-7/8 pt
9pt
API GL-4, Viscosity SAE 75W-85 only
FS5W71C2WD 2.0
4WD 4.93-1/2 pt
8-5/8 pt
Transfer fluid TX10A 2.2 2 qt Genuine Nissan ATF or equivalent*2 or API GL-4*1
Differential gear oil
Front R180A 1.3 2-1/4 pt
Standard differential gear: API GL-5*1
Limited-slip differential (LSD) gear: Gear Oil Hypoid
LSD or equivalent*3 Rear C200 1.3 2-1/4 pt
Power steering fluid Ð Ð Type DEXRON
TMIII or equivalent
Brake and clutch fluid Ð Ð DOT 3 or DOT 4 (U.S. FMVSS No. 116)
Propeller shaft grease Ð Ð NLGI No. 2 (Lithium soap base)
Multi-purpose grease Ð Ð NLGI No. 2 (Lithium soap base)
*1: For further details, see ªSAE Viscosity Numberº.
*2: Contact a NISSAN dealership for more information regarding suitable fluid, including recommended brand(s) of DEXRONTMIII/MERCONTMAuto-
matic Transmission Fluid.
*3: API GL-5, SAE 140 and 10% volume of LSD Friction Modifier (Part No.: 38469-C6000) is an equivalent.
*4: If ACEA B3-96, 98 oils are not available, API CD, CE, CF, CF-4 oil may be used. However, ACEA oils are strongly recommended if at all possible.
*5: Never use CG-4 grade oil.
*6: Use Nissan Genuine Anti-freeze Coolant (L250), or equivalent in its quality,
in order to avoid possible aluminum corrosion within the engine cool-
ing system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be covered by
the warranty even if such incidents occurred during the warranty period.
*7: Including 4WD appearance 2WD models.
RECOMMENDED FLUIDS AND LUBRICANTS
MA-3008

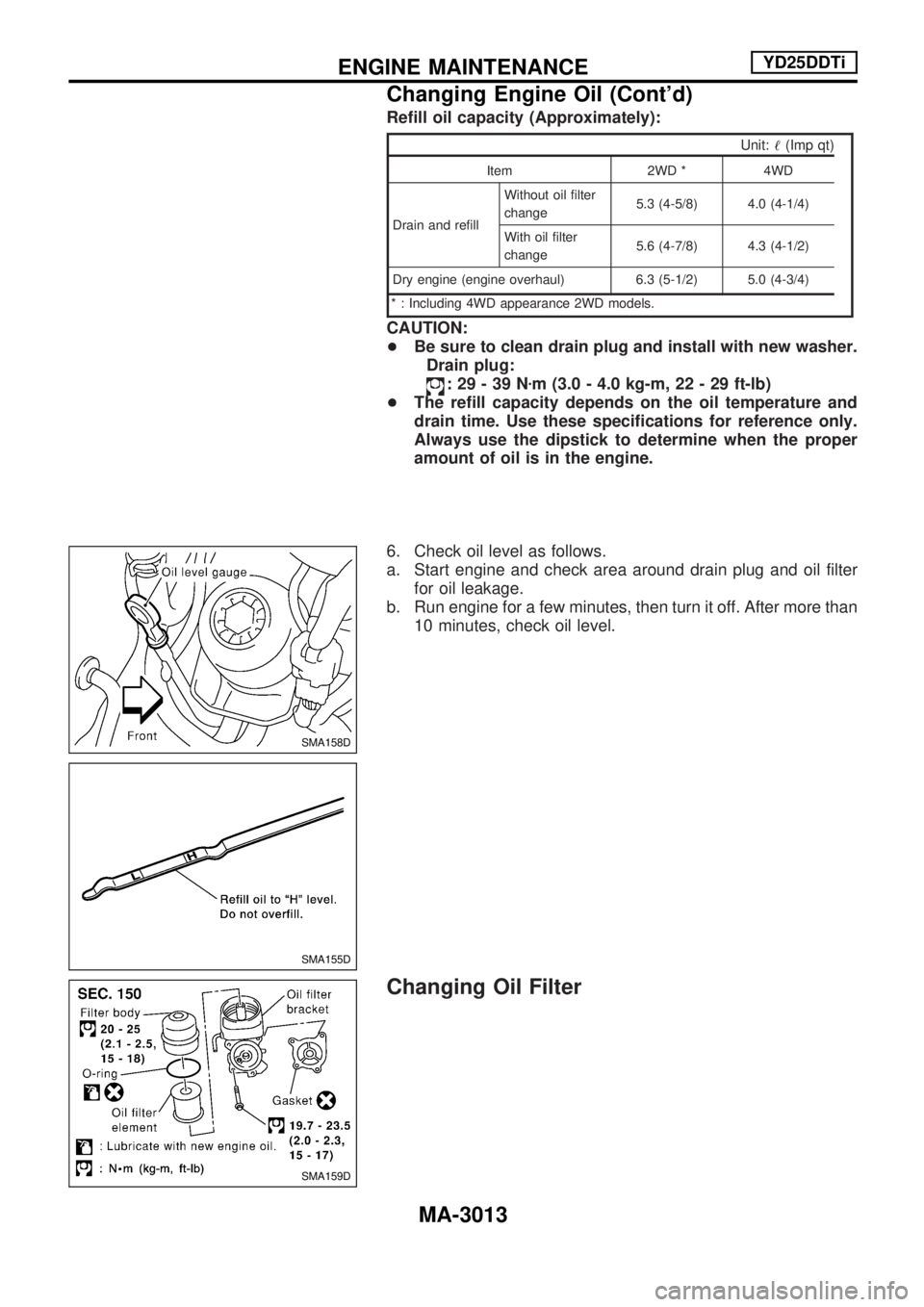

Refill oil capacity (Approximately):
Unit:!(Imp qt)
Item 2WD * 4WD
Drain and refillWithout oil filter
change5.3 (4-5/8) 4.0 (4-1/4)
With oil filter
change5.6 (4-7/8) 4.3 (4-1/2)
Dry engine (engine overhaul) 6.3 (5-1/2) 5.0 (4-3/4)
* : Including 4WD appearance 2WD models.
CAUTION:
+Be sure to clean drain plug and install with new washer.
Drain plug:
:29-39Nzm (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
+The refill capacity depends on the oil temperature and
drain time. Use these specifications for reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.
6. Check oil level as follows.
a. Start engine and check area around drain plug and oil filter
for oil leakage.
b. Run engine for a few minutes, then turn it off. After more than
10 minutes, check oil level.
Changing Oil Filter
SMA158D
SMA155D
SMA159D
ENGINE MAINTENANCEYD25DDTi
Changing Engine Oil (Cont'd)
MA-3013

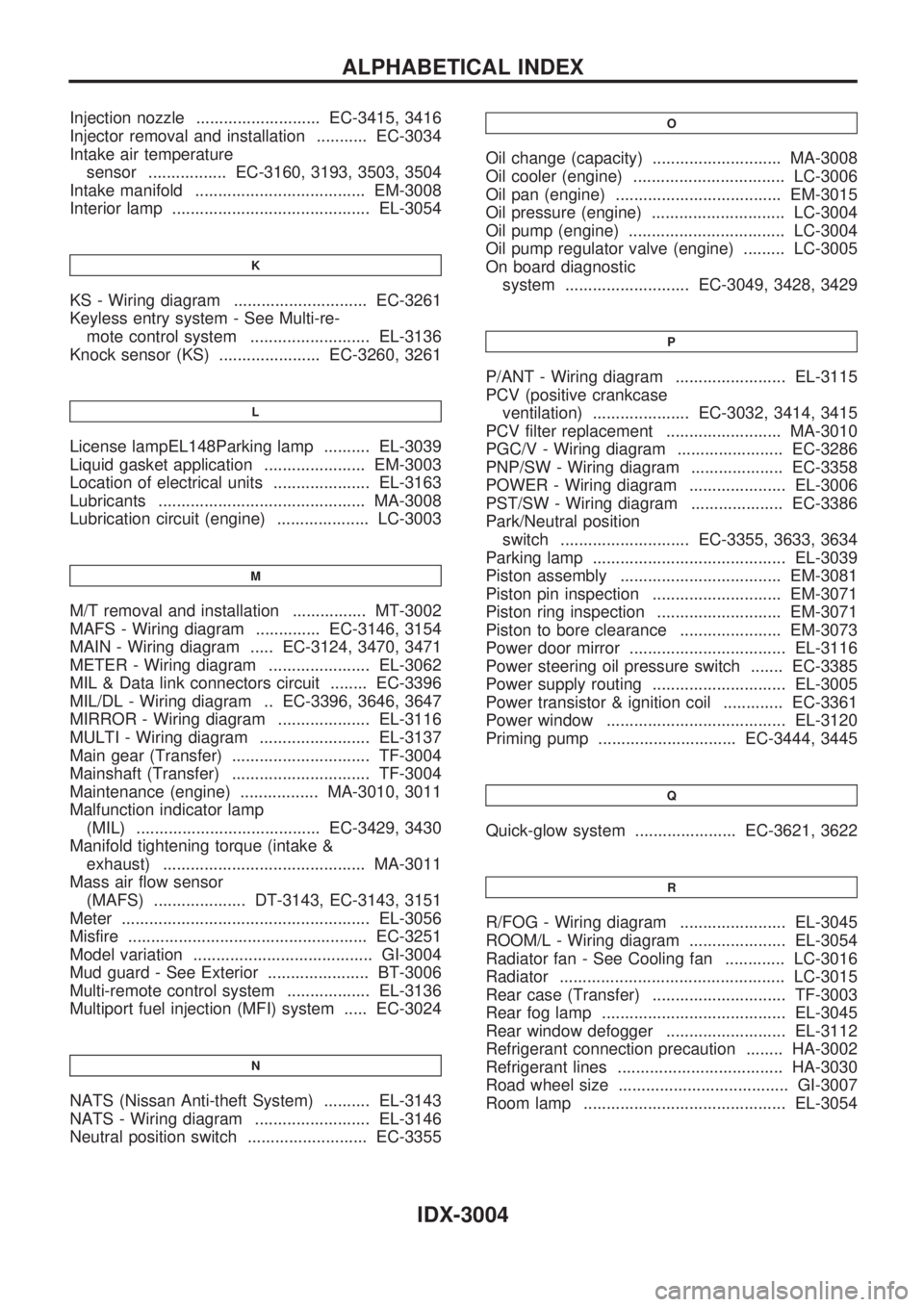

Injection nozzle ........................... EC-3415, 3416
Injector removal and installation ........... EC-3034
Intake air temperature
sensor ................. EC-3160, 3193, 3503, 3504
Intake manifold ..................................... EM-3008
Interior lamp ........................................... EL-3054
K
KS - Wiring diagram ............................. EC-3261
Keyless entry system - See Multi-re-
mote control system .......................... EL-3136
Knock sensor (KS) ...................... EC-3260, 3261
L
License lampEL148Parking lamp .......... EL-3039
Liquid gasket application ...................... EM-3003
Location of electrical units ..................... EL-3163
Lubricants ............................................. MA-3008
Lubrication circuit (engine) .................... LC-3003
M
M/T removal and installation ................ MT-3002
MAFS - Wiring diagram .............. EC-3146, 3154
MAIN - Wiring diagram ..... EC-3124, 3470, 3471
METER - Wiring diagram ...................... EL-3062
MIL & Data link connectors circuit ........ EC-3396
MIL/DL - Wiring diagram .. EC-3396, 3646, 3647
MIRROR - Wiring diagram .................... EL-3116
MULTI - Wiring diagram ........................ EL-3137
Main gear (Transfer) .............................. TF-3004
Mainshaft (Transfer) .............................. TF-3004
Maintenance (engine) ................. MA-3010, 3011
Malfunction indicator lamp
(MIL) ........................................ EC-3429, 3430
Manifold tightening torque (intake &
exhaust) ............................................ MA-3011
Mass air flow sensor
(MAFS) .................... DT-3143, EC-3143, 3151
Meter ...................................................... EL-3056
Misfire .................................................... EC-3251
Model variation ....................................... GI-3004
Mud guard - See Exterior ...................... BT-3006
Multi-remote control system .................. EL-3136
Multiport fuel injection (MFI) system ..... EC-3024
N
NATS (Nissan Anti-theft System) .......... EL-3143
NATS - Wiring diagram ......................... EL-3146
Neutral position switch .......................... EC-3355
O
Oil change (capacity) ............................ MA-3008
Oil cooler (engine) ................................. LC-3006
Oil pan (engine) .................................... EM-3015
Oil pressure (engine) ............................. LC-3004
Oil pump (engine) .................................. LC-3004
Oil pump regulator valve (engine) ......... LC-3005
On board diagnostic
system ........................... EC-3049, 3428, 3429
P
P/ANT - Wiring diagram ........................ EL-3115
PCV (positive crankcase
ventilation) ..................... EC-3032, 3414, 3415
PCV filter replacement ......................... MA-3010
PGC/V - Wiring diagram ....................... EC-3286
PNP/SW - Wiring diagram .................... EC-3358
POWER - Wiring diagram ..................... EL-3006
PST/SW - Wiring diagram .................... EC-3386
Park/Neutral position
switch ............................ EC-3355, 3633, 3634
Parking lamp .......................................... EL-3039
Piston assembly ................................... EM-3081
Piston pin inspection ............................ EM-3071
Piston ring inspection ........................... EM-3071
Piston to bore clearance ...................... EM-3073
Power door mirror .................................. EL-3116
Power steering oil pressure switch ....... EC-3385
Power supply routing ............................. EL-3005
Power transistor & ignition coil ............. EC-3361
Power window ....................................... EL-3120
Priming pump .............................. EC-3444, 3445
Q
Quick-glow system ...................... EC-3621, 3622
R
R/FOG - Wiring diagram ....................... EL-3045
ROOM/L - Wiring diagram ..................... EL-3054
Radiator fan - See Cooling fan ............. LC-3016
Radiator ................................................. LC-3015
Rear case (Transfer) ............................. TF-3003
Rear fog lamp ........................................ EL-3045
Rear window defogger .......................... EL-3112
Refrigerant connection precaution ........ HA-3002
Refrigerant lines .................................... HA-3030
Road wheel size ..................................... GI-3007
Room lamp ............................................ EL-3054
ALPHABETICAL INDEX
IDX-3004

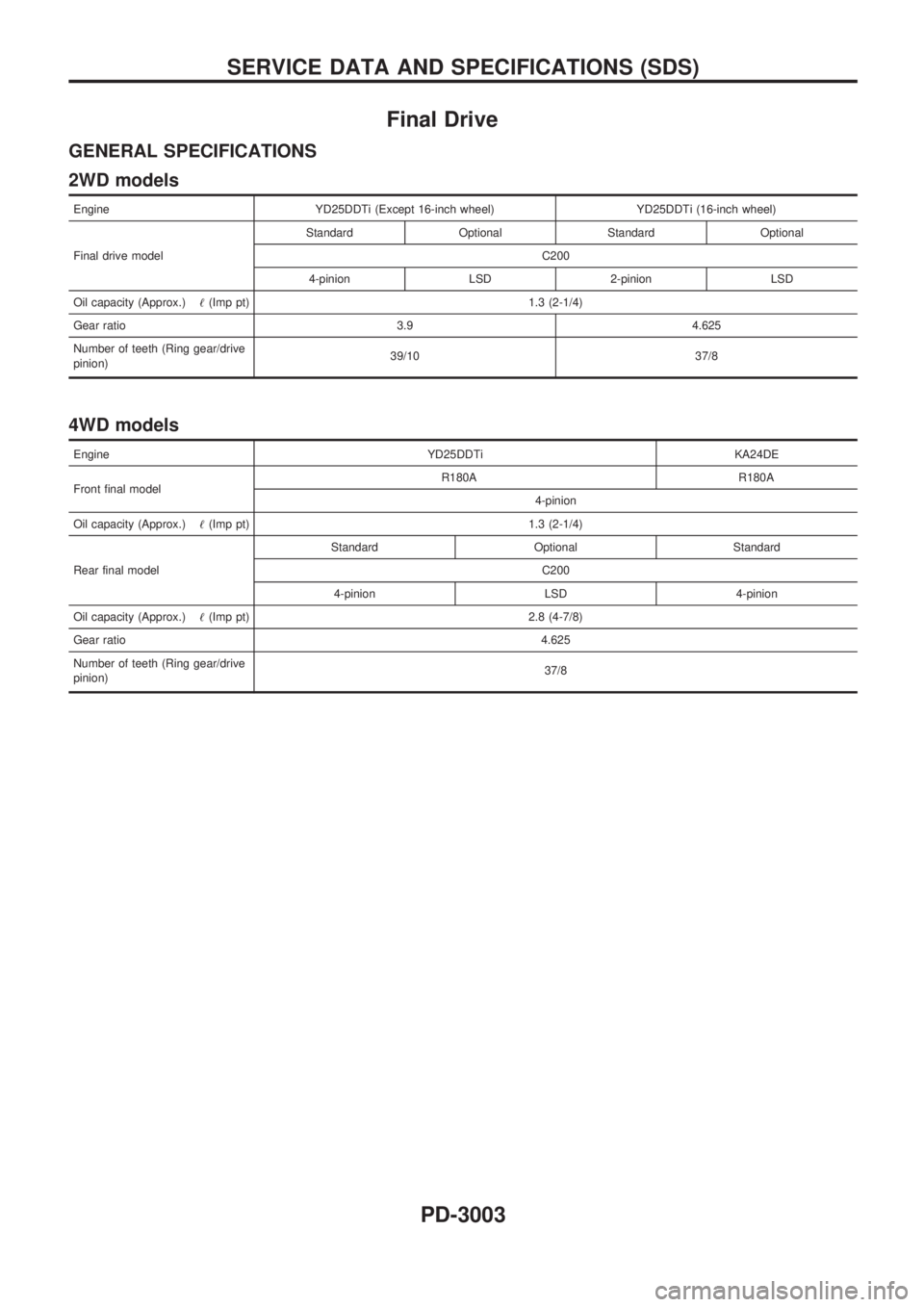

Final Drive
GENERAL SPECIFICATIONS
2WD models
Engine YD25DDTi (Except 16-inch wheel) YD25DDTi (16-inch wheel)
Final drive modelStandard Optional Standard Optional
C200
4-pinion LSD 2-pinion LSD
Oil capacity (Approx.) !(Imp pt) 1.3 (2-1/4)
Gear ratio 3.9 4.625
Number of teeth (Ring gear/drive
pinion) 39/10 37/8
4WD models
Engine YD25DDTi KA24DE
Front final model R180A \
R180A
4-pinion
Oil capacity (Approx.) !(Imp pt) 1.3 (2-1/4)
Rear final model Standard Optional Standard
C200
4-pinion LSD 4-pinion
Oil capacity (Approx.) !(Imp pt) 2.8 (4-7/8)
Gear ratio 4.625
Number of teeth (Ring gear/drive
pinion) 37/8
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-3003
