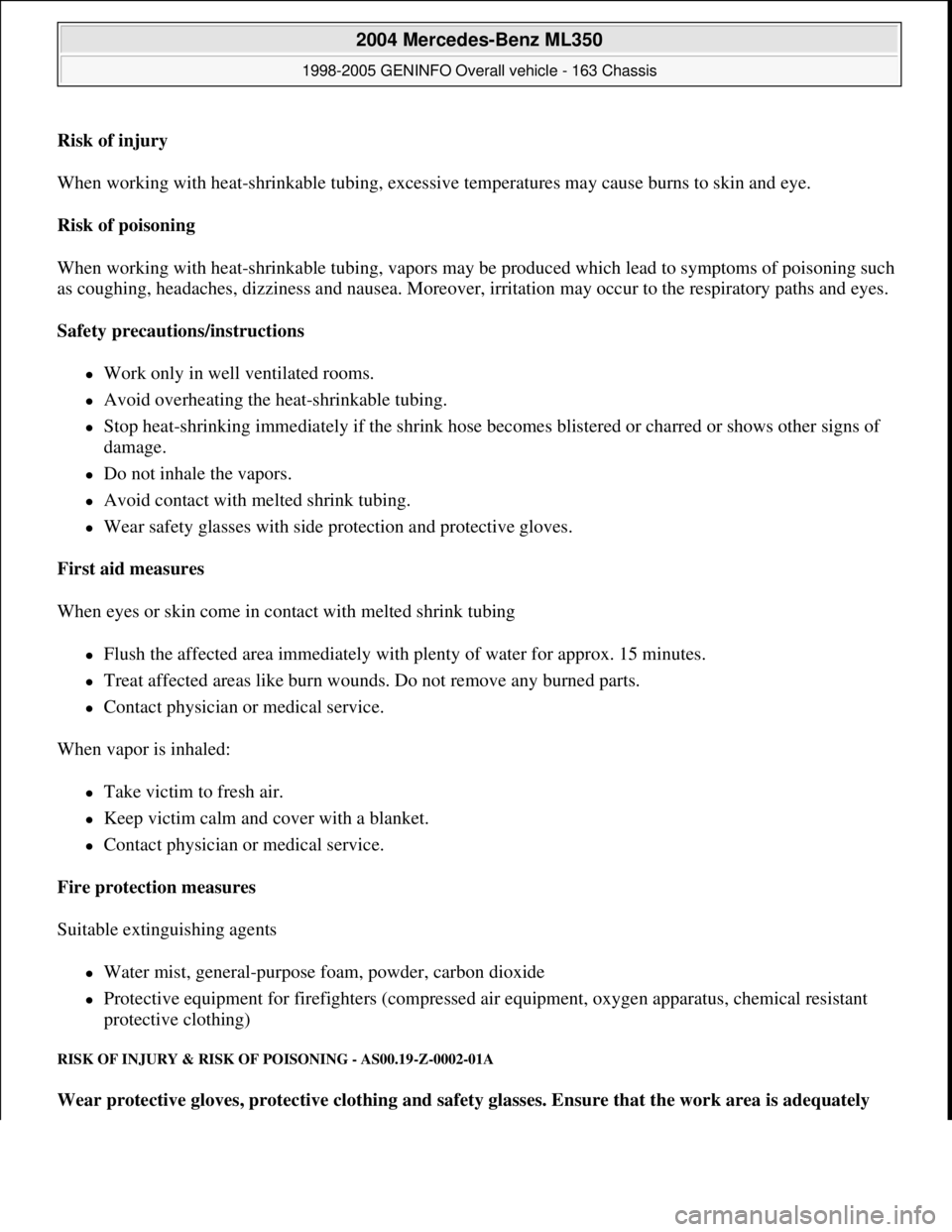

MERCEDES-BENZ ML350 1997 Complete Repair Manual Risk of injury When working with heat-shrinkable tubing, excessive temperatures may cause burns to skin and eye. Risk of poisoning When working with heat-shrinkable tubing, vapors may be produced

Page 2882 of 4133

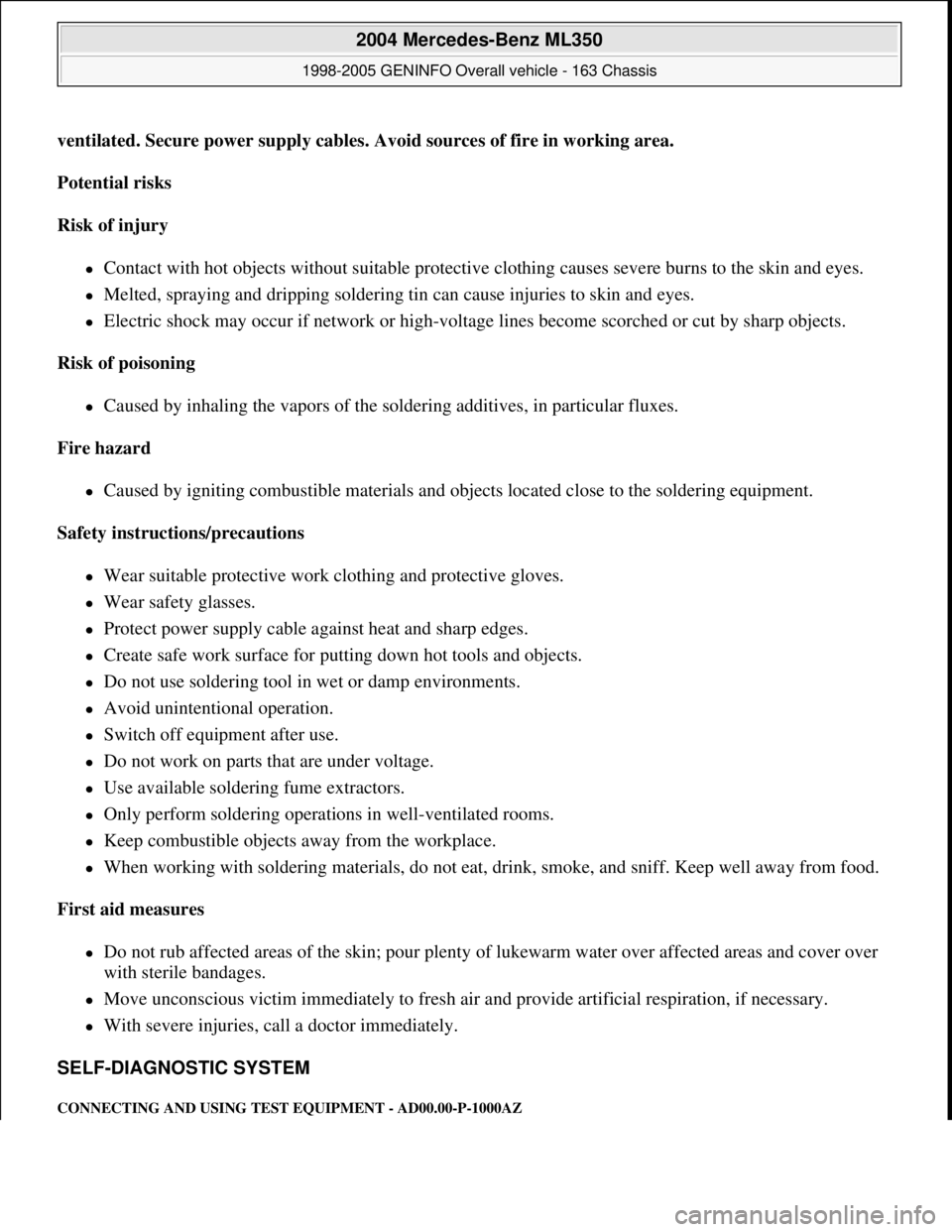

MERCEDES-BENZ ML350 1997 Complete Repair Manual ventilated. Secure power supply cables. Avoid sources of fire in working area. Potential risks Risk of injury Contact with hot objects without suitable protective clothing causes severe burns

Page 2883 of 4133

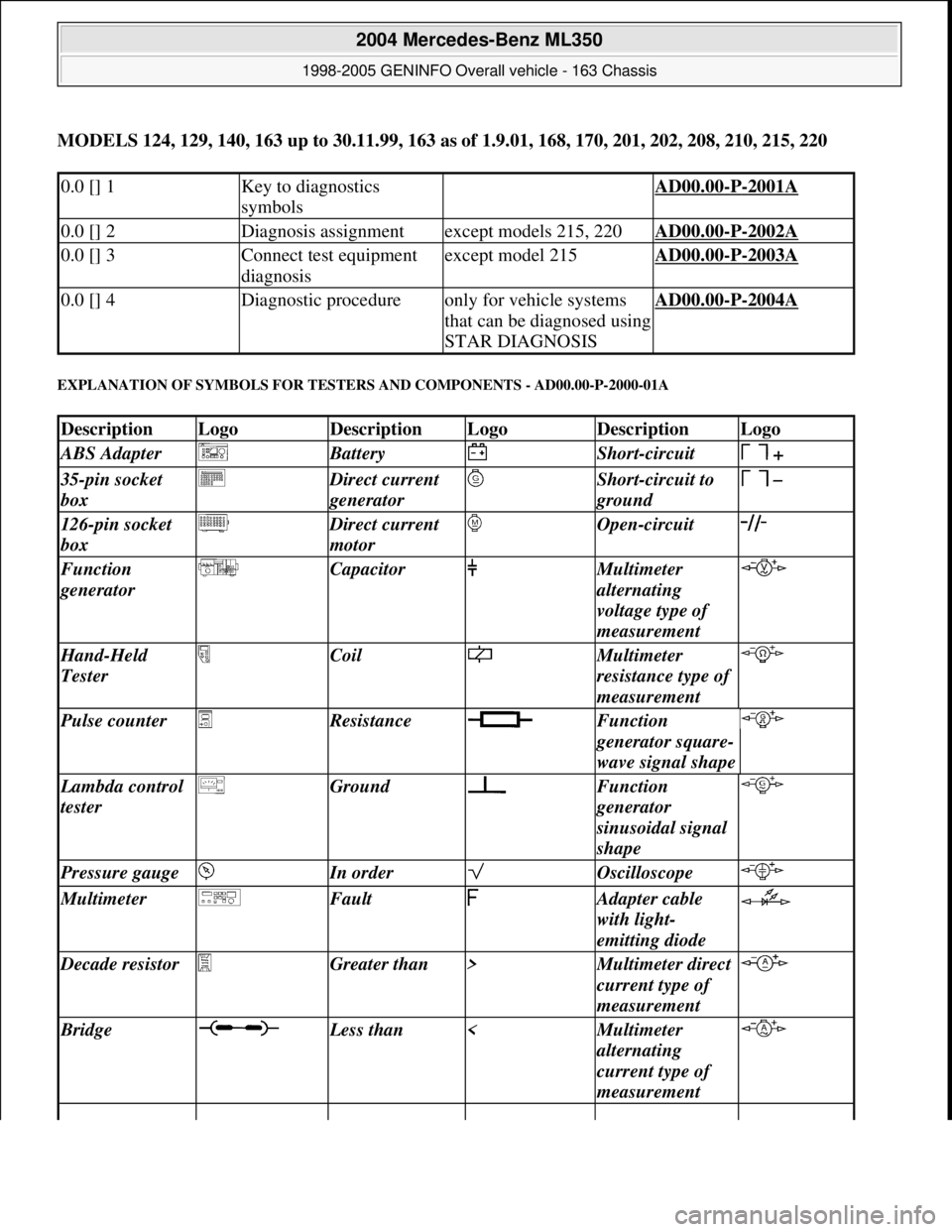

MERCEDES-BENZ ML350 1997 Complete Repair Manual MODELS 124, 129, 140, 163 up to 30.11.99, 163 as of 1.9.01, 168, 170, 201, 202, 208, 210, 215, 220 EXPLANATION OF SYMBOLS FOR TESTERS AND COMPONENTS - AD00.00-P-2000-01A 0.0 [] 1Key to diagnostics s

Page 2884 of 4133

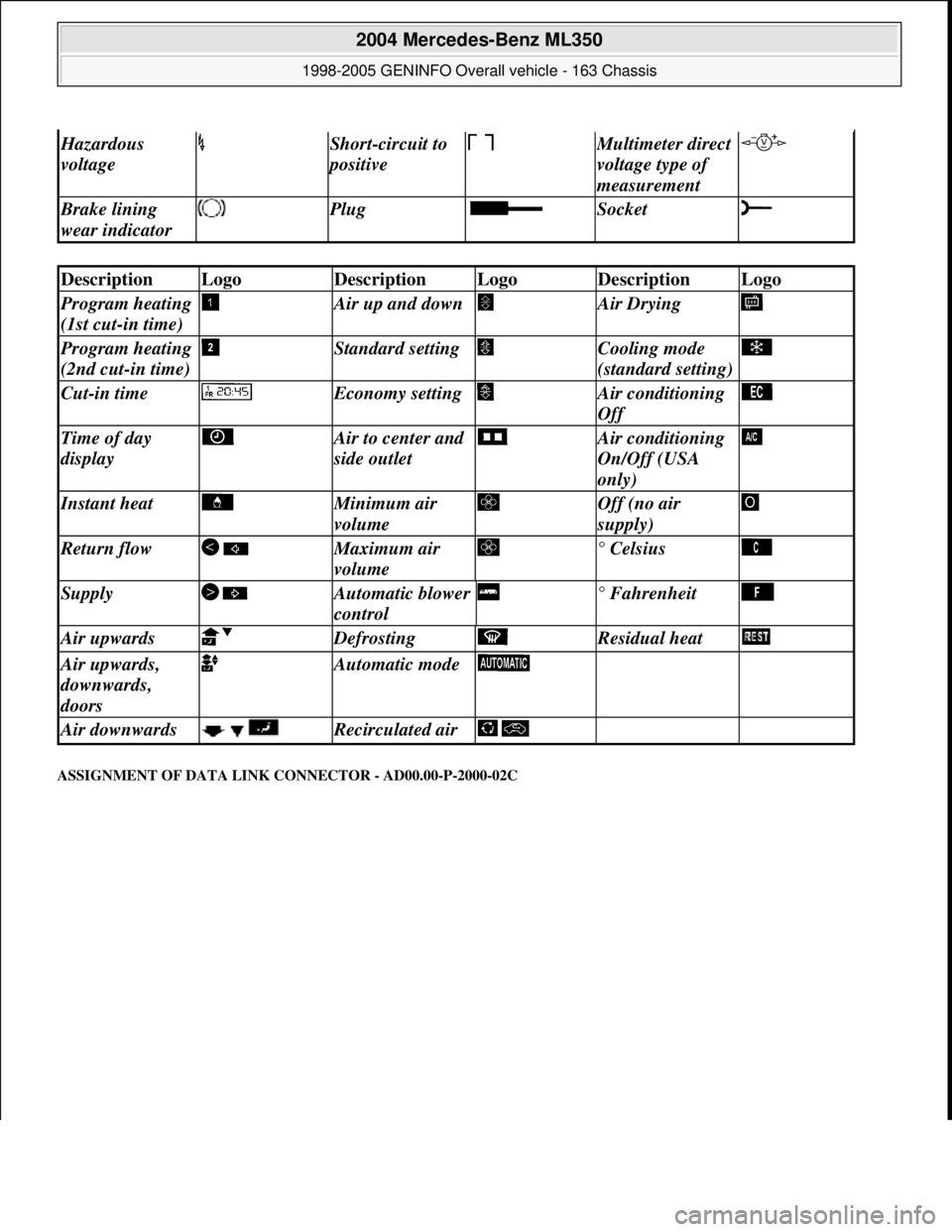

MERCEDES-BENZ ML350 1997 Complete Repair Manual ASSIGNMENT OF DATA LINK CONNECTOR - AD00.00-P-2000-02C Hazardous voltage Short-circuit to positive Multimeter direct voltage type of measurement Brake lining wear indicator Plug Socket

Page 2885 of 4133

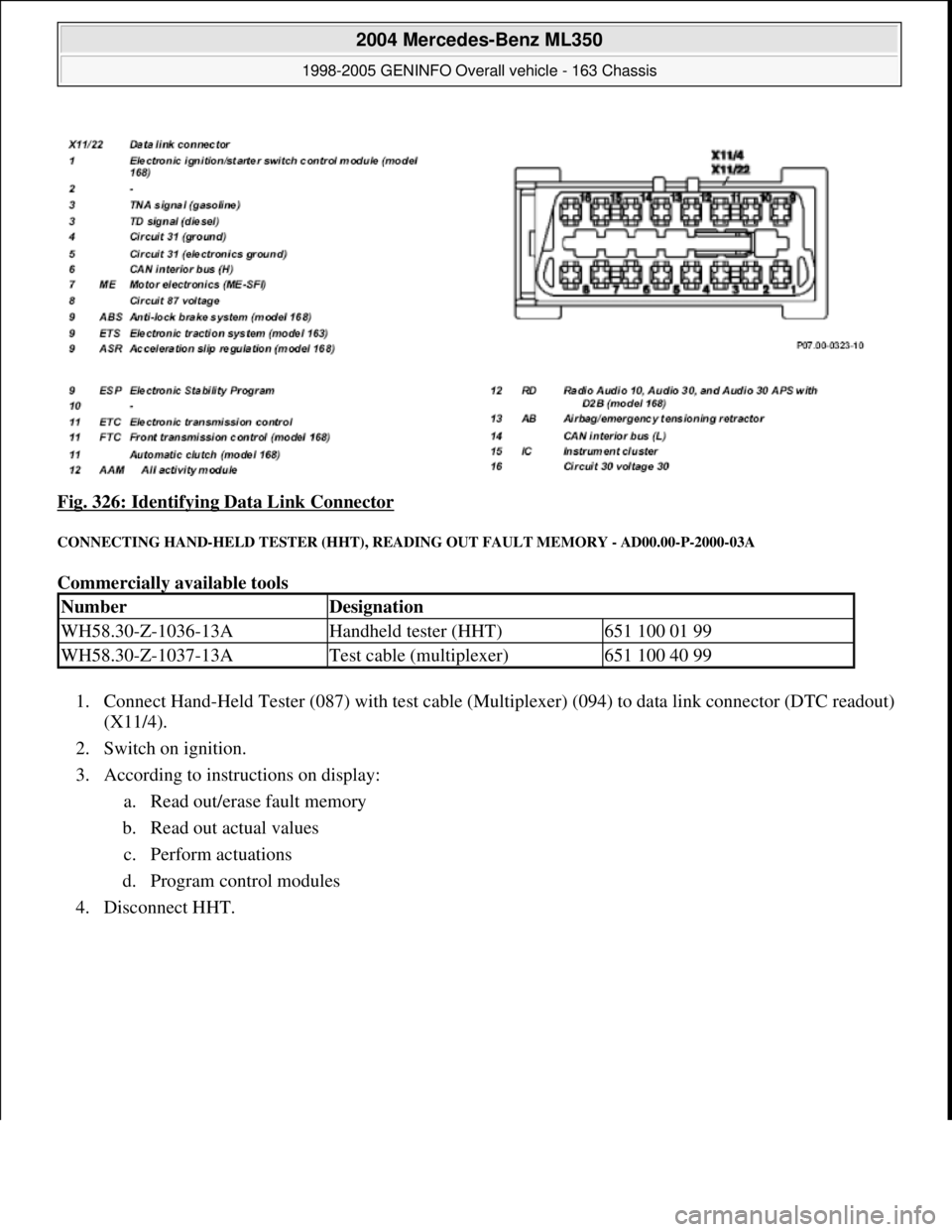

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 326: Identifying Data Link Connector CONNECTING HAND-HELD TESTER (HHT), READING OUT FAULT MEMORY - AD00.00-P-2000-03A Commercially available tools 1. Connect Hand-Held Tester (087) with test c

Page 2886 of 4133

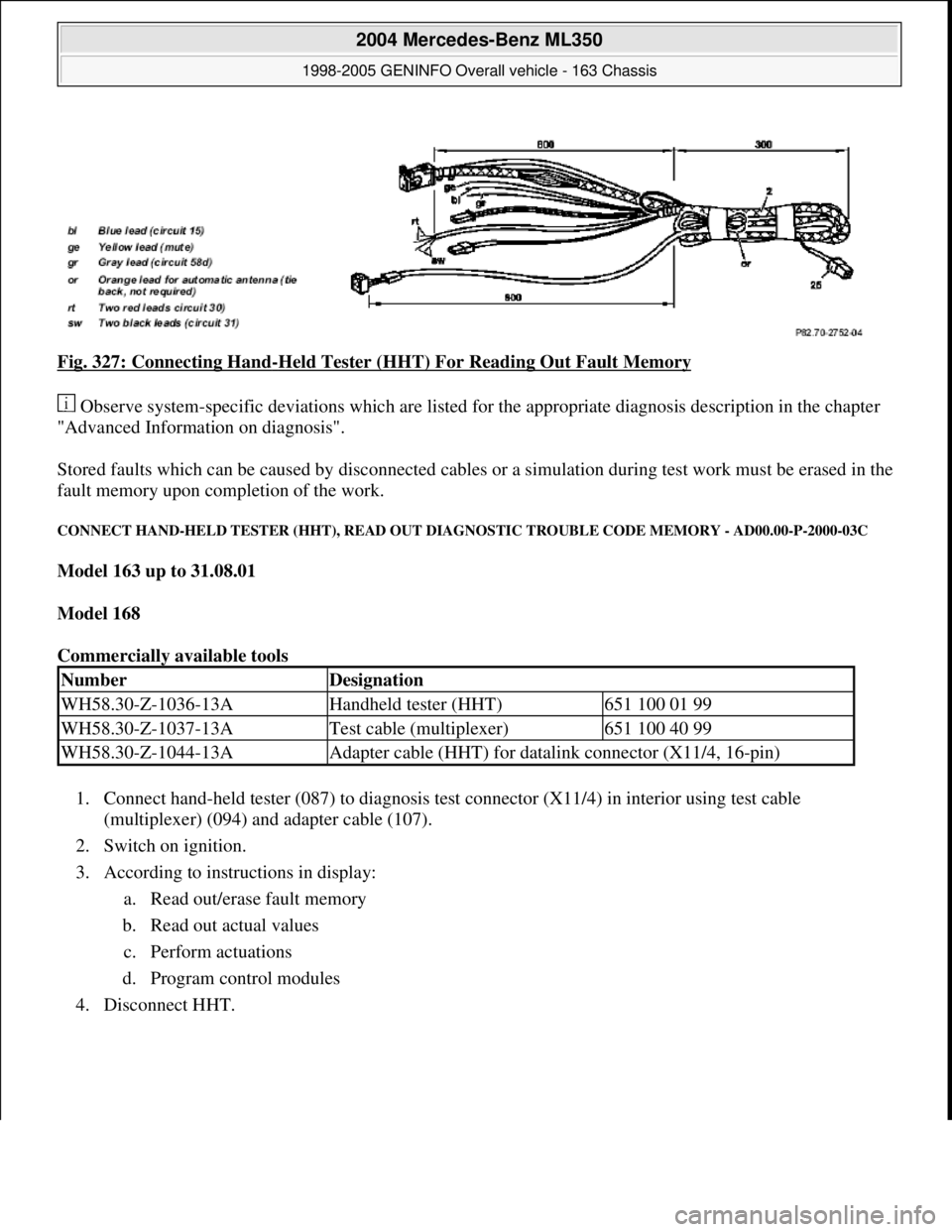

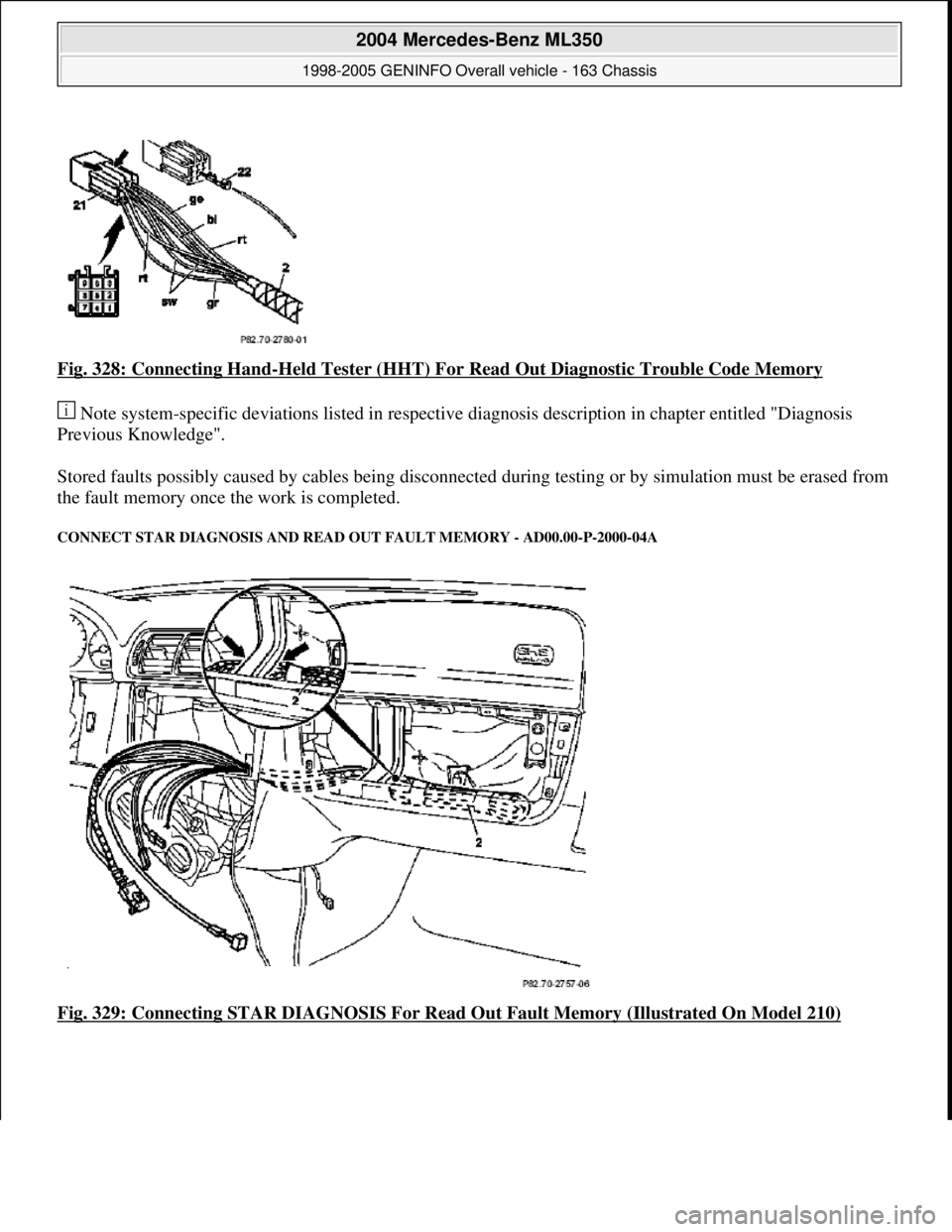

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 327: Connecting Hand-Held Tester (HHT) For Reading Out Fault Memory Observe system-specific deviations which are listed for the appropriate diagnosis description in the chapter "Advanced Infor

Page 2887 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 328: Connecting Hand-Held Tester (HHT) For Read Out Diagnostic Trouble Code Memory Note system-specific deviations listed in respective diagnosis description in chapter entitled "Diagnosis Pre

Page 2888 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 330: Connecting STAR DIAGNO SIS For Read Out Fault Memory (Illustrated On Model 163) Fig. 331: Connecting STAR DIAGNO SIS For Read Out Fault Memory (Illustrated On Model 164.1) Fig. 332: Co
