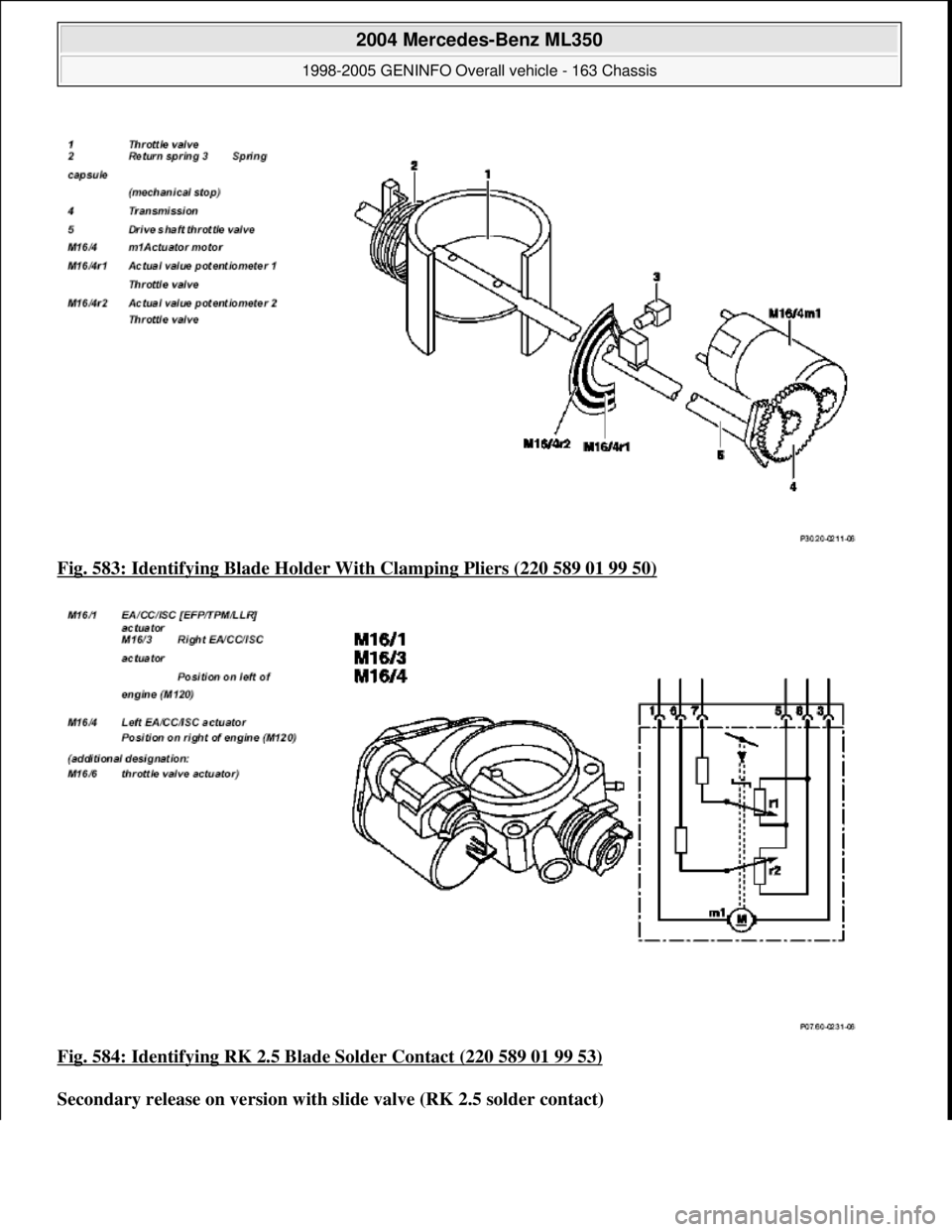

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 583: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50) Fig. 584: Identifying RK 2.5 Blad e Solder Contact (220 589 01 99 53) Secondary release on version with slide valve

Page 3010 of 4133

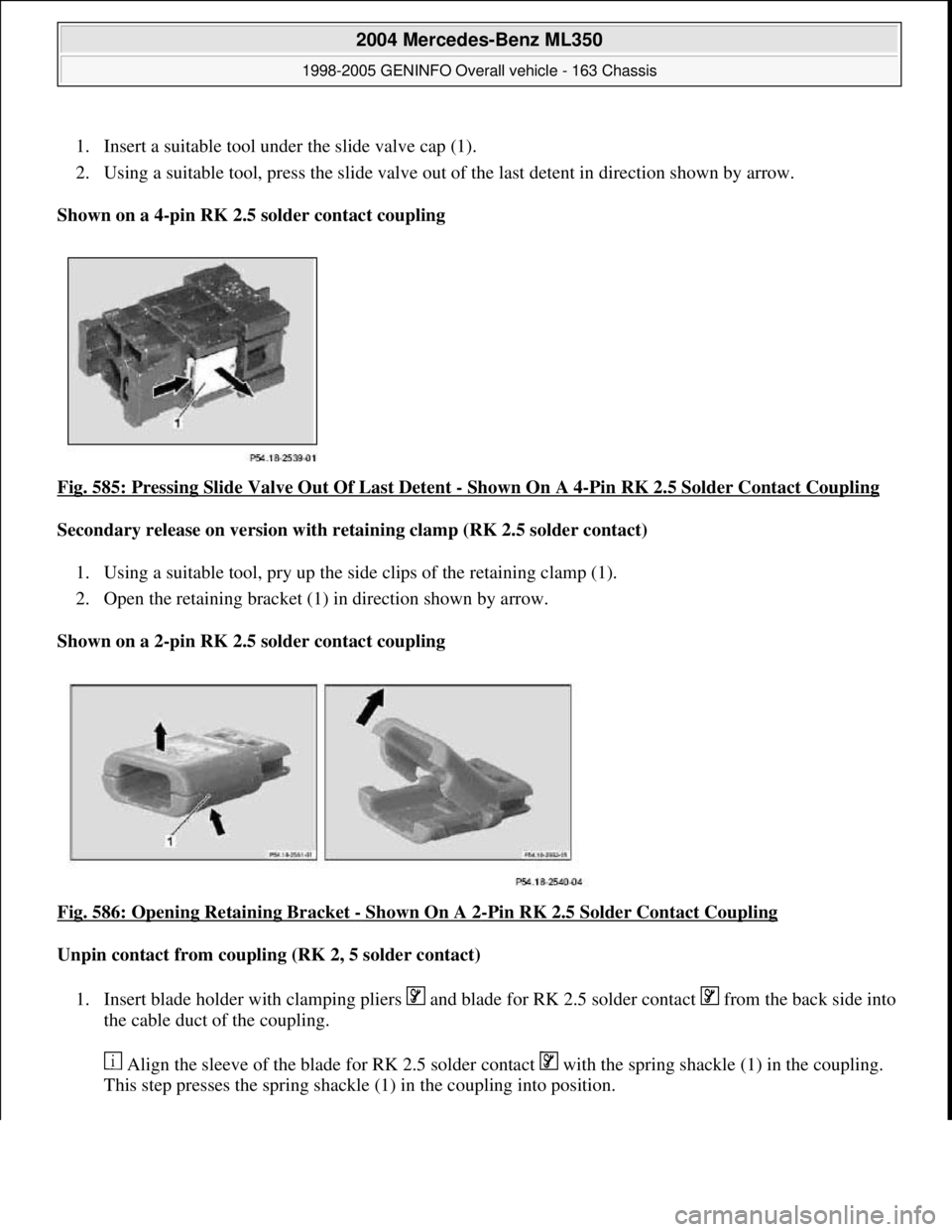

MERCEDES-BENZ ML350 1997 Complete Repair Manual 1. Insert a suitable tool under the slide valve cap (1). 2. Using a suitable tool, press the slide valve out of the last detent in direction shown by arrow. Shown on a 4-pin RK 2.5 solder cont

Page 3011 of 4133

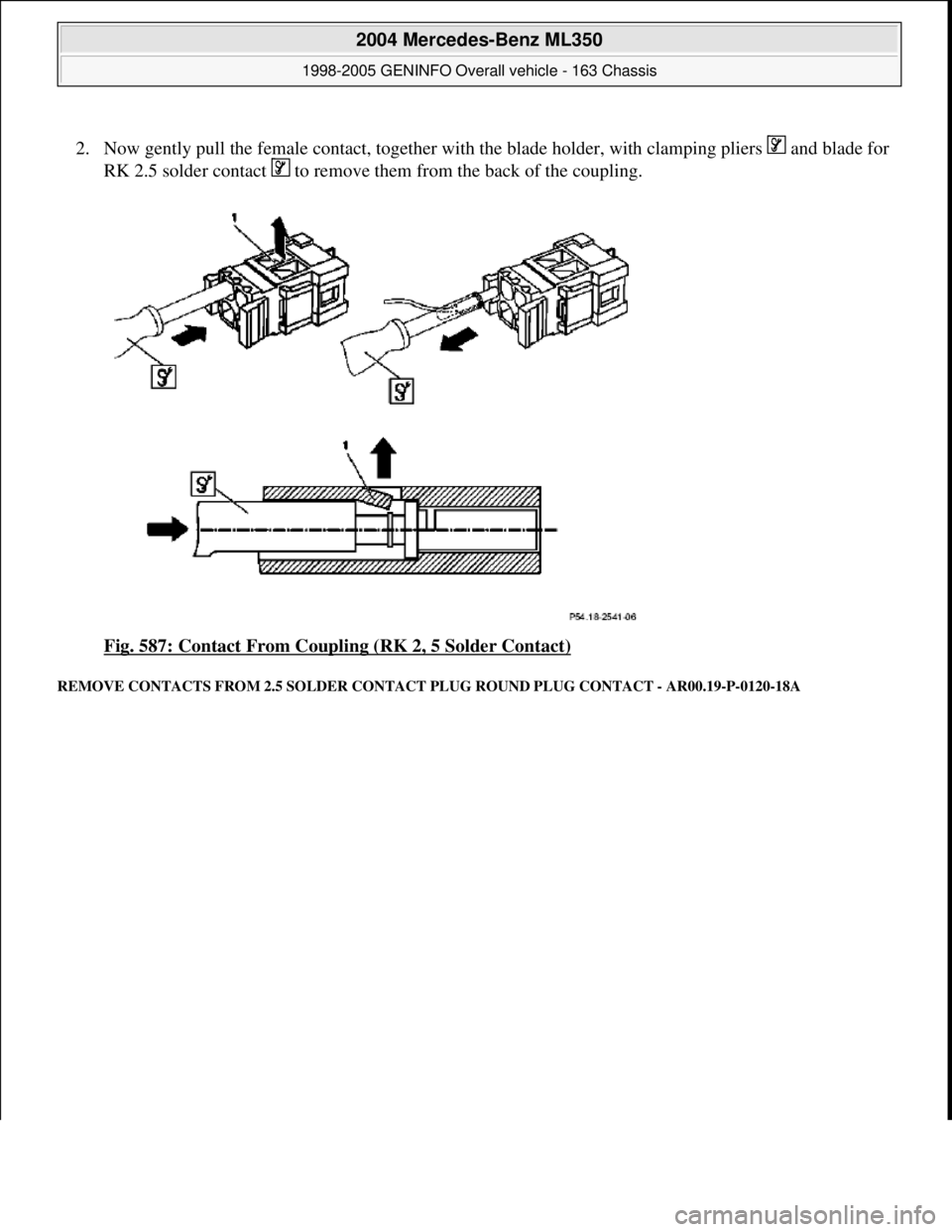

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2. Now gently pull the female contact, together with the blade holder, with clamping pliers and blade for RK 2.5 solder contact to remove them from the back of the coupling. Fig. 587: Contact Fr

Page 3012 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 588: Identifying Wiring Ha rness Repair Kit, Supplement Fo r Passenger Cars (220 589 04 99 00) Fig. 589: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) 2004 Mercedes-Benz M

Page 3013 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 590: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 591: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall

Page 3014 of 4133

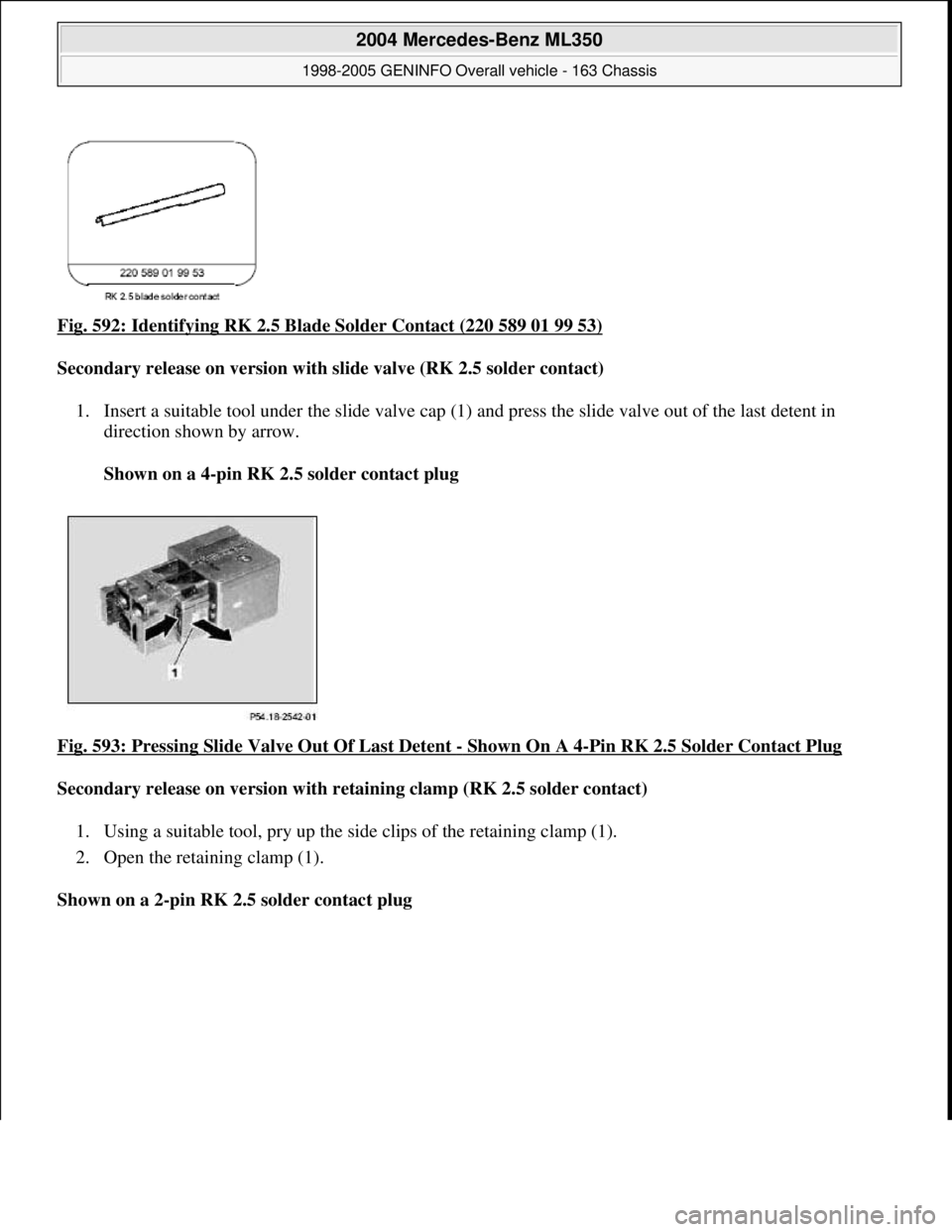

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 592: Identifying RK 2.5 Blad e Solder Contact (220 589 01 99 53) Secondary release on version with slide valve (RK 2.5 solder contact) 1. Insert a suitable tool under the slide valve cap

Page 3015 of 4133

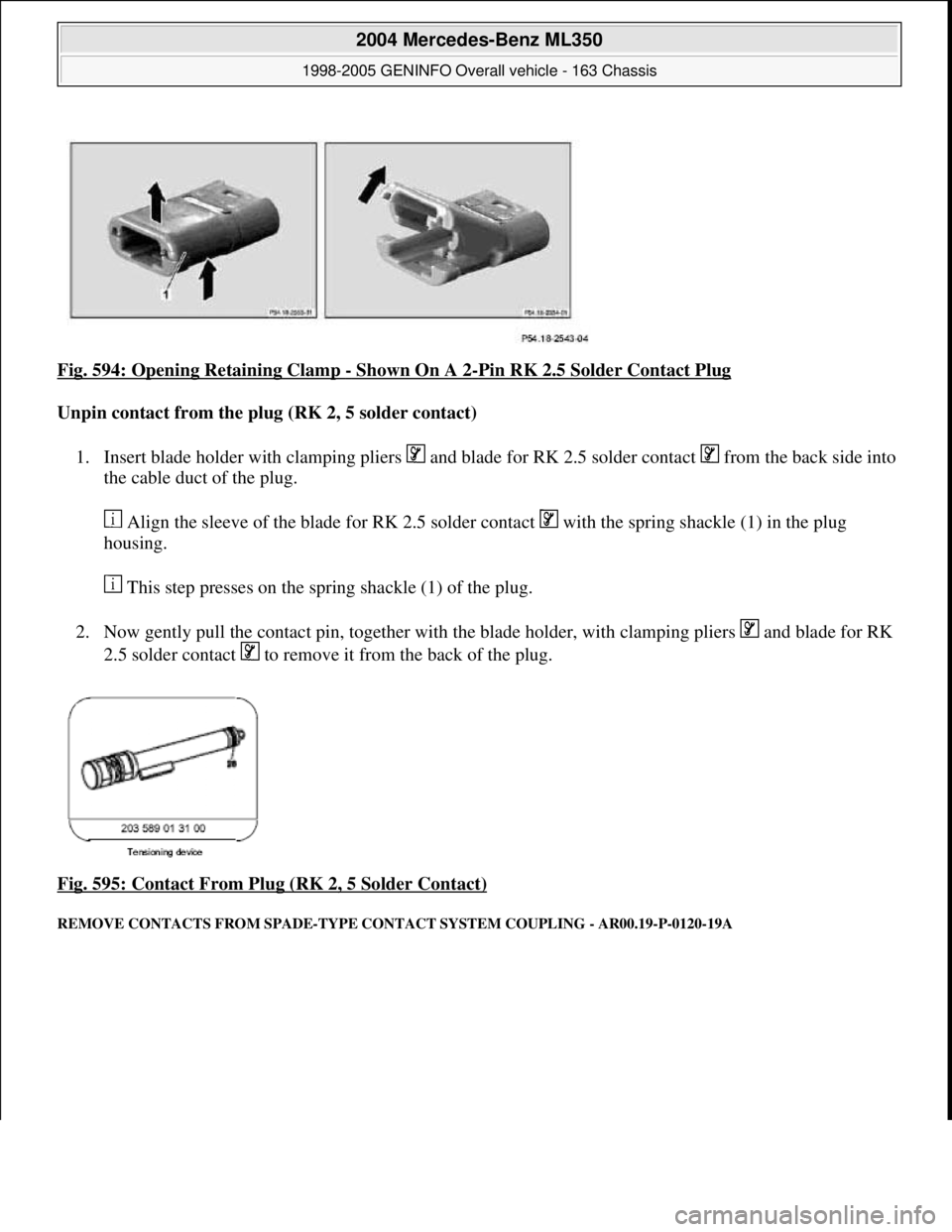

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 594: Opening Retaining Clamp - Shown On A 2-Pin RK 2.5 Solder Contact Plug Unpin contact from the plug (RK 2, 5 solder contact) 1. Insert blade holder with clamping pliers and blade for RK 2

Page 3016 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 596: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig. 597: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 598: Identifying Wiring
