MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 45: Driver Power Seat Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 91 © 2006 Mitchell Repair Informatio

Page 4090 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 92 © 2006 Mitchell Repair Information Company, LLC.

Page 4091 of 4133

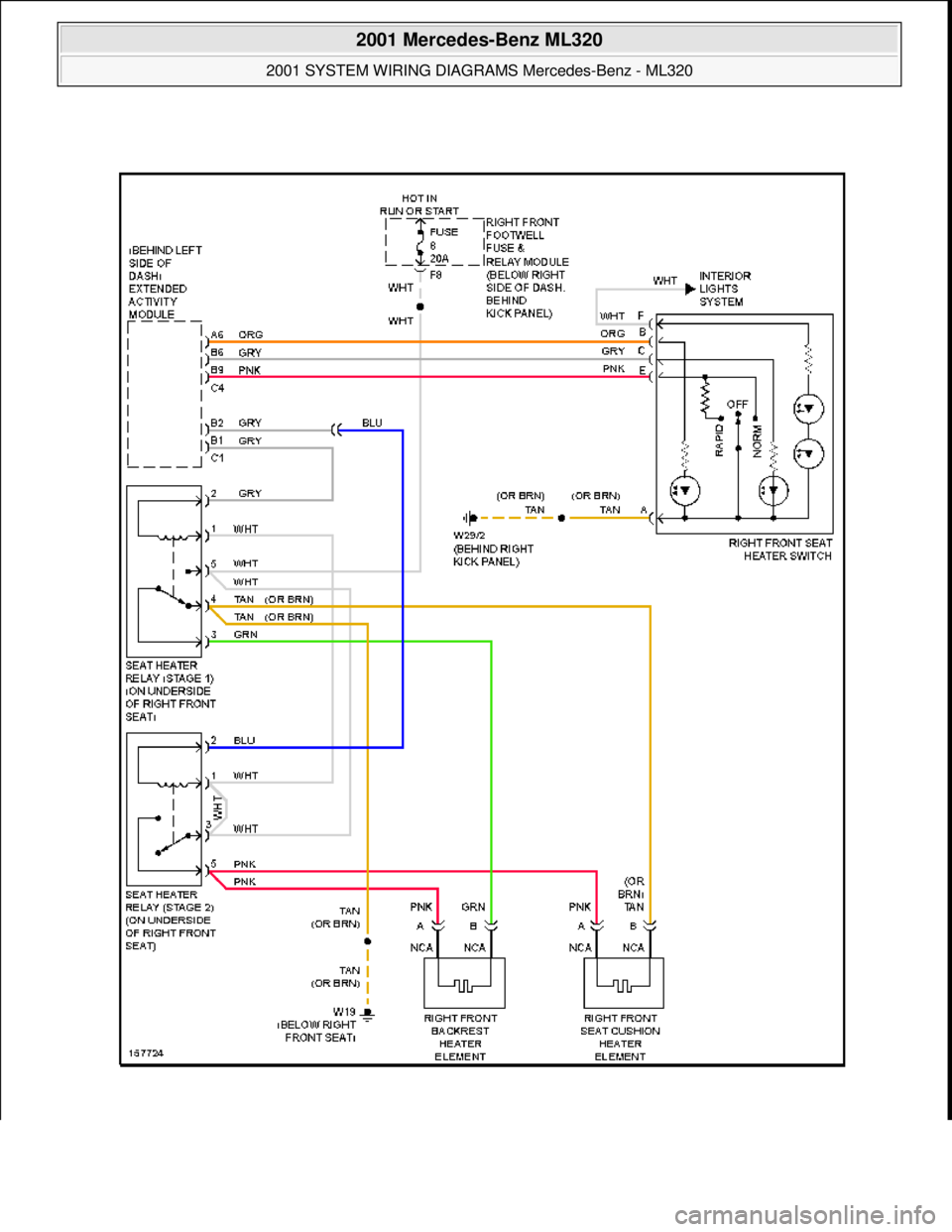

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 46: Passenger Heated Seat Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 93 © 2006 Mitchell Repair Inform

Page 4092 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 94 © 2006 Mitchell Repair Information Company, LLC.

Page 4093 of 4133

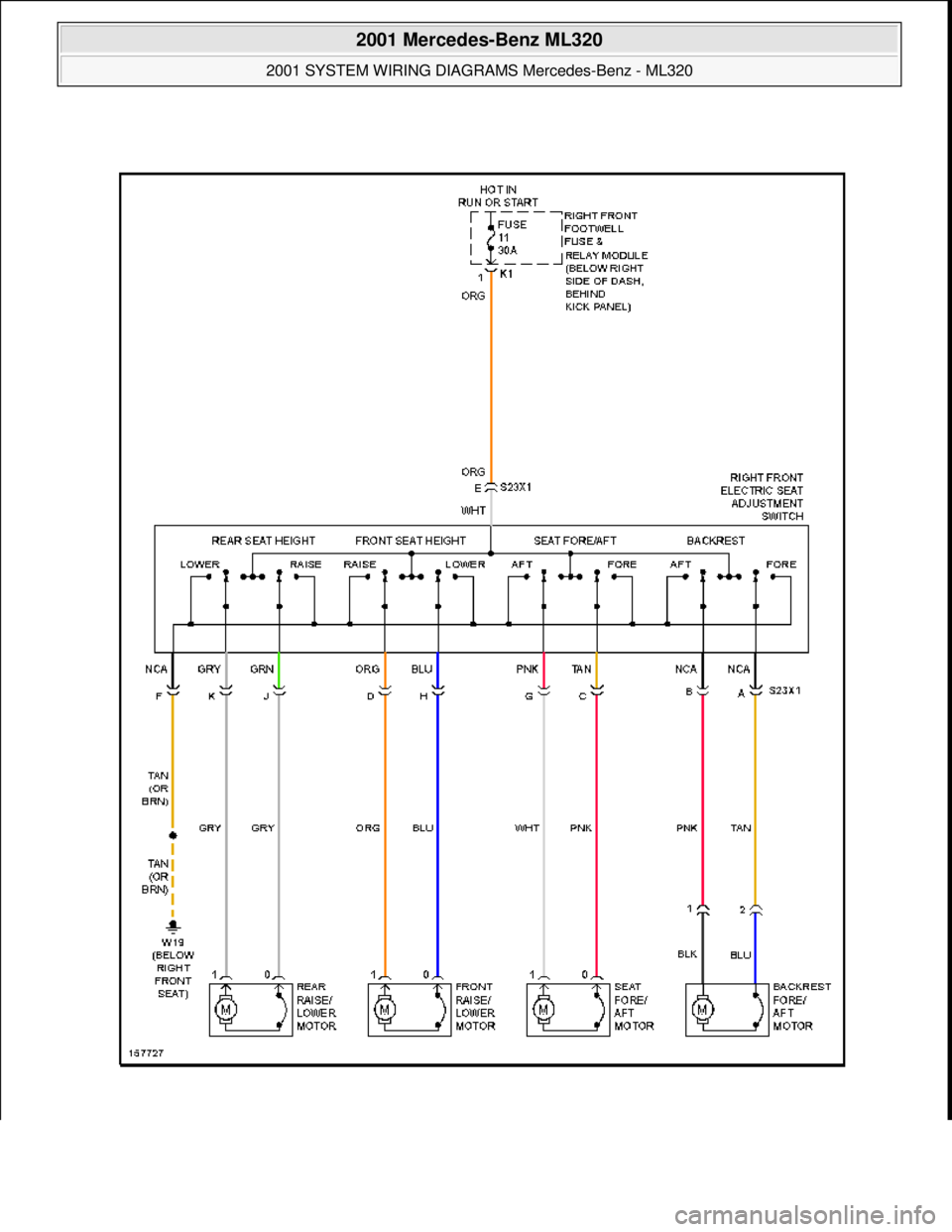

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 47: Passenger"s Power Seat Circuit POWER TOP/SUNROOF 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 95 © 2006 Mi

Page 4094 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 96 © 2006 Mitchell Repair Information Company, LLC.

Page 4095 of 4133

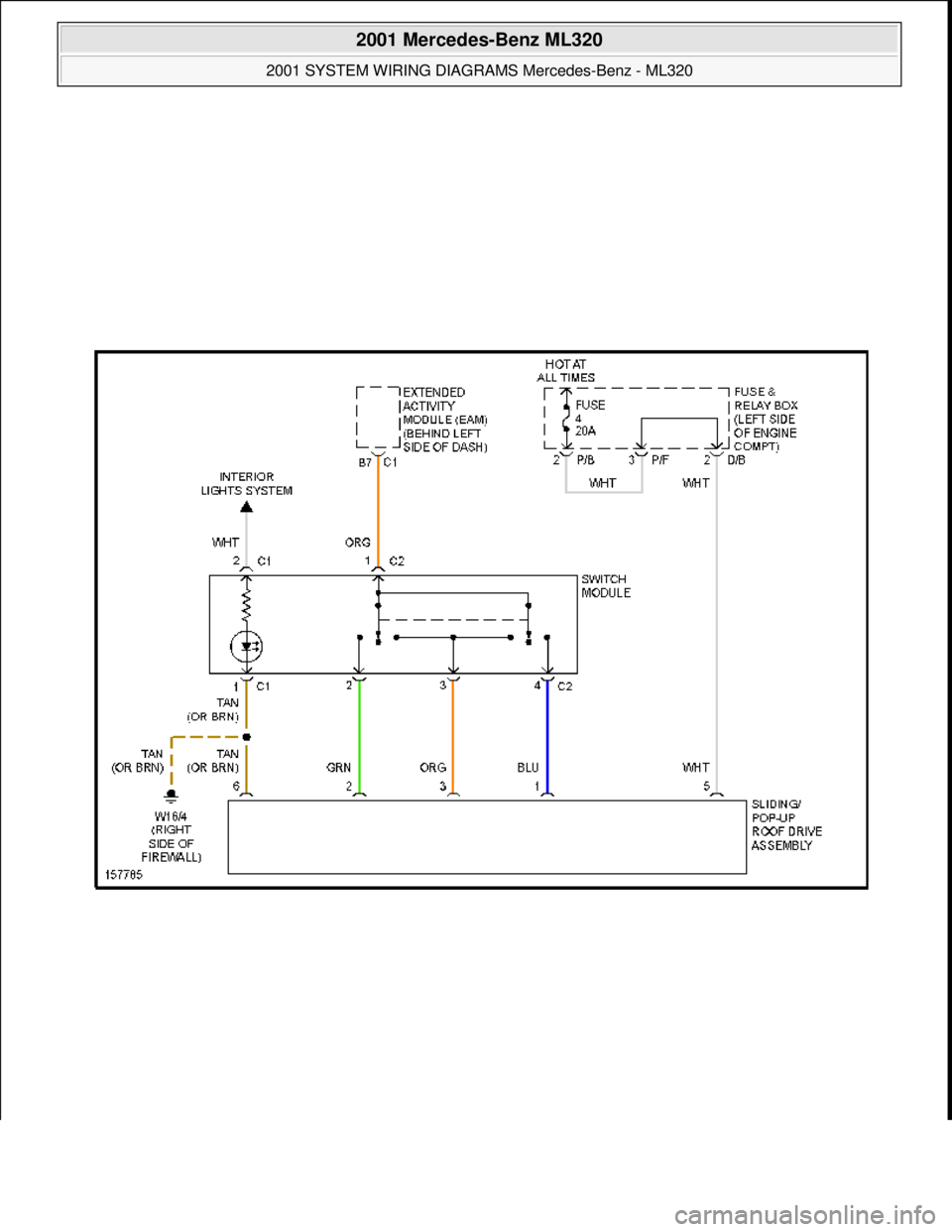

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 48: Double Panel Sunroof Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 97 © 2006 Mitchell Repair Informa

Page 4096 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 98 © 2006 Mitchell Repair Information Company, LLC.
