Parts ordering notes

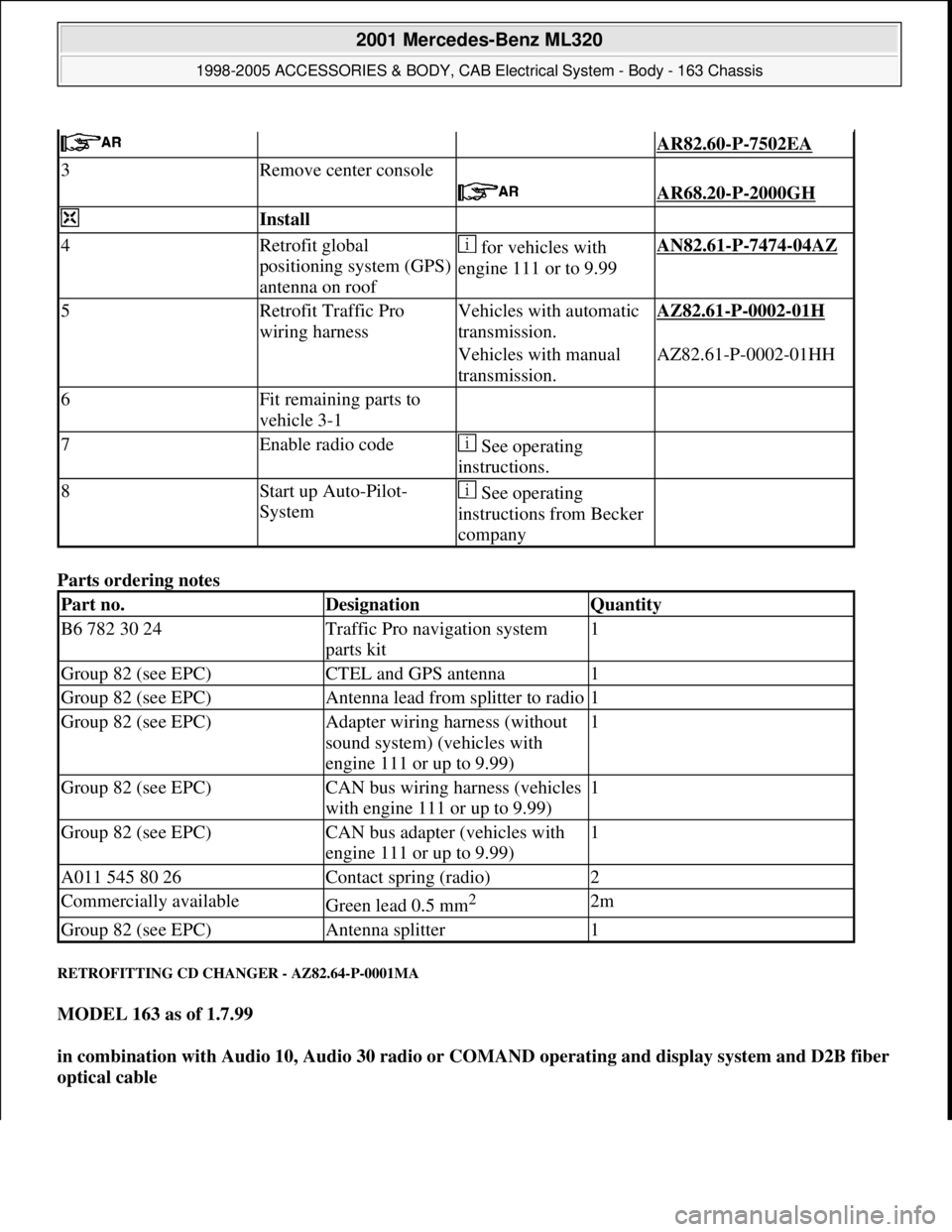

RETROFITTING CD CHANGER - AZ82.64-P-0001MA
MODEL 163 as of 1.7.99
in combination with Audio 10, Audio 30 radio or COMAND operating and display system and D2B fiber
optical cable
AR82.60-P-7502EA
3Remove center console
AR68.20-P-2000GH
Install
4Retrofit global
positioning system (GPS)
antenna on roof for vehicles with
engine 111 or to 9.99AN82.61-P-7474-04AZ
5Retrofit Traffic Pro
wiring harnessVehicles with automatic
transmission.AZ82.61-P-0002-01H
Vehicles with manual
transmission.AZ82.61-P-0002-01HH
6Fit remaining parts to
vehicle 3-1
7Enable radio code See operating
instructions.
8Start up Auto-Pilot-
System See operating
instructions from Becker
company
Part no.DesignationQuantity
B6 782 30 24Traffic Pro navigation system
parts kit1
Group 82 (see EPC)CTEL and GPS antenna1
Group 82 (see EPC)Antenna lead from splitter to radio1
Group 82 (see EPC)Adapter wiring harness (without
sound system) (vehicles with
engine 111 or up to 9.99)1
Group 82 (see EPC)CAN bus wiring harness (vehicles
with engine 111 or up to 9.99)1
Group 82 (see EPC)CAN bus adapter (vehicles with
engine 111 or up to 9.99)1
A011 545 80 26Contact spring (radio)2
Commercially availableGreen lead 0.5 mm2 2m
Group 82 (see EPC)Antenna splitter1
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 418 © 2006 Mitchell Repair Information Company, LLC.
Page 1914 of 4133

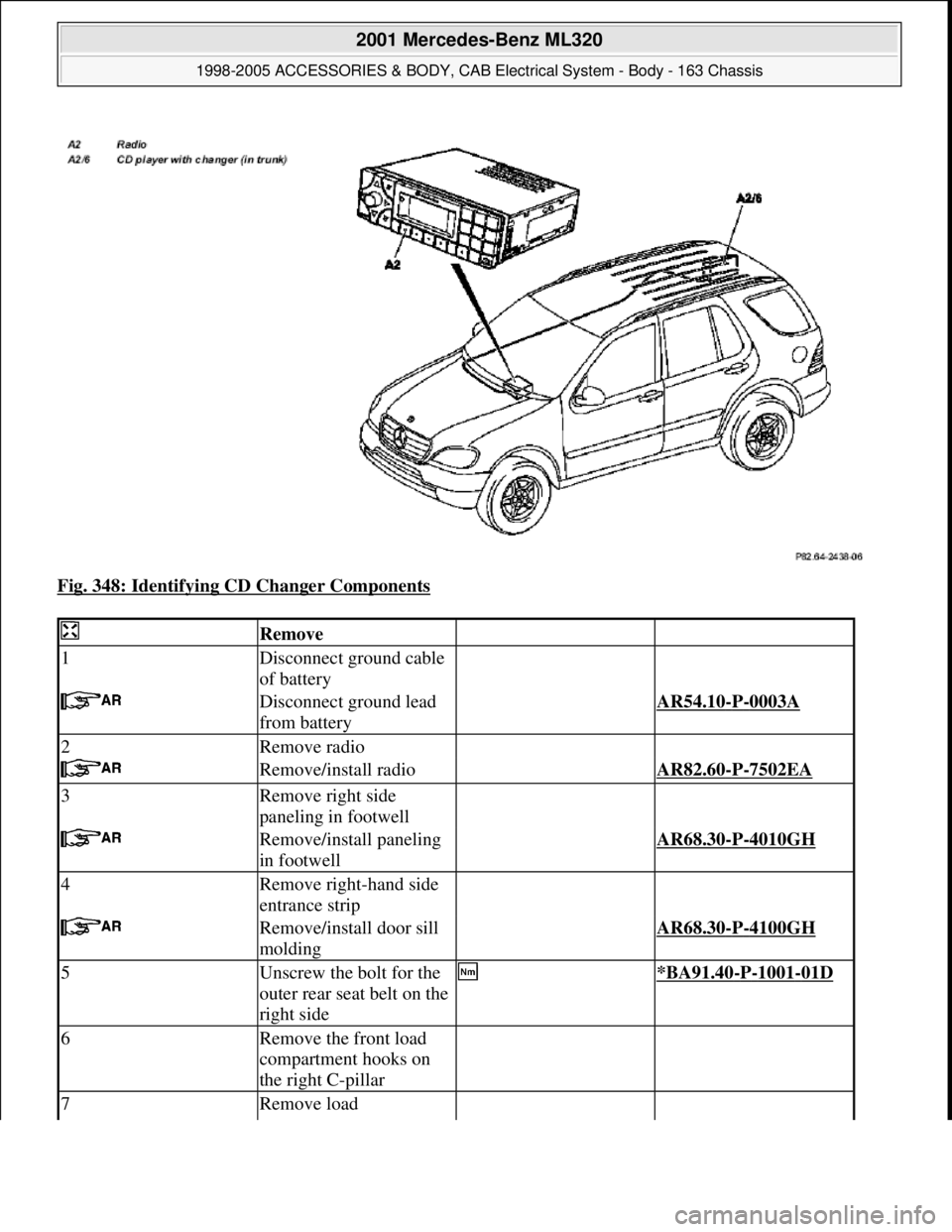

Fig. 348: Identifying CD Changer Components
Remove
1Disconnect ground cable
of battery
Disconnect ground lead
from battery AR54.10-P-0003A
2Remove radio
Remove/install radio AR82.60-P-7502EA
3Remove right side
paneling in footwell
Remove/install paneling
in footwell AR68.30-P-4010GH
4Remove right-hand side
entrance strip
Remove/install door sill
molding AR68.30-P-4100GH
5Unscrew the bolt for the
outer rear seat belt on the
right side *BA91.40-P-1001-01D
6Remove the front load
compartment hooks on
the right C-pillar
7Remove load
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 419 © 2006 Mitchell Repair Information Company, LLC.
Page 1915 of 4133

Seat belts/emergency tensioning retractors
Parts ordering notes
RETROFITTING TELEPHONE CONSOLE - AZ82.70-P-0001-01A
compartment cover and
unscrew the bolt in the
bracket
8Remove cover for the CD
changer and unscrew bolt
behind the cover in the
top left corner

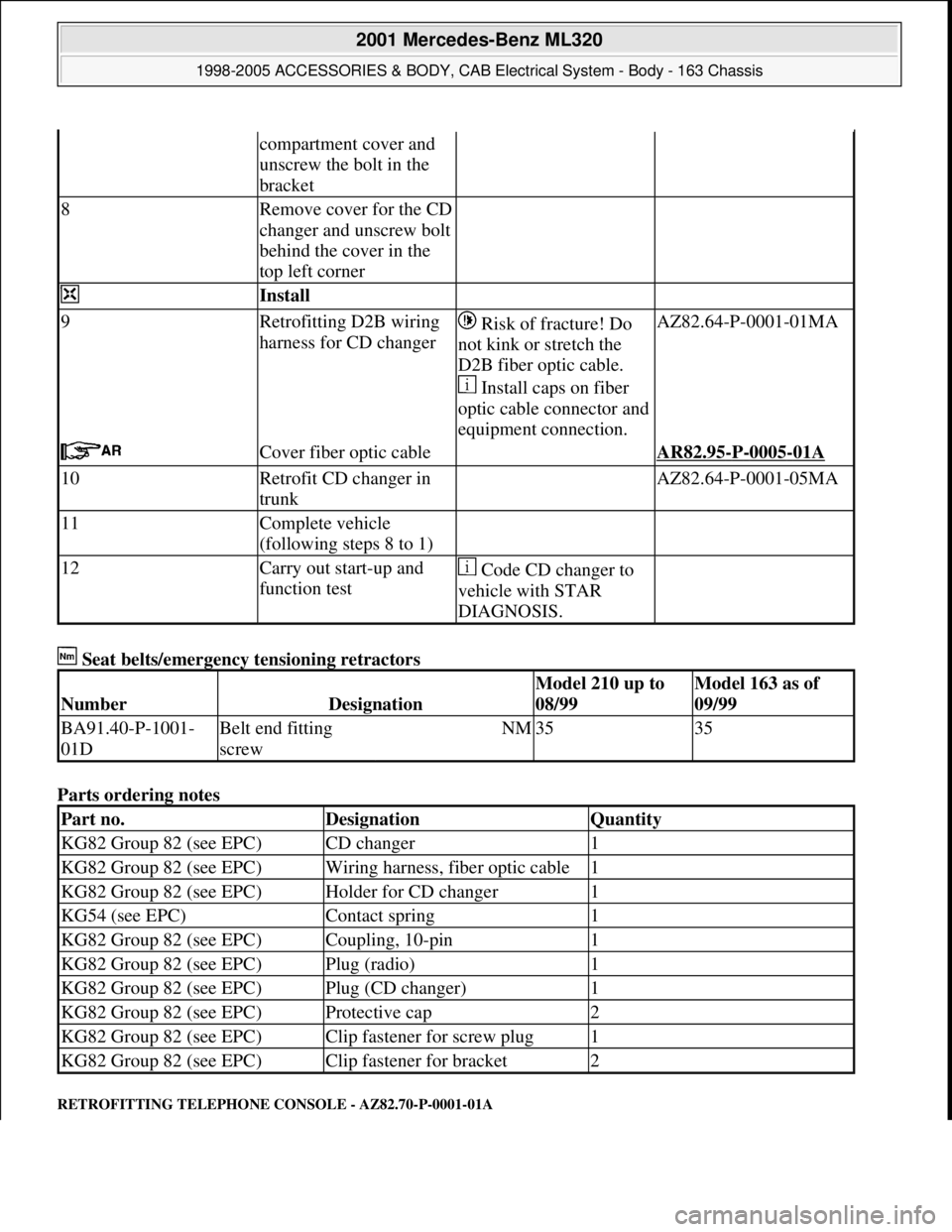

Install
9Retrofitting D2B wiring
harness for CD changer Risk of fracture! Do
not kink or stretch the
D2B fiber optic cable.
Install caps on fiber
optic cable connector and
equipment connection.AZ82.64-P-0001-01MA
Cover fiber optic cable AR82.95-P-0005-01A
10Retrofit CD changer in
trunk AZ82.64-P-0001-05MA
11Complete vehicle
(following steps 8 to 1)
12Carry out start-up and
function test Code CD changer to
vehicle with STAR
DIAGNOSIS.
NumberDesignation
Model 210 up to
08/99Model 163 as of
09/99
BA91.40-P-1001-
01DBelt end fitting
screwNM3535
Part no.DesignationQuantity
KG82 Group 82 (see EPC)CD changer1
KG82 Group 82 (see EPC)Wiring harness, fiber optic cable1
KG82 Group 82 (see EPC)Holder for CD changer1
KG54 (see EPC)Contact spring1
KG82 Group 82 (see EPC)Coupling, 10-pin1
KG82 Group 82 (see EPC)Plug (radio)1
KG82 Group 82 (see EPC)Plug (CD changer)1
KG82 Group 82 (see EPC)Protective cap2
KG82 Group 82 (see EPC)Clip fastener for screw plug1
KG82 Group 82 (see EPC)Clip fastener for bracket2
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 420 © 2006 Mitchell Repair Information Company, LLC.
Page 1916 of 4133
Model 163 up to 31.8.00 for Nokia 3110 portable CTEL 1. Place assembly plate (10) onto te lephone console (12) as shown in figure and align to size: a=20 mm and
b=55 mm. Mark hole pattern and drill with 2.5 dia. bit.
2. Attach assembly plate (10) to tele phone console (12) with screws (11).

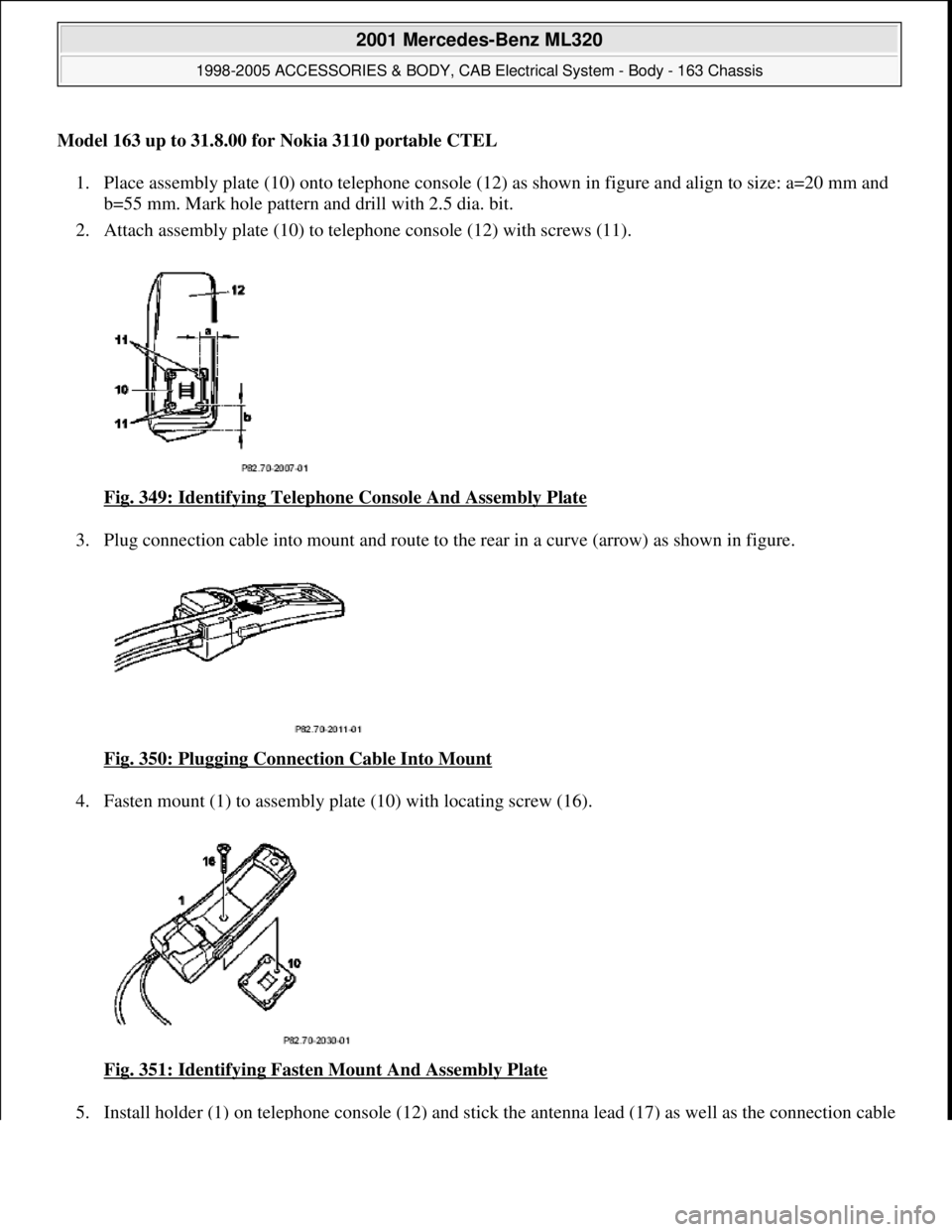

Fig. 349: Identifying Telephone Console And Assembly Plate
3. Plug connection cable into mount and route to th e rear in a curve (arrow) as shown in figure.
Fig. 350: Plugging Connection Cable Into Mount
4. Fasten mount (1) to assembly pl ate (10) with locating screw (16).
Fig. 351: Identifying Fasten Mount And Assembly Plate
5. Install holder (1) on telephone console (12) and stick the antenna lead (17) as well as the connection cable
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 421 © 2006 Mitchell Repair Information Company, LLC.
Page 1917 of 4133

(2) into the console with felt (arrows).

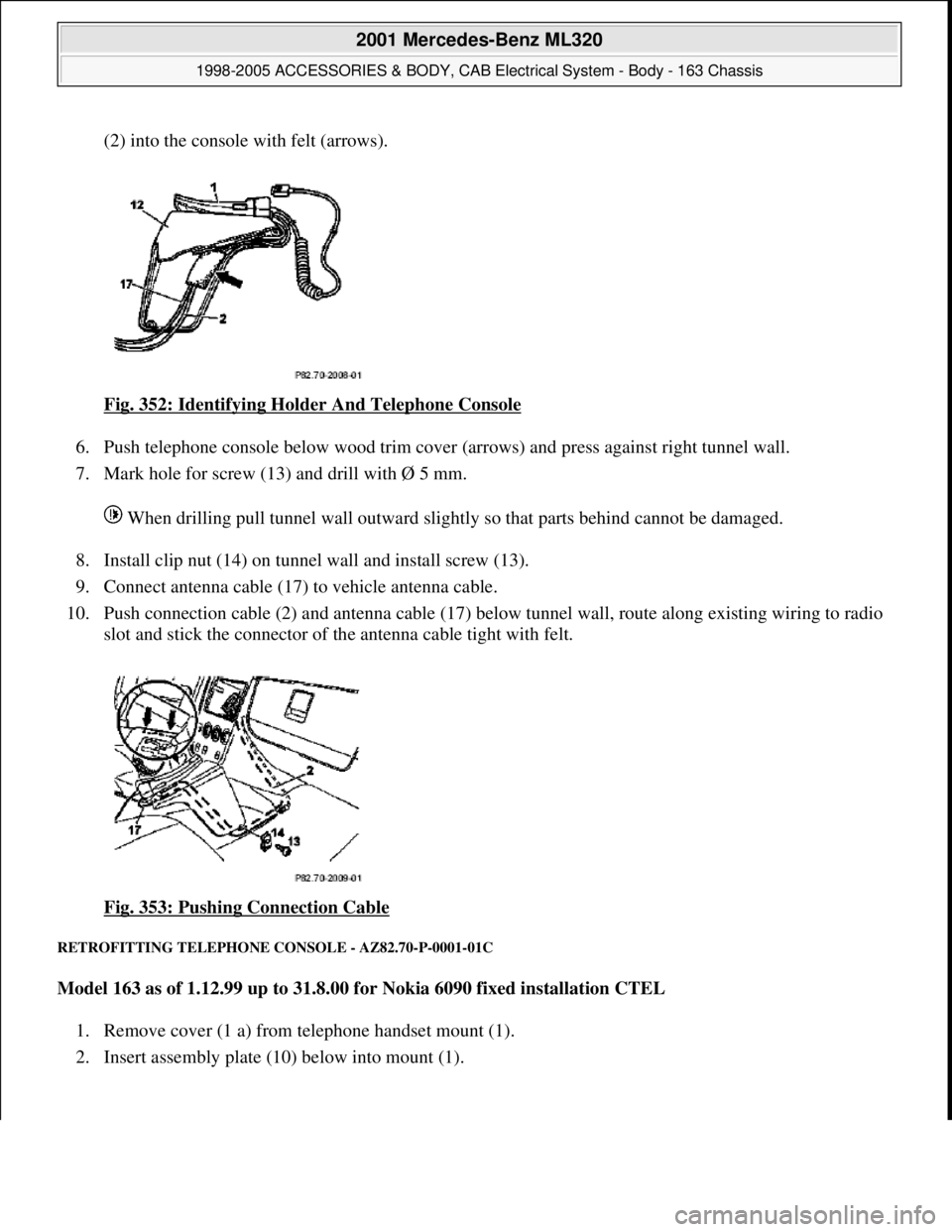

Fig. 352: Identifying Holder And Telephone Console
6. Push telephone console below wood trim cover (arrows) and press against right tunnel wall.
7. Mark hole for screw (13) and drill with Ø 5 mm.
When drilling pull tunnel wall outward slightly so that parts behind cannot be damaged.
8. Install clip nut (14) on tunnel wall and install screw (13).
9. Connect antenna cable (17) to vehicle antenna cable.
10. Push connection cable (2) and antenna cable (17) below tunnel wall, route along existing wiring to radio
slot and stick the connector of the antenna cable tight with felt.
Fig. 353: Pushing Connection Cable
RETROFITTING TELEPHONE CONSOLE - AZ82.70-P-0001-01C
Model 163 as of 1.12.99 up to 31.8.00 for Nokia 6090 fixed installation CTEL
1. Remove cover (1 a) from telephone handset mount (1).
2. Insert assembly plate (10) below into mount (1).
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 422 © 2006 Mitchell Repair Information Company, LLC.
Page 1918 of 4133

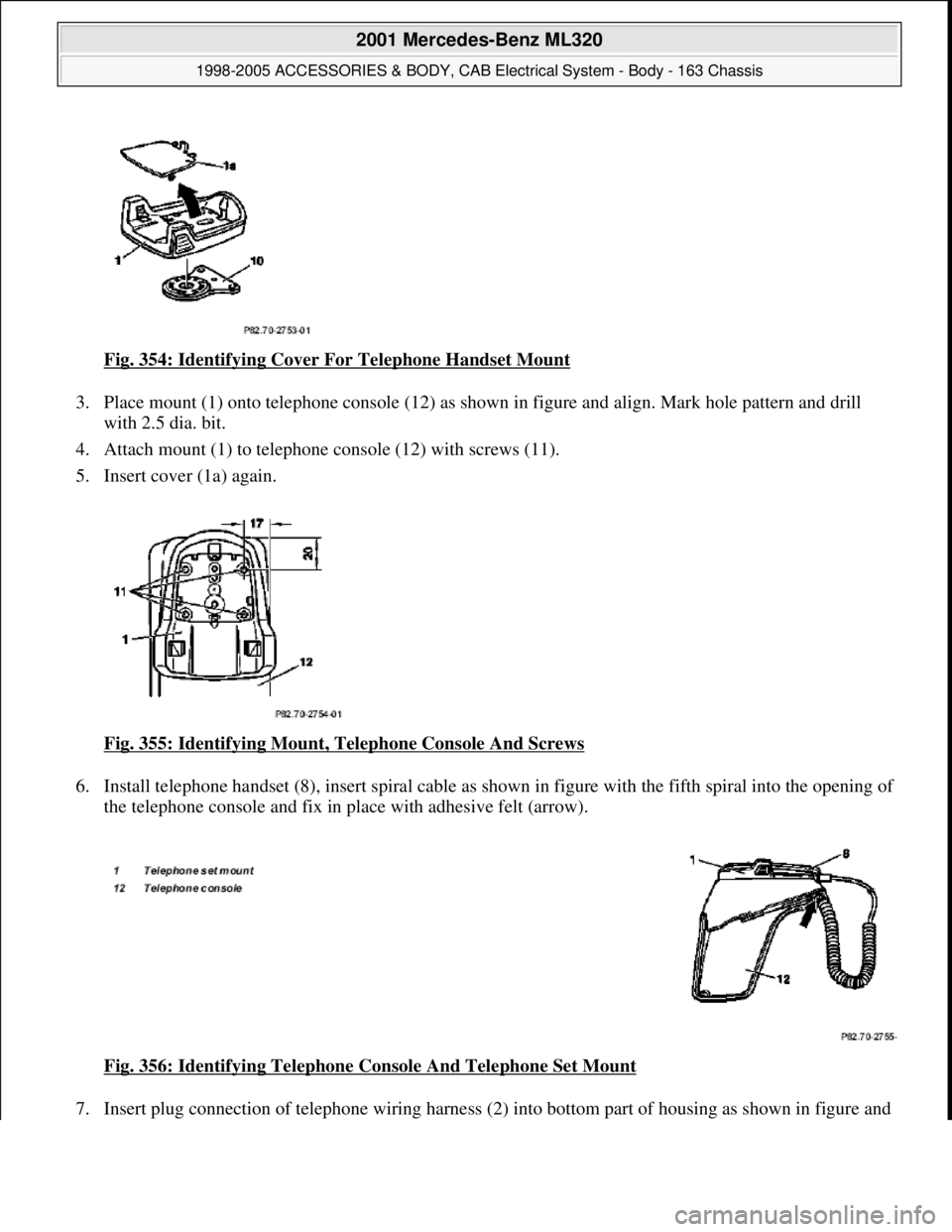

Fig. 354: Identifying Cover For Telephone Handset Mount
3. Place mount (1) onto telephone cons ole (12) as shown in figure and align. Mark hole pattern and drill
with 2.5 dia. bit.
4. Attach mount (1) to telephone c onsole (12) with screws (11).
5. Insert cover (1a) again.
Fig. 355: Identifying Mount, Telephone Console And Screws
6. Install telephone handset (8), insert spiral cable as s hown in figure with the fifth spiral into the opening of
the telephone console and fix in place with adhesive felt (arrow).
Fig. 356: Identifying Telephone Console And Telephone Set Mount
7. Insert plu
g connection of telephone wiring harness (2) into bottom part of housing as shown in figure and
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 423 © 2006 Mitchell Repair Information Company, LLC.
Page 1919 of 4133

fit on top part of housing.

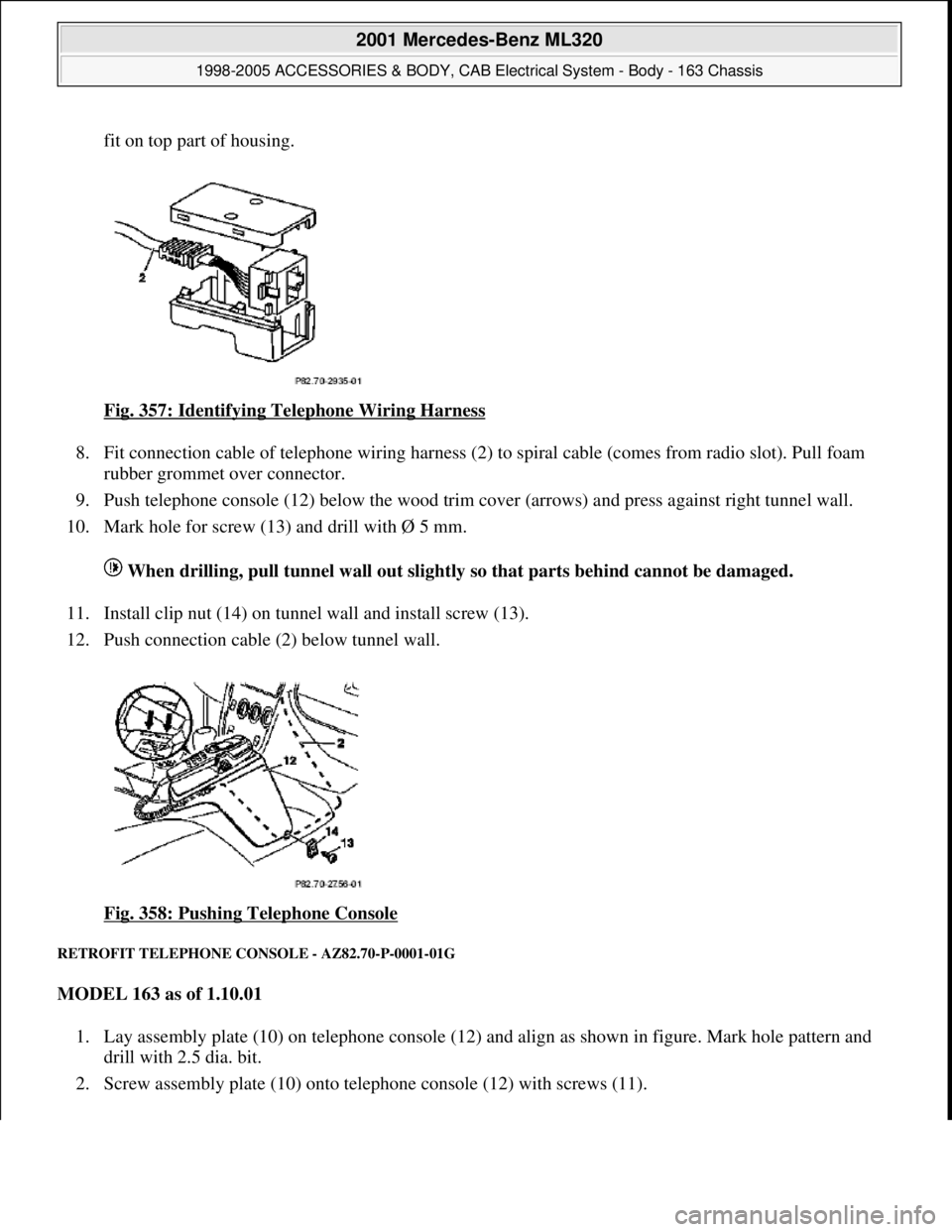

Fig. 357: Identifying Telephone Wiring Harness
