Page 1705 of 4133

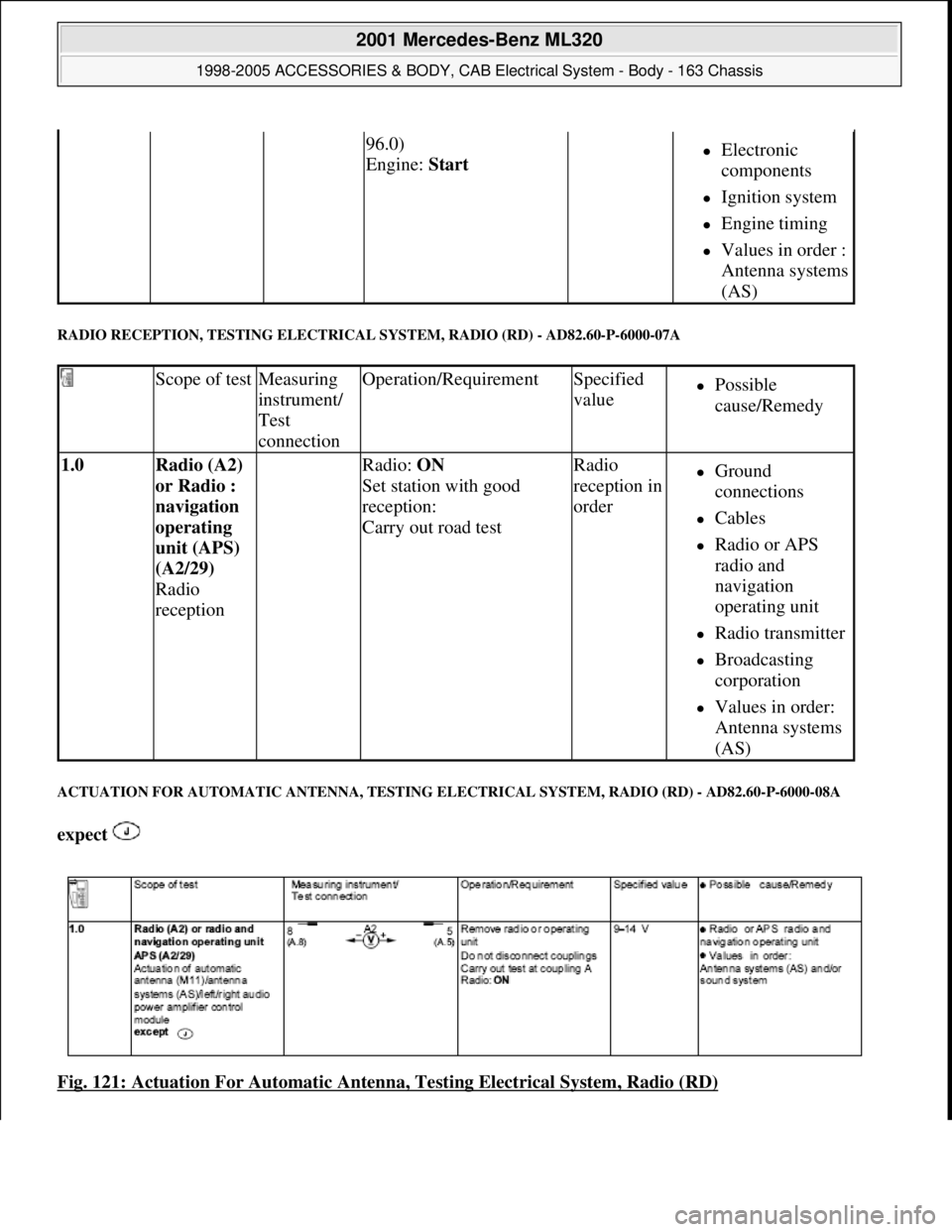

MERCEDES-BENZ ML350 1997 Complete Repair Manual RADIO RECEPTION, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-07A ACTUATION FOR AUTO MATIC ANTENNA, TESTING E LECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-08A expect Fig. 121: Actu

Page 1706 of 4133

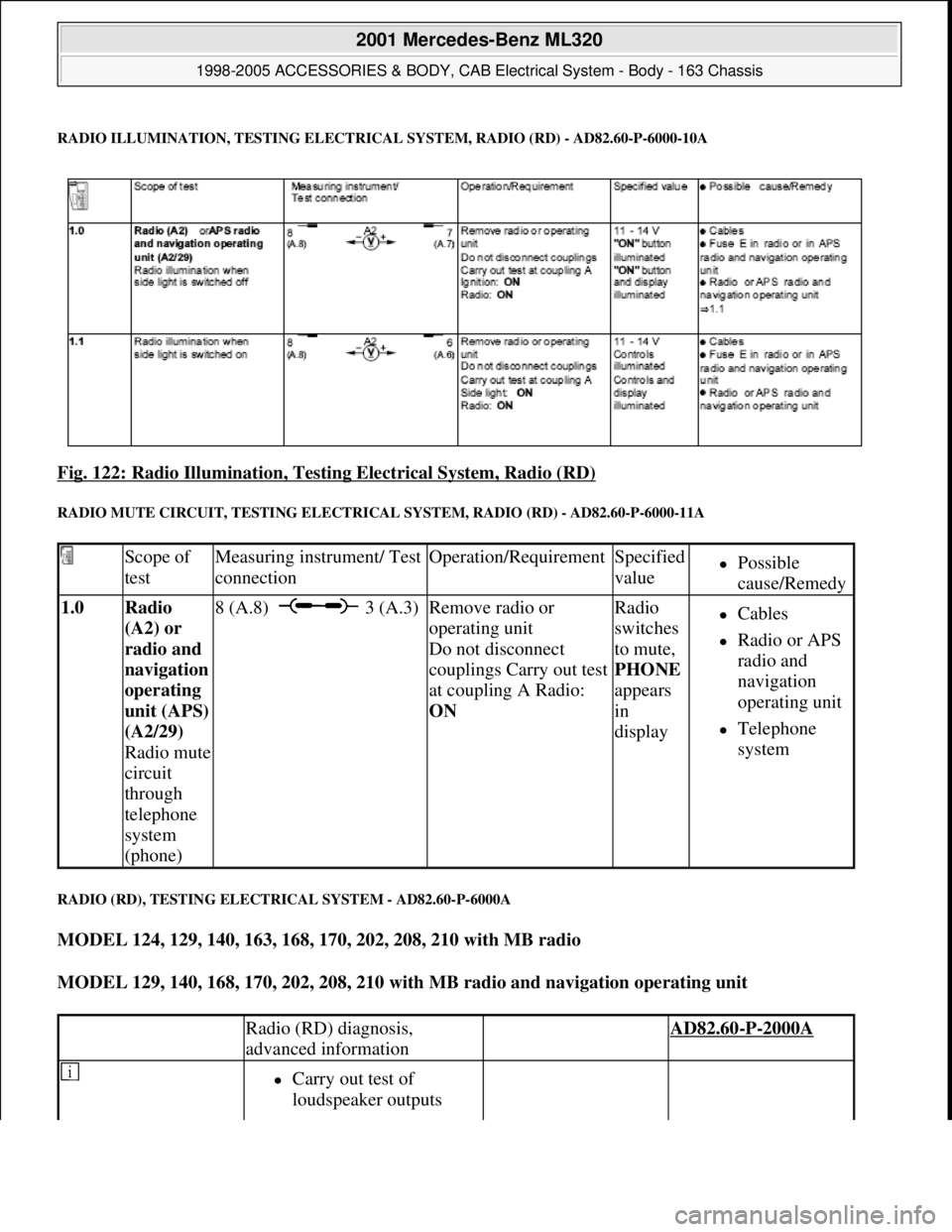

MERCEDES-BENZ ML350 1997 Complete Repair Manual RADIO ILLUMINATION, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-10A Fig. 122: Radio Illumination, Testing Electrical System, Radio (RD) RADIO MUTE CIRCUIT, TESTING ELECTRICAL SYSTEM, RADI

Page 1707 of 4133

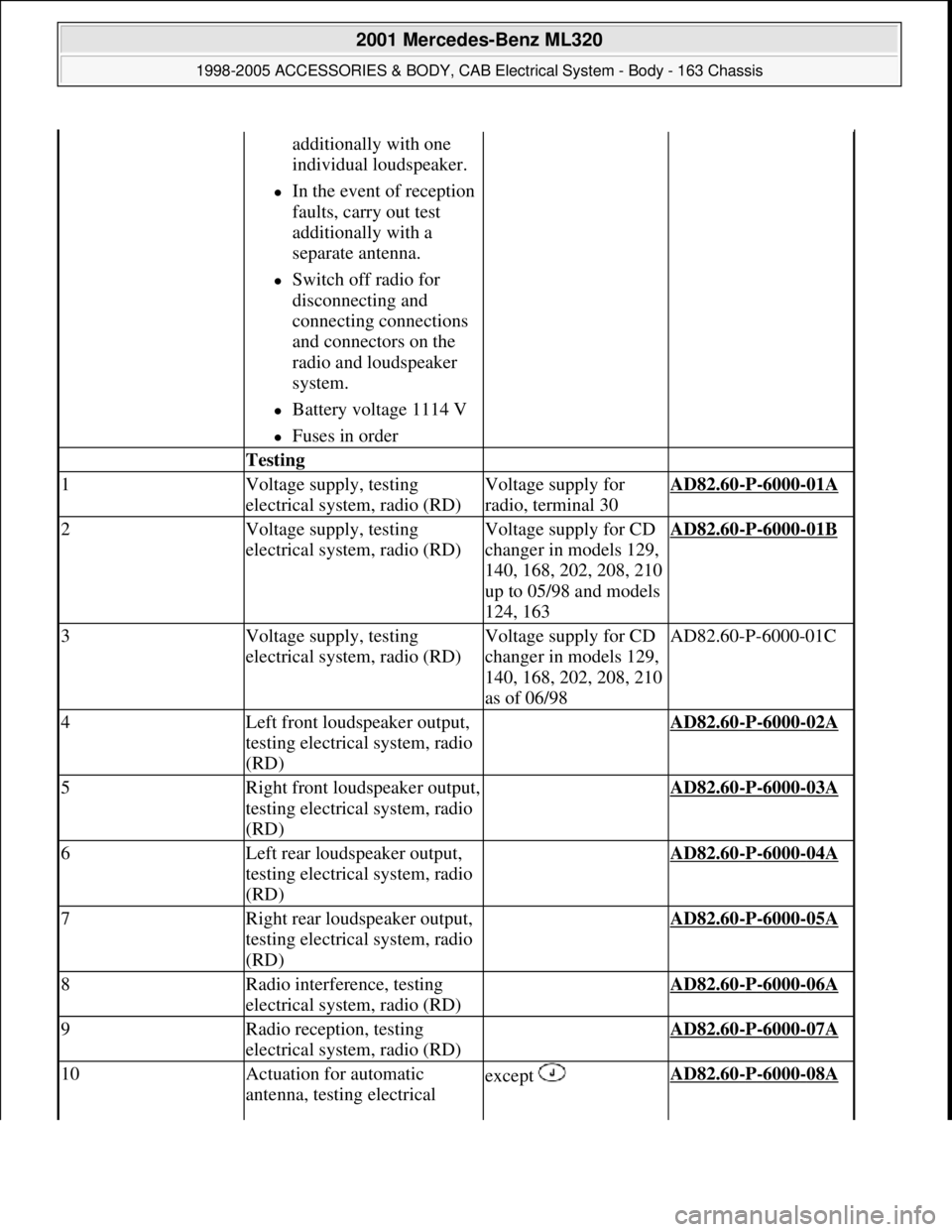

MERCEDES-BENZ ML350 1997 Complete Repair Manual additionally with one individual loudspeaker. In the event of reception faults, carry out test additionally with a separate antenna. Switch off radio for disconnecting and connecting c

Page 1708 of 4133

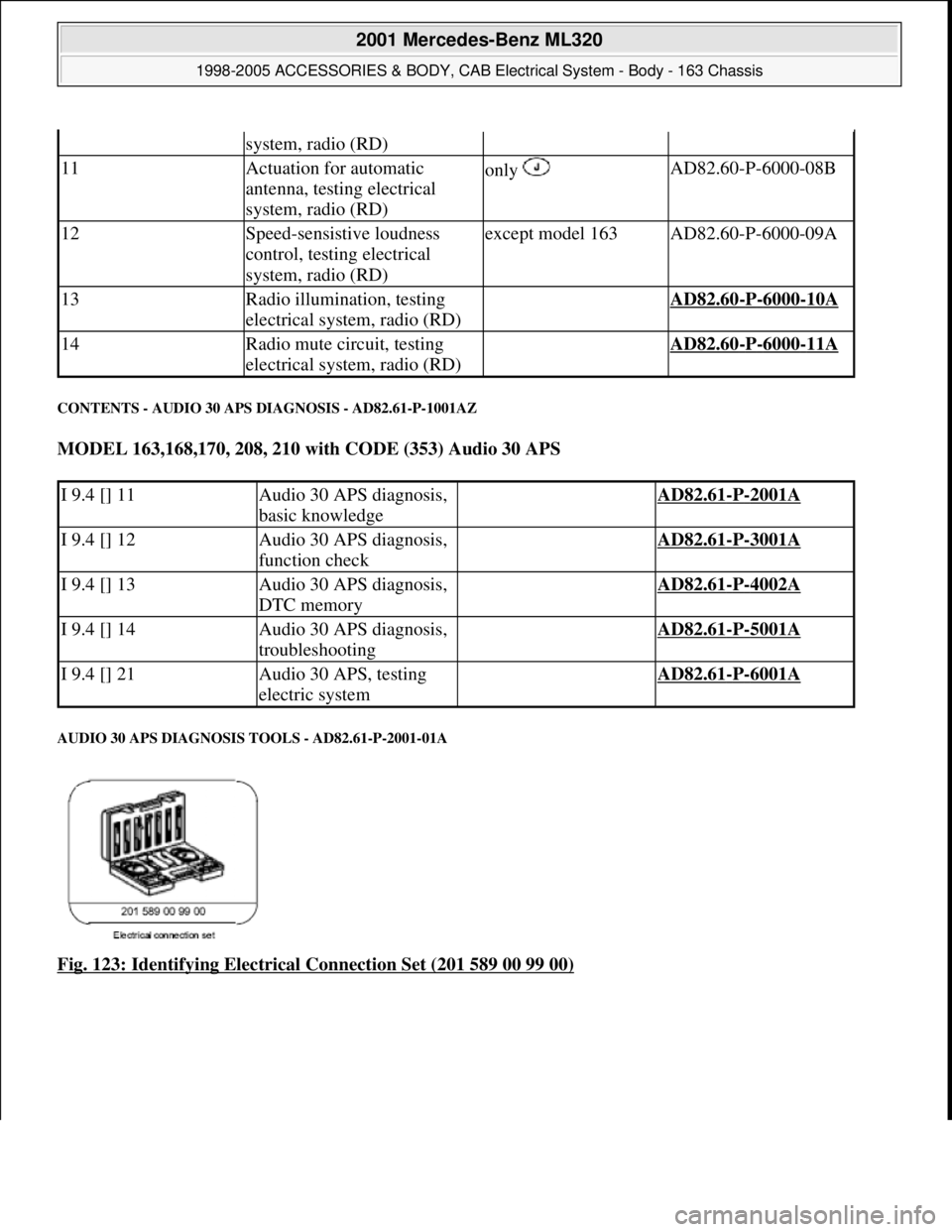

MERCEDES-BENZ ML350 1997 Complete Repair Manual CONTENTS - AUDIO 30 APS DIAGNOSIS - AD82.61-P-1001AZ MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS AUDIO 30 APS DIAGNOSIS TOOLS - AD82.61-P-2001-01A Fig. 123: Identifying Electrical Con

Page 1709 of 4133

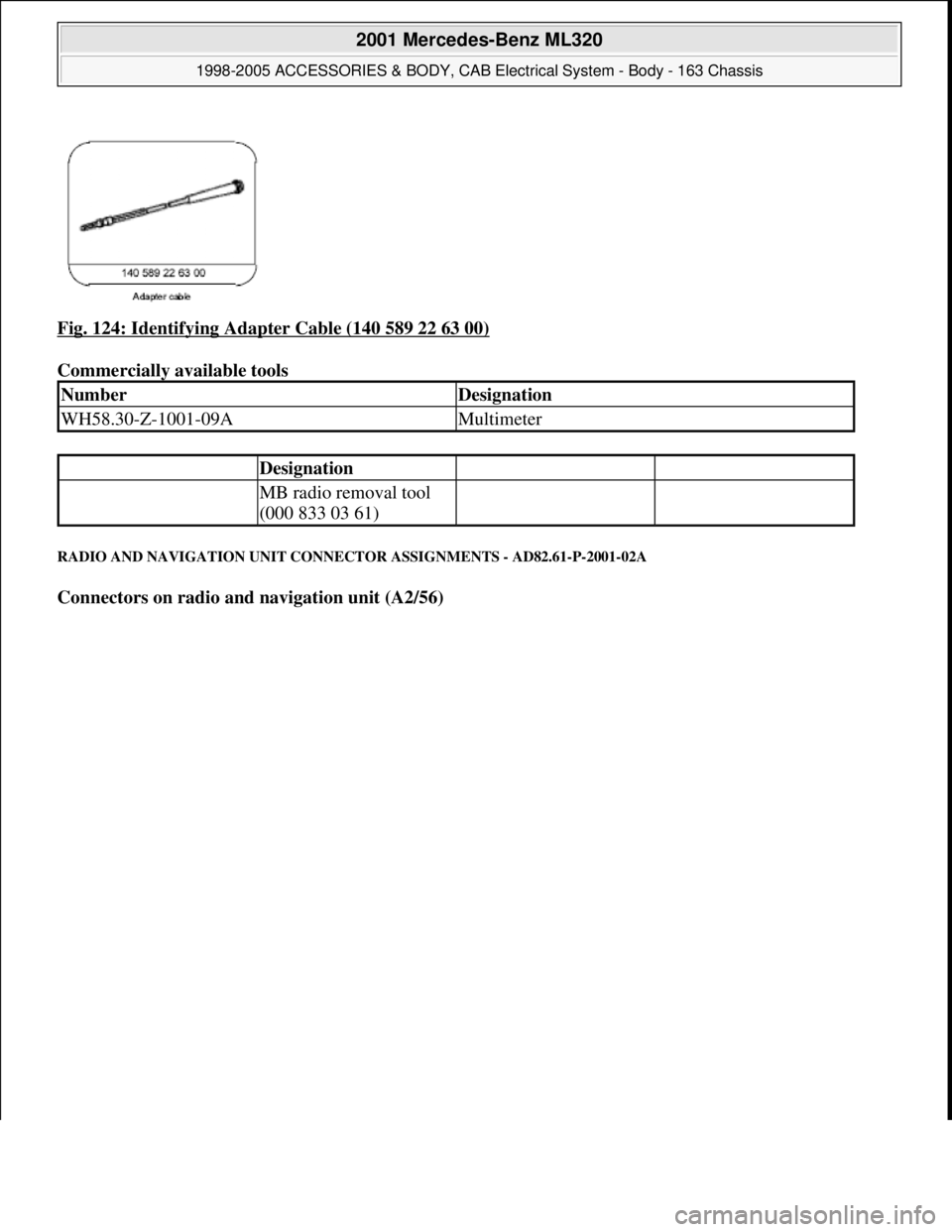

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 124: Identifying Adapter Cable (140 589 22 63 00) Commercially available tools RADIO AND NAVIGATION UNIT CONNECTOR ASSIGNMENTS - AD82.61-P-2001-02A Connectors on radio and navigation unit (A2/

Page 1710 of 4133

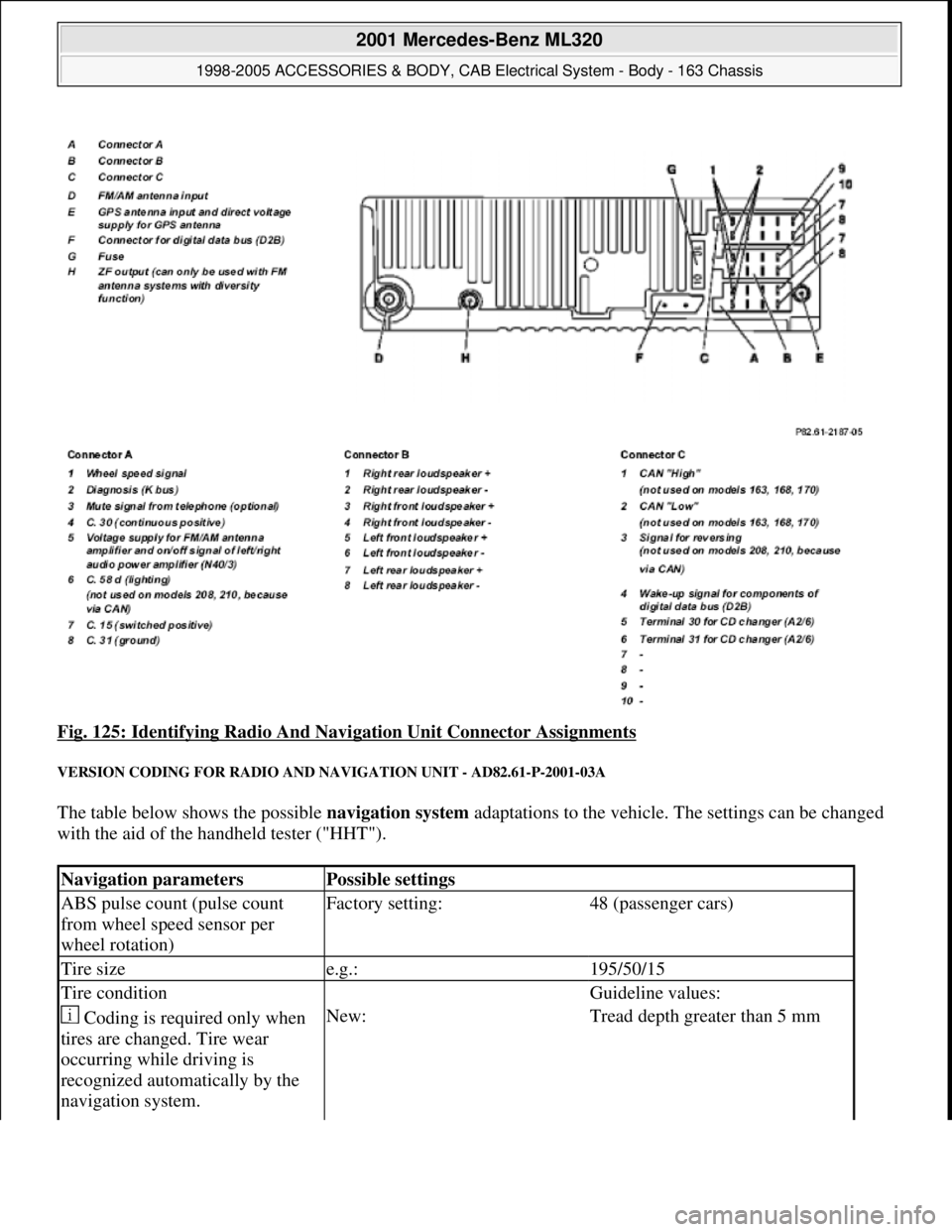

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 125: Identifying Radio And Navigation Unit Connector Assignments VERSION CODING FOR RADIO AND NAVIGATION UNIT - AD82.61-P-2001-03A The table below shows the possible navigation system adaptatio

Page 1711 of 4133

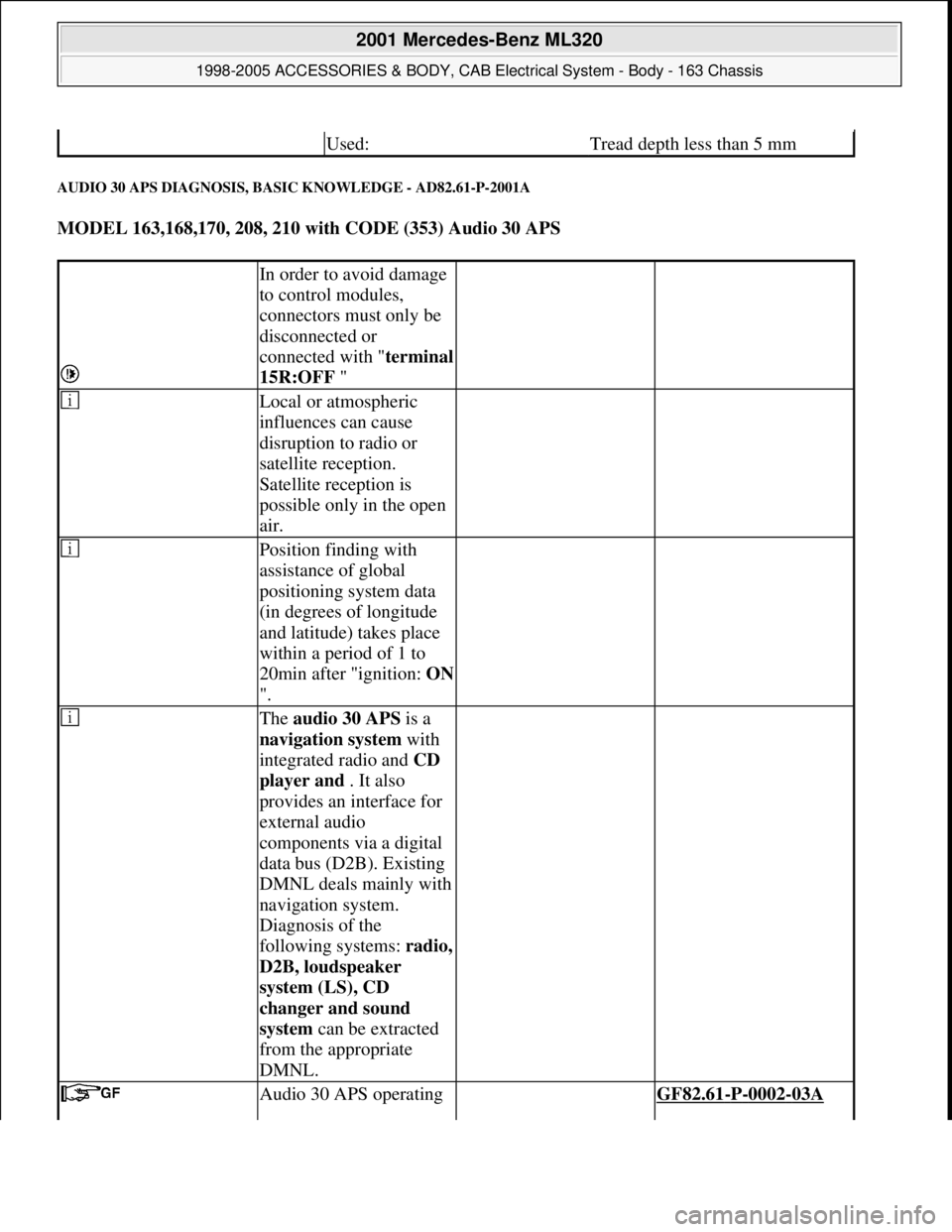

MERCEDES-BENZ ML350 1997 Complete Repair Manual AUDIO 30 APS DIAGNOSIS, BASIC KNOWLEDGE - AD82.61-P-2001A MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS Used:Tread depth less than 5 mm In order to avoid damage to control modules,

Page 1712 of 4133

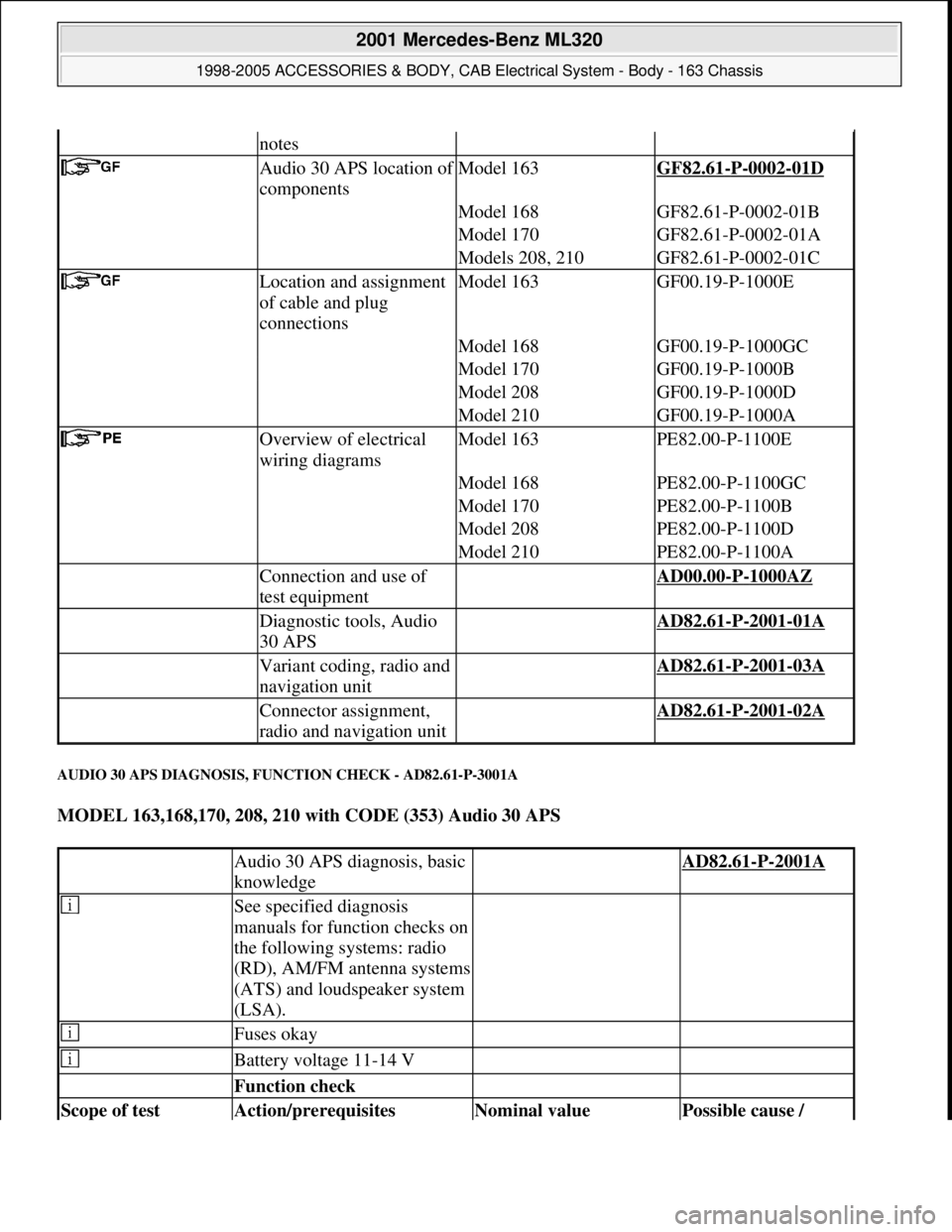

MERCEDES-BENZ ML350 1997 Complete Repair Manual AUDIO 30 APS DIAGNOSIS, FUNCTION CHECK - AD82.61-P-3001A MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS notes Audio 30 APS location of componentsModel 163GF82.61-P-0002-01D Model 168G
