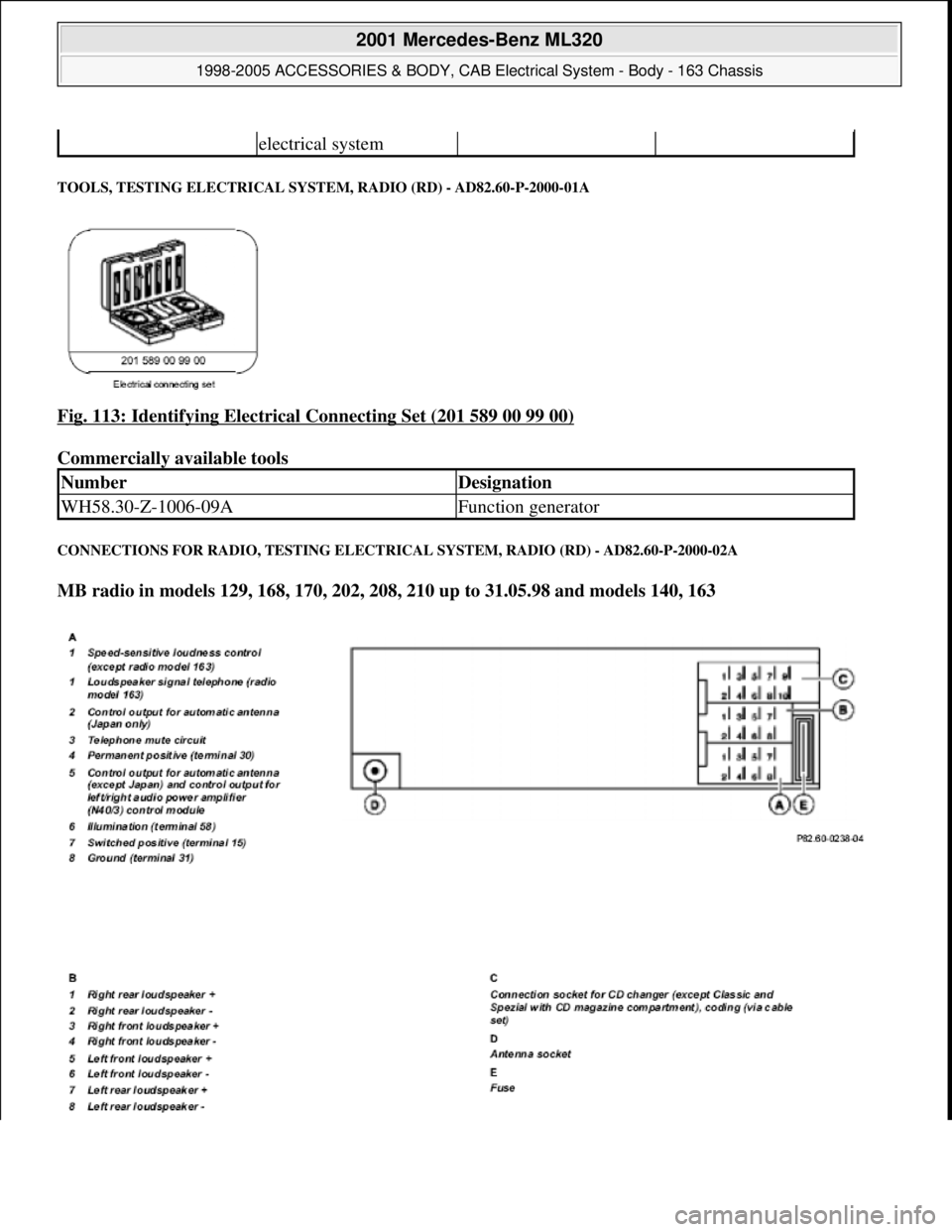

MERCEDES-BENZ ML350 1997 Complete Repair Manual TOOLS, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-2000-01A Fig. 113: Identifying Electrical Connecting Set (201 589 00 99 00) Commercially available tools CONNECTIONS FOR RADIO, TESTING ELEC

Page 1698 of 4133

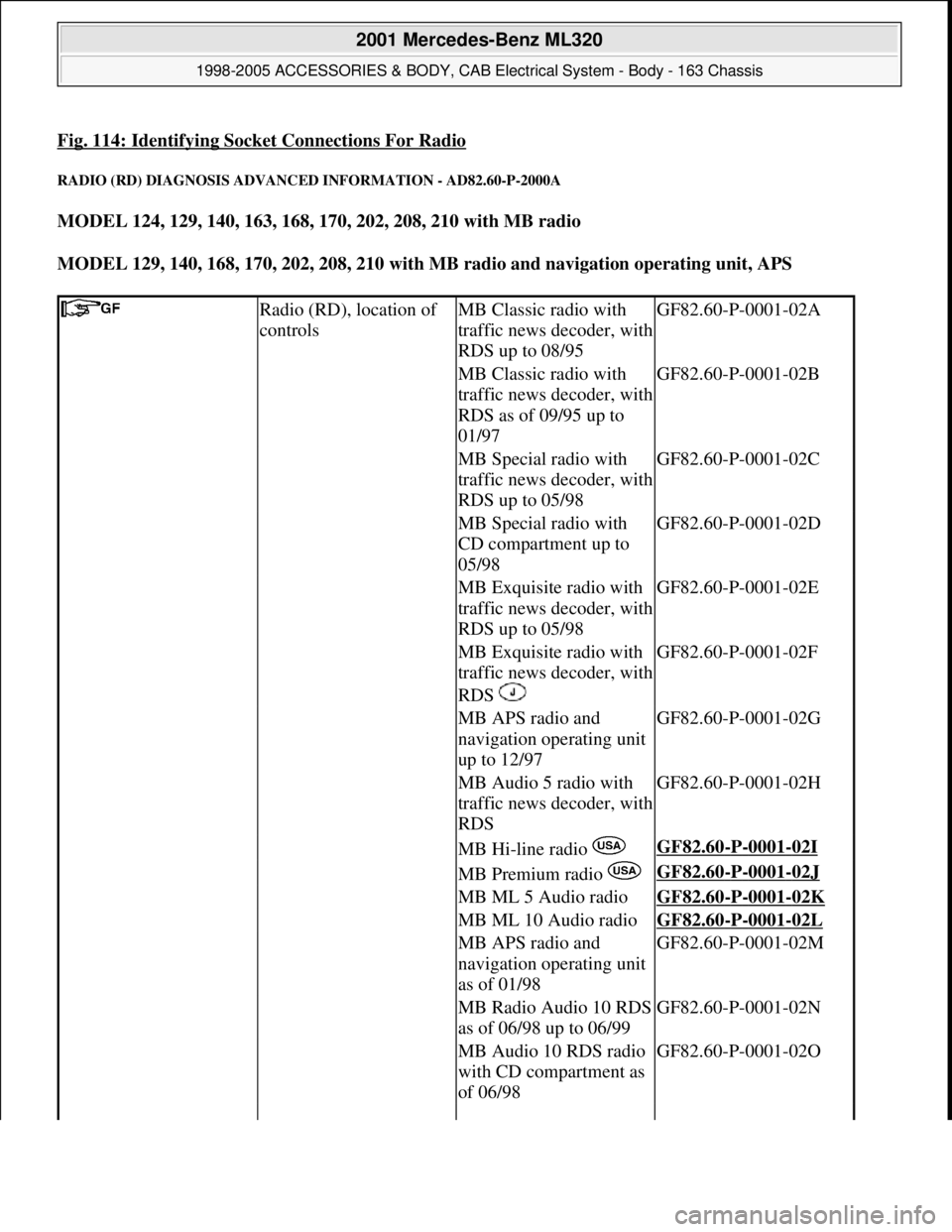

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 114: Identifying Socket Connections For Radio RADIO (RD) DIAGNOSIS ADVANCED INFORMATION - AD82.60-P-2000A MODEL 124, 129, 140, 163, 168, 170, 202, 208, 210 with MB radio MODEL 129, 140, 168, 1

Page 1699 of 4133

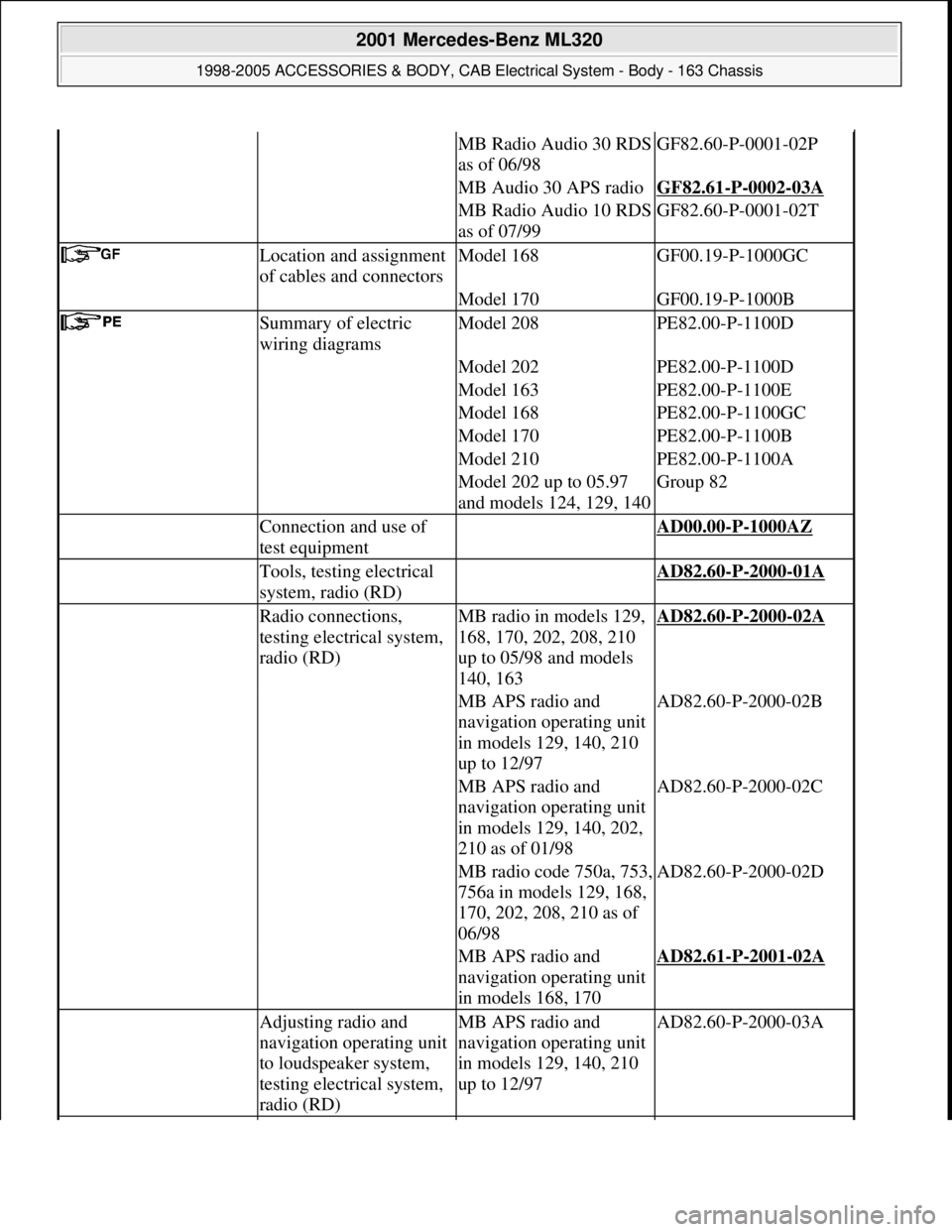

MERCEDES-BENZ ML350 1997 Complete Repair Manual MB Radio Audio 30 RDS as of 06/98GF82.60-P-0001-02P MB Audio 30 APS radioGF82.61-P-0002-03A MB Radio Audio 10 RDS as of 07/99GF82.60-P-0001-02T Location and assignment of cables and connecto

Page 1700 of 4133

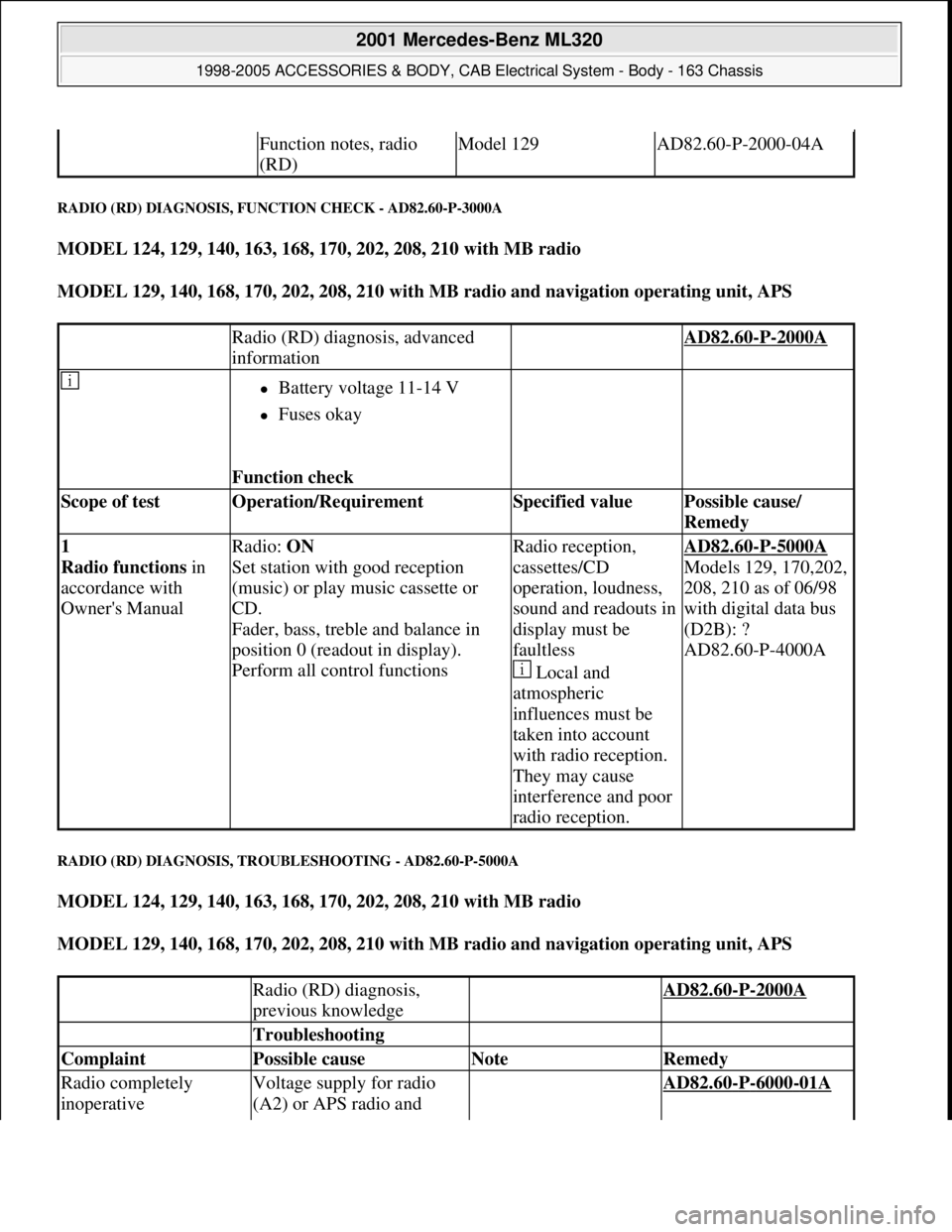

MERCEDES-BENZ ML350 1997 Complete Repair Manual RADIO (RD) DIAGNOSIS, FUNCTION CHECK - AD82.60-P-3000A MODEL 124, 129, 140, 163, 168, 170, 202, 208, 210 with MB radio MODEL 129, 140, 168, 170, 202, 208, 210 with MB radio and navigation operating

Page 1701 of 4133

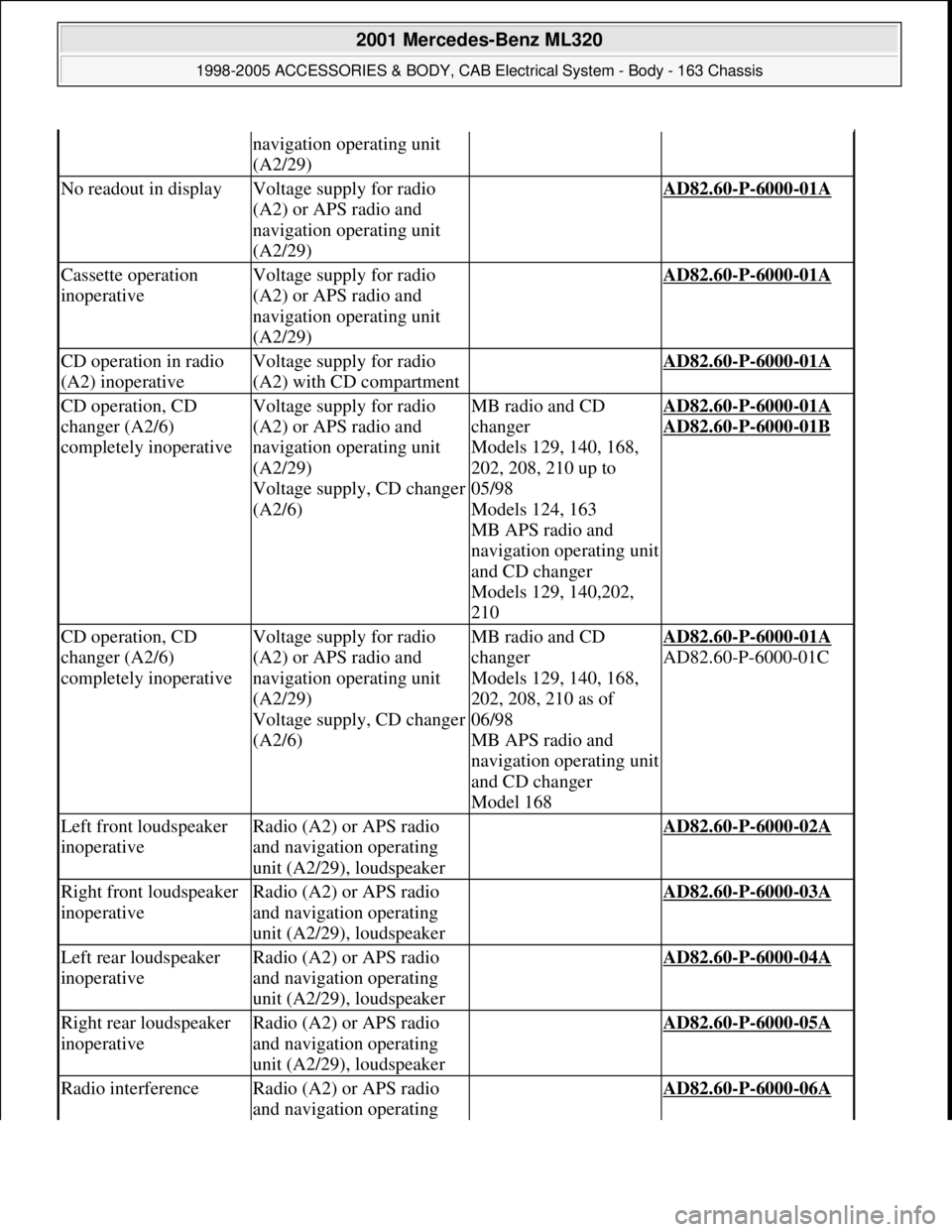

MERCEDES-BENZ ML350 1997 Complete Repair Manual navigation operating unit (A2/29) No readout in displayVoltage supply for radio (A2) or APS radio and navigation operating unit (A2/29) AD82.60-P-6000-01A Cassette operation inoperativeVoltage su

Page 1702 of 4133

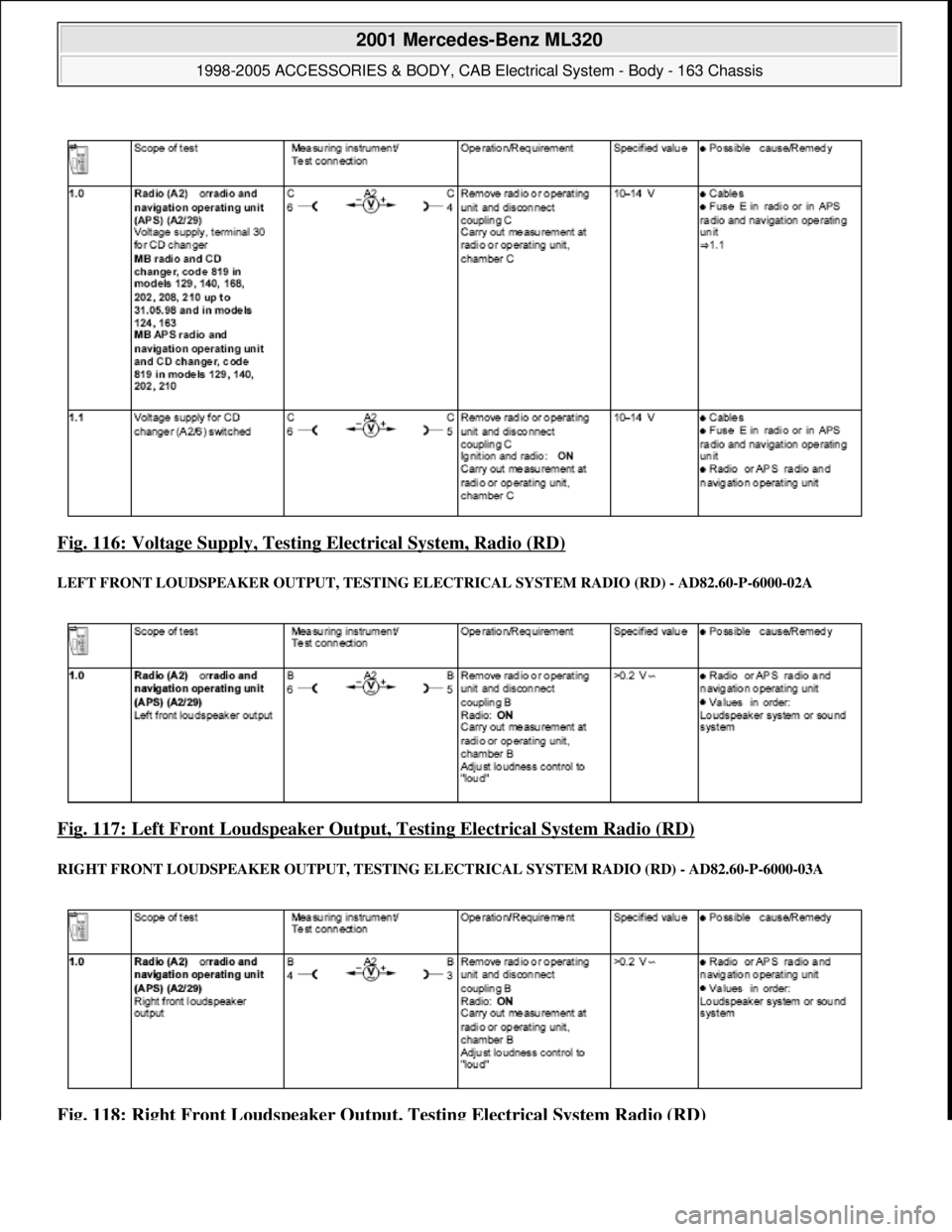

MERCEDES-BENZ ML350 1997 Complete Repair Manual VOLTAGE SUPPLY, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-01A Fig. 115: Voltage Supply, Testing Electrical System, Radio (RD) VOLTAGE SUPPLY, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD8

Page 1703 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 116: Voltage Supply, Testing Electrical System, Radio (RD) LEFT FRONT LOUDSPEAKER OUTP UT, TESTING ELECTRICAL SYSTEM RADIO (RD) - AD82.60-P-6000-02A Fig. 117: Left Front Loudspeaker Output,

Page 1704 of 4133

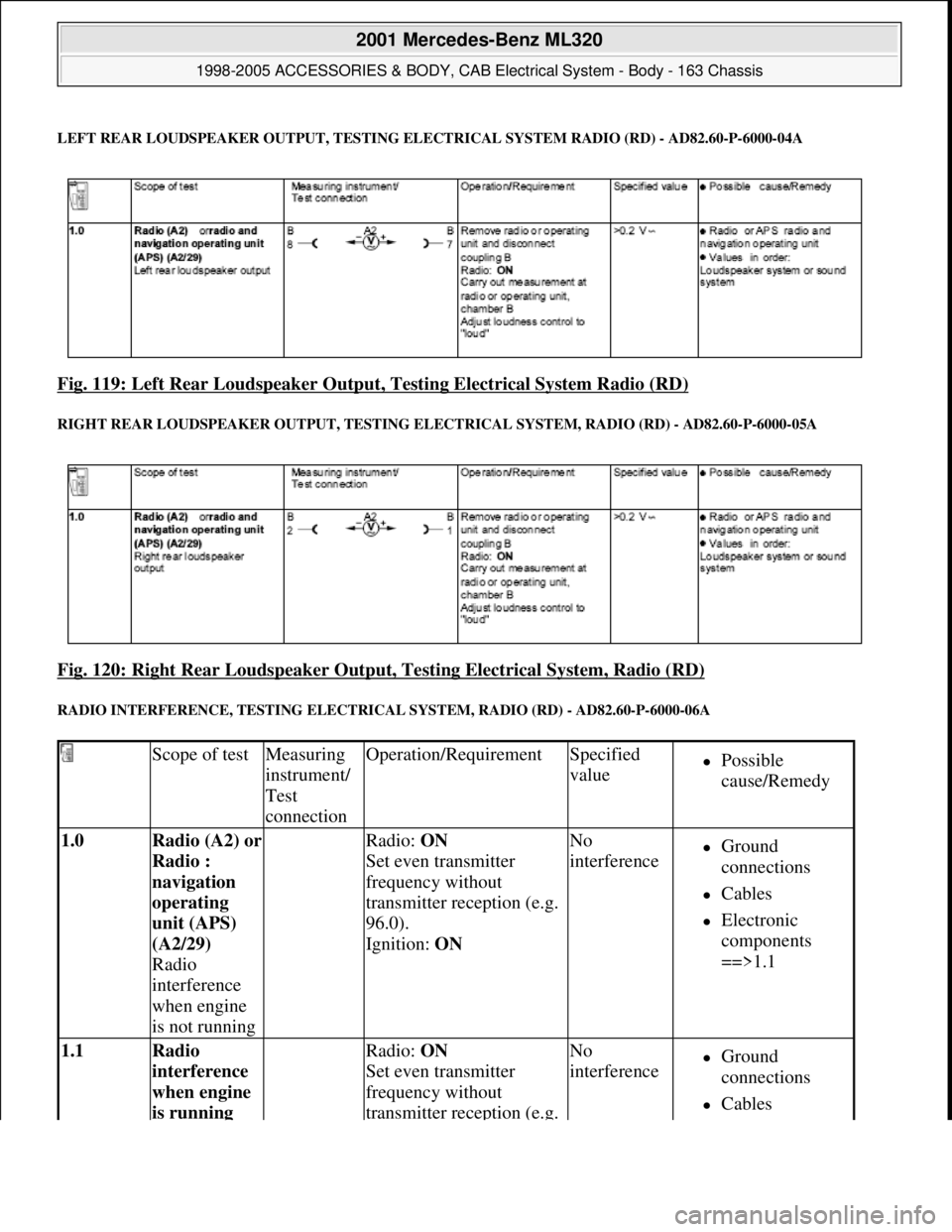

MERCEDES-BENZ ML350 1997 Complete Repair Manual LEFT REAR LOUDSPEAKE R OUTPUT, TESTING ELEC TRICAL SYSTEM RADIO (RD) - AD82.60-P-6000-04A Fig. 119: Left Rear Loudspeaker Output, Testing Electrical System Radio (RD) RIGHT REAR LOUDSPEAKER OUTPUT,
