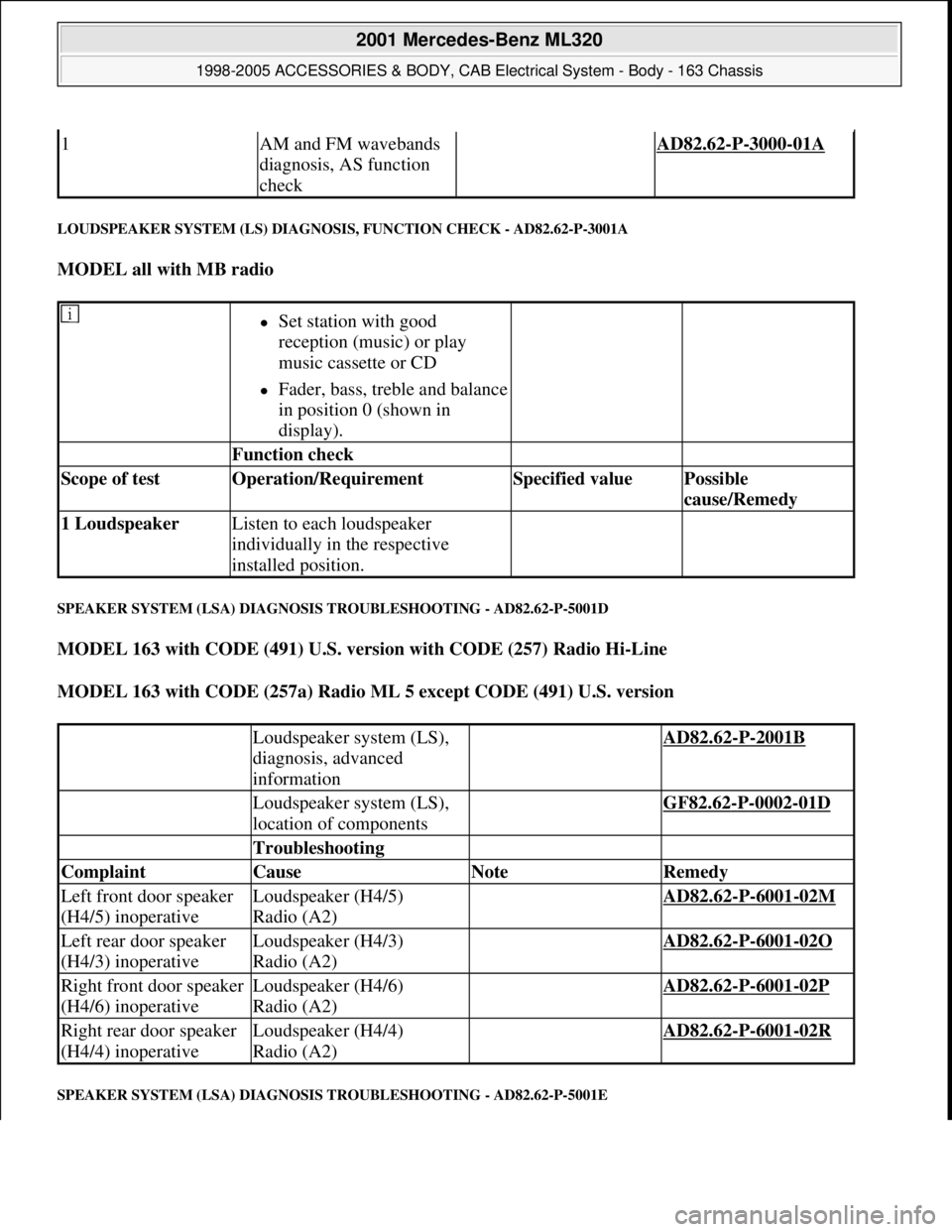

LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, FUNCTION CHECK - AD82.62-P-3001A
MODEL all with MB radio
SPEAKER SYSTEM (LSA) DIAGNOSIS TROUBLESHOOTING - AD82.62-P-5001D
MODEL 163 with CODE (491) U.S. version with CODE (257) Radio Hi-Line
MODEL 163 with CODE (257a) Radio ML 5 except CODE (491) U.S. version
SPEAKER SYSTEM (LSA) DIAGNOSIS TROUBLESHOOTING - AD82.62-P-5001E
1AM and FM wavebands
diagnosis, AS function
check AD82.62-P-3000-01A
Set station with good
reception (music) or play
music cassette or CD
Fader, bass, treble and balance
in position 0 (shown in
display).

Function check
Scope of test Operation/Requirement Specified value Possible
cause/Remedy
1 Loudspeaker Listen to each loudspeaker
individually in the respective
installed position.
Loudspeaker system (LS),
diagnosis, advanced
information AD82.62-P-2001B
Loudspeaker system (LS),
location of components GF82.62-P-0002-01D
Troubleshooting
Complaint Cause Note Remedy
Left front door speaker
(H4/5) inoperativeLoudspeaker (H4/5)
Radio (A2) AD82.62-P-6001-02M
Left rear door speaker
(H4/3) inoperativeLoudspeaker (H4/3)
Radio (A2) AD82.62-P-6001-02O
Right front door speaker
(H4/6) inoperativeLoudspeaker (H4/6)
Radio (A2) AD82.62-P-6001-02P
Right rear door speaker
(H4/4) inoperativeLoudspeaker (H4/4)
Radio (A2) AD82.62-P-6001-02R

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 234 © 2006 Mitchell Repair Information Company, LLC.

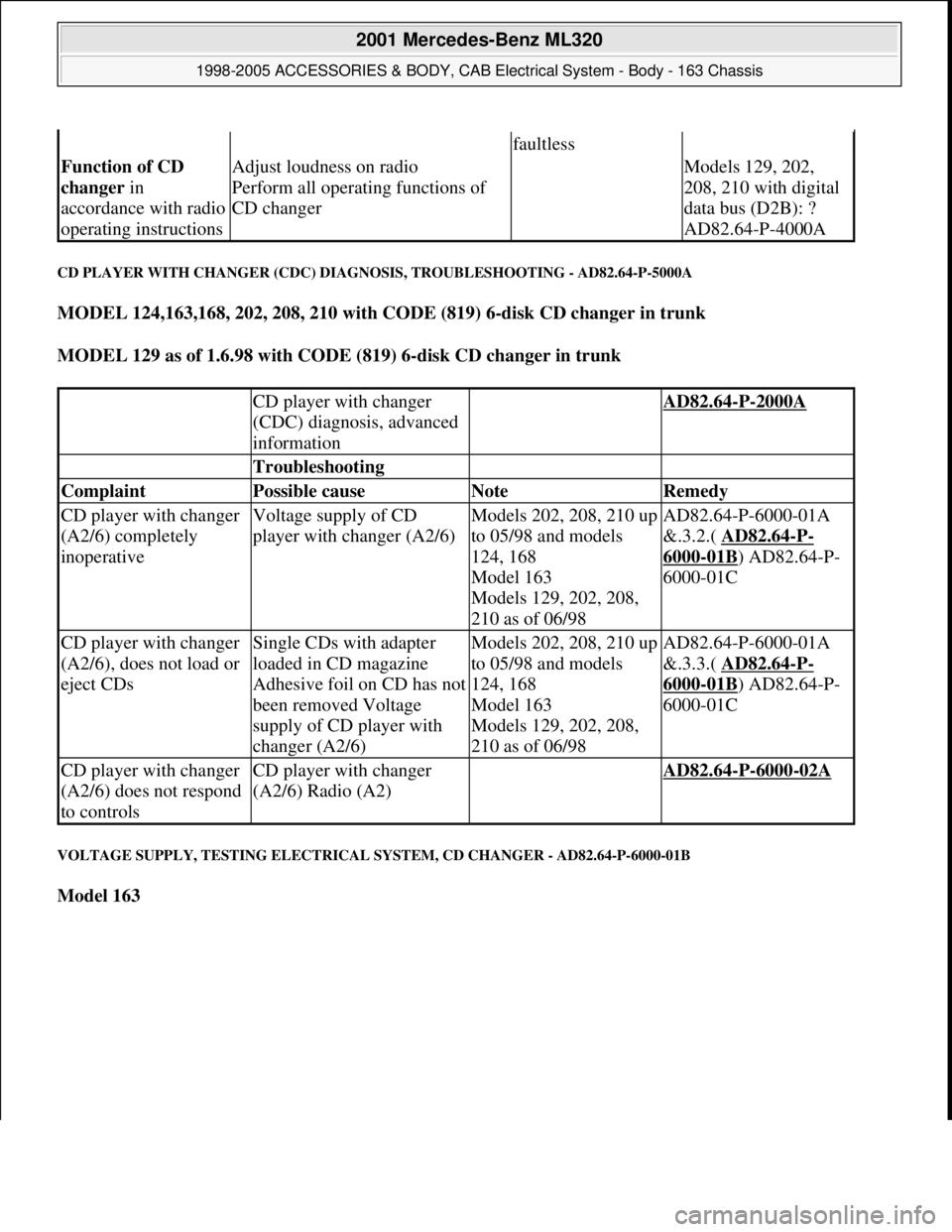

CD PLAYER WITH CHANGER (CDC) DIAGNOSIS, TROUBLESHOOTING - AD82.64-P-5000A
MODEL 124,163,168, 202, 208, 210 with CODE (819) 6-disk CD changer in trunk
MODEL 129 as of 1.6.98 with CODE (819) 6-disk CD changer in trunk
VOLTAGE SUPPLY, TESTING ELECTRICAL SYSTEM, CD CHANGER - AD82.64-P-6000-01B
Model 163
faultless
Function of CD
changer in
accordance with radio
operating instructionsAdjust loudness on radio
Perform all operating functions of
CD changer Models 129, 202,
208, 210 with digital
data bus (D2B): ?
AD82.64-P-4000A
CD player with changer
(CDC) diagnosis, advanced
information AD82.64-P-2000A
Troubleshooting
Complaint Possible cause Note Remedy
CD player with changer
(A2/6) completely
inoperativeVoltage supply of CD
player with changer (A2/6)Models 202, 208, 210 up
to 05/98 and models
124, 168
Model 163
Models 129, 202, 208,
210 as of 06/98AD82.64-P-6000-01A
&.3.2.( AD82.64
-P-
6000-01B) AD82.64-P-
6000-01C
CD player with changer
(A2/6), does not load or
eject CDsSingle CDs with adapter
loaded in CD magazine
Adhesive foil on CD has not
been removed Voltage
supply of CD player with
changer (A2/6)Models 202, 208, 210 up
to 05/98 and models
124, 168
Model 163
Models 129, 202, 208,
210 as of 06/98AD82.64-P-6000-01A
&.3.3.( AD82.64
-P-
6000-01B) AD82.64-P-
6000-01C
CD player with changer
(A2/6) does not respond
to controlsCD player with changer
(A2/6) Radio (A2) AD82.64-P-6000-02A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 247 © 2006 Mitchell Repair Information Company, LLC.

AD54.30-P-5000GH
Instrument cluster (IC) diagnosis troubleshooting
10.4.97

MODEL
163

Connection and use of test equipment

AD00.00-P-1000AZ

Instrument cluster diagnosis, previous

knowledge

AD54.30-P-2000GH

Explanatory notes on diagnosis

troubleshooting chart IC

AD54.30-P-5000-01GH

Display instruments controlled via CAN

troubleshooting chart IC

AD54.30-P-5000-02A

Display instruments controlled directly,

troubleshooting chart IC

AD54.30-P-5000-03A

Troubleshooting

Complaint
Possible cause
Notes
Remedy/Test step

Instrument cluster (A1) completely inoperative
Voltage supply, instrument cluster (A1)

AD54.30-P-6000-01GH

Malfunction indicator lamps or indicator lamps

inoperative
Voltage supply, instrument cluster (A1)
AD54.30-P-6000-01GH

HHT and instrument cluster cannot

communicate
Cables, instrument cluster (A1)

AD54.30-P-6000-02GH

Low brake fluid level/parking brake indicator

lamp, brake pad wear indicator lamp, ABS

MIL, malfunction indicator lamp (ETS, ASR,

ESP) come on together and speedometer

remains on lower stop.
Traction system control module (N47)

AD42.35-P-1001BZ

RPM counter, engine coolant gauge remain

on the lower stop and the low engine oil level

indicator lamp comes on.
Injection system control module (N3)

AD07.61-P-1000AZ
Low brake fluid level/parking brake indicator

lamp, brake pad wear indicator lamp, low

engine oil level indicator lamp, ABS MIL,

malfunction indicator lamp (ETS, ASR, ESP)

come on together and RPM counter, engine

coolant gauge and speedometer remain on

lower stop.
CAN faulty

AD54.30-P-6000-04GH
AD54.30-P-6000-05GH

Steering lock warning lamp (A1e40) is

continuously illuminated or is inoperative.
Cables,

steering lock switch (S97/1)

AD54.30-P-6000-06GH

Coolant level indicator disrupted
Cables,

Coolant level indicator electronic switch (S41)

Model 163 as of 3.98

AD54.30-P-6000-42GH
