1997 MERCEDES-BENZ ML350 oil filter

292 Fuels, coolants, lubricants etc. - capacities
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Fuels, coolants, lubricants etc. – capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Light Truck
Center.
Fuels, coolants, lubricants etc. Model Capacity
Engine with oil filter
(recommended engine oils)ML 320 / ML 430
ML 55 AMG8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
Automatic transmission
(automatic transmission fluid)9.0 US qt (8.5 l)
Transfer case
(Dexron 3 or Dexron 2E)1. 6 U S q t (1. 5 l )
Rear axle
(Hypoid gear oil SAE 90, 85 W 90)1.3 US qt (1.25 l)
Front axle
(Hypoid gear oil SAE 90)1. 2 U S q t (1. 1 l )
Power steering
(MB Power steering fluid)approx. 0.65 US qt (0.6 l)
Front wheel hubs
(high temperature roller bearing grease)approx. 1.5 oz (43 g) each

301 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex Brake fluid ............................................................. 175, 294
Brake warning lamp ................................................. 219
Capacity ......................................................................293
Brake pad wear indicator .............................................225
Brake warning lamp ...................................................... 219
Brake fluid low .......................................................... 219
Brakes ....................................................173, 175, 293, 294
CCapacities
Fuels, coolants, lubricants etc. ...............................292
Cargo area ....................................................................... 131
Hooks .......................................................................... 133
Loading instructions ................................................ 136
Cargo area cover blind .................................................. 137
Cargo compartment lamp .............................................. 111
Cargo floor plates
Removable .................................................................. 129
Storage ........................................................................ 130
Cargo tie-down rings ..................................................... 132
Catalytic converter ........................................................ 160
Cellular telephone ......................................................... 139
Center console .................................................................. 20
Central locking switch .................................................... 32Central locking system .................................................... 26
Automatic central locking .........................................32
Locking and unlocking ............................................... 27
Mechanical keys ..........................................................29
Panic button .................................................................28
Remote control ............................................................26
Unlocking the liftgate ................................................. 28
Vehicle keys .................................................................24
Changing wheels ........................................................... 245
Inflating the space-saver tire ................................. 249
Charge indicator lamp .................................................. 223
CHECK ENGINE malfunction indicator lamp ............ 218
Check regularly and before a long trip ....................... 215
Checking engine oil level
Via engine oil level indicator ....................................89
Via oil dipstick .......................................................... 233
Child restraint ..............................................38, 46, 53, 65
Cleaning and care of the vehicle ................................ 278
Climate control .................................................................98
Air recirculation ........................................................102
Basic setting ...............................................................100
Defogging windows ................................................... 101
Defrosting windshield .............................................. 101
Dust filter ...................................................................102
Rear window defroster ............................................. 103
Special settings ......................................................... 101

292
Fuels, coolants, lubricants etc. - capacities
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care Index
Fuels, coolants, lubricants etc. – capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Light Truck
Center.
Fuels, coolants, lubricants etc. Model Capacity
Engine with oil filter
(recommended engine oils) ML 320 / ML 430
ML 55 AMG 8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
Automatic transmission
(automatic transmission fluid) 9.0 US qt (8.5 l)
Transfer case
(Dexron 3 or Dexron 2E) 1. 6 U S q t (1. 5 l )
Rear axle
(Hypoid gear oil SAE 90, 85 W 90) 1.3 US qt (1.25 l)
Front axle
(Hypoid gear oil SAE 90) 1. 2 U S q t (1. 1 l )
Power steering
(MB Power steering fluid) approx. 0.65 US qt (0.6 l)
Front wheel hubs
(high temperature roller bearing grease) approx. 1.5 oz (43 g) each

301
Index
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Brake fluid ............................................................. 175, 294
Brake warning lamp ................................................. 219
Capacity ......................................................................293
Brake pad wear indicator .............................................225
Brake warning lamp ...................................................... 219 Brake fluid low .......................................................... 219
Brakes ....................................................173, 175, 293, 294
CCapacities Fuels, coolants, lubricants etc. ...............................292
Cargo area ....................................................................... 131 Hooks .......................................................................... 133
Loading instructions ................................................ 136
Cargo area cover blind .................................................. 137
Cargo compartment lamp .............................................. 111
Cargo floor plates
Removable .................................................................. 129
Storage ........................................................................ 130
Cargo tie-down rings ..................................................... 132
Catalytic converter ........................................................ 160
Cellular telephone ......................................................... 139
Center console .................................................................. 20
Central locking switch .................................................... 32 Central locking system .................................................... 26
Automatic central locking .........................................32
Locking and unlocking ............................................... 27
Mechanical keys ..........................................................29
Panic button .................................................................28
Remote control ............................................................26
Unlocking the liftgate ................................................. 28
Vehicle keys .................................................................24
Changing wheels ........................................................... 245 Inflating the space-saver tire ................................. 249
Charge indicator lamp .................................................. 223
CHECK ENGINE malfunction indicator lamp ............ 218
Check regularly and before a long trip ....................... 215
Checking engine oil level Via engine oil level indicator ....................................89
Via oil dipstick .......................................................... 233
Child restraint ..............................................38, 46, 53, 65
Cleaning and care of the vehicle ................................ 278
Climate control .................................................................98 Air recirculation ........................................................102
Basic setting ...............................................................100
Defogging windows ................................................... 101
Defrosting windshield .............................................. 101
Dust filter ...................................................................102
Rear window defroster ............................................. 103
Special settings ......................................................... 101

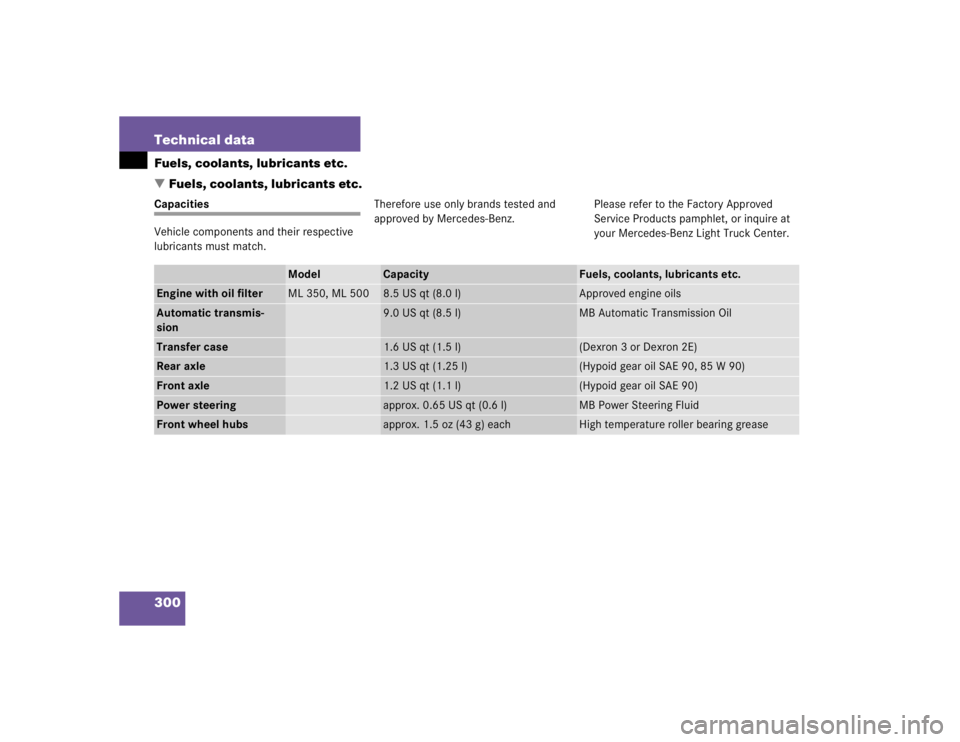

300 Technical dataFuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.Capacities
Vehicle components and their respective
lubricants must match.Therefore use only brands tested and
approved by Mercedes-Benz.Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Light Truck Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
ML 350, ML 500
8.5 US qt (8.0 l)
Approved engine oils
Automatic transmis-
sion
9.0 US qt (8.5 l)
MB Automatic Transmission Oil
Transfer case
1.6 US qt (1.5 l)
(Dexron 3 or Dexron 2E)
Rear axle
1.3 US qt (1.25 l)
(Hypoid gear oil SAE 90, 85 W 90)
Front axle
1.2 US qt (1.1 l)
(Hypoid gear oil SAE 90)
Power steering
approx. 0.65 US qt (0.6 l)
MB Power Steering Fluid
Front wheel hubs
approx. 1.5oz (43g) each
High temperature roller bearing grease

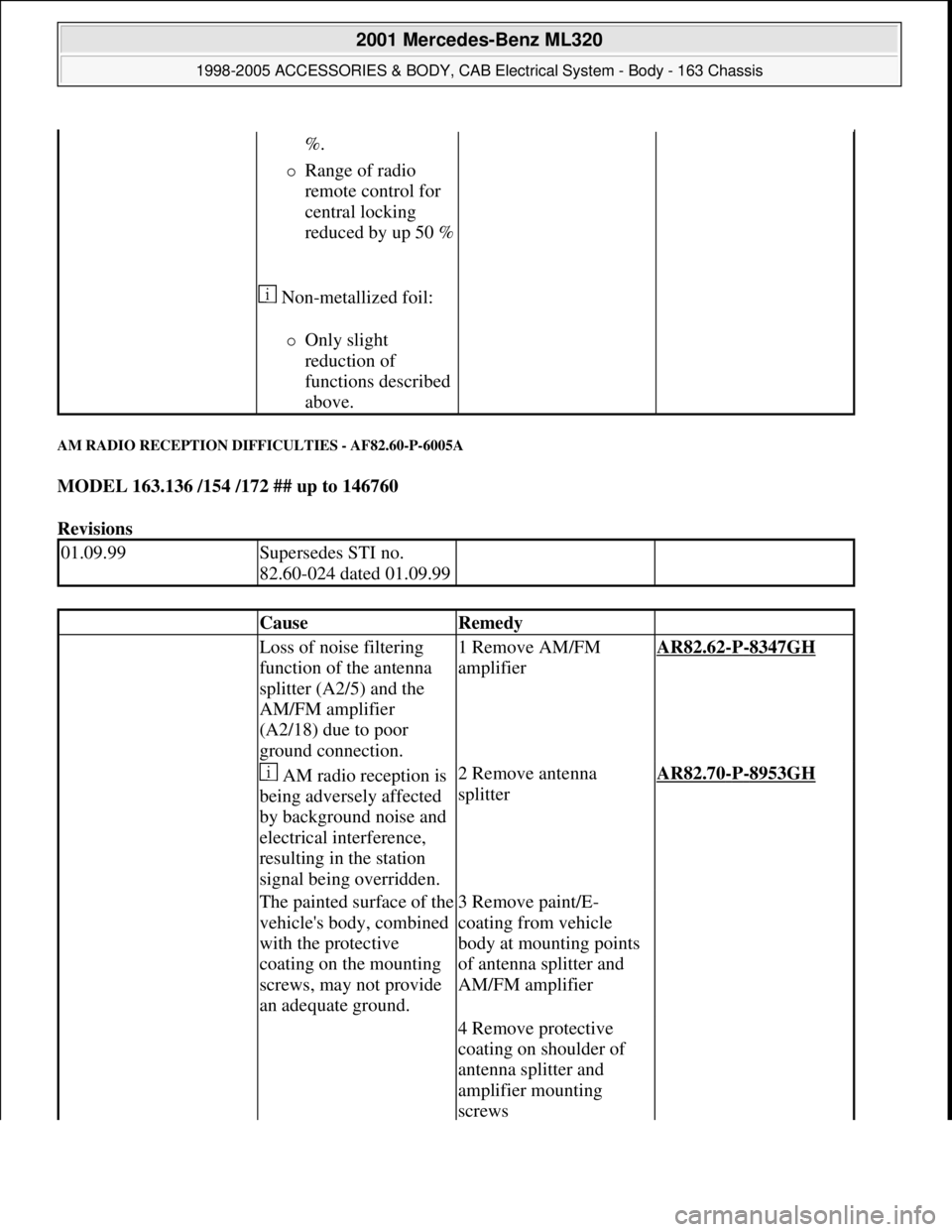

AM RADIO RECEPTION DIFFICULTIES - AF82.60-P-6005A
MODEL 163.136 /154 /172 ## up to 146760
Revisions
%.
Range of radio
remote control for
central locking
reduced by up 50 %

Non-metallized foil:
Only slight
reduction of
functions described
above.
01.09.99Supersedes STI no.
82.60-024 dated 01.09.99
CauseRemedy
Loss of noise filtering
function of the antenna
splitter (A2/5) and the
AM/FM amplifier
(A2/18) due to poor
ground connection.1 Remove AM/FM
amplifierAR82.62-P-8347GH
AM radio reception is
being adversely affected
by background noise and
electrical interference,
resulting in the station
signal being overridden.2 Remove antenna
splitterAR82.70-P-8953GH
The painted surface of the
vehicle's body, combined
with the protective
coating on the mounting
screws, may not provide
an adequate ground.3 Remove paint/E-
coating from vehicle
body at mounting points
of antenna splitter and
AM/FM amplifier
4 Remove protective
coating on shoulder of
antenna splitter and
amplifier mounting
screws

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 171 © 2006 Mitchell Repair Information Company, LLC.

AR01.30-P-5800MV
Remove/install cylinder head
22.7.98

ENGINE
112.942 in MODEL 163.154

ENGINE
112.970 in MODEL 163.157

ENGINE
113.942 in MODEL 163.172

ENGINE
113.981 in MODEL 163.174

ENGINE
113.965 in MODEL 163.175

P01.30-2032-06

Shown on model 163.154 with engine 112

1
Air baffle

2
Viscous fan

3
Fan shroud

4
Bolts

5
Air cleaner housing

6
Air intake manifold

7
Resonance unit

8
Poly-V-belt

9
Fender liner

10
Shield

11
Exhaust bracket

P01.30-2033-06

12
Right and left ignition coils

13
Left and right cylinder head covers

14
Intake manifold

15
Camshaft position sensor

16
Coolant line

17
Chain tensioner

18
Oil filter housing

19
Camshaft sprockets

28
Camshaft bearing bridges

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

16
Remove poly V-belt (8)


Installation:
Lock tensioning device with

a drift or pin (diameter 5 mm).

Model 163.154 /157 /172.

AR13.22-P-1202B

Model 163.174 /175.

AR13.22-P-1202BA

17
Detach the coolant line (16) at the cylinder

head on the left

6 mm socket hexagon

*WH58.30-Z-1001-06A

7 mm socket hexagon

*WH58.30-Z-1002-06A

18.1
Remove fender liner (9)

Only with engine 113.113.942 /965 / 981.

AR88.10-P-1300GH

19.1
Remove shield (10)

Only with engine 113.942 /965 /981.

20.1
Remove exhaust bracket (11)

Only with engine 113.942 /965 /981.

Support exhaust system.

21
Detach exhaust system at exhaust manifold


Installation:
On vehicles with engine

damage, the exhaust system must be

examined for swarfs before assembling and

any swarfs present must be removed, in order

to avoid consequential damage.


*BA14.10-P-1002-01B

22
Position crankshaft to 40° after ignition TDC

on cylinder 1


The engine must not be turned back;

otherwise the timing chain can get jammed.

AR05.10-P-6858V

Rotate engine at the crankshaft in running

direction until scribe mark 40° on pulley/

vibration damper corresponds with scribe

mark on timing case.

The grooves on the camshafts must be

pointing toward the inner V.

23
Lock camshafts with locating plates

Locating plate

*112589003200

Locating plate

*112589013200

24
Remove chain tensioner (17)
Model 163.154 /157 with engine 112.942/

970, model 163.172 with engine 113.942.
AR05.10-P-7800C

Model 163.174 /175 with engine 113.981/ 965.
AR05.10-P-7800CA

25.1
Remove oil filter housing (18) together with oil-

water heat exchanger
Engine 113.942.

AR18.20-P-3471B

Engine 112.942/970.

AR18.20-P-3471BA

26
Unscrew camshaft sprockets (19)

If camshaft sprockets are removed,

engine must no longer be cranked, otherwise

timing chain might jam.

Engine 113.942 /965 /981:
#

Tie timing chain tight on both camshaft

sprockets with tie straps.

Engine 112.942 /970:

#

Right-hand camshaft sprocket:

Tie timing chain tight on camshaft sprocket

with tie strap.

Left-hand camshaft sprocket:
Mark camshaft sprocket to timing chain and

remove camshaft sprocket.

It is not possible for the timing chain to

jump across at the crankshaft and balancing

shaft.

After installation:
#

Inspect basic position of camshafts.

AR05.10-P-6858V

If necessary after checking:
#

Set the basic position of camshafts

AR05.20-P-6020AU

Open-end wrench

*112589000100

Insertion tool

*112589010300

Torque wrench

*001589722100


*BA05.20-P-1001-01B

27
Remove camshaft bearing bridges (28)

Pay attention to slackening and tightening

pattern!

AR05.20-P-7103AU

28
Unscrew bolts, cylinder head
!
timing case

cover (20)


*BA01.40-P-1002-01C

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 4
