1997 MERCEDES-BENZ ML350 oil filter

20Remove poly-V-
belt tensioning
device (5)Engine 112 in models 129, 163AR13.25-P-
3200B
Engine 113 in model 129, 202, 208, 210
Engine 113 (except 113.965 /981) in model 163
Models 129, 202, 210 with manual transmission.
Unscrew damper of belt te nsioning device at coolant
pump.
Engine 113.963 in models 230.475AR13.25-P-
3200R
Engine 113.992 in model 230.474
21Remove vibration
damper (4)Engine 112 in models 129, 163AR03.30-P-
1600C
Engine 113 in models 129, 202.033 /093
Engine 113 (except 113.981) in model 163
Engine 113 (except 113.980) in model 210
Engine 113 (except 113.984) in model 208
Engine 112.947 in model 170AR03.30-P-
1600CA
Engine 112 in model 202, 208, 210, 220
Engine 113.981 in model 163.174
Engine 113 (except 113.991) in models 215, 220.
Engine 113.963 in models 230.475
Engine 113.992 in model 230.474AR03.30-P-
1600RVK
22Remove chain
tensioner (14)ENGINE 112 in models 129, 163
Engine 113 (except 113.965 /981) in model 163
Engine 113 in model 129, 202, 208, 210AR05.10-P-
7800C
Engine 112 in model 170, 202, 208, 210
Engine 113 in model 163.174 /175AR05.10-P-
7800CA
Engine 112 in model 220
Engine 113 in model 215.373 /375
Engine 113 in models
220.070 /073 /075 /083 /084 /170 /173 /175 /183 /184 /875
Engine 113 in model 230.474 /475AR05.10-P-
7800AM
23.1Remove oil filter
housingEngine 113.992 in model 230.474AR18.20-P-
3471RKV
23.2Remove oil filter
housing with
oil/water heat
exchanger (7)Engine 112 in models 170, 202, 208, 210, 220AR18.20-P-
3471BA
Engine 113 in model 220
Engine 113.963 in models 230.475
Engine 113.965 in model 163.175
Engine 113.981 in model 163.174
Engine 112 in models 129, 163AR18.20-P-
3471B

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:57 PMPage 102 © 2006 Mitchell Repair Information Company, LLC.

oil feed up to final repair
size.

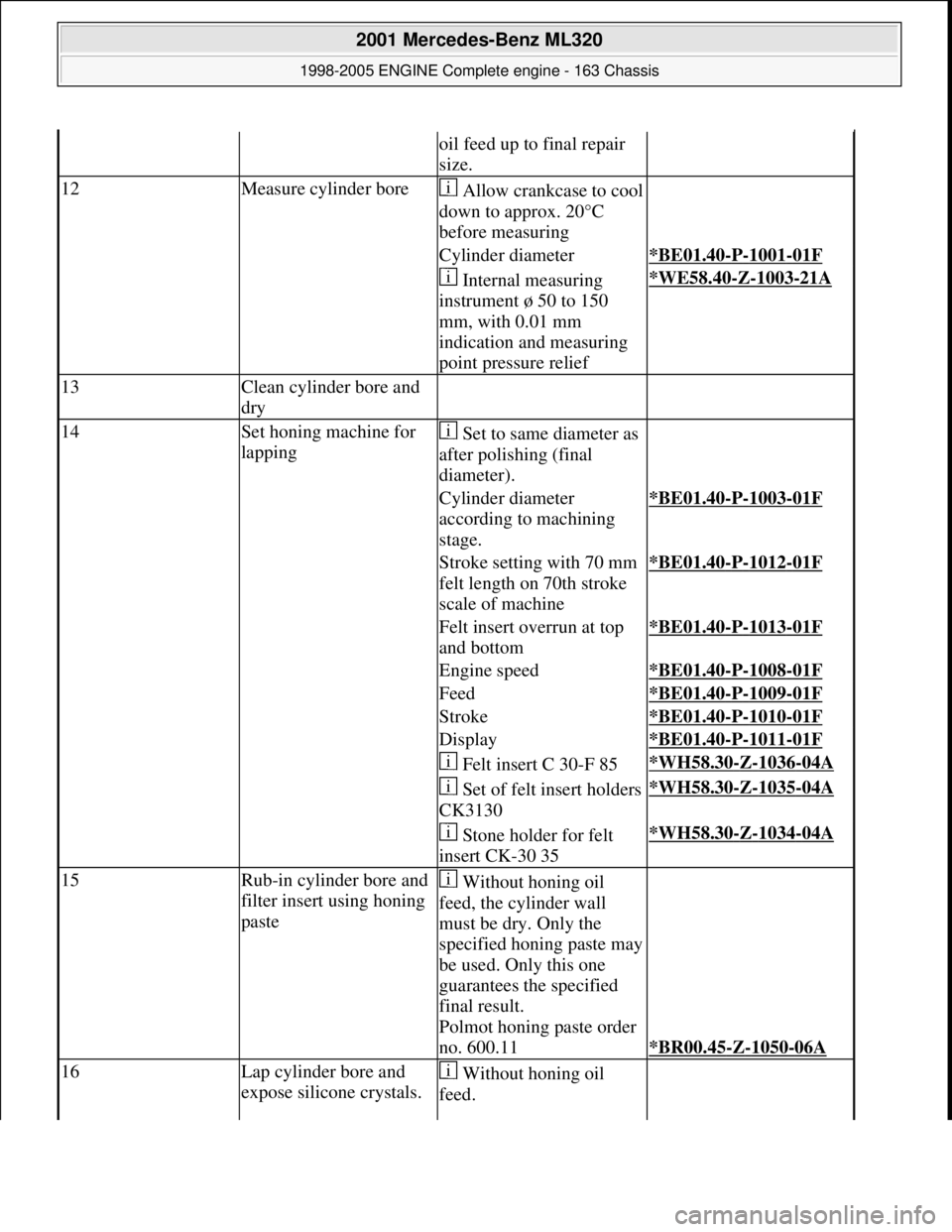

12Measure cylinder boreAllow crankcase to cool
down to approx. 20°C
before measuring
Cylinder diameter*BE01.40-P-1001-01F
Internal measuring
instrument ø 50 to 150
mm, with 0.01 mm
indication and measuring
point pressure relief*WE58.40-Z-1003-21A
13Clean cylinder bore and
dry
14Set honing machine for
lapping Set to same diameter as
after polishing (final
diameter).
Cylinder diameter
according to machining
stage.*BE01.40-P-1003-01F
Stroke setting with 70 mm
felt length on 70th stroke
scale of machine*BE01.40-P-1012-01F
Felt insert overrun at top
and bottom*BE01.40-P-1013-01F
Engine speed*BE01.40-P-1008-01F
Feed*BE01.40-P-1009-01F
Stroke*BE01.40-P-1010-01F
Display*BE01.40-P-1011-01F
Felt insert C 30-F 85*WH58.30-Z-1036-04A
Set of felt insert holders
CK3130*WH58.30-Z-1035-04A
Stone holder for felt
insert CK-30 35*WH58.30-Z-1034-04A
15Rub-in cylinder bore and
filter insert using honing
paste Without honing oil
feed, the cylinder wall
must be dry. Only the
specified honing paste may
be used. Only this one
guarantees the specified
final result.
Polmot honing paste order
no. 600.11
*BR00.45-Z-1050-06A
16Lap cylinder bore and
expose silicone crystals. Without honing oil
feed.

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:57 PMPage 119 © 2006 Mitchell Repair Information Company, LLC.

Check values for crankcase
Operating time of honing
machine
*BE01.40-P-1014-01F
17Coat filter insert again
with honing paste Do not coat cylinder
bore with honing paste.
Polmot honing paste order
no. 600.11
*BR00.45-Z-1050-06A
18Lap cylinder bore and
expose silicone crystals. Without honing oil
feed, removed material
cannot be measured.
Operating time of honing
machine
*BE01.40-P-1014-01F
19Clean cylinder bore and
dry Clean crankcase very
carefully with honing
paste. If possible, clean
crankcase in a major
assembly washing
machine, so that no
cylinder wall damage will
be caused by residues
when running the engine
later.
20Inspect cylinder boreAllow crankcase to cool
down to approx. 20°C
before inspecting.
Cylinder diameter of repair
size
*BE01.40-P-1001-01F
NumberDesignation
Engine 112
except 112.951,
113.940/941/
942/943/944/
945/946/948/
960/961/963/
965/966/967/
968/980/981/
984/986/992/
995
Engine
113.962/982/
987/988/989/
990/991/993
BE01.40-P-
1001-02E Cylinder borePeak-to-valley
height (R
Z ) of
top separating
surface
mm0.001 to 0.00450.001 to 0.0045
Wear limit at
BDC and TDC
of 1st piston ringmm< or = 30.03< or = 0.03

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:57 PMPage 120 © 2006 Mitchell Repair Information Company, LLC.

Engine mounts, engine supports
Engine lubrication
NumberDesignation
951/954/955/
960/961/970/
972/973/976969/980/981/
982/984/986/
992/995
BA01.45-P-
1002-01BSelf-tapping
screw of oil pan
to oil panThread not
pretappedNm1414
Thread pre-
tappedNm1010
BA01.45-P-
1003-01BOil drain screw
to oil panM14Nm3030
NumberDesignation
Engine
112.942/970
113.942/965/981
in model
163.154/157/17
2/174/175
BA22.10-P-1001-01LBolt, front engine mounts
to front axle carrierNm35
NumberDesignation
Engine
112
except
112.916/953/975Engines
113.940/941/
942/943/960/
961/962/969/
982
BF18.00-P-1001-
01HEngine
oil
Filling capacity with oil filterLiters8.08.0
Filling capacity without oil
filterLiters7.5-
Specifications for Operating
Fluids
SheetBB00.40-P-0229-
01A
BB00.40-P-0229-
01A
SheetBB00.40-P-0229-
03A
BB00.40-P-0229-
03A
SheetBB00.40-P-0229-
05A
BB00.40-P-0229-
05A

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:58 PMPage 136 © 2006 Mitchell Repair Information Company, LLC.

Engine mounts, engine supports
Engine lubrication
Fig. 111: Identifying External Torx Set (001 589 76 09 00)
NumberDesignation
965/967/968/
969/980/981/
982/984/986/
992/995
BA01.45-P-1002-
01BSelf-tapping screw
of oil pan to oil panThread not pre-
tappedNm14
Thread pre-tappedNm10
BA01.45-P-1003-
01BOil drain screw to
oil panM14Nm30
NumberDesignation
Engine
112.942/970
113.942/965/981
in model
163.154/157/17
2/174/17 5
BA22.10-P-1001-01LBolt, front engine mounts
to front axle carrierNm35
NumberDesignation
Engine
113.944/980/981
/984/986/991Engine
113.963/
963/965
BF18.00-P-
1001-01HEngine oilFilling capacity
with oil filterLiters7.57.5
Filling capacity
without oil filterLiters-7.0
Specifications
for Operating
FluidsSheetBB00.40-P-
0229-01A
BB00.40-P-
0229-01A
SheetBB00.40-P-
0229-03A
BB00.40-P-
0229-03A
SheetBB00.40-P-
0229-05A
BB00.40-P-
0229-05A

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:58 PMPage 139 © 2006 Mitchell Repair Information Company, LLC.

AP47.20-P-0780BB
Replace fuel filter
2.3.99

ENGINE
611.960 in MODEL 202.133 /134 /193 /194

ENGINE
611.961 in MODEL 210.006 /007 /206 /606

ENGINE
612.961 in MODEL 210.016 /216 /616

ENGINE
612.963 in MODEL 163.113

ENGINE
613.961 in MODEL 210.026 /226

ENGINE
613.960 in MODEL 220.026 /126

P47.20-0289-01

Shown on engine 611.960

70
Fuel filter housing

70/1
Fuel filter input

70/2
Fuel filter output

70/3
Threaded ring

70/4
Cap

70/5
Seal

70/6
Filter element

P07.16-2101-01

Shown on engine 612.961

70/1
Fuel line input

70/2
Fuel line output

70/3
Threaded ring

70/4
Cap

70/5
Seal

70/6
Filter element

70/7
Fuel return line

70/8
Fuel feed line


Remove/install and replacing


Danger!
Risk of death.
Death may result if vehicle

slips or topples from the lifting platform.
Align vehicle between the columns of the

lifting platform and position the four support

plates
at the lifting platform support points

specified by the vehicle manufacturer.

AS00.00-Z-0010-01A


Danger!
Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fuel.
No fire, sparks, naked flames or smoking.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1
Remove trim panel of charge air distribution

pipe

2
Disconnect fuel return line (70/7) and fuel

feed line (70/8 )

3
Unscrew threaded ring (70/3) and remove

together with cover (70/4).

If the fuel filter housing is soiled inside,
it must be removed and cleaned (against
separate order):

#
f

Remove/install fuel full-flow filter

AR47.20-P-1070HB

4
Replace filter insert (70/6)

After inserting the filter element

Fill fuel filter housing with fuel.

5
Replace sealing ring (70/5)

6
Mount threaded ring with cover so that the

groove latches at the fuel filter housing

Tighten threaded ring by hand.

7
Mount fuel return line (70/7) and fuel feed line

(70/8 )

8
Install trim panel of charge air distribution pipe


*BA01.20-P-1003-01A


Danger!
Risk of accident.
Accidents may result if the

vehicle starts off unintentionally with the

engine running.
Risk of injury.
Crushing and

burn injuries may result while working on

engine during when it is being started or when

it is in operation.
Secure vehicle to prevent it from moving.
Wear closed and snug-fitting work clothes.

Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

9
Run engine and inspect fuel filter for leaks

Crankcase ventilation, cylinder head cover

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Commercial vehicle engines, Industrial engines from the commercial vehicle sector (BR 300, BR 400, BR
500, BR 900)
This table only serves as an overview!
The detailed maintenance and oil change regulations can be found in the maintenance booklet for the respective
vehicle/ major assembly.
• Enable
o Can only be used in exceptional cases or under certain operating conditions/in certain applications.
- Must not be used
1. Sheets 227.0/. 1 no longer exist! Replaced by engine oils in sheets 228.0/. 1/.2/.3/.5/51.
2. Use in combination with low-sulfur (S <50 ppm) or sulfur-free (S <10 ppm) fuel! If fuels with sulfur
contents of S> 500 ppm are being used, the oil change intervals must be reduced!
3.Restriction: Onl
y "Mobil 1 5W-50", SAE 5W-50, sheet 229.3 is approved!
MB
Specifications
for
Operating
Fluids Sheet
1.)226.9
Multi-
grade228.0/.1
Single/
Multi-
grade226.9229.3
Single/
Multi-
grade229.5
Multi-
grade228.51 '
Multi-
grade229.1
Multi-
grade229.3
Multi-
grade229.31
Multi-
grade229.5
Multi-
grade229.51
Multi-
grade
Commercial
vehicles,
buses without
particulate
filter
BR 300, 400,
500, 900; OM
457, 460 up to
and including
Euro 3-o/•o/•••-----
BR 500, 900;
OM 457, 460
Euro 4/5--o/•••-----
Gas engines•---•-----
Commercial
vehicles,
buses with
particulate
filter
BR 500, 900;
OM 457, 460--oo•-----

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:52 PMPage 416 © 2006 Mitchell Repair Information Company, LLC.

Valve seal not okay :
#
3
Remove/install/replace valve seal.

AR05.30-P-3500B

Cause 6:
Remedy 6:

00 001 70
1.5 mm hole missing on individual right

cylinder head covers at connection to

crankcase ventilation.
1
Check cylinder head cover

Up to production 06/1999.

Crankcase ventilation out of order, engine can

sludge up and consume oil as a result

Cylinder head cover not okay:
#
2
Remove/install/replace cylinder head

cover.

ENGINE
112

Air cleaner positioned on engine

side.

ENGINE
113

Air cleaner positioned on engine

side.
AR01.20-P-5014BV

ENGINE

112

Air cleaner positioned on engine side

ENGINE
113

Air cleaner positioned on engine side

AR01.20-P-5014B

Cause 7:
Remedy 7:

00 001 70
Engine oil sludging due to excessively long

engine oil change intervals
Service information: Oil sludge

SI18.00-P-0010A

If the service interval according to

ASSYST is exceeded, the engine oil sludges

up sooner or later depending on the oil

quality, type of operation and operating time.

Engine consumes oil.

See Service Information.

1
Print out ASSYST printout.

2
Check oil change intervals

3
Inform vehicle owner.

4
Remove/install/replace piston rings.

AR03.10-P-7311BV

Disassemble and clean sludged engines

completely because dirty oil usually gets into

clean-oil side due to clogged oil filter.

Cause 8:
Remedy 8:

00 001 70
Piston rings sticky or have coke deposits from

engine oils (e.g. API-S in USA) in connection

with regionally poor fuel quality.

Always use engine oils according to

Specifications for Operating Fluids 229.3, do

not add special additives to engine oil and fuel

BB00.40-P-0229-03A

1
Remove/install/replace piston rings.

AR03.10-P-7311BV

Cause 9:
Remedy 9:

00 001 70
Piston ring wear due to excessive

contamination/dust (model 163) through air

intake system.
1
Remove/install/replace gaskets on air

intake line and distribution element of

partial load ventilation.

e.g. due to incorrect assembly after

workshop visit or embrittlement of gaskets
The distribution element with optimized

material will be available as of 11/ 2000 as a

standard feature.

2
Remove/install/replace intake module.

Exterior oil loss, e.g. due to cast iron

porosity on left side of crankcase in area of

engine support is not considered to be oil

consumption

In the event of a customer complaint

regarding the engine oil consumption, always

determine the oil consumption definitely

because the oil indicator lamp can come on

due to other causes (e.g. defective oil sensor).

Commercially available tools
(see Workshop Equipment Manual)

Number

Designation
Make (e. g.)
Order number

WH58.30-Z-1009-05A
Flexible inspection light
Scope of supply 1 (complete unit):

-glass fiber optical fiber

-light projector

-230 V, storage case

-operating instructions

-graphics protocol
Richard Wolf GmbH

Pforzheimerstr. 32

D-75438 Knittlingen

Karl Storz GmbH

Mittelstr. 8

D-78532 Tuttlingen
1.00565.00

80902

WH58.30-Z-1010-05A
Flexible inspection light

Scope of delivery 2 (for workshops which already have an approved

Wolf or Storz inspection light):

-storage case

-operating instructions

-pictures protocol
Richard Wolf GmbH

Pforzheimerstr. 32

D-75438 Knittlingen

Karl Storz GmbH

Mittelstr. 8

D-78532 Tuttlingen
7.05065.00

K03506AJ

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
