Page 2145 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual SOLENOIDS & SOLENOID VALVES
SOLENOIDS & SOLENOID VALVES LOCATION
SWITCHES
SWITCHES LOCATION
Outside Temperature Sensor (A/C)Behind lower right side of dash.
Oxygen Sensor (O2S 1) (Left) (Before TW

SOLENOIDS & SOLENOID VALVES
SOLENOIDS & SOLENOID VALVES LOCATION
SWITCHES
SWITCHES LOCATION

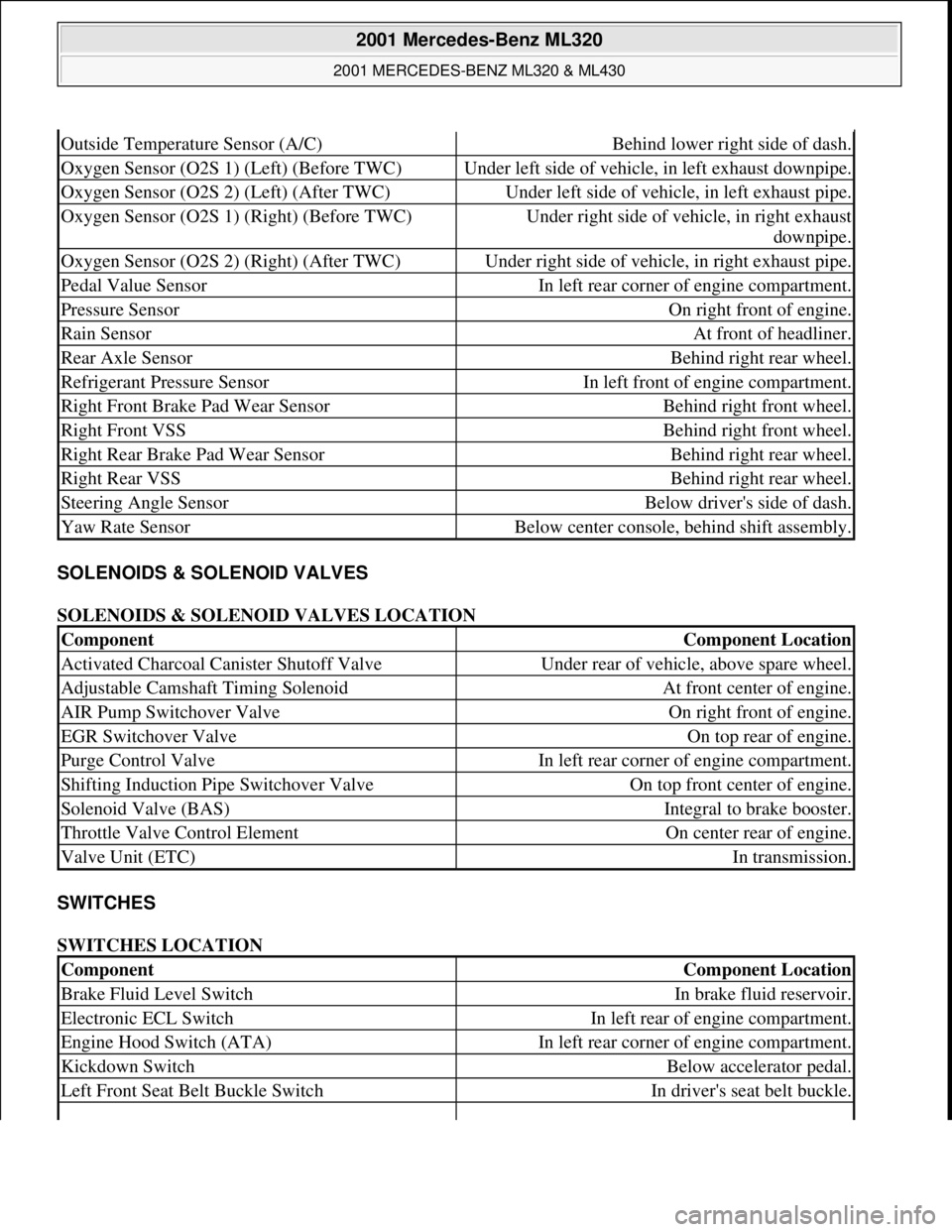

Outside Temperature Sensor (A/C)Behind lower right side of dash.
Oxygen Sensor (O2S 1) (Left) (Before TWC)Under left side of vehicle, in left exhaust downpipe.
Oxygen Sensor (O2S 2) (Left) (After TWC)Under left side of vehicle, in left exhaust pipe.
Oxygen Sensor (O2S 1) (Right) (Before TWC)Under right side of vehicle, in right exhaust
downpipe.
Oxygen Sensor (O2S 2) (Right) (After TWC)Under right side of vehicle, in right exhaust pipe.
Pedal Value SensorIn left rear corner of engine compartment.
Pressure SensorOn right front of engine.
Rain SensorAt front of headliner.
Rear Axle SensorBehind right rear wheel.
Refrigerant Pressure SensorIn left front of engine compartment.
Right Front Brake Pad Wear SensorBehind right front wheel.
Right Front VSSBehind right front wheel.
Right Rear Brake Pad Wear SensorBehind right rear wheel.
Right Rear VSSBehind right rear wheel.
Steering Angle SensorBelow driver's side of dash.
Yaw Rate SensorBelow center console, behind shift assembly.
ComponentComponent Location
Activated Charcoal Canister Shutoff ValveUnder rear of vehicle, above spare wheel.
Adjustable Camshaft Timing SolenoidAt front center of engine.
AIR Pump Switchover ValveOn right front of engine.
EGR Switchover ValveOn top rear of engine.
Purge Control ValveIn left rear corner of engine compartment.
Shifting Induction Pipe Switchover ValveOn top front center of engine.
Solenoid Valve (BAS)Integral to brake booster.
Throttle Valve Control ElementOn center rear of engine.
Valve Unit (ETC)In transmission.
ComponentComponent Location
Brake Fluid Level SwitchIn brake fluid reservoir.
Electronic ECL SwitchIn left rear of engine compartment.
Engine Hood Switch (ATA)In left rear corner of engine compartment.
Kickdown SwitchBelow accelerator pedal.
Left Front Seat Belt Buckle SwitchIn driver's seat belt buckle.

2001 Mercedes-Benz ML320
2001 MERCEDES-BENZ ML320 & ML430
me
Saturday, October 02, 2010 3:21:17 PMPage 5 © 2006 Mitchell Repair Information Company, LLC.

Page 2146 of 4133

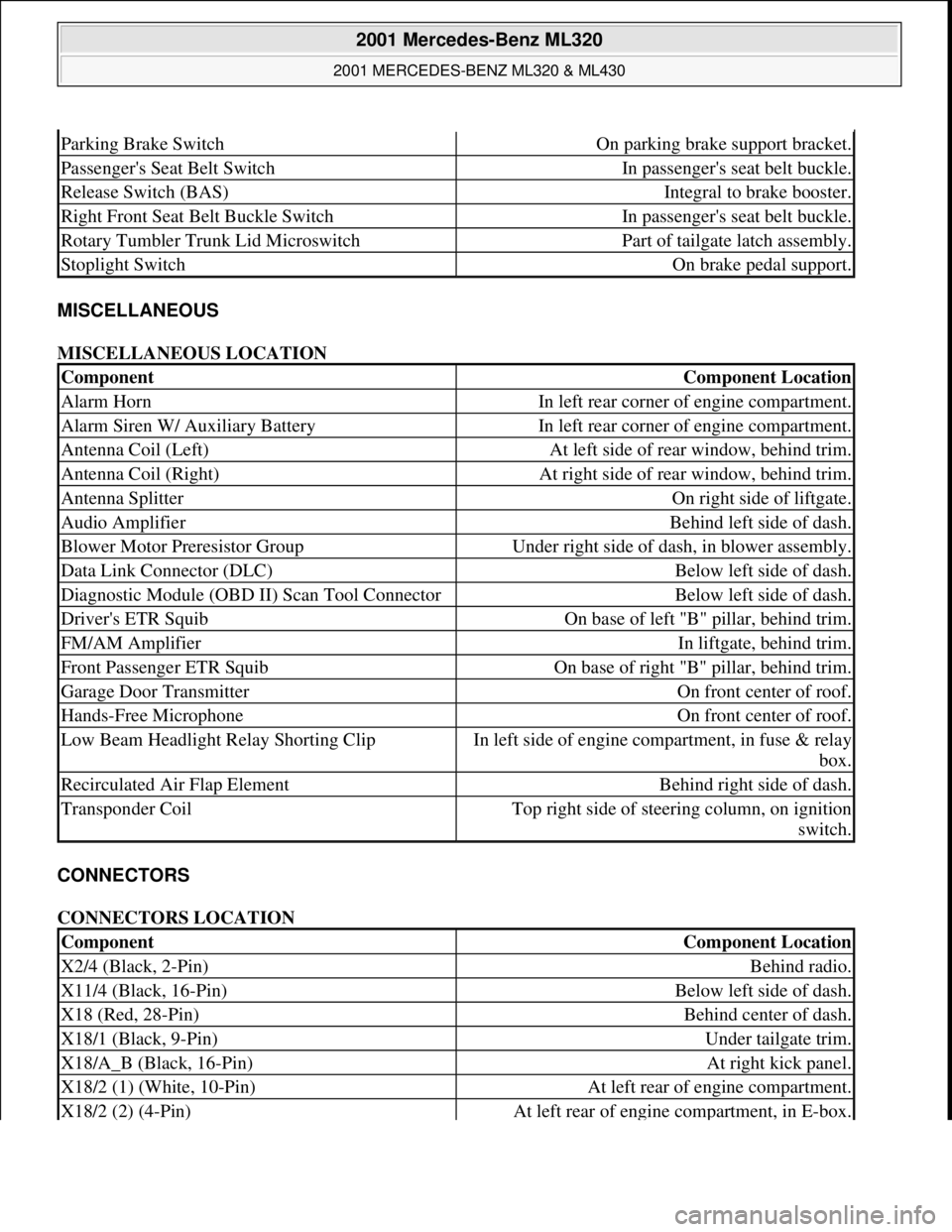

MERCEDES-BENZ ML350 1997 Complete Repair Manual MISCELLANEOUS
MISCELLANEOUS LOCATION
CONNECTORS
CONNECTORS LOCATION
Parking Brake SwitchOn parking brake support bracket.
Passengers Seat Belt SwitchIn passengers seat belt buckle.
Release Switc

Page 2147 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual X18/2 (3) (Black, 6-Pin)At left rear of engine compartment.
X18/3 (Black, 10-Pin)Behind left rear wheel.
X18/5 (Black, 3-Pin)Under trim, at left rear of cargo area.
X18/6 (Black, 3-Pin)At left rear of

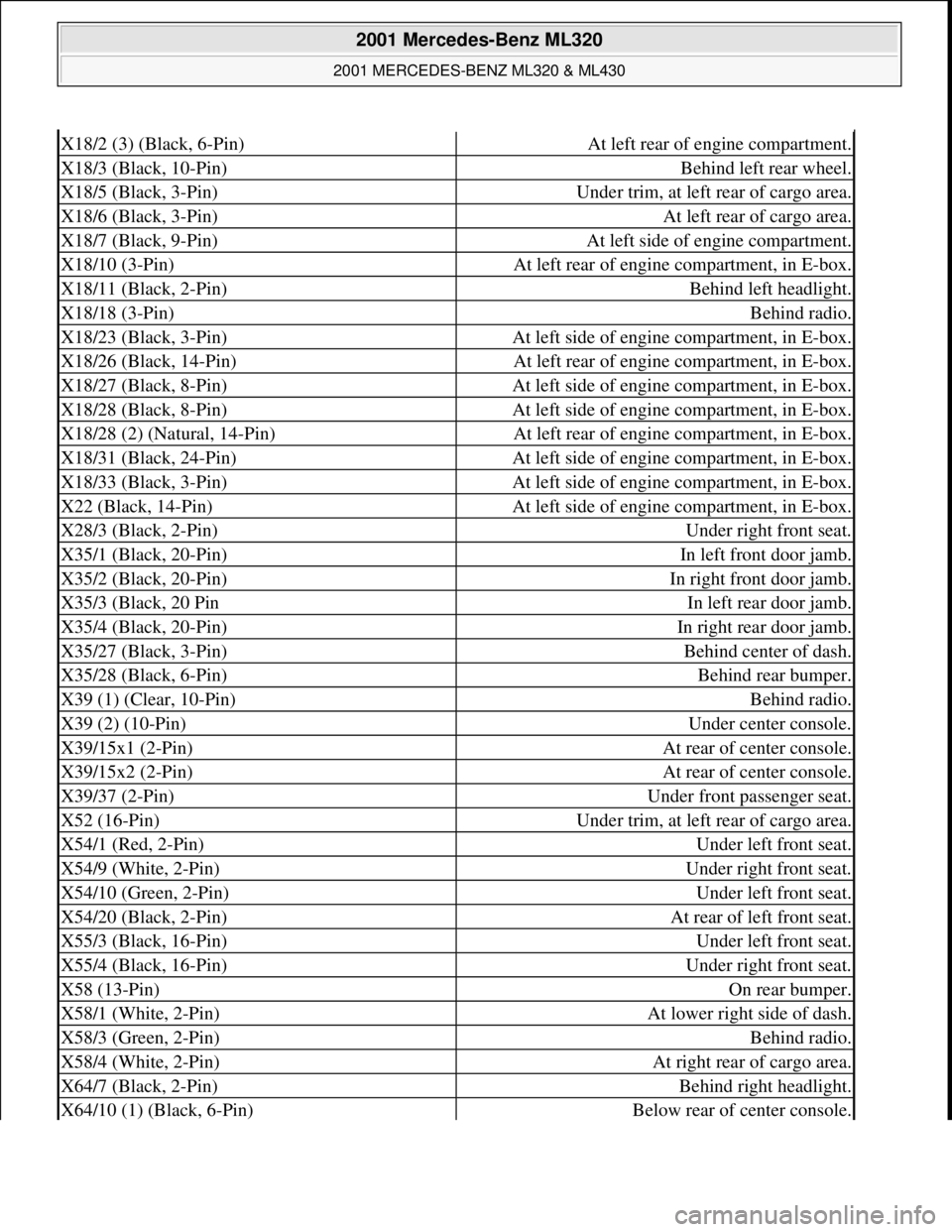

X18/2 (3) (Black, 6-Pin)At left rear of engine compartment.
X18/3 (Black, 10-Pin)Behind left rear wheel.
X18/5 (Black, 3-Pin)Under trim, at left rear of cargo area.
X18/6 (Black, 3-Pin)At left rear of cargo area.
X18/7 (Black, 9-Pin)At left side of engine compartment.
X18/10 (3-Pin)At left rear of engine compartment, in E-box.
X18/11 (Black, 2-Pin)Behind left headlight.
X18/18 (3-Pin)Behind radio.
X18/23 (Black, 3-Pin)At left side of engine compartment, in E-box.
X18/26 (Black, 14-Pin)At left rear of engine compartment, in E-box.
X18/27 (Black, 8-Pin)At left side of engine compartment, in E-box.
X18/28 (Black, 8-Pin)At left side of engine compartment, in E-box.
X18/28 (2) (Natural, 14-Pin)At left rear of engine compartment, in E-box.
X18/31 (Black, 24-Pin)At left side of engine compartment, in E-box.
X18/33 (Black, 3-Pin)At left side of engine compartment, in E-box.
X22 (Black, 14-Pin)At left side of engine compartment, in E-box.
X28/3 (Black, 2-Pin)Under right front seat.
X35/1 (Black, 20-Pin)In left front door jamb.
X35/2 (Black, 20-Pin)In right front door jamb.
X35/3 (Black, 20 PinIn left rear door jamb.
X35/4 (Black, 20-Pin)In right rear door jamb.
X35/27 (Black, 3-Pin)Behind center of dash.
X35/28 (Black, 6-Pin)Behind rear bumper.
X39 (1) (Clear, 10-Pin)Behind radio.
X39 (2) (10-Pin)Under center console.
X39/15x1 (2-Pin)At rear of center console.
X39/15x2 (2-Pin)At rear of center console.
X39/37 (2-Pin)Under front passenger seat.
X52 (16-Pin)Under trim, at left rear of cargo area.
X54/1 (Red, 2-Pin)Under left front seat.
X54/9 (White, 2-Pin)Under right front seat.
X54/10 (Green, 2-Pin)Under left front seat.
X54/20 (Black, 2-Pin)At rear of left front seat.
X55/3 (Black, 16-Pin)Under left front seat.
X55/4 (Black, 16-Pin)Under right front seat.
X58 (13-Pin)On rear bumper.
X58/1 (White, 2-Pin)At lower right side of dash.
X58/3 (Green, 2-Pin)Behind radio.
X58/4 (White, 2-Pin)At right rear of cargo area.
X64/7 (Black, 2-Pin)Behind right headlight.
X64/10 (1) (Black, 6-Pin)Below rear of center console.

2001 Mercedes-Benz ML320
2001 MERCEDES-BENZ ML320 & ML430
me
Saturday, October 02, 2010 3:21:17 PMPage 7 © 2006 Mitchell Repair Information Company, LLC.

Page 2148 of 4133

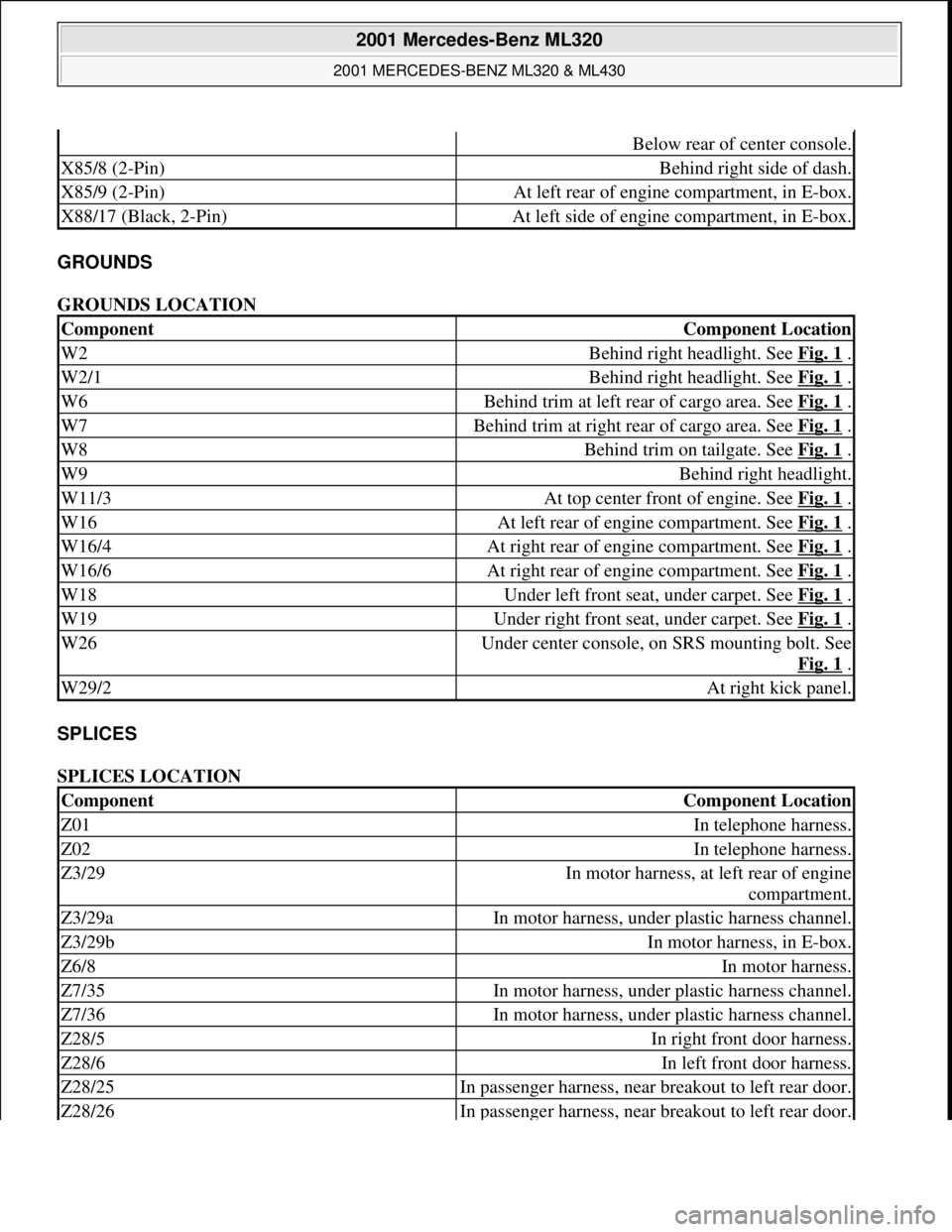

MERCEDES-BENZ ML350 1997 Complete Repair Manual GROUNDS
GROUNDS LOCATION
SPLICES
SPLICES LOCATION
Below rear of center console.
X85/8 (2-Pin)Behind right side of dash.
X85/9 (2-Pin)At left rear of engine compartment, in E-box.
X88/17 (Black, 2-

Page 2149 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Z36/1In rear bumper harness, near X35/28.
Z36/2In rear bumper harness, near X35/28.
Z36/3In front bumper harness, between breakouts to left
inner sensor & right inner sensor.
Z36/4In front bumper har

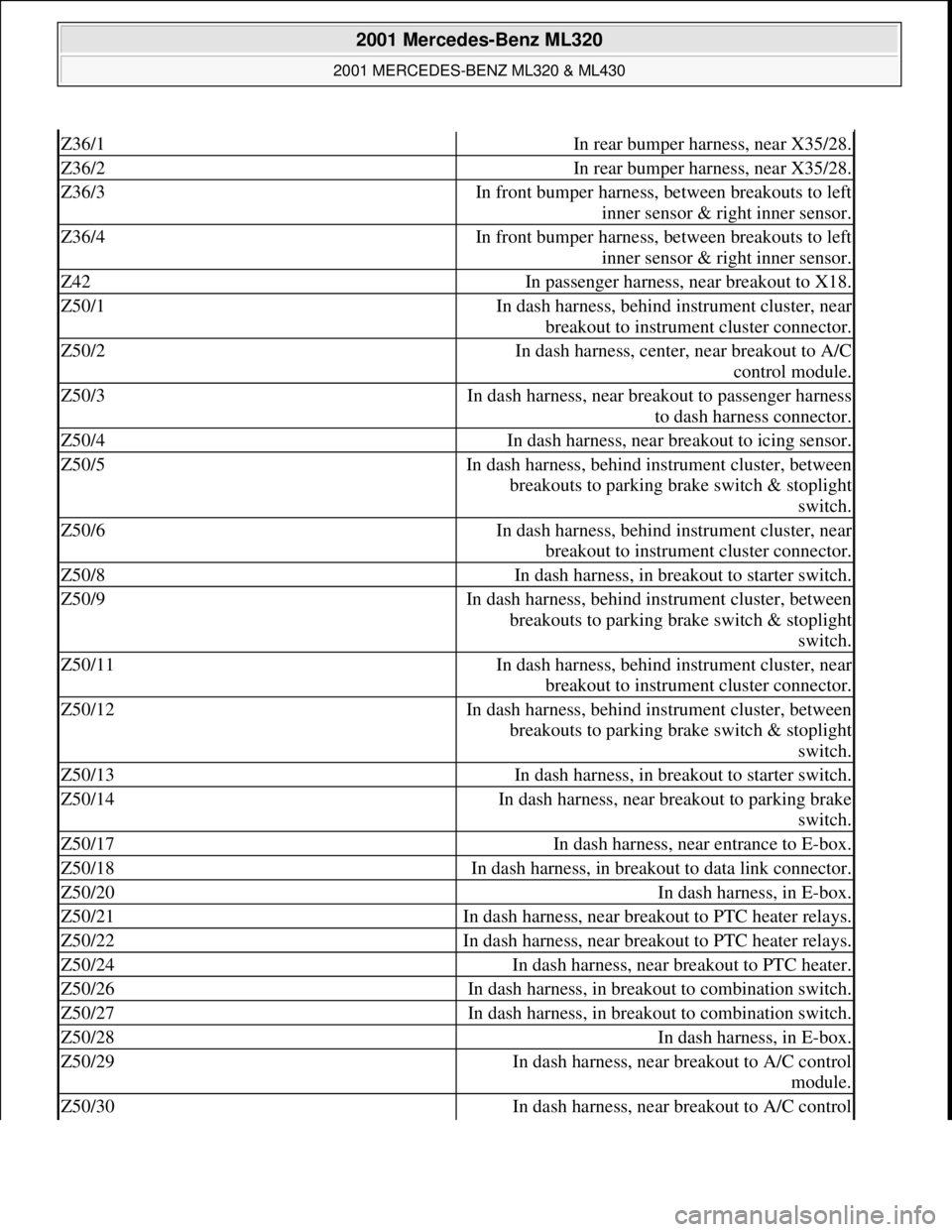

Z36/1In rear bumper harness, near X35/28.
Z36/2In rear bumper harness, near X35/28.
Z36/3In front bumper harness, between breakouts to left
inner sensor & right inner sensor.
Z36/4In front bumper harness, between breakouts to left
inner sensor & right inner sensor.
Z42In passenger harness, near breakout to X18.
Z50/1In dash harness, behind instrument cluster, near
breakout to instrument cluster connector.
Z50/2In dash harness, center, near breakout to A/C
control module.
Z50/3In dash harness, near breakout to passenger harness
to dash harness connector.
Z50/4In dash harness, near breakout to icing sensor.
Z50/5In dash harness, behind instrument cluster, between
breakouts to parking brake switch & stoplight
switch.
Z50/6In dash harness, behind instrument cluster, near
breakout to instrument cluster connector.
Z50/8In dash harness, in breakout to starter switch.
Z50/9In dash harness, behind instrument cluster, between
breakouts to parking brake switch & stoplight
switch.
Z50/11In dash harness, behind instrument cluster, near
breakout to instrument cluster connector.
Z50/12In dash harness, behind instrument cluster, between
breakouts to parking brake switch & stoplight
switch.
Z50/13In dash harness, in breakout to starter switch.
Z50/14In dash harness, near breakout to parking brake
switch.
Z50/17In dash harness, near entrance to E-box.
Z50/18In dash harness, in breakout to data link connector.
Z50/20In dash harness, in E-box.
Z50/21In dash harness, near breakout to PTC heater relays.
Z50/22In dash harness, near breakout to PTC heater relays.
Z50/24In dash harness, near breakout to PTC heater.
Z50/26In dash harness, in breakout to combination switch.
Z50/27In dash harness, in breakout to combination switch.
Z50/28In dash harness, in E-box.
Z50/29In dash harness, near breakout to A/C control
module.
Z50/30In dash harness, near breakout to A/C control

2001 Mercedes-Benz ML320
2001 MERCEDES-BENZ ML320 & ML430
me
Saturday, October 02, 2010 3:21:17 PMPage 9 © 2006 Mitchell Repair Information Company, LLC.

Page 2150 of 4133

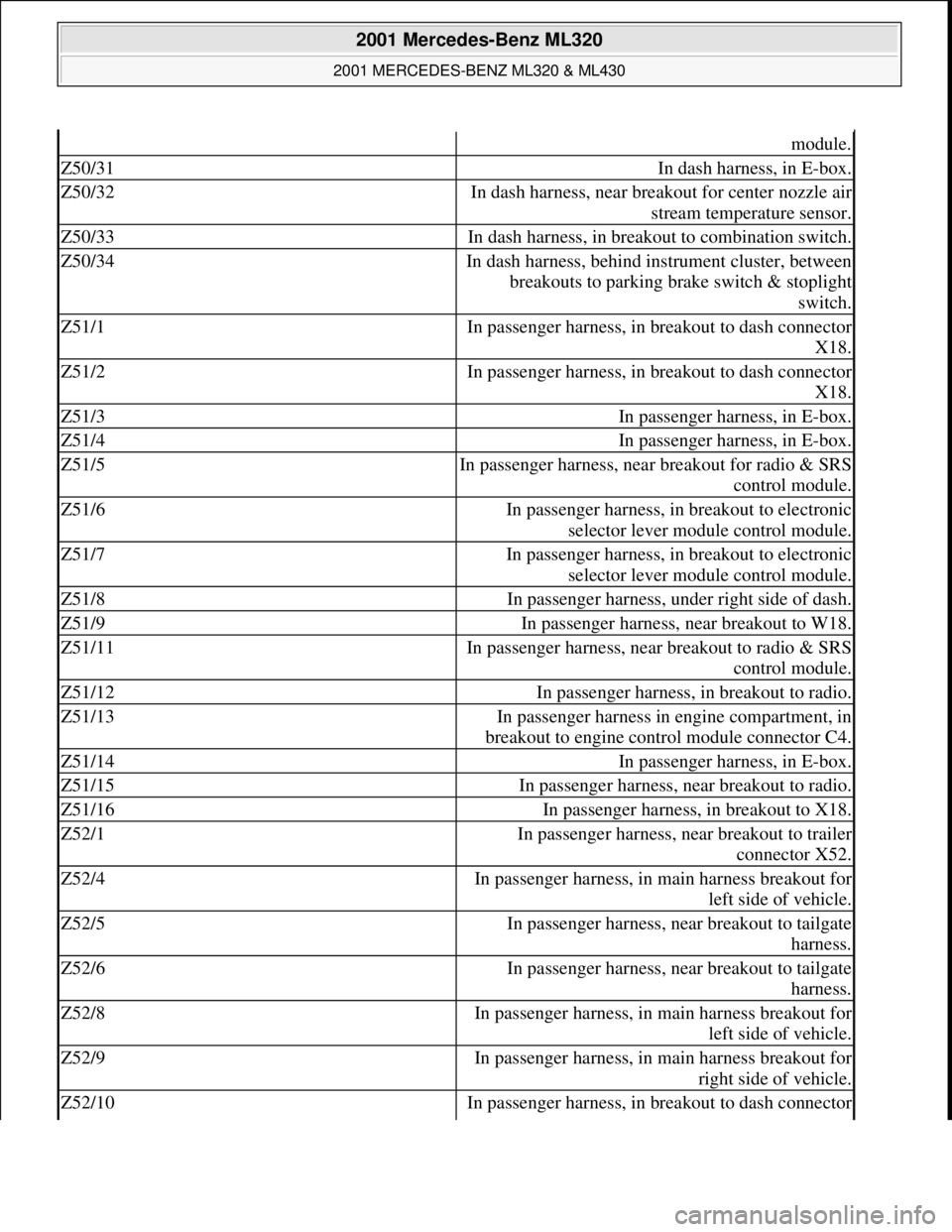

MERCEDES-BENZ ML350 1997 Complete Repair Manual module.
Z50/31In dash harness, in E-box.
Z50/32In dash harness, near breakout for center nozzle air
stream temperature sensor.
Z50/33In dash harness, in breakout to combination switch.
Z50/34In dash

Page 2151 of 4133

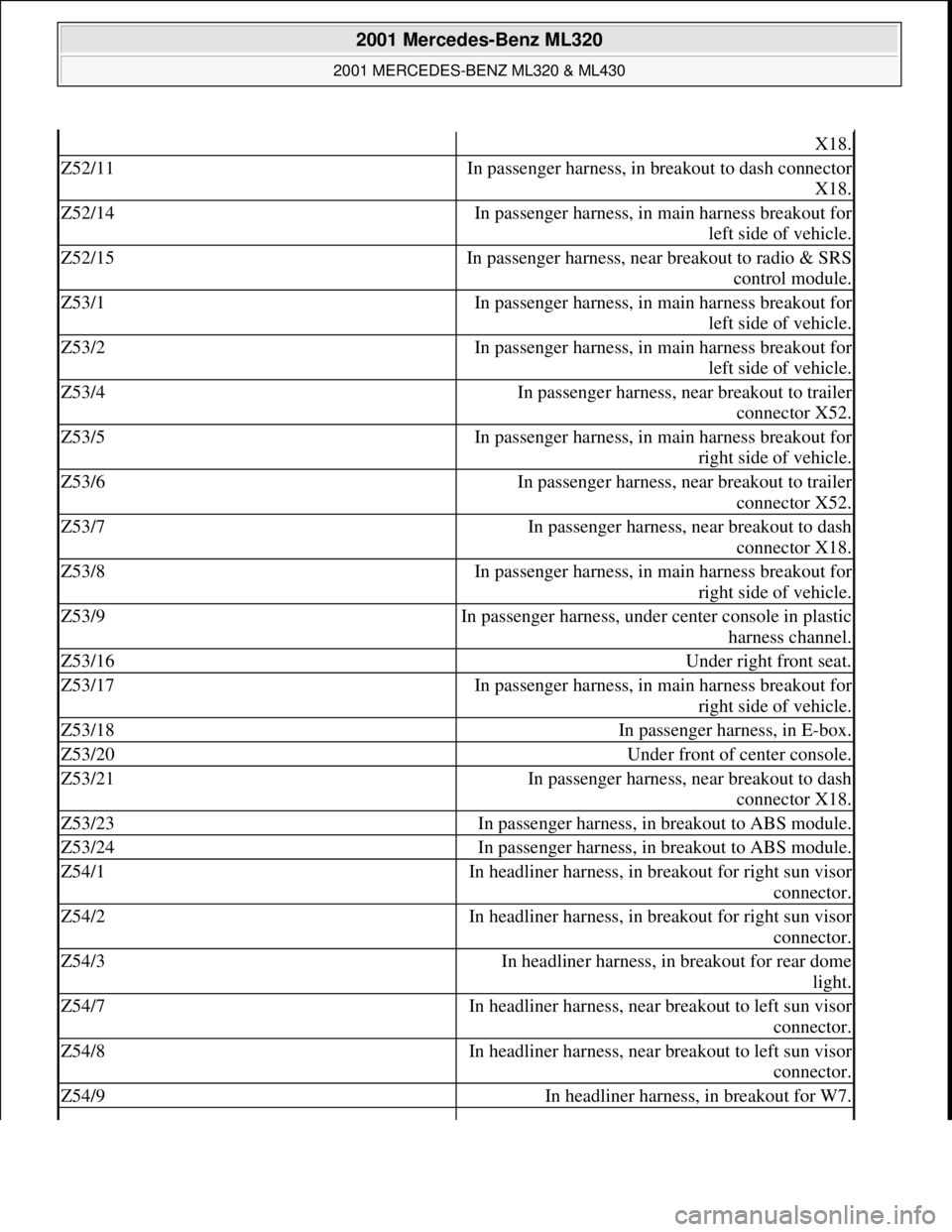

MERCEDES-BENZ ML350 1997 Complete Repair Manual X18.
Z52/11In passenger harness, in breakout to dash connector
X18.
Z52/14In passenger harness, in main harness breakout for
left side of vehicle.
Z52/15In passenger harness, near breakout to radio

Page 2152 of 4133

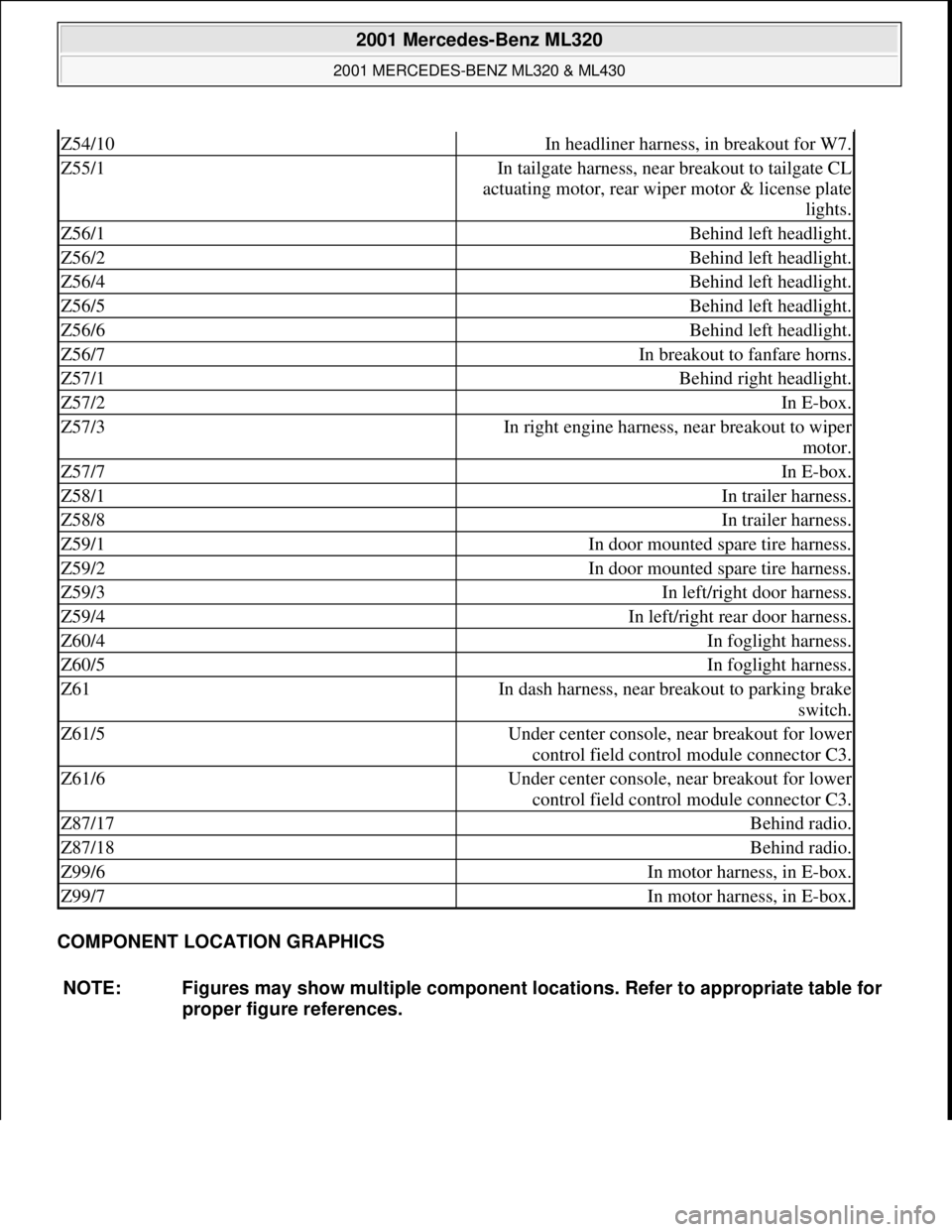

MERCEDES-BENZ ML350 1997 Complete Repair Manual COMPONENT LOCATION GRAPHICS
Z54/10In headliner harness, in breakout for W7.
Z55/1In tailgate harness, near breakout to tailgate CL
actuating motor, rear wiper motor & license plate
lights.
Z56/1Beh
