Page 1761 of 4133

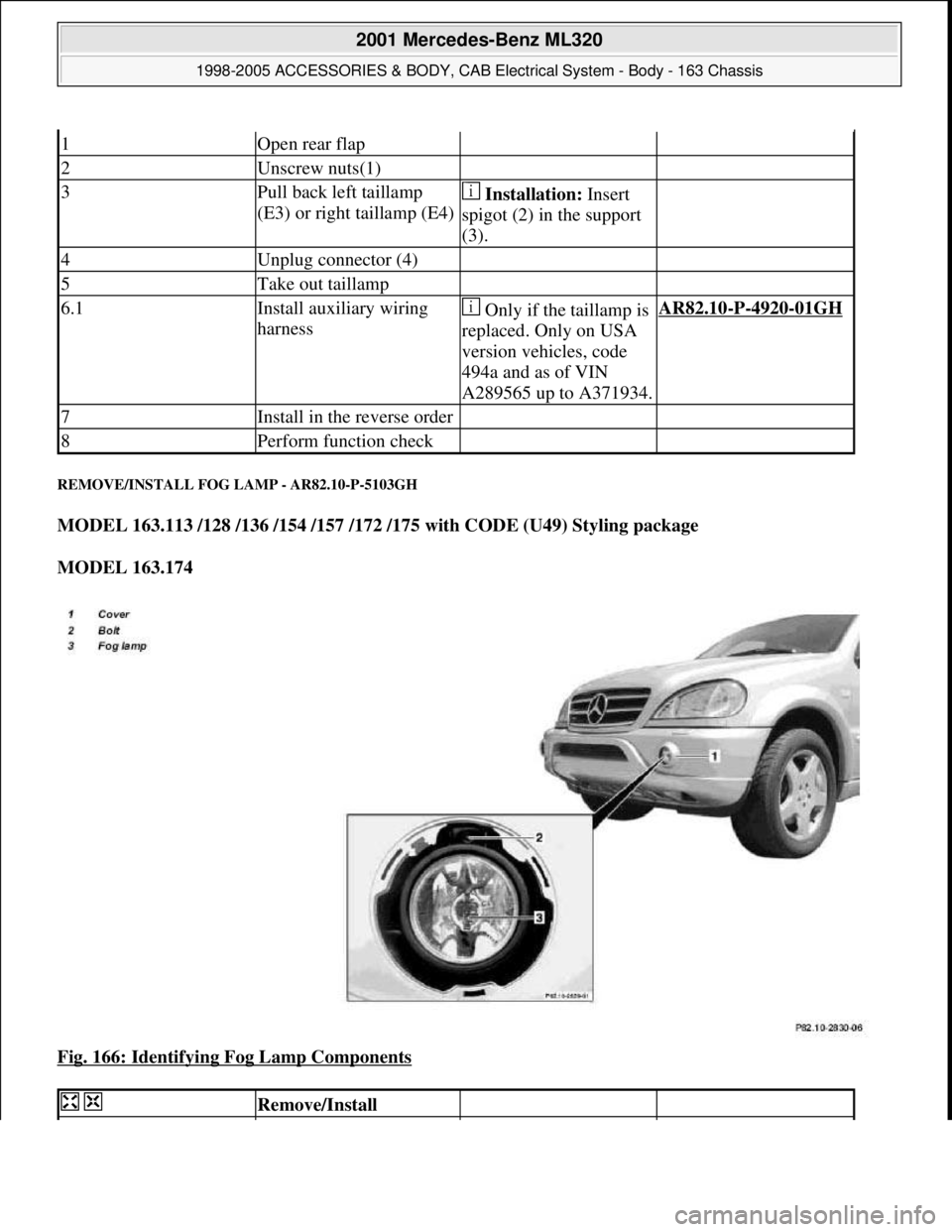

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE/INSTALL FOG LAMP - AR82.10-P-5103GH MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package MODEL 163.174 Fig. 166: Identifying Fog Lamp Components 1Open rear flap

Page 1762 of 4133

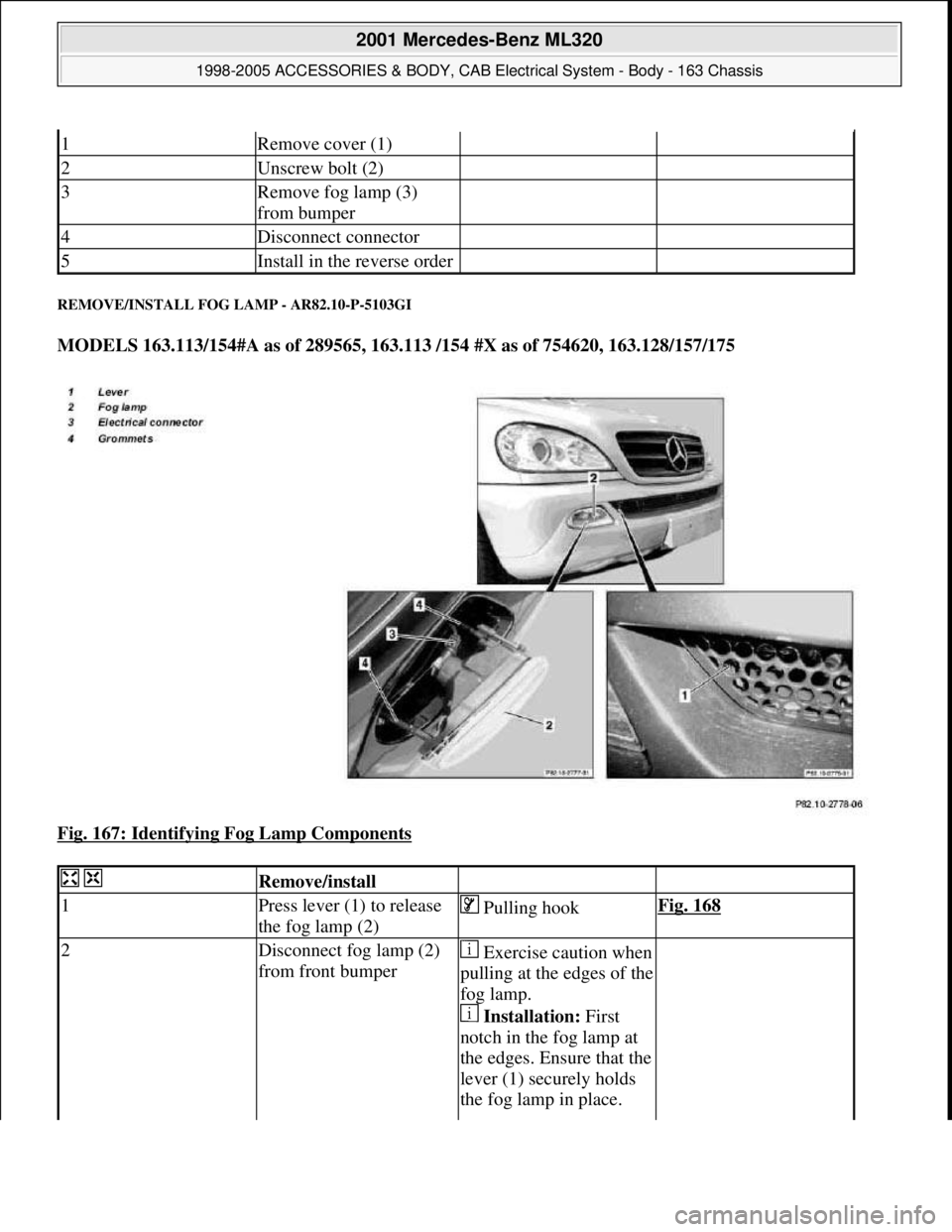

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE/INSTALL FOG LAMP - AR82.10-P-5103GI MODELS 163.113/154#A as of 289565, 163.113 /154 #X as of 754620, 163.128/157/175 Fig. 167: Identifying Fog Lamp Components 1Remove cover (1) 2Unscrew

Page 1763 of 4133

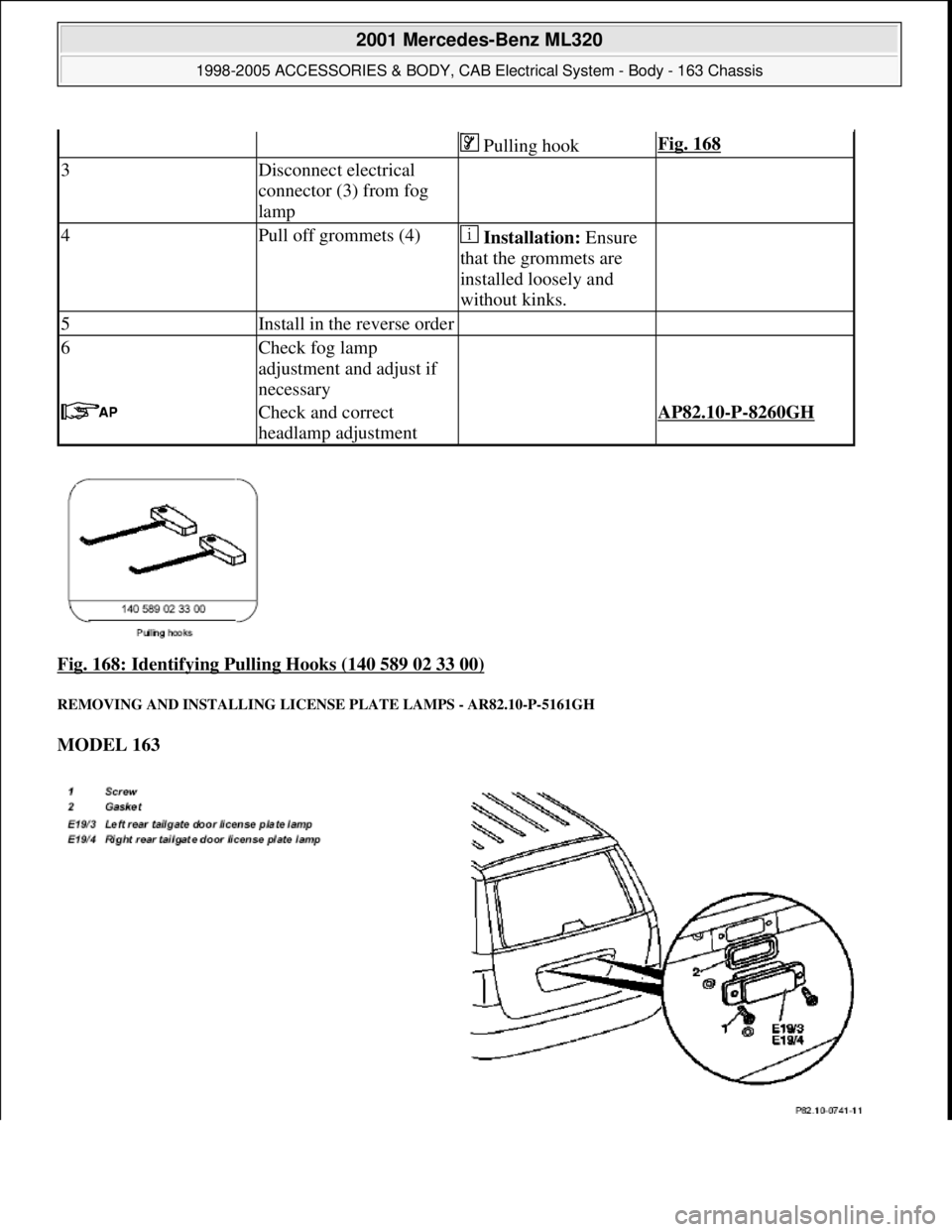

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 168: Identifying Pull ing Hooks (140 589 02 33 00) REMOVING AND INSTAL LING LICENSE PLATE LAMPS - AR82.10-P-5161GH MODEL 163 Pulling hookFig. 168 3Disconnect electrical connector (3) fro

Page 1764 of 4133

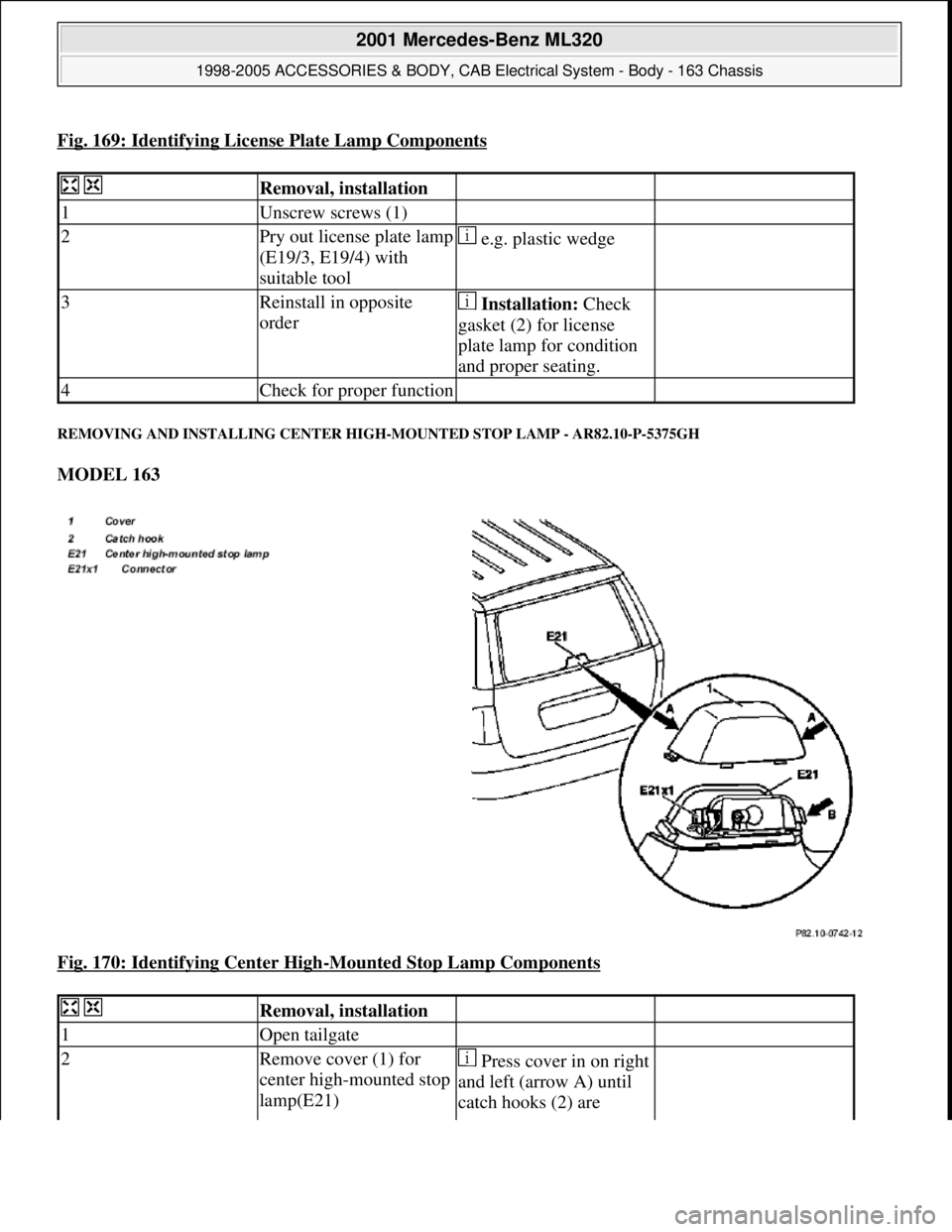

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 169: Identifying License Plate Lamp Components REMOVING AND INSTALLING CENTER HIGH-MOUNTED STOP LAMP - AR82.10-P-5375GH MODEL 163 Fig. 170: Identifying Center High -Mounted Stop Lamp Component

Page 1765 of 4133

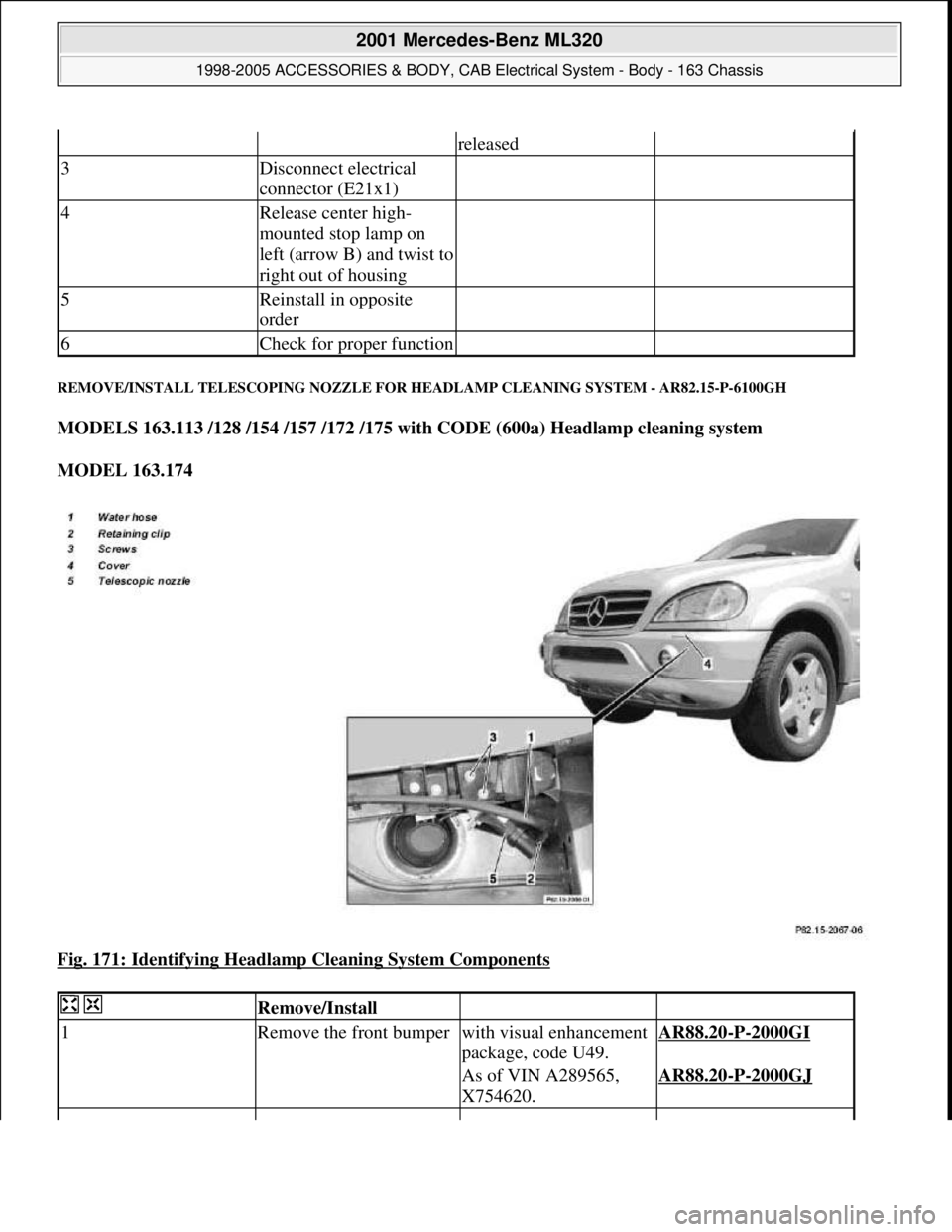

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE/INSTALL TELESCOPING NOZZLE FOR HEADLAMP CLEANING SYSTEM - AR82.15-P-6100GH MODELS 163.113 /128 /154 /157 /172 /175 with CODE (600a) Headlamp cleaning system MODEL 163.174 Fig. 171: Identif

Page 1766 of 4133

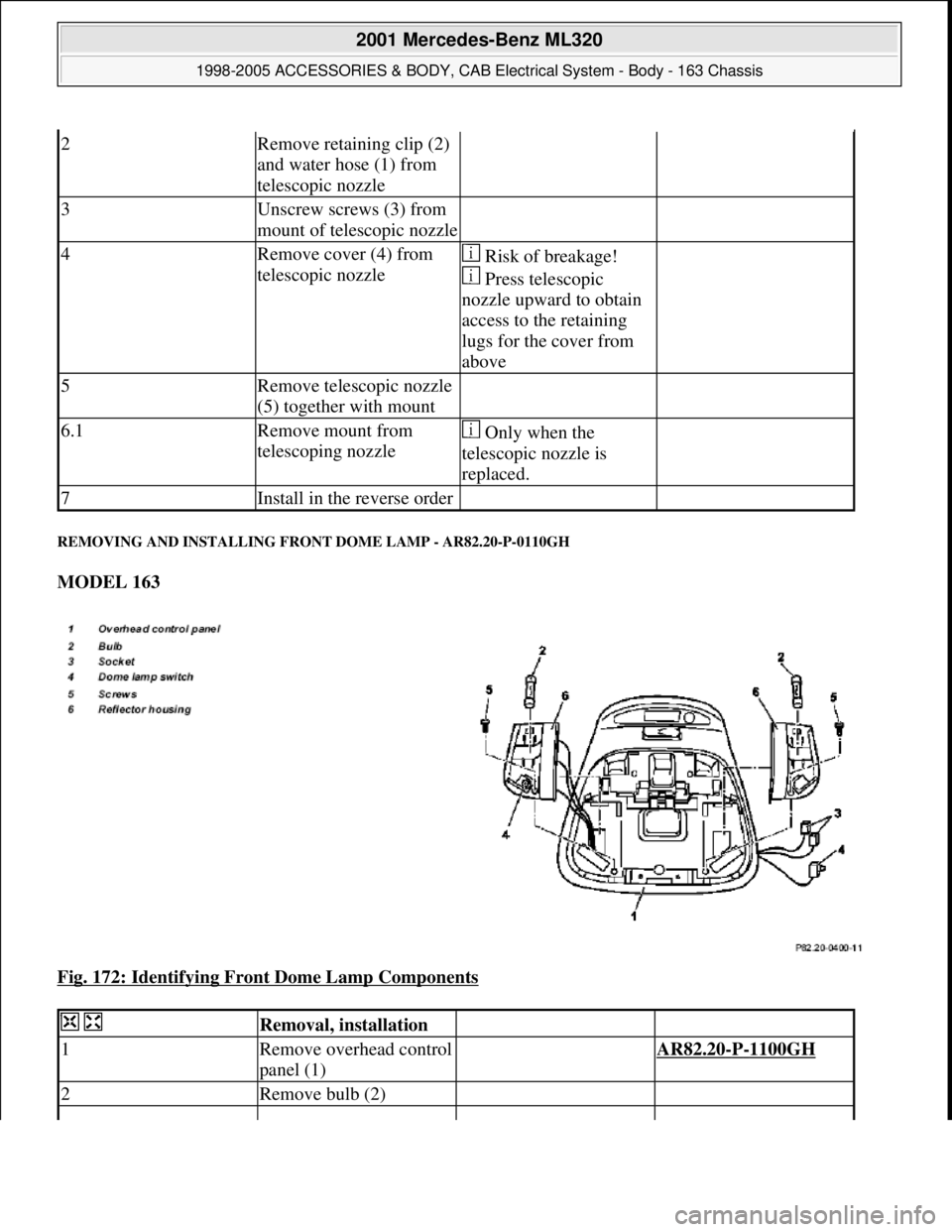

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVING AND INSTALLING FRONT DOME LAMP - AR82.20-P-0110GH MODEL 163 Fig. 172: Identifying Front Dome Lamp Components 2Remove retaining clip (2) and water hose (1) from telescopic nozzle 3Uns

Page 1767 of 4133

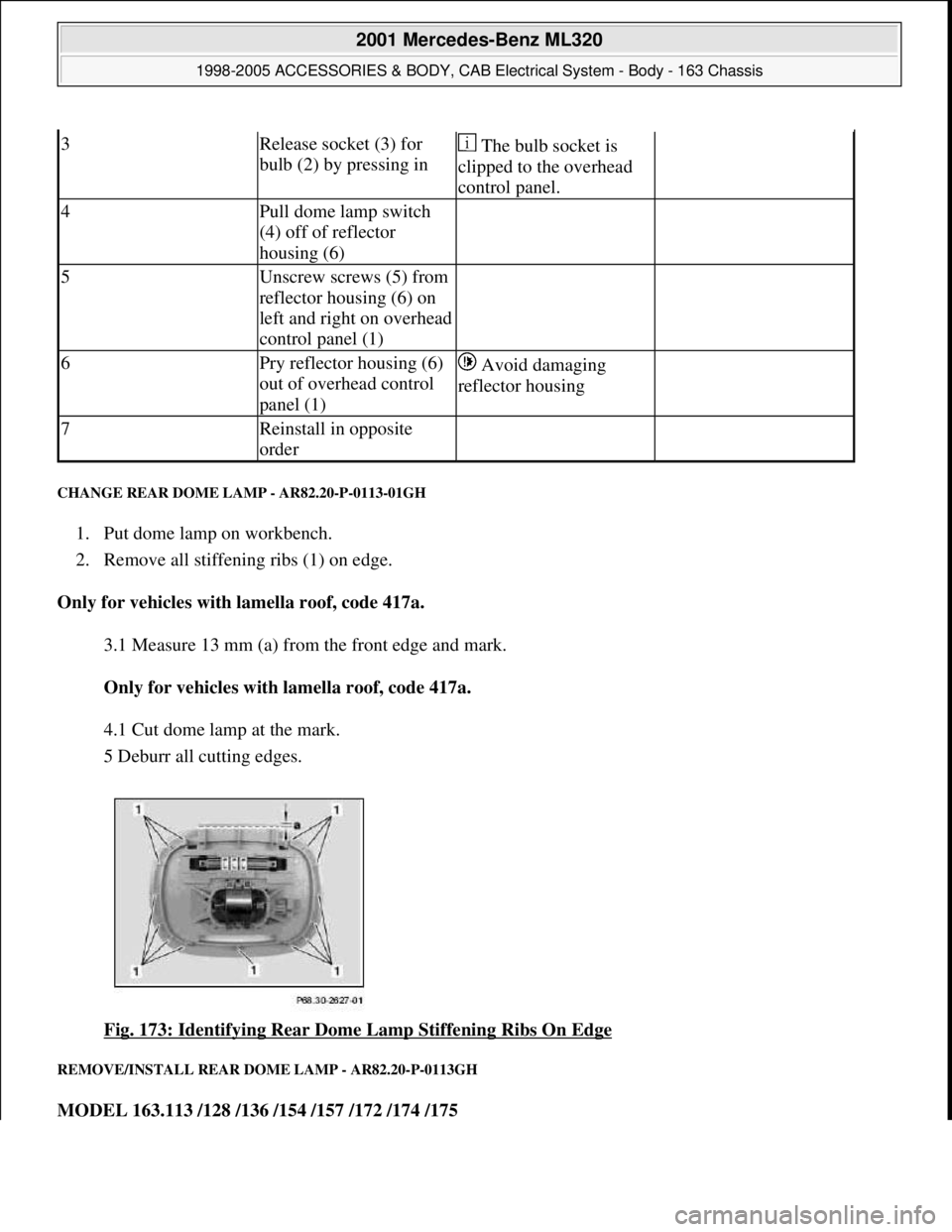

MERCEDES-BENZ ML350 1997 Complete Repair Manual CHANGE REAR DOME LAMP - AR82.20-P-0113-01GH 1. Put dome lamp on workbench. 2. Remove all stiffening ribs (1) on edge. Only for vehicles with lamella roof, code 417a. 3.1 Measure 13 mm (a) from

Page 1768 of 4133

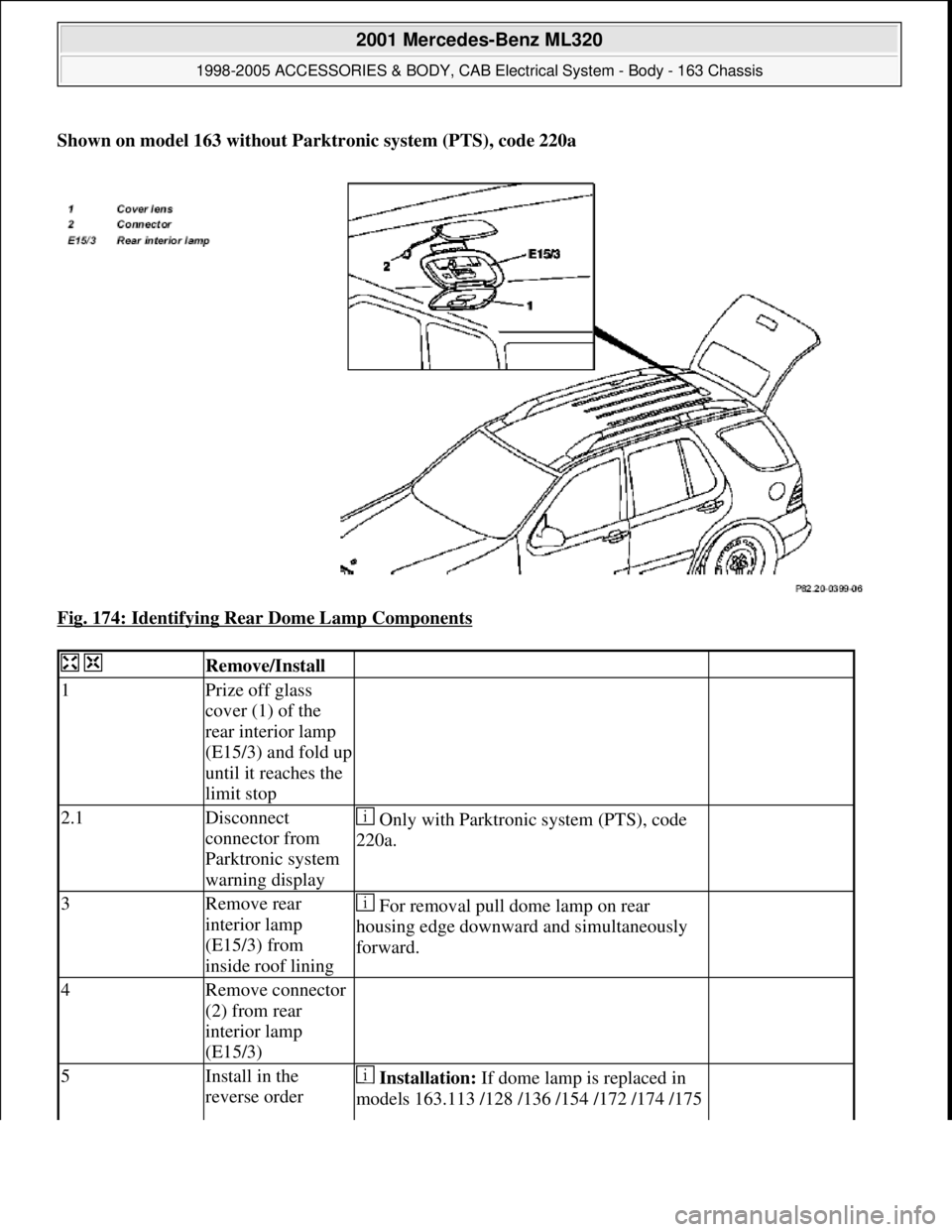

MERCEDES-BENZ ML350 1997 Complete Repair Manual Shown on model 163 without Parktronic system (PTS), code 220a Fig. 174: Identifying Rear Dome Lamp Components Remove/Install 1Prize off glass cover (1) of the rear interior lamp (E15/3) and f
