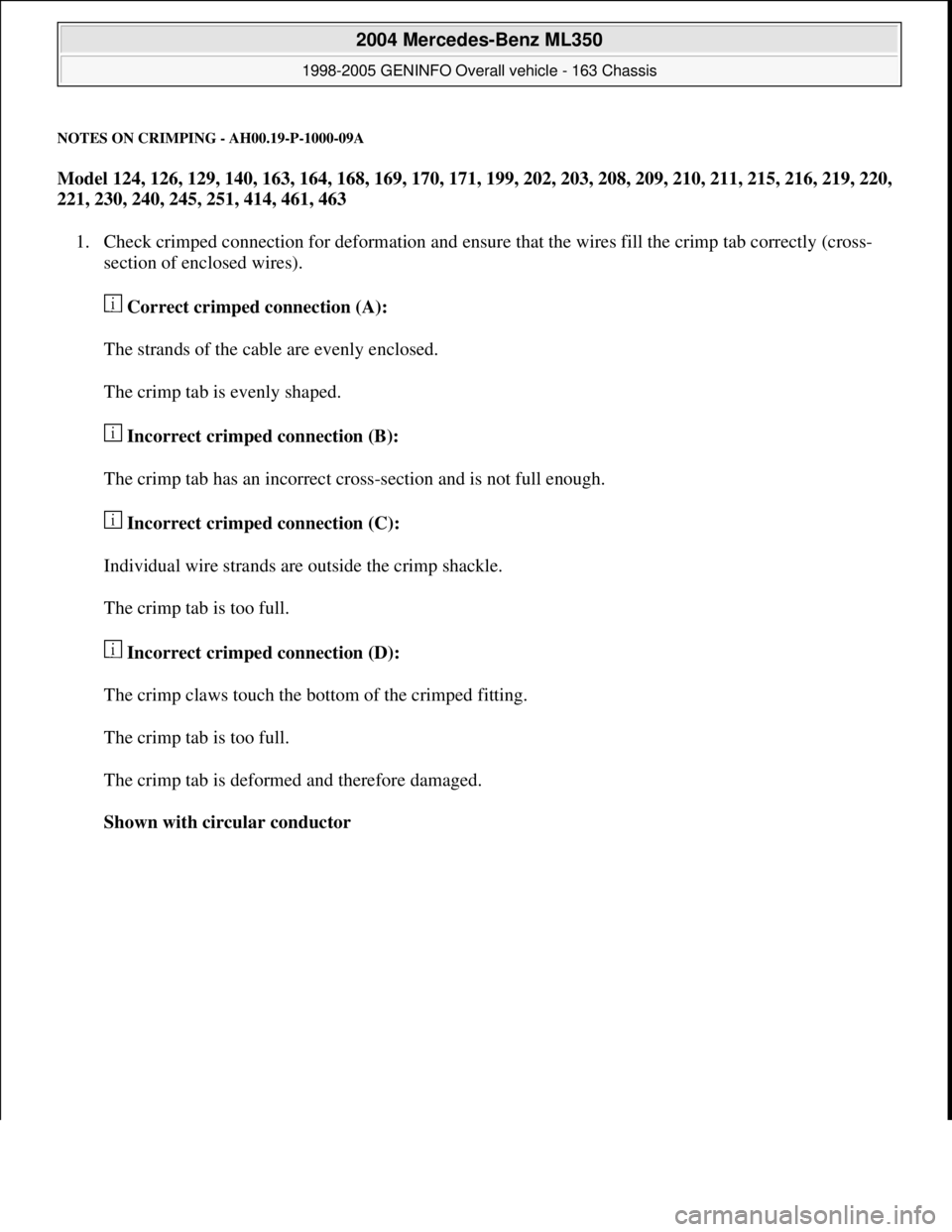

NOTES ON CRIMPING - AH00.19-P-1000-09A
Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220,
221, 230, 240, 245, 251, 414, 461, 463
1. Check crimped connection for deformation and ensure that the wires fill the crimp tab correctly (cross-
section of enclosed wires).
Correct crimped connection (A):
The strands of the cable are evenly enclosed.
The crimp tab is evenly shaped.
Incorrect crimped connection (B):
The crimp tab has an incorrect cross-section and is not full enough.
Incorrect crimped connection (C):
Individual wire strands are outside the crimp shackle.
The crimp tab is too full.
Incorrect crimped connection (D):
The crimp claws touch the bottom of the crimped fitting.
The crimp tab is too full.
The crimp tab is deformed and therefore damaged.
Shown with circular conductor
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.
Page 2674 of 4133

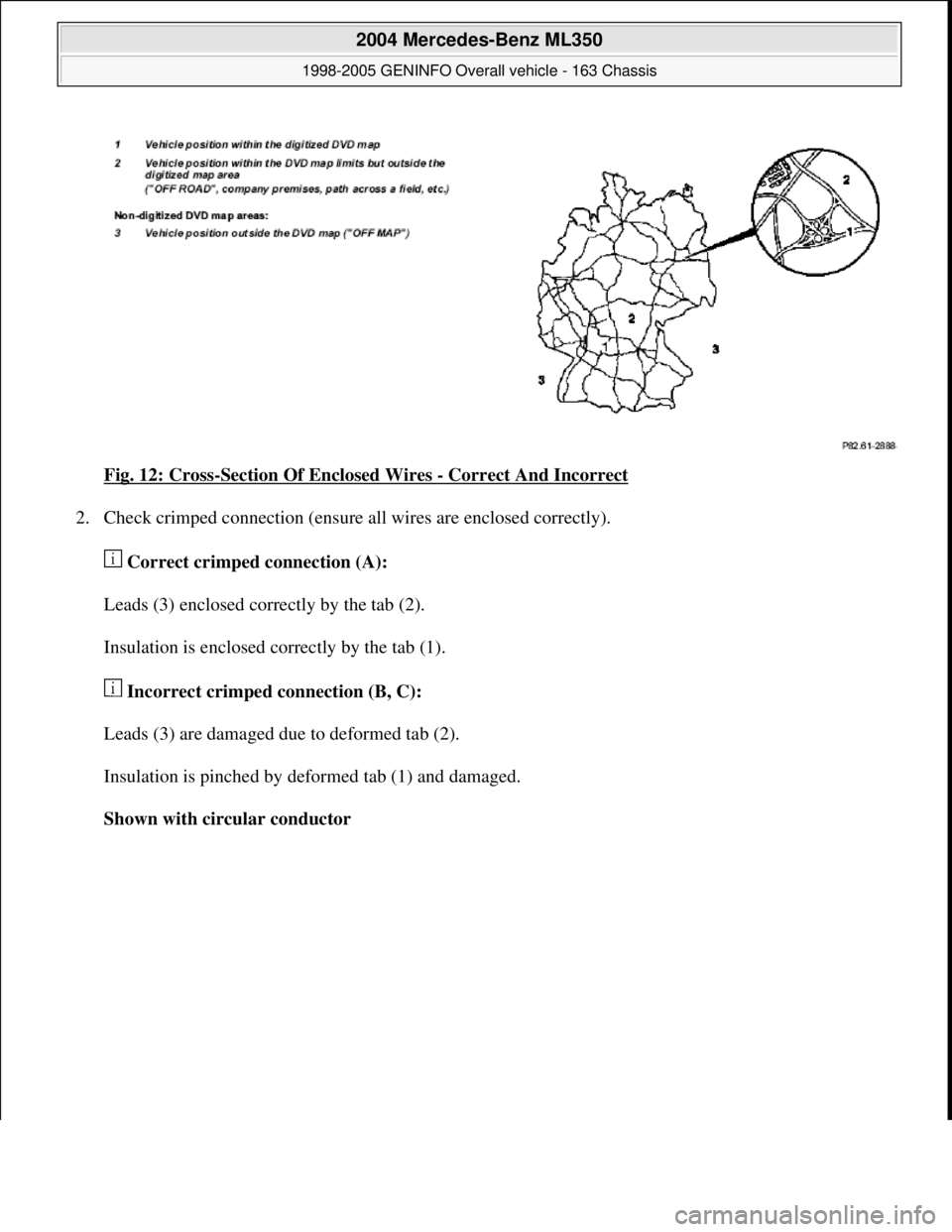

Fig. 12: Cross-Section Of Enclosed Wires - Correct And Incorrect
2. Check crimped connection (ensure all wires are enclosed correctly).
Correct crimped connection (A):
Leads (3) enclosed correctly by the tab (2).
Insulation is enclosed correctly by the tab (1).
Incorrect crimped connection (B, C):
Leads (3) are damaged due to deformed tab (2).
Insulation is pinched by deformed tab (1) and damaged.
Shown with circular conductor
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 29 © 2006 Mitchell Repair Information Company, LLC.
Page 2675 of 4133

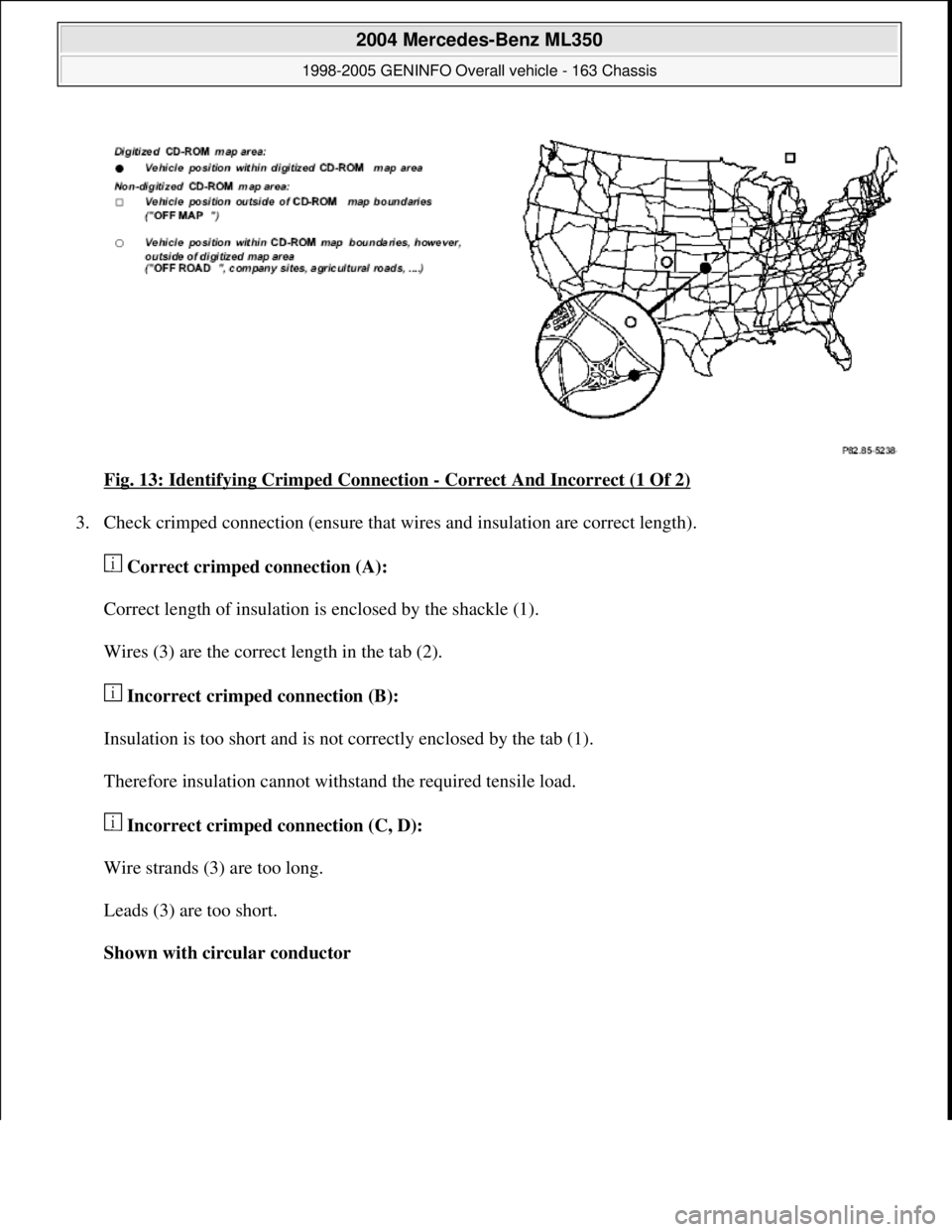

Fig. 13: Identifying Crimped Connection - Correct And Incorrect (1 Of 2)
3. Check crimped connection (ensure that wires and insulation are correct length).
Correct crimped connection (A):
Correct length of insulation is enclosed by the shackle (1).
Wires (3) are the correct length in the tab (2).
Incorrect crimped connection (B):
Insulation is too short and is not correctly enclosed by the tab (1).
Therefore insulation cannot withstand the required tensile load.
Incorrect crimped connection (C, D):
Wire strands (3) are too long.
Leads (3) are too short.
Shown with circular conductor
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.
Page 2676 of 4133

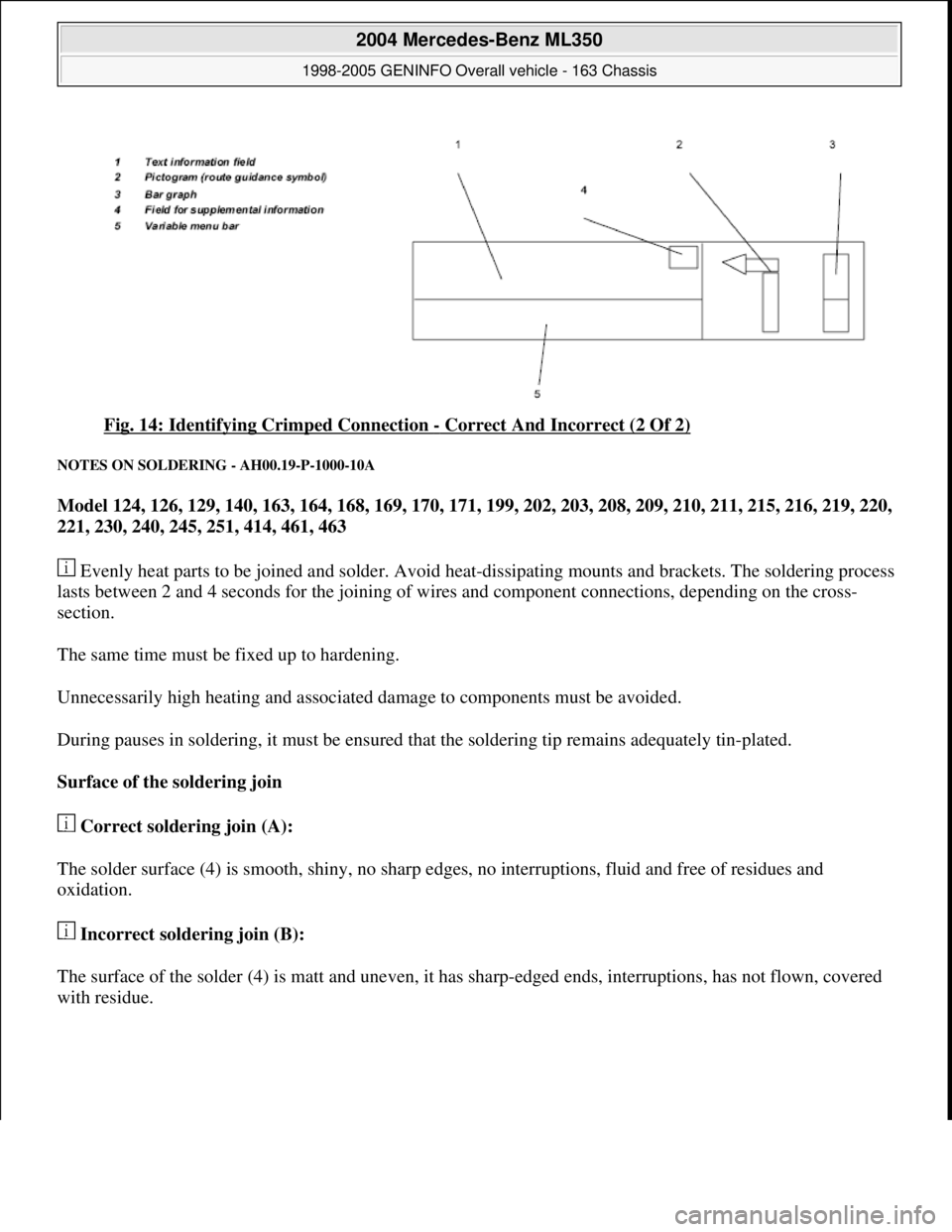

Fig. 14: Identifying Crimped Connection - Correct And Incorrect (2 Of 2)
NOTES ON SOLDERING - AH00.19-P-1000-10A
Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220,
221, 230, 240, 245, 251, 414, 461, 463
Evenly heat parts to be joined and solder. Avoid heat-dissipating mounts and brackets. The soldering process
lasts between 2 and 4 seconds for the joining of wires and component connections, depending on the cross-
section.
The same time must be fixed up to hardening.
Unnecessarily high heating and associated damage to components must be avoided.
During pauses in soldering, it must be ensured that the soldering tip remains adequately tin-plated.
Surface of the soldering join
Correct soldering join (A):
The solder surface (4) is smooth, shiny, no sharp edges, no interruptions, fluid and free of residues and
oxidation.
Incorrect soldering join (B):
The surface of the solder (4) is matt and uneven, it has sharp-edged ends, interruptions, has not flown, covered
with residue.
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 31 © 2006 Mitchell Repair Information Company, LLC.
Page 2677 of 4133

Fig. 15: Identifying Surface Of Soldering Join - Correct And Incorrect
Wire position and contour of soldering join
Correct soldering join (A):
The distance (a) between the solder connector (2) and the line insulation is about 1 mm. The soldered area does
not extend beyond the collar of the solder connector (2). Solder flows in a radius in the direction of the line
insulation and surrounds at least 2/3 of the lead outside the solder connector (2). There are no bare copper wires
visible in the soldering area.
Incorrect soldering joint (B):
If the distance (a) between the solder connector (2) and the line insulation (a) is greater than 2 mm, the line is
incorrectly inserted. The solder protrudes beyond the extension line from the collar of the solder connector (b).
The solder flows in the wrong direction, the transition from solder to lead is jagged, the solder surface (3) has
not flown and is thus a dr
y solder joint.
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 32 © 2006 Mitchell Repair Information Company, LLC.
Page 2678 of 4133

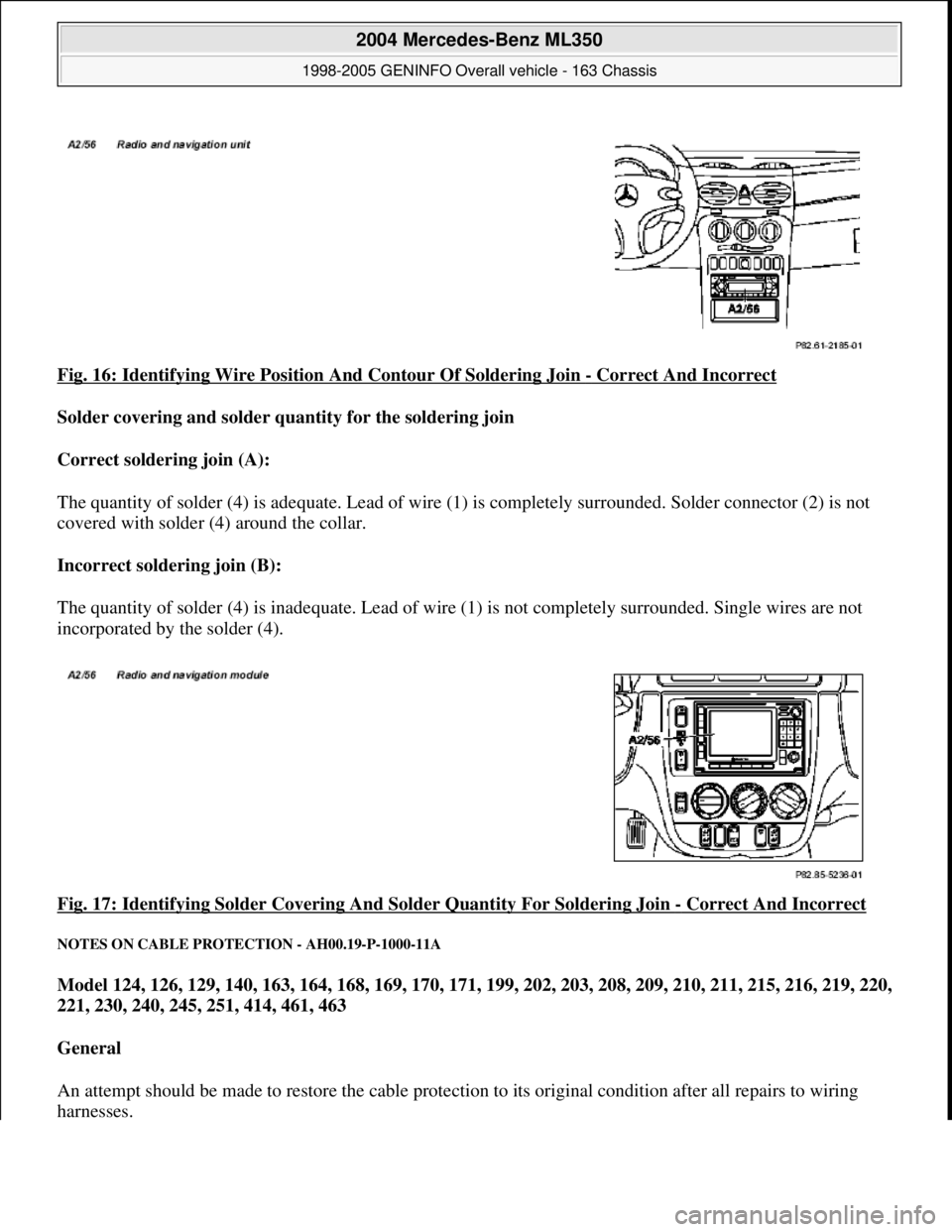

Fig. 16: Identifying Wire Position And Contour Of Soldering Join - Correct And Incorrect
Solder covering and solder quantity for the soldering join
Correct soldering join (A):
The quantity of solder (4) is adequate. Lead of wire (1) is completely surrounded. Solder connector (2) is not
covered with solder (4) around the collar.
Incorrect soldering join (B):
The quantity of solder (4) is inadequate. Lead of wi re (1) is not completely surrounded. Single wires are not
incorporated by the solder (4).
Fig. 17: Identifying Solder Covering A nd Solder Quantity For Soldering Join
- Correct And Incorrect
NOTES ON CABLE PROTECTION - AH00.19-P-1000-11A
Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220,
221, 230, 240, 245, 251, 414, 461, 463
General
An attempt should be made to restor e the cable protection to its original condition after all repairs to wiring
harnesses.
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 33 © 2006 Mitchell Repair Information Company, LLC.
Page 2679 of 4133

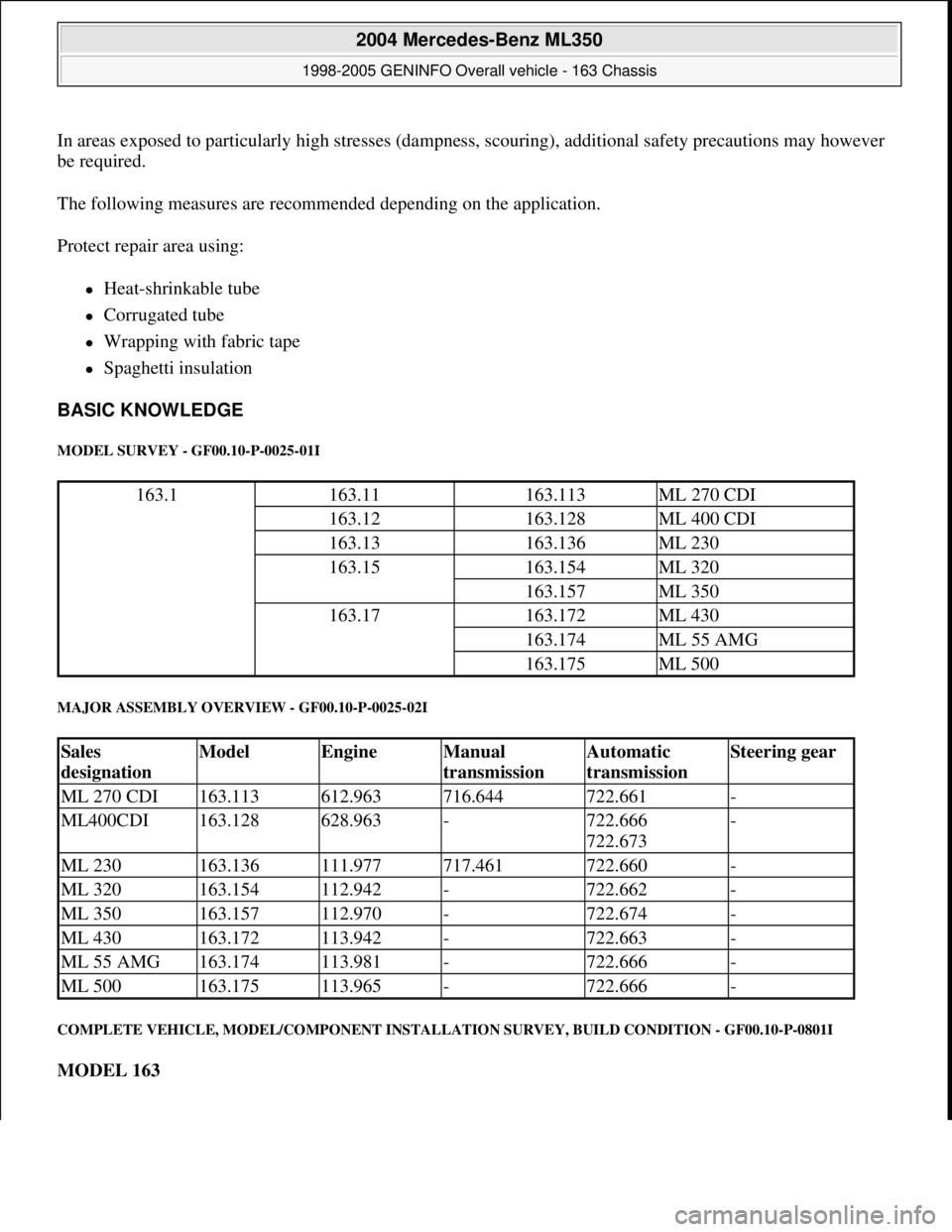

In areas exposed to particularly high stresses (dampness, scouring), additional safety precautions may however
be required.
The following measures are recommended depending on the application.
Protect repair area using:
Heat-shrinkable tube
Corrugated tube
Wrapping with fabric tape
Spaghetti insulation
BASIC KNOWLEDGE
MODEL SURVEY - GF00.10-P-0025-01I
MAJOR ASSEMBLY OVERVIEW - GF00.10-P-0025-02I
COMPLETE VEHICLE, MODEL/COMPONENT INSTALLATION SURVEY, BUILD CONDITION - GF00.10-P-0801I
MODEL 163
163.1163.11163.113ML 270 CDI
163.12163.128ML 400 CDI
163.13163.136ML 230
163.15163.154ML 320
163.157ML 350
163.17163.172ML 430
163.174ML 55 AMG
163.175ML 500
Sales
designationModelEngineManual
transmissionAutomatic
transmissionSteering gear
ML 270 CDI163.113612.963716.644722.661-
ML400CDI163.128628.963-722.666
722.673-
ML 230163.136111.977717.461722.660-
ML 320163.154112.942-722.662-
ML 350163.157112.970-722.674-
ML 430163.172113.942-722.663-
ML 55 AMG163.174113.981-722.666-
ML 500163.175113.965-722.666-
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 34 © 2006 Mitchell Repair Information Company, LLC.
Page 2680 of 4133

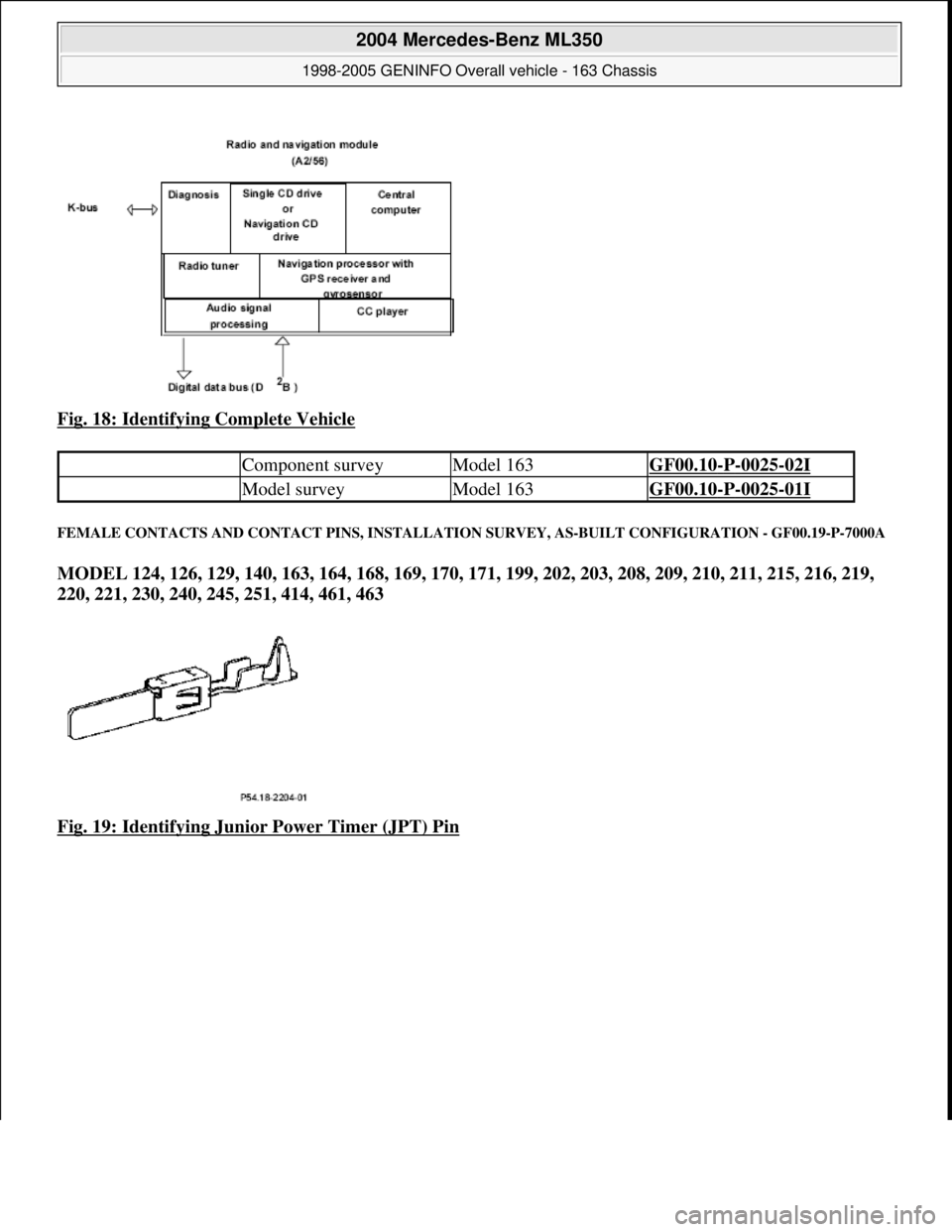

Fig. 18: Identifying Complete Vehicle
