Load previous 8 pages

Page 3529 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual
Fuses in order.
Battery voltage
11-14 V
Ignition: ON

Troubleshooting
Complaint Possible cause Note Remedy
The garage door
cannot be
activated with the
garage door
opener

Page 3530 of 4133

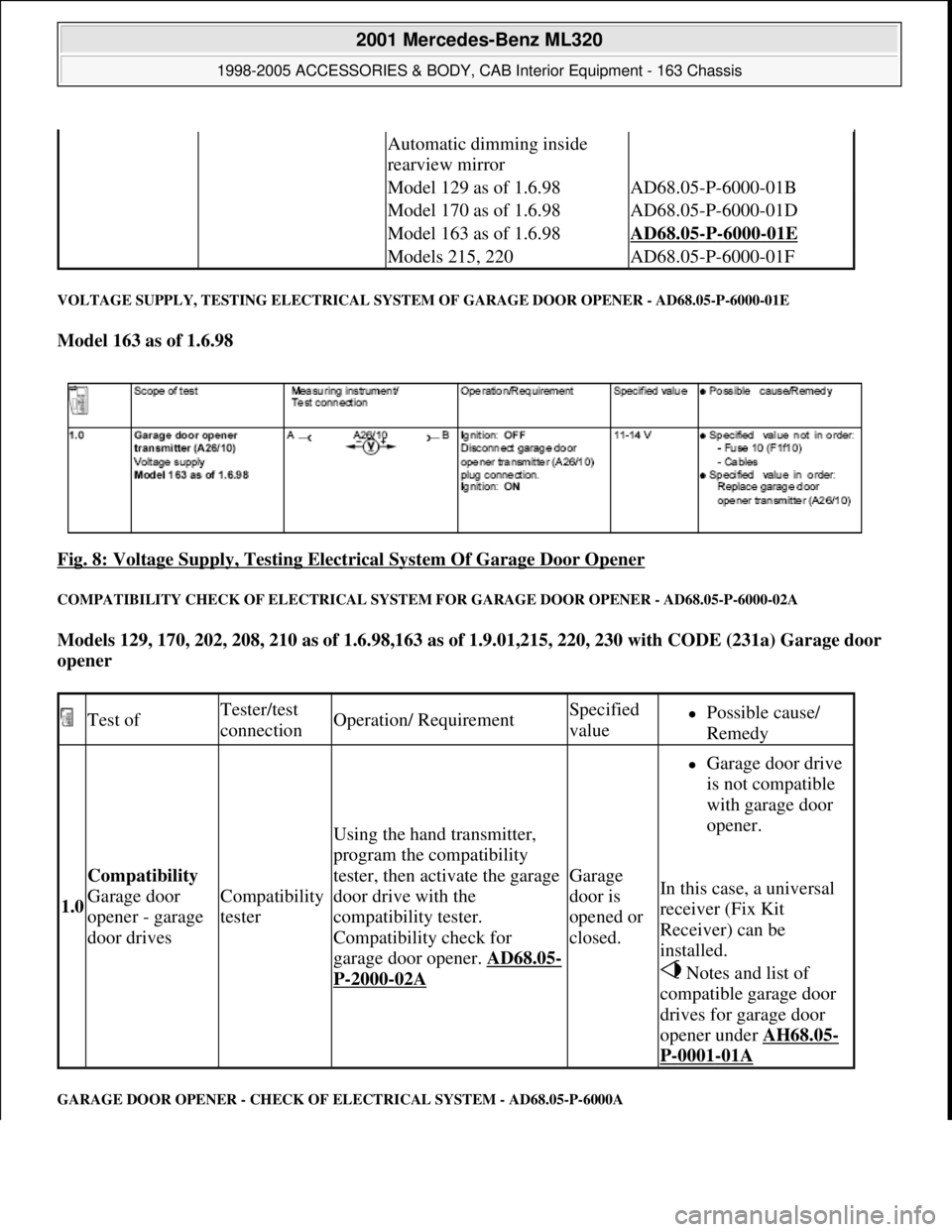

MERCEDES-BENZ ML350 1997 Complete Repair Manual VOLTAGE SUPPLY, TESTING ELECTRICAL SYSTEM OF GARAGE DOOR OPENER - AD68.05-P-6000-01E
Model 163 as of 1.6.98
Fig. 8: Voltage Supply, Testing Electrical System Of Garage Door Opener

COMPATIBILITY C

Page 3531 of 4133

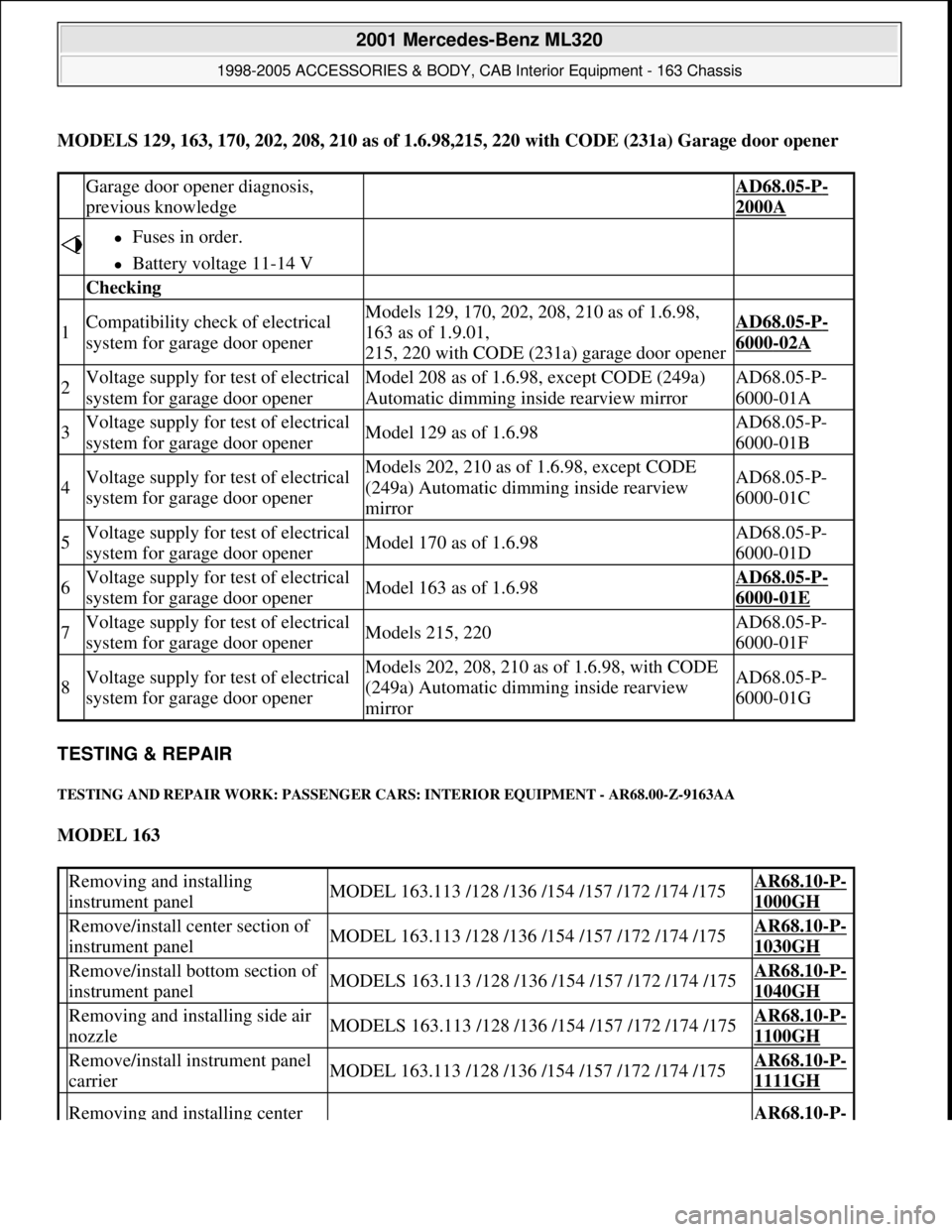

MERCEDES-BENZ ML350 1997 Complete Repair Manual MODELS 129, 163, 170, 202, 208, 210 as of 1.6.98,215, 220 with CODE (231a) Garage door opener
TESTING & REPAIR
TESTING AND REPAIR WORK: PASSENGER CARS: INTERIOR EQUIPMENT - AR68.00-Z-9163AA
MODEL 16

MODELS 129, 163, 170, 202, 208, 210 as of 1.6.98,215, 220 with CODE (231a) Garage door opener
TESTING & REPAIR
TESTING AND REPAIR WORK: PASSENGER CARS: INTERIOR EQUIPMENT - AR68.00-Z-9163AA
MODEL 163
Garage door opener diagnosis,
previous knowledge AD68.05-P-
2000A
Fuses in order.
Battery voltage 11-14 V

Checking
1Compatibility check of electrical
system for garage door openerModels 129, 170, 202, 208, 210 as of 1.6.98,
163 as of 1.9.01,
215, 220 with CODE (231a) garage door openerAD68.05-P-
6000-02A
2Voltage supply for test of electrical
system for garage door openerModel 208 as of 1.6.98, except CODE (249a)
Automatic dimming inside rearview mirrorAD68.05-P-
6000-01A
3Voltage supply for test of electrical
system for garage door openerModel 129 as of 1.6.98AD68.05-P-
6000-01B
4Voltage supply for test of electrical
system for garage door openerModels 202, 210 as of 1.6.98, except CODE
(249a) Automatic dimming inside rearview
mirrorAD68.05-P-
6000-01C
5Voltage supply for test of electrical
system for garage door openerModel 170 as of 1.6.98AD68.05-P-
6000-01D
6Voltage supply for test of electrical
system for garage door openerModel 163 as of 1.6.98AD68.05-P-
6000-01E
7Voltage supply for test of electrical
system for garage door openerModels 215, 220AD68.05-P-
6000-01F
8Voltage supply for test of electrical
system for garage door openerModels 202, 208, 210 as of 1.6.98, with CODE
(249a) Automatic dimming inside rearview
mirrorAD68.05-P-
6000-01G
Removing and installing
instrument panelMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1000GH
Remove/install center section of
instrument panelMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1030GH
Remove/install bottom section of
instrument panelMODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1040GH
Removing and installing side air
nozzleMODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1100GH
Remove/install instrument panel
carrierMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1111GH
Removing and installing center AR68.10-P-

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 13 © 2006 Mitchell Repair Information Company, LLC.

Page 3532 of 4133

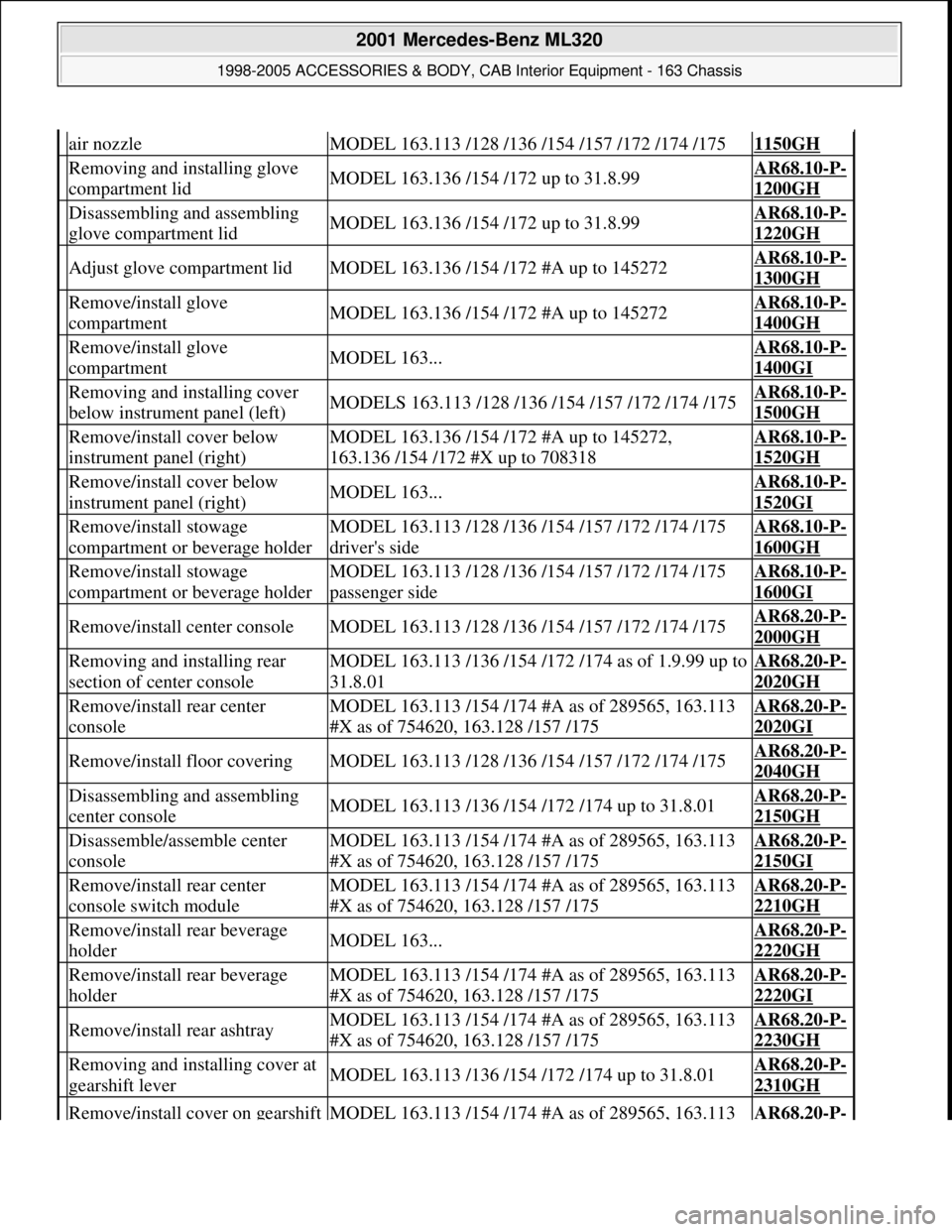

MERCEDES-BENZ ML350 1997 Complete Repair Manual air nozzleMODEL 163.113 /128 /136 /154 /157 /172 /174 /1751150GH
Removing and installing glove
compartment lidMODEL 163.136 /154 /172 up to 31.8.99AR68.10-P-
1200GH
Disassembling and assembling
g

air nozzleMODEL 163.113 /128 /136 /154 /157 /172 /174 /1751150GH
Removing and installing glove
compartment lidMODEL 163.136 /154 /172 up to 31.8.99AR68.10-P-
1200GH
Disassembling and assembling
glove compartment lidMODEL 163.136 /154 /172 up to 31.8.99AR68.10-P-
1220GH
Adjust glove compartment lidMODEL 163.136 /154 /172 #A up to 145272AR68.10-P-
1300GH
Remove/install glove
compartmentMODEL 163.136 /154 /172 #A up to 145272AR68.10-P-
1400GH
Remove/install glove
compartmentMODEL 163...AR68.10-P-
1400GI
Removing and installing cover
below instrument panel (left)MODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.10-P-
1500GH
Remove/install cover below
instrument panel (right)MODEL 163.136 /154 /172 #A up to 145272,
163.136 /154 /172 #X up to 708318AR68.10-P-
1520GH
Remove/install cover below
instrument panel (right)MODEL 163...AR68.10-P-
1520GI
Remove/install stowage
compartment or beverage holderMODEL 163.113 /128 /136 /154 /157 /172 /174 /175
driver's sideAR68.10-P-
1600GH
Remove/install stowage
compartment or beverage holderMODEL 163.113 /128 /136 /154 /157 /172 /174 /175
passenger sideAR68.10-P-
1600GI
Remove/install center consoleMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.20-P-
2000GH
Removing and installing rear
section of center consoleMODEL 163.113 /136 /154 /172 /174 as of 1.9.99 up to
31.8.01AR68.20-P-
2020GH
Remove/install rear center
consoleMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2020GI
Remove/install floor coveringMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.20-P-
2040GH
Disassembling and assembling
center consoleMODEL 163.113 /136 /154 /172 /174 up to 31.8.01AR68.20-P-
2150GH
Disassemble/assemble center
consoleMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2150GI
Remove/install rear center
console switch moduleMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2210GH
Remove/install rear beverage
holderMODEL 163...AR68.20-P-
2220GH
Remove/install rear beverage
holderMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2220GI
Remove/install rear ashtrayMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2230GH
Removing and installing cover at
gearshift leverMODEL 163.113 /136 /154 /172 /174 up to 31.8.01AR68.20-P-
2310GH
Remove/install cover on gearshift MODEL 163.113 /154 /174 #A as of 289565, 163.113 AR68.20-P-

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 14 © 2006 Mitchell Repair Information Company, LLC.

Page 3533 of 4133

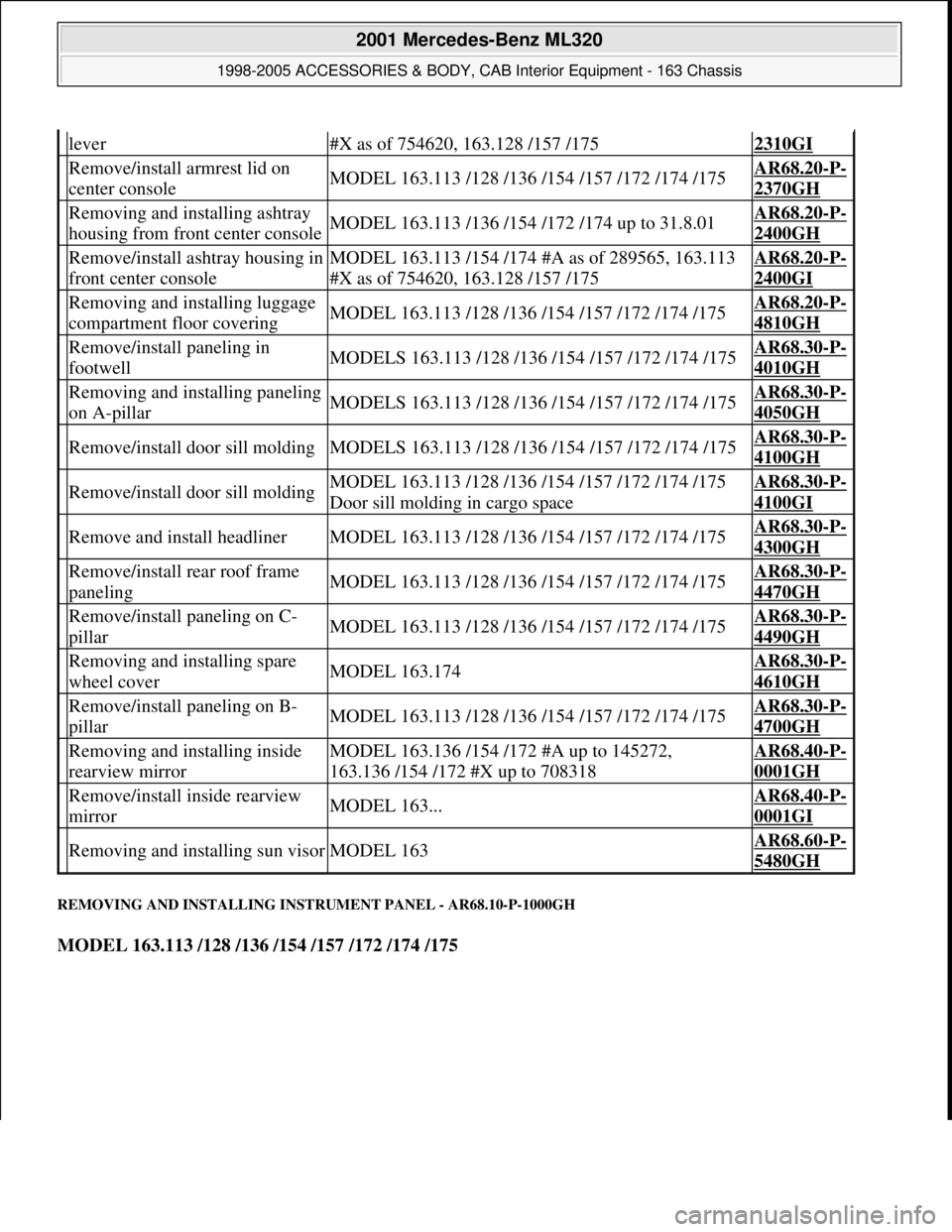

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVING AND INSTALLING INSTRUMENT PANEL - AR68.10-P-1000GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
lever#X as of 754620, 163.128 /157 /1752310GI
Remove/install armrest lid on
center cons

REMOVING AND INSTALLING INSTRUMENT PANEL - AR68.10-P-1000GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
lever#X as of 754620, 163.128 /157 /1752310GI
Remove/install armrest lid on
center consoleMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.20-P-
2370GH
Removing and installing ashtray
housing from front center consoleMODEL 163.113 /136 /154 /172 /174 up to 31.8.01AR68.20-P-
2400GH
Remove/install ashtray housing in
front center consoleMODEL 163.113 /154 /174 #A as of 289565, 163.113
#X as of 754620, 163.128 /157 /175AR68.20-P-
2400GI
Removing and installing luggage
compartment floor coveringMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.20-P-
4810GH
Remove/install paneling in
footwellMODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4010GH
Removing and installing paneling
on A-pillarMODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4050GH
Remove/install door sill moldingMODELS 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4100GH
Remove/install door sill moldingMODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Door sill molding in cargo spaceAR68.30-P-
4100GI
Remove and install headlinerMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4300GH
Remove/install rear roof frame
panelingMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4470GH
Remove/install paneling on C-
pillarMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4490GH
Removing and installing spare
wheel coverMODEL 163.174AR68.30-P-
4610GH
Remove/install paneling on B-
pillarMODEL 163.113 /128 /136 /154 /157 /172 /174 /175AR68.30-P-
4700GH
Removing and installing inside
rearview mirrorMODEL 163.136 /154 /172 #A up to 145272,
163.136 /154 /172 #X up to 708318AR68.40-P-
0001GH
Remove/install inside rearview
mirrorMODEL 163...AR68.40-P-
0001GI
Removing and installing sun visorMODEL 163AR68.60-P-
5480GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 15 © 2006 Mitchell Repair Information Company, LLC.

Page 3534 of 4133

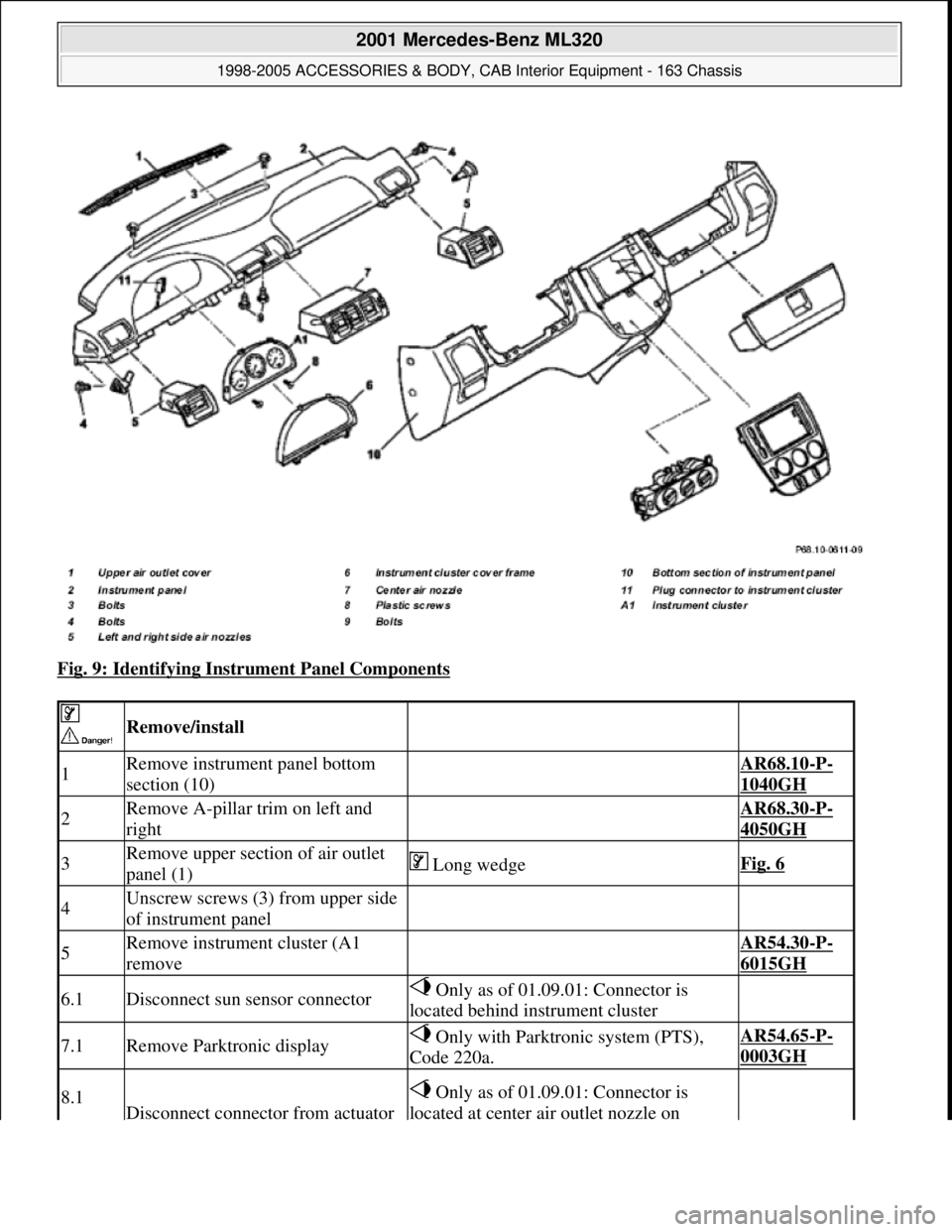

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 9: Identifying Instrument Panel Components

Remove/install
1Remove instrument panel bottom
section (10) AR68.10-P-
1040GH
2Remove A-pillar trim on left and
right AR68.30-P-
4050GH
3Remove

Page 3535 of 4133

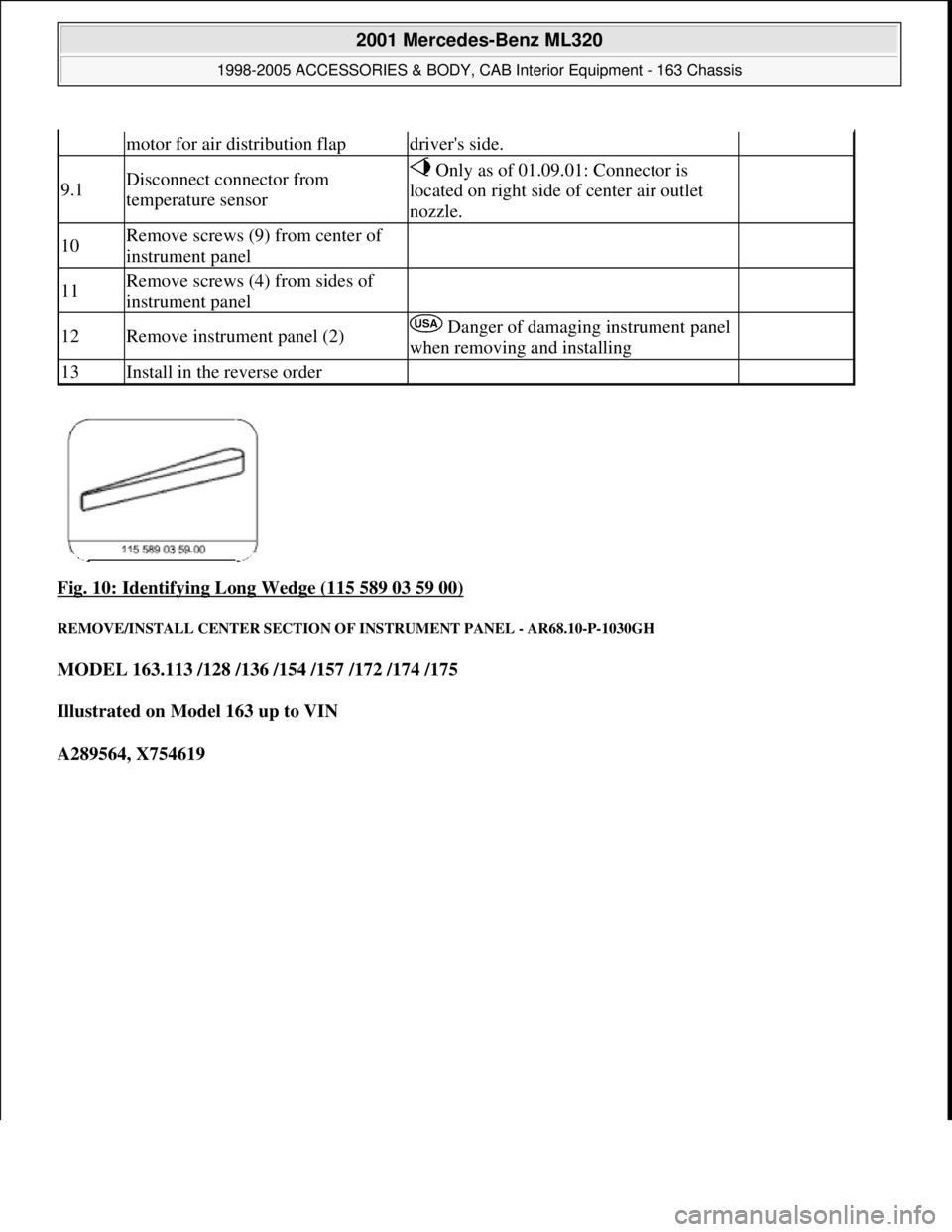

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 10: Identifying Long Wedge (115 589 03 59 00)
REMOVE/INSTALL CENTER SECTION OF INSTRUMENT PANEL - AR68.10-P-1030GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Illustrated on Model 163 up

Page 3536 of 4133

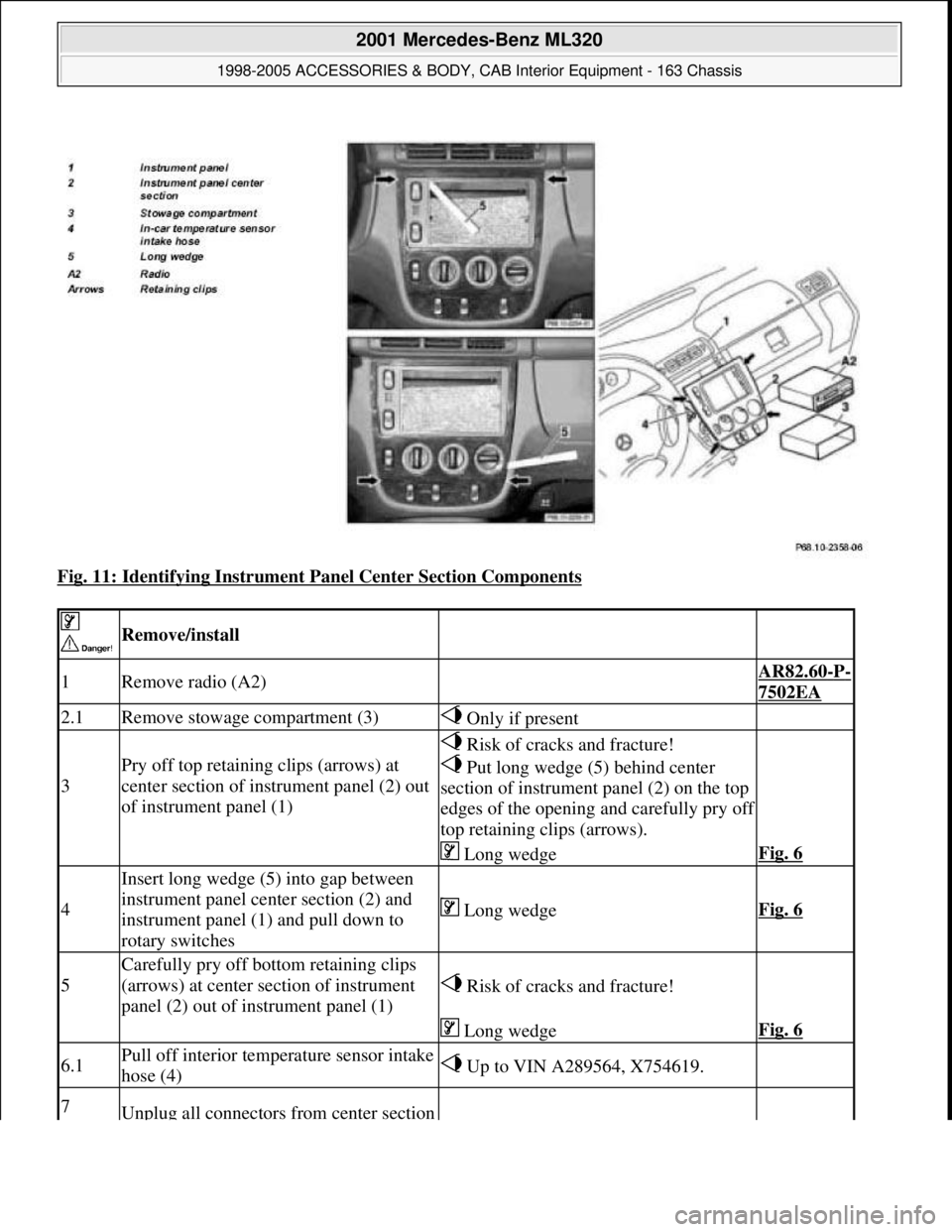

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 11: Identifying Instrument Panel Center Section Components

Remove/install
1Remove radio (A2) AR82.60-P-
7502EA
2.1Remove stowage compartment (3) Only if present
3
Pry off top retaining cl
