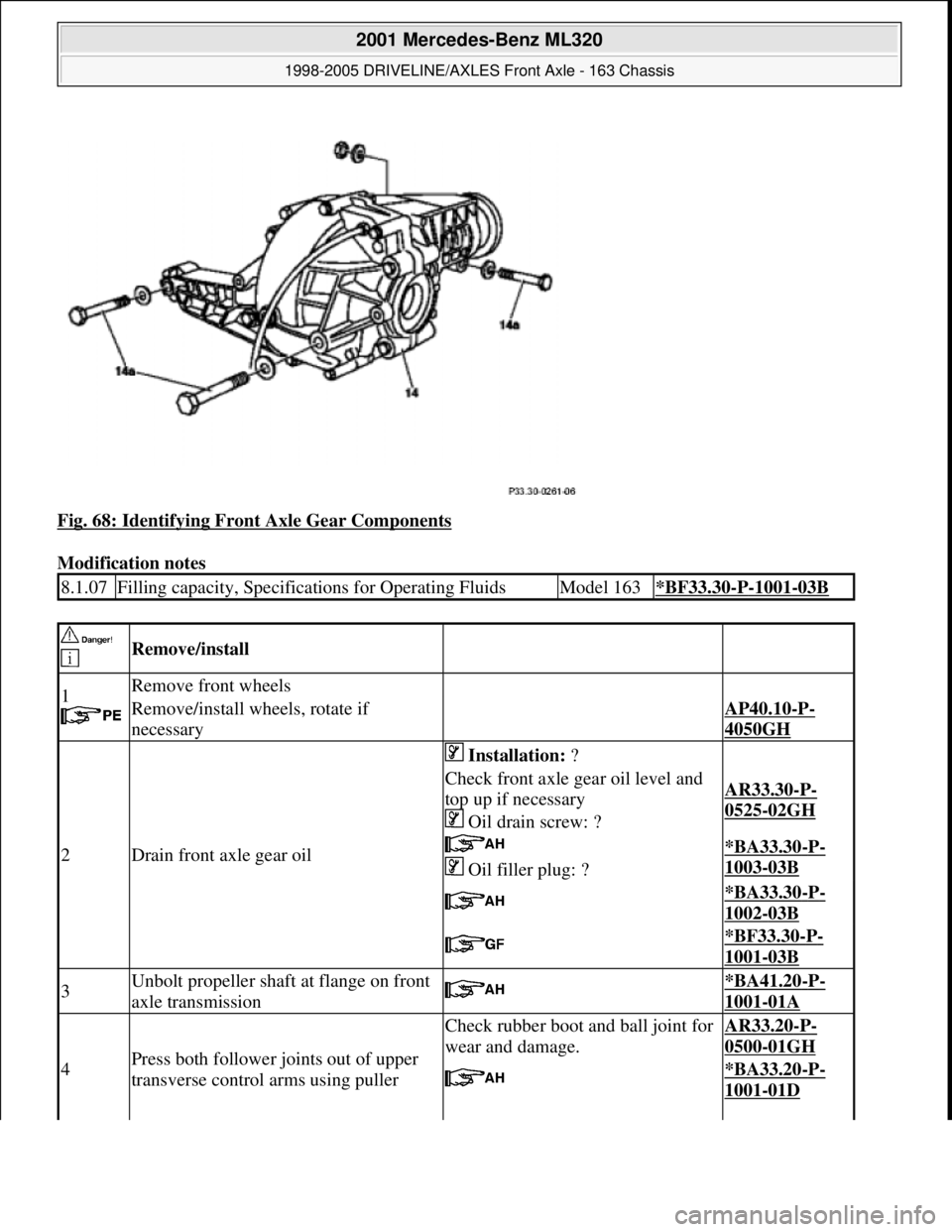

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 68: Identifying Front Axle Gear Components Modification notes 8.1.07Filling capacity, Specifications for Operating FluidsModel 163*BF33.30-P-1001-03B Remove/install 1 Remove front wheels

Page 2562 of 4133

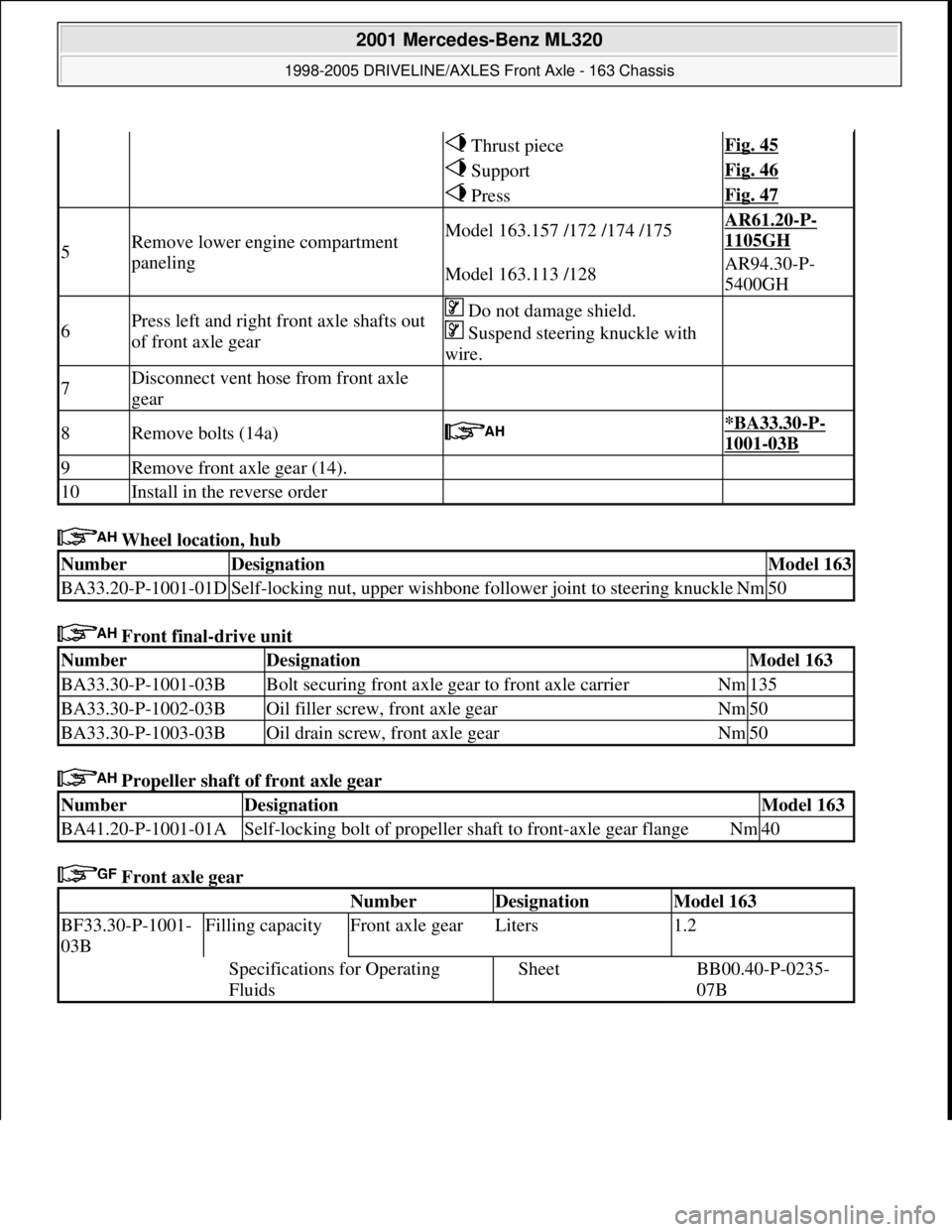

MERCEDES-BENZ ML350 1997 Complete Repair Manual Wheel location, hub Front final-drive unit Propeller shaft of front axle gear Front axle gear Thrust pieceFig. 45 SupportFig. 46 PressFig. 47 5Remove lower engine compartment panelingModel

Page 2563 of 4133

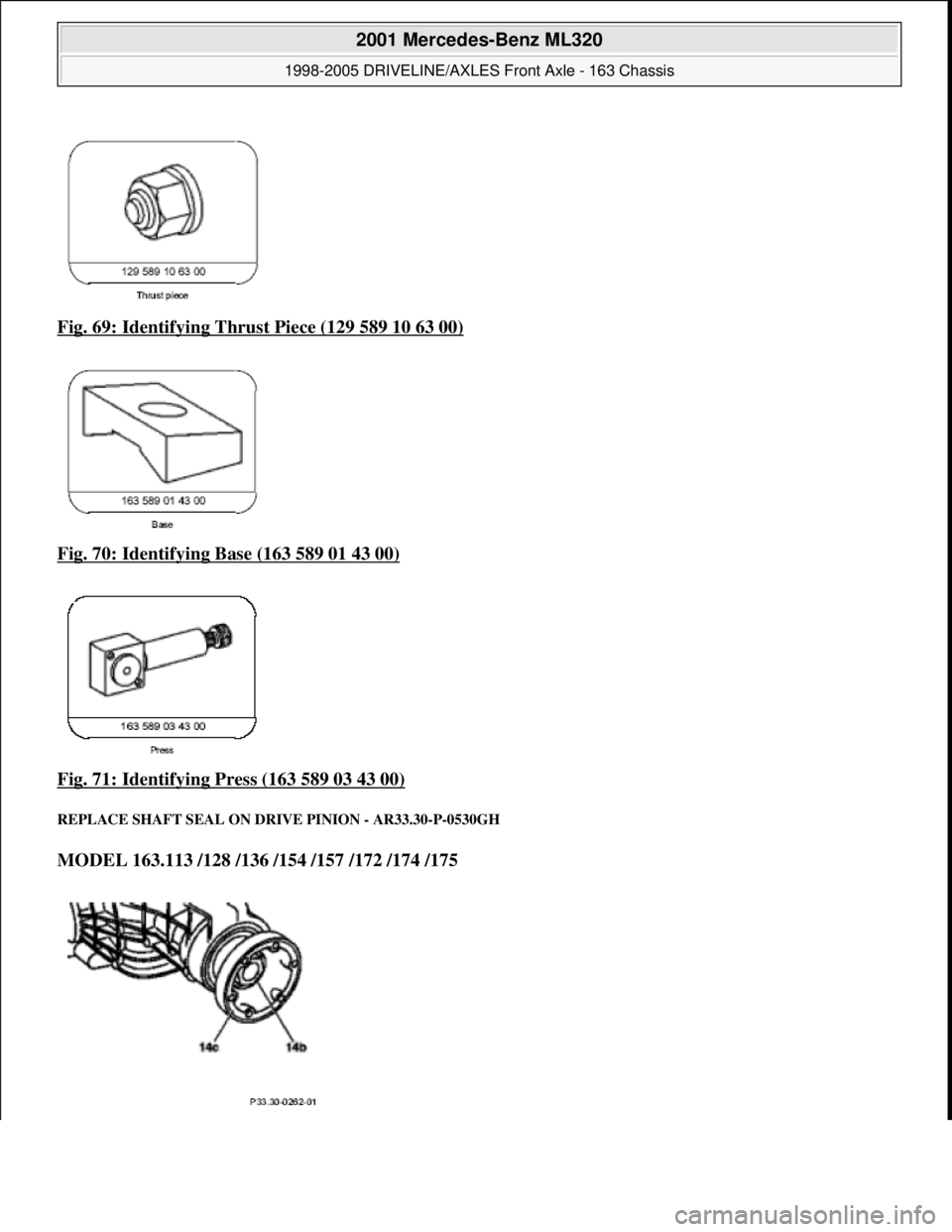

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 69: Identifying Thrust Piece (129 589 10 63 00) Fig. 70: Identifying Base (163 589 01 43 00) Fig. 71: Identifying Press (163 589 03 43 00) REPLACE SHAFT SEAL ON DR IVE PINION - AR33.30-P-

Page 2564 of 4133

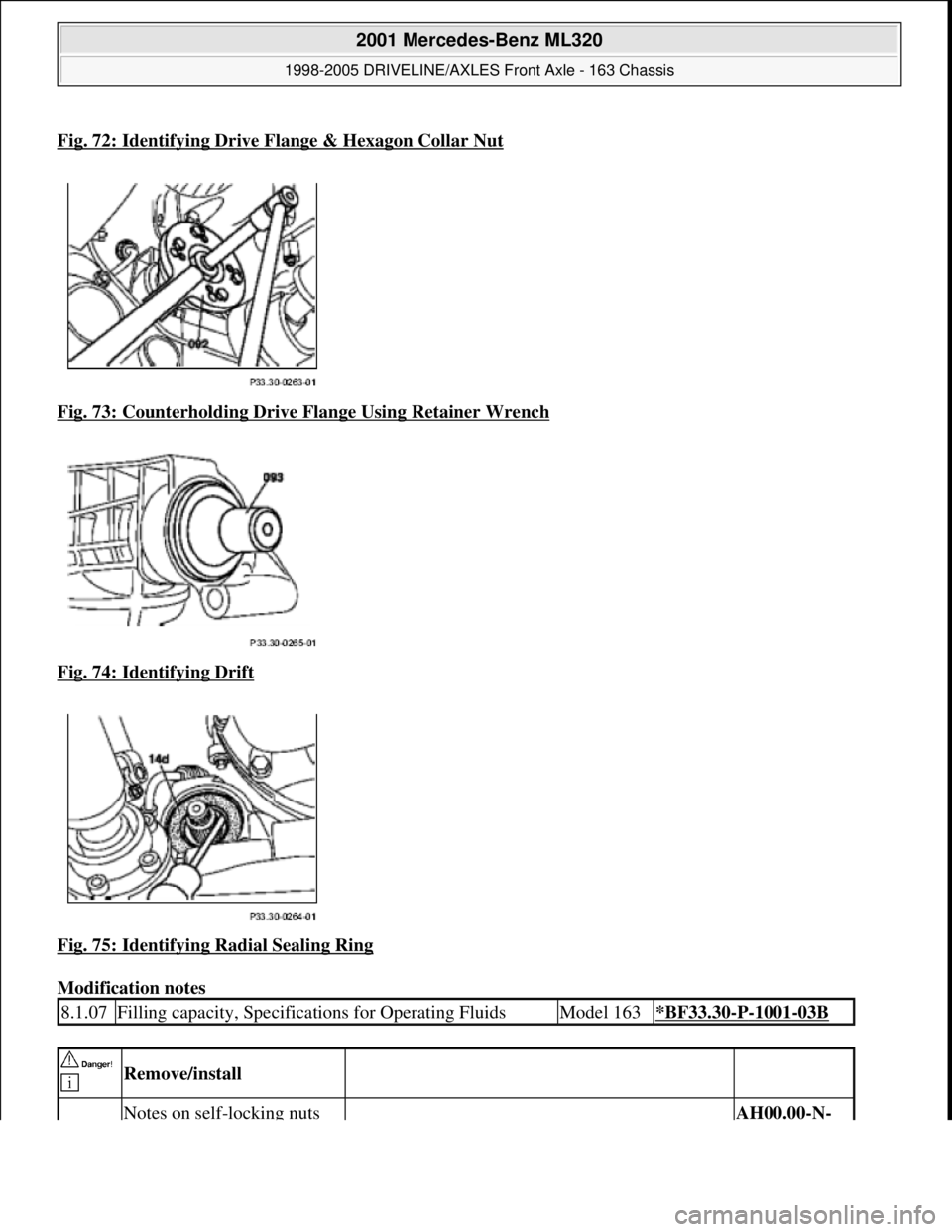

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 72: Identifying Drive Flange & Hexagon Collar Nut Fig. 73: Counterholding Drive Flange Using Retainer Wrench Fig. 74: Identifying Drift Fig. 75: Identifying Radial Sealing Ring Modificati

Page 2565 of 4133

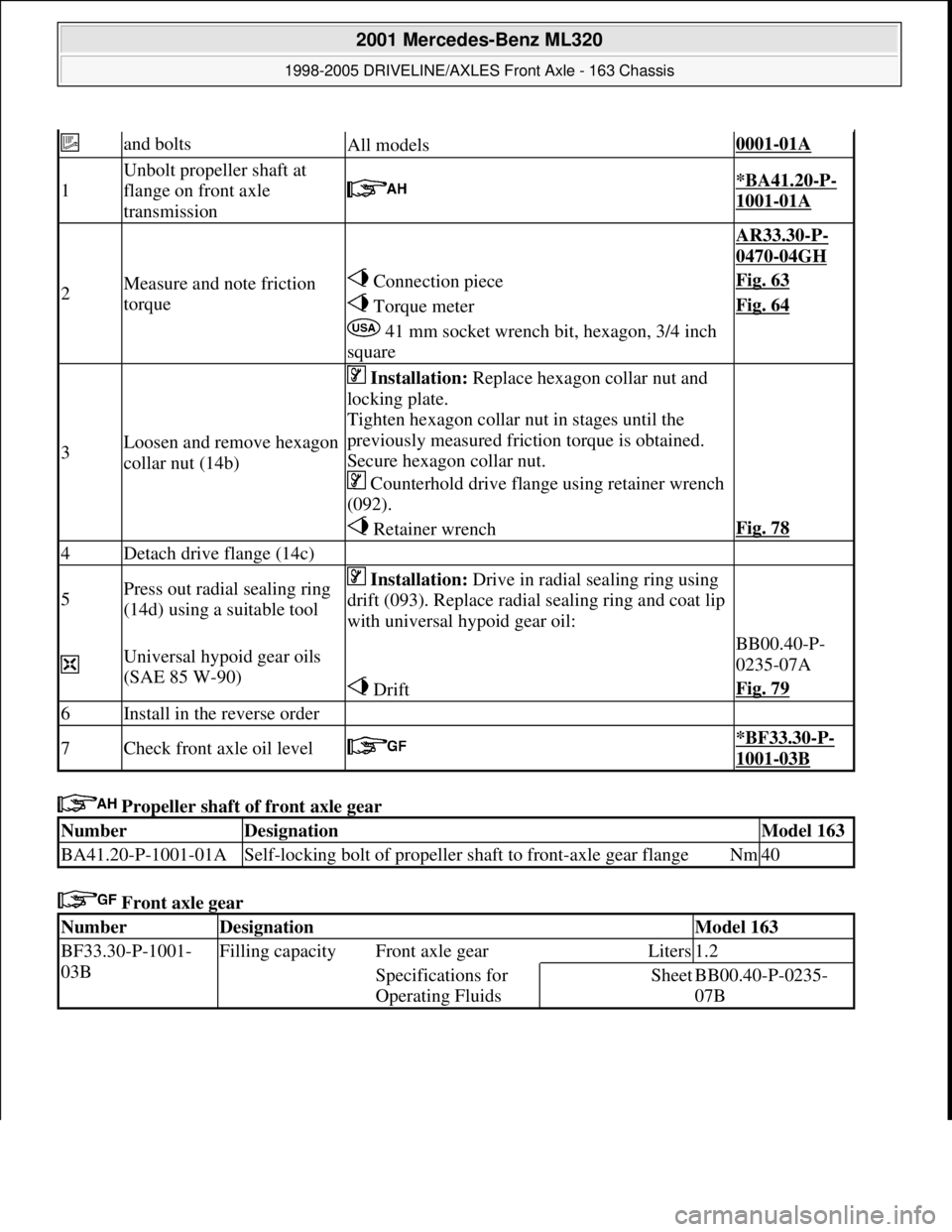

MERCEDES-BENZ ML350 1997 Complete Repair Manual Propeller shaft of front axle gear Front axle gear and boltsAll models0001-01A 1 Unbolt propeller shaft at flange on front axle transmission *BA41.20-P- 1001-01A 2Measure and note friction t

Page 2566 of 4133

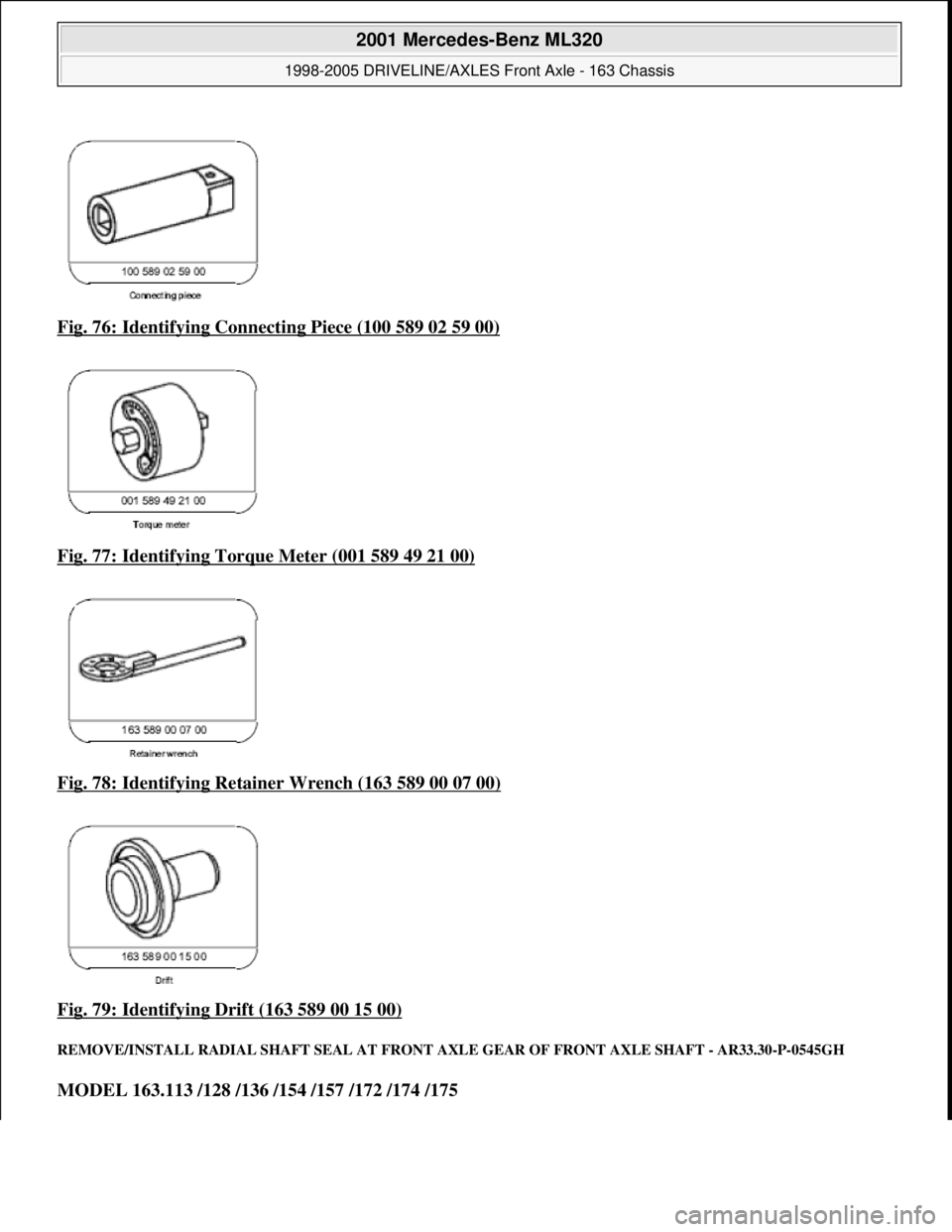

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 76: Identifying Connecting Piece (100 589 02 59 00) Fig. 77: Identifying Torque Meter (001 589 49 21 00) Fig. 78: Identifying Retainer Wrench (163 589 00 07 00) Fig. 79: Identifying Drift

Page 2567 of 4133

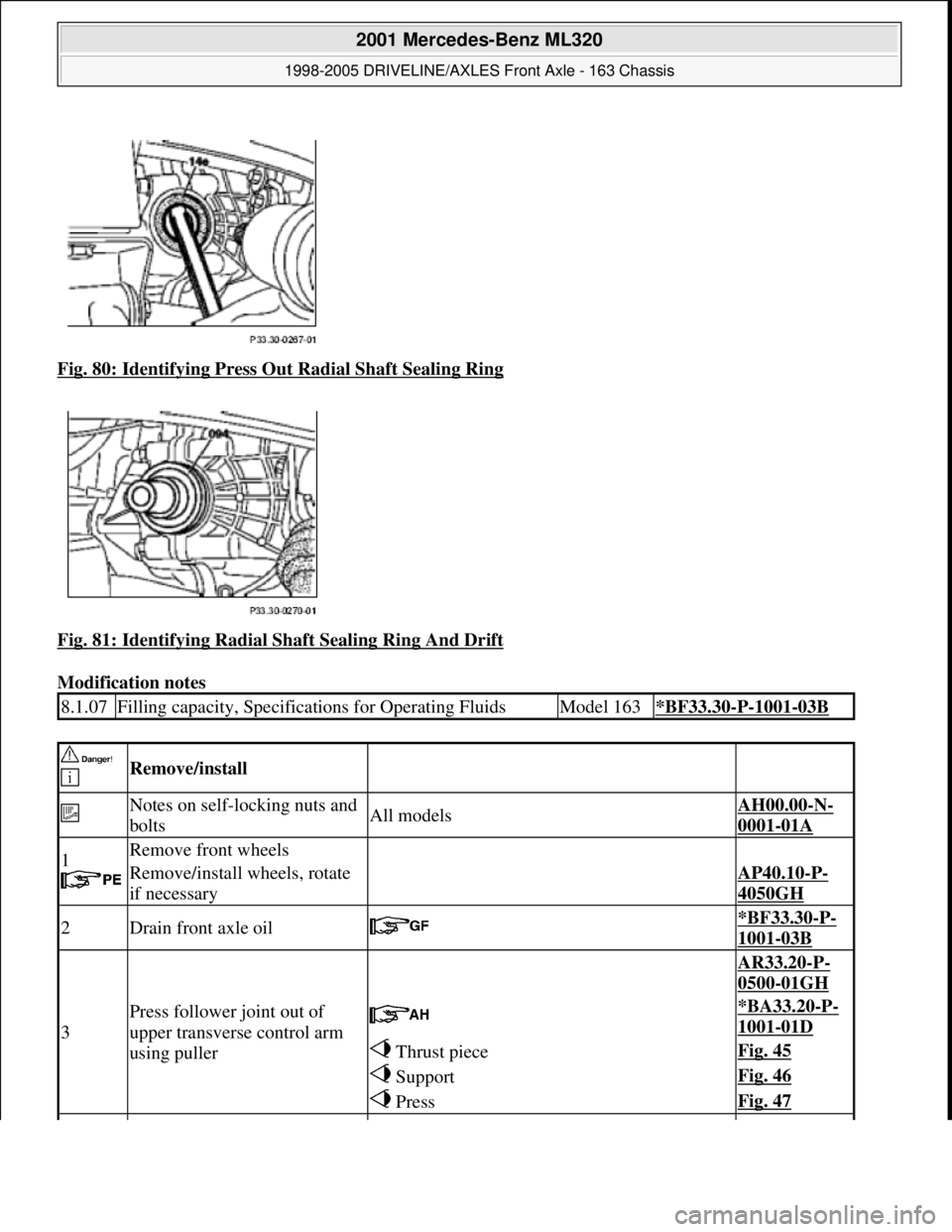

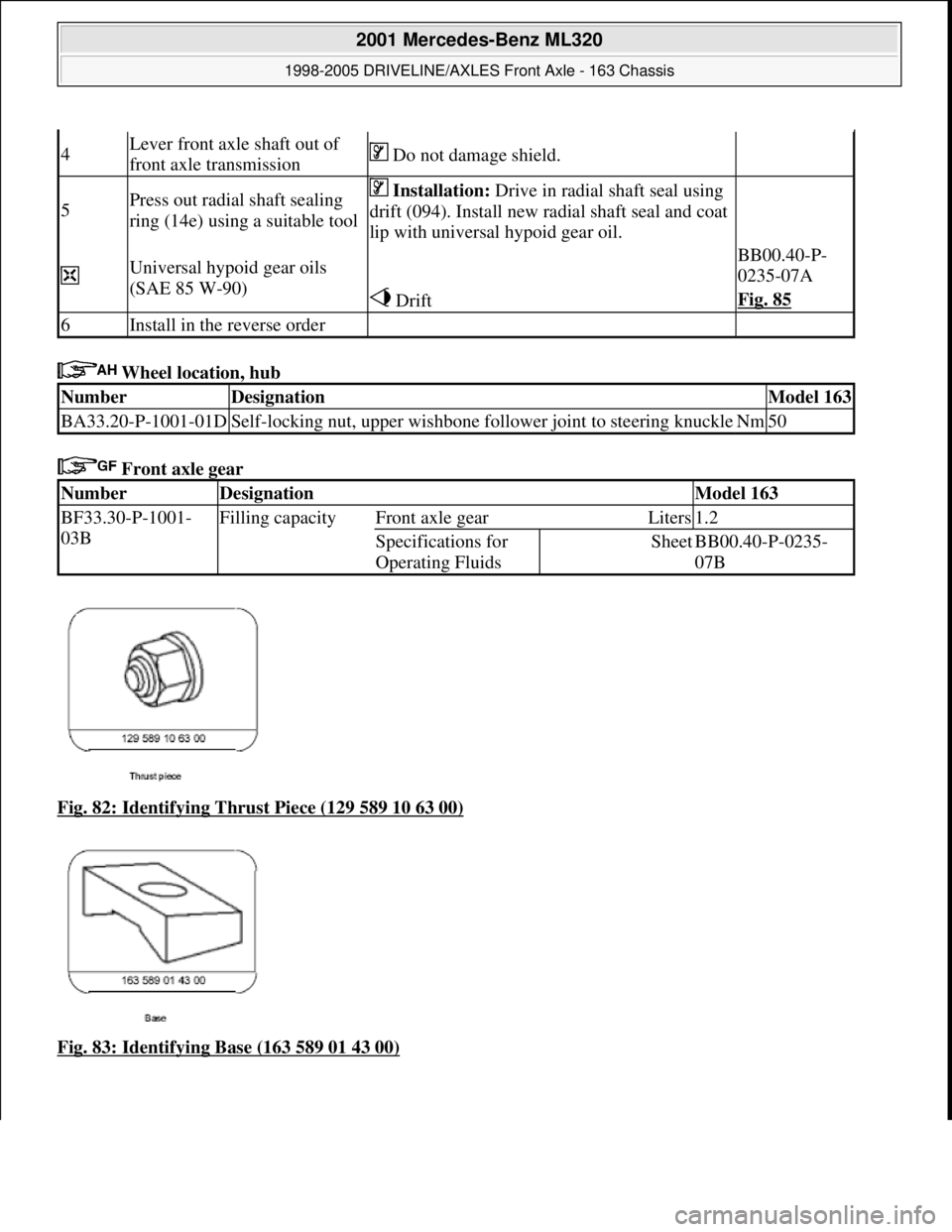

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 80: Identifying Press Ou t Radial Shaft Sealing Ring Fig. 81: Identifying Radial Sh aft Sealing Ring And Drift Modification notes 8.1.07Filling capacity, Specificat ions for Operating Fl

Page 2568 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Wheel location, hub Front axle gear Fig. 82: Identifying Thrust Piece (129 589 10 63 00) Fig. 83: Identifying Base (163 589 01 43 00) 4Lever front axle shaft out of front axle transmissi
