Page 1289 of 4133

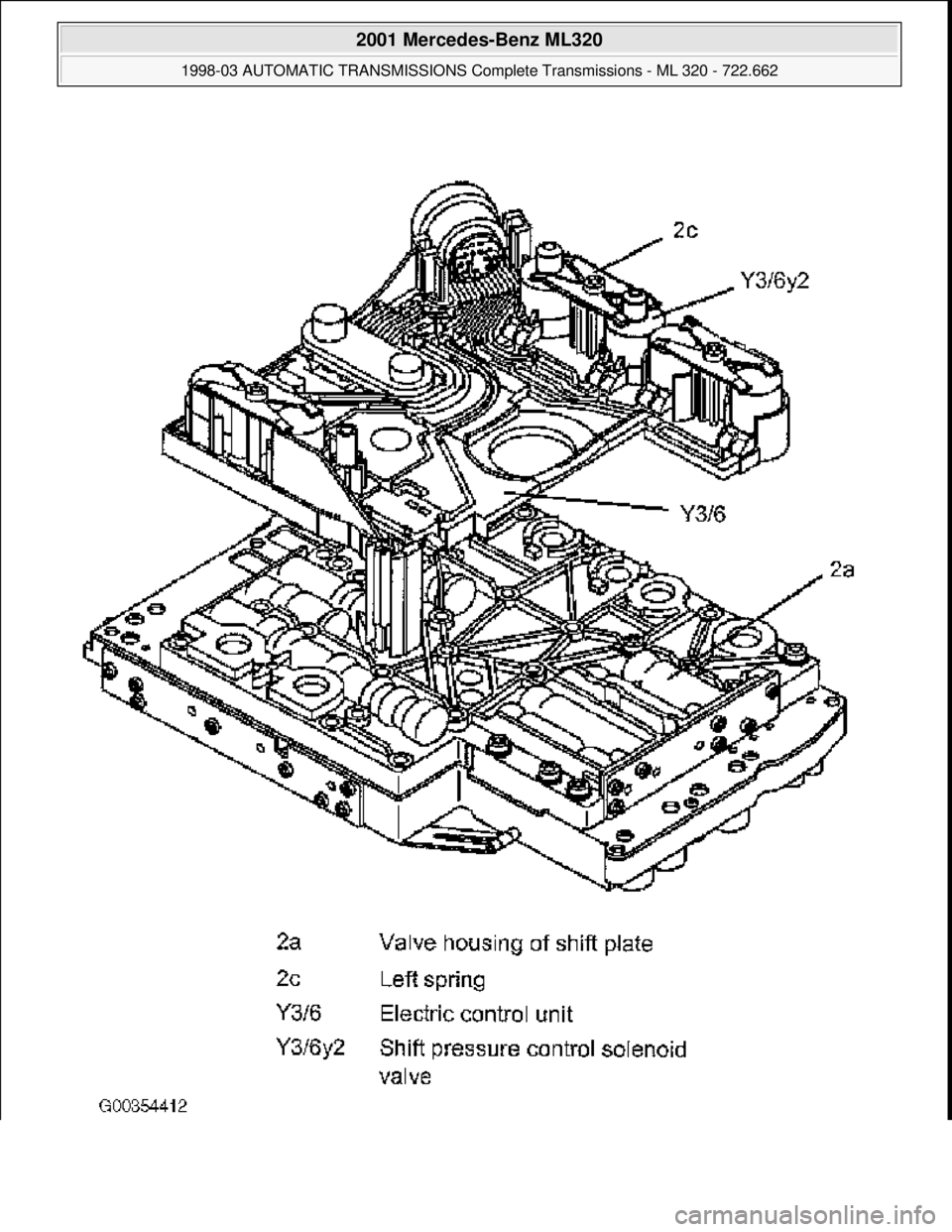

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 120 © 2006 Mitchell Repair Information Company,

Page 1290 of 4133

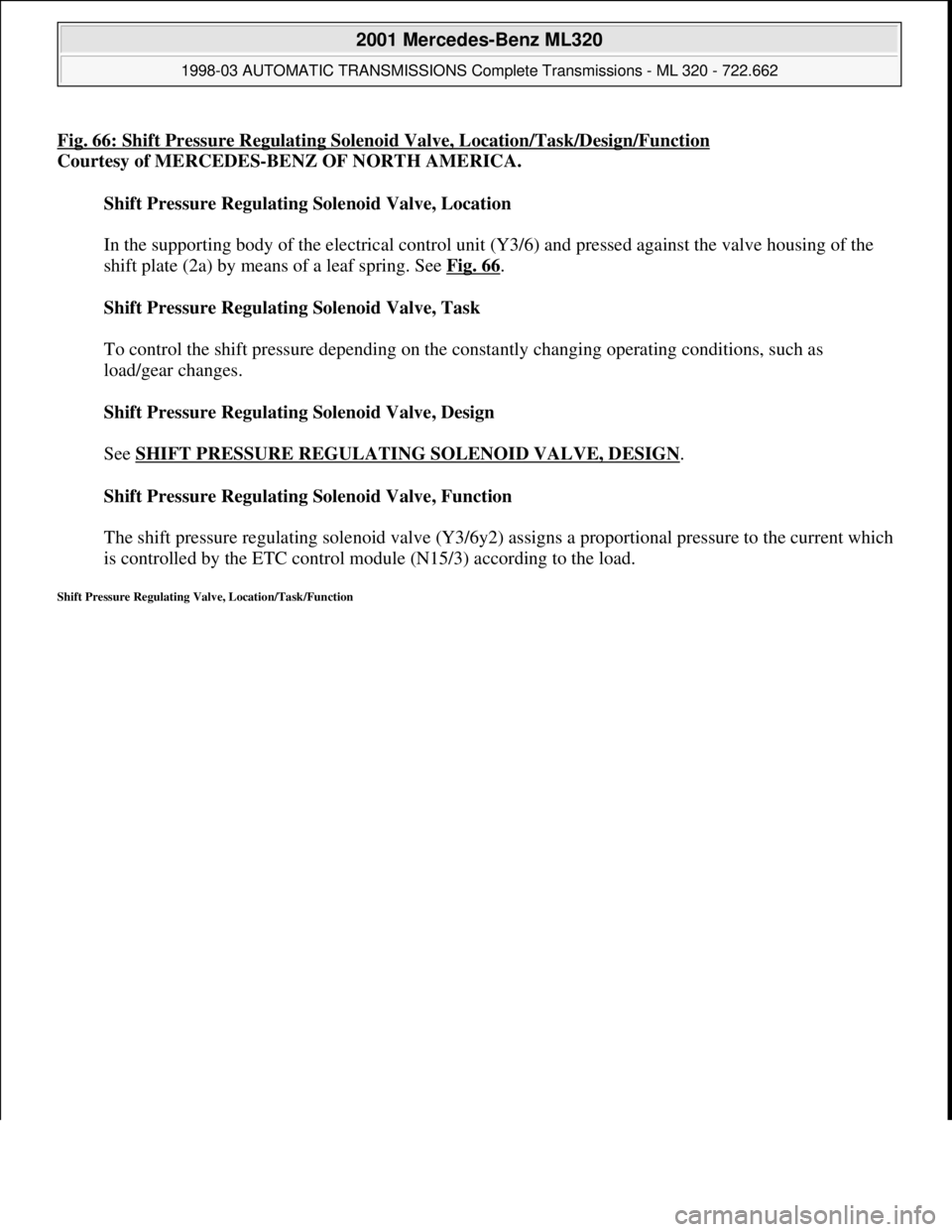

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 66: Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Pressure Regulating Solenoid Valve, Location In the supporting b

Page 1291 of 4133

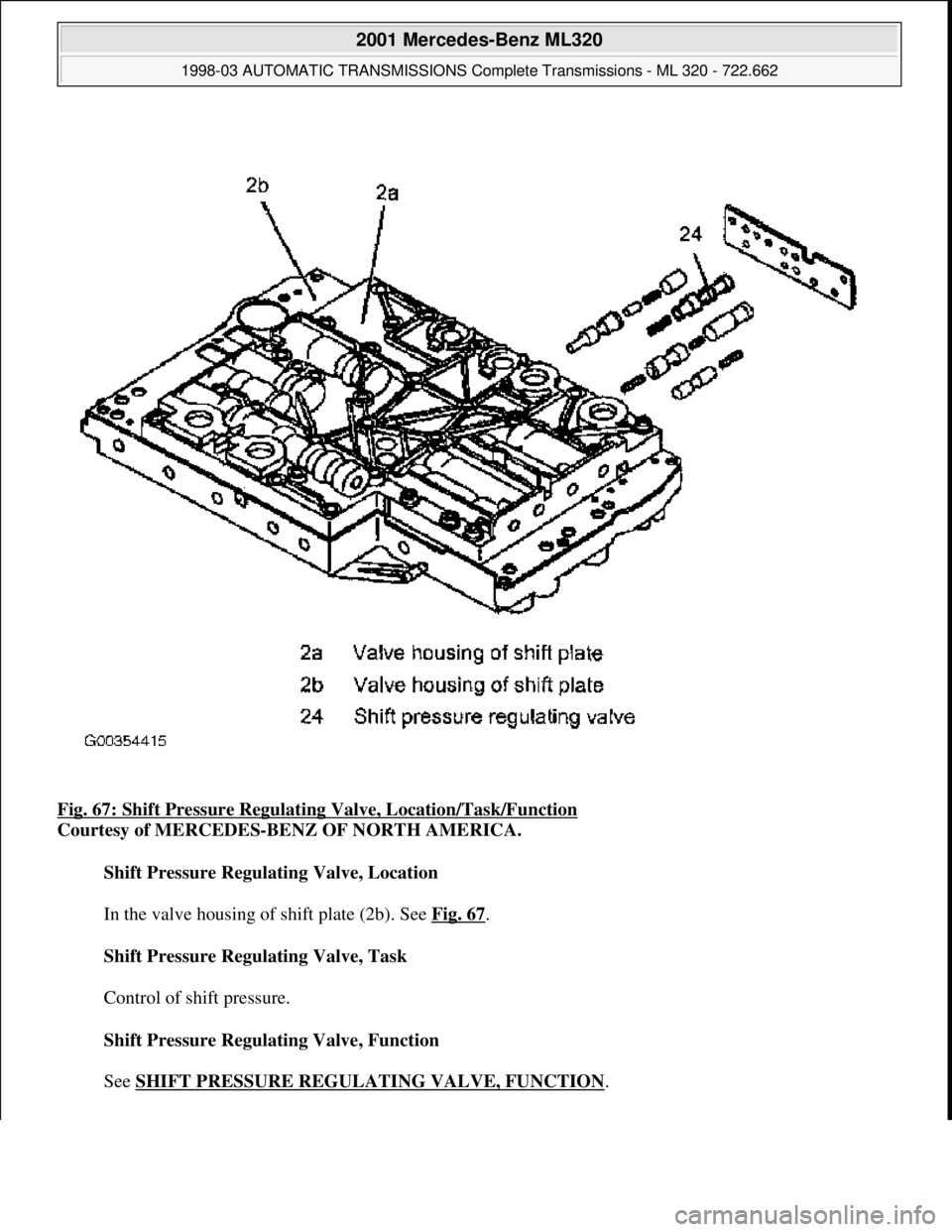

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 67: Shift Pressure Regulating Valve, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Pressure Regulating Valve, Location In the valve housing of shift plate (

Page 1292 of 4133

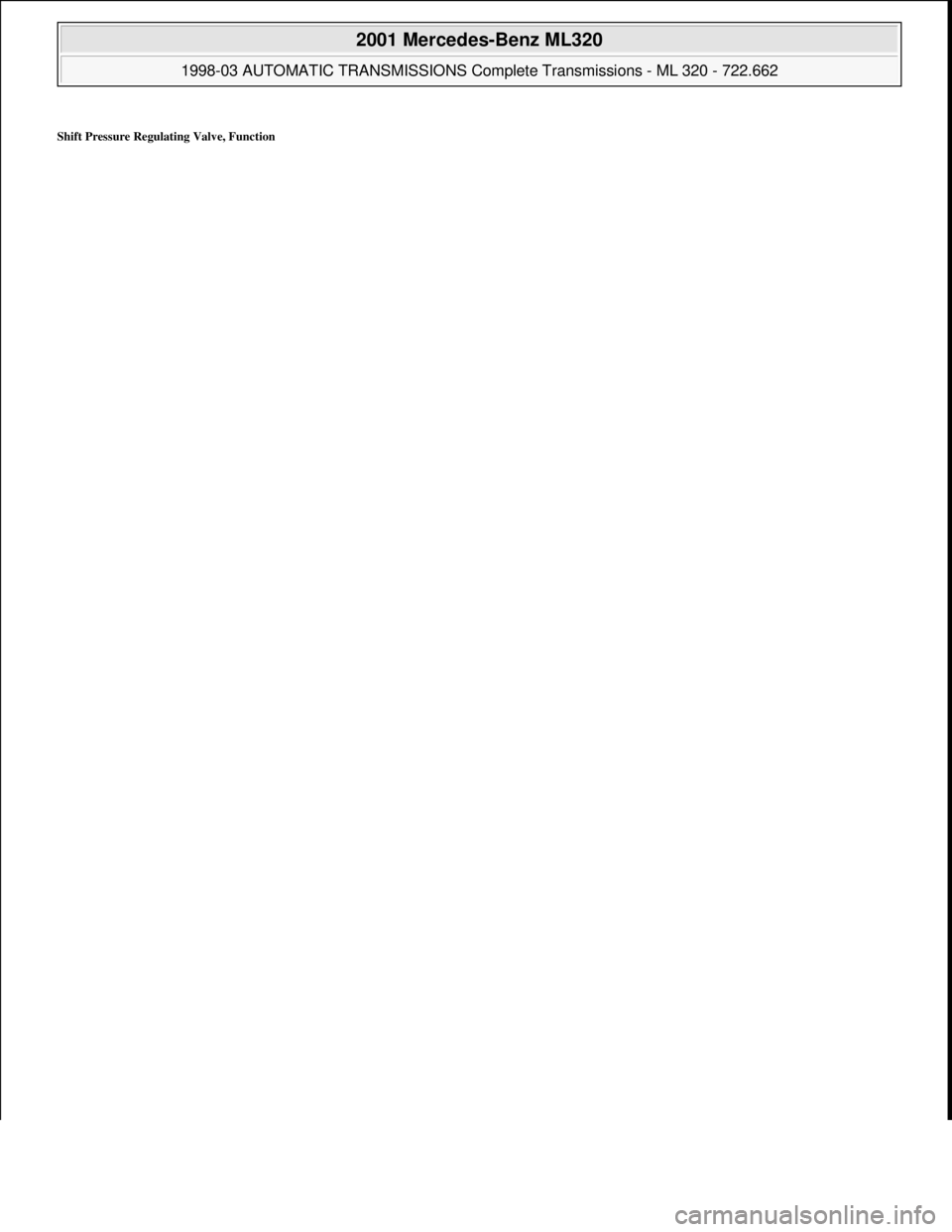

MERCEDES-BENZ ML350 1997 Complete Repair Manual Shift Pressure Regulating Valve, Function 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 123 ©

Page 1293 of 4133

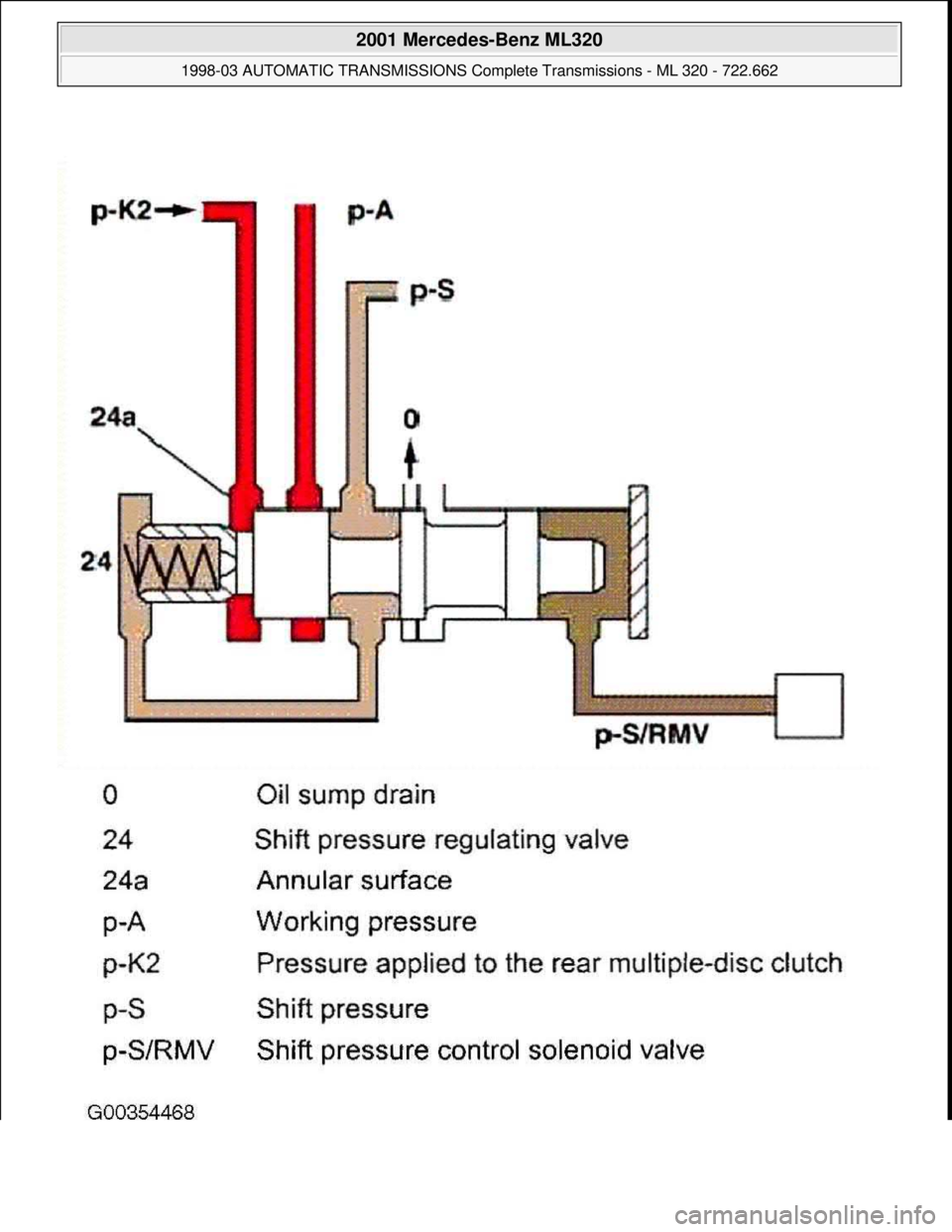

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 124 © 2006 Mitchell Repair Information Company,

Page 1294 of 4133

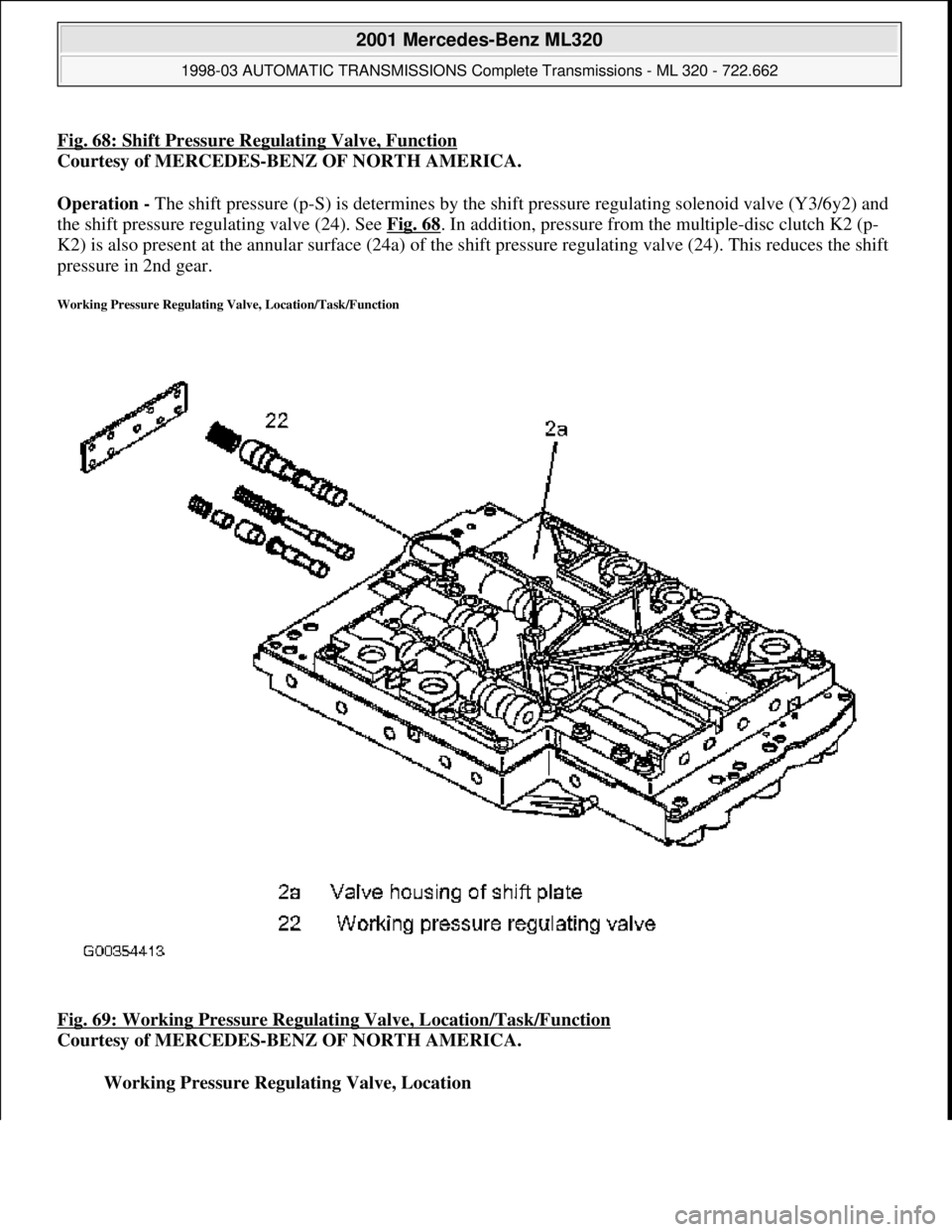

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 68: Shift Pressure Regulating Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation - The shift pressure (p-S) is determines by the sh ift pressure regulating solenoid valve

Page 1295 of 4133

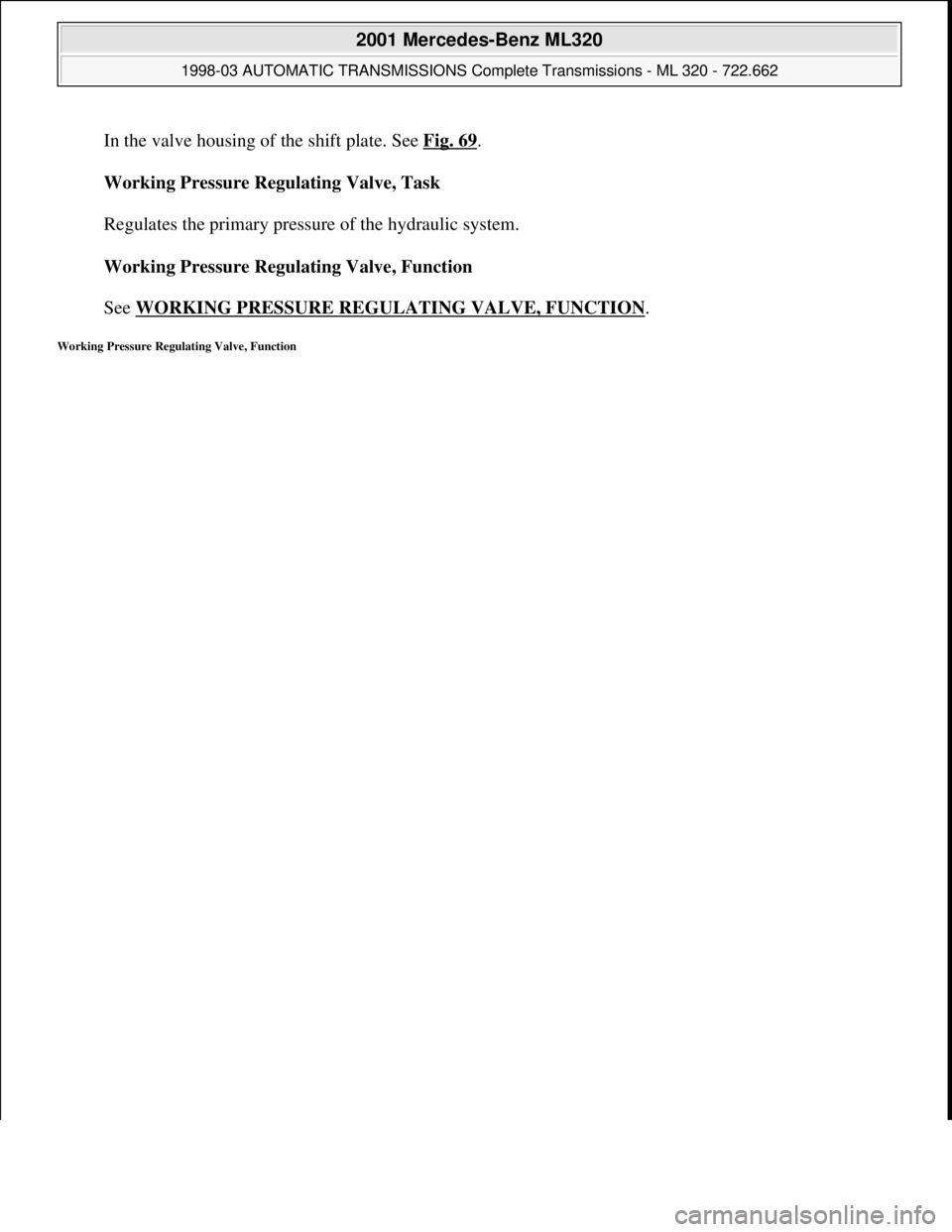

MERCEDES-BENZ ML350 1997 Complete Repair Manual In the valve housing of the shift plate. See Fig. 69. Working Pressure Regulating Valve, Task Regulates the primary pressure of the hydraulic system. Working Pressure Regulating Valve, Function

Page 1296 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 127 © 2006 Mitchell Repair Information Company,
